Page 1

DN167123 DN167223 DN167223X DN167233W

DN167233X DN168220X DN168120 DN160200DX

RDNE20C0E21VW RDNE20C0E21VPX RDNE710E21ZW

Page 2

Please read this user manual first!

Dear Customer, We hope that your product, which has been produced in modern plants and checked

under the most meticulous quality control procedures, will provide you an effective service.

Therefore, read this entire user manual carefully before using the product and keep it as

a reference. If you handover the product to someone else, give the user manual as well.

The user manual will help you use the product in a fast and safe way.

• Read the manual before installing and operating the product.

• Make sure you read the safety instructions.

• Keep the manual in an easily accessible place as you may need it later.

• Read the other documents given with the product.

Remember that this user manual is also applicable for several other models. Differences

between models will be identified in the manual.

Explanation of symbols Throughout this user manual the following symbols are used:

CImportant information or useful tips. AWarning against dangerous conditions for life and property. BWarning against electric voltage.

Page 3

CONTENTS

1 Your Refrigerator 3

2 Important Safety Warnings 4

Intended use .....................................4

General safety ..................................4

For products with a ..........................7

water dispenser; ................................7

Child safety ........................................7

Compliance with WEEE Directive and

Disposing of the Waste Product: .......7

Package information ..........................7

HC warning .......................................8

Things to be done for energy saving ..8 Recommendations for the fresh food

compartment .....................................8

3 Installation 9

Points to be paid attention to when the

relocation of the refrigerator ...............9

Electrical connection ..........................9

Disposing of the packaging .............10

Disposing of your old refrigerator .....10

Placing and Installation ....................10

Adjusting the legs ............................11

Changing the illumination lamp .......11

Door Open Warning .........................11

4 Preparation 12

5 Using your refrigerator 13

Indicator Panel .................................13

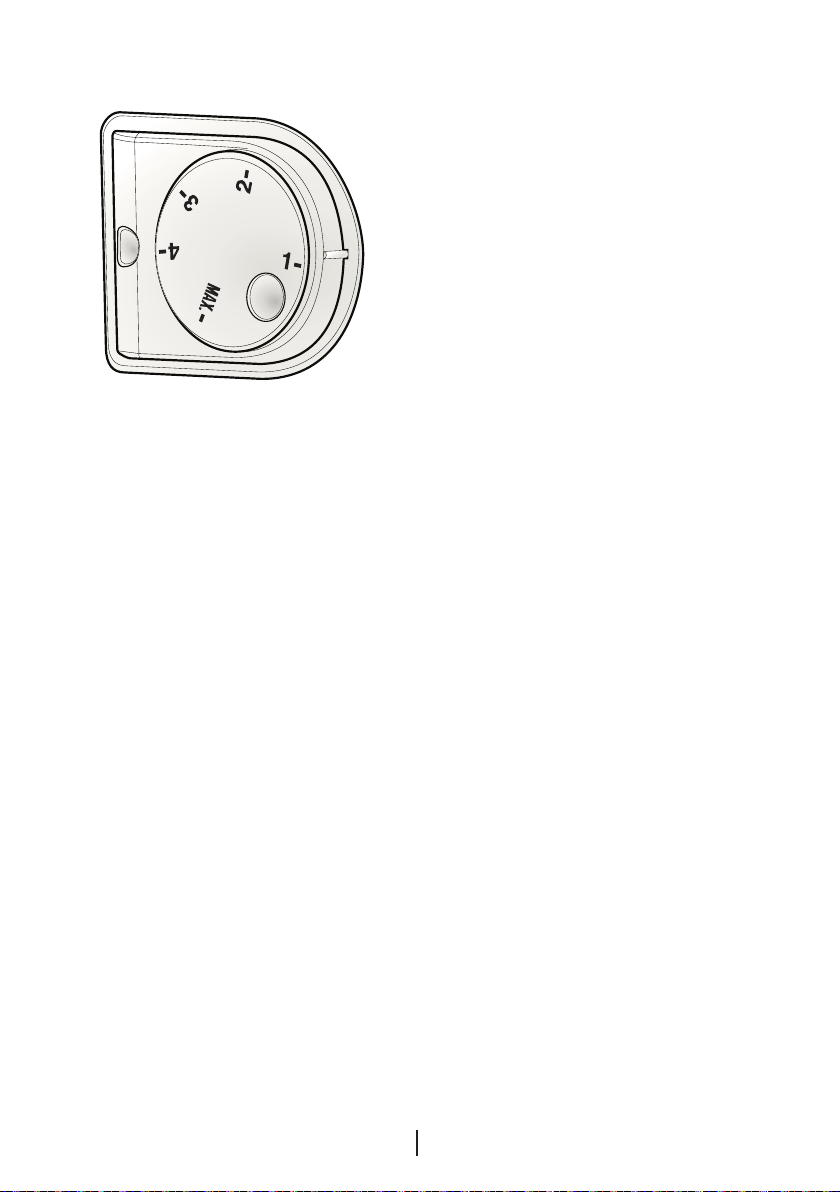

Temperature setting button ..............24

Setting the temperature of your

refrigerator .......................................24

Dual cooling system ........................24

Recommendations for preservation of

frozen food ......................................25

Defrosting ........................................25

Placing the food ..............................25

Deep-freeze information ..................26

Egg section .....................................26

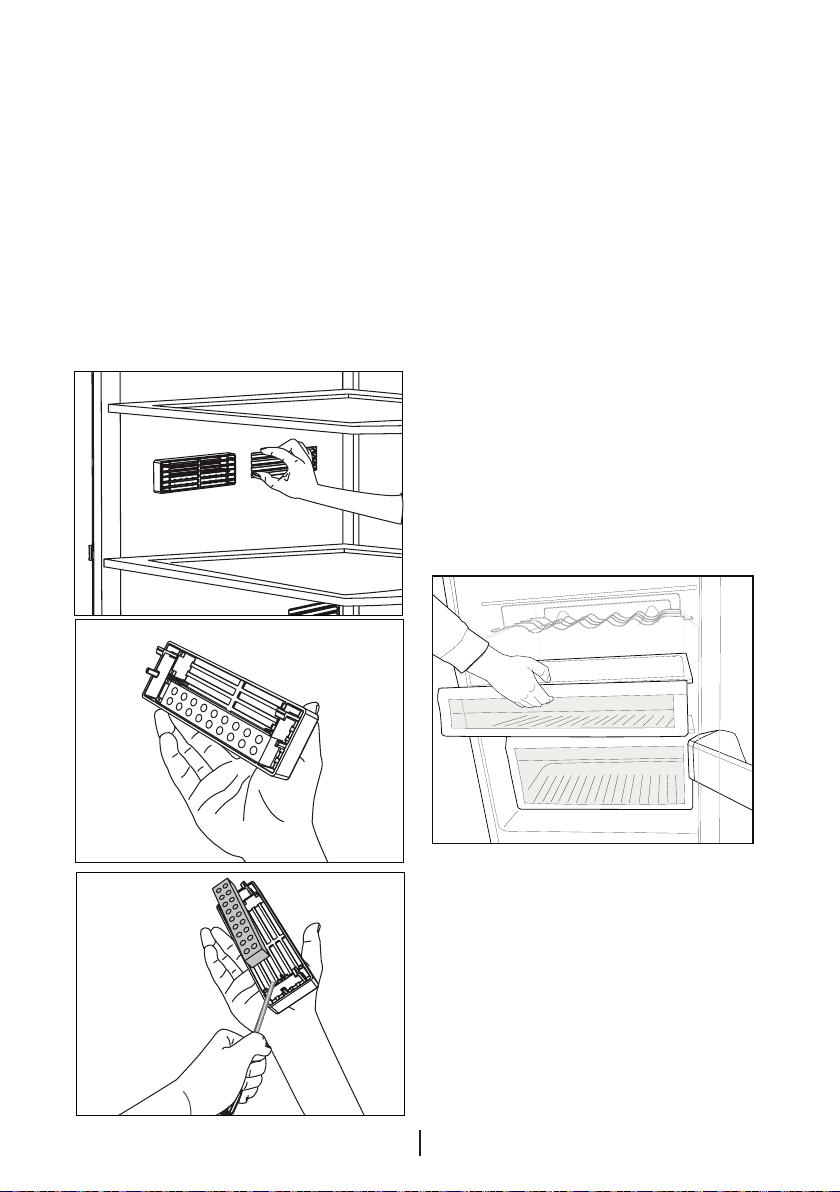

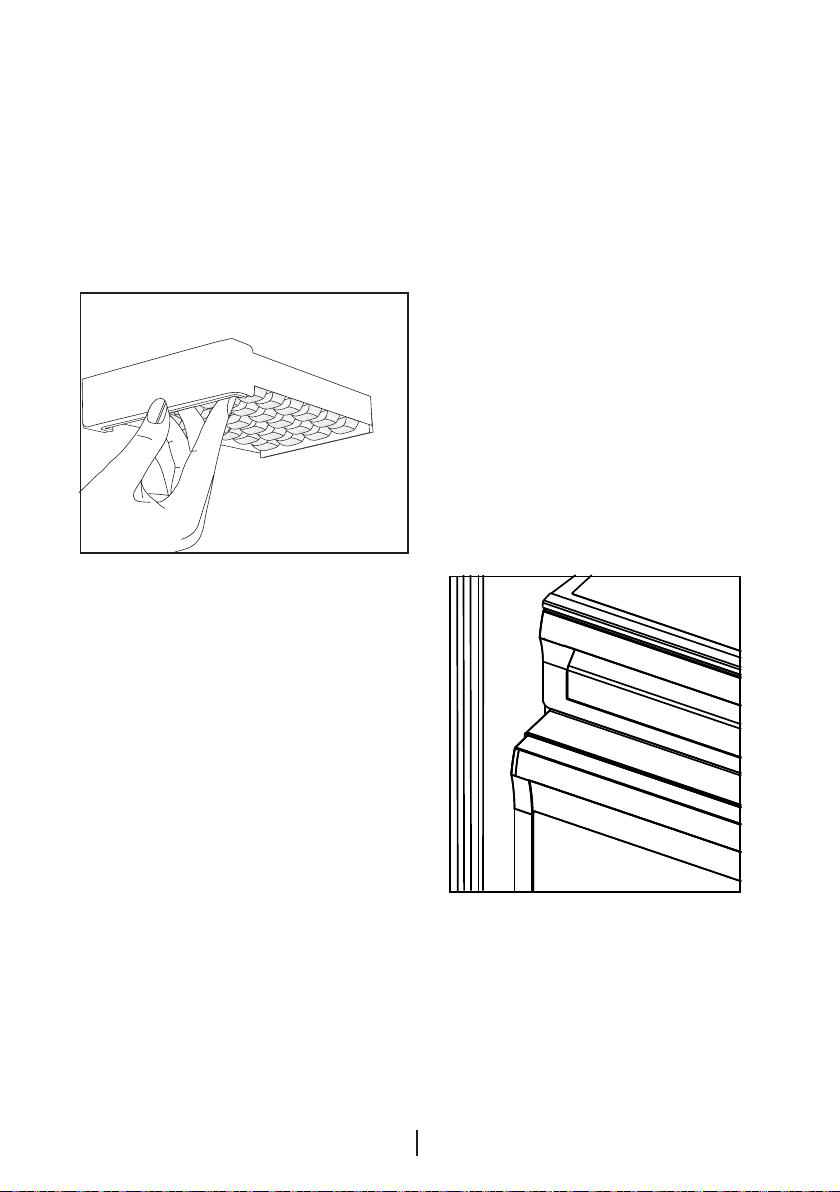

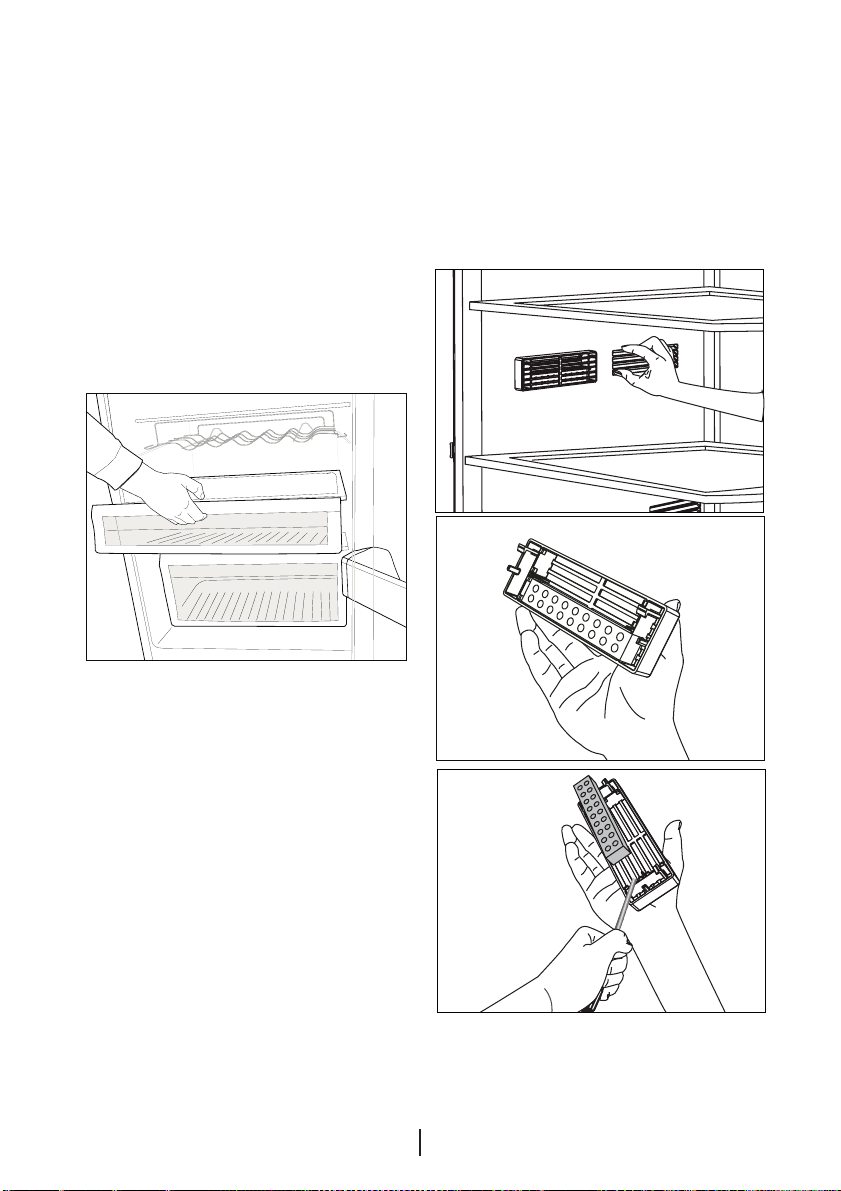

Description and cleaning of odor

filter ................................................27

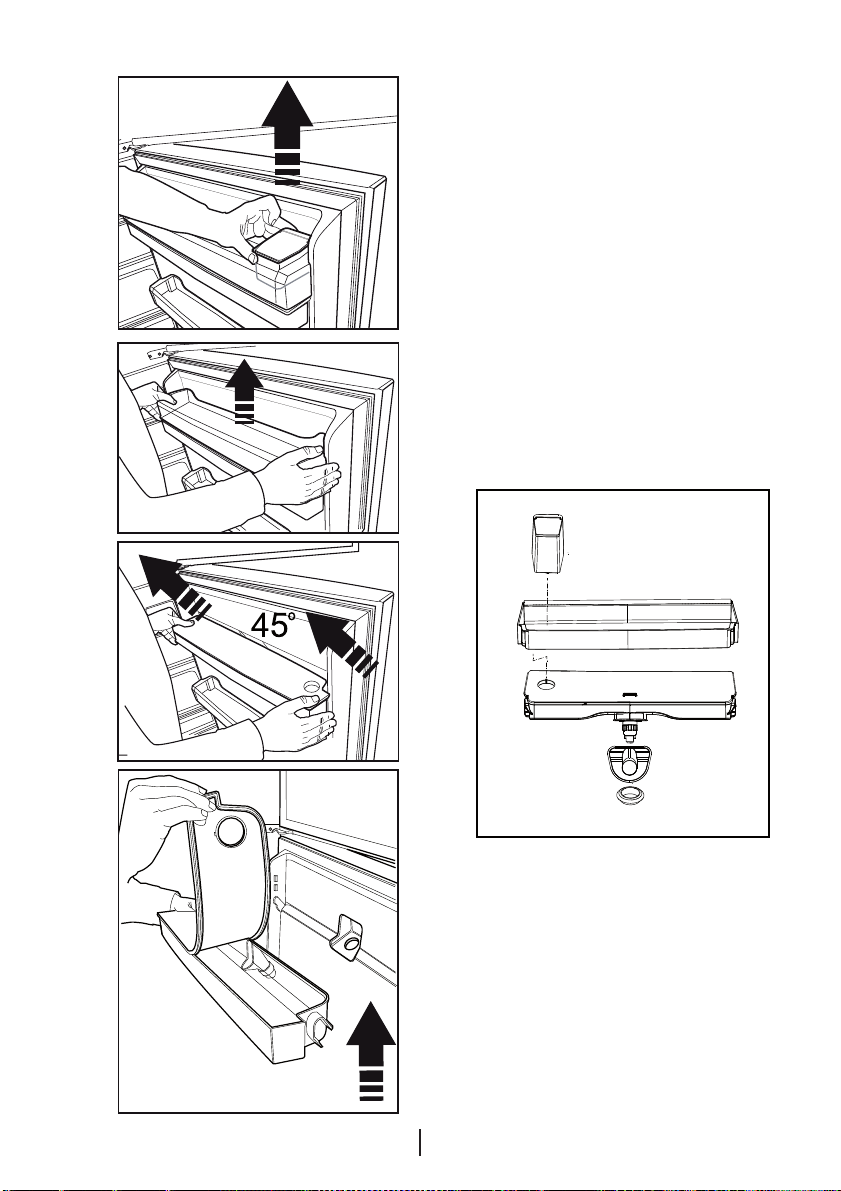

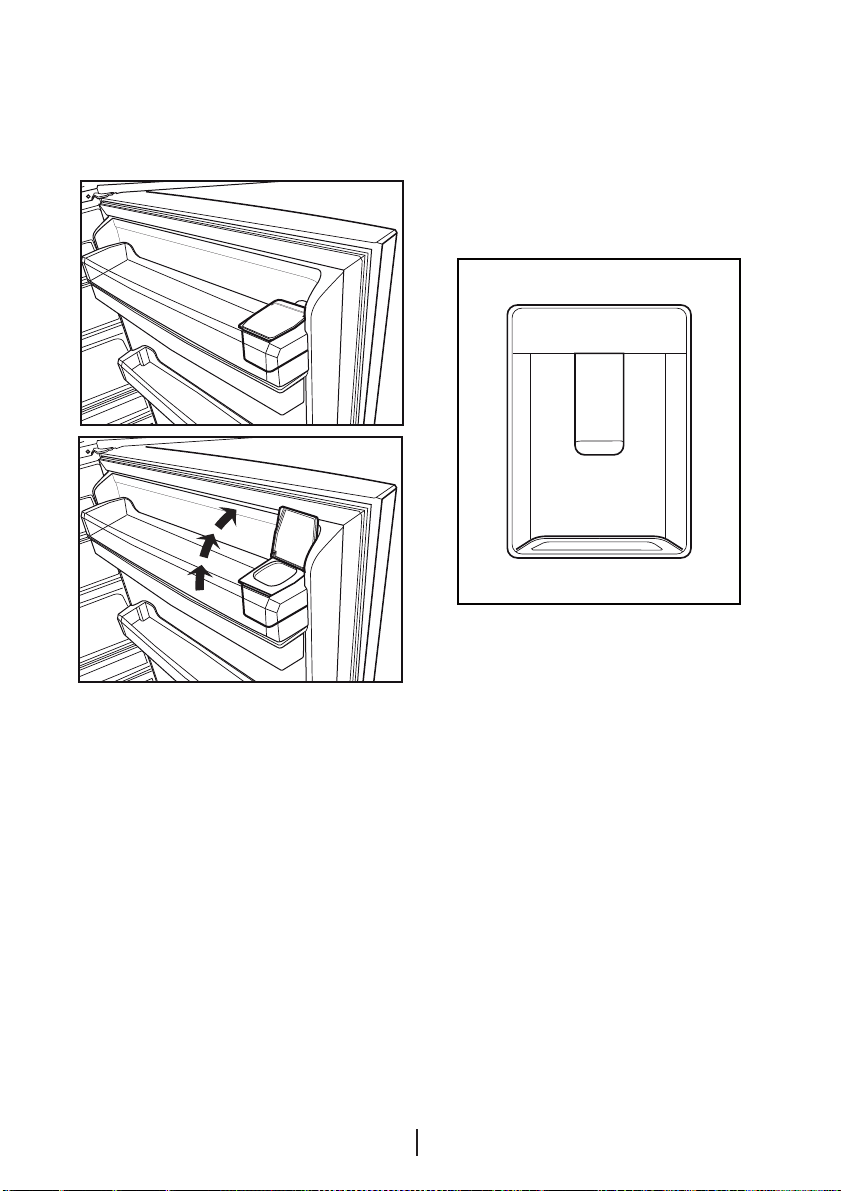

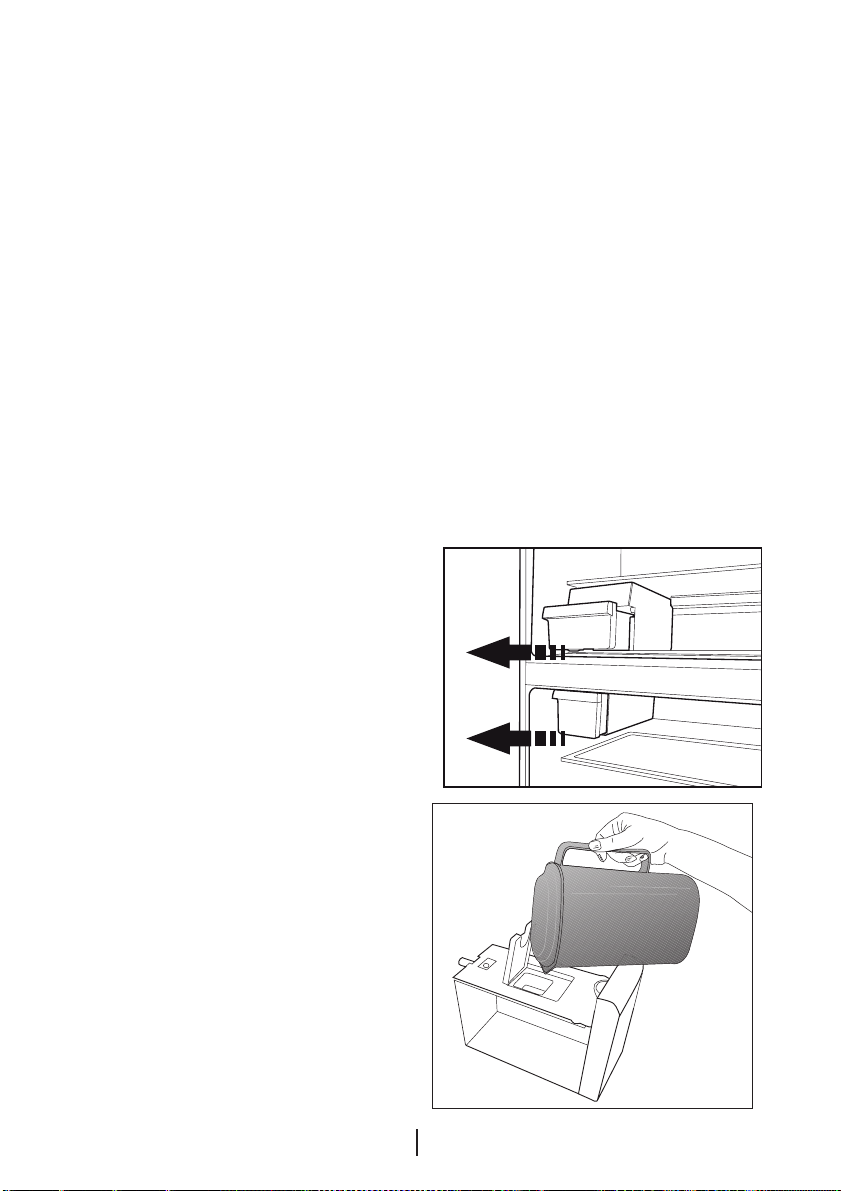

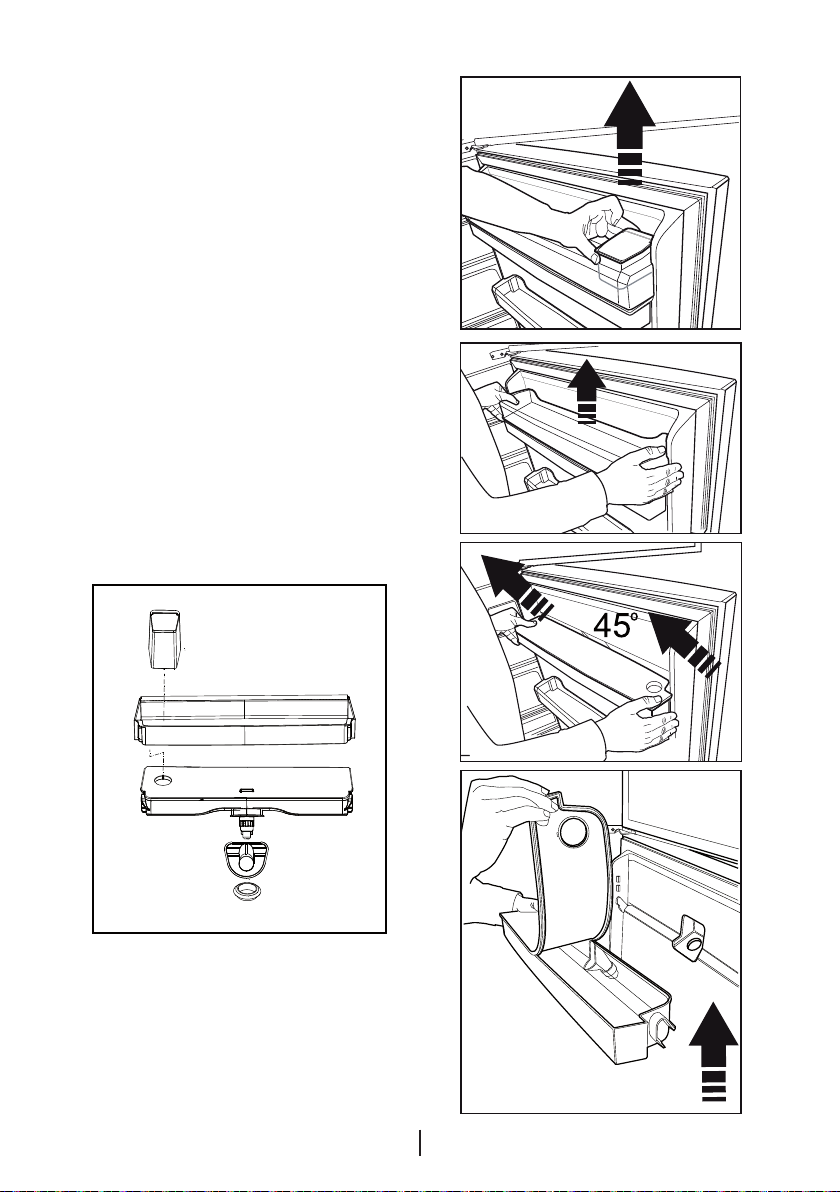

Water Dispenser ..............................28

Blue light .........................................30

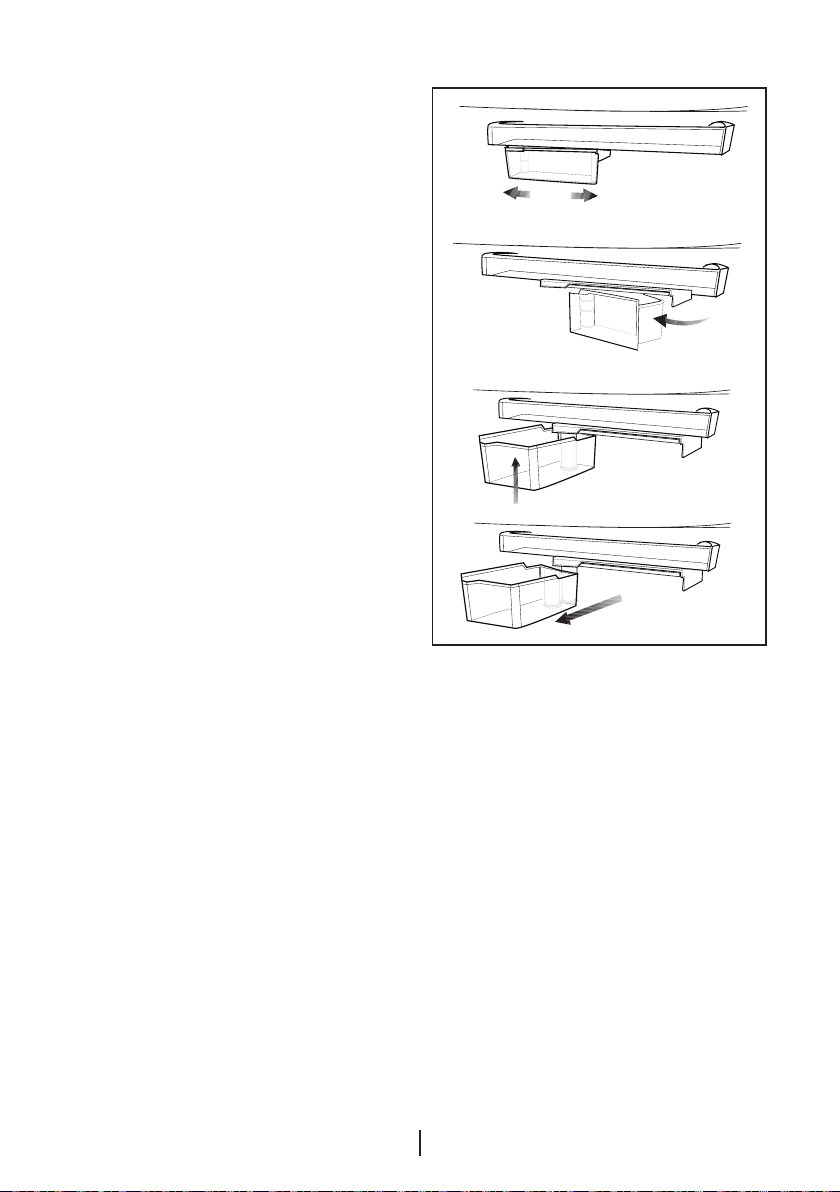

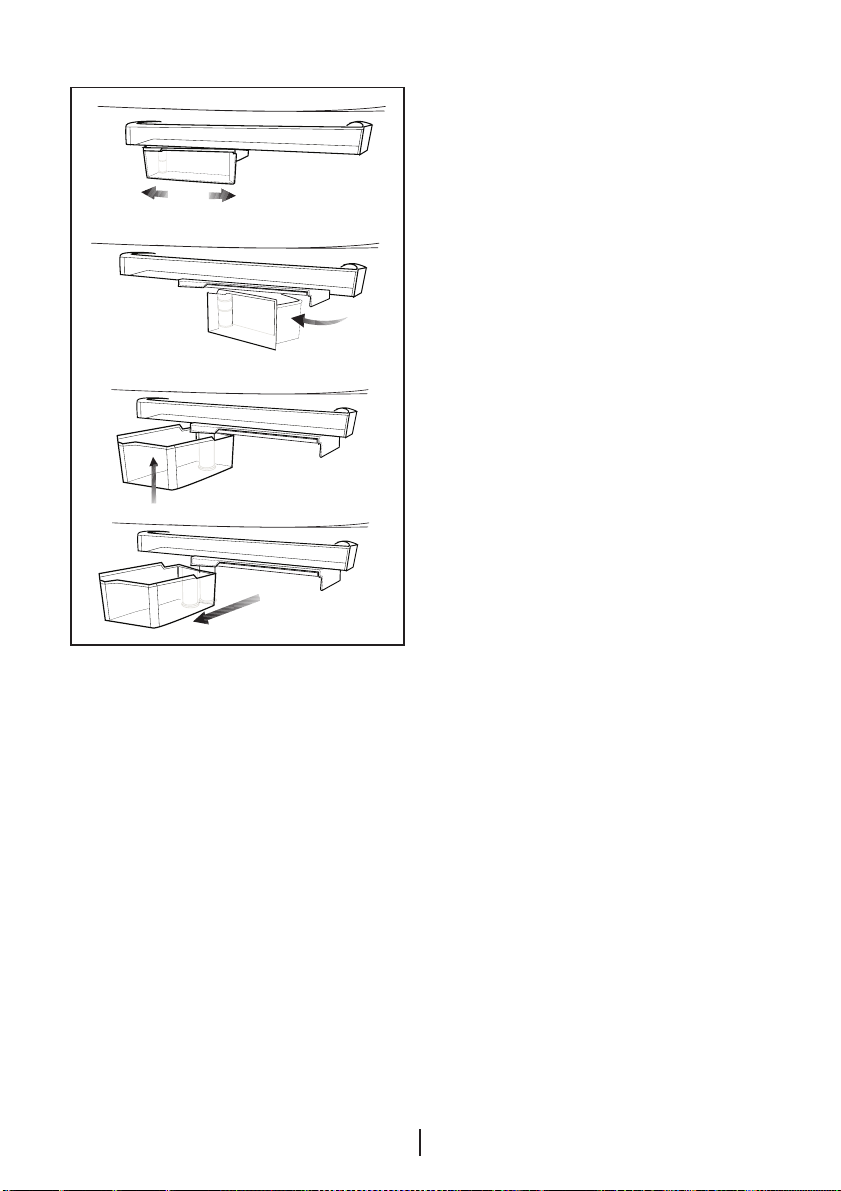

Sliding storage container .................30

Rotary storage container .................31

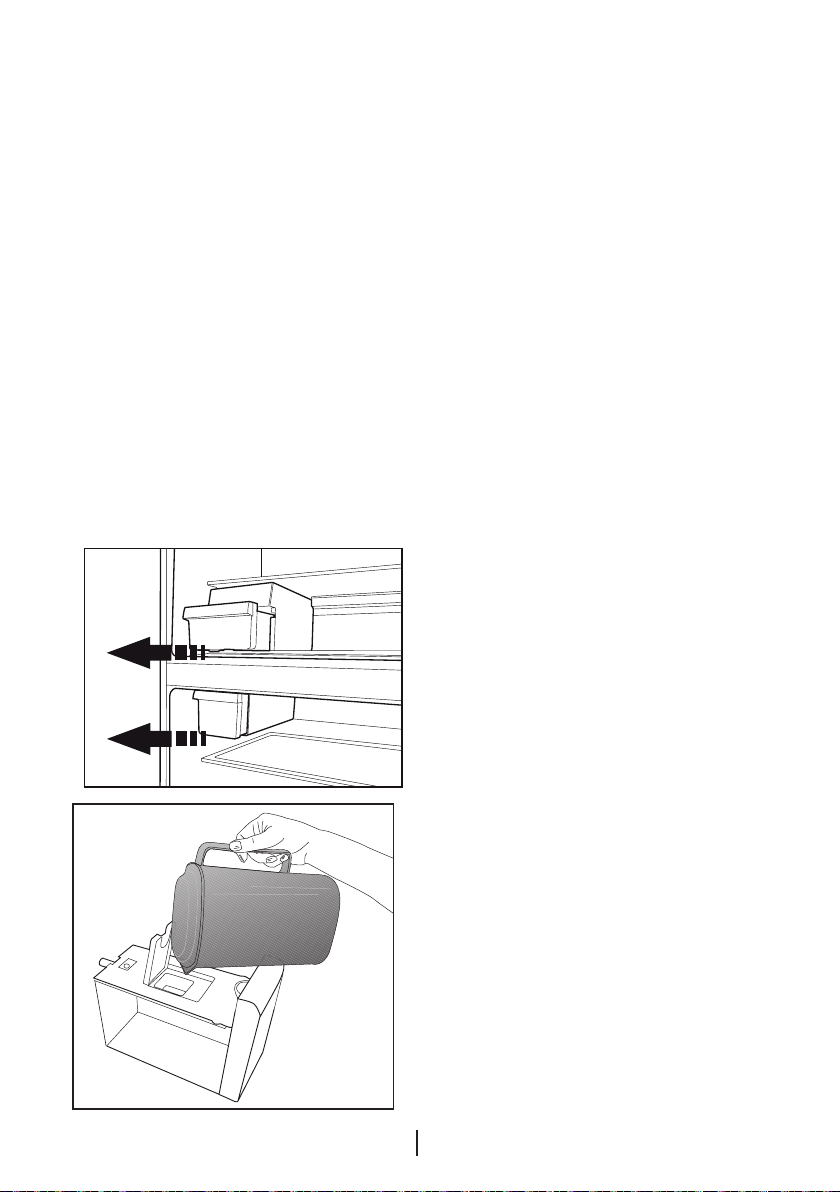

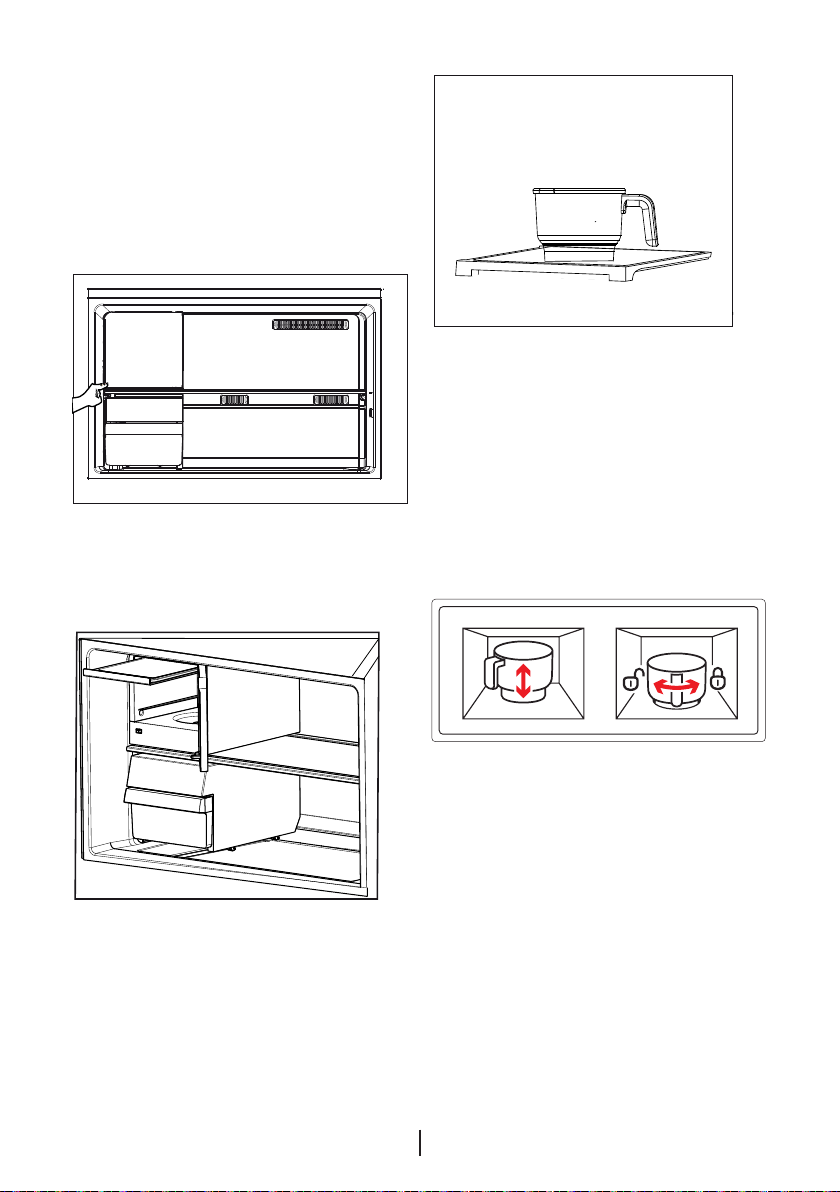

Auto Icematic .................................32

Icematic and ice storage container ..33

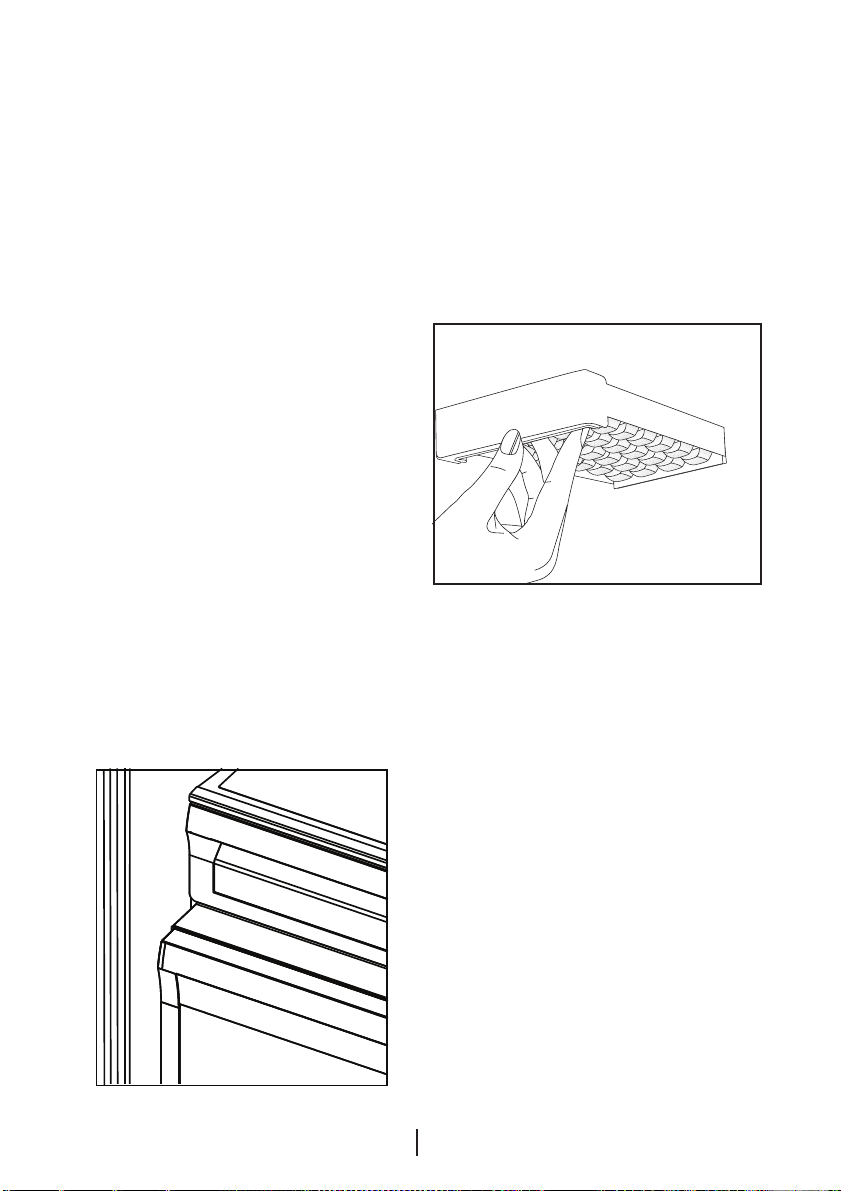

Making ice .......................................34

Humidity-controlled crisper (Ever

Fresh) ..............................................34

Ice-cream machine ..........................35

6 Maintenance and cleaning 37

Protection of plastic surfaces ..........37

7. Troubleshooting 38

Page 4

1 Your Refrigerator

*23

22 *21 *20

*13

*19

18 *16

*15

*14

*13

*12 11

*10

1. Door shelves of the freezer compartment

2. Temperature setting indicator

3. Egg section

4. Water dispenser filling tank

5. Water dispenser reservoir

6. Door shelves of fridge compartment

7. Sliding and rotary storage containers

8. Blue light

9. Adjustable legs

10. Crisper

11. Crisper cover

12. Breakfast compartment

13. Key

14. Bottle shelf

15. Odor filter

16. Glass shelves of fridge compartment

17. Illumination glass

18. Impeller

19. Automatic Icematic water tank

20. Icebox

21. Ice storage container

22. Freezer compartment glass shelf

23. Ice-cream making machine / Quick Freeze

compartment

24. Freezer compartment

25. Fridge compartment

3 4*

*optional

C Figures in this user manual are schematic and may not correspond exactly to you product. If

the subject parts are not included in the product you have purchased, then it is valid for other models.

Page 5

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

Original spare parts will be provided for 10 years, following the product purchasing date.

Intended use

This product is intended to be

used

• indoors and in closed areas

such as homes;

• in closed working environments

such as stores and offices;

• in closed accommodation

areas such as farm houses, hotels, pensions.

• It should not be used outdoors.

General safety

• When you want to dispose/

scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

• Consult your authorized

service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

• For products with a freezer

compartment; Do not eat cone ice cream and ice cubes immediately after you take them

out of the freezer compartment! (This may cause frostbite in your mouth.)

• For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

• Do not touch frozen food by hand; they may stick to your hand.

• Unplug your refrigerator before cleaning or defrosting.

• Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

• Never use the parts on your refrigerator such as the door as a means of support or step.

• Do not use electrical devices inside the refrigerator.

• Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

• Do not cover or block the ventilation holes on your refrigerator with any material.

Page 6

• Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

• In case of any failure or during a maintenance or repair work, disconnect your refrigerator’s mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling off the plug.

• Ensure highly alcoholic beverages are stored securely with the lid fastened and placed upright.

• Never store spray cans containing flammable and explosive substances in the refrigerator.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

• Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.

• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

• Contact authorized service when there is a power cable damage to avoid danger.

• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

• This refrigerator is intended for only storing food items. It must not be used for any other purpose.

• Label of technical specifications is located on the left wall inside the refrigerator.

• Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

• If there is a blue light on the refrigerator, do not look at the blue light with optical tools.

• For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.

• This operation manual should be handed in to the new owner of the product when it is given to others.

• Avoid causing damage on power cable when transporting the refrigerator. Bending cable

Page 7

may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product

• Do not plug the refrigerator if the wall outlet is loose.

• Water should not be sprayed on inner or outer parts of the product for safety purposes.

• Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

• Never place containers filled with water on top of the refrigerator; in the event of spillages, this may cause electric shock or fire.

• Do not overload the refrigerator with food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door.

• Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator’s door.

• As they require a precise temperature, vaccines, heat-

sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.

• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.

• The plug’s tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.

• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.

• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.

• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

• The product shall never be used while the compartment which is located at the top or back of your product and in which electronic boards are available (electronic board box cover) (1) is open.

Page 8

For products with a

water dispenser;

• Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.

• If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers is you are not sure that there is no water hammer effect in your installation.

• Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating

interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum.

• Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.

• Children must be supervised to prevent them from tampering with the product.

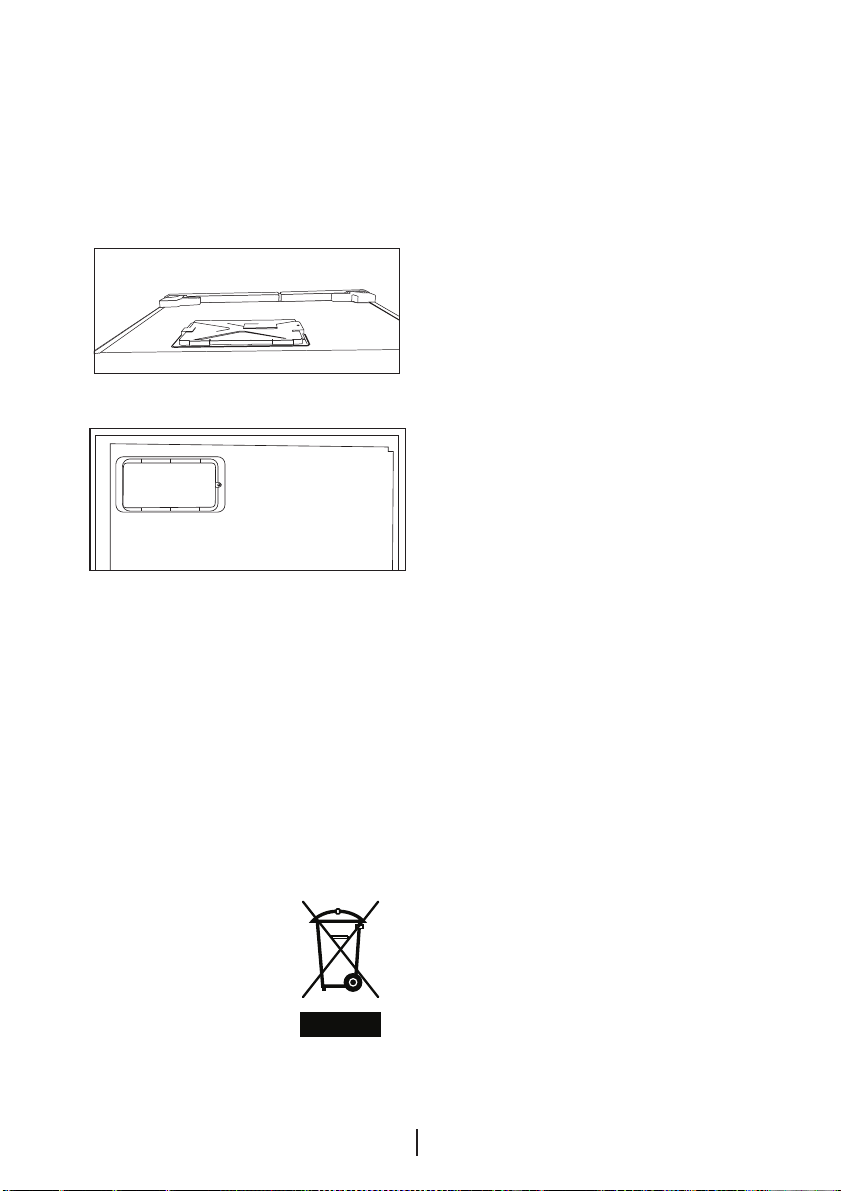

Compliance with WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/ EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been

manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. For children’s safety, cut the power cable and break the locking mechanism of the door, if any, so that it will be non-functional before disposing of the product.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the

Page 9

packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Do not forget...

Any recycled substance is an indispensable

matter for nature and our national asset wealth.

If you want to contribute to the re-evaluation of the packaging materials, you can consult to your environmentalist organizations or the municipalities where you are located.

HC warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type label which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

• For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

• Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

Recommendations for the

fresh food compartment

*May not be available in all models

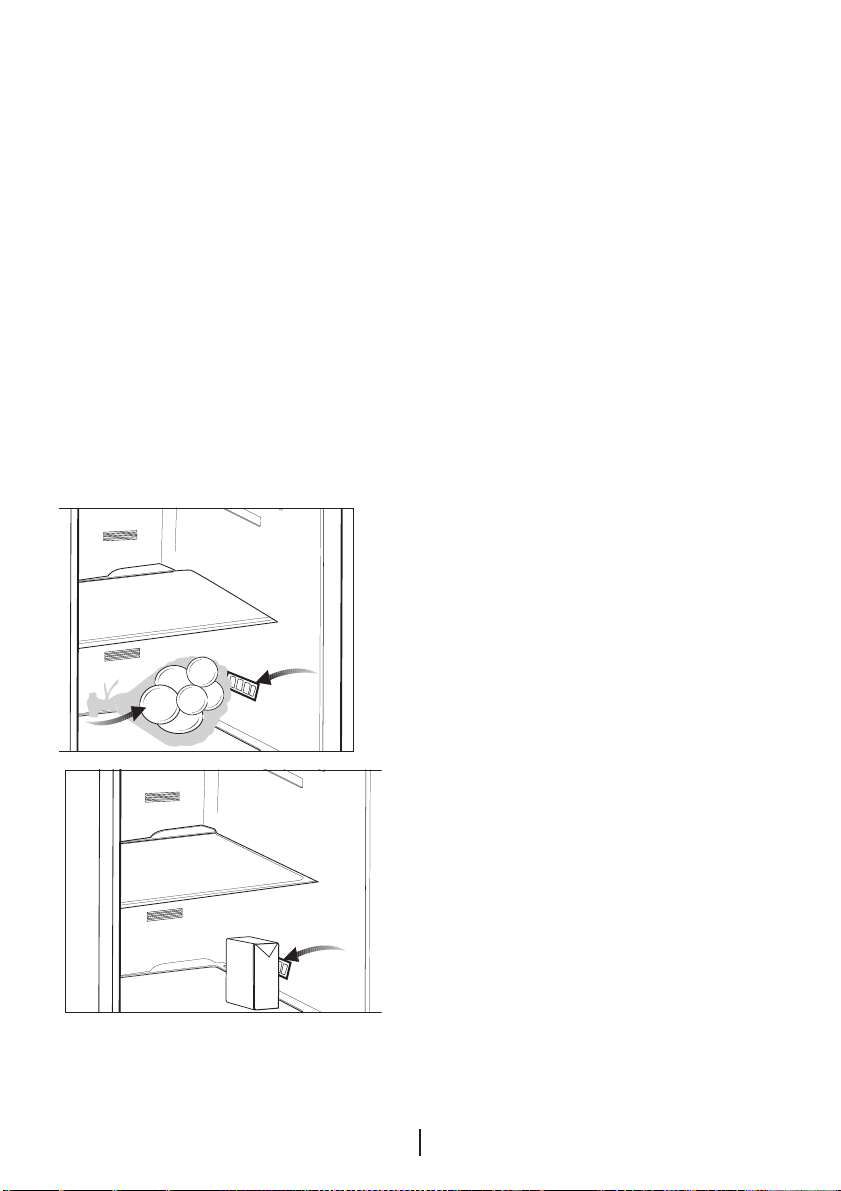

Do not allow the food to touch the temperature sensor in fresh food compartment. To allow the fresh food compartment keep its ideal storage temperature, sensor must not be hindered by food.

Do not place hot foods in the product.

Things to be done for energy

saving

• Do not leave the doors of your refrigerator open for a long time.

• Do not put hot food or drinks in your refrigerator.

• Do not overload your refrigerator so that the air circulation inside of it is not prevented.

• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators. Keep your refrigerator at least 30cm away from heat emitting sources and at least 5cm from electrical ovens.

• Pay attention to keep your food in closed containers.

Page 10

3 Installation

B In case the information which are given

in the user manual are not taken into account, manufacturer will not assume any liability for this.

Points to be paid attention to when the relocation of the refrigerator

1. Your refrigerator should be

unplugged.Before transportation of your refrigerator, it should be emptied and cleaned.

2. Before it is re-packaged, shelves,

accessories, crisper, etc. inside your refrigerator should be fixed with adhesive tape and secured against impacts. Package should be bound with a thick tape or sound ropes and the transportation rules on the package should be strictly observed.

3. Original packaging and foam

materials should be kept for future transportations or moving.

Before you start the refrigerator,

Check the following before you start to use your refrigerator:

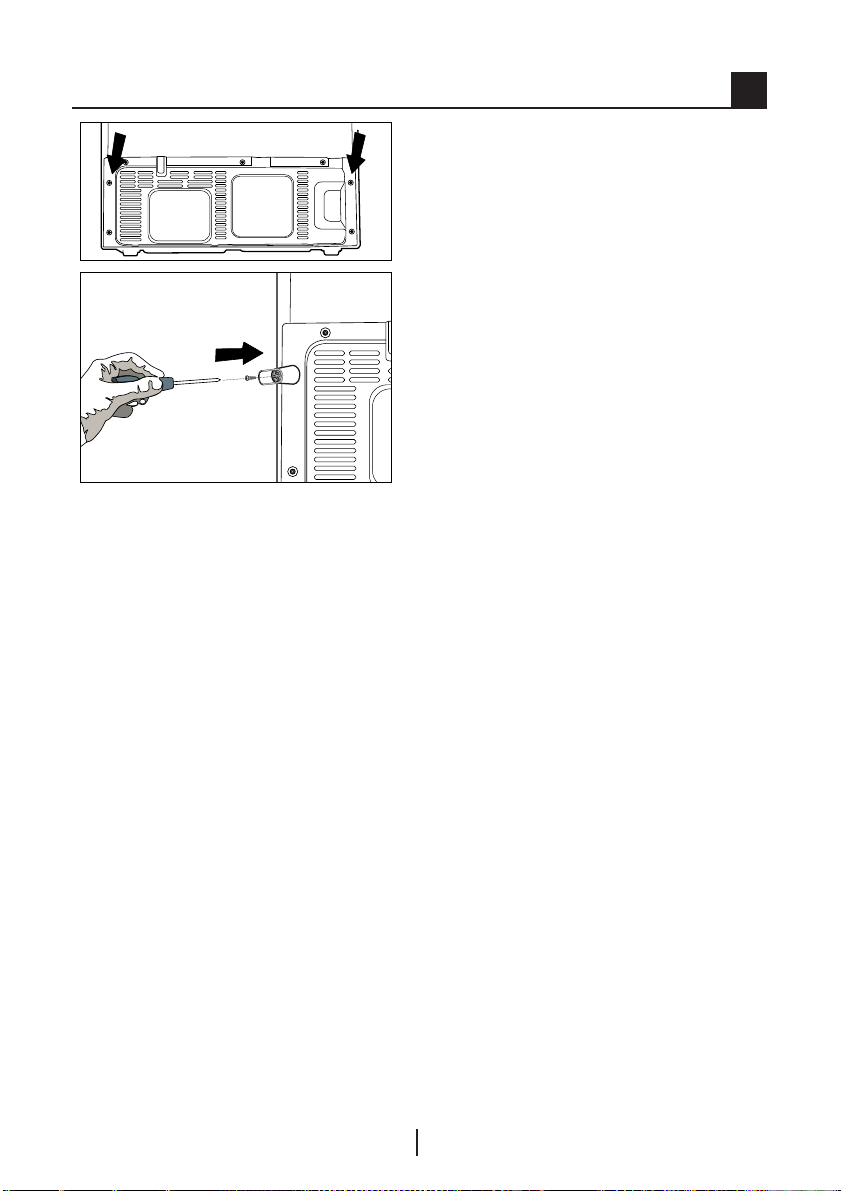

1. Attach 2 plastic wedges as

illustrated below. Plastic wedges are intended to keep the distance which will ensure the air circulation between your refrigerator and the wall. (The picture is drawn up as a representation and it is not identical with your product.)

2. Clean the interior of the refrigerator

as recommended in the “Maintenance and cleaning” section.

3. Connect the plug of the refrigerator

to the wall socket. When the fridge door is opened, fridge internal lamp will turn on.

4. When the compressor starts to

operate, a sound will be heard. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

5. Front edges of the refrigerator

may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electrical connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

The connection must be in compliance with national regulations.

• The power plug must be easily accessible

after installation.

• Electrical safety of your refrigerator shall be

guaranteed only if the earth system in your house complies with standards.

• The voltage stated on the label located at

left inner side of your product should be equal to your network voltage.

Page 11

• Extension cables and multi plugs must not be used for connection.

B A damaged power cable must be

replaced by a qualified electrician.

B Product must not be operated before it is

repaired! There is the risk of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not throw away with regular house waste, throw away on packaging pick up spots designated by the local authorities.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

• You may consult your authorized dealer

or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

A If the entrance door of the room where

the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place

that allows ease of use.

2. Keep your refrigerator away from

heat sources, humid places and direct sunlight.

3. There must be appropriate air

ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. Do not place your product on the materials such as rug or carpet.

4. Place your refrigerator on an even

floor surface to prevent jolts.

Page 12

Adjusting the legs

If your refrigerator is unbalanced;

You can balance your refrigerator by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Changing the illumination

lamp

To change the Bulb/LED used for illumination of your refrigerator, call your AuthorisedService.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20 °C.

(only chest and upright freezer)

Door Open Warning

*May not be available in all models

An audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

Page 13

4 Preparation

• Your cooler/freezer should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.

• Please make sure that the interior of your cooler/freezer is cleaned thoroughly.

• If two coolers are to be installed side by side, there should be at least 2 cm distance between them.

• When you operate your cooler/freezer for the first time, please observe the following instructions during the initial six hours.

• Its door should not be opened frequently.

• It must be operated empty without placing

any food in it.

• Do not unplug your cooler/freezer. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.

• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

• This product has been designed to function at ambient temperatures up to 43 °C (90 SDgrF). Even if the ambient temperature falls to -15 °C, frozen food in the freezer does not thaw thanks to its Advanced Electronic Temperature Control

System. For the first installation, the product should NOT be placed under low ambient temperatures. This is because the freezer cannot go down to standard operation temperature. When reaching continuous operation, the product can be moved to another place. Thus, later you can place your product in the garage or an unheated room without the concern of causing frozen food to get rotten. However, it is likely that above mentioned low temperatures may cause the freezing of the food in the fridge compartment; thus, please consume the food items in the fridge in a controlled way as needed. When ambient temperature goes back to normal, you may change button setting according to your need.

• If the ambient temperature is below 0°C, the food in fridge compartment will freeze. Therefore, we recommend not using the fridge compartment in such low ambient temperatures. You may continue to use the freezer compartment as usual.

• In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.

• Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/ body shelves and the glass containers is normal.

Page 14

5 Using your refrigerator

Indicator Panel

Indicator panels may vary depending on your product's model.

The Indicator panel aids in using your refrigerator with its audio and visual functions.

(in some models)

1 7 3

45*62

1. Freezer Compartment Temperature

Setting Indicator

2. Freezer Compartment Temperature

Setting Button

3. Fridge Compartment Temperature

Setting Indicator

4. Fridge Compartment Temperature

Setting Button

5. Economy Mode Indicator

6. Ionizer Indicator

7. Error Status Indicator

*optional

C Figures in this user manual are schematic and may not correspond exactly to you

product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

Page 15

1. Freezer Compartment Temperature Setting Indicator

Indicates the temperature set for freezer

compartment.

2. Freezer Compartment Temperature Setting Button

Press this button to set the temperature of

the freezer compartment to -18, -20, -22,

-24, -18... respectively. Press this button to set the desired temperature for the freezer compartment.

3. Fridge Compartment Temperature Setting Indicator

Indicates the temperature set for Fridge

compartment.

4. Fridge Compartment Temperature Setting Button

Press this button to set the temperature

of the fridge compartment to 8, 6, 4, 2,

8... respectively. Press this button to set the desired temperature for the fridge compartment.

5. Economy Mode Indicator

Indicates that the refrigerator is running in

energy-efficient mode.

6- Ionizer Indicator

Indicator light lights up continuously. This light indicates that your refrigerator is protected against the bacteria.

7. Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display "e" and Fridge Compartment Temperature Indicator will display numbers such as "1,2,3…". These numbers on the indicator provide information about the error to the service personnel.

Page 16

Indicator panels may vary depending on the model of your product. Audial and visual functions of the indicator panel will assist in using the product.

1. Cooler compartment indicator

2. Error status indicator

3. Temperature indicator

4. Vacation function button

5. Temperature adjustment button

6. Compartment selection button

7. Cooler compartment indicator

8. Economy mode indicator

9. Vacation function indicator

*optional

C Figures in this user manual are schematic and may not correspond exactly to you product. If

the subject parts are not included in the product you have purchased, then it is valid for other models.

Page 17

1. Cooler compartment indicator

The freezer compartment light will turn on when adjusting the cooler compartment temperature.

2. Error status indicator

This sensor will activate if the refrigerator is not cooling adequately or in case of sensor fault. When this indicator is active, the freezer compartment temperature indicator will display "E" and the cooler compartment temperature indicator will display "1, 2, 3..." etc. numbers.

The numbers on the indicator serve to inform the service personnel about the fault. ( )

3. Temperature indicator

Indicates the temperature of the freezer and cooler compartments.

4.Vacation function button

To activate this function, press and hold the Vacation button for 3 seconds. When the Vacation function is active, the cooler compartment temperature indicator displays the inscription "- -" and no cooling process will be active in the cooling compartment.

This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment.

Push the vacation function button again to cancel this function. ( )

5. Temperature adjustment button

Respective compartment's temperature

varies in -24°C..... -18°C and 8°C...1°C

ranges.( )

6. Compartment selection button

Use the refrigerator compartment selection button to toggle between the cooler and freezer compartments.( )

7. Cooler compartment indicator

The cooler compartment light will turn on when adjusting the cooler compartment temperature.

8. Economy mode indicator

Indicates the refrigerator is running on energy-saving mode. This indicator will be active when the temperature in the freezer compartment is set to -18°C. ( )

9.Vacation function indicator

Indicates the vacation function is active.(

)

Page 18

1. Freezer Compartment Temperature

Setting Button

2. Fridge Compartment Temperature Setting

Button

3. Error Status Indicator

4. Key Lock indicator

5. Eco Extra Function Indicator

6. Eco Extra / Vacation Button

7. Vacation Function Indicator

8. Energy saving function (display off)

9. Icematic Off Indicator (*in some models)

10. Economic Usage Indicator

11. Quick Fridge Function Indicator

12. Quick Fridge Function Button

13. Fridge Compartment Temperature Setting

Indicator

14. Quick Freeze Function Button Icematic

On-Off Button (3")

15. Freezer Compartment Temperature

Setting Indicator

16. Quick Freeze Function Indicator

*optional

3 4

C Figures in this user manual are schematic and may not correspond exactly to you product. If

the subject parts are not included in the product you have purchased, then it is valid for other models.

Page 19

1. Freezer Compartment Temperature Setting Button

This function allows you to set the temperature of freezer compartment. Press this button to set the temperature of the freezer compartment to -18, -19, -20, -21

-22, -23 and -24, respectively.

2. Fridge Compartment Temperature Setting Button

function allows you to set the fridge compartment’s temperature. Press this button to set the temperature of the fridge compartment to 8, 7, 6, 5, 4, 3, 2 degrees, respectively.

3. Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display "E" and Fridge Compartment Temperature Indicator will display numbers such as "1,2,3…". These numbers on the indicator provide information about the error to the service personnel.

When you place hot food into the freezer compartment or if you leave the door open for a long time, exclamation mark can illuminate for some time. This is not a failure; this warning will disappear when the food cools down.

4. Key Lock Indicator

Use this function if you do not want your refrigerator temperature setting changed. Press Fridge compartment temperature setting button and Freezer compartment temperature setting button simultaneously for a long time (3 sec) to activate this function.

5. Eco Extra Function Indicator

It indicates that the Eco-Extra function is active.

If this function is active, your refrigerator will automatically detect the least usage periods and energy-efficient cooling will be performed during those times. Economy indicator will be active while energy-efficient cooling is performed.

Press the relevant button again to

deactivate this function.

6. Eco Extra/Vacation Button

Press this button briefly to activate the Eco Extra function. Press and hold this button for 3 sec. to activate the Vacation function. Press this button again to deactivate the selected function.

7. Vacation Function Indicator

Indicates that the vacation function is active. If this function is active, "- -" appears on the indicator of the fridge compartment and no cooling is performed in the fridge compartment. Other compartments will continue to be cooled in accordance with the temperature set for them.

Press the relevant button again to deactivate this function.

8. Energy saving function (display off)

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated.When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.

Energy saving function is activated during delivery from factory and cannot be canceled.

9. Icematic Off Indicator

Icematic will not run when the indicator of this function is active.

To activate the ice off function, you need to press and hold the quick freeze button for 3 seconds.

10. Economic Usage Indicator

Indicates that the refrigerator is running in energy-efficient mode. This indicator will be active if the Freezer Compartment temperature is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

Page 20

11. Quick Fridge Function Indicator

This symbol flashes in an animated style

when the Quick Fridge function is active.

12. Quick Fridge Function Button

When you press the Quick Fridge button, the temperature of the compartment will be colder than the adjusted values.

This function can be used for food placed in the fridge compartment and required to be cooled down rapidly.

If you want to cool large amounts of fresh food, it is recommended to activate this feature before putting the food into the fridge.

Quick Fridge indicator turns on when the Quick Fridge function is on. To cancel this function, press Quick Fridge button again.

If you do not cancel it, Quick Fridge will cancel itself automatically after 4 hours or when the fridge compartment reaches to the required temperature.

This function is not recalled when power restores after a power failure.

13. Fridge Compartment Temperature Setting Indicator

Indicates the temperature set for the Fridge Compartment.

14. Quick Freeze Function Button Icematic On-Off Button (3")

Indicates the temperature set for the Freezer Compartment.

To stop ice formation, press Icematic onoff button for 3 seconds. Water flow from water tank will stop when this function is selected. However, ice made previously can be taken from the Icematic. To restart ice formation, press Icematic on-off button for 3 seconds.

15. Freezer Compartment Temperature Setting Indicator

Fast Freeze indicator turns on when the Fast Freeze function is active. To cancel this function, press Fast Freeze button again. Quick Freeze indicator will turn off and return to its normal settings. If you do not cancel it, Fast Freeze will cancel itself automatically after 8 hours or when the freezer compartment reaches to the required temperature.

If you want to freeze large amounts of fresh food, press the Fast Freeze button before putting the food into the freezer compartment.

If you press the Fast Freeze button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.

This function is not recalled when power restores after a power failure.

16. Quick Freeze Function Indicator

This symbol flashes in an animated style when the Fast Freeze function is active.

Page 21

1. Freezer Compartment Temperature

Setting Indicator

2. Freezer Compartment Temperature

Setting Function

3. Quick Freeze Function Button Icematic

On-Off Button (3")

4. Quick Freeze Function Indicator

5. Fridge Compartment Temperature Setting

Indicator

6. Fridge Compartment Temperature Setting

Function

7. Quick Fridge Function Button

8. Icematic Off Indicator (*in some models)

9. Eco-Fuzzy (Special Economic Usage)

Function

11. Vacation Function

12. Vacation Function Indicator

13. Energy Efficiency Function

14. Energy Efficiency Indicator

15. Key Lock Function

16. Key Lock indicator

17. Economic Usage Indicator

18. High Temperature/Error Warning Indicator

19. Ice Cream Mode Selection Function

20. Ice Cream Mode Selection Indicator

21. Ice Cream Indicator

22. Quick Fridge Indicator

*optional

18 16

21 10

10. Eco-Fuzzy (Special Economic Usage)

Indicator

C Figures in this user manual are schematic and may not correspond exactly to you product. If

the subject parts are not included in the product you have purchased, then it is valid for other models.

Page 22

1. Freezer Compartment Temperature Indicator

Indicates the temperature set for Freezer

Compartment.

2.Freezer Compartment Temperature Setting Function

This function allows you to set the temperature of freezer compartment. Press this button to set the temperature of the freezer compartment to -18, -19, -20, -21

-22, -23 and -24, respectively.

3. Quick Freeze Function Button Icematic On-Off Button (3”) Quick Freeze indicator is illuminated when

the Quick Freeze function is active. To cancel this function, press Quick Freeze button again. Quick Freeze indicator will turn off and return to its normal settings. If you do not cancel it, Quick Freeze will cancel itself automatically after 4 hours or when the freezer compartment reaches the required temperature. If you want to freeze large amounts of fresh food, press the Quick Freeze button before putting the food into the freezer compartment. If you press the Quick Freeze button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately. This function is not recalled when power restores after a power failure!

4. Quick Freeze Function Indicator

This symbol flashes in an animated style when the Quick Freeze function is active.

5. Fridge Compartment Temperature Setting Indicator

Indicates the temperature set for the Fridge Compartment.

compartment to 8, 7, 6, 5, 4, 3, 2 degrees, respectively.

7. Quick Fridge Function Button

When you press the Quick Fridge button, the temperature of the compartment will be colder than the adjusted values. This function can be used for food required to be cooled down rapidly in the fridge compartment. If you want to cool large amounts of fresh food, it is recommended to activate this function before putting the food into the fridge. Quick Fridge indicator is illuminated when the Quick Fridge function is active. To cancel this function, press Quick Fridge button again. Quick Fridge indicator will turn off and return to its normal settings. If you do not cancel it, Quick Fridge function will cancel itself automatically after 2 hours or when the fridge compartment reaches the required temperature.

This function is not recalled when power restores after a power failure.

8. Icematic Off Indicator

Icematic will not run when the indicator of this function is active.

To activate the ice off function, you need to press and hold the quick freeze button for 3 seconds.

9. Eco-Fuzzy (Special Economic Usage) Function

When you press Eco-Fuzzy button, Eco Fuzzy Function will be activated and EcoFuzzy Indicator will illuminate. Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active. To deactivate the Eco Fuzzy function, You need to press on the Eco-Fuzzy button again.

6. Fridge Compartment Temperature Setting Function

function allows you to set the fridge compartment’s temperature. Press this button to set the temperature of the fridge

10. Eco-Fuzzy (Special Economic Usage) Indicator

This symbol illuminates when the Eco-

Fuzzy Function is active.

Page 23

11. Vacation Function

Press and hold Eco Fuzzy button for 3 seconds to activate Vacation Function and illuminate Vacation Indicator. The cooling of Fridge Compartment is stopped and temperature of Fridge Compartment is fixed to 15 degrees to prevent bad odors. When this function is active, Fridge Compartment Temperature Indicator will not display the temperature. To deactivate Vacation Function, press and hold Eco-Fuzzy button for 3 seconds.

15. Key Lock Function

When you press and hold Key Lock button for 3 seconds, Key Lock Function will be activated and Key Lock Indicator will illuminate. No button will operate when this function is active. Press and hold Key Lock button for 3 seconds again to deactivate this function.

16. Key Lock Indicator

This indicator will illuminate when Key Lock Function is active.

12. Vacation Function Indicator

This indicator illuminates when Vacation

Function is active.

13. Energy Saving Function

When you press Energy Efficiency button, Energy Efficiency Function will be activated and Energy Efficiency Indicator will illuminate. When Energy Efficiency Function is active, all indicators, except for Energy Efficiency Indicator, will turn off. This function will be deactivated when any button is pressed or door is opened; display indicators will return normal settings and Energy Efficiency Indicator will stay illuminated. If you do not press any button or open the door within 5 minutes when Energy Efficiency Indicator is still illuminated, Energy Efficiency Function will be activated again and display indicators will turn off. If you press Energy Efficiency button when the function is not active but the indicator is still illuminated, this will deactivate Energy Efficiency function and turn off Energy Efficiency Indicator.

14. Energy Saving Indicator

This indicator illuminates when Energy Efficiency Function is selected.

17. Economic Usage Indicator

Economic Usage Indicator turns on when the Freezer Compartment is set to -18°C. When Quick Freeze or Quick Fridge is selected, Economic Usage Indicator will not illuminate.

18. High Temperature/Error Warning Indicator

This light illuminates during high temperature failures and error warnings.

19. Ice Cream Mode Selection Function

When the Ice Cream button is pressed for 3 seconds; it will flash.

If this button is not pressed again in 30 seconds, display will return to its previous view, Ice Cream mode selection indicators will turn off.

With every short press of the Ice Cream button, the number will increase by one.

When the Ice Cream button is pressed again for 3 seconds, Ice Cream symbol on the display will turn on again. Thus, Ice Cream mode is selected and the number will turn on solid while the symbols on the left side will illuminate with animations.

When the Ice Cream process is completed, the symbols start to flash and an audio warning is given. All Ice Cream symbols will turn off after this 5-minute warning.

Just press the Ice Cream button briefly to terminate the audio warning; Ice Cream buttons will turn off too.

Page 24

If the Ice Cream button is pressed briefly when the Ice Cream process is in progress, no change will take place on the display.

When the Ice Cream Function is active, if a power cut occurs and then power is resumed again, Ice Cream process will be maintained from where it is interrupted.

If the Ice Cream function is tried to be activated when the freezer compartment is at a temperature higher than -10 °C, ‘E’ and the warning symbol on the display will flash for 30 seconds. If the user presses the Ice Cream function selection button briefly (for 3 seconds), display will return to its normal Ice Cream view, Ice Cream symbol and warning symbol will turn off.

20. Ice Cream Mode Selection Function

It shows the set Ice Cream mode.

21. Ice Cream Indicator

It turns on when the Ice Cream mode is activated.

22. Quick Fridge Indicator

This symbol flashes in an animated style when the Quick Fridge function is active.

Page 25

*Optional

Dual cooling system

Your refrigerator is equipped with two separate cooling systems to cool the fresh food compartment and freezer compartment. Thus, air in the fresh food compartment and freezer compartment do not get mixed. Thanks to these two separate cooling systems, cooling speed is much higher than other refrigerators. Odors in the compartments do not get mixed. Also additional power saving is provided since the automatic defrosting is performed individually.

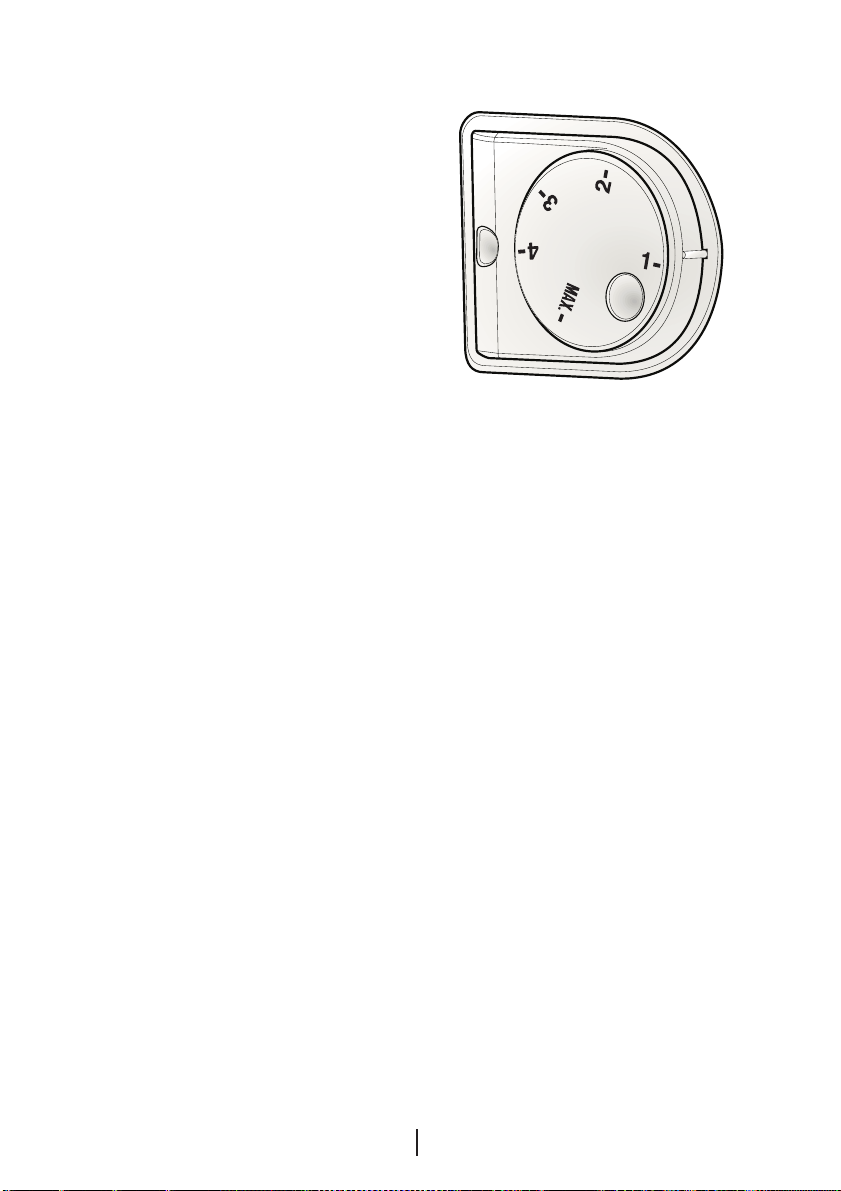

Temperature setting button

Temperature Setting button allows you to make the temperature setting of your refrigerator.

Setting the temperature of your refrigerator

The overall temperature setting of your refrigerator is made by means of the temperature setting button on the right wall of the fridge compartment. This button has 5 different temperature setting position. Select the position suitable to your needs.

Level number 1 shows when the fridge is at its hottest and the max position shows its coldest setting.

•Hotfoodmustcooldowntotheroom

temperature before putting them in the refrigerator.

•Thefoodstuffthatyouwanttofreeze

must be fresh and in good quality.

•Foodstuffmustbedividedintoportions

according to the family’s daily or meal based consumption needs.

•Foodstuffmustbepackagedinan

airtight manner to prevent them from drying even if they are going to be kept for a short time.

•Materialstobeusedforpackagings

must be resistant to cold and humidity and they must be airtight. The packaging material of the food must be at a sufficient thickness and durability. Otherwise the food hardened due to freezing may puncture the packaging. It is important for the packaging to be closed securely for safe storage of the food.

C Figures in this user manual are schematic and may not correspond exactly to you product. If

the subject parts are not included in the product you have purchased, then it is valid for other models.

Page 26

•Frozenfoodmustbeusedimmediately

after they are thawed and they should never be re-frozen.

•Pleaseobservethefollowinginstructions

to obtain the best results.

1. If the fridge has a quick freeze function, activate the quick freeze function when you want to freeze the food.

2. Do not freeze too large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

3. Take special care not to mix already frozen food and fresh food.

4. Make sure raw foods are not in contact with cooked foods in the fridge.

F r e e z e r Compa rtm ent Setting

-18°C 4°C This is the normal recommended setting.

-20, -22 or

-24°C

Quick Freeze 4°C

-18°C or colder 2°C

-18°C or colder Quick Fridge

Recommendations for

preservation of frozen food

•Pre-packedcommerciallyfrozenfood

should be stored in accordance with the frozen food manufacturer's instructions in a frozen food storage compartment.

•Toensurethatthehighqualitysupplied

by the frozen food manufacturer and the food retailer is maintained, following points should be noted:

1.Put packages in the freezer as quickly as

possible after purchase.

2.Ensure that contents of the package are

labeled and dated.

F r i d g e Compartmen t Setting

4°C

Remarks

These settings are recommended when the

ambient temperature exceeds 30°C.

Use when you wish to freeze your food in a short time. If is recommended to be used to maintain the quality of meat and fish products.

If you think that your fridge compartment is not cold enough because of the hot conditions or frequent opening and closing of the door.

You can use it when your fridge compartment is overloaded or if you wish to cool down your food rapidly. It is recommended that you activate the quick freeze function 4-8 hours before placing the food.

3. Do not exceed "Use By", "Best Before"

dates on the packaging.

Defrosting

The freezer compartment defrosts

automatically.

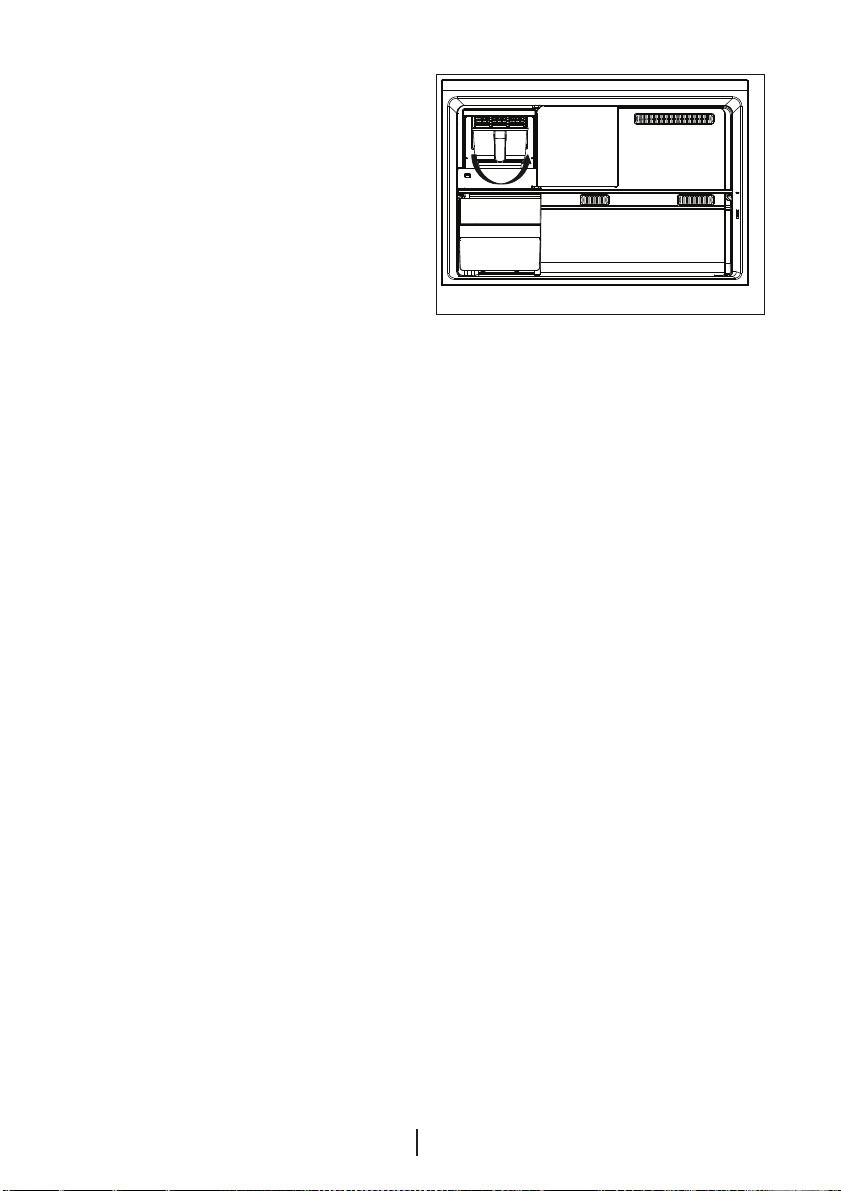

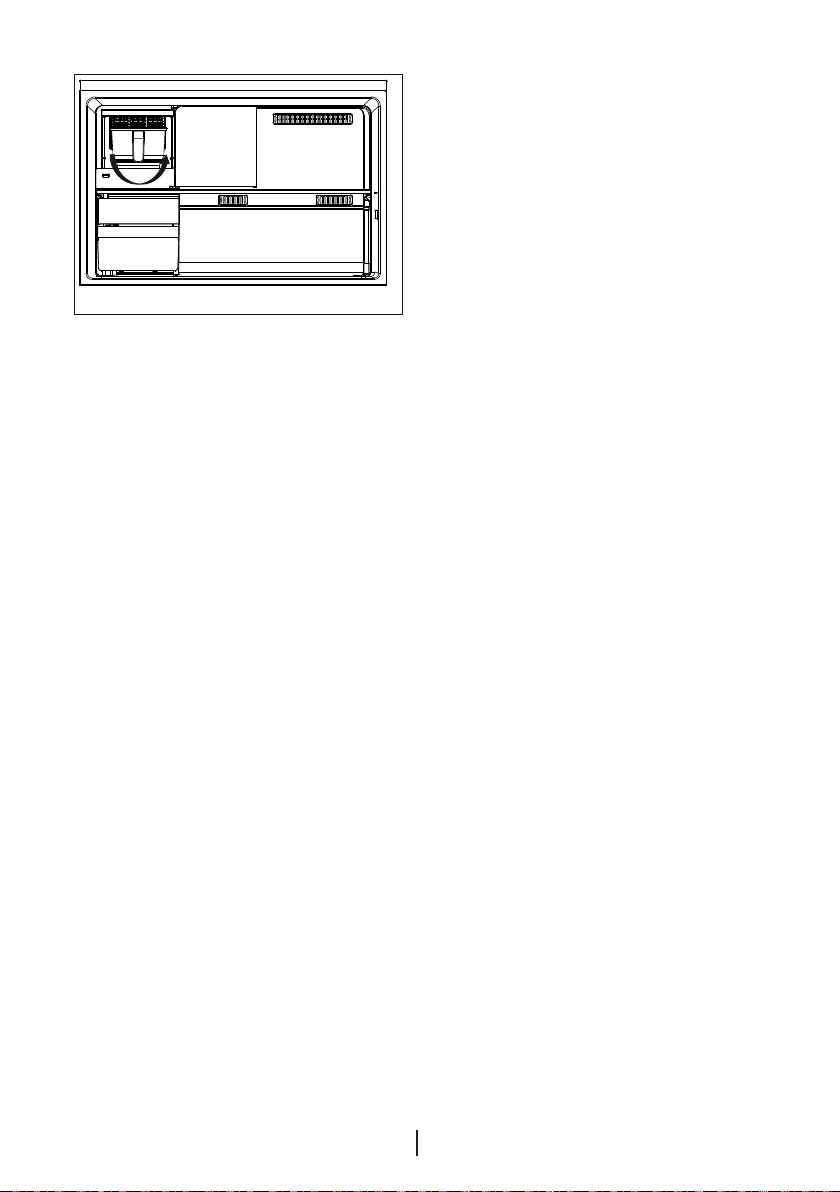

Placing the food

Freezer

compartment

shelves

Egg section Egg

Various frozen food

such as meat, fish, ice

cream, vegetables and

etc.

Page 27

Fridge

compartment

shelves

Door shelves

of fridge

compartment

Crisper Vegetables and fruits

Freshzone

compartment

Food in pans,

covered plates and

closed containers

Small and packaged food and drinks (such as milk, fruit juice and

beer)

Delicatessen

products (cheese,

butter, salami and etc.)

Deep-freeze information

Food must be frozen as rapidly as possible when they are put in the freezer in order to keep them in good quality.

It is possible to preserve the food for a long time only at -18°C or lower temperatures.

You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze).

WARNING! A

•Foodstuff mustbedividedintoportions

according to the family’s daily or meal based consumption needs.

• Foodstuff must be packaged in an

airtight manner to prevent them from drying even if they are going to be kept for a short time.

Materials necessary for packaging:

•Coldresistantadhesivetape

•Self-adhesivelabel

•Rubberrings

•Pen

Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, dour, oils and acids.

Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing. Thawed out food must be consumed and must not be frozen again.

Egg section

You can place the egg section in any of the door shelves. If it is going to be placed in the body, the lower shelves are recommended due them being cooler.

Never store eggs in the freezer compartment.

Avoid direct contact between eggs and other foods.

Page 28

Description and cleaning of

odor filter

*May not be available in all models

Odor filter prevents unpleasant odor build-

up in your refrigerator.

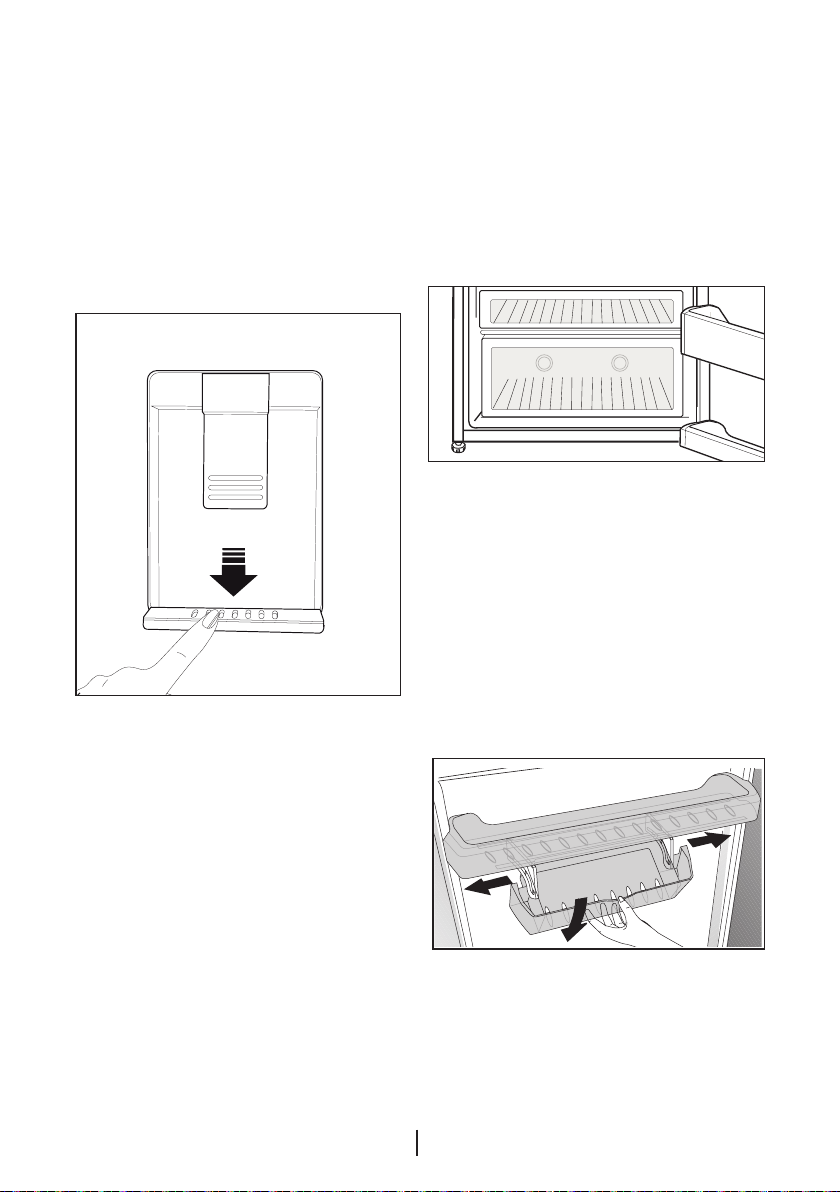

Pull the cover into which the odor filter is installed downwards from the front section and remove as illustrated. Leave the filter under sunlight for one day. Filter will be cleaned during this time. Install the filter back to its place.

Odor filter must be cleaned once in a year.

Breakfast Compartment

Because products such as fish, red meat, chicken mean, and dairy products such as cheese, yoghurt and milk need to be kept in an ambient a few degrees cooler than the fridge compartment, it is recommended to store these goods in the breakfast compartment. It is not recommended to place fruit and vegetables in the breakfast compartment. Especially tomatoes, eggplants, zucchinis, cucumbers and lemons are sensitive to the cold. They should not be stored in the breakfast compartment.

You can increase the inner volume of your refrigerator by removing the breakfast compartment.

1. Pull the compartment towards yourself

until it rests and stops against the stopper.

2. Lift the front section and pull towards

yourself to remove the compartment from its seating.

Page 29

Water Dispenser

*optional

Water dispenser is a very useful feature based on reaching cold water without opening the door of your refrigerator. As you will not have to open your refrigerator door frequently, you will have saved energy.

Using the water dispenser

Push the arm of the water dispenser with your glass. The dispenser will cease operating once you release the arm.

When operating the water dispenser, maximum flow can be obtained by pressing the arm fully. Please remember that the amount of flow from the dispenser is subject to the degree you press the arm.

As the level of the water in your glass/ container rises, slightly lessen the pressure on the arm to prevent the overspill. If you slightly press the arm, the water will drip; this is quite normal and not a failure.

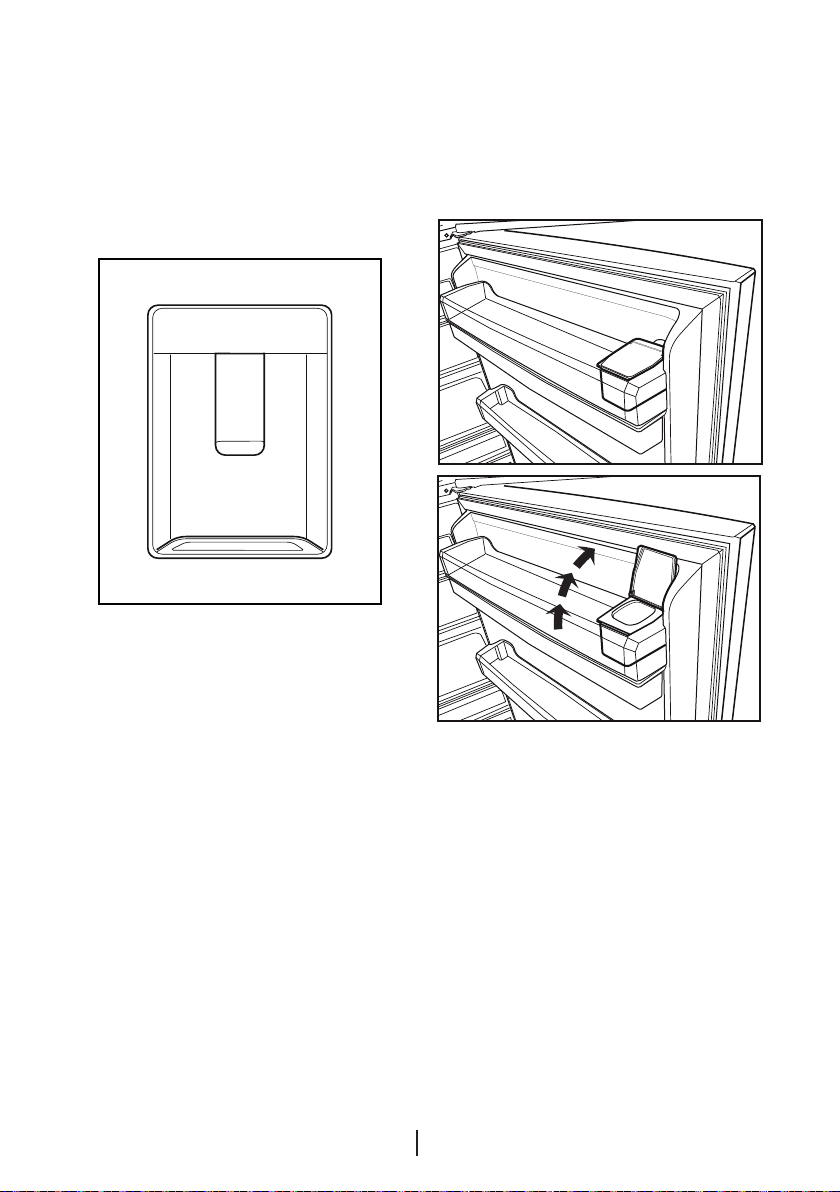

Filling the water dispenser's tank

Water tank filling reservoir is located inside the door rack. You can open the reservoir cover and fill it with potable water. And then, close the lid.

Warning!

• Donotfillthewatertankwithanyliquid

other than water, such as fruit juices, milk, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/liquids may damage the water tank and its materials.

Page 30

• Usecleandrinkingwateronly.

• Capacityofthewatertankis3liters;do

not overfill.

• Pushthearmofthewaterdispenserwith

a rigid glass. If you are using disposable plastic glasses, push the arm with your fingers from behind the glass.

Cleaning the water tank

• Removethewaterfillingreservoirinside

the door rack.

• Removethedoorrackbyholdingfrom

both sides.

• Grabthewatertankfrombothsidesand

remove it with an angle of 45°C.

• Cleanthewatertankbyremovingitslid.

Important:

Components of the water tank and water dispenser should not be washed in dishwasher.

Page 31

Water tray

Water that dripped while using the water dispenser accumulates in the spillage tray.

Take out the plastic strainer as shown in the figure.

With a clean and dry cloth, remove the water that has accumulated.

Blue light

*May not be available in all models

Foodstuff stored in the crispers that are enlightened with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content.

Sliding storage container

*optional

This accessory is designed to increase the usage volume of the door shelves. It allows you to easily place the tall bottles, jars and tins to the lower bottle shelf thanks to its ability to move right or left.

(The illustrated figure is only an example and does not match exactly with your product.)

Page 32

Rotary storage container

(in some models)

Sliding body shelf can be moved to left or right in order to allow you place the tall bottles, jars or boxes to the lower shelf (Fig.

You can reach the food that you have placed into the shelf by grabbing and turning it from its right edge (Fig.2).

When you want to load or remove it to clean, turn it by 90 degrees, raise it up and pull towards yourself (Fig. 3-4).

Page 33

Auto Icematic

*optional

The Auto Icematic allows you to make ice in the fridge easily. Remove the water tank in the fridge compartment, fill it wilt water and install it back to obtain ice from the Icematic.

First ice cubes will be ready in approximately 2 hours in the Icematic drawer located in the freezer compartment.

If you fill the water tank completely, you will be able to obtain approximately 60-70 ice cubes.

Change the water in water tank if it has waited around 2-3 weeks.

Note: For the products having automatic

Icematic, sound may be heard during ice pouring. This sound is normal and does not signal any error.

Page 34

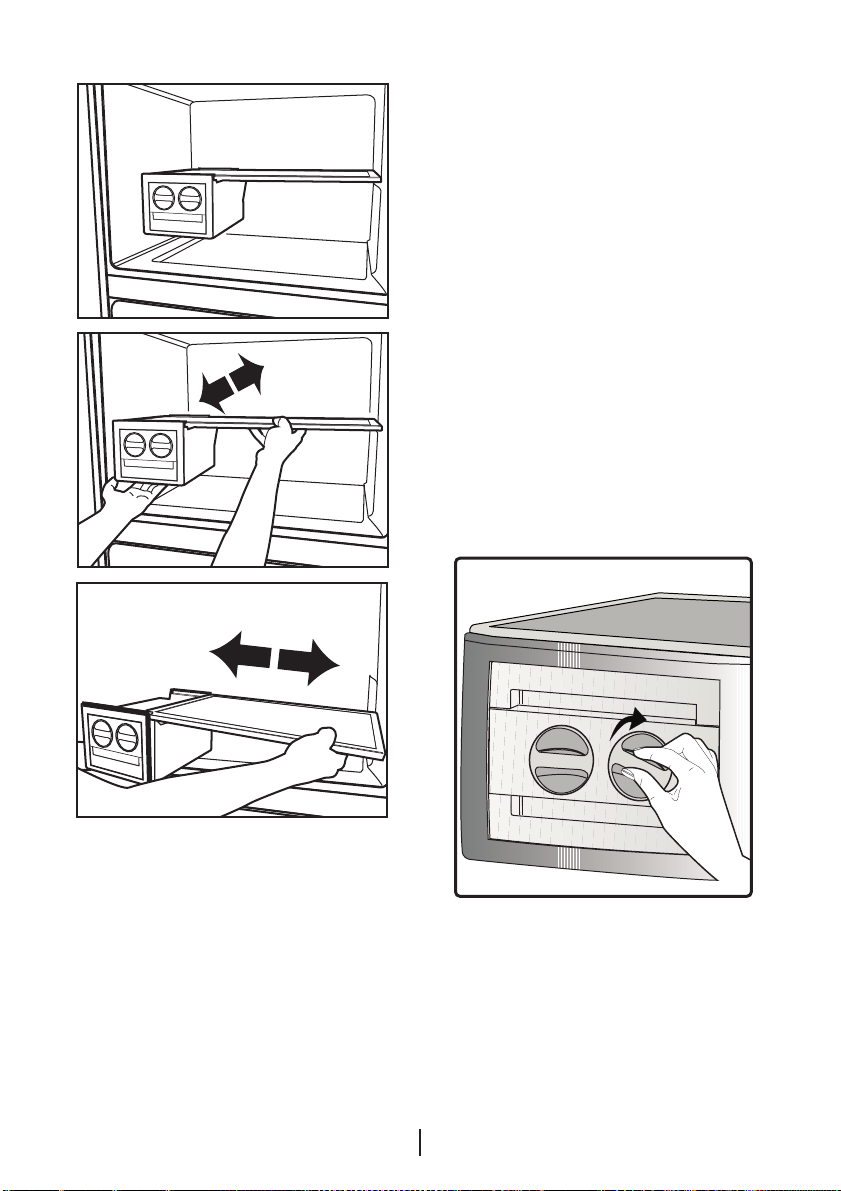

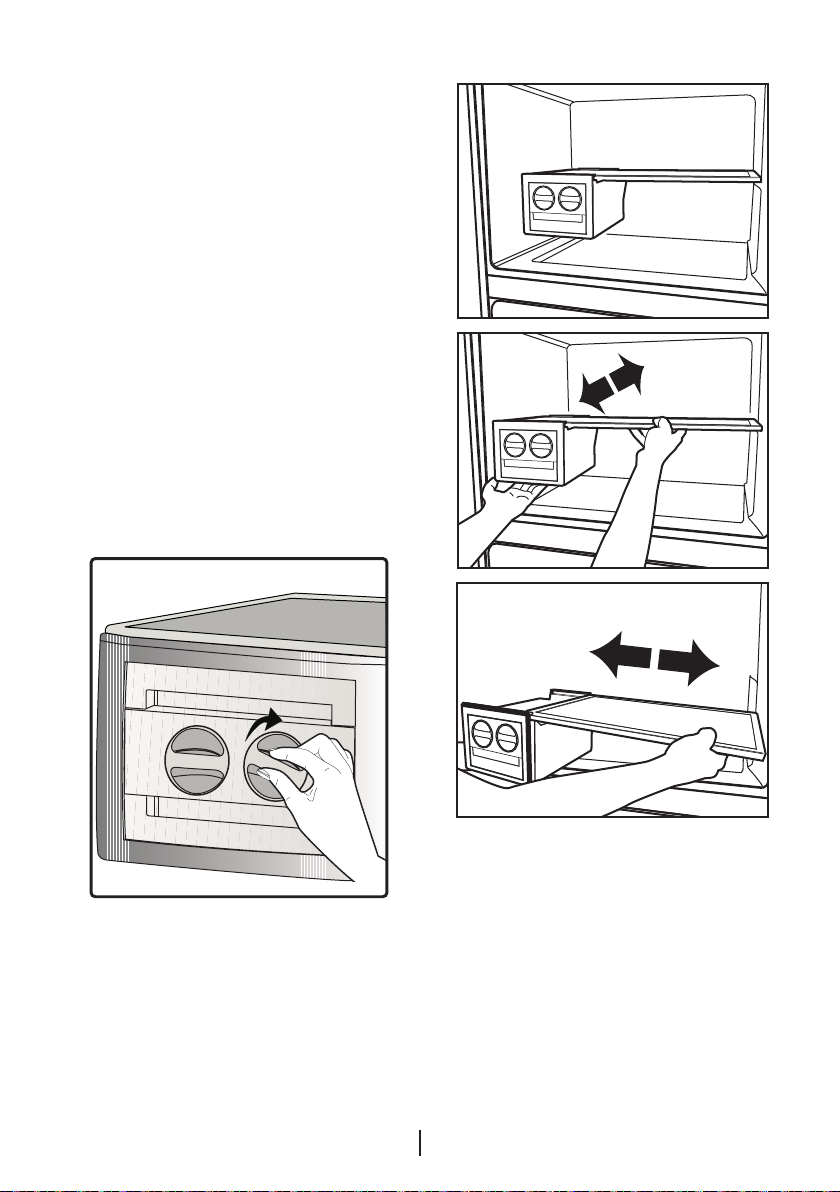

Icematic and ice storage container

*May not be available in all models Using the Icematic

Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice.

Turn the knobs on the ice reservoirs clockwise by 90 degrees.

Ice cubes in the reservoirs will fall down into the ice storage container below.

You may take out the ice storage container and serve the ice cubes.

If you wish, you may keep the ice cubes in the ice storage container.

Ice storage container

Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

Page 35

Making ice

*optional

Fill the ice container with water and place it into the freezer compartment. Your ice will be ready approximately in two hours.

You can remove the ice in the ice container by removing it from the freezer and twisting it.

Humidity-controlled crisper

(Ever Fresh)

*optional

Humidity rates of the vegetables and fruit are kept under control with the feature of humidity-controlled crisper and the food is ensured to stay fresh for longer.

While the vegetables are being placed, specific gravity of the vegetables should be taken into consideration. Heavy and hard vegetables should be put at the bottom of the crisper and the lightweight and soft vegetables should be placed over.

Do not place together the pear, apricot, peach, etc. and apple in particular which have a high level of generation of ethylene gas in the same crisper with the other vegetables and fruit. The ethylene gas which is emitted by these fruit may cause the other fruit to ripen faster and decompose in a shorter time.

Do not take the crisper main body out of the refrigerator apart from the drawers unless you have to, and call for technical service if necessary. Before removing the crisper main body from its place, wipe and clean it with a wet piece of cloth.

Never leave the vegetables inside the crisper in their bags. If the vegetables are left inside their bags, this will cause them to decompose in a short period of time. When a high level of humidity is set, your vegetables keep their humidity content and can be preserved for a reasonable period of time without needing to leave them inside their bags. In case contacting with other vegetables is not preferred for hygiene concerns, use a perforated paper, foam and other similar packaging materials instead of a bag.

Page 36

Ice-cream machine

*optional

• Openthefreezercompartmentofthe

refrigerator,

• Pushandreleaseopenthecoverofthe

ice-cream making compartment in the freezer compartment,

• Placethefreshfreezetrayinsidethebase

cover and slide it into the highest shelf inside the compartment,

• Theice-creammixwhichwillbeplacedin

the ice cream boxes must not exceed the amount stated in the ice cream recipes. If more ice cream mix is placed in the boxes than indicated in the recipe, it will overflow.

• Placethecontainerintothehousingatthe

bottom of the compartment towards the left side.

• Turnthecontainertotherightsideand

lock it into its place.

• Taketheice-creammixwhichiscooled

to room temperature to the ice-cream making container,

Page 37

• Closethecoveroftheice-making

compartment, push and release to lock it.

• Closethedoorofthefreezer

compartment.

C You can determine the ice cream

mode from the ice cream recipe book.

C Set the ice cream mode depending

on the ice cream type from the display on the door.

C Do not wash the ice cream making

container in the dishwasher.

C During the ice cream making process,

the fridge, depending on the current working conditions, will work with a slight noise for a while.

Page 38

6 Maintenance and cleaning

ANever use gasoline, benzene or similar

substances for cleaning purposes.

BWe recommend that you unplug the

appliance before cleaning.

BNever use any sharp abrasive instrument,

soap, household cleaner, detergent and wax polish for cleaning.

CUse lukewarm water to clean the cabinet of

your refrigerator and wipe it dry.

CUse a damp cloth wrung out in a solution

of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

BMake sure that no water enters the lamp

housing and other electrical items.

BIf your refrigerator is not going to be used

for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.

CCheck door seals regularly to ensure they

are clean and free from food particles.

ATo remove door racks, remove all the

contents and then simply push the door rack upwards from the base.

ADo not use sharp, abrasive tools, soap,

household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

Protection of plastic

surfaces

C Do not put the liquid oils or oil-cooked

meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

ANever use cleaning agents or water

that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

Page 39

7. Troubleshooting

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully settled. >>>

Plug it in to settle completely into the socket.

• The fuse connected to the socket

powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The door is opened too frequently >>>

Take care not to open the product’s door too frequently.

• The environment is too humid. >>>

Do not install the product in humid environments.

• Foods containing liquids are kept in

unsealed holders. >>> Keep the foods containing liquids in sealed holders.

• The product’s door is left open. >>>

Do not keep the product’s door open for long periods.

• The thermostat is set to too low

temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

• In case of sudden power failure

or pulling the power plug off and putting back on, the gas pressure in the product’s cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.

• Defrosting is active. >>> This is normal

for a fully-automatic defrosting product. The defrosting is carried out periodically.

• The product is not plugged in. >>>

Make sure the power cord is plugged in.

• The temperature setting is incorrect.

>>> Select the appropriate temperature setting.

• The power is out. >>> The product will

continue to operate normally once the power is restored.

The refrigerator’s operating noise is increasing while in use.

• The product’s operating performance

may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the

previous one. Larger products will run for longer periods.

• The room temperature may be high.

>>> The product will normally run for long periods in higher room temperature.

• The product may have been recently

plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.

• Large quantities of hot food may have

been recently placed into the product. >>> Do not place hot food into the product.

• The doors were opened frequently or

kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.

Page 40

• The freezer or cooler door may be ajar.

>>> Check that the doors are fully closed.

• The product may be set to temperature

too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.

• The cooler or freezer door washer

may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

• The freezer compartment temperature

is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

• The cooler compartment temperature is

set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

• The cooler compartment temperature is

set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature

is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.

• The doors were opened frequently or

kept open for long periods. >>> Do not open the doors too frequently.

• The door may be ajar. >>> Fully close

the door.

• The product may have been recently

plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.

• Large quantities of hot food may have

been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

• The ground is not level or durable. >>>

If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.

• Any items placed on the product may

cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

• The product’s operating principles

involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

• The product uses a fan for the cooling

process. This is normal and not a malfunction.

There is condensation on the product’s internal walls.

• Hot or humid weather will increase icing

and condensation. This is normal and not a malfunction.

• The doors were opened frequently or

kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.

Page 41

• The door may be ajar. >>> Fully close

the door.

There is condensation on the product’s exterior or between the doors.

• The ambient weather may be humid,

this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly.

>>> Clean the interior regularly using sponge, warm water and carbonated water.

• Certain holders and packaging materials

may cause odour. >>> Use holders and packaging materials without free of odour.

• The foods were placed in unsealed

holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

• Food packages may be blocking the

door. >>> Relocate any items blocking the doors.

• The product is not standing in full

upright position on the ground. >>> Adjust the stands to balance the product.

• The ground is not level or durable.

>>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

• The food items may be in contact with

the upper section of the drawer. >>> Reorganize the food items in the drawer.

If The Surface Of The Product Is Hot.

• High temperatures may be observed

between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance!Be careful when touching these areas.

A WARNING:

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

Page 42

!"# $%&' .()*+ ,-./0 12($3 ,+24 560 ,+78.( !"# 9: !

;< ,+78.( 12($3 ,+24 $-= .2>'$?.( 12($3 ,+24 560 ,+78.(

.@A/BC DEFGC 5.H IJ: 5F3 2>'$?.(

./)C/K: L/".( M6=< ./)-N>+ OEF?C L/".( PEQ' *R !

9: ST/G.( U/VW.( SC 1$-"X Y/-KX Z/B[ PEQ: *R !

;< ,+78.( IJ: 5F3 $\F]( .()$T&C ,+78.( ^_ /`V#;

.,aE6WK.( 12($b.( ,+24 5.H 2>'$?.(

/)C/K: ,+78.( *'$"F_ .($T&C c/a$`Q./a ,+78.( I-dE: 9: !

.9eb.( @"Ga /)FR; f$gFG'

hi.( ^](E8.( YEd ,+78.( S0 ,e:/B.( c/#Ej.( k"l:

.,0/A m2*J:

(i[ IKV' .,+786. ^".E6.( U/Kd SC c/#Ej.( mi[ 2*J: !

hi.(; f;*BJ.( $"0 2/GK.( *'$": P/K# n$ga U/KJ.(

k]< /KX o*-KeF.( ;< *'$"F.( 12($3 Y/+24 560 kW"# SQK'

./"-0 p-.; ^V-"q $C< (i[; .*'$"F.( rN/sEa UEt'

.,+78.( I-gl: *B0 I-glF.( c/#E# u?:$:

12($b.( ,+24 ^_ Y($-gF6. /V": ,+78.( c(4< Y/KA $-gF: *R !

)

/"-0 v.w *V' x; ^V-"q (i[;

.,+78./a ,W-bK.(

.c/#E# ;< Y(y(>F[(

*B0 ,+78.( >F`: .,"6d zG-. ;< ,'EFGC zG-. n2{( !

IKbF:; ,'ER; ,'EFGC n2{( P< SC *X|: .c!"a /`Q'$b:

.,+78.(

@e' ,+78.( 560 ,0E#EK.( c/-}{( SC YEd 2*J' *R !

.,+78.( ~WA 560 SC c/-}{( mi[ ,.(yH

.k}2 ;< IN/A L/QG]( YEd I8C c/#E# 2*J:

(i[; .,+78.( I-gl: *0(Et. /t_; Y(y/g.(; IN(EG.( L/GB: !

)

/"-0 v.w *V' x; ^V-"q

.O/'$.( $-?Ja ,`-"} c/#E# *b:

,+786. O/KG6. (O;($K.() c(E`.( Y/WlBC U*FG: !

)

/"-0 v.w *V' x; ^V-"q (i[;

./V_ IQla *'$"F./a

.,+786. ,-6T(*.( !N(Eb.( ^_ r%/Q:

(i[; .r%/QF.(; -68F.( SC @q$.(; 2/b.( ptW.( *'>' !

)

/"-0 v.w *V' x; ^V-"q

./)C/K: ,t6gC L(Ea{( P< *X|: ./)-N>+ ,3EF?C L(Ea{( !

PEQ: *R ;< ()*+ 12$QFC 12EJa ,3EF?C L(Ea{( PEQ: *R !

.IR< 2($QFa L(Ea{( ~F_( .,6'Eq 1$F?. ,3EF?C ,X;$FC

.L(Ea{( S-a ;< ,+786. ^+2/.( 2/q( ^_ ,aEq$.( *b:

c(E+{( ^_ ()*+ ^V-"q c^} (i[ ./)"q2 ptW.( PEQ' *R !

.r8QF.( ^?F' IR< ,aEq$.( PEQ: /C*B0; .,"q$.(

.,+78.( IT(4 ,`'$X ,bN(2 *+E:

IT(4 r\] .,+78.( SC ^6T(*.( c>e.( r-\B: @e' !

.Sa$QC c/C ;< _(4 c/C; ,-eB?A< ,VWta ,+78.(

.,bN($.( mi[ ^_ ,"VF.( 4(EC ;< ,-0;{( Va @"GF: *R !

.,?6FC ,"V: 4(EC ;< r6FC c/0; U*FA(

.M6g' x (L(Ea{() L/".(

Y(E"0 u#; $-= .L/".( f7=H uBK: *R U/VW.( Y(E"0 !

.L/".( M-V: ^F.( U/VW.(

*B0 >F`: *R; n2{( 560 /)C/K: /)'4EK0 zG-. ,+78.( !

./?:2x( $-C/GC !"#( )7-6R /`Q'$b:

,'EFGC n2{( P< SC *X|: .,'ER ;< ,'EFGC zG-. n2{( !

.,+78.( IKbF:;

.,t./0 (24{(

U/VW.( @-:$: *0< .2*.( rtG. /)GC7C U/VW.( PEQ' *R !

.2*.( ^_

/)BT/A FBK.( ~WA P/X (wH

! "#$%&# '()$ *+,-.-%# +,- /0#01%# 2.304 5.670# 819, 4: ;$ <=,-> #?@$ AB7CD%# E,FG7 H.CIJ K,6(L%# K,#$G%#$ K,-C.3%# A+M.D&# N?@ OD% 4C) #P0?1 +MAKC.,Q%# R(>7, .P-,) S%? 4=,

Page 43

!"#$%&'()*+,$'-.%)''7

9. ^F.( D;/Ql.( ,KN/t.( mi[ IKl: .

)

x/C; /)FR; v-60 $_E' *t_

.,C*.( >X$Ka /J:x( I"R ,KN/t.( mi[ ,V+($C 5+$'

.va /.( FBK.( ^_ I-.*.( (i[ ^_ 14(2E.( Y(>-K.( Va $_(EF: x *R .,C*FGK.( 4(EK.( ;< ,0/Bd LE-0 S0 FB:

IKV: x ,+78.(

i?BKa pa/t.( I-dE: ^a$`Q.( 2/-F./a ,6JFC ,+78.( I[ !

.!N/b./a c/a$`Q.(

$`JBK.( ;< ,+78.( ka ,6JFK.( pa/t.( $`JBC f$F3( I[ !

.$`JBK.( b_( ^G-N$.(

o14*VFK.( ,tWBK.() .,+78.( f;*Bd @]/+ ^_ r8Q:

(,]$K.( ,tWBK.(; o*'$"F.( ^_ 9QbF.(

IQla /`t6=; L(Ea{( ~F_ .()*+ 142/a ,W-bK.( ;$\.( !

U/Vq S'>: .,aEq$.( ,-./0 ,W-bK.( ;$\.( .2$QFC

OEF?C L/".( Z$: .,3EF?C ,-0;< ^_ IN/A 560 hEFb'

./)-N>+

.14;$a $8X< ,+2*.( 5.H Y/FAEC$F.( u#; $--g: !

kC(*FA( ;< /)3EF?C k-_ L/".( Z$: hi.( zRE.( I-6t: !

.IR< 12EJa

.,"A/BC 14/Ka ,3EF?C Y/';/3 ^_ P>K.( U/VW.( ,-Wg: !

.kN/ta SC MtbF.(; ,_/+ /KR ,VWta r8QF.( ~GC !

IKV' x c(E`.( !g# y/`+

/Wt]x( c/B%< c(E`.( !g# y/`e. h2($b.( y/V.( $`JB-A !

2/-F./a ,+78.( pa/R I-dE: ;< ^a$`Q.( 2/-F6. +/?K.(

,+78.( *'$": U/\] ^_ ,+78.( !g# P{ ok6J_ ;< ^a$`Q.(

.*Va Py(EF' 9.

/J:x( 5+$' ./)"'$t: MN/R4 6 *Va IKV.( ^_ ,+78.( <*"FA !

mi[ c/`F]( *Va IKV.( ^_ ,+78.( <*": 9. (wH ,]/-J.( >X$Ka

.1*K.(

Y/+78.( IQ. h4/0 $C< (i[ .68.( ,.(yH 12;4 ^_ ,+78.( !

68.( ,.(yH ,-6K0 *b: .68.( I'>: ^F.( ,-Q-:/CE:;{(

./)'2;4

E#EC pa/t.( P< *X|: .pa/t./a ,6JFC $-= ,+78.( !

.!N/b.( p"tC ^_ U/Q3a

2/-F.( /Wt]( ~-bd IQla 12($b.( ,+24 !"# 9: I[ !

.c/a$`Q.( ,X$la IJ:( .^a$`Q.(

.I'Eq zRE. ;< 12$QFC 12EJa ,+78.( IKV:

c^} (i[ .,K'*t.( SC $"X< 1*'*e.( ,+78.( PEQ: *R !

.Eq< Y($F?. IKV: 1$-"Q.( Y/+78.( ./)C/K: ^V-"q

^V-"q $C< (i[; .,-./0 ,W-bK.( 12($b.( ,+24 PEQ: *R !

.(*+

*R .U/VW./a ,-6C ;< I-6R iBC c/a$`Q./a ,6JFC ,+78.( !

.Eq< Y/0/G. ),-6X ,+78.( *'$": $KFG'

9: ST/G.( U/VW.( SC 1$-"X Y/-KX Z/B[ PEQ: *R !

^_ ST/G.( U/VW.( @"GF' .()$T&C ,+78.( ^_ /`V#;

.,BC( S'>F.( 12($3 ,+24 5.H IJ' 5F3 ,+78.( I-gl:

/)-N>+ ,3EF?C ;< 12$QFC 12EJa ,3EF?C L(Ea{( PEQ: *R !

,+78.( IT4 hi.( ST/G.( c(E`.( @"GF' .,6'Eq 1$F?.

SC IR< ()4*0 L(Ea{( ~F_( .Eq< 1$F?. ,+78.( I-gl: ^_

.Y($K.(

*X|: ./)-N>+ OEF?C ,+78.( ;< 2>'$?.( f;*Bd L/a PEQ' *R !

./)C/K: ,t6gC L(Ea{( P<

12($3 ,+24 !"#( .()*+ 142/a ,+24 560 ,+78.( !"# 9: !

12($b.( ,+24 5.H IJ: 5F3 $\F](; 560< ,+24 560 2>'$?.(

.,aE6WK.(

;< /)-./a ;< /)GFC 2>'$?.( ;< ,+78.( L/a y/0 PEQ' *R !

;< y/V.( r\] .,b-bd $-= ,t'$Wa z"8C ;< /)QF`FC

IKV: P< ^_ @"GF' vF`FK.( ;< r./F.( y/V.( P{ .k.*"FA(

.,-./b.( 12($b.( ,+24 560 /?b6. Eq< Y($F?. ,+78.(

,+78.( 12($3 ,+24 /KB-a ()*+ ,j?BC 2>'$?.( 12($3 ,+24

.,-_/X $-=

12($3 ,+24 !"#( .()*+ 142/a ,+24 560 2>'$?.( !"# 9: !

.,-]/% *X|: 9% 560< ,+24 560 2>'$?.(

2>'$?.( 12($3 ,+24 /KB-a ()*+ ,j?BC ,+78.( 12($3 ,+24

.,-_/X $-=

12($3 ,+24 !"#( .()*+ 142/a ,+24 560 ,+78.( !"# 9: !

.,-]/% Mtb: 9% 560< ,+24 560 ,+78.(

.,+78.( f;*Bd (24< ^_ E?bK.( U/VW.( *Ke:

12($3 ,+24 !"#( .()*+ 142/a ,+24 560 ,+78.( !"# 9: !

.,-]/% Mtb: 9% 560< ,+24 560 ,+78.(

.()*+ ,-./0 2>'$?.( ;< ,+78.( 12($3 ,+24

Page 44

/012+&3.'(2405&3''''6

KT-.GD 4#$D UJ $J +,VC-%# $J +,%$V.3%# W4L7X7 ; A

AY,8C7%# Z#0[&

A\6,8C7 E-: <-0TM%# 0.,7%# +) V.T3%# EQ6- <Q$C A

2.68CD $J +$-.Q $J K>G.M 4#$D UJ P#4-J W4L7X7 ; A AY,8C7%# 4C) ],D(7%# ]DG $J E,X[ 2.68CD $J K,%VCD

*^_` ab`cde B(I%# +$M7 ]CD7 <7%# 2.37CD%# 0,[ <f A

'%g EQ, 0#4hD- B(I%# WM#07, +J +MD,$ H.D%# >:.X7,

i$4CQ% <(L#4%# <6(L%# 0#43%# '() ]-Qj# Z0)

K(I.DD ED#$) $J >6C%# .Ph(>D ED=7X7 ;$ *\68C7 ; AK39I%#

A\,()

P9,(: K->0 Kh,:4 K3XC&# +D k.D: K=>: >hf W4L7X# A

BC6Xj# k4L, 4: AB7CD(% <30.L%# l>X%# Y,8C7%

AB7CD%# l>X Y,8C7%# KGD:J +D m0L&# 5#$C&#$

\1XD# WI K39I%# i$4CQ Y,8C7% /07.6%# N.,D%# W4L7X# C

AY3,%

Kh=(D HED ]D K->0%#$ K,$7(D%# k.Dh%# +D K=>: W4L7X# C

H.D%# +D +$%.3% Kf.nD #4$Q%# 2.C$-0M,- +D U.G

AY63, WI EL#4%# Y,8C7%

+D N0,[$ ".-QD%# 2,-D '%g N.,D%# E$L4 W4) +D 4Mo7C

AK,p.-0TM%# 0Q.C=%#

EQf.f *K(,$> K,CDV /076% ED=7X7 +% K39I%# 2C.M #?g C

.T68C WI KD=>&# ],D3 q0fJ WI <p.-0TM%# 0.,7%# E-.M

AP.,pV3 "$76D R.-%# S07#$

+D 4Mo7(% W.87C.- R.-%# <f R,0X7%# EV#$) r16- W: C

AW.=>%# 2.p,V3 +D .@$(L$ .T7D9X

Y0 ]f4# WI 2.,$71D%# ],D3 s0LJ *R.-%# Yf0J K%#Vj C

A/4).h%# +) #P4,=- '()& R.-%#

'() U$717 <7%# N.,D%# $J Y,8C7%# 4#$D P#4-J W4L7X7 # C

K,(>D%# H#V3&#$ K,30.L%# l>X&# Y,8C7% +,0$(M%#

+,0$(M%.f AB7CD%# +D W$0M%.-

AK,C4=D%# l>X&# N?@ EMt7 <f R-X7,

4#$D $J *+$-.Q%# $J K>G.M%#$ /4.1%# 2#$4&# W4L7X7 ; C

;g$ *u%# *]DG%# *+,VC-%# *2.68CD%# *K,%VCD%# Y,8C7%#

AN$G7 v41,$ K,M,7X9-%# H#V3&# '() W.7L&# E$V7X

AY,637%#$ Y,8C7(% KD).C KG.D:$ #07.f H.D W4L7X#

'(0"0+6!7&3'896:3'(04$)

K39I%# <f 2,V%.- KL$->D 2.-3$ $J K(p.X .P7$,V ]n7 ; C

l>X&# Y(7 <f R-X77 4: ?g *K%$V=D 0,[ R() <f

'() \-0X7 $J 2,V R.MXC# K%.1 <f AK39I(% K,M,7X9-%#

H.D- #P0$f \6>G#$ HV3%# #?@ Y8C *K,M7X9-%# l>X&#

Awf#4

Page 45

.TM07# WI .T=f4# *W,0M O,x# ]CQ /0$QhD H.>[ i([J !

A.T:9[g WM17%

A0V,06%# /0$QhD R.- i([J !

L/FX SC 9'$X p'( u#; 4*b: P< vBQK' C

.9'$X p'( Y/?d;

p'( E] 560 ()c/Ba 9'$X p'( u#; !"#( C

.L/".( 560 ^F.( ,}/l.( SC 9'$X

K%.X[ <f W,0M O,x# ]CQ K,$.1 EXF7 ; C

A+$1Q%#

ED=- K39I%# W$h7X *W,0M O,x# ]CQ K,(D) H.CIJ C

K%.1 '() #PH.C- 2:$%# Z=-% H.n$n%# Z=-

AK,%.1%# E,FG7%#

Page 46

;0*"'<0=3'>4?@

AB*40+C3D

AK39I(% 0V,06%# /0$QhD l7f# !

<f W,0M O,x# ]CQ /0$QhD H.>[ K17f S07#$ ]f4# !

A0V,06%# /0$QhD

<f \304#$ /4).h%# H.>[ EL#4 <hC%# 4,D37%# i$4CQ ]n !

A/0$QhD%# <f Y0 '()J

<f Kf0F%# /0#01 K304% 40- U?%# W,0M O,x# >,(L ]n !

AW,0M O,x# ]CQ K,$.1

W,0M O,x# i,4.CQ <f ]n$,X U?%# W,0M O,x# >,(L !

#?g AK6Q$%# <f 441D%# 04h%# +) N04: 4,V, +J R3, ;

+) 0-MJ 04h- i,4.CQ%# <f W,0M O,y >,(L ]n$ W7

Ai,4.CQ%# +D Z,6,X *K6Q$%.- ln$D%#

A0X,&# RC.3%# K,1.C /0$QhD%# E6XJ .T7,- <f K,$.1%# ]n !

A.TC.MD <f .Th([J$ +D,&# RC.3%# K,1.C K,$.1%# 04J !

Page 47

E%F&3' 47G"$'-$H

AB*40+C3D

A0V,06%# /0$QhD <f \=n$ N.,D%.- B(I%# ED) V.T3 zD#

A.P-,0h7 +,7).X <%#$1 <f B(I%# 4#4)g W7,X

\7%#Vg E9L +D B(I%# ED) V.T3 +D B(I%# K%#Vg SCMD,

AB(I%# H.)$ Y% WI 0V,06%# +D

IAJ>49'4K$L3MD'(7.9*&47';")+&3'J*M

AB*40+C3D

K-$>0%# 2;4=D E87 K-$>0%.- WM17%# s04 K,Q.L ]D

/4D% sV.> W.=>%# E8,$ WM17%# 217 KM#$6%#$ 2#$0nL(%

AE$>J

uC.-X%#$ OL%# EID K,:0$%# 2#$0nL%# ]n

04: <hfJ ]n$ <f K-$>0%# +#4h6% KX.X1%# 2#$0nL%#$

A<XJ0 ]n$-$ .@0$?3 '() O,%$ s04%# <f +.MDj#

#?g A.TX.,MJ <f s04%# EL#4 #P4-J 2#$0nL%# S077 ;

<f .T((17 <f #?@ R-X7,X *.TX.,MJ <f 2#$0nL%# 2M07

*K-$>0%# +D <%.) m$7XD '() >-n%# 4C) A/0,Q: /07f .T861 +MD,$ K-$>0%# +D .T7.,$71D- S7#$0nL 86717X

A.TX.,MJ <f .T=n$% K3.1%# +$4 2:$%# +D \%$h=D /076%

*<1Q 0,[ 0DJ $@$ .Tn=-- 2#$0nL%# OD97 K%.1 <f

+D KT-.GD m0LJ /4.D UJ $J W$6%# $J R$hID i0$ W4L7X#

AO.,M&# +D P;4- Y,(F7%# 4#$D

+J 0.-7)j# <f ?LoC +J R3, 2#$0nL%# ]n$ H.CIJ

K-(Q%#$ K(,hI%# 2#$0nL%# A+,=D K,-?.3 ]n$- .T=nC

KD).C%#$ K6,6L%# 2#$0nL%#$ s04%# E6XJ <f .T=n$ R3,

A'()&.- ]n$7 +J R3,

<f P.=D .@0,[$ {$L%#$ kDGD%#$ m0IDM%# ]n7 ; \3$ '()$ *m0L&# \M#$6%#$ 0.nL%# ]D s04%# O6C V.[ 4,%$7 +D E.) m$7XD \- U?%#$ ".67%# r$QL%#

R-X7, 4: KTM.6%# N?@ +D v=-C, U?%# +,(,I|%# V.[ A+,(,Ij#

2:$ <f E(17%#$ 50XJ EMG- m0L&# KTM.6%# BnC <f

AE:J

Page 48

E%F&3'N0>C+'O.M25.'E%F&3'P25'QM).

AB*40+C3D

E%F&3'P25'QM).';3MC+63

W7,X A\C.MD <f \=n$ N.,D%.- B(I%# ED) V.T3 HEDJ !

i$4CQ s0L7 ; A.P-,0h7 +,7).X <%#$1 <f B(I%# 4#4)g

AB(I%# s#0Lj \C.MD +D B(I%#

K).X%# R0.h) N.37.- B(I%# B,0TQ <f Z-.hD%# 04J !

AK304 90

B(I%# +#VL '%g B,0TQ%# <f <7%# B(I%# 2.-=MD >hX7X

AN.C4J

AB(I%# 2.-=MD W,4h7$ B(I%# +#VL s#0Lg +MD,

A240J #?g B(I%# +#VL <f B(I%# 2.-=MD- 8.671;# +MD,

'E%F&3'N0>C+'/*

]n7 ; AB(I%# 2.-=MD ],D37% >hf rQLD B(I%# +#VLf

A0XMC,f ;g$ A\,f H.D

Page 49

'RL4,%+&3'M0$@+&3

AB*40+C3D

B(I%# ]CQ- K,M,7.D$7$&# B(I%# +,$M7 K,Q.L S% lDX7

/0$QhD <f N.,D%# +#VL K%#V}- W: AK%$TX- K39I%# <f

E$Q1(% m0LJ /0D \-,M07- W:$ N.,D%.- NzD#$ *K39I%#

AB(I%# s04 +D K39I%# '()

.P-,0h7 +,7).X E9L <f /[email protected] K,3(I 2.-=MD E$J +$M7X

A0V,06%# /0$QhD <f 4$3$D%# B(I%# s04 <f

'() E$Q1%# ],>7X7X *ED.M%.- N.,D%# +#VL 2p(D #?g

A<3(I R=MD ~ <%#$1

 /4D% S.C@ 2(8 #?g N.,D%# +#VL <f N.,D%# 0,,F7- W:

A],-.XJ

B(I%# +,$M7 K,Q.L .T- <7%# 2.37CD(% S(1)!$

2$Q%# #?@ AB(I%# RQ H.CIJ .P7$Q ]DX7 4: *K,M,7.D$7$&#

AB7CD%.- o>L 4$3$% KD9) O,%$ .P,=,-> .P7$Q

Page 50

*3.M&3'N0>C+&3'O.M25

A !0M.$&3'TG7'RUD

".DX(% +,D,(% $J 0.X,(% Ep.D%# Y0%# SM,017 +MD,

Y0 <f i,4.CQ%# $J R(=%# $J K(,$> 2.3.3V ]n$-

.(1 EMG%#e <(6X

+D Y0%# <f \7=n$ U?%# W.=>%# '%g E$Q$%# +MD,

.(2 EMG%#e 'CD,%# \7f.1 +D N0,$47$ \-?3 E9L

90 0#4hD- N04J *\6,8C7% \3#0Lg $J \(,D17 4,07 .D4C)

.( EMG%#e [email protected] \-?3#$ \=f0#$ K304

Page 51

V40$&3'J*M

<f ]D377 N.,D%# 5V$D W#4L7X# H.CIJ >:.X77 <7%# N.,D%#

AN.,D%# s04

AEMG%# <f 0T8, .DM K,M,7X9-%# /.6QD%# R1X#

A2DM#07 <7%# N.,D%# K%#V}- W: *Kf.3$ K6,8C k.D: K=>h-

(%L4$&3'N0>C+&3'O0M425

AB*40+C3D

R.-%# Yf0J W31 +D /4.67X9% i1(D%# #?@ W,DQ7 W7

K(,$>%# 2.3.3V%# ]n$- S% lDX, $Tf A/H.6M 0IMJ EMG-

En6- <(6X%# 2.3.3V%# YQ <f R(=%#$ 2.C.->0D%#$

A0.X,%# $J +,D,(% KM01%# '() \704:

W.7 EMG- i-.>, ;$ E.ID ;g $@ .D ln$D%# EMG%#e

^AB7CD%#

O*>W'X475$

AB*40+C3D

+$(%.- /H.nD%# s#04&# <f +VLD%# W.=>%# 8671,

H$n(% K3$D%# E$> 0,Io7 i,0> +) \73V.>- i0V&#

2.,$71D +D 4,V,$ \73V.>- 8671, <%.7%.-$ i0V&# A+,7$0-%#

Page 52

A>hf K6,8C%# R0G%# N.,D W4L7X# !

A>06D $1C '() NzD7 ; *07% 3 N.,D%# +#VL K=X !

2CM #?g AR$M%.- H.D%# 0$-CQ s;VD '() >Fn# ! !

S=-.Qo- s;VD%# '() >Fn.f *K,M,7X9- R#$MJ W4L7X7

AR$M%# Y(L +D

'V40$&3'N3>C'/012+

AR.-%# Y0 EL#4 N.,D%# Kp-=7 B,0TQ S6- W: ! !

A+,-C.3%# 9M +D \M.XD}- R.-%# Y0 S6- W: ! !

K,$#V- \M6- W:$ +,-C.3%# 9M +D N.,D%# +#VL SXD# !

.K,$pDK30445

AN.>[ S6- N.,D%# +#VL Y,8C7- W: ! !

S;4Y

<f N.,D%# 5V$D$ N.,D%# +#VL H#V3J EX[ W7, ;J R3,

Ai.->&# K%.X[

Page 53

V40$&3'P0>.+'QM).

AB*40+C3D

40.- H.D <() E$Q1(% /4,6D /V,D N.,D%# 5V$D 0-7=, R.- l7f '%g 0>n7 +% \C&$ AK39I%# R.- l7f +$4-

K39I%# S9T7X# +D E(h7 Y$Xf */00M7D /0$Q- K39I%#

AK:.>(%

V40$&3'P0>.+'N3>C'Z%$

SCMD, AR.-%# Y0 EL#4- N.,D%# +#VL w(D B,0TQ 43$,

i([J *.@4=-$ AK6,8C R0G N.,D- \p(D$ B,0TQ%# H.>[ l7f

AH.>F%#

''V40$&3'P0>.+'QM).';3MC+63

5V$D Y:$7,X AR$M%.- H.D%# 0$-CQ s;VD '() >Fn#

A5#0?%# 0017 +J 403D- ED=%# +) N.,D%#

if47 <Q:J <() E$Q1%# W7, *N.,D%# 5V$D E,FG7 4C)

if47 K,DM +J 0M?7 As;VD%# <() ED.M%# >Fn%.- N.,D(%

A5#0?%# '() >Fn%# K304% ]nL, N.,D%# 5V$D +D N.,D%#

K,DM Y6L *OoM%#  R$M%# <f N.,D%# m$7XD ]670# .D(M$

2>Fn #?g Aif47%# /4.,V RC37% s;VD%# '() >Fn%#

O,%$ <=,-> 0DJ #?@$ *H.D%# 0>h,X *5#0?%# '() if0-

A.-,)

[*0\)+

EID R0G%# N.,D 0,[ 0Ly Ep.X mo- N.,D%# +#VL zD7 ; !

$J *K,V.F%# 2.-$0GD%#$ +.-%&#$ KTM.6%# 0p.Q)

<f .TD#4L7X# K-X.CD%# 0,[ +D <7%#$ K,%$1M%# 2.-$0GD%#

\19Qg +MD, ; EMG- N.,D%# 5V$D Y(7,X AN.,D%# 5V$D

#?@ +.Dn%# EDG, ;$ AEp#$X%# +D 5$C%# #?@ W#4L7X# W7 #?g

2.f.nj#$ K,$.D,M%# 4#$D%# Z=-f 2.D#4L7X;# +D 5$C%# N.,D%# +#VL Y(77 4: 2.-$0GD%#Ep#$X%# N?@ <f /4$3$D%#

A\7.C$MD$

Page 54

S]^012+.'8L3.*&3'*+%U'/5.

AK39I%# EL#4 KT,0M%# lp#$0%# WM#07 lp#$0%# 07(f ]CD,

HV3%# +D E6X& lp#$0%# 07(f \,f RM0D%# H.>F%# R?3#

07(6%# S07# AEMG%# <f ln$D $@ .DM \30LJ$ <D.D&#

07(6%# Y,8C7 W7,X A41#$ W$, /4D% ODG%# K=G& .n0=D

<f m0LJ /0D 07(6%# R,M07- W: AK,CDV%# /4D%# N?@ E9L

A\C.MD

AW.) EM /0D lp#$0%# 07(f Y,8C7 R3,

2/W_( 12EJtC

W$1%$ H#0D1%# W$1(%#$ SDX%# EID 2.37CD%# +&

R3, +-(%#$ U4.-V%#$ +-3%# EID +.-%&# 2.37CD$ +3#$4%#

/0$QhD +) K(,(: 2.304- /4$0- 0IMJ +.MD <f 8617 +J

; A0.>fj# /0$QhD <f ](X%# N?@ 861- 'Q$, *K39I%#

A0.>fj# /0$QhD <f 2#$0nL%#$ KM#$6%# ]n$- 'Q$,

+$D,(%#$ 0.,L%#$ .X$M%#$ +.3C?.-%#$ W>.D>%# rL&.-$

<f .T861 R3, ; A/4$0-(% KX.X1 2.37CD .TCJ v,1

A0.>fj# /0$QhD

/0$QhD K%#V}- K39I(% <(L#4%# W31%# /4.,V +MD,

A0.>fj#

AV3.1%# \6:$, '71 [email protected] i$4CQ%# R?3# A1

+D /0$QhD%# K%#Vj S$1C \-1X#$ <D.D&# WXh%# ]f0# A2

A.TC.MD

Page 55

E%F&3'(&3>_

A<p.h(7 EMG- B(I%# K%#V}- 0V,06%# Y,$37 W$h,

;4G9&3'P`.

0V,06%# i$4CQ Yf0J

EID 5$C7D 4D3D W.=>

W,0M O,x#$ SDX%#$ W1(%#

Au%g 2#$0nL%#$

Z,-%.- r.L%# HV3%#Z,-%#

K39I%# i$4CQ Yf0J

i.->J$ 2.-(=D <f W.=>%#

AKh(FD R()$ /.>FD

/0$QhD R.- Yf0#

K39I%#

Y(FD%# $J E,(h%# W.=>

+-(%# EIDe 2.-$0GD%# $J

^\M#$6%# 0p.Q)$

s04KTM.6%#$ 2#$0nL%#

W.=>%# Kh>CD /0$QhD

sV.>%#

K-(=D%# KD=>&# 2.37CD

AAA<D9X%#$ 4-V%#$ +-3%#e

^Au%g

O0$G&3'M0$@+&3' 4$.%G$

<f \=n$ 4C) +MD, .D 50Xo- W.=>%# 4,D37 R3,

A\74$3 '() 8.61(% 0V,06%#

K304 4C) >hf E$>J /076% W.=>%# '() 8.61%# +MD

AE:J /0#01 2.304 $J K,$pD K304  /0#01

4C)e /4,4) 0$TG% W.=>%# K3V.> '() 8.61%# +MD,

^A0V,0f R,4%# <f E:J $J  /0#01 K304

A'['*0\)+

<D$,%# S9T7X9% P.h-> H#V3J '%g KD=>&# W,Xh7 R3, !

AK,D$,%# K-3$%# $J K(p.=(%

.TCD UJ Y.63 ]CD% KDM1D Kh,0>- KD=>&# Y,(F7 R3,!

A0,Q: 2:$% 8617X 2C.M #?g

AKp-=7(% K,0$0n%# 4#$D%#

40-(% W$.hD iQ; >,0G !

<7#? iQ; >,0G !

K,>.>D 2.h(1 !

W(: !

W.=>%# Kp-=7% .TD#4L7X# ]DVD%# 4#$D%# +$M7 +J R3,

AZ.D1&#$ 2$,V%#$ K-$>0%#$ 40-(%$ ]>h(% KD$.hD

K-#?D%# 4#$D(% .@4,D37 ]DVD%# KD=>&# KXD9D W4) R3,

W.=>%# S9T7X# R3, AK,pV3%# K-#?j# ]CD% .Ph-.X

Am0LJ /0D 4,D37(% \74.)g R3, ;$ N4,D37 Sf W7 U?%#

T07&47'a4C&3'b>@&3

HV3 UJ <f Z,-%.- r.L%# HV3%# ]n$ SCMD,

'Q$, *WX3%# <f .T=n7X 2CM #?g AR.-%# Yf0J +D

A/4$0- 0IMJ .TCJ v,1 Kn6LCD%# Yf0&# <f .T=n$-

A0V,06%# /0$QhD <f #P4-J Z,-%# +VL7 ;

A0Lx# W.=>%#$ Z,-%# +,- 0G.-D%# OD97%# RC37

Page 56

ABp.7C%# EnfJ '() E$Q1(% K,7x# 2.D,(=7%# 5.-7g '30, !

.D4C) .T>,GC7- W: *],0X%# 4,D37%# K6,8$ K39I%# <f 43$, 'I1

AW.=>%# 4,D37% s.717

O6C <f /41#$ /0D W.=>%# +D /0,-M 2.,DM 4,D37- Wh7 ; 'I2

N4,D37 4C) EnfJ EMG- W.=>%# /4$3- 8.671;# W7, A2:$%#

A+MDD 2:$ 50XJ <f ED.M%.- K1,1Q Kh,0>-

KD=>&.- P.,(=f /4D3D%# KD=>&# >(L W4=% P#4,3 0?1%# {$7 'I3

AK3V.>%#

<f KL$->D%# KD=>z% Kp,C%# KD=>&# KXD9D W4) +D 4Mo7 'I4

AK39I%#

'Q*.5,$'M3MH_

*>0*^&3

'Q*.5,$'M3MH_

(@!F&3

41)!$

,'EC,+24,'EC,+244

A<=,-> EMG- \- 'Q$D%# >-n%# $@ #?@

 $J  *

K,$pD K304

,'EC,+244

K304 V$.377 .D4C) .T- 'Q$D%# >-n%# 2#4#4)g <@ N?@

AK,$pD K304 30 K>,1D%# /0#01%#

],0X%# 4,D37%#

,'EC,+244

A0,Q: 2:$ <f W.=>%# 4,D37 <f R[07 .D4C) #?@ W4L7X#

AS.DX&#$ W$1(%# 2.37CD /4$3 '() 8.61(% .TD#4L7X.- 'Q$,

K,$pD K304 

E:J $J

,'EC,+242

R-X- K,f.M K304- 40.- 0,[ K39I%# /0$QhD +J 24h7)# #?g

+MD,f *.T:9[g $J R#$-z% 00M7D%# l76%# $J KCL.X%# Y$08%#

AW,h%# N?@ '() >-n%#

K,$pD K304 

E:J $J

],0X%# 4,0-7%#

$J 4p#V ED1 #? K39I%# i$4CQ +$M, .D4C) .TD#4L7X# +MD,

K6,8$ >,GC7- 'Q$, AK)0X- W.=>%# 4,0-7 <f R[07 .D4C)

A.T,f W.=>%# ]n$ E-: 2.).X 8  4 +D ],0X%# 4,D37%#

QM$@$&3'($G9:3'c%H'(1U4)$&3' 405.+

.Phf$ Kp-=7%# Kh-XD /4D3D%# K,0.37%# KD=>&# 861 R3, !

W.=>%# 861 /0$QhD <f 4D3D%# W.=>(% ]CQD%# 2#4.G0j

A4D3D%#

4D3D%# W.=>%# ]CQD m4% /4$3 EnfJ '() K8f.1D%# +.Dn% !

K,%.7%# >.hC%# 5.7-# R3, ]p.-%#$

4=- +MD, .D 50Xo- 0V,06%# <f 2#$-=%# ]n$7 A1

AH#0G%#

4,417$ /$-=%# 2.,$71D '() 2.hQ(D%# ]n$ +D 4Mo7 A2

Au,0.7%#

E-: En6, $J '71 W#4L7X# u,0.7 V$.37 W4) R3, A3

A/$-=%# '()

Page 57

Q*3*)&3'(@*M'97`'*>

/0#01%# K304 >-n- /0#01%# K304 >-n 0V S% lDX,

AK39I(%

I(@!F&3'Q*3*)'(@*M'97`

+D KC$MD%# *K39I%# /0#01 K304% W.=%# >-n%# W7,

>-n 00V K>X#$- 0V,06%# i$4CQ$ K39I%# i$4CQ

i$4CQ% U$(=%# Y0%# '()J 4$3$D%# /0#01%# K304

/0#01 K304 >-n 5.n$J 5 0V%# #?T- 43$, AK39I%#

AS7.3.1% RX.CD%# ]n$%# 07L# AK6(7LD

*]n$ +LXJ 4C) K39I%# >-n ln$, 1 W:0 m0$7XD%#

A]n$ 40-J 4C) K39I%# >-n ln$, 'Q:&# ]n$%#$

B*40+C3d

J.M>$&3'M0*7+&3';412

/0$QhD 4,0-7% +,(Q6CD 4,0-7 <D.8C- /4$VD K39I%# <f H#$T%# +}f <%.7%.-$ A0V,06%# /0$QhD sV.>%# W.=>%#

A+.>(7L, ; 0V,06%# /0$QhD sV.>%# W.=>%# /0$QhD

+D 0,IM- EnfJ +,(Q6CD%# 4,0-7%# <D.8C +& S%?$ +,:$4CQ%# EL#4 K1p#0%# +J .DM Am0L&# 2.39I%#

K:.>%# 0,f$7 /V,D .n,J S.C@ +J .DM A.n,J >(7L7 ;

AK(h7XD K,p.h(7%# 4,D37%# K%#Vg 2.,(D) +& #08C *K,f.nj#

#?@ <f /40#$ ]>h%# N?@ +M7 W% #?g AB7CD%# ]D .PD.D7 i-.>77 ; 4:$ K,C.,- 2.D$X0 <@ #?@ 2.D,(=7%# E,%4 <f /40#$%# E.MG&# C

Am0LJ 5#$C& K-X.CD .TC}f *\7,07G# U?%# V.T3%#

K(p.=(% <D$,%# S9T7X9% P.h-> H#V3J '%g KD=>&# W,Xh7 R3, !

AK,D$,%# K-3$%# $J

#?g .TCD UJ Y.63 ]CD% KDM1D Kh,0>- KD=>&# Y,(F7 R3, !

A0,Q: 2:$% 8617X 2C.M

40-(% KD$.hD Kp-=7%# <f KD4L7XD%# 4#$D%# +$M7 +J R3, !

4#$D%# Ai(F%# KDM1D +$M7 +J R3, .DM K1p#0%#$ K-$>0%#$

2#?$ KM,MDX +$M7 +J R3, W.=>%# Kp-=7 <f KD4L7XD%#

K3,7C R(Q77 <7%# K,p#?F%# 4#$D%# +}f ;g$ AK,f.M ED17 /$:

i9[j# Kp-=7%# <f WTD%# +Df AY,(F7%# #?@ RhI7 4: 4,D37%#

AK,p#?F%# 4#$D(% +Dx# +,VL7(% 4,3%#

W4) R3, .DM *\7-#?g 4=- /0G.-D 4D3D%# W.=>%# W#4L7X# R3, !

A.Ph(>D N4,D37 /4.)g

Page 58

2#0GD H<6>C7X$ m0LJ /0D K:.>%# K,().f K6,8$ >,GC7

+$M7 .D4C) K:.>%# K,().f 0V '() >Fn #?g AZ0=%#

H.F%}- #?@ W$h,X *H<nD 0GD%# +M%$ K>GC 0,[ K6,8$%#

AK:.>%# K,().f 0GD H<6>C,X$ K:.>%# K,().f K6,8$

(e49&3'1^)'*#f$'I14

AK:.>%# K,().f K6,8$ 0.,7L# 4C) VD0%# #?@ H<n,

X4+^$&3'-^e'(^01.'I15

l,7.6D%# E6: 0V '() >Fn%# 0#0D7X#$ >Fn%# 4C)

E6: '6,8$ >,GC7 W7,X +#$I 3 /4D%  `

0V U# ED=, +% Al,7.6D%# E6: 0GD H<n,X$ l,7.6D%#

>Fn# K6,8$%# N?@ H.F%j AK>GC K6,8$%# N?@ +$M7 .D4C)

A+#$I 3 /4D% l,7.6D%# E6: 0V '()

80+4^$&3'-^e*#f$'I16

Al,7.6D%# E6: K6,8$ >,GC7 4C) VD0%# #?@ H<n,

BM45+eg3';3MC+6g3'*#f$'I17

i$4CQ >-n 4C) U4.Q7:;# W#4L7X;# 0GD E,FG7 W7,

*'$"F.( 2/-FT( *B0 .,'EC,+24 '() 0V,06%# /0#01

U(*FAx( $}&C c^j' S. ou'$G.( *-KeF.( ;< u'$G.(

.h4/JFRx(

h9C'i.e.7'*0\)+&3'j'(G^+*$&3'Q*3*)&3'(@*M'*#f$'I18

/0#01%# K304 E.>)J K%.1 <f ".-QD%# #?@ w,n,

AH.>LJ 5$:$- 0,?17%#$ K=670D%#

;0*"'<0=3'P`.'*40+C3'(^01.'I19

A+#$I 3 /4D% \,() >Fn%# 4C) W,0M O,x# 0V ZD$,X

E9L m0LJ /0D 0V%# #?@ '() >Fn%# W7, W% #?g

Y:$77X$ *i-.X%# ]n$%# '%g Z0=%# 4$=,X *K,C.I 30

AW,0M O,x# ]n$ 0.,7L# 2#0GD

4#4V,X *W,0M O,x# 0V '() /0,Q: K>Fn EM ]D

AK>Fn EM% 41#$ 44=%#

3 /4D% W,0M O,x# 0V '() m0LJ /0D >Fn%# 4C)

Am0LJ /0D KG.G%# '() W,0M O,x# VD0 ED=,X *+#$I

K%.1% 44=%# E$17,X W,0M O,x# ]n$ 0.,7L.- *#?M@$

]D 0X,&# RC.3%# '() <7%# V$D0%# H<n7X .DC,- 4D37%#

AKM017D%# W$X0%#

Z,D$%.- V$D0%# J4-7X *W,0M O,x# K,(D) W.D7g 4C)

W,0M O,x# V$D0 EM H<6>C7X AU0,?17 2$Q v41,X$

A0,?17 ip.:4 ODL%# 0$0D 4=-

0,?17%# H.TCj W,0M O,x# 0V '() .P6,6L .P>Fn >Fn#

A.Pn,J W,0M O,x# 0#0VJ Y.h,g W7,X$ *<7$Q%#

K,(D)$ .P6,6L .P>Fn W,0M O,x# 0V '() >Fn%# W7 #?g

AKG.G%# '() .Pp,G v41, +% *W4h7 <f W,0M O,x#

5.>hC# v41 #?g *K>GC W,0M O,x# K6,8$ +$M7 .D4C)

O,x# K,(D) 4$=7X *m0LJ /0D 4.) WI <p.-0TM%# 0.,7%# <f

A26:$7 v,1 +D W,0M

.D4C) W,0M O,x# K6,8$ >,GC7 <f K%$.1D%# 2D7 #?g

K304  +D '()J /0#01 K304 '() 0V,06%# +$M,

KG.G%# '() 0,?17%# VD0$ E VD0%# ZD$,X *K,$pD

K6,8$ 0.,7L# 0V '() W4L7XD%# >Fn #?g AK,C.I 30 /4D%

'%g KG.G%# 4$=7X *^+#$I 3 /4D%e .P6,6L .P>Fn W,0M O,x#

W,0M O,x# VD0 Y:$7,X$ *W,0M O,% <=,->%# ]n$%#

AED=%# +) 0,?17%# VD0$

;0*"'<0=3'P`.'*40+C3'(^01.'I20

AW,0M O,x# 4#4)g ]n$ 0T87

;0*"'<0=3'*#f$'I21

A>GC W,0M O,x# ]n$ +$M, .D4C) ED=7

'P0*6&3'M0*7+&3'*#f$'I22

4,0-7%# K6,8$ >,GC7 4C) WX3D EMG- VD0%# #?@ ZD$,

A],0X%#

Page 59

*>0*^&3'O.M25'Q*3*)'(@*M'*#f$'I1

AV0,06%# i$4CQ% K>$-nD%# /0#01%# K304 ln$,

'*>0*^&3'O.M25'Q*3*)'(@*M'97`'(^01.'I2

/0$QhD /0#01 K304 >-n- K6,8$%# N?@ S% lDX7

/0#01 K304 >-n% 0V%# #?@ '() >Fn# A0V,06%#

AR,707%.- $ $ $  '() 0V,06%# /0$QhD

'X4+^$'''klmnop'qrsstsk'P0*6&3'M0$@+&3'*>'I3

("3D'M0$@+&3'/4,0_u-0v#+

4,D37%# K6,8$ >,GC7 4C) ],0X%# 4,D37%# 0GD H<n,

Quick 0V '() >Fn# *K6,8$%# #?@ H.F%j A],0X%#

4$=7$ ],0X%# 4,D37%# 0GD w6>C, Am0LJ /0D ab

<F(7X *.TpH.F%g W7, W% #?g A<=,->%# ]n$%# '%g 2#4#4)j#

2.).X 4 0$0D 4=- .,p.h(7 .TX6C ],0X%# 4,D37%# K6,8$ K304%# '%g 0V,06%# i$4CQ /0#01 K304 EQ7 .D4C) $J *sV.>%# W.=>%# +D /0,-M K,DM 4,D37 240J #?g AK-$(>D%#

E-: K).X  ab  0V '() >Fn%# '30,

0V '() 2>Fn #?g A0V,06%# i$4CQ <f W.=>%# ]n$

2#076% 00M7D EMG- ^],0X%# 4,D37%#e ab

J4-, +%$ K,C$07M%j# /0p#4%# K,.D1 >,GC7 W7,X */0,Q:

.D4C) K6,8$%# N?@ H.)47X# W7, +% A#0$f >[.n%# E,FG7

\).>hC# 4=- <-0TM%# 0.,7%# /4.=7X# W7,

'P0*6&3'M0$@+&3'(^01.'*#f$'I4

4,D37%# K6,8$ >,GC7 4C) WX3D EMG- VD0%# #?@ ZD$,

A],0X%#

(@!F&3'Q*.5,$'Q*3*)'(@*M'97`'*#f$'I5

AK39I%# /0$QhD% K>$-nD%# /0#01%# K304 +,-,

'(@!F&3'O.M25'Q*3*)'(@*M'97`'(^01.'I6

/0$QhD /0#01 K304 >-n- K6,8$%# N?@ S% lDX7

/0#01 K304 >-n% 0V%# #?@ '() >Fn# AK39I%#

'() K304 2 *3 *4 *5 *6 *7 *8 '() K39I%# /0$QhD

AR,707%#

'klmnop'qrnwxsk'P0*6&3'M0*7+&3'*>'I7

Quick ],0X%# 4,0-7%# 0V '() >Fn%# 4C)

W,h%# +D 40-J i$4CQ%# /0#01 K304 l-Q7 *ab

4,0-7 ],0X7% .TD#4L7X# +MD, K6,8$%# N?@ AK>$-nD%#

/0,-M K,DM 4,0-7 240J #?g AK39I%# /0$QhD <f W.=>%#

]n$ E-: /V,D%# N?@ >,GC7- 'Q$, *sV.>%# W.=>%# +D

>,GC7 4C) ],0X%# 4,0-7%# 0GD H<n, AK39I%# <f W.=>%#

0V '() >Fn# *K6,8$%# #?@ H.F%j A],0X%# 4,0-7%# K6,8$

0GD w6>C, Am0LJ /0D  ab ],0X%# 4,0-7%#

#?g A<=,->%# ]n$%# '%g 2#4#4)j# 4$=7$ ],0X%# B,(I7%#

.,p.h(7 .TX6C ],0X%# B,(I7%# K6,8$ <F(7X *.TpH.F%g W7, W%

/0$QhD /0#01 K304 EQ7 .D4C) $J +.7).X 0$0D 4=-

AK-$(>D%# K304%# '%g K39I%#

0.,7%# /4.=7X# W7, .D4C) K6,8$%# N?@ H.)47X# W7, +% A\).>hC# 4=- <-0TM%#

E%F&3'N0."+'/4,0_'*#f$'I8

4,: K6,8$%# N?@ 0GD +$M, .D4C) 4,D37%# ED=, +%

AE,=67%#

0V '() >Fn%.- W: *B(I%# +,$M7 E,>=7 K6,8$ E,FG7%

A+#$I 3 /4D% ],0X%# 4,D37%#

'Aa4C'BM45+e3';3MC+63D'yozu{mtt|'(^01.'I9

W#4L7X;#e `a 0V '() >Fn%# 4C)

H<n,X$ `a K6,8$ >,GC7 W7,X *^U4.Q7:;#

'Q:J <f K39I%# E,FG7 J4-,X A`a 0GD

E,FG7 W7,X$ .-,0h7 2.).X 6 0$0D 4=- U4.Q7:# ]n$

H.F%j AK6,8$%# N?@ >,GC7 4C) U4.Q7:;# W#4L7X;# 0GD

` 0V '() >Fn%.- W: *`a K6,8$ >,GC7

Am0LJ /0D a

'BM45+e3';3MC+63D'yozu{mtt|'(^01.'*#f$'I10

Aa4C

`a K6,8$ >,GC7 4C) VD0%# #?@ H<n,

A^U4.Q7:;# W#4L7X;#e

3>4@:3'(^01.'I11

W#4L7X;#e `a '() >Fn%.- 0D7X#$ >Fn#

H<n,X$ /V.3&# K6,8$ E,=67% +#$I 3 /4D% ^U4.Q7:;#

K304$ K39I%# /0$QhD 4,0-7 Y:$7, A/V.3&# 0GD

lp#$0%# ]CD% K304 15 4C) 2-I, K39I%# /0$QhD /0#01

K304 0GD Z0=, +% *K6,8$%# N?@ >,GC7 4C) AKT,0M%#

>,GC7 H.F%j A/0#01%# K304 K39I%# /0$QhD /0#01

` 0V '() >Fn%.- 0D7X#$ >Fn# */V.3&# K6,8$

A+#$I 3 /4D% ^U4.Q7:;# W#4L7X;#e a

Q>4@}3'(^01.'*#f$'I12

A/V.3&# K6,8$ >,GC7 4C) VD0%# #?@ H<n,

(e49&3'*0U.+'(^01.'I13

K6,8$ >,GC7 W7,X *K:.>%# K,().f 0V '() >Fn%# 4C) +$M7 .D4C) AK:.>%# K,().f 0GD H<n,X$ K:.>%# K,().f

*2#0GD%# EM H<6>C7X *K>GC K:.>%# K,().f K6,8$

4C) K6,8$%# N?@ H.F%g W7,X AK:.>%# K,().f 0GD H.CI7X.-

2#0GD 4$=7X *R.-%# l7f 4C) $J 0V UJ '() >Fn%#

K:.>%# K,().f 0GD E8,X$ <=,->%# ]n$(% Z0=%#

E9L R.-%# l767 W% $# 0V UJ '() >Fn7 W% #?g AH<nD

W7,X *H<nD K:.>%# K,().f 0GD +$M, .D4C) ip.:4 5

Page 60

18 16

21 10

1' IDG0 n-> 403K 10#0/ DhQ$0/ #%60,V0 2' I0V,06%# i$4CQ /0#01 K304 >-n K6,8$ 3' IE,FG7 ".76D  b ],0X%# 4,D37%# 0V

^3e 4,D37%# Y.h,g

4' I],0X%# 4,D37%# K6,8$ 0GD 5' IK39I%# /0$QhD /0#01 K304 >-n 0GD 6' IK39I%# i$4CQ /0#01 K304 >-n K6,8$ 7' I b ],0X%# 4,0-7%# 0V 8' I^29,4$D%# Z=- <f¡e 4,D37%# Y.h,g 0GD

9' I^r.L U4.Q7:# W#4L7X#e `a K6,8$ 10'I^r.L U4.Q7:# W#4L7X#e `a K6,8$ 0GD 11'I 2#V.3&# K6,8$

12'I/V.3j# K6,8$ 0GD 13'IK:.>%# K,().f K6,8$ 14'IK:.>%# K,().f K6,8$ 15'I".76D%# E6: K6,8$ 16'Il,7.6D%# +,Do7 0GD 17'IU4.Q7:;# W#4L7X;# 0GD 18'Io>L 5$:$- 0,?17%#  K=670D%# /0#01%# K304 0GD 19'IW,0M O,x# ]n$ 0.,7L# K6,8$ 20'IW,0M O,x# ]n$ 0.,7L# 0GD 21'IW,0M O,x# 0GD 22'I],0X%# 4,0-7%# 0GD

AB*40+C3D

#?@ <f /40#$ ]>h%# N?@ +M7 W% #?g AB7CD%# ]D .PD.D7 i-.>77 ; 4:$ K,C.,- 2.D$X0 <@ #?@ 2.D,(=7%# E,%4 <f /40#$%# E.MG&# C

Am0LJ 5#$C& K-X.CD .TC}f *\7,07G# U?%# V.T3%#

Page 61

'Q$, *sV.>%# W.=>%# +D /0,-M K,DM 4,0-7 240J #?g

AK39I%# <f W.=>%# ]n$ E-: /V,D%# N?@ >,GC7-

K6,8$ E,FG7 4C) ],0X%# 4,D37%# 0GD E,FG7 W7,

4,0-7%# 0V '() >Fn# *K6,8$%# #?@ H.F%j A],0X%# 4,D37%#

Am0LJ /0D  ab ],0X%#

.TX6C ],0X%# B,(I7%# K6,8$ <F(7X *.TpH.F%g W7, W% #?g

/0#01 K304 EQ7 .D4C) $J 2.).X 4 0$0D 4=- .,p.h(7

AK-$(>D%# K304%# '%g K39I%# /0$QhD

0.,7%# /4.=7X# W7, .D4C) K6,8$%# N?@ H.)47X# W7, +% A\).>hC# 4=- <-0TM%#

''(@!F&3'Q*.5,$'Q*3*)'(@*M'97`'*#f$'I13

AK39I%# /0$QhD% K>$-nD%# /0#01%# K304 +,-,

'X4+^$'''klmnop'qrsstsk'P0*6&3'M0$@+&3'*>'I14

'Ak3D'M0$@+&3'/4,0_u-0v#+

AV0,06%# /0$QhD K>$-nD%# /0#01%# K304 +,-,

A+#$I 3 /4D% 0V%# O6C '() >Fn# B(I%# +,$M7 Y.h,j

N?@ 0.,7L# W7, .D4C) N.,D%# +#VL +D N.,D%# if47 Y:$7,X

/41$ +D 4$3$D%# B(I%# s#0Lg +MD, S%? ]D$ AK6,8$%#

/4D% 0V%# O6C '() >Fn# B(I%# +,$M7 Y.h,j A],V$7%#

A+#$I 3

*>0*^&3'Q*.5,$'Q*3*)'(@*M'97`'*#f$'I15

K6,8$ E,FG7 4C) ],0X%# 4,D37%# 0GD E,FG7 W7,

0V '() >Fn# *K6,8$%# #?@ H.F%j A],0X%# 4,D37%#

],0X%# 4,D37%# 0GD w6>C, Am0LJ /0D ],0X%# 4,D37%#

*.TpH.F%g W7, W% #?g A<=,->%# ]n$%# '%g 2#4#4)j# 4$=7$

8 0$0D 4=- .,p.h(7 .TX6C ],0X%# 4,D37%# K6,8$ <F(7X

'%g 0V,06%# i$4CQ /0#01 K304 EQ7 .D4C) $J 2.).X

AK-$(>D%# K304%#

'30, *sV.>%# W.=>%# +D /0,-M K,DM 4,D37 240J #?g

<f W.=>%# ]n$ E-: K).X ],0X%# 4,D37%# 0V '() >Fn%#

A0V,06%# i$4CQ

^],0X%# 4,D37%#e ab 0V '() 2>Fn #?g

/0p#4%# K,.D1 >,GC7 W7,X */0,Q: 2#076% 00M7D EMG-

A#0$f >[.n%# E,FG7 J4-, +%$ K,C$07M%j#

0.,7%# /4.=7X# W7, .D4C) K6,8$%# N?@ H.)47X# W7, +% A\).>hC# 4=- <-0TM%#

P0*6&3'M0$@+&3'(^01.'*#f$'I16

4,D37%# K6,8$ >,GC7 4C) WX3D EMG- VD0%# #?@ ZD$,

A],0X%#

Page 62

''*>0*^&3'O.M25'Q*3*)'(@*M'97`'*>'I1

/0$QhD /0#01 K304 >-n- K6,8$%# N?@ S% lDX7

/0#01 K304 >-n% 0V%# #?@ '() >Fn# A0V,06%#

AR,707%.- $ $ $  '() 0V,06%# /0$QhD

(@!F&3'O.M25'Q*3*)'(@*M'97`'*>'I2

/0$QhD /0#01 K304 >-n- K6,8$%# N?@ S% lDX7

/0#01 K304 >-n% 0V%# #?@ '() >Fn# AK39I%#

'() K304 2 *3 *4 *5 *6 *7 *8 '() K39I%# /0$QhD

AR,707%#

h9C&3'(&4)'*#f$'I3

i6LJ #?g $J <f.M%# EMG%.- 4,0-7%.- K39I%# Wh7 W% #?g #?@ >,GC7 W7, .D4C) A0GD%# #?@ >,GC7 W7, *0=G7XD%# 0V,06%# /0$QhD /0#01 K304 0GD Z0=, *0GD%#

.PD.:0J K39I%# i$4CQ /0#01 K304 0GD Z0=,$ E

'() /4$3$D%# W.:0;# S(7 0f$7 AAAA 3$ 2$ 1 EID

AKD4L%# +,68$D% K-XC%.- o>L%# E$1 2.D$(=D 0GD%#

#?g $J *0,06%# /0$QhD <f +L.X W.=> ]n7 .D4C)

R3=7 KD9) ZD$7Xf *K(,$> /076% P.1$76D R.-%# 2M07

.D4C) <67L,X \,-C7%# #?Tf *o>L O,% #?@ A2:$%# Z=-%

AW.=>%# 40-,

80+4^$&3'-^e*#f$'I4

K304 >-n 0,,F7 4,07 ; 2CM#?g K6,8$%# S(7 W4L7X#

/0#01 K304 >-n 0V '() >Fn# AK39I%# /0#01

0V,06%# i$4CQ /0#01 K304 >-n 0V$ K39I%# i$4CQ

AK,Q.L%# S(7 >,GC7% <C#$I 3 /4D% 41#$ 2:$ <f

yoz'y~r'(^01.'*#f$'I5

A>GC ]n$ <f ` ¢db£ K6,8$ +J ln$,

E:J .P,p.h(7 S739I YG7M7X *K6,8$%# N?@ >,GC7 K%.1 <f

K:.>(% /0f$D%# 4,0-7%# K6,8$ ED=7X$ W#4L7X;# 2#07f

ED) H.CIJ 4.Q7:;# 0GD >,GC7 W7,X A2#076%# S(7 E9L

AK:.>(% /0f$D%# 4,0-7%# K6,8$

>,GC7 H.F%j m0LJ /0D rQLD%# 0V%# '() >Fn#

AK6,8$%# N?@

Q>4@}3jRU4`}3'*0U.+&3'*>'I6

0,f$7%# K6,8$ >,GC7% /0,Q: /076% 0V%# #?@ '() >Fn#

+#$I 3 /4D% 0V%# #?@ '() 0#0D7X.- >Fn# A<f.nj#

>,GC7 H.F%j 0V%# #?@ '() >Fn# A/V.3j# K6,8$ >,GC7%

AN441D%# K6,8$%#

Q>4@}3'(^01.'*#f$'I7

S(7 2C.M #?g A>GC ]n$ <f /V.3j# K6,8$ +J ln$,

K39I%# i$4CQ 0GD '() ¤ ¤ 0T8,Xf *K>GC K6,8$%#

W7,X AK39I%# i$4CQ <f 4,0-7 2.D9) UJ 0T87 +%$

<7%# /0#01%# K304 ]D if#$7%.- m0L&# 2#0$QhD%# 4,0-7

AWT% .T>-n W7

>,GC7 H.F%j m0LJ /0D rQLD%# 0V%# '() >Fn#

AK6,8$%# N?@

AQh^9$'(#4#&3D'(e49&3'*0U.+'(^01.'I8

VD0 E,=67 W7,$ .,p.h(7 K:.>%# 0,f$7 K6,8$ E,FG7 W7,

/076% K1$76D K39I%# R#$-# 2(8 E.1 <f K:.>%# 0,f$7 $

AK(,$>

EM H<6>C7 Y$Xf *K:.>%# 0,f$7 K6,8$ E,=67 4C)

+$M7 .D4C) AK:.>%# 0,f$7 VD0 #4) .D KG.G%# <f V$D0%#

l7f $J 0V UJ '() >Fn%# 4C=f *K(=6D K:.>%# 0f$7 K6,8$

V$D0%# ]307 Y$X$ K:.>%# 0,f$7 K6,8$ H.F%g W7,X *R.-%#

A<=,->%# ]n$%# '%g KG.G%# '()

+D W,(X7%# H.CIJ K:.>%# 0,f$7 K6,8$ >,GC7 W7,

'E%F&3'N0."+'/4,0_'*#f$'I9

4,: K6,8$%# N?@ 0GD +$M, .D4C) 4,D37%# ED=, +%

AE,=67%#

0V '() >Fn%.- W: *B(I%# +,$M7 E,>=7 K6,8$ E,FG7%

A+#$I 3 /4D% ],0X%# 4,D37%#

BM45+eg3';3MC+6g3'*#f$'I10

AK:.>(% 0f$D ]n$ W#4L7X.- ED=7 K39I%# +J ln$, K304 '() K6,8$%# >-n W7 #?g .>GC 0GD%# #?@ +$M,

/0f$D%# 4,0-7%# K6,8$ 2C.M $J K,$pD K304  /0#01

A<f.nj# 0,f$7%# K6,8$% K3,7C ED=7 K:.>(%

(G0*6&3'M0*7+&3'(^01.'*#f$'I11

4,0-7%# K6,8$ >,GC7 4C) WX3D EMG- VD0%# #?@ ZD$,

A],0X%#

"lmnop'qrnwxsk'P0*6&3'M0*7+&3'*>'I12

Quick ],0X%# 4,0-7%# 0V '() >Fn%# 4C)

W,h%# +D 40-J i$4CQ%# /0#01 K304 l-Q7 *ab

AK>$-nD%#

/0$QhD <f 5$n$D%# W.=>(% K6,8$%# N?@ W#4L7X# +MD,

AK)0X- N4,D37 R$(>D%#$ K39I%#

Page 63

1' I0V,06%# i$4CQ /0#01 K304 >-n 0V 2' IK39I%# i$4CQ /0#01 K304 >-n 0V 3' Io>L%# K%.1 0GD 4' Il,7.6D%# +,Do7 0GD 5' I` ¢db£ K6,8$ 0GD 6' I/V.3j#<f.nj# 0,f$7%# 0V 7' I/V.3j# K6,8$ 0GD 8' I$8,6K 7$f,0 #%>.:K ^#%G.GK D>6o/e

9' I^29,4$D%# Z=- <f¡e 4,D37%# Y.h,g 0GD

10'IU4.Q7:;# W#4L7X;# 0GD

11'IK=,0X%# 4,0-7%# K6,8$ 0GD 12'I b ],0X%# 4,0-7%# 0V 13'IK39I%# /0$QhD /0#01 K304 >-n 0GD 14'IE,FG7 ".76D  b ],0X%# 4,D37%# 0V

^3e 4,D37%# Y.h,g

15'I0V,06%# /0$QhD /0#01 K304 >-n 0GD 16'I],0X%# 4,D37%# K6,8$ 0GD

#?@ <f /40#$ ]>h%# N?@ +M7 W% #?g AB7CD%# ]D .PD.D7 i-.>77 ; 4:$ K,C.,- 2.D$X0 <@ #?@ 2.D,(=7%# E,%4 <f /40#$%# E.MG&# C

Am0LJ 5#$C& K-X.CD .TC}f *\7,07G# U?%# V.T3%#

AB*40+C3D

3 4

Page 64

!"#$%&'!()&!*+#&,1

!"#"$ %&"' ()'*+ ',- '.&./# !"&$ 012 (.*)

3'"4./# !"&$

-./$%&0$1)&!*+#&,2

567 (784 '"4+ 9 %&:;/# <,67 #=> ?&./# #=@ A8,)

"8B./# #=@ C17) 6.',- 3?&./# (DE (6$ FG 1H '.&./# !"&$ !"#"$ %&"' "8B. I"*) J6A8,

K6L"H '"4./# !"&$ !"#"$ %&"' "8B. I"*)1 ME”

N/# M3333 J2 J1”

3(DE/# C- %.'E/# "'67 O:4> P/> K6L"Q# R=@ 5'S+

( )

'!%!)$%&0(! &!*+#&,3

3'"4./#1 '.&./# F+"&$ !"#"$ %&"' P/> ")8)

'21(3%&04567&!2&,4

"T PD- "#".+U64 AV2# J%W)X1/# R=@ ()*W+/

!T6&Y# %W)X1 C17+ 6.',- 3F,#1; 3 !'./ !T6&Y#

'"4./# !"&$ !"#"$ %&"' "8B. I"*) J%A8,

!"&$ FG ')"4+ %)D.- ZH A)8,+ K+) C/1 M[ [\ KU"/#

3')"4+/# !"&$ FG K6*A/# XW$/ %4U6,. ")] %W)X1/# R=@ A42 ^. !'"64 _"EQ# <#"&$/# P`4+ 3'"4./#

3!"&$ (7/ %.a:./# !"#"$/# %&"'

R=@ 06V/Y %),6; !T6&Y# %W)X1 "T PD- AV2#

( ) 3%W)X1/#

'!%!)$%&0(! &85 9:&!2&,5

81 [bc J [de C)4 %G"] (7 !"#"$ %&"' C)64++

( )3%)1a. %&"' 1 P/>

'!()$%&!15:/%&!2&,6

F+"&$ C)4 ()'4+D/ %&:;/# !"&$ "6)+E# "T K'E+U#

( )3'.&./#1 '"4./#

!"#$%&'!()&!*+#&,7

!"#"$ %&"' ()'*+ ',- '"4./# !"&$ 012 (.*)

3'"4./# !"&$

; 1<:=>%&?@7$%&!*+#&,8

3%L6A/# ")G1+ ^21 FG (.*+ %&:;/# CH P/> ")8)

!"#"$ %&"' A42 ',- 6A8, "8B./# #=@ C17)

( ) 3%)1a. [bc PD- '"4./# !"&$

'21(3%&04567&!*+#&,9

( f 3%A8, !T6&Y# %W)X1 CH P/> ")8)

Page 65

3gT6S& ()'1. PD- 06,4 <#"8B./# h#1/H C)64++ 'L

3%&:;/# K#'E+U# PD- <#"8B./# %$1D/ %)"i4/#1 %)+1i/# 5a6X1/# g'-6U+U

1& ,'"4./# !"&$ "8B. 2& ,jAE/# %/6$ "8B. 3& ,!"#"$/# %&"' "8B. 4& ,!T6&Y# %W)X1 "T 5& ,!"#"$/# %&"' ()'*+ "T 6& ,!"&$/# "6)+E# "T 7& ,'"4./# !"&$ "8B. 8& ,Z'6i+L9# ^21/# "8B. 9& ,!T6&Y# %W)X1 "8B.

;!15:/%A

Page 66

!25!4$%&'!7<B#&'!%!)&0(! &."@&!*+#&,1

3T")"W/# k1',i/ %A142./# !"#"$/# %&"' l21)

!25!4$%&C7 D<&'!%!)&0(! &."@&!2&,2

k1',i !"#"$ %&"' A42/ "T/# #=@ PD- AV2#

333 bc[1 de[1 dd[1 dm[1 bc[ PD- "T)"W/#

!"#"$/# %&"' A42/ "T/# #=@ PD- AV2# 3n)+"+/64

3"T)"W/# k1',i/ %41]"./#

0(EF$%&'!7<B#&'!%!)&0(! &."@&!*+#&,3

3%&:;/# k1',i/ %A142./# !"#"$/# %&"' l21)

0(EF$%&C7 D<&'!%!)&0(! &."@&!2&,4

k1',i !"#"$ %&"' A42/ "T/# #=@ PD- AV2#

#=@ PD- AV2# 3n)+"+/64 333 81 21 61 8 PD- %&:;/#

3%&:;/# k1',i/ %41]"./# !"#"$/# %&"' A42/ "T/#

; 1<:=>%&?@7$%&!*+#&,5

3%L6AD/ "G1. ^21 K#'E+U64 (.*+ %&:;/# CH l21)

&G5-:$%&' )7&!*+#&6-

CH P/> h64i./# #=@ ")8) 3"#".+U64 h64i./# 0F2)

36)"+74/# C. %).$. %&:;/#

-./$%&0$1)&!*+#&,7

kWEH #=> 1H FG67/# (78/64 ')"4+/64 %&:;/# K`+ K/ #=>

#=@ A)8,+ K+) 6.',- 3"8B./# #=@ A)8,+ K+) J"*8+U./#

oEo "T)"W/# k1',i !"#"$ %&"' "8B. I"*) J"8B./#

(;. 6p.6L"H %&:;/# k1',i !"#"$ %&"' "8B. I"*)1 "8B./# PD- !'1&1./# K6L"9# gD+ "G1+ 3o333 31 21 1o

3%.'E/# C)WX1./ %4U,/64 jAE/# (1$ <6.1D*.

Page 67

!*+#$%&0)7$

3g4 q6E/# r+,./# ()'1./ p6`G1 "8B./# <6$1/ 5D+E+ 'L

3%)a"./#1 %-1.U./# 6SWa6X1 %AU#14 %&:;/# K#'E+U# FG "8B./# %$1/ '-6U+

HIE5 7#$%&J9"&KLM

N:(EF&O% /:P%&&

1 7 3

45*62

"T)"W/# !"1i`. !"#"$ %&"' A42 "8B. .1

"T)"W/# k1',i !"#"$ %&"' A42 "T &,2

%&:;/# !"1i`. !"#"$ %&"' A42 "8B. &,3

%&:;/# k1',i !"#"$ %&"' A42 "T .4

Z'6i+L9# ^21/# "8B. .5

C))j+/# !'$1 "8B. .6

jAE/# %/6$ "8B. .7

H;!15:/%M

!'"#1 ^A`/# R=@ C7+ K/ #=> 3r+,./# ^. 6p.6.+ k46A++ 9 'L1 %),6)4 <6.1U" F@ #=@ <6.)D*+/# ()/' FG !'"#1/# (678Q# C

3_"EH s#1,Q %4U6,. 6S,tG Ju+)"+8# Z=/# T6S&/# #=@ FG

Page 68

% Q3%&&4

v C. (LQ# PD- "+. KU 30 '*4 PD- %&:;/# n)7"+ n&)

ZT7"./# C6EU/#1 C#"GQ#1 'L#1./# (;. !"#"$/# "'6i.

C#"GQ# C. (LQ# PD- "+. KU 5 '*4 PD-1 'L#1./#1

3"864./# ?.8/# 012 FG 6S*21 K'- n&)1 %)4"S7/#

v3(.67/64 (E#'/# C. %&:;/# %G6X, C. '7j+ v n&) Jn,& P/> 6p4,& C)'"4. n)7"+ ''i4 <,7 #=>

3(LQ# PD- KU 2 %G6U.4 6.S,)4 !'-64./#

v <6.)D*+/# !6-#". P&") JP/1Q# !".D/ %&:;/# ()V8+ ',-

3P/1Q# %+U/# <6-6U/# 06,;H %)/6+/#

v3!""7+. !"1i4 n64/# l+G K'- n&) v36SDE#' %.*AH ZH ^21 C1'4 %)16E F@1 6SD)V8+ n&) v "6)+/# 5L1+ #=> 3%&:;D/ F4"S7/# "6)+/# ?46L sT,+ 9

FG !'"#1/# <#")=$+/# !0#"L P&")G Jg,- 6p.]" F4"S7/#

3o<:78.D/ %$"+`. (1D$o KUL

v (i+ %A)$. !"#"$ <6&"' <$+ (.*)/ K.i r+,./# #=@

%&"' <2WE,# #=> P+$ 3w<)6S,"SG 90f %)1a. x 43 P/>

'.&./# K6*A/# CtG J%)1a. x [by P/> %A)$./# !"#"$/#

K'`+./# F,1"+7/Y# K6X,/# (2W4 n1=) 9 ")T)"W/# FG <$+ r+,./# ^21 FV4,) 9 Jn)7"+ (1Q 3!"#"$/64 K7$+D/ 9 "T)"W/# CH n4U4 g/= 3%2WE,. %A)$. !"#"$ <6&"'

3%)"6)*./# ()V8+/# !"#"$ <6&"' C- IWE,) CH u,7.)

C67. P/> r+,./# g)"$+ C7.) J".+U. ()V8+/ (1i1/# ',-

1H z#"&/# FG g&+,. ^21 '*4 6.)G g,7.) JF/6+/641 3"E{

P+$ K6*A/# '.&+ FG n4U+/# C. kDL C1'4 !jG'. ")] %G"]

!"#"$/# <6&"' n4U++ CH (.+$./# C.G Jg/= ^.1 3'UW)

!"1i`. FG K6*A/# ').&+ FG R:-H !"17=./# %2WE,./#

%`)"A4 %&:;/# FG %.*AQ# g:S+U# P&") g/=/1 J%&:;/#

!"#"$/# <6&"' '1*+ 6.',- 3%&6$/# "'L PD- %AAE.

p6`G1 h6+W./# <#'#'-> "))V+ g,7.) J%)*)4A/# P/> %A)$./#

3g+&6$/

v mx C. P,'H P/> %A)$./# !"#"$/# %&"' <2WE,# #=>

JF/6+/641 3%&:;/# !"1i`. FG K6*A/# '.&+)UG J%)1a.

<6&"'/# R=@ (;.4 %&:;/# !"1i`. K#'E+U# K'*4 li,,

"#".+U9# g,7.)1 3%A)$./# %2WE,./# !"#"$/# <6&"' C.

3'6+*./67 "T)"W/# !"1i`. K#'E+U64

v '*4 ka6L' 5 <#1'Q# %$1/ 5L1++ J<:)'1./# I*4 FG

AV2/# 1H n64/# l+G ',- 6SD)*W+ !'6-> K+)U 3n64/# k:]>

3h6+W. ZH PD-

v T6S&/# n64 k:]> | l+W/ %&)+, !"#"$/# <6&"' ")V+/ #"X,

<#14*/#1 51G"/#1 | n64/# PD- 5);7+/6G J%)D.*/# 06,;H

3F*)4A ".H %)&6&T/#

Page 69

0(EF$%&O% =R&."@

}%,T+. ")] %&:;/# <,67 #=>

1@ 6.7 %).6.Q# K#'LQ# ")1'+4 %&:;/# C#T+# A42 C7.)

',- K'`/# u4 '1&1./# C7"/# IWE K+) 3(78/64 l21.

R6&+9# FG ")1'+/# ',- ^W+")1 '1UQ# KSU/# R6&+64 ")1'+/#

%&:;/# ^G" FG "E{ qE84 %,6*+U9# '-6U+U 3?76*./#

3%)D.*/# R=@ T6&,> FG p:)DL

&'S1@3%&T1"<#&!55U:

wLEDf %)WDE/# !062Y# h64i.|h64i./# "))V+/

T7".4 (6i+9# P&") J%&:;/# !062> FG K'E+U./#

3'.+*./# %,6)i/#

!"# $% &'()*+,! (-./01,!) 2031,!

4567! $% 890:;7 &3<0=' 5.> ?0@A!

B# 2031,! !"@7 $<0<C! D567! .&.7E=,!

$% F0GH7! I!JKL M:B7 F()*+,! 8(N0+'

&='OJ &P@< &QR5H/ (STU!/&VWX7!

8Y(Z 0@7 ?0@A! !"# $% &'()*+,! -./01,!

-20 [' \ZL 8Y!5]! I0VYK $% \XT*^ \T_ .&RB`' &VYK

V1"$%&W:L&!5X):

H05!15:/%&05<1/$%&YXZM

%&:;/# !"1i`. n64 C17) 6.',- ")=$+ <1i s6.U K+)

6.',- ")=$+/# #=@ 5L1+)U 3(LQ# PD- %`)L' 1 !'./ 6$1+W. I"*/# l)+6W. C. p6)H PD- AV2/# K+ 1H n64/# k:]> K+)

3w<'&1 C>f

Page 70

v&["1B#$%7&05\1"!]^$%&IE<7$%&O% /:P%&O Q&V(5

,85<7:_$&N$1P#$%&' 9:#

064"S7/# F,G %AU#14 5/6+/# "6)+/# (467 (#'4+U# K+) CH n&) B

3'.+*./#

"AE '&1) ~)$ u$:i> (4L r+,./# ()V8+ K+) 9H n&) B

%)a64"S7 %.'i/ I"*+/# FG C.7)

`:D#$%&'7"Q&G#&a_/:$%

'#1.4 XW+$# 3(6WAQ# PD- !"AE 5)DV+/# '#1. C17+ 'L

6SW),i+4 6S,. qDE+ 1H (6WAQ# (16,+. C- #p')*4 5)DV+/#

<6ADU/# C. !''$./# <6WDE./# C. qDE+/# <6.)D*+/ p6`G1

(T,./# <6WDE. ^. <6WDE./# C. qDE++ 9 3%)D$./#

%a4*+/# '#1. A6`+/# A6`, (:E C. 6S,. qDE+/64 KL J%)'6*/#

.%)D$./# <6ADU/# C. !''$./# 5)DV+/#1

!'6-Y %D46L '#1. C. %&:;/# %a4*+ %.T$ ^),i+ K+)

3")1'+/#

0#5 B$%&0(EF$%&G#&a_/:$%

3%a)4/64 ""2 ZH ~#'$> C1' K)'`/# T6S&/# C. qDE+

v ^).&+ T7". 1H g)'/ '.+*./# ()71/# !"68+U# g,7.)

3%.)'`/# %&:;/# C. qDE+/# (1$ g+,)'.4 <6)6W,/#

FG1 JFa64"S7/# ?46`/# ^AL# J%&:;/# C. qDE+/# (4L

%D46L ")] 6SD*&# J%&:;/# n64 PD- (6WLH ZH '1&1 %/6$

3"AE ZH C. (6WAQ# %)6.$/ ()V8+D/

V5^!:$%7&?@7$%

k)2 %&:;/# 6S4 ^21+U F+/# !"&$/# n64 C67 #=> A

T7".4 (i+6G Ju/:E C. %&:;/# "1".4 l.U+ 9 %&"'4

%Da6. F@1 6@")".+1 %&:;/# n#14H %/#TY '.+*./# %,6)i/#

3n64/# C.

1&,3K#'E+U9# %/1SU4 l.U) C67. FG %&:;/# n7" 2&, %4A"/# kA6,./#1 !"#"$/# "'6i. C- #p')*4 %&:;/# ^2

3!"864./# ?.8/# %*8H1

3&, PD- (1i$D/ %&:;/# (1$ %4U6,./# %)1S+/# "G1++ CH n&)

5)1&+ FG ^21+U %&:;/# <,67 #=> 3!06W7/64 KU+) ()V8+

6S,)4 (LQ# PD- KU 5 g"+) C17) CH n&)G JAa6$/# (E#'

^2+ 9 3Aa6$/# C)41 6S,)4 (LQ# PD- KU 5 1 5`U/# C)41

3<)71./# 1H '6&U/# (;. '#1. PD- g+&:;

4&,3%a&6W./# %7"$/# ^,./ 1+U. lAU PD- %&:;/# ^2

Page 71

V5^!:$%&&3

K'E+U./# ()/'4 !'"#1/# <6.1D*./64 =EQ# K'- %/6$ FGB

%&)+, %)/1BU. ZH ^,i./# (.$+) 9 J"64+-Y# FG

3#=S/

,0(EF$%& DQ&1]"&O1#:Z3%&V(5&.1BD

1&, n&) <:i#1./64 %&:;/# (`, (4L 3?46`/# sT, n&)

3 6SW)X,+1 6SV)"W+

2&,333z"'/#1 <6`$D./#1 5G"Q# <)4;+ n&) J6S+a4*+ !'6-> (4L

3<6.'i/# '2 6S,).j+1 ki9 A)"84 %&:;/# (E#' JN/>

n&)1 %.)DU (64$4 1H g).U A)"84 %&:;/# !14- 5/ n&)

3%.#"i4 %&:;/# !14- (`, '-#1`4 K#T+/9#

3&, %4$6i./# 5)DV+/# '#1.1 %)DiQ# !14*/# PD- X6W$/# n&)

3(6`+,9# 1H FD4`+U./# (`,/# I#"]Q

b0(EF$%&85U*:&R "&8"=

%&:;/# ()V8+ H'4 (4L F/6+/# C. k`$+

1&, K#'E+U# K+) 3R6,'H l21. 1@ 6.7 %)7)+U:4/# C)G6UQ# kG"H

'7B+U F+/#1 %G6U. '1&1 PD- X6W$D/ %)7)+U:4/# C)G6UQ#

R=@ <*21f 3Aa6$/#1 %&:;/# C)4 0#1S/# ")1'+ PD-

r+,./# ^. (.67/64 k46A++ 91 Z")1i+ 5i17 !"1i/#

w3g4 q6E/#

2&, KUL FG u4 Pi1. 1@ 6.7 %&:;D/ FDE#'/# 0T&/# 5X,

o35)X,+/#1 %,6)i/#o

3&, n64 l+G ',- 3Aa6$/# ?4`. ^. %&:;/# ?46L ()i1+4 KL

3FDE#'/# h64i./# 0F2)UJ%&:;/#

4&, (a#1U/# Z'B+ 'L 36p+1i ^.U+U J(.*/64 5;7./# H'4) 6.',-

J06212 ~#'$> P/> %&:;/# T6S& C. %4"U+./# <#T6V/#1 3F*)4A ".H #=@1 (.*) 9 0#1S/# AV2 T6S& C67 C> P+$

5&, 0F8 #=@ 36paG#' %&:;D/ %).6.Q# 5#1$/# ?.D. C17) 'L

6p4,&+ %aG#' C17+ P+$ kA6,./# R=@ K).i+ K+ ~)$ 3F*)4A

35;67+D/

K\1"!]^$%&85<7:$%

Z= "Si,.4 F.$. F2"H ()i1+ =W,.4 r+,./# (i

3%4U6,. %*U

K6@ v3%),A1/# la#1D/# ^. ()i1+/# kG#1+) CH n&) v u)/> (1i1/# (SU) C67. FG "6)+/# ?46L C17) CH n&)

3n)7"+/# '*4

v K6X, C67 #=> A`G %&:;D/ %)4"S7/# %.:U/# C6.2 C7.)

3"))6*./# ^. kG#1+) g/T,. FG F2"Q# ()i1+/#

v PD- '1&1./# kiD./# PD- "17=./# Fa64"S7/# "6)+/# 'S&

6p)16U. C17) CH n&) r+,./# C. "U)Q# FDE#'/# n,6&/#

3g)'/ %748/# 'S&/

Page 72

%L6A/# (467 ^AL# J(6WAQ# %.:U/ 3%.'E+U./# <6&+,./#

6S.#'E+U# C7.) 9 P+$ J<'&1 C> Jn64D/ (W`/# %)/{ "U7#1

3T6S&/# C. qDE+/# (4L

:RoHS&I1]5(7:&?#&CL%7:$%

&RoHS&I1]5(7:&?#&Y+%!*"&I#=&;X$%&`:D#$%&CL%7:5

& %7#&c_Q&;7:)5&>&&,HEU/2011/65M&K"7!7d%& 1):E$

,I1]5(7:$%&KL&1]5$e&!1*#&'!76)#&7R&'!1@

f5_U:$%&I1D15"

%D46L '#1. C. r+,./# #=S4 %i6E/# 5)DV+/# '#1. ^),i+ K+

9 36,4 %i6E/# %)D$./# %)a)4/# la#1D/ 6p`G1 ^),i+/# !'6-Y

<6)6W,/# 1H %)/T,./# <6)6W,/# ^. 5)DV+/# '#1. C. qDE++

5)DV+/# '#1. ^).&+ A6`, FG 6S,. qDE+ (4 3_"EQ# 3%)D$./# <6ADU/# (4L C. %,)*./#

,,,cPD:&>

")1'+/# !'6-Y %D46L '#1. %)H C. qDE+/# K'- n&)

3%).1`/# '"#1./# !1";1 %*)4A/# PD- 6pX6W$

J%a4*+/# '#1. K))`+ !'6-> FG g"68+ CH ')"+ <,67 #=>

F+/# %)'D4/# ?/6&./# 1H %a)4/# <6.X,. !"68+U# g,7.)

3g"#1&4

(HCM&057]:$%7& 5!":$%7&'!%!)$%&!5X):

&gR600a&c_Q&;7:)5& 5!":&O16D"&% 72#&`:D#$%&G1^&%Xe

P+$ "=$/# FE1+ n&) J#=/1 3(6*+8:/ (46L T6V/# #=@

3(`,/#1 K#'E+U9# 06,;H n)46,Q#1 ')"4+/# K6X, 5:+> K+) 9

JC#"),/# FG ua6`/t4 r+,./# C. qDE++ 9 J5D+/# %/6$ FG

C7.) F+/#1 %D.+$./# C#"),/# "'6i. C- #p')*4 u4 XW+$#1

%)1S+ PD- q"$#1 r+,./64 C#"),/# n18, FG n4U++ CH

36S)G r+,./64 XW+$+ F+/# !"&$/#

&gR134a&c_Q&;7:)5& 5!":&O16D"&% 72#&`:D#$%&G1^&%Xe

kiD. PD- "17=. r+,./# #=@ FG K'E+U./# T6V/# s1,

3%&:;D/ FDE#'/# "U)Q# n,6&/# PD- !'1&1./# s1,/#

3C#"),/# FG ua6`/t4 p6`DA. r+,./# C. qDE++ 9

0=1.$%&!5L7:$&1]_#Q&V(5&S15*R

v3%D)1A !"+W/ 6p$1+W. %&:;/# n#14H g"++ 9 v3%&:;/# FG %,E6U/# <#1"2E/# 1H %.*AQ# ^2+ 9 v36SDE#' 0#1S/# !"1' ^,.+ 9 ~)$4 %&:;/# (.$ ')T+ 9 v n"`/64 1H !"864./# ?.8/# %*8H <$+ %&:;/# n7"+ 9

k64AQ# %/6U] 1H C"W/# (;. !"#"$ C. ~*4,+ !TS&H C. (LQ# PD- KU 30 '*4 PD- %&:;/# ^21 n&) 3^8./# 1H 'L#1./# C. KU 5 (LQ# PD-1 %;*4,./# !"#"$/# "'6i. C.

3%)a64"S7/#

v3%`DV. nD- FG K6*A/# ^21 n&)

v C)TE+ g,7.) J"T)"G !"1i`.4 !'1T./# <6&+,.D/ %4U,/64

K1`+ 6.',- "T)"W/# FG K6*A/# %).7 C. PiLQ# '$/# !"17=./# %L6A/# g:S+U# 3u,. z"#'Q# 1H 51G"/# z#"Et4 C. z"'/#1 5"/# z#"E> 06,;H R')'$+ K+ %&:;/64 q6E/#1

!"1AE '&1+ 91 3%/1.$D/ PiLQ# '$/64 uD).$+1 "T)"W/#

%.*AQ# K6&$H1 (678/ 6p`G1 z"'/# 1H 5"/# K#'E+U# C.

36@').&+ n1DA./#

v %L6A/# "G1+U %&:;/# !"1i`. FG '.&./# K6*A/# %4#=>

3K6*A/# !'1& XW$+1

0(21.$%&0#9.d%&C7 D<$&I15<7:

H;!15:/%M

(E#' "#"$/# %&"' "*8+U. ?.:) K6*A/# (*&+ 9 v

%.*AQ# k1',i XW+$) P+$ 3%&T6A/# %.*AQ# k1',i

%.*AQ# k)*+ 9 CH n&) J%)/6;./# !"#"$/# %&"'4 %&T6A/#

3"*8+U./#

3r+,./# (E#' %,E6U/# %.*AQ# ^2+ 9 v

temperature

sensor

food

MILK

juice etc.

temperature

sensor

Page 73

v 1H %)DE#'/# 0#T&Q# PD- 06./# ";, K'- FV4,)

3%.:U/# F-#1'/ %&:;D/ %)&"6E/#

v T6] (;. (6*+8:/ %D46L '#1. "+ 9

"A6E. n4U4 %&:;/# C. n"`/64 C)41"4/#

3"6&W,9#1 C#"),/# n18,

v J%&:;/# PD-H 06./64 %a1D.. 06)8H ^2+ 9

%.'i P/> Z'B+ '`G J6S467U,> %/6$ FWG

3k)"$ n18, 1H %)4"S7

v #=> 3%.*AQ64 %&:;/# %/1.$ C. ')T+ 9

K6*A/# A`U) '`G J'a#T (.$ 6S4 %&:;/# <,67

3n64/# l+G ',- %&:;/# 5D+)1 g4)i)1

v 'L ~)$ %&:;/# PD-H %D)`; 06)8H ^2+ 9

3u`D] 1H %&:;/# n64 l+G ',- ^`+

v P/> z6+$+ F+/# <6&+,./# XW$ K'- FV4,)

(6i.Q#f !"#"$/# <6&"' FG k)L' K7$+

'#1./# 1H !"#"$D/ %)U6U$/# <#= %)1'Q# 1H

3%&:;/# FG wu468 6. 1H %).D*/#

v J%D)1A !"+W/ %&:;/# K#'E+U# K+) C/ #=>

n4U++ 'L 3F4"S7/# "6)+/# C- 6SDiG n&)G

3k)"$ n18, FG (467/# (T- FG %D78. ZH

v K+) K/ #=> %&:;/# g"$++ CH C7../# C.

K#'L/ C7.) 3I"Q# PD- K67$t4 6S+)4;+

CH I"Q# PD- K67$t4 %+4;./# A42D/ %D46`/#

3g"$++ 91 6S,67. FG %&:;/# <4;+

v I4`. C. 6S7U.+ 9 J%&:;/# (.$ ',-

3"U7)G 9>1 3n64/#

v '"64/# 06./# (E'. AV2 C17) CH n&)

#=> 3wkPa 620f PiLH '$7 90psi

 wyym  80 06./# AV2 T16&+

g.6X, FG AV2/# '$ K6.i K'E+U# Jw"64

q$W+ 5)7 KD*+ 9 <,7 #=> 3FU)a"/#

C. !'-6U./# nDA# Jg4 q6E/# 06./# AV2

3qiE+. Z"7.U

v 06,;H Fa6./# k"A/# ");j+ "AE "SX #=>

k"A/# ^,. <#'*. K'E+U# Jn)7"+/#

Z"7.U "8+U# 36.a#' n)7"+/# FG Fa6./#

'1&1 K'- C. #'7j+. C7+ K/ C> qiE+.

3n)7"+/# FG Fa6./# k"AD/ ");j+

v =EH n&) 3CE6U/# 06./# (E'. PD- u47"+ 9

CH n&) 3K)A#"E/# '.&+ "AE C. %A)$/#

wK 0.6f 5 33 06./# !"#"$ %&"' C17+

3PiLH '$7 wK 38f 5 1001 P,'H '$7

v '1&1./# KU`/# C67 #=> T6S&/# K'E+U+ 9

Z=/# R"SX PD- 1H T6S&/# lAU PD-

(E#'/# FG %-14A. %),1"+7/> 6$#1/H Z1$)

06A]f 6$1+W.

v.(1f w%-14A./# %),1"+7/Y# !"a#'/# h1

814.d%&0#EP&G5#-:

v #p')*4 h6+W./64 X6W+$9# FV4,)G J(W`4 #p'1T. n64/# C67 #=>

3(6WAQ# (16,+. C-

v3r+,./64 #1;4*) 9 P+$ (6WAQ# %46L" n&)

&KL&WEEE&I195!*:&?#&CL%7:#

,04$1:$%&I1(:D#$%&G#&a_/:$%

C. %."$. 1H %)=B. '#1. PD- Z1+$) 9 T6S&/# #=@

!TS&Q# <6)6W, PD- %46L"/# <6*)"8+o FG 6S)/> "68./# gD+

A)AE+1 %a)4/# !"#T1 C. !"'i./# o%),1"+7/Y#1 %)a64"S7/#

.WEEE <6*)"8+ ^. kG#1+. 3%)7"+/# C'./# '#1.1 0#T&j4 T6S&/# #=@ ^),i+ K+ 6S.#'E+U# !'6-> C7.) !'1&/# %)/6-

PD-1 3")1'+/# !'6-Y %4U6,. F@1

^. T6S&/# C. qDE++ 9 Jg/=

%)6S, FG %)'6*/# %)/T,./# <6)6W,/#

%A`, P/> R=EH g)D- 3u+6)$ !"+G

<#'*./# ")1'+ !'6-Y ^).&+/#

P&") 3%),1"+7/Y#1 %)a64"S7/#

3^).&+ %A`, n"LH %G"*./ %)D$./# <6ADU/# ^. "168+/#

")1'+ !'6-> "4- %)*)4A/# '"#1./#1 %a)4/# %)6.$ FG '-6U

Page 74

3u)D- 51L1D/ 1H K-' %D)U17

v3%&:;/# (E#' %)4"S7 !TS&H ZH K'E+U+ 9 v '"64/# 0#1S/# ")1'+ K+) ~)$ 0#T&Q# 5D++ 9

',- '"4./# "&W,) '`G 3^AL 1H "W$ <#1'j4

<:i1 1H "E4./# 1H T6V/# <#1,L n`;

g/= n4U+) 'L1 JlAU/# <#0:A 1H n)46,Q#

3C)*D/ <646i>1 'D&D/ (:+-# ~1'$ FG

v Zj4 6@'U+ 1H %&:;/# %)1S+ <6$+G AV+ 9

3'#1.

v qE8 %AU#14 <6$:iY# 0#"&> n&)

6S4 K1`) F+/# h:iY# <6)D.*G 3A`G (@B.

PD- !"1AE (;.+ 'L C)D@B. ")] q6E8H

3K'E+U./#

v %)D.- ZH 06,;H 1H (A- ZH s1L1 %/6$ FG

%&:;/# (iG# Jh:i> (6.-H 1H %,6)i

6.> FU)a"/# Fa64"S7/# "6)+/# "'i. C-

"6)+/# ?46L sT,4 1H F,*./# "Si,./# k:]t4

3T6S&/64 q6E/# Fa64"S7/#

v 3?4`./# C. n=&# (4  (467/# n=&+ 9 v %,TE. %)/1$7/# <641"8./# CH C. k`$+

^21 FG 1 k:]Y# %.7$. JC.H (784

3FUH"

v '#1./64 %&:;/# FG X6W+$9# K'- n&)

Z1+$+ F+/# <6&+,./# 1H (6*+8:/ %D46`/#

wZ#"4UY# (;.f (6*+8:/ %D46L <#T6] PD-

3"6&W,:/ %D46`/# '#1./# g/=71

v 1H %)7),67). <#1'H K#'E+U# K'- n&)

%/#T> %)D.- C. ^)"U+D/ _"EH (a6U1 %)H

6S4 Fi1+ F+/# <#1'Q# 5:E4 J').&+/#

3%*,i./# %S&/#

v %AU#14 K#'E+U:/ '*. ")] T6S&/# #=@

<#"'`/# Z1= w(6WAQ# g/= FG 6.4f '#"GQ#

1H J!'1'$./# %),@=/#1 %)U$/#1 %),6.U&/#

6. %G"*./#1 !"4ED/ C1'`+W) C)=/# '#"GQ#

<6.)D*+ KSa6A-> 1H KS)D- 5#"8Y# K+) K/

C- (1aU. qE8 %AU#14 T6S&/# K#'E+U#

KSa6A-t4 K1`)U Z=/# qE8/# 1H KS+.:U

3r+,./# K#'E+U64 %i6E/# <6.)D*+/#

v "8+U# 3%W/6+ F@1 %&:;/# ()V8+4 K`+ 9

3g8 ZH g)'/ #=> %,6)i/# T7".

v A`G %&:;D/ %)4"S7/# %.:U/# C6.2 C7.)

g/T,. FG F2"Q# ()i1+/# K6X, C67 #=>

3"))6*./# ^. kG#1+)

v 1 rD;/# 1 "6A./ T6S&/# I)"*+ C>

kD*+) 6.)G !"1AE (;.) h6)"/#1 ?.8/#

3%)4"S7/# %.:U/64

v 5D+ '1&1 %/6$ FG (@B. %.'E F,W4 (i+#

3"A6E./# n,&+/ %L6A/# (4674

v 06,;H #p'4H Aa6$/# =W,.4 %&:;/# ()i1+4 K`+ 9

P`D+ CH "AE g6,SG J9>1 3n)7"+/# %)D.-

3!")AE %46i> g4 k$D+ 1H g-"i.

v 3K6*A/# XW$/ A`G %&:;/# R=@ K).i+ K+

3_"EH I#"]H %)Q K'E+U+ 9H n&)

v PD- Z1+$) Z=/# 5),i+/# kiD. '&1)

"U)Q# 0T&/# FG r+,.D/ %),W/# <6Wi#1./#

3%&:;D/ FDE#'/#

v ")G1+/ %),1"+7/> KX, Z64 %&:;/# (i+ 9

3r+,./# 5D+) '`G %L6A/#

v "X,+ :G Jk"TH C1/ 6S4 %&:;/# <,67 #=>

3%)"i4 !TS&H (:E C. k"TQ# C1D/# P/>

v J%&:;/# PD- k"TH 012 g6,@ C67 #=>

<#1'Q64 1H !'"&./# C)*/64 u)/> "X,+ 9

3%D)1A !"+W/ %)"i4/#

v g/6./# P/> #=@ ()V8+/# ()/' K)DU+ FV4,)

3C)"E/ 6S*)4 ',- %&:;D/ ')'&/#

v 'L 3%&:;/# (`, 06,;H %L6A/# (467 5D+ n,&+

9 3k)"$ n18, FG F,;./# (467/# n4U+)

3%L6A/# (467 PD- %D)`; 06)8H ZH ^2+

v ()i1+ ',- %D+4. Z')j4 ?46`/# ?.D4 K`+ 9

3%&:;/# ?46L

v F4"S7/# "6)+/# =W,. C67 #=> %&:;/# (i+

3K7$. ")]

Page 75

0#]#$%&0#EP$%&I%!5X):&&&&2

6.4" 3%)/6+/# <6.1D*./# q$G P&")

P/> <6.1D*./# R=@ s64+# FG k6WEY# Z'B)

'L JK; C.1 3<67D+..D/ 5D+ 1H <646i>

")] C6.2/#1 %)/6*W/# <6.#T+/# (7 l4i+

3%)"6U

v 10 !'./ %)DiH "6)] ^AL ")G1+ K+)U

3r+,./# 0#"8/# N)"6+ '*4 J6p.#1-H

a</#$%&J!U$%

aPN b%0c d5R"e^

$% &RB@*7! I0e*%

$% JL ?0@f7! gRBf^

&.70h &f'(T7! &.=37!

iK!(+jk! ['

8E@VC! F()*+^ k d5R"e^

\l0<B7! JL &.m.j0m.T7!

&.PTN MR5+*7 n5hC! oP^ 5.> pM.Q17! &7!?q

iM=1T7! 0@/ $rBR $*7!

85l!(7! gP*^ k d5R"e^

i(R53*7! 8K0T7 &.l0/5@m7!

8E@VC! F()*+^ k d5R"e^

85fc $% &.l0/5@m7!

?0@f7! $% stT7!

u"7! vB=7! [' wj0x !yq kq

iM=1T7! 0@/ $rBR

K!BT7! [RE)*/ zQ^ k d5R"e^

{PN \X' 85f|*T7!

KBZB70/ M' uBf7! 903@7!

!"# $% }0G*~W7 \/0Z

?0@f7!

<6`)4A+/#1 F/T,./# K#'E+U:/ K.i. T6S&/# #=@

(;. %D;6../#

n+67./#1 "&6+./# FG N4A/# "'67 kA6,. [

}_"EQ# (.*/# <6a)41

k"A/# k'6,G1 k'6,W/# FG 09T,/# 1 s"#T./# [

<)4./# C76.H }%D;6../# %),7U/# <6a)4/#1

}"6AGY#1

}"6AGY#1 <)4./# C76.H [

")] FG %D;6../# <6`)4A+/#1 C)1.+/# <6)D.- [

3%aT&+/# <:$.

0#19$%&0#EP$%&

v Pi1)G JT6S&/# C. qDE+/# <'"H #=>

%G"*./ '.+*./# %,6)i/# T7". !"68+U64

3!'.+*./# <6a)S/#1 %41DA./# <6.1D*./#

v (7 (1$ '.+*./# %,6)i/# T7". "8+U#

3%&:;/64 %`D*+./# <:78./#1 <#"6UW+U9#

%,6)i FG (E'+) #p'$H s'+ 91 (E'++ 9

3!'.+*./# %,6)i/# T7#". "64E> C1' T6S&/#

v J"T)"G !"1i`.4 !'1T./# <6&+,.D/ %4U,/64

rD;/# <64*7.1 K)"7 ?)# <)17U4 (7j+ 9

3"T)"W/# k1',i C. 6S&#"E> '*4 !"864.

w3g.G (E#' ^)`i %*U/ #=@ n4U) '`Gf

v !"1i`.4 !'1T./# <6&+,.D/ %4U,/64

%4D*./# %Da6U/# <641"8./# ^2+ 9 J"T)"G

k1',i FG <6&6&T FG %-121./# 1H

3"&W,+ '`G J9>1 3"T)"W/#

v ki+D) '`G J')/64 '.&./# K6*A/# ?.D+ 9

3g')4

v 5)X,+ (4L F4"S7/# "6)+/# ?4DL (iG#

3rD;/# %/#T> 1H %&:;/#

v 5)X,+/# '#1. 1H "6E4/# K#'E+U# n&) 9

rD;/# %/#T> <6)D.- 1H 5)X,+ FG #p'4H "6E4/64

(-6W+) 'L J%/6$/# R=@ (;. FWG 3%&:;/# C.

^AL P/> Z'B)1 %)4"S7/# ^A`/# ^. "6E4/#

3%)4"S7 %.'i s1L1 1H F4"S7/# "6)+/#

v n64/# (;. J%&:;/# ^AL 6p`DA. K'E+U+ 9

Page 76

&N:(EF&&1

1& , "T)"W/# !"1i`. n64 5G"# 2& ,!"#"$/# %&"' <#'#'-> "8B. 3& ,I)4/64 q6E/# 0T&/# 4& ,R6)./# sT1. %a4*+ C#TE 5& ,R6)./# ^)T1+ r)"Si 6& ,%&:;/# !"1i`. n64 5G"# 7& , %`/T,.1 !"#1' C)TE+ <6)16$ 8& ,k"TH h64i.

9& ,A42D/ %D46L K#'LH 10&,z"' 11&,z"'/# 06A] 12&,"6AGY# !"1i`. 13&,h6+W.

#=@ FG !'"#1 ^A`/# R=@ C7+ K/ #=> 3r+,./# ^. 6p.6.+ k46A++ 9 'L1 %),6)4 <6.1U" F@ #=@ <6.)D*+/# ()/' FG !'"#1/# (678Q# C

3_"EH s#1,Q %4U6,. 6S,tG Ju+)"+8# Z=/# T6S&/#

14&,<6&6&T/# 5" 15&,la#1"/# "+DG 16&,%&:;/# !"1i`./ %)&6&T 5G"# 17&,!062Y# z6&T 18&,%$1". 19&,Fa6`D+/# ').&+/# 1= R6)./# C#TE 20&,rD;/# k1',i 21&, rD;/# C)TE+ 5" 22&,F&6&T/# "T)"W/# k1',i 5" 23&,^)"U/# ').&+/# !"1i`. | K)"7 ?)# ^,i T6S& 24&,"T)"W/# !"1i`. 25&,%&:;/# !"1i`.

H;!15:/%M

*16

*10

*12

*14 *13

*13

*15

*19

*20

*21

*23

Page 77

I157:)#$%

3 &&N:(EF&&1

4 &0#]#$%&0#EP$%&I%!5X):&&&&2

4 333333333333333333333333333333333333 qiE./# I"V/# 4 33333333333333333333333333333333333333333%.6*/# %.:U/# 6 3333333333333333333333333333333333 (6WAQ# %.:U C).j+

C. qDE+/# FG WEEE <6*)"8+ ^. kG#1+.

6 333333333333333333333333333333333333333 3%W/6+/# <6&+,./# 7 33333333333333333333333 :RoHS <6S)&1+ ^. kG#1+/# 7 33333333333333333333333333333333333333333 5)DV+/# <6,6)4 7 3333333333333(HCf %)1S+/#1 ')"4+/#1 !"#"$/# ")=$+ 7 33333333333333333333333%L6A/# ")G1+/ 6SD.- n&) 06)8H 7 33333333333333333%&T6A/# %.*AQ# k1',i/ <6)i1+

8 &V5^!:$%&&3

8 3333333333333333333%&:;/# ',- 6S4 K6.+@Y# n&) A6`, 8 33333333333333333333333333333333 J%&:;/# ()V8+ H'4 (4L 8 333333333333333333333333333333333333 Fa64"S7/# ()i1+/# 9 333333333333333333333333333333 r+,./# !14- C. qDE+/# 9 333333333333333333333333333 %.)'`/# %&:;/# C. qDE+/# 9 33333333333333333333333333333333333333 n)7"+/#1 ^21/# 10 33333333333333333333333333333333333%&:;/# K#'LH A42 10 33333333333333333333333333333 !062Y# h64i. "))V+ 10 3333333333333333333333333333333333333 n64/# l+G ")=$+

11 & % Q3%&&4

12 &N:(EF&O% /:P%&&5

12 33333333333333333333333333333333333333333"8B./# %$1/ 22 3333333333333333333333333333 !"#"$/# %&"' A42 "T 22 333333333333333333333333 3%&:;/# !"#"$ %&"' A42 22 33333333333333333333333333333333 z1'T./# ')"4+/# K6X, 23 3333333333!'.&./# %.*AQ# PD- %XG6$./# <6)i1+ 24 3333333333333333333333333333333I)4/64 q6E/# 0T&/# 24 33333333333333333333333333333333333333333333 rD;/# %/#T> 24 33333333333333333333333333333333333333333 K6*A/# ^21 24 33333333333333333333333333333k).*/# ').&+/# <6.1D*. 25 33333333333333333333333uW)X,+1 la#1"/# "+DG 5i1 26 333333333333333333333333333333333333R6)./# ^)T1+ !'$1 28 3333333333333333333333333333333333333333 k"TH h64i. 28 33333333333333333333333333333 %Da6./# C)TE+/# k)'6,i 29 33333333333333333333333333333 "#1'/# C)TE+/# k1',i 30 33333333333333333333333333333333333333 Fa6`D+/# ').&+/# 31 333333333333rD;/# C)TE+ k1',i1 rD;/# ^,i !'$1 32 33333333333333333333333333333333333rD;/# <64*7. (.- 32 33333333333333 3wzT6A 6p.a#'f %41A"/64 K7$+/# z"' 33 333333333333333333333333333333333333K)"7 ?)# T6S&

35 &f56D:$%7&0D15<$%&&&&6

35 33333333333333333333333333 %)7)+U:4/# lAUQ# %)6.$

36 &IE^*#_$&0)!:B#&87_)&&7

Page 78

i>7R&%XZ&O /:P#$%&85$ &'S%!=&c(!5

JT)T*/# 6,D).-

3%/6*G %.'E K7/ K'`)U !'1&/# %46L"/ %."6i <#0#"&t4 ui$G1 %;)'$ ^,6i. FG u&6+,> K+ Z=/#1 r+,./# #=@ CH (.j,

K`G J"E{ qE8/ r+,./# 06A-t4 <.L #=> 3^&".7 u4 XW+$#1 r+,./# K#'E+U# (4L %)6,*4 (.67/64 K'E+U./# ()/' H"L# J#=/

3g/=7 K'E+U./# ()/' ua6A-t4

,0D7#-#&0B5!."7&0Q!P"&`:D#$%&O% /:P%&c_Q&N Q1P5P&j

v3uD)V8+1 r+,./# n)7"+ (4L ()/'/# #=@ !0#"L P&") v3%.:U/# <6.)D*+ !0#"L C. '7j+ v 3(4`+U./# FG u)/> %&6$/# ',- u)/> (1i1/# (SU) C67. FG ()/'/# #=S4 XW+$# v3r+,./# ^. %`G"./# _"EQ# <#',+U./# H"L#

#=@ FG <:)'1./# C)4 <6G:+E9# ')'$+ K+) 51U 3_"EQ# <:)'1./# C. ')'*/# PD- k4A,) #=@ K'E+U./# ()/' CH "7=+

3()/'/#

27#!$%&T!*

g85$ $%&%XZ&KL&05$1:$%&27#!$%&O% /:P%&O:5

3!')W. <6$).D+1 %.6@ <6.1D*. C

3<67D+../#1 !6)$/# PD- !"AE/# 51"X/# '2 ")=$+/# A

3%)a64"S7/# %)+/1W/# '2 ")=$+ B

Page 79

EWWERQWEW

O /:P#$%&85$

Page 80

www.beko.com.tr

www.beko.com

57 3057 0000/AP

EN-AR
