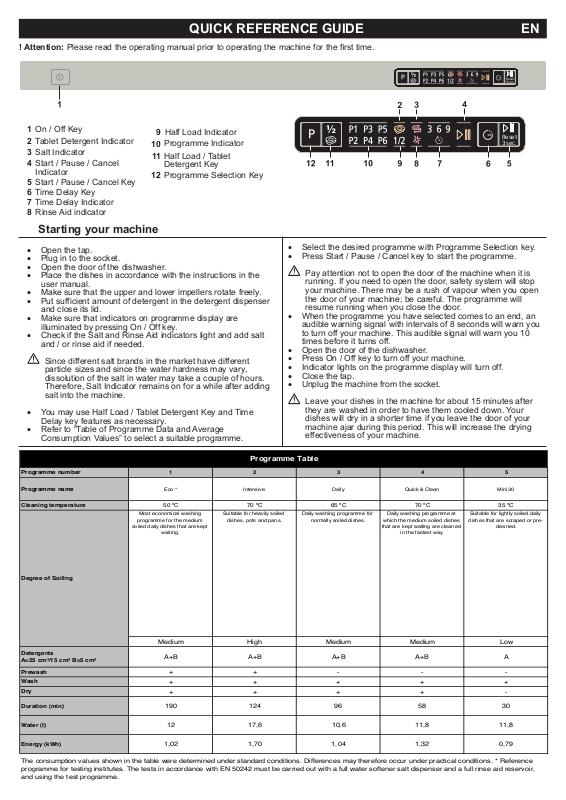

QUICK REFERENCE GUIDE |
EN |
! Attention: Please read the operating manual prior to operating the machine for the first time.
Reset |
3 sec. |
1 |
On / Off Key |
9 |
Half Load Indicator |
|
2 |
Tablet Detergent Indicator |
|||
10 |
Programme Indicator |
|||
3 |
Salt Indicator |
11 |
Half Load / Tablet |
|
4 |
Start / Pause / Cancel |
|
Detergent Key |
|
5 |
Indicator |
12 |
Programme Selection Key |
|
Start / Pause / Cancel Key |
||||
|
|
|||
6 |
Time Delay Key |
|
|
|
7 |
Time Delay Indicator |
|
|
|
8 |
Rinse Aid indicator |
|
|
Reset |
3 sec. |
Starting your machine
·Open the tap.
·Plug in to the socket.
·Open the door of the dishwasher.
·Place the dishes in accordance with the instructions in the user manual.
·Make sure that the upper and lower impellers rotate freely.
·Put sufficient amount of detergent in the detergent dispenser and close its lid.
·Make sure that indicators on programme display are illuminated by pressing On / Off key.
·Check if the Salt and Rinse Aid indicators light and add salt and / or rinse aid if needed.
Since different salt brands in the market have different particle sizes and since the water hardness may vary, dissolution of the salt in water may take a couple of hours.
Therefore, Salt Indicator remains on for a while after adding salt into the machine.
·You may use Half Load / Tablet Detergent Key and Time
Delay key features as necessary.
·Refer to “Table of Programme Data and Average
Consumption Values” to select a suitable programme.
·Select the desired programme with Programme Selection key.
·Press Start / Pause / Cancel key to start the programme.
Pay attention not to open the door of the machine when it is running. If you need to open the door, safety system will stop your machine. There may be a rush of vapour when you open the door of your machine; be careful. The programme will resume running when you close the door.
· When the programme you have selected comes to an end, an audible warning signal with intervals of 8 seconds will warn you to turn off your machine. This audible signal will warn you 10 times before it turns off.
· Open the door of the dishwasher.
· Press On / Off key to turn off your machine.
· Indicator lights on the programme display will turn off. · Close the tap.
· Unplug the machine from the socket.
Leave your dishes in the machine for about 15 minutes after they are washed in order to have them cooled down. Your dishes will dry in a shorter time if you leave the door of your machine ajar during this period. This will increase the drying effectiveness of your machine.
Programme Table
Programme number |
1 |
2 |
3 |
4 |
5 |
Programme name |
Eco * |
Intensive |
Daily |
Quick & Clean |
Mini 30 |
|
|
|
|
|
|
Cleaning temperature |
50 ºC |
70 ºC |
65 ºC |
70 ºC |
35 ºC |
|
|
|
|
|
|
|
Most economical washing |
Suitable for heavily soiled |
Daily washing programme for |
Daily washing programme at |
Suitable for lightly soiled daily |
|
programme for the medium |
dishes, pots and pans. |
normally soiled dishes. |
which the medium soiled dishes |
dishes that are scraped or pre- |
|
soiled daily dishes that are kept |
|
|
that are kept waiting are cleaned |
cleaned. |
|
waiting. |
|
|
in the fastest way. |
|
Degree of Soiling |
|
|
|
|
|
|
Medium |
High |
Medium |
Medium |
Low |
|
Detergents |
A+B |
A+B |
A+B |
A+B |
A |
|
A=25 cm³/15 cm³ B=5 cm³ |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Prewash |
+ |
+ |
- |
- |
- |
|
|
|
|
|
|
|
|
Wash |
+ |
+ |
+ |
+ |
+ |
|
Dry |
+ |
+ |
+ |
+ |
- |
|
Duration (min) |
190 |
124 |
96 |
58 |
30 |
|
|
|
|
|
|
|
|
Water (I) |
12 |
17,6 |
10,6 |
11,8 |
11,8 |
|
|
|
|
|
|
|
|
Energy (kWh) |
1,02 |
1,70 |
1,04 |
1,32 |
0,79 |
The consumption values shown in the table were determined under standard conditions. Differences may therefore occur under practical conditions. * Reference programme for testing institutes. The tests in accordance with EN 50242 must be carried out with a full water softener salt dispenser and a full rinse aid reservoir, and using the test programme.
