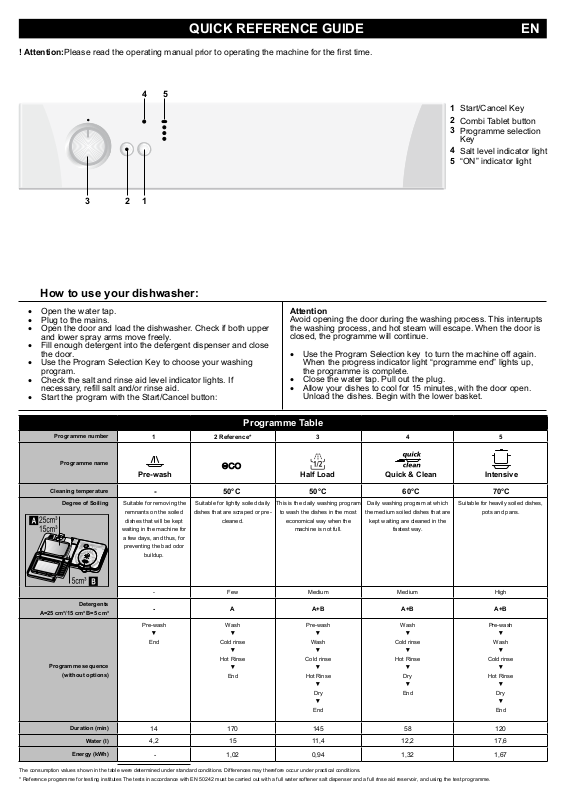

Beko DFN 1530 X, DFN 1530 QUICK REFERENCE GUIDE
QUICK REFERENCE GUIDE
! Attention:Please read the operating manual prior to operating the machine for the rst time.
How to use your dishwasher:
1
Start/Cancel Key
2
Combi Tablet button
3
Programme selection
Key
4
Salt level indicator light
5
“ON” indicator light
EN
• Open the water tap.
• Plug to the mains.
• Open the door and load the dishwasher. Check if both upper
and lower spray arms move freely.
• Fill enough detergent into the detergent dispenser and close
the door.
• Use the Program Selection Key to choose your washing
program.
• Check the salt and rinse aid level indicator lights. If
necessary, refill salt and/or rinse aid.
• Start the program with the Start/Cancel button:
Programme Table
Programme number
Programme name
Cleaning temperature
Degree of Soiling Suitable for removing the
waiting in the machine for
a few days, and thus, for
1 2 Reference* 3 4 5
Pre-wash
-
remnants on the soiled
dishes that will be kept
preventing the bad odor
buildup.
dishes that are scraped or pre-
50°C 50°C 60°C 70°C
Suitable for lightly soiled daily
cleaned.
Attention
Avoid opening the door during the washing process. This interrupts
the washing process, and hot steam will escape. When the door is
closed, the programme will continue.
• Use the Program Selection key to turn the machine off again.
When the progress indicator light “programme end” lights up,
the programme is complete.
• Close the water tap. Pull out the plug.
• Allow your dishes to cool for 15 minutes, with the door open.
Unload the dishes. Begin with the lower basket.
Intensive
Suitable for heavily soiled dishes,
pots and pans.
This is the daily washing program
to wash the dishes in the most
economical way when the
machine is not full.
Quick & CleanHalf Load
Daily washing program at which
the medium soiled dishes that are
kept waiting are cleaned in the
fastest way.
- Few Medium Medium High
A=25 cm³/15 cm³ B=5 cm³
Detergents
Programme sequence
(without options)
Duration (min)
Water (I)
Energy (kWh)
The consumption values shown in the table were determined under standard conditions. Differences may therefore occur under practical conditions.
* Reference programme for testing institutes The tests in accordance with EN 50242 must be carried out with a full water softener salt dispenser and a full rinse aid reservoir, and using the test programme.
- A A+B A+B A+B
Pre-wash
▼
End
14 170 145 58 120
4,2 15 11,4 12,2 17,6
- 1,02 0,94 1,32 1,67
Wash
▼
Cold rinse
▼
Hot Rinse
▼
End
Pre-wash
▼
Wash
▼
Cold rinse
▼
Hot Rinse
▼
Dry
▼
End
Wash
▼
Cold rinse
▼
Hot Rinse
▼
Dry
▼
End
Pre-wash
▼
Wash
▼
Cold rinse
▼
Hot Rinse
▼
Dry
▼
End
1
Start/Cancel Key
2
Combi Tablet button
3
Programme selection
Key
4
Salt level indicator light
5
“ON” indicator light
QUICK REFERENCE GUIDE
Improper Loading Of Dishware
EN
Visual Indicator
(If applicable)
Rinse aid level indicator light
If the indicator light comes on, you have to rell
rinse aid (If applicable).
You can also tell whether rinse aid must be
relled by looking at the rinse aid dispenser.
When the visual ll indicator is dark, there is
enough rinse aid in the dispenser.
When the colour is light, open the dispenser and
rell rinse aid.
ON/OFF
Machine will be switched on when you move the Programme
Selection key to position “1”. “ON” light will illuminate.
Machine will be switched off when you move it to” OFF” position. All
lights will turn off.
Program selection Key
Used to switch on/off the machine and select the washing
programmes.
Combi Tablet Button
Allows to obtain a better drying performance from the multi-purpose
detergents called as all in one detergents such as 2in1, 3in1, 4in1,
5in1 and etc., depending on the hardness level of the tap water. The
programs in which the Combi Tablet function can be enabled are
indicated in the Program Data and Table of Average Consumption
Values. Combi Tablet symbol lights up when you select the Combi
Tablet function.
Start/Cancel key
You use the key to start the selected program; the light on the key
lights up.
Stop the program with the Start / Cancel key if you would like to
open the door once the dishwasher’s washing program is running.
On
Wash
Dry
End
LED progress indicator lights
The program sequence throughout the
washing process can be monitored from the
progress indicator lights on the control panel.
! Warning
Following the washing stage, in order to
drain and remove water from inside the machine completely, the
machine will cancel for approximately 35 minutes. Do not worry this
is not a fault. The End progress indicator light will come on
when
nished.
! Warning
Do not switch the machine off before End light comes on.
How to cancel the washing program
To cancel a program while the machine is operating:
Press start/stop key for 3 seconds. The machine will drain the water
inside the machine for 45 seconds. The program is cancelled when
washing light goes off. Then, you can choose and start a new
program.
! Important:Depending on the stage of the program you have
cancelled, there may be detergent residue or rinse aid inside the
machine and on the load. Make sure the items in the dishwasher
are not used before washing properly.
17 9862 01 00_AG
