Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.
Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well.
The user manual will help you use the product in a fast and safe way.
•Read the manual before installing and operating the product.
•Make sure you read the safety instructions.
•Keep the manual in an easily accessible place as you may need it later.
•Read the other documents given with the product.
Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property. BWarning against electric voltage.
This product was manufactured using the latest technology in environmentally friendly conditions.
CONTENTS
1 Your refrigerator |
4 |
|
2 |
Important Safety Warnings 5 |
|
Intended use...................................... |
5 |
|
For products with a water dispenser;.7 |
||
Child safety........................................ |
7 |
|
Compliance with WEEE Directive and |
||
Disposing of the Waste Product: ....... |
7 |
|
Compliance with RoHS Directive:....... |
8 |
|
Package information.......................... |
8 |
|
HCA Warning..................................... |
8 |
|
Things to be done for energy saving... |
8 |
|
3 |
Installation |
10 |
Points to be paid attention to when the |
||
relocation of the refrigerator.............. |
10 |
|
Before you start the refrigerator,.......10 |
||
Electrical connection........................ |
10 |
|
Disposing of the packaging.............. |
11 |
|
Disposing of your old refrigerator...... |
11 |
|
Placing and Installation..................... |
11 |
|
Changing the illumination lamp ........ |
12 |
|
Door Open Warning......................... |
12 |
|
Changing the door opening direction12. |
||
Adjusting the legs............................. |
12 |
|
4 |
Preparation |
13 |
5 |
Using your refrigerator |
14 |
Indicator Panel................................. |
14 |
|
Door Open Warning......................... |
17 |
|
Dual cooling system:........................ |
17 |
|
Freezing fresh food........................... |
17 |
|
Recommendations for preservation of |
||
frozen food....................................... |
18 |
|
Deep-freeze information................... |
20 |
|
Placing the food............................... |
20 |
|
Recommendations for the fresh food |
||
compartment................................... |
21 |
|
Odour filter....................................... |
22 |
|
Hygiene - Ion ................................... |
22 |
|
Chill compartment............................ |
22 |
|
6 |
Maintenance and cleaning 23 |
|
Protection of plastic surfaces .......... |
23 |
|
7 |
Troubleshooting |
24 |
3 EN

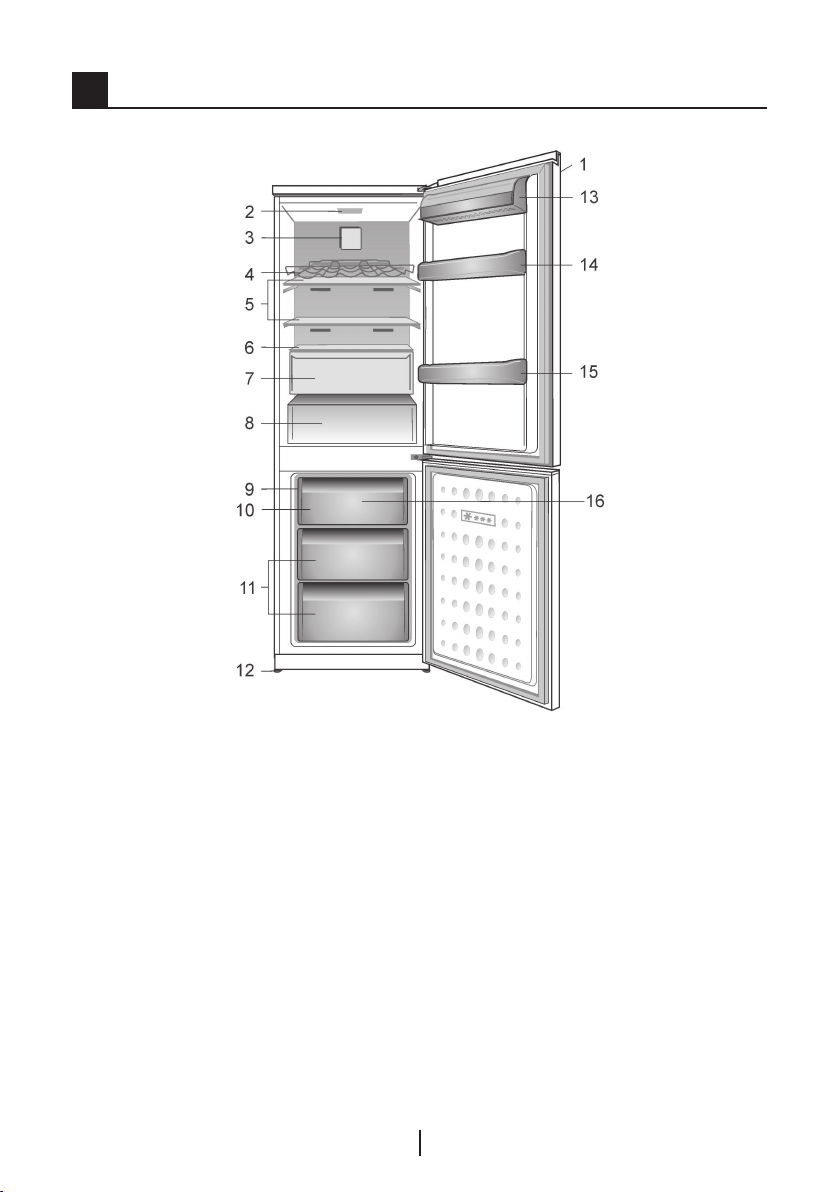

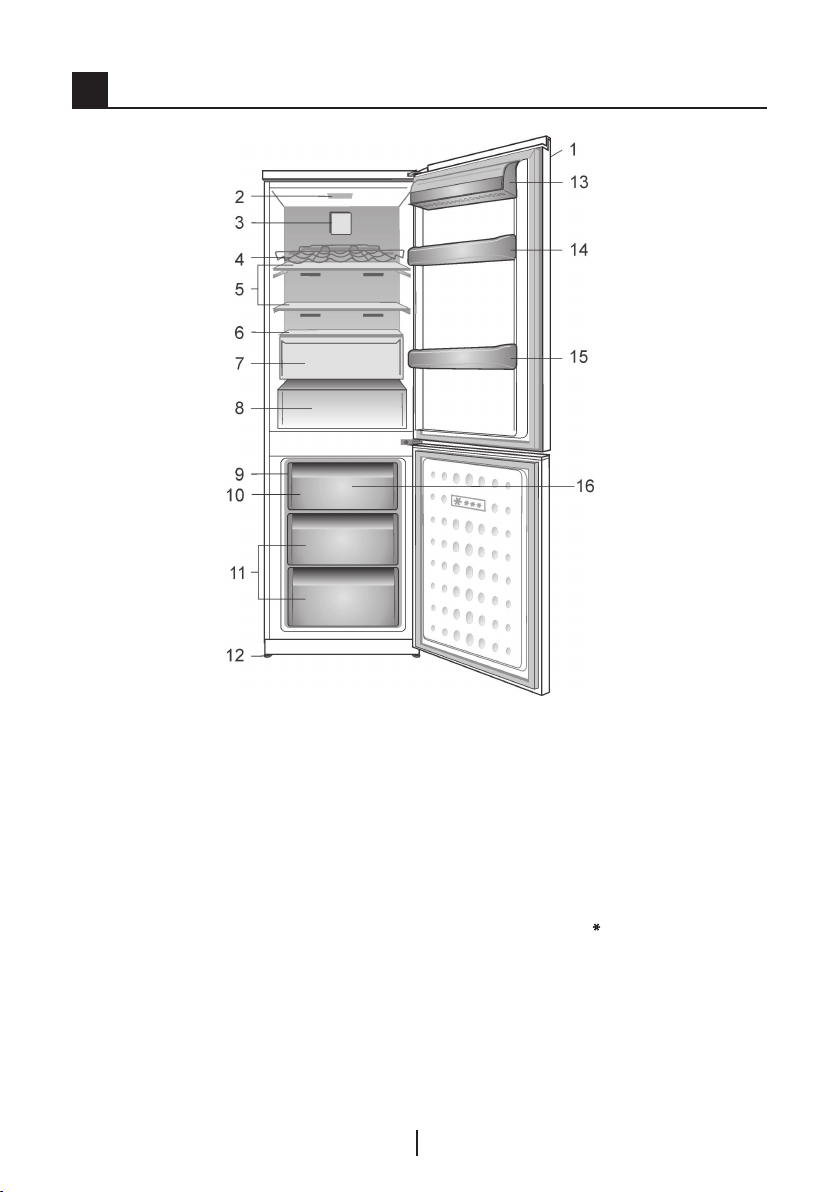

1 Your refrigerator
1. |
Control panel |
10. |
Compartment for quickly freezing |
2. |
Interior light |
11. |
Compartments for frozen froods keeping |
3. |
Fresh Food fan |
12. |
Adjustable front feet |
4. |
Wine bottles support |
13. |
Dairy Compartment |
5. |
Adjustable Cabinet shelves |
14. |
Shelf for jars |
6. |
Chiller cover and glass |
15. |
Shelf for bottles |
7. |
Chiller |
16. |
Freezer fan |
8. |
Salad crispers |
|
|
9. |
Ice tray support & ice tray |
|
* Optional |
|
|
|
CFigures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.
4 EN
2 Important Safety Warnings
Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.
The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.
Intended use
This product is intended to be used
•indoors and in closed areas such as homes;
•in closed working environments such as stores and offices;
•in closed accommodation areas such as farm houses, hotels, pensions.
•This product should not be used outdoors.
General safety
•When you want to dispose/scrap the product, we recommend you to consult the authorized service in
order to learn the required information and authorized bodies.
•Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.
•For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)
•For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.
•Do not touch frozen food by hand; they may stick to your hand.
•Unplug your refrigerator before cleaning or defrosting.
•Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.
•Never use the parts on your refrigerator such as the door as a means of support or step.
•Do not use electrical devices inside the refrigerator.
•Do not damage the parts, where the refrigerant is circulating, with
drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.
•Do not cover or block the ventilation holes on your refrigerator with any material.
•Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.
•In case of any failure or during a maintenance or repair work,
disconnect your refrigerator’s mains supply by either turning off the
5 EN
relevant fuse or unplugging your appliance.
•Do not pull by the cable when pulling off the plug.
•Place the beverage with higher proofs tightly closed and vertically.
•Never store spray cans containing flammable and explosive substances in the refrigerator.
•Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
•This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product
•Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.
•Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
•Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
•Contact authorized service when there is a power cable damage to avoid danger.
•Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.
•This refrigerator is intended for only
storing food items. It must not be |
|
used for any other purpose. |
6 |
|
•Label of technical specifications is located on the left wall inside the refrigerator.
•Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.
•If there is a blue light on the refrigerator, do not look at the blue light with optical tools.
•For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.
•This operation manual should be handed in to the new owner of the product when it is given to others.
•Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.
•Do not plug the refrigerator if the wall outlet is loose.
•Water should not be sprayed directly on inner or outer parts of the product for safety purposes.
•Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.
•Never place containers filled with water on top of the refrigerator, otherwise this may cause electric
EN shock or fire.
•Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator’s door.
•As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.
•If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.
•The plug’s tip should be regularly cleaned; otherwise, it may cause fire.
•The plug’s tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.
•Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.
•When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.
•When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.
For products with a water dispenser;
Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.
• Use only potable water.
Child safety
•If the door has a lock, the key should be kept away from reach of children.
•Children must be supervised to prevent them from tampering with the product.
Compliance with WEEE Directive and Disposing of the Waste Product:
This product complies with EU WEEE
Directive (2012/19/EU). This
product bears a classification symbol for waste electrical and electronic equipment (WEEE).This product has
been manufactured with high quality parts and materials which can be reused and are
suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.
7 EN
Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.
Package information
Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
HCA Warning
If your product’s cooling system contains R600a:
This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.
Ignore this warning if your product’s cooling system contains R134a.
Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.
Never throw the product in fire for disposal.
Things to be done for energy saving
•Pay attention not to open doors very frequently and do not leave the doors open for a long time. When doors are open, warm air enters the fridge/ freezer cabinets and the appliance consumes more energy to cool down the foodstuffs.Thus please do not open doors frequently in order to save energy and to keep foods at ideal storage temperature.
•Do not block the freezer fan grill by placing foods in front.
•Do not put hot food or drinks in your refrigerator.
•Do not overload your refrigerator so that the air circulation inside is not prevented.
•Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
•Pay attention to keep your food in closed containers.
•Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

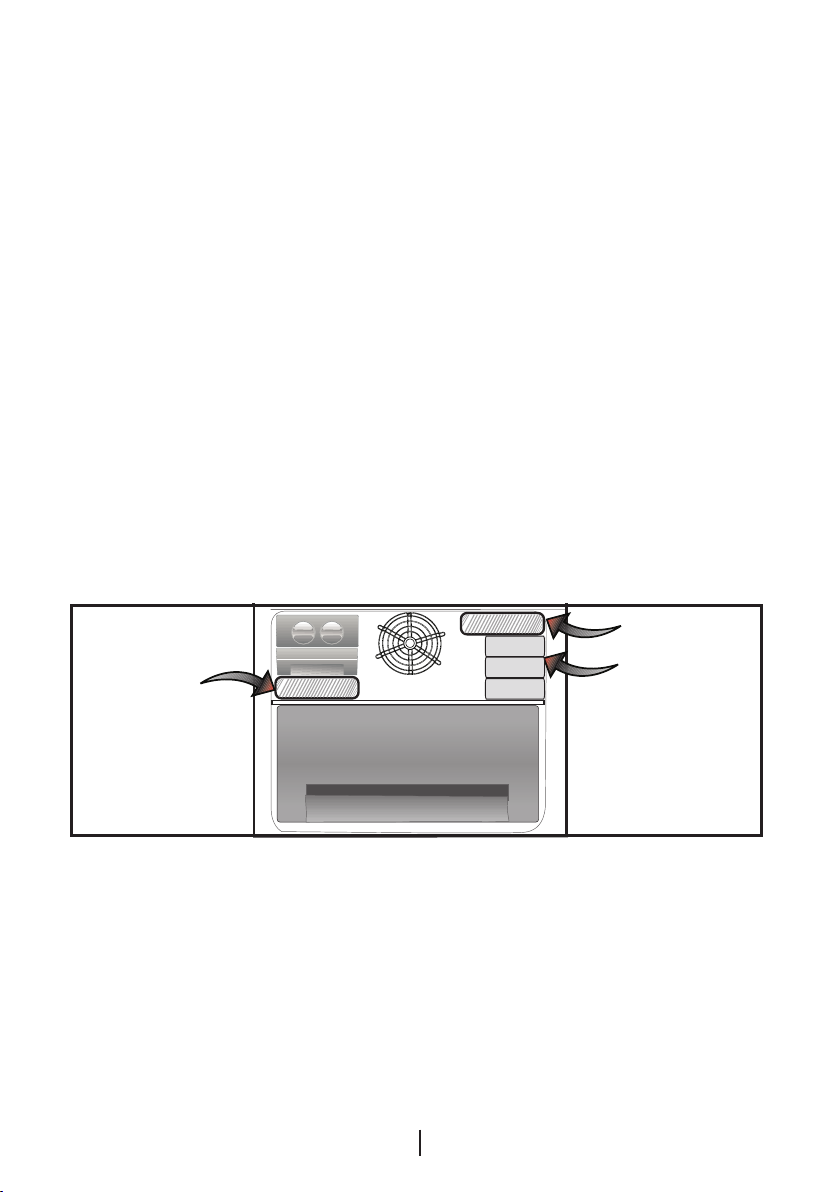

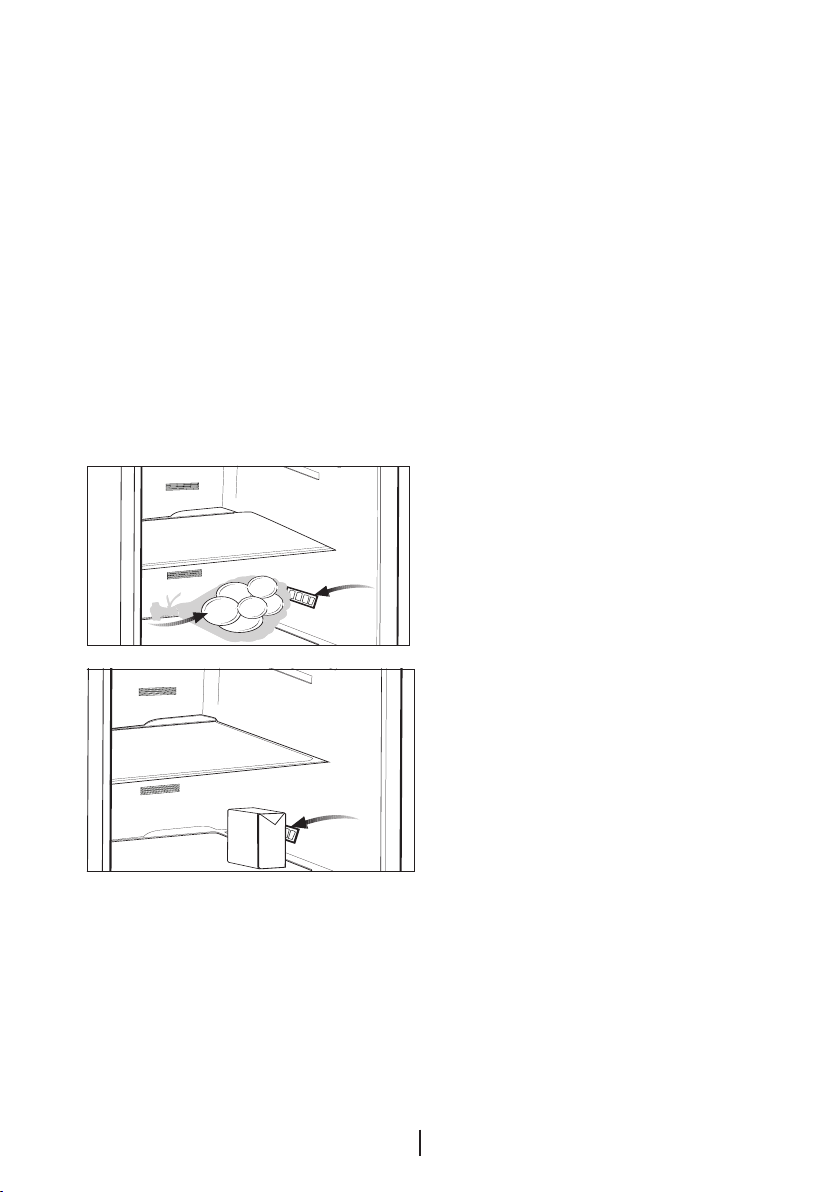

•Please use provided 2 pieces of cold packs (pcm) at recommended places below when storing foodstuffs in freezer compartments.
•It helps to keep your foodstuffs colder for more time when electricity is off or your appliance is unplugged.
•If you do not plan to store foodstuff in freshfood compartment, please activate vacation mode for energy saving. Freezer compartment keeps frezing normalıy when vacation mode is on.
8 EN
•Recommended temperature settings are +4°C and -20°C for freshfood and freezer compartments respectively.

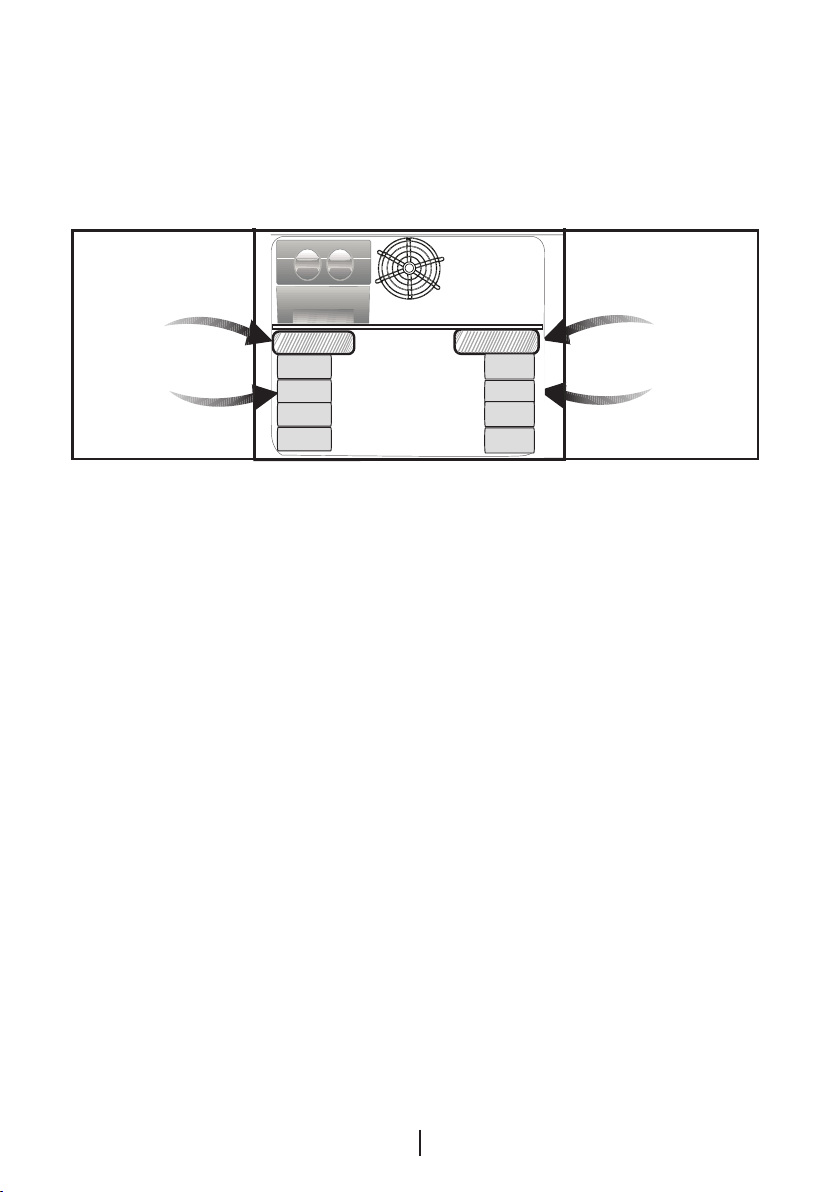

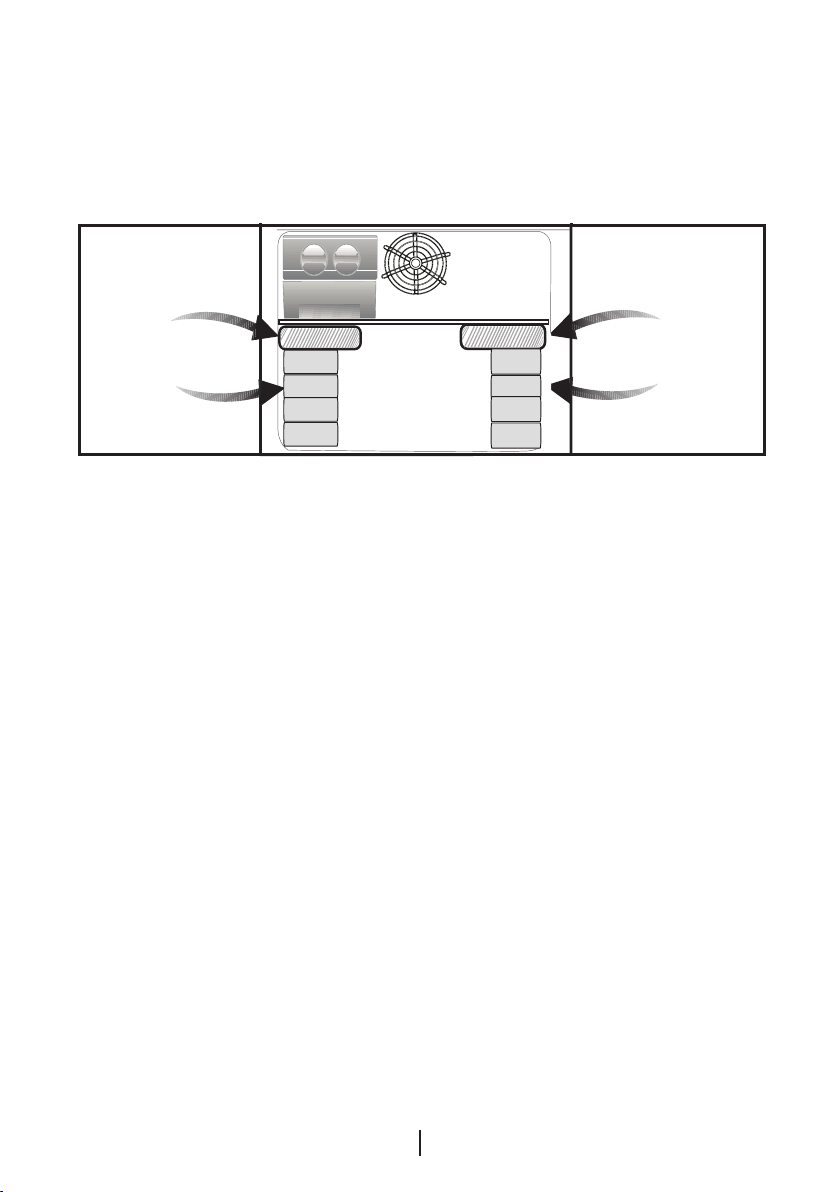

•For loading maximum foodstuff in your freezer compartment, top shelf cover and middle drawer may be removed. Declared energy consumption volume of your refrigerator is determined while the freezer compartment is loaded without ice maker, ice tray
top shelf cover and middle drawer for maximum loading configuration. It’s highly recommended that bottom drawer is always used in place when loading. Top shelf cover and middle drawer are provided for ease of use if needed.
•If rear back wall condanser of your appliance can be reached without any tool, please pull the appliance forward and clean the dust off regularly to maintain high performance.

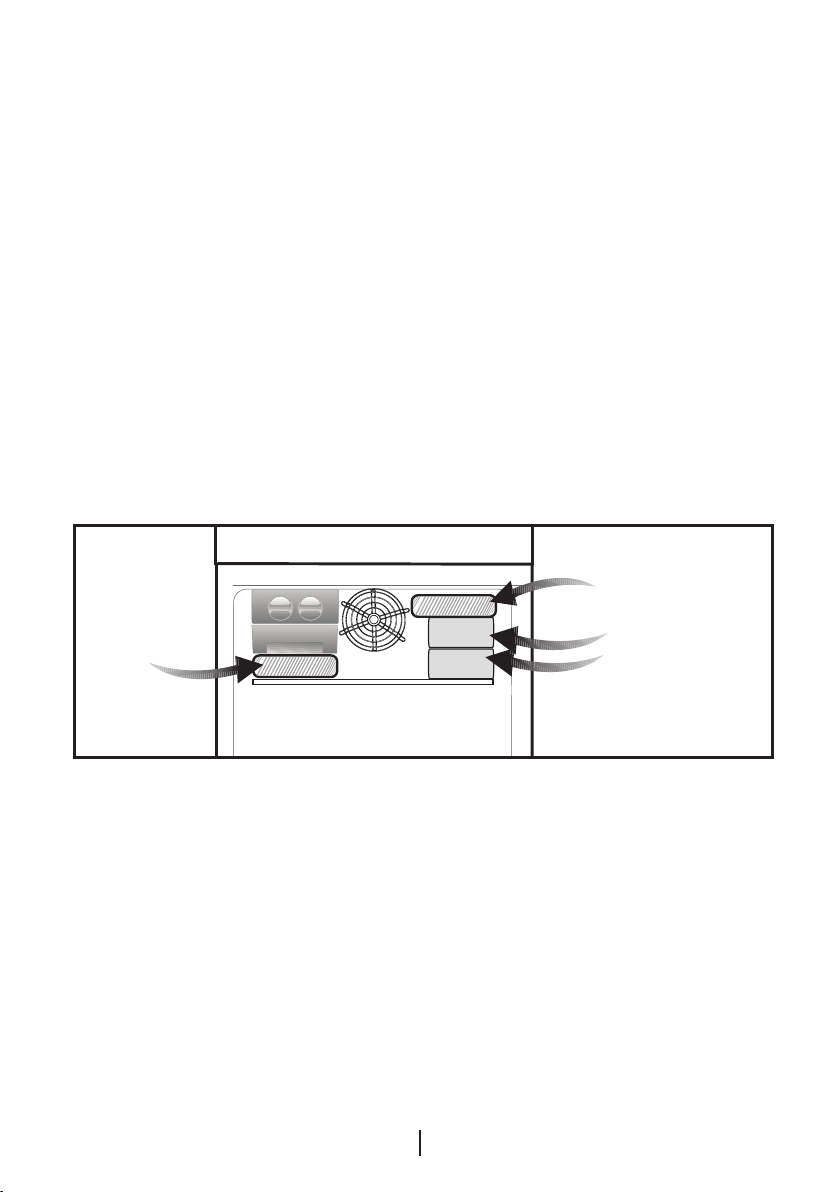

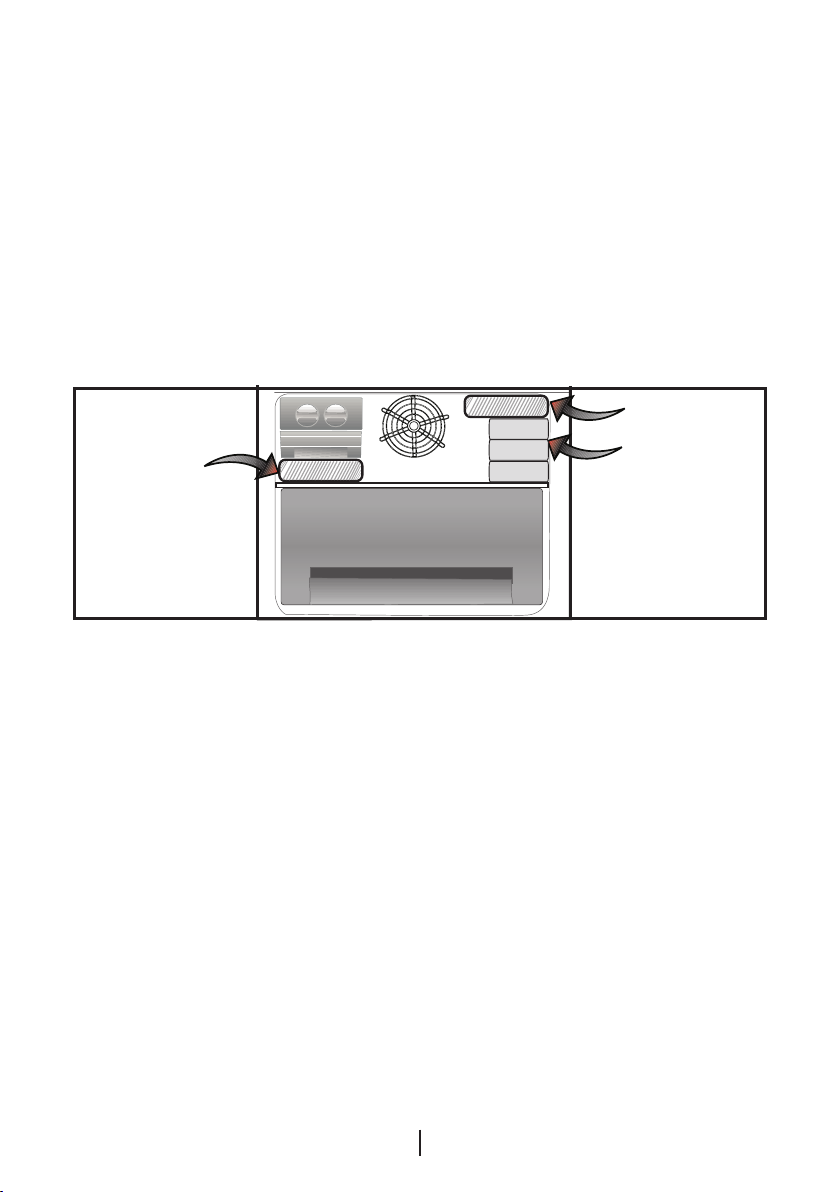

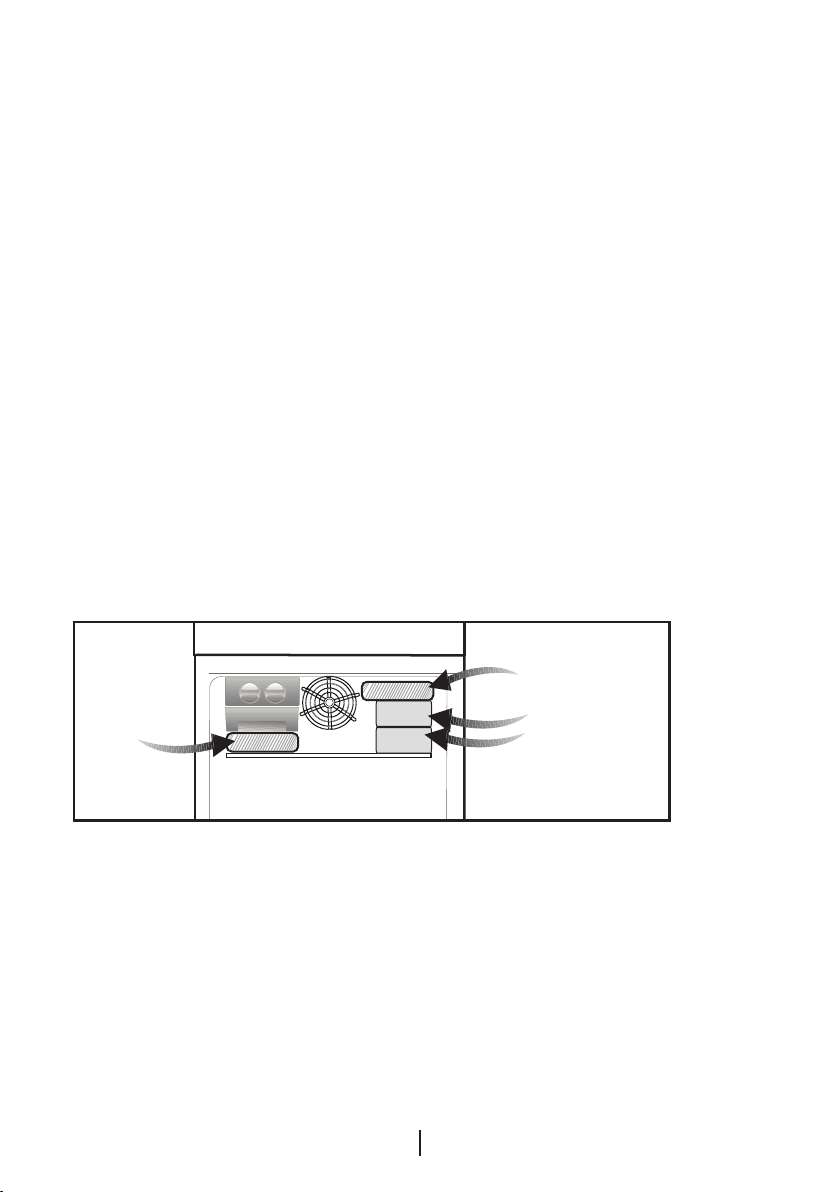

cold pack
cold pack |
foodstuffs |
9 EN
3 Installation
B In case the information which are given in the user manual are not taken into account, manufacturer will not assume any liability for this.
Points to be paid attention to when the relocation of the refrigerator
1.Your refrigerator should be unplugged.Before transportation of your refrigerator, it should be emptied and cleaned.
2.Before it is re-packaged, shelves, accessories, crisper, etc. inside your refrigerator should be fixed with adhesive tape and secured against impacts. Package should be bound with a thick tape or sound ropes and the transportation rules on the package should be strictly observed.
3.Original packaging and foam materials should be kept for future transportations or moving.
Before you start the refrigerator,
Check the following before you start to use your refrigerator:

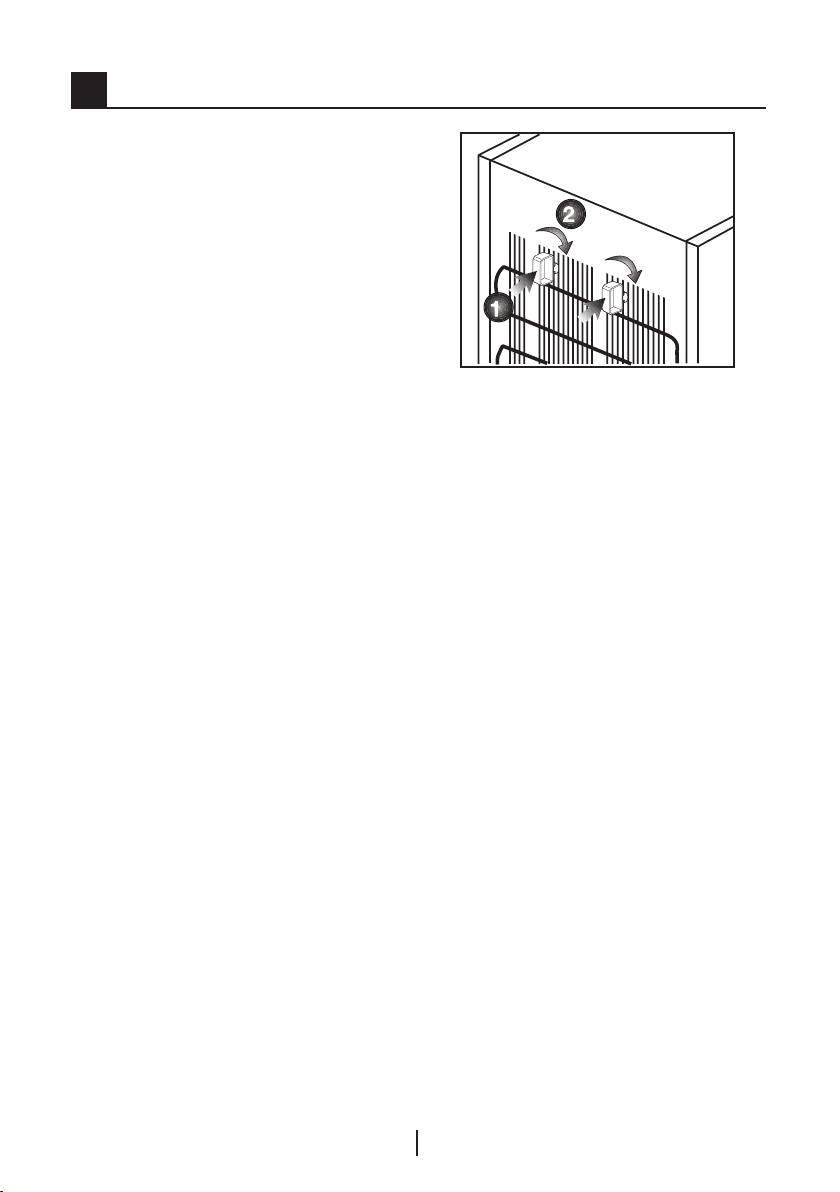

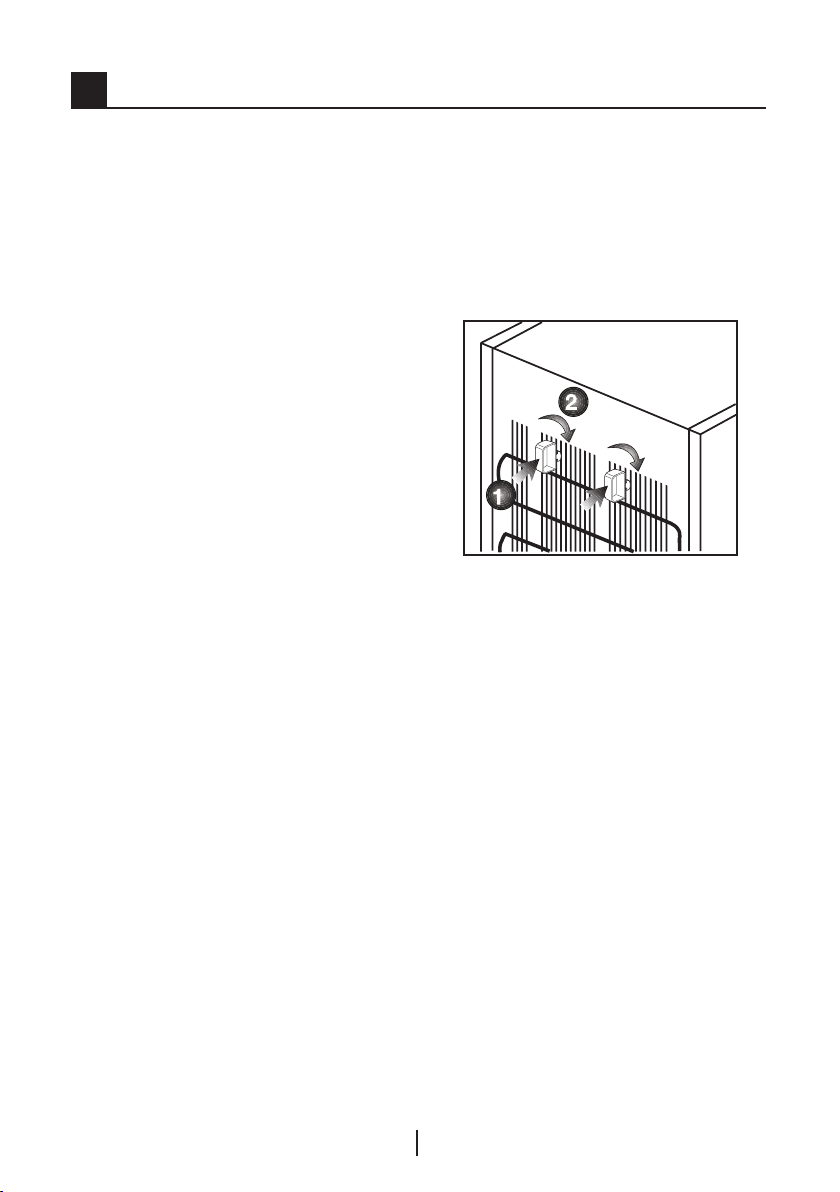

1.Attach 2 plastic wedges as illustrated below. Plastic wedges are intended to keep the distance which will ensure the air circulation between your refrigerator and the wall. (The picture is drawn up as a representation and it is not identical with your product.)
2.Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.
3.Connect the plug of the refrigerator to the wall socket. When the fridge door is opened, fridge internal lamp will turn on.
4.When the compressor starts to operate, a sound will be heard. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
5.Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.
Electrical connection
Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.
Important:
The connection must be in compliance with national regulations.
•The power plug must be easily accessible after installation.
10 EN
•Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
•The voltage stated on the label located at left inner side of your product should be equal to your network voltage.
•Extension cables and multi plugs must not be used for connection.
B A damaged power cable must be replaced by a qualified electrician.
B Product must not be operated before it is repaired! There is the risk of electric shock!
Disposing of the packaging
The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not throw away with regular house waste, throw away on packaging pick up spots designated by the local authorities.
The packing of your refrigerator is produced from recyclable materials.
Disposing of your old refrigerator
Dispose of your old refrigerator without giving any harm to the environment.
•You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

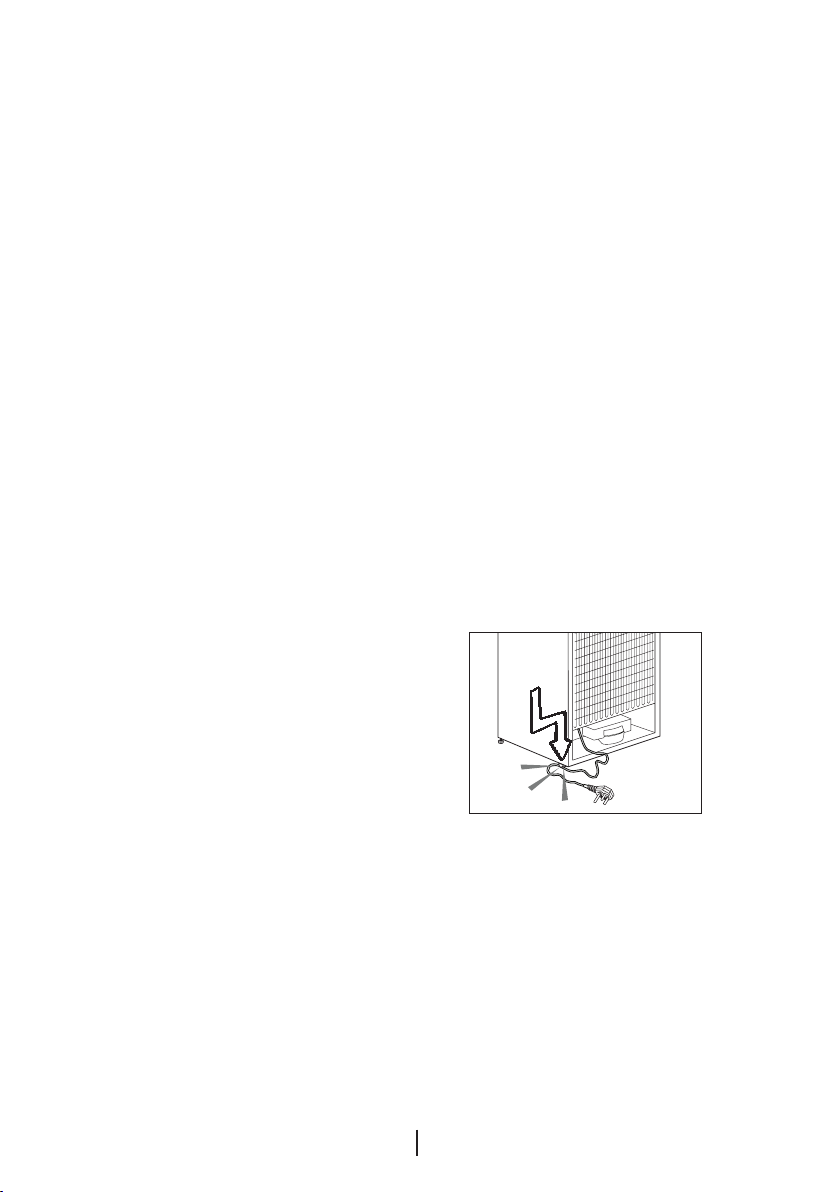

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.
Placing and Installation
A If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.
1.Install your refrigerator to a place that allows ease of use.
2.Keep your refrigerator away from heat sources, humid places and direct sunlight.
3.There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. Do not place your product on the materials such as rug or carpet.
4.Place your refrigerator on an even floor surface to prevent jolts.
11 EN
Changing the illumination lamp
To change the Bulb/LED used for illumination of your refrigerator, call your Authorized Service.
Door Open Warning
(This feature is optional)
An audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.
Changing the door opening direction
Door opening direction of your refrigerator can be changed according to the place you are using it. If this is necessary, please call your nearest Authorized Service.
Adjusting the legs
If your refrigerator is unbalanced;

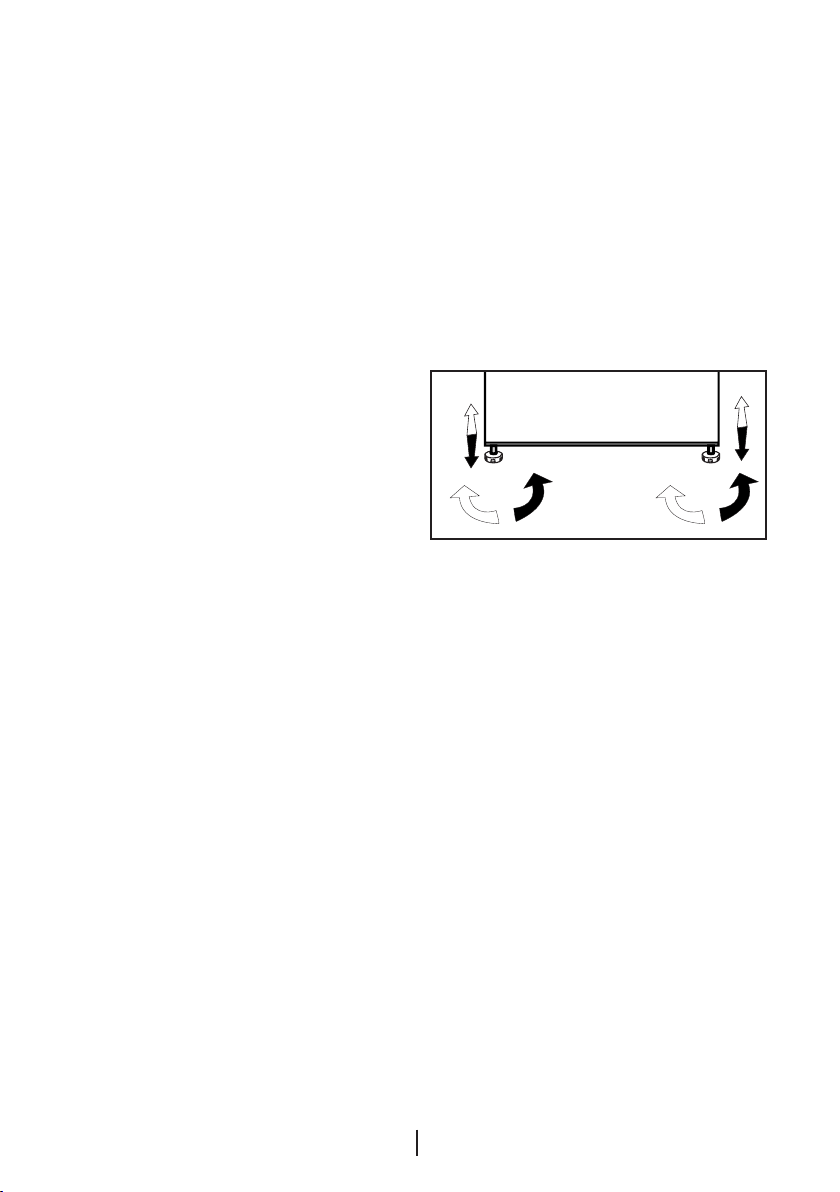

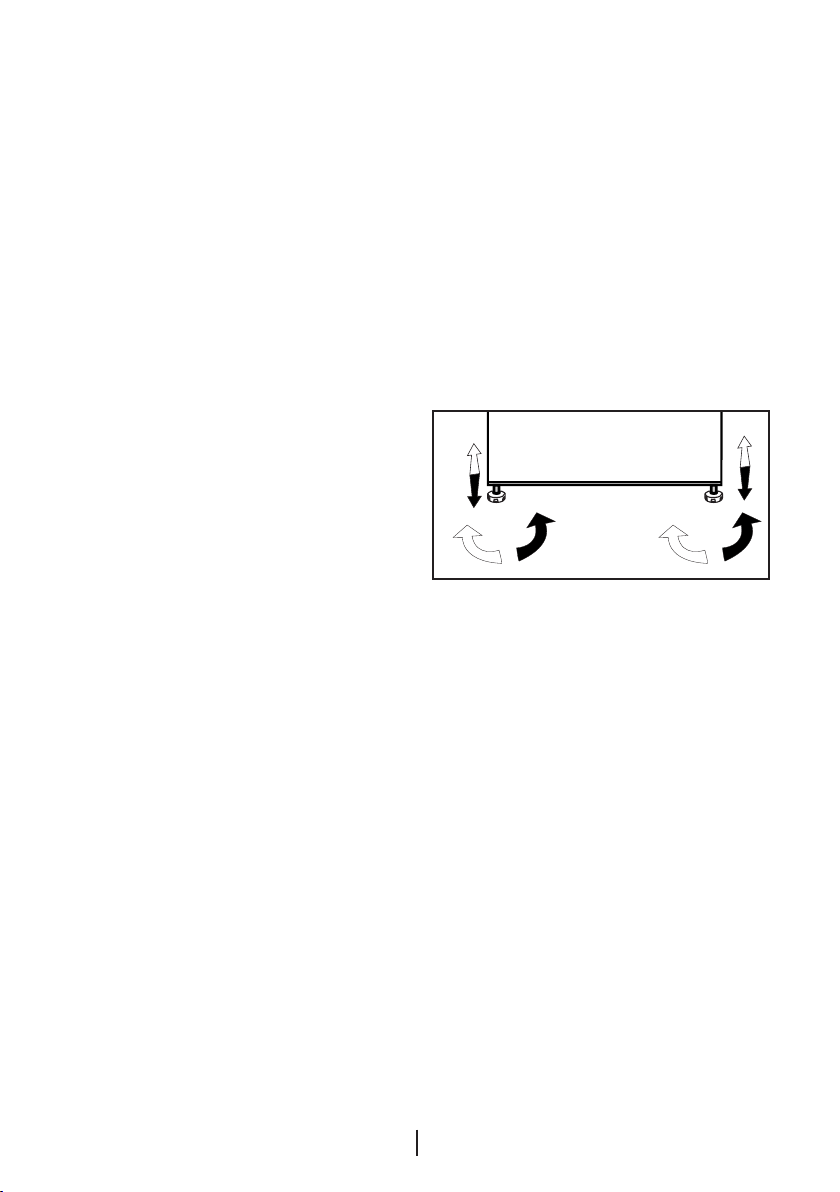

You can balance your refrigerator by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.
12 EN
4Preparation
•Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
•The ambient temperature of the room where you install your refrigerator should at least be 10°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency.
•Please make sure that the interior of your refrigerator is cleaned thoroughly.
•If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
•When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.
•The door should not be opened frequently.
•It must be operated empty without any food in it.
•Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in
the “Recommended solutions for the problems” section.
•Original packaging and foam materials should be kept for future transportations or moving.
13 EN
5 Using your refrigerator

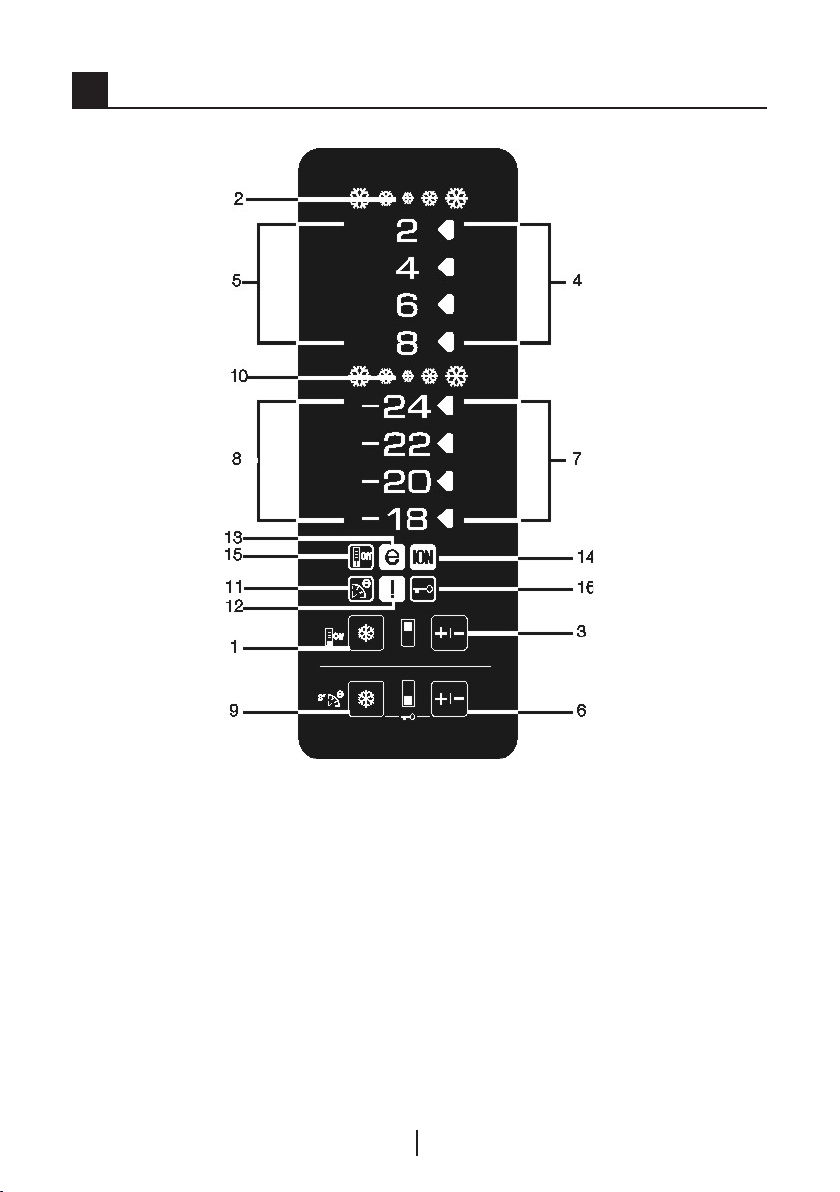

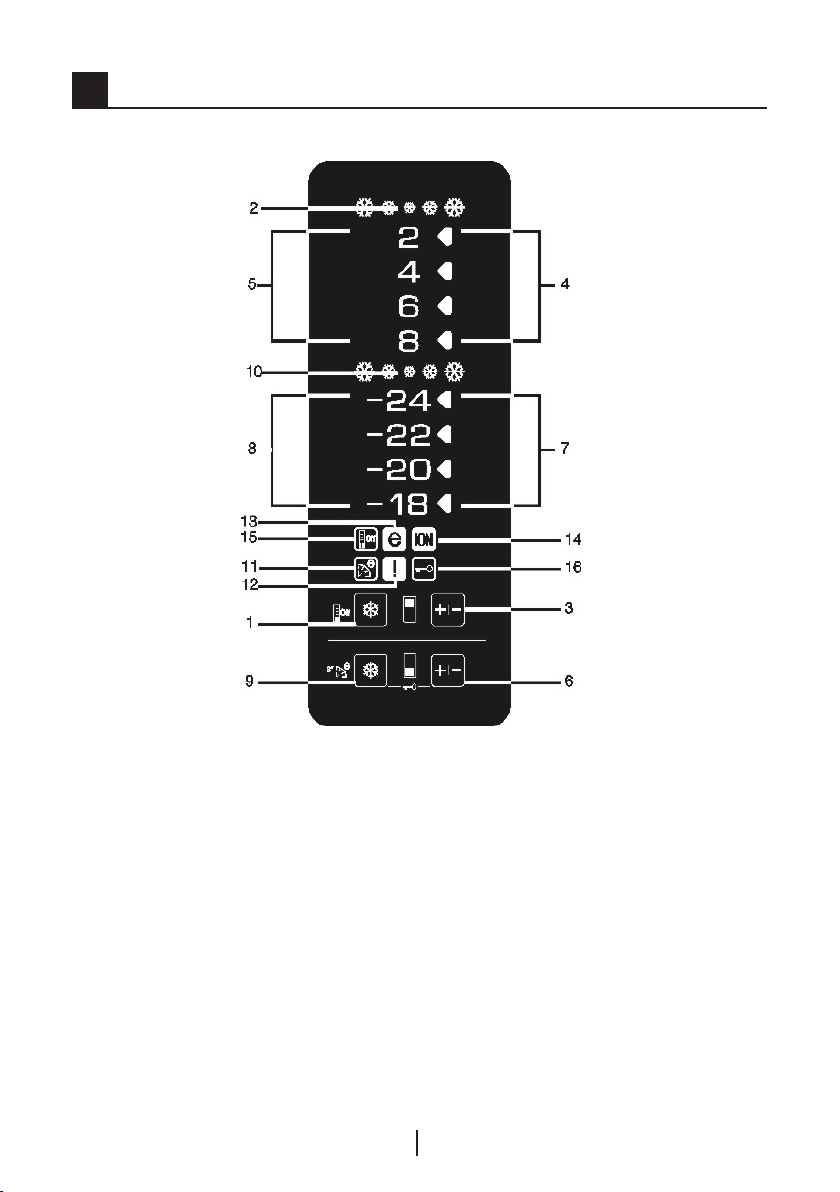

Indicator Panel
1- Quick Freeze Function
Quick Freeze indicator turns on when the Quick Freeze function is on. To cancel this function press Quick Freeze button again. Quick Freeze indicator will turn off and return to its normal settings. If you do not cancel it, Quick Freeze will cancel itself automatically after 72 hours or when the freezer compartment reaches to the required temperature. 14
If you want to freeze large amounts of fresh food, press the Quick Freeze button 6 hours before putting the food into the freezer compartment. If you press the Quick Freeze button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.
EN
It's strongly recommended that you use top shelf for initial freezing of foodstuffs. This function is not recalled when power restores after a power failure.

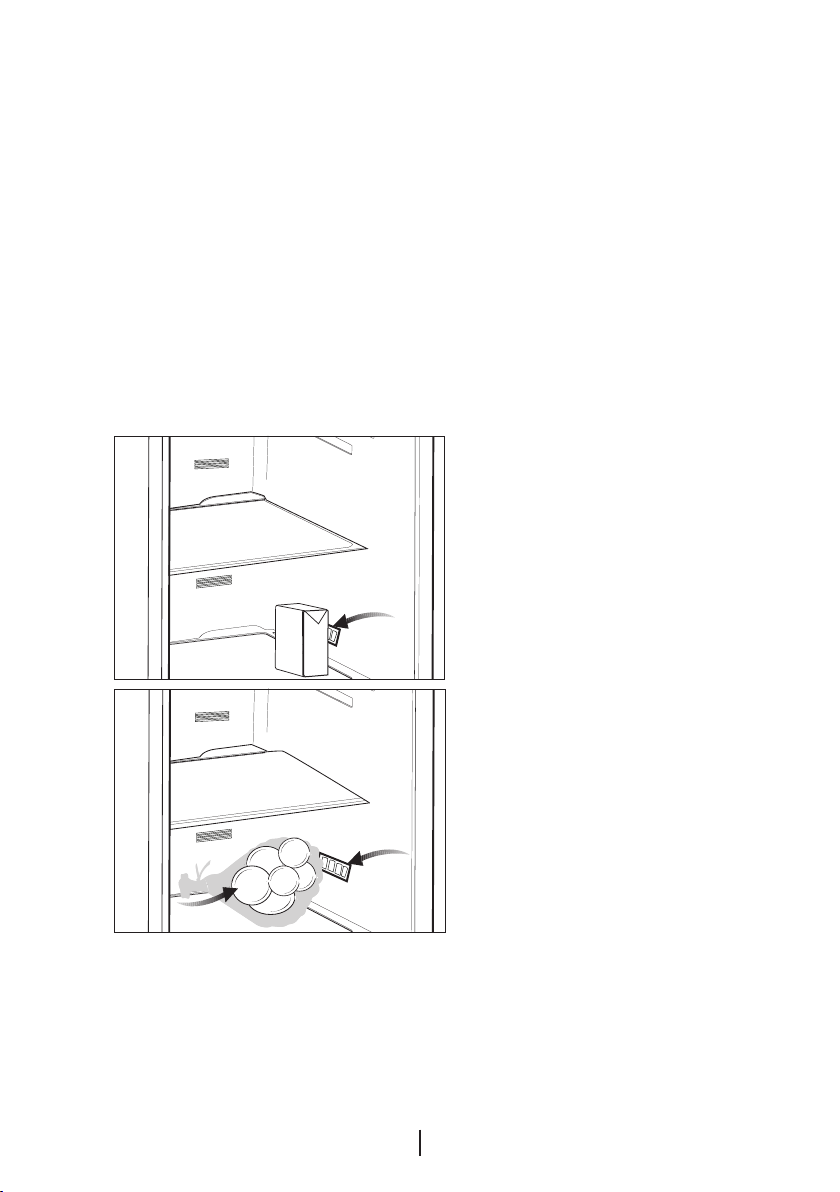

It's advised that provided cold packs are used as described below prior to using Quick freeze function. It improves storage and quick-freezing performance of your freezer compartment.
cold
pack
cold
pack
foodstuffs |
foodstuffs |
2- Quick Freeze Indicator
This icon flashes in an animated style when the Quick Freeze function is active.
3- Freezer Set Function
This function allows you to make the freezer compartment temperature setting. Press this button to set the temperature of the freezer compartment to -18, -20, -22 and -24 respectively.
4- Freezer Compartment Temperature Setting Indicator
Indicates the temperature set for the Freezer Compartment.
5- Freezer Compartment
Temperature Indicator
-24, -22, -20, -18 indicators light up continuously.
6- Fridge Set Function
This function allows you to make the fridge compartment temperature setting. Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2 respectively.
7- Fridge Compartment Temperature Setting Indicator
Indicates the temperature set for the Fridge Compartment.
8-Fridge Compartment
Temperature Indicator
8, 6, 4 and 2 indicators light up continuously.
9- Quick Fridge Function
When you press Quick Fridge button, the temperature of the compartment will be colder than the adjusted values. This function can be used for food placed in the fridge compartment and required to be cooled down rapidly. If you want to cool large amounts of fresh food, it is recommended to active this feature before putting the food into the fridge. Quick Fridge indicator will remain lit when the Quick Fridge function is enabled. To cancel this function press
15 EN
Quick Fridge button again. Quick Fridge indicator will turn off and return to its normal settings. If you do not cancel it, Quick Fridge will cancel itself automatically after 2 hours or when the fridge compartment reaches to the required temperature.
This function is not recalled when power restores after a power failure.
10Quick Fridge Indicator
This icon flashes in an animated style when the Quick Fridge function is active.
11- Eco-Fuzzy (Special Economic Usage) Function
Press the Quick Freeze button for 3 seconds to activate the Eco Fuzzy Function. Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active. Press the Quick Freeze button for 3 seconds again to deactivate the Eco Fuzzy Function.
12High Temperature/ Error Warning Indicator
This light comes on during high temperature failures and error warnings.
13. Economic Usage Indicator
Economic Usage Indicator turns on when the Freezer Compartment is set to -18°C. Economic Usage Indicator turns off when the Quick Fridge or Quick Freeze function is selected.
14Ionizer Indicator Light
Indicator light lights up continuously. This light indicates that your refrigerator is protected against the bacteria.
15-Energy Saving Mode
When you press this button, Energy saving icon will light up and Energy Saving Function will be activated. If energy saving function is active, all icons on the display other than energy saving icon will turn off. When the Energy Saving Function is active, if any button is pressed or the door is opened, Energy Saving Function will be exited and the icons on display will return to normal.If you press this buton again, Energy Saving icon will turn off and Energy Saving Function will not be active.
16-Key Lock Mode
Press Quick Freeze and FRZ Set buttons concurrently for 3 seconds. Key lock icon will light up and key lock mode will be activated. Buttons will not function if the Key Lock mode is active. Press Quick Freeze and FRZ Set buttons concurrently for 3 seconds again. Key lock icon will turn off and the key lock mode will be exited.
16 EN
Door Open Warning |
Freezing fresh food |
|
A audio warning signal will be given when the fridge compartment door of your product is left open for at least 1 minute. This audio signal will mute when any button on the indicator is pressed or when the door is closed.
Dual cooling system:
Your refrigerator is equipped with two separate cooling systems to cool the fresh food compartment and freezer compartment. Thus, air in the fresh food compartment and freezer compartment do not get mixed. Thanks to these two separate cooling systems, cooling speed is much higher than other,type refrigerators. Odors in the compartments do not get mixed. Also additional power saving is provided since the defrosting is performed individually.
•It must be preferred to wrap or cover the food before placing them in the refrigerator.
•Hot food must be cooled down to room temperature before placing them in the freezer compartment.
•The foodstuff that you want to freeze must be fresh and in good quality.
•Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs.
•The foodstuff must be packaged in an airtight manner to prevent them from drying even if they are intended to be kept for a short time.
•Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight.
Freezer Compartment |
Fridge |
|
|
Compartment |
Explanations |
||
Adjustment |
|||
Adjustment |
|
||
|
|
||
|
|
|
|
-20°C |
4°C |
This is the normal recommended setting. |
|
-22 or -24°C |
4°C |
These settings are recommended when the |
|
ambient temperature exceeds 30°C. |
|||
|
|
||
|
|
|
|
Quick Freeze |
|
Use when you wish to freeze your food in a |
|
4°C |
short time. Your refrigerator will return to its |
||
|
|||
|
|
previous mode when the process is over. |
|
|
|
|
|
|
|
If you think that your fridge compartment is not |
|
-18°C or colder |
2°C |
cold enough because of the hot conditions or |
|
|
|
frequent opening and closing of the door. |
|
|
|
|
|
|
|
You can use it when your fridge compartment |
|
|
Quick Fridge |
is overloaded or if you wish to cool down |
|
-18°C or colder |
your food rapidly. It is recommended that you |
||
|
|||
|
|
activate quick fridge function 4-8 hours before |
|
|
|
placing the food. |
|
|
|
|
17 EN
Loading...
