Beko BL21 User Manual

0 (0)

4.6 cu.ft. Fully Integrated Larder

BL20 BL21

BEKO plc Beko House Caxton Way Watford Hertfordshire WD18 8UF Tel: 0845 6004911 Fax: 0845 6004922 e-mail: service@beko.co.uk website: www.beko.co.uk

Printed in Turkey

Part no: 48 3898 00 03-AG

Congratulations on your choice of a quality Appliance which has been designed to give you service for many years.

WARNING ! IMPORTANT !

DO NOT connect the appliance to the electricity supply until all packing and transit protectors have been removed.

• Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.

• If you are discarding an old refrigerator with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.

• This fridge must only be used for its intended purpose i.e the storing of edible foodstuff.

• Do not dispose of the appliance on a fire. At BEKO, the care and protection of our environment is an ongoing commitment. This appliance which is among the latest range introduced is particularly environmentally friendly. Your appliance contains non CFC / HFC natural substances in the cooling system (Called R600a) and in the insulation(Called cyclopentane) which are potentially flammable if exposed to fire. Therefore, take care not to damage, the cooling circuit / pipes of the appliance in transportation and in use. In case of a damage do not expose the appliance to fire, potential ignition source and immediately ventilate the room where the appliance is situated.

• We suggest you contact your local authority for disposal information and facilities available.

• We do not recommend use of this appliance in an unheated, cold room. (E.g.: garage, conservatory, annex, shed, out-house etc.) See item 6 on Page 5.

• To obtain the best possible performance and trouble free operation from your appliance it is very important to carefully read these instructions.

• On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.

•Ensure that the plug remains readily accessible. Do not use a multiple adapter bar or extension cable.

•Failure to observe these instructions may invalidate your right to free service during the guarantee period.

WARNING- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING- Do not damage the refrigerant circuit. WARNING- Do not use electrical appliances inside the food storage compartments of the appliance,

unless they are of the type recommended by the manufacturer.

•We suggest you keep these instructions in a safe place

for easy reference.

Fully Integrated Larder

PERFORMANCE

Energy efficiency class Energy consumption - Kwh/year

Net storage - vol fresh food ltrs (cu.ft.) Net storage - vol frozen food ltrs (cu.ft.)

Total net vol - ltrs (cu.ft.) Frozen food compartment rating

Conservation time from failure Freezing capacity fresh food - kg

Climate class Operating noise level dB(A)

BL20

151

128 lt. (4.5)

-----

128 lt. (4.5)

-----

----SN

BL21

A+

118

128 lt. (4.5)

-----

128 lt. (4.5)

-----

----SN-T

CONTENTS

SAFETY FIRST / ELECTRICAL REQUIREMENTS

TRANSPORTATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS

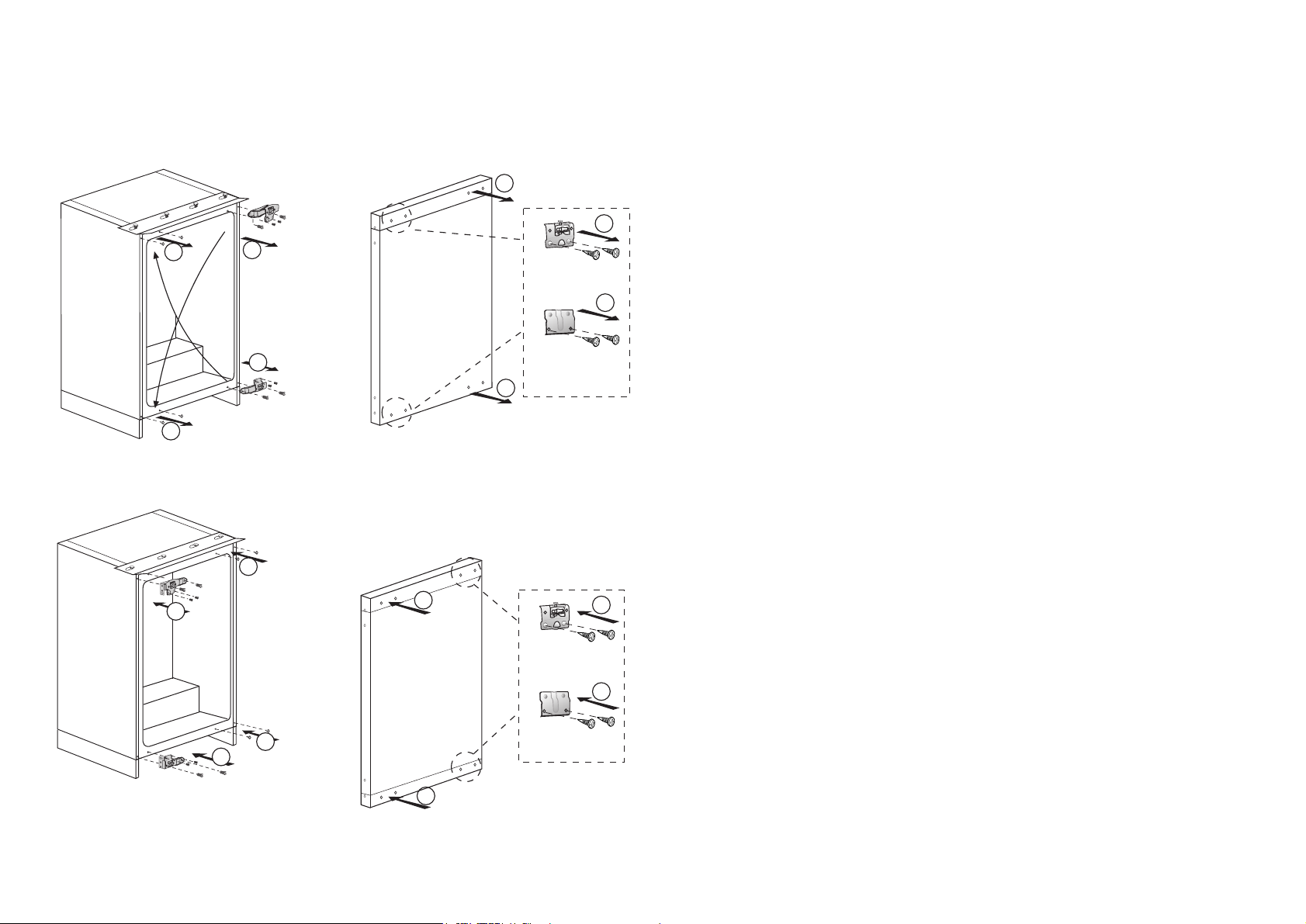

REPOSITIONING THE DOOR

PAGE

6-7

ELECTRICAL REQUIREMENTS

Before you insert the plug into the wall socket make sure that the voltage and the

frequency shown in the rating plate inside the appliance corresponds to your electricity supply. Rating label is on the left hand side of fridge liner.

We recommend that this appliance is connected to the mains supply via a suitable switched and fused socket in a readily accessible position.

Should the mains lead of the appliance become damaged or should it need replacing at any time, it must be replaced by a special purpose made mains lead which can only be obtained from a BEKO Authorised Service Agent.

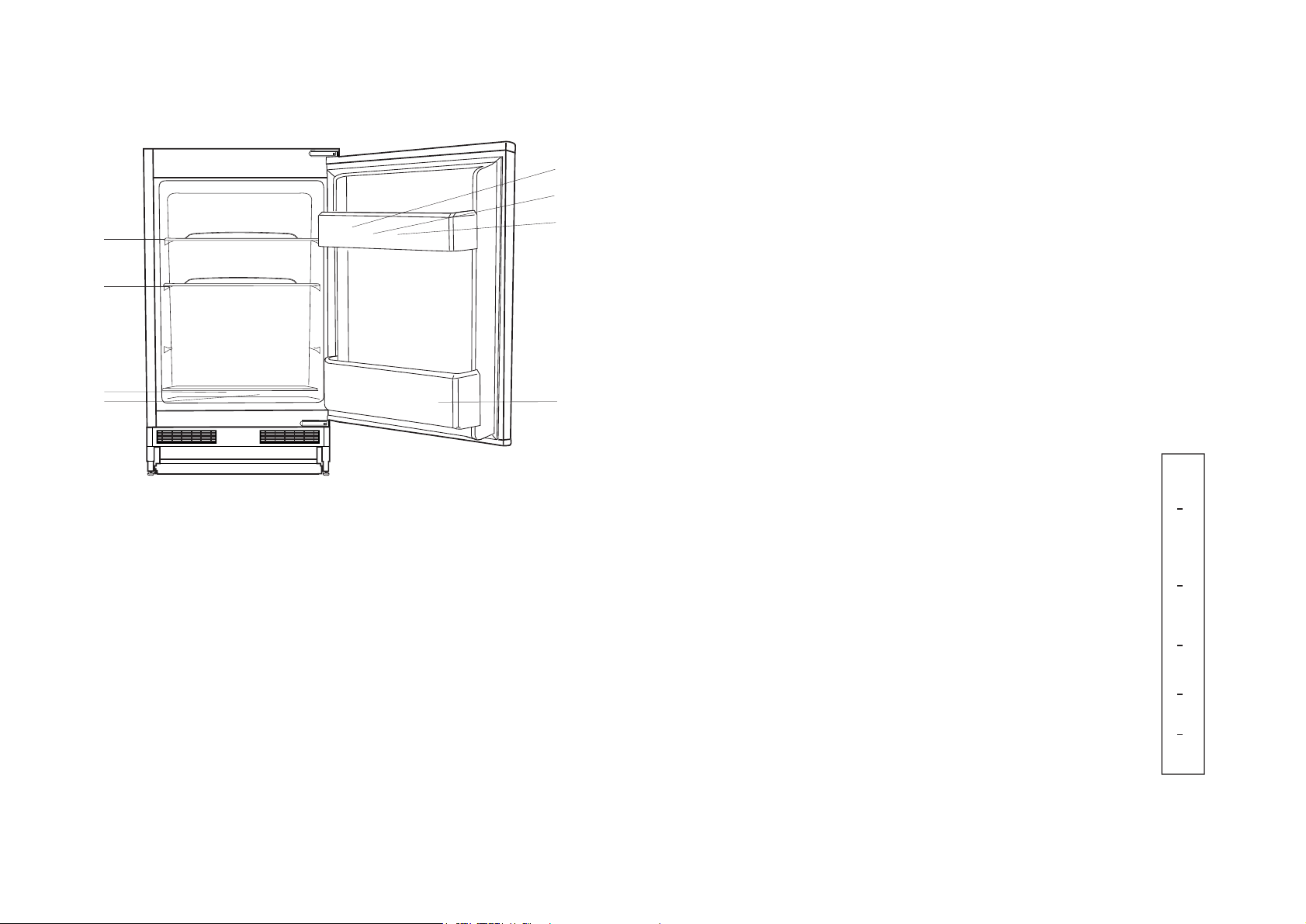

SUGGESTED ARRANGEMENT OF FOOD IN THE LARDER FRIDGE

TEMPERATURE CONTROL AND ADJUSTMENT

STARTING

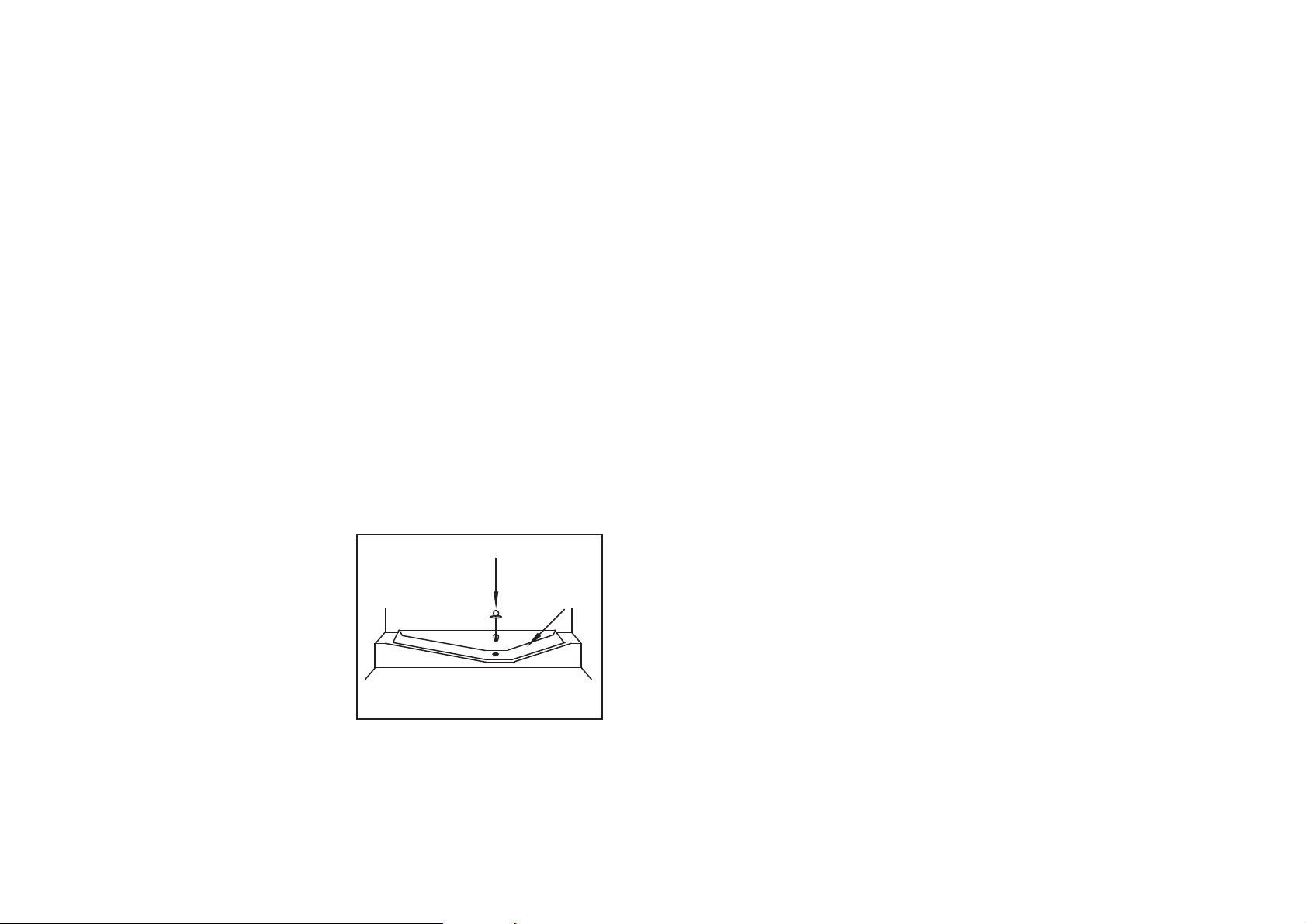

DEFROSTING

CLEANING AND CARE

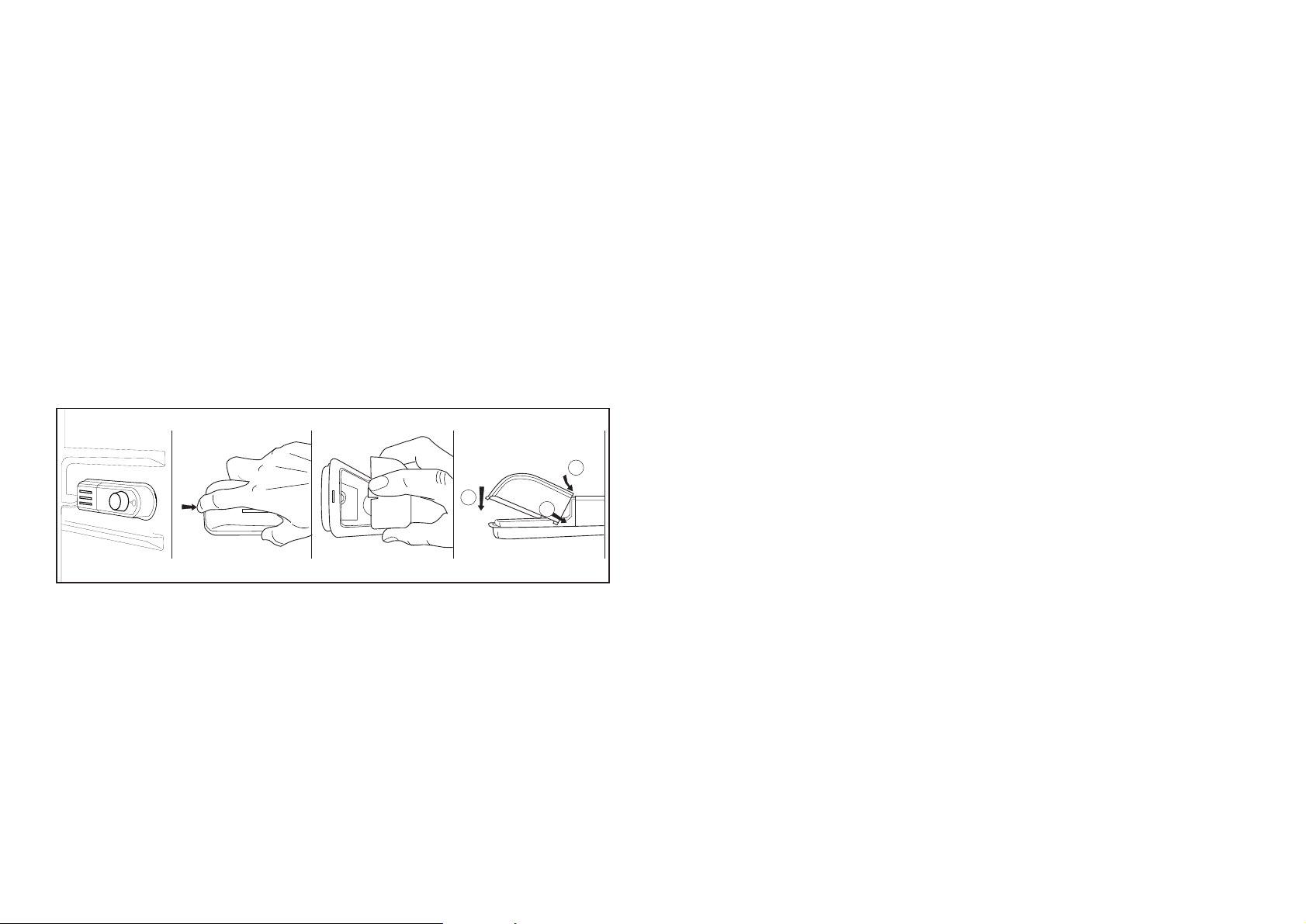

REPLACING THE INTERIOR LIGHT BULB

DO'S AND DON'TS

PROBLEM SOLVING/TROUBLE SHOOTING

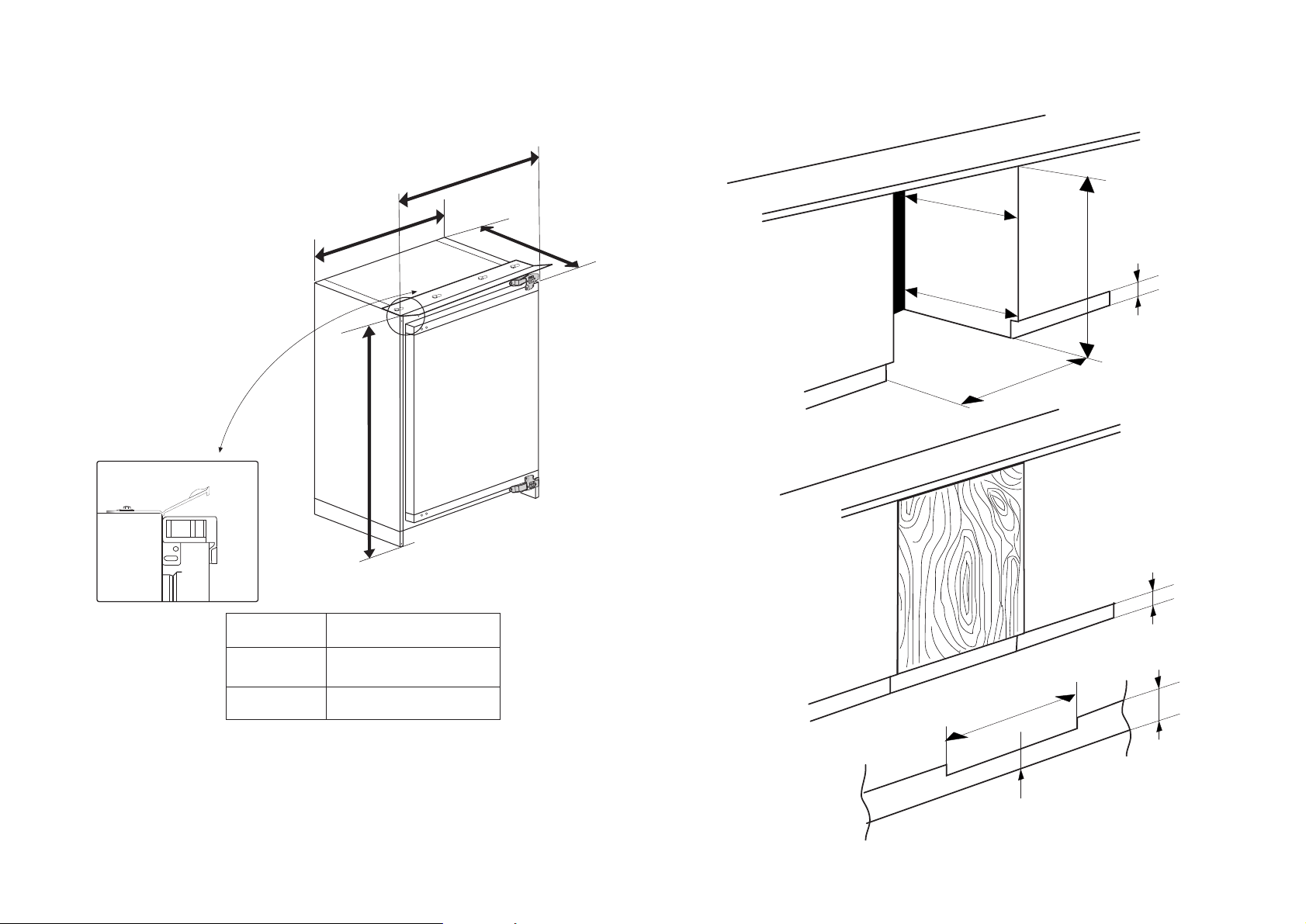

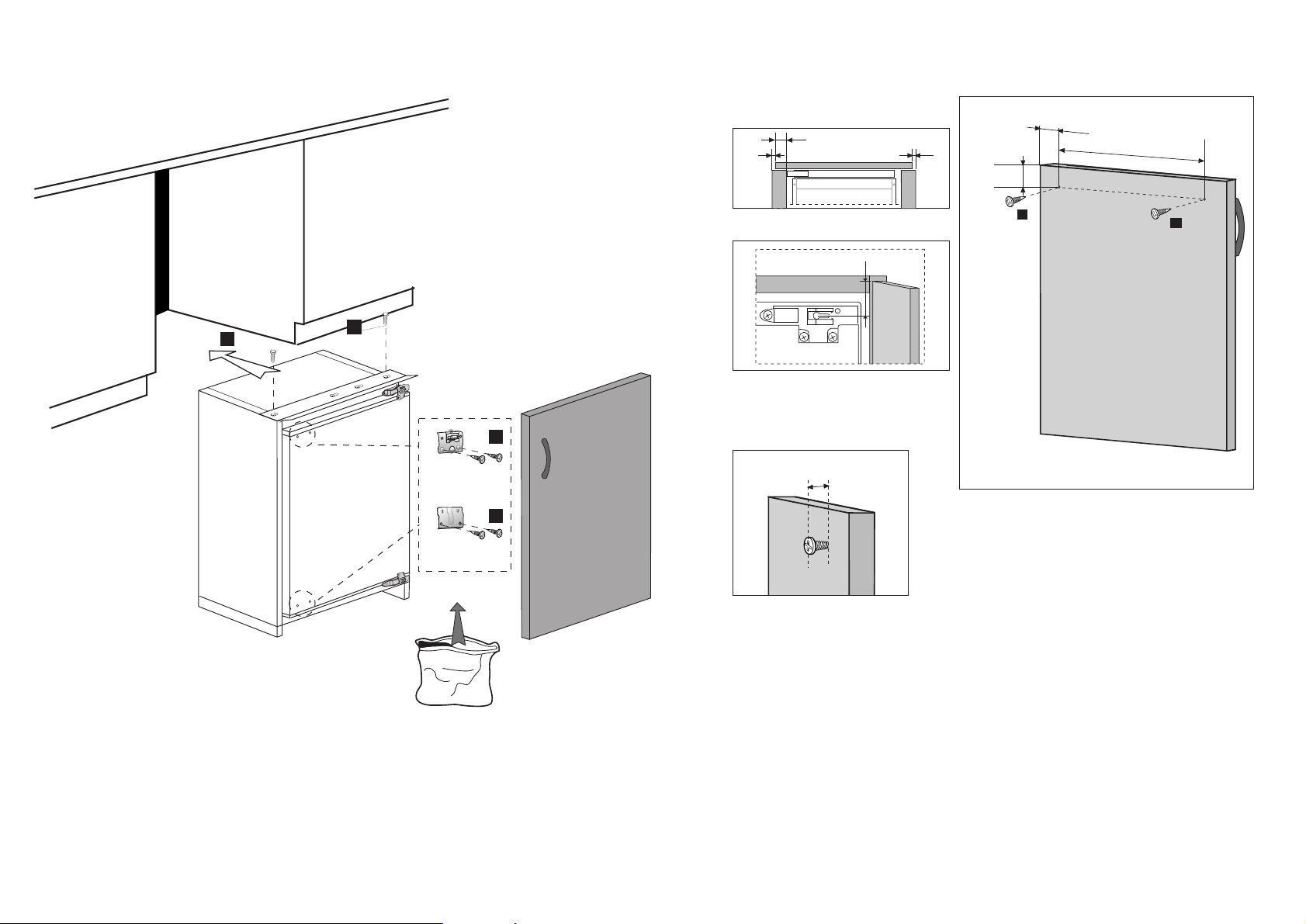

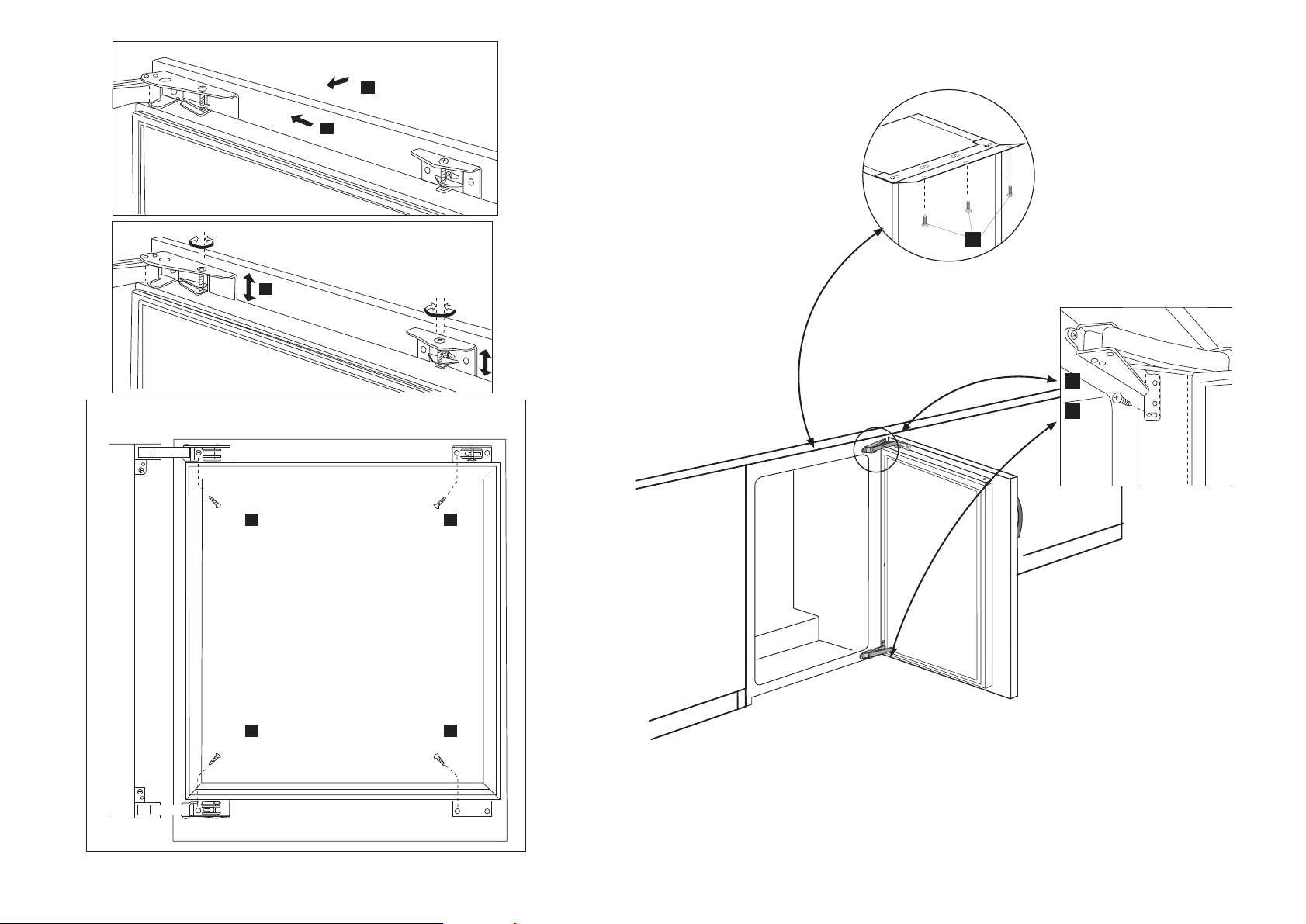

INSTALLATION INSTRUCTIONS - DETAILED STEP BY STEP

GUARANTEE DETAILS

HOW TO OBTAIN SERVICE

8-9

14-19

WARNING! THIS APPLIANCE MUST BE EARTHED

If the fitted moulded plug is not suitable for your socket, then the plug should be cut off and an appropriate plug fitted. Destroy the old plug which is cut off as a plug with bared cord could cause a shock hazard if inserted into a socket elsewhere in the house. The moulded plug on this appliance incorporates a 13 A fuse. Should the fuse need to be replaced an ASTABEAB approved BS 1362 fuse of the same rating must be used. Do not forget to refit the fuse cover. In the event of losing the fuse cover the plug must not be used until a replacement fuse cover has been fitted. Colour of the replacement fuse cover must be the same colour as that visible on the pin face of the plug. Fuse covers can be obtained from a BEKO authorised service agent.

IMPORTANT! FITTING A DIFFERENT PLUG

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals

32mm.

BROWN

22mm.

6mm.

CORD GRIP

6mm.

RED

6mm.

FUSE

12mm.

FITTED WITH

FIT BS 1362 REPLACEMENT

BS 1362 13A FUSE ALWAYS

in your plug proceed as follows: (See diagram).

1. Connect the green-yellow or green (Earth) wire to the terminal in the plug marked 'E' or with the symbol or coloured green and yellow or green.

2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.

GREEN & YELLOW

GREEN

BLUE

BLACK

3. Connect the brown (Live) wire to the terminal in the plug marked 'L' or coloured red. With alternative plugs a 13 A fuse must be fitted either in the plug or adaptor or in the main fuse box. If in doubt contact a qualified electrician.

CARTRIDGE FUSE

TRANSPORTATION INSTRUCTIONS

1. The appliance should be transported only in a vertical upright position. The

packing as supplied must be intact during transportation.

If during the course of transport the appliance has to be transported horizontally, it must only be laid on its left hand side when standing in the front of the appliance. After bringing it to upright position,it must not be operated for at least 4 hours to allow the system to settle.

3. Failure to comply with the above instructions could result in damage occuring to the appliance. The manufacturer will not be held responsible if these instructions are disregarded.

4. The appliance must be protected against rain, moisture and other atmospheric influences.

Empty any water in the drain tray before moving see section “Defrosting” and “Cleaning & Care” for further information.

IMPORTANT : Make sure the plastic evaporating pan at the back of the product collects water properly.

IMPORTANT : Care must be taken while cleaning / carrying the appliance to avoid touching the bottom of the condenser metal wires at the back of the appliance as you might injure your fingers and hands.

Important : This appliance is not designed for stacking with any other appliance.

IMPORTANT INSTALLATION INSTRUCTIONS

1. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

2. Do not operate this applliance unlees installed to furniture.

3. The appliance should be located on a smooth surface. The four front and back feet can be adjusted as required. To ensure that, your appliance is standing upright adjust the four front and back feet by turning clockwise or anti-clockwise, until the product is in firm contact with the floor. Correct adjustment of feet avoids excessive vibration and noise.

4. Refer to "Cleaning and Care" section to prepare your appliance for use.

5. This appliance has been designed to operate in ambient temperatures between +10

and +32 degrees C (50 and 90 degrees F). There fore if the appliance is installed in an unheated / cold room (E.g.: Conservatory /annex / shed / garage etc.) then the appliance may not operate and as a result the storage time of food may be reduced.

10 mm

When positioning your appliance, take care not to damage your flooring, pipes, wall coverings etc. Do not move the appliance by pulling by the door or handle.

Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.

"IMPORTANT: Make sure that mains cable is not caught under the appliance during and after carrying / moving the appliance, to avoid the mains cable becoming cut or damaged."

Do not allow children to play with the appliance or tamper with the controls. BEKO plc declines to accept any liability should the instructions not be followed.

To avoid any loss in performance, air suction channels should not be obstructed. (140 cm2)

Minimum distance between the wall and the appliance must be at least 10 mm.

40 mm 40 mm

10 mm

Appliance

Wall
