Please read this manual first!

Dear Customer,
We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you
an effective service.

For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful tips.
A Warning against dangerous conditions for life and property.
B Warning against electric voltage.

EN

1

CONTENTS

1 Refrigerator 3

2 Important Safety
Warnings 4

Intended use .....................................4

General safety ..................................4

For products with a ..........................8

water dispenser;

Child safety ........................................ 9

Compliance with WEEE Directive and
Disposing of the Waste Product:

Package information ..........................9

HC warning ....................................... 9

Things to be done for energy saving 10

Recommendations for the fresh food

compartment

................................8

....... 9

................................... 10

3 Installation 11

Points to be considered when re-

transporting your refrigerator ...........11

Before operating your refrigerator .... 11

Electric connection .......................... 11

Adjusting the legs ............................ 12

Changing the illumination lamp ....... 12

Disposing of the packaging .............12

Disposing of your old refrigerator ..... 12

Placing and Installation .................... 12

Water connection ............................ 13

Connecting the water hose to the

refrigerator ....................................... 13

Connecting of the water hose to the

cold water mains line ....................... 14

Water filter ....................................... 15

Mounting the external filter onto the

wall .................................................. 15

4 Preparation 16

5 Using your refrigerator 17

Indicator Panel ................................. 17

Indicator panel ................................. 19

Door Open Warning ......................... 24

Dual cooling system:

Freezing fresh food ..........................24

Recommendations for preservation of

frozen food

Defrosting ........................................ 25

Placing the food ..............................25

Deep-freeze information ..................26

Water dispenser
Water tray

Egg section ..................................... 29

Blue light .........................................29

Rotary storage container .................29

Movable Body shelf:

Icematic and ice storage container

Ice Machine ....................................31

Description and cleaning of odor

filter ................................................ 32

Humidity Controlled Crisper

(FreSHelf) ......................................... 33

...................................... 25

....................................... 28

.......................24

.............................26

........................ 30

.. 31

.............33

6 Maintenance and
cleaning 34

Protection of plastic surfaces .......... 34

7 Troubleshooting 35

8 Beko Customer Care 38

EN

2

1 Refrigerator

1

13

14

15

12

*11

*10

*9

*7

*6

*8

*5

*2

*3

*4

1. Egg holder

2. Fridge compartment shelf

3. Sliding and Rotary storage containers

4. Bottle shelf

5. Freezer compartment drawers

6. Ice container

7. Ice machine

8. Drawer

9. Crisper

10. Adjustable glass shelves

11. Bottle holder

12. Illumination lens

13. Fan

14. Fridge compartment

15. Freezer compartment

*OPTIONAL

C Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

EN

3

2 Important Safety Warnings

Please review the
following information.
Failure to observe this
information may cause
injuries or material
damage. Otherwise, all
warranty and reliability
commitments will
become invalid.

Intended use

This product is intended
to be used

• indoors and in closed
areas such as homes;

• in closed working
environments such as
stores and offices;

• in closed
accommodation areas
such as farm houses,
hotels, pensions.

• It should not be used
outdoors.

General safety

• When you want to
dispose/scrap the
product, we recommend
you to consult the
authorized service
in order to learn the
required information and
authorized bodies.

• Consult your authorized
service for all your
questions and problems
related to the refrigerator.
Do not intervene or let
someone intervene to
the refrigerator without
notifying the authorised
services.

• For products with a
freezer compartment;
Do not eat cone ice
cream and ice cubes
immediately after you
take them out of the
freezer compartment!
(This may cause frostbite
in your mouth.)

• For products with a
freezer compartment;
Do not put bottled
and canned liquid
beverages in the
freezer compartment.
Otherwise, these may
burst.

• Do not touch frozen food
by hand; they may stick
to your hand.

• Unplug your refrigerator
before cleaning or
defrosting.

EN

4

• Vapor and vaporized
cleaning materials
should never be used in
cleaning and defrosting
processes of your
refrigerator. In such
cases, the vapor may
get in contact with the
electrical parts and
cause short circuit or
electric shock.

• Never use the parts on
your refrigerator such as
the door as a means of
support or step.

• Do not use electrical
devices inside the
refrigerator.

• Do not damage the
parts, where the
refrigerant is circulating,
with drilling or cutting
tools. The refrigerant
that might blow out
when the gas channels
of the evaporator, pipe
extensions or surface
coatings are punctured
causes skin irritations
and eye injuries.

• Do not cover or block
the ventilation holes on
your refrigerator with any
material.

• Electrical devices must
be repaired by only
authorised persons.

Repairs performed by

incompetent persons
create a risk for the user.

• In case of any failure or
during a maintenance or
repair work, disconnect
your refrigerator’s mains
supply by either turning
off the relevant fuse
or unplugging your
appliance.

• Do not pull by the cable
when pulling off the plug.

• Ensure highly alcoholic
beverages are stored
securely with the lid
fastened and placed
upright.

• Never store spray
cans containing
flammable and explosive
substances in the
refrigerator.

• Do not use mechanical
devices or other means
to accelerate the
defrosting process,
other than those
recommended by the
manufacturer.

EN

5

• This product is not
intended to be used by
persons with physical,
sensory or mental
disorders or unlearned
or inexperienced people
(including children)
unless they are attended
by a person who will
be responsible for their
safety or who will instruct
them accordingly for use
of the product

• Do not operate a
damaged refrigerator.
Consult with the service
agent if you have any
concerns.

• Electrical safety of your
refrigerator shall be
guaranteed only if the
earth system in your
house complies with
standards.

• Exposing the product
to rain, snow, sun and
wind is dangerous with
respect to electrical
safety.

• Contact authorized
service when there is a
power cable damage to
avoid danger.

• Never plug the
refrigerator into the wall

outlet during installation.
Otherwise, risk of death
or serious injury may
arise.

• This refrigerator is
intended for only storing
food items. It must not
be used for any other
purpose.

• Label of technical
specifications is located
on the left wall inside the
refrigerator.

• Never connect your
refrigerator to electricity­saving systems; they
may damage the
refrigerator.

• If there is a blue light on
the refrigerator, do not
look at the blue light with
optical tools.

• For manually controlled
refrigerators, wait for at
least 5 minutes to start
the refrigerator after
power failure.

• This operation manual
should be handed in to
the new owner of the
product when it is given
to others.

• Avoid causing damage
on power cable when
transporting the

EN

6

refrigerator. Bending

cable may cause fire.
Never place heavy
objects on power cable.
Do not touch the plug
with wet hands when
plugging the product

• Do not plug the
refrigerator if the wall
outlet is loose.

• Water should not be
sprayed on inner or outer
parts of the product for
safety purposes.

• Do not spray substances
containing inflammable
gases such as propane
gas near the refrigerator
to avoid fire and
explosion risk.

• Never place containers
filled with water on top
of the refrigerator; in
the event of spillages,
this may cause electric
shock or fire.

• Do not overload the
refrigerator with food.
If overloaded, the food
items may fall down and
hurt you and damage
refrigerator when you
open the door.

• Never place objects on
top of the refrigerator;
otherwise, these objects
may fall down when
you open or close the
refrigerator’s door.

• As they require a precise
temperature, vaccines,
heat-sensitive medicine
and scientific materials
and etc. should not be
kept in the refrigerator.

• If not to be used for a
long time, refrigerator
should be unplugged.
A possible problem in
power cable may cause
fire.

• The plug’s tip should be
cleaned regularly with a
dry cloth; otherwise, it
may cause fire.

• Refrigerator may move

if adjustable legs are not
properly secured on the
floor. Properly securing
adjustable legs on the
floor can prevent the
refrigerator to move.

EN

7

• When carrying the
refrigerator, do not hold
it from door handle.
Otherwise, it may be
snapped.

• When you have to place
your product next to
another refrigerator or
freezer, the distance
between devices
should be at least 8cm.
Otherwise, adjacent side
walls may be humidified.

• The product shall never
be used while the
compartment which is
located at the top or
back of your product
and in which electronic
boards are available
(electronic board box
cover) (1) is open.

1

1

For products with a
water dispenser;

• Pressure for cold water
inlet shall be maximum
120 psi (8 bar). If your
water pressure exceeds
80 psi (5.5 bar), use a
pressure limiting valve
in your mains system. If
you do not know how
to check your water
pressure, ask for the
help of a professional
plumber.

• If there is risk of water
hammer effect in your
installation, always
use a water hammer
prevention equipment
in your installation.
Consult Professional
plumbers is you are not
sure that there is no
water hammer effect in
your installation.

• Do not install on the
hot water inlet. Take
precautions against
of the risk of freezing
of the hoses. Water
temperature operating
interval shall be 33°F
(0.6°C) minimum
and 100°F (38°C)
maximum.

EN

8

• Use only potable water.

Child safety

• If the door has a lock,
the key should be kept
away from reach of
children.

• Children must be
supervised to prevent
them from tampering
with the product.

Compliance with WEEE
Directive and Disposing of
the Waste Product:

This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment

(WEEE).
This product has been manufactured

with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic
waste at the end of its service life. Take
it to a collection point for the recycling
of electrical and electronic equipment.
Please consult your local authorities
to learn the nearest collection point.
Help protect the environment and
natural resources by recycling used
products. For children’s safety, cut the
power cable and break the locking
mechanism of the door, if any, so
that it will be non-functional before
disposing of the product.

Package information

Packaging materials of the product
are manufactured from recyclable
materials in accordance with our

National Environment Regulations. Do

not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.

Do not forget...

Any recycled substance is an
indispensable matter for nature and
our national asset wealth.

If you want to contribute to the
re-evaluation of the packaging
materials, you can consult to your
environmentalist organizations or the
municipalities where you are located.

HC warning

If your product's cooling system
contains R600a:

This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the
product catch a fire and ventilate the
room in which the unit is placed.

Ignore this warning if your
product's cooling system contains
R134a.

Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.

Never throw the product in fire for
disposal.

EN

9

Recommendations for the
fresh food compartment

*May not be available in all models

Do not allow the food to touch the
temperature sensor in fresh food
compartment. To allow the fresh food
compartment keep its ideal storage
temperature, sensor must not be
hindered by food.

Do not place hot foods in the product.

Things to be done for energy
saving

• Do not leave the doors of your
refrigerator open for a long time.

• Do not put hot food or drinks in your
refrigerator.

• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.

• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,

dishwashers or radiators. Keep your

refrigerator at least 30cm away from
heat emitting sources and at least
5cm from electrical ovens.

• Pay attention to keep your food in
closed containers.

• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.

• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

10

EN

3 Installation

B Please remember that the

manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.

Points to be considered
when re-transporting your
refrigerator

1. Your refrigerator must be
emptied and cleaned prior to any
transportation.

2. Shelves, accessories, crisper and etc.
in your refrigerator must be fastened
securely by adhesive tape against any
jolt before repackaging.

3. Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.

Please do not forget…

Every recycled material is an
indispensable source for the nature
and for our national resources.

If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.

Before operating your
refrigerator

Before starting to use your refrigerator

check the following:

1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?

2. Please keep 50 mm distance
between the backside of the
refrigerator and the wall”

3. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.

11

4. Plug the refrigerator into the wall
outlet. When the fridge door is open,
the fridge compartment interior light
will come on.

5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.

6. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.

Electric connection

Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.

Important:

• The connection must be in

compliance with national regulations.

• The power cable plug must be easily

accessible after installation.

• The specified voltage must be equal

to your mains voltage.

• Extension cables and multiway plugs

must not be used for connection.

B A damaged power cable must be

replaced by a qualified electrician.

B Product must not be operated before

it is repaired! There is danger of
electric shock!

EN

Disposing of the packaging

The packing materials may be

dangerous for children. Keep the

packing materials out of the reach
of children or dispose of them by
classifying them in accordance
with the waste instructions. Do not
dispose of them along with the normal
household waste.

The packing of your refrigerator is
produced from recyclable materials.

Disposing of your old
refrigerator

Dispose of your old refrigerator without
giving any harm to the environment.

• You may consult your authorised

dealer or waste collection center of
your municipality about the disposal
of your refrigerator.

Before disposing of your refrigerator,

cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.

Placing and Installation

A

If the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorised
service to have them remove the
doors of your refrigerator and pass it
sideways through the door.

1. Install your refrigerator to a place
that allows ease of use.

2. Keep your refrigerator away from

heat sources, humid places and direct
sunlight.

3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 50 mm distance with the ceiling

12

and at least 50 mm with the wall. If
the floor is covered with a carpet, your
product must be elevated 25 mm from
the floor.

4. Place your refrigerator on an even
floor surface to prevent jolts.

Adjusting the legs

If your refrigerator is unbalanced;
You can balance your refrigerator

by turning its front legs as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone to
slightly lift the refrigerator will facilitate
this process.

Changing the illumination
lamp

To change the Bulb/LED used for

illumination of your refrigerator, call
your AuthorisedService.

The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose of
this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer
in a safe and comfortable way.The
lamps used in this appliance have to
withstand extreme physical conditions
such as temperatures below -20 °C.

(only chest and upright freezer)

EN

Water connection

1

2

Depending on the model of the
refrigerator, you can connect it either to
a demijohn or water mains.

First you must connect the water hose
to the refrigerator.

In cases where a demijohn is used, a
separate pump must also be used.

WARNING: Refrigerator and the

pump, if any, must be unplugged
during connection.

Following parts may not be supplied
with your product since they are not
required when using a demijohn.

Check that following parts have been
delivered together with the product:

Connecting the water hose
to the refrigerator

1.Slip the union (b) onto the water
hose (a).

2.Push the water hose downwards
firmly to slip it onto the water inlet valve
(c).

3.Tighten the union (c) by hand to
secure it onto the water inlet valve.

Normally, you are not required to
tighten the union with a tool. However,
you can use a spanner or pliers to
tighten the union if there is a leakage.

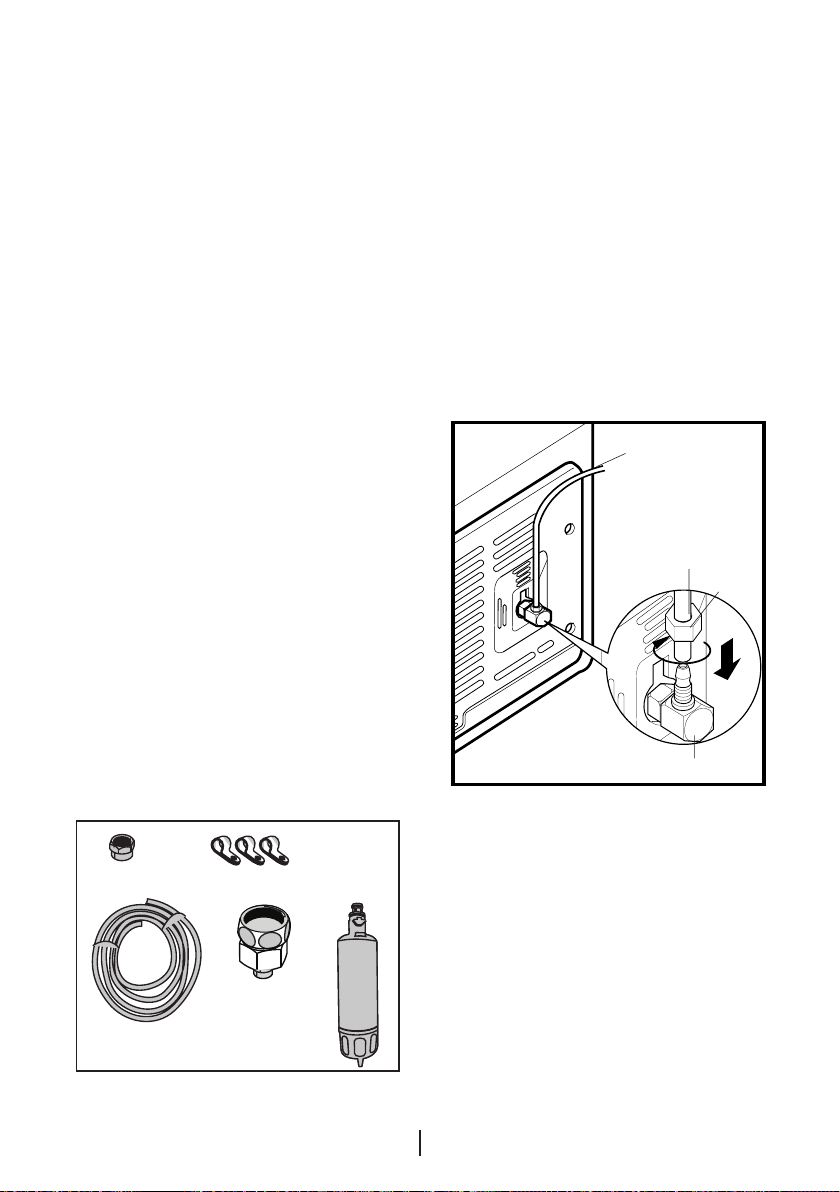

a

1.Union for connecting the water hose
to the rear of the refrigerator

2.3 pieces of pipe clips (used to secure
the water hose)

3.5-meter long water hose (1/4 inch in
diameter)

4.Cold mains water valve with mesh
filter (tap adapter)

5.External water filter. (If there is
a demijohn connection; it is not
necessary to use a water filter.)

1

3

2

4

*5

13

a

b

c

EN

Connecting of the water
hose to the cold water mains
line

(in some models)

If you will use the refrigerator by
connecting it to the cold water mains
line, you must install a standard 1/2”
valve connector to the cold water
installation of your home. If this valve
is not present or you are not sure,
consult a qualified plumber.

1.Separate the union from the tap
adaptor.

2.Install the tap adaptor to standard
1/2” valve connector.

3.After inserting the water hose to the
union, install it to the tap adaptor and
insert to the union to the tap adapter.

4.Tighten the union by hand.

WARNING: Secure the water hose
to suitable points by means of the
clips supplied to avoid any damage
or displacement or accidental
disconnection.

WARNING: After turning on the water
valve, make sure that there is no
leakage at both connection points of
the water hose. If there is a leakage,
turn off the valve immediately and
tighten all joints again using a spanner
or a pliers.

WARNING: Make sure that standard
1/2” valve connector is available and
completely turned off on your cold
water mains line.

14

EN

Water filter

(in some models)

Your refrigerator may be equipped with
an external or internal filter depending
on its model. To fit the water filter,
follow the instructions below referring
to the figures supplied:

Mounting the external filter
onto the wall

1. First, determine the location to
mount the external filter.

2. Then, determine the distance
between the filter and the tap
and filter and the water inlet
respectively. Prepare hoses at
required lengths.

3. Mount the filter connection kit onto
the wall by using a screwdriver and
attach the filter.

WARNING: Water filter must be hold
upright as shown in the figure. It is
critical to connect the water inlet and
outlet hoses on the filter correctly.

After connecting the filter, do not
consume the first 10 glasses of water.

WARNING: Never mount the filter
onto the refrigerator. Coolant pipes
might be pierced!

After connecting the filter, do not
consume the first 10 glasses of water.

WARNING: Never mount the filter
onto the refrigerator. Coolant pipes
might be pierced!

15

EN

4 Preparation

C Your refrigerator should be installed

at least 300 mm away from heat
sources such as hobs, ovens, central
heater and stoves and at least 50
mm away from electrical ovens and
should not be located under direct
sunlight.

C The ambient temperature of the room

where you install your refrigerator
should at least be 10°C. Operating
your refrigerator under cooler
conditions is not recommended with
regard to its efficiency.

C Please make sure that the interior

of your refrigerator is cleaned
thoroughly.

C If two refrigerators are to be installed

side by side, there should be at least
20 mm distance between them.

C When you operate your refrigerator

for the first time, please observe the
following instructions during the initial
six hours.

- The door should not be opened
frequently.

- It must be operated empty without
any food in it.

- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in

the “Recommended solutions for the

problems” section.

C Original packaging and foam

materials should be kept for future
transportations or moving.

16

EN

5 Using your refrigerator

Indicator Panel

Indicator panels may vary depending on your product's model.

Indicator panel aids in using your refrigerator with its audio and visual functions.

1 7 3

45*62

1.

Freezer Compartment Temperature

Indicator

2. Error Status Indicator

3. Fridge Compartment Temperature

Indicator

4. Fridge Compartment Temperature

Setting Button

Economy Mode Indicator

5.

6. Ioniser Indicator

7. Freezer Compartment Temperature

Setting Button

C Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

EN

17

1. Freezer Compartment

Temperature Indicator

It indicates the temperature set for
Freezer compartment.

2. Freezer Compartment

Temperature Setting Button

Press this button to set the
temperature of the freezer
compartment to -15, -18, -21, -24,

-15... respectively. Press this button

to set the desired temperature for the
freezer compartment.

3. Fridge Compartment

Temperature Indicator

Indicates the temperature set for
Fridge compartment.

4. Fridge Compartment

Temperature Setting Button

Press this button to set the
temperature of the fridge compartment
to 8, 6, 4, 2, 8... respectively.
Press this button to set the
desired temperature for the fridge
compartment.

5. Economy Mode Indicator

Indicates that the refrigerator is running
in energy-efficient mode.

6. Ioniser Indicator

Indicator light lights up continuously.
This light indicates that your
refrigerator is protected against the
bacteria.

7. Error Status Indicator

If your refrigerator does not cool
adequately or if there is a sensor
failure, this indicator will be activated.
When this indicator is active,
Freezer Compartment Temperature
indicator will display “e” and Fridge
Compartment Temperature Indicator
will display numbers such as “1,2,3…”.
These numbers on the indicator
provides information about the error to
the service personnel.

18

EN

Indicator panel

Indicator panels may vary according to the product model.
Audio – visual functions on the indicator panel helps you in using your product.

8

1

2

3

9

7

1. Fridge Compartment Indicator

2. Error status indicator

3. Temperature indicator

4. Vacation function button

5. Temperature setting button

6. Compartment selection button

7. Freezer compartment indicator

8. Economy mode indicator

9. Vacation function indicator

*optional

6

45

C Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

EN

19

1. Fridge compartment indicator

Fridge compartment light is
illuminated while the fridge
compartment temperature is set.

2. Error status indicator

If your refrigerator does not perform
enough cooling or in case of a sensor
fault, this indicator is activated. When
this indicator is activated, “E” is
displayed on the freezer compartment
temperature indicator, and numbers
such as “1,2,3...” are displayed on
the fridge compartment temperature
indicator. These numbers on the
indicator inform service personnel
about the error.

3. Temperature indicator

Indicates freezer, fridge compartment
temperature.

4. Vacation function button

Press on Vacation Button for 3

seconds to activate this function.
When the vacation function is
activated, “- -” is displayed on the
fridge compartment temperature
indicator and no active cooling is
performed on the fridge compartment.
It is not suitable to keep the food in the
fridge compartment when this function
is activated. Other compartments shall
be continued to be cooled as per their
set temperature.

To cancel this function press
Vacation button again.

5. Temperature setting button

Changes the temperature of the
relevant compartment between

-24°C... -15°C and 8°C...1°C.

6. Compartment selection button

Selection button: Press compartment
selection button to switch between
fridge and freezer compartments.

7. Freezer compartment indicator

Fridge compartment light is illuminated
while the freezer compartment
temperature is set.

8. Economy mode indicator

Indicates that the refrigerator operates
in energy saving mode. This display
shall be activated if the freezer
compartment temperature is set to

-15°C.

9. Vacation function indicator

Indicates that vacation is activated.

20

EN

In some models

16

15

14

13

12

1

2

11
10

9*

8
7

1. Freezer compartment setting / Icematic
on-off button

2. Fridge compartment setting button

3. Error status indicator

4. Key lock indicator

5. Eco Extra Function indicator

6. Eco Extra/Vacation Button

7. Vacation function indicator

8. Energy saving function (display off)

9. Icematic off indicator (*in some models)

6

10. Economic usage indicator

11. Quick fridge function indicator

12. Quick fridge function button

13. Fridge compartment temperature setting

indicator

14. Quick freeze function button

15. Freezer compartment temperature

setting indicator

16. Quick freeze function indicator

3
4

5

C Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

21

EN

1. Freezer Compartment Setting /
Icematic On-Off Button

This function allows you to make the
freezer compartment temperature
setting. Press this button to set
the temperature of the freezer
compartment to -15, -18, -21 and -24
respectively.

To stop ice formation, press Icematic
on-off button for 3 seconds. Water
flow from water tank will stop when
this function is selected. However, ice
made previously can be taken from
the Icematic. To restart ice formation,
press Icematic on-off button for 3
seconds.

2. Fridge Compartment Setting
Button

This function allows you to make
the fridge compartment temperature
setting. Press this button to set the
temperature of the fridge compartment
to 8, 6, 4, 2 respectively.

3. Error Status Indicator

If your refrigerator does not cool
adequately or if there is a sensor
failure, this indicator will be activated.
When this indicator is active,
Freezer Compartment Temperature
indicator will display “E” and Fridge
Compartment Temperature Indicator
will display numbers such as “1,2,3…”.
These numbers on the indicator
provides information about the error to
the service personnel.

When you place hot food into the
freezer compartment or if you leave the
door open for a long time, exclamation
mark can illuminate for some time.
This is not a failure; this warning will
disappear when the food cools down.

22

4. Key Lock Indicator

Use this function if you do not
want your refrigerator temperature
setting changed. Press Fridge
compartment setting button and
Freezer compartment setting button
simultaneously for a long time (3 sec)
to activate this function.

5. Eco Extra Function Indicator

It indicates that the Eco-Extra function
is active.

If this function is active, your
refrigerator will automatically detect
the least usage periods and energy­efficient cooling will be performed
during those times. Economy indicator
will be active while energy-efficient
cooling is performed.

Press the relevant button again to
deactivate this function.

6. Eco Extra/Vacation Button

Press this button briefly to activate the
Eco Extra function. Press and hold
this button for 3 sec. to activate the
Vacation function. Press this button
again to deactivate the selected
function.

7. Vacation Function Indicator

Indicates that the vacation function
is active. If this function is active,
“- -” appears on the indicator of the
fridge compartment and no cooling is
performed in the fridge compartment.
Other compartments will be cooled in
accordance with the temperature set
for them.

Press the relevant button again to
deactivate this function.

8. Energy saving function (display
off)

If the product doors are kept closed
for a long time energy saving function
is automatically activated and energy

EN

saving symbol is illuminated.When
energy saving function is activated,
all symbols on the display other than
energy saving symbol will turn off.
When the Energy Saving function is
activated, if any button is pressed or
the door is opened, energy saving
function will be canceled and the
symbols on display will return to
normal.

Energy saving function is activated
during delivery from factory and cannot
be canceled.

9. Ice Off indicator

Icematic will not run when the indicator
of this function is active. See Item 1 to
enable the Icematic.

10. Economy Mode Indicator

Indicates that the refrigerator is running
in energy-efficient mode. Freezer
Compartment temperature

This indicator will be active if the
function is set to -15 or the energy
efficient cooling is being performed
due to Eco-Extra function.

11. Quick Fridge Indicator

This icon flashes in an animated style
when the Quick Fridge function is
active.

12. Quick Fridge Function

When you press the Quick Fridge
button, the temperature of the
compartment will be colder than the
adjusted values.

This function can be used for food
placed in the fridge compartment and
required to be cooled down rapidly.

If you want to cool large amounts of
fresh food, it is recommended to active
this feature before putting the food into
the fridge.

Quick Fridge indicator turns on when

23

the Quick Fridge function is on. To
cancel this function press Quick Fridge
button again.

If you do not cancel it, Quick Fridge
will cancel itself automatically after 4
hours or when the fridge compartment
reaches to the required temperature.

This function is not recalled when
power restores after a power failure.

13. Fridge Compartment
Temperature Setting Indicator

Indicates the temperature set for the
Fridge Compartment.

14. Freezer Compartment
Temperature Setting Indicator

Indicates the temperature set for the
Freezer Compartment.

15. Quick Freeze Function

Quick Freeze indicator turns on when
the Quick Freeze function is active. To
cancel this function press Quick Freeze
button again. Quick Freeze indicator
will turn off and return to its normal
settings. If you do not cancel it, Quick
Freeze will cancel itself automatically
after 8 hours or when the freezer
compartment reaches to the required
temperature.

If you want to freeze large amounts
of fresh food, press the Quick Freeze
button before putting the food into the
freezer compartment.

If you press the Quick Freeze button
repeatedly with short intervals, the
electronic circuit protection will be
activated and the compressor will not
start up immediately.

This function is not recalled when
power restores after a power failure.

16. Quick Freeze Indicator

This icon flashes in an animated style
when the Quick Freeze function is
active.

EN

Door Open Warning

(This feature may vary depending
on the door of the product and may
not exist in some models.)

An audio warning signal will be given
when the door of your product is
left open for at least 1 minute. This
warning will be muted when the door
is closed or any of the display buttons
(if any) are pressed.

Dual cooling system:

Your refrigerator is equipped with
two separate cooling systems to
cool the fresh food compartment and
freezer compartment. Thus, air in the
fresh food compartment and freezer
compartment do not get mixed.
Thanks to these two separate cooling
systems, cooling speed is much higher
than other refrigerators. Odors in the
compartments do not get mixed. Also
additional power saving is provided
since the defrosting is performed
individually.

Freezing fresh food

• Wrap or cover the food before

placing them in .

• Hot food must cool down to the

room temperature before putting
them in the refrigerator.

• The foodstuff that you want to

freeze must be fresh and in good
quality.

• Foodstuff must be divided into

portions according to the family’s
daily or meal based consumption
needs.

• Foodstuff must be packaged in an

airtight manner to prevent them from
drying even if they are going to be
kept for a short time.

• Materials to be used for

packagings must be resistant to
cold and humidity and they must
be airtight. The packaging material
of the food must be at a sufficient
thickness and durability. Otherwise
the food hardened due to freezing
may puncture the packaging. It is
important for the packaging to be
closed securely for safe storage of
the food.

• Frozen food must be used

immediately after they are thawed
and they should never be re-frozen.

• Please observe the following

instructions to obtain the best results.

1. If the fridge has a quick freeze
function, activate the quick freeze
function when you want to freeze the
food.

2. Do not freeze too large quantities
of food at one time. The quality of
the food is best preserved when it
is frozen right through to the core as
quickly as possible.

3. Take special care not to mix
already frozen food and fresh food.

4. Make sure raw foods are not in
contact with cooked foods in the
fridge.

24

EN

Freezer
Compartment
Setting

Fridge
Compartment
Setting

Remarks

-18°C 4°C This is the normal recommended setting.

-20, -22 or

-24°C

4°C

These settings are recommended when the
ambient temperature exceeds 30°C.

Use when you wish to freeze your food in a

Quick Freeze 4°C

short time. If is recommended to be used
to maintain the quality of meat and fish
products.

If you think that your fridge compartment

-18°C or
colder

2°C

is not cold enough because of the hot
conditions or frequent opening and closing of
the door.

You can use it when your fridge compartment

-18°C or
colder

Quick Fridge

is overloaded or if you wish to cool down
your food rapidly. It is recommended that you
activate the quick freeze function 4-8 hours
before placing the food.

Recommendations for
preservation of frozen food

Placing the food

• Pre-packed commercially frozen

food should be stored in accordance
with the frozen food manufacturer's
instructions in a frozen food storage
compartment.

• To ensure that the high quality

supplied by the frozen food
manufacturer and the food retailer is
maintained, following points should
be noted:

1.Put packages in the freezer as
quickly as possible after purchase.

2.Ensure that contents of the package
are labeled and dated.

Freezer

compartment

shelves

Egg section Egg

Fridge

compartment

shelves

Door shelves

of fridge

compartment

Various frozen food

such as meat,

fish, ice cream,

vegetables and etc.

Food in pans,

covered plates and

closed containers

Small and packaged

food and drinks

(such as milk, fruit

juice and beer)

3. Do not exceed "Use By", "Best
Before" dates on the packaging.

Defrosting

The freezer compartment defrosts
automatically.

Crisper Vegetables and fruits

Delicatessen

Freshzone

compartment

products (cheese,
butter, salami and

etc.)

25

EN

Deep-freeze information

Food must be frozen as rapidly as
possible when they are put in the
freezer in order to keep them in good
quality.

It is possible to preserve the food for
a long time only at -18°C or lower
temperatures.

You can keep the freshness of food
for many months (at -18°C or lower
temperatures in the deep freeze).

WARNING!

• Foodstuff must be divided into

portions according to the family’s daily
or meal based consumption needs.

• Foodstuff must be packaged in an

airtight manner to prevent them from
drying even if they are going to be kept
for a short time.

Materials necessary for packaging:

• Cold resistant adhesive tape

• Self-adhesive label

• Rubber rings

• Pen

Materials to be used for packaging
the foodstuff must be tear-proof and
resistant to cold, humidity, dour, oils
and acids.

Foodstuff to be frozen should not be
allowed to come in contact with the
previously frozen items to prevent their
partial thawing. Thawed out food
must be consumed and must not be
frozen again.

A

Water dispenser

(OPTIONAL)

Water dispenser is a very useful feature
to obtain chilled water without opening
the door of your fridge. Since you do
not have to open the door of your
fridge frequently, you also save on
electricitiy.

Using the water dispenser

Push in the lever of the water
dispenser with your glass. By releasing
the lever, you cut off the dispensing.

When operating the water dispenser,
maximum flow is achieved by fully
depressing the lever. Please note, how
much water flows from the dispenser
depends on how far you depress the
lever. As the level of water in your
cup / glass rises, gently reduce the
amount of pressure on the lever to
avoid overflow. If you depress the lever
a small amount, then water will trickle;
this is perfectly normal and is not a
fault.

26

EN

Filling in the water tank of water
dispenser

Open the cap of the water tank as
illustrated in the figure. Fill in with pure
and clean drinking water. Close the
cap.

Caution!

• Do not fill water tank with any liquid
other than drinking water; beverages
such as fruit juice, carbonated fizzy
soda drinks, alcoholic drinks are not
suitable for use with water dispenser.
If such liquids are

used, the water
dispenser will malfunction and may
be damaged beyond repair. The
guarantee does not cover such uses.
Some chemical ingredients and
additives in such drinks / beverages
may also attack and damage water
tank material.

• Only use clean pure drinking water.

• Capacity of water dispenser tank is 3

litres [6.4 pints], do not overfill.

• Push the water dispenser lever with
a rigid cup. If you are using a plastic
disposable cup, then push the lever
with your fingers from behind the cup.

Cleaning the water tank

Remove the water tank,and detach the
top cover mechanism from the water
tank. Clean the water tank with warm
clean water, reinstall the top cover.

When installing the water tank, make
sure that hooks it fits securely into the
hangers on the door. Make sure that
parts removed during cleaning (if any)
are installed correctly into their original
locations. Otherwise, water may leak

.

27

EN

Important:

Water tank and components of water
dispenser are not dishwasher-proof.

Water tray

(OPTIONAL)

Water that drips while using the water
dispenser accumulates in the drip
tray. Remove the drip tray by pulling
it towards yourself and empty it from
time to time.

Remove the plastic drainer part as
shown in the diagram by pressing
down on the edge.

28

EN

Egg section

You can place the egg section in any
of the door shelves. If it is going to be
placed in the body, the lower shelves
are recommended due them being
cooler.

Never store eggs in the freezer
compartment.

Avoid direct contact between eggs
and other foods.

Blue light

(This feature is optional)

Beko Active Fresh Blue Light TM

technology ensures that the process
of photosynthesis continues in the
refrigerator prolonging the storage life
of fresh fruit and vegetables while

maintaining their natural flavours and
nutrition.

Rotary storage container

(in some models)

Sliding body shelf can be moved to left
or right in order to allow you place the
tall bottles, jars or boxes to the lower
shelf (Fig. 1)

You can reach the food that you have
placed into the shelf by grabbing and
turning it from its right edge (Fig.2).

When you want to load or remove it to
clean, turn it by 90 degrees, raise it up
and pull towards yourself (Fig. 3-4).

1

2

3

29

4

EN

Movable Body shelf:

*optional

Manually movable body shelf is an
option enabling the usage of interior
shelf volume of the refrigerator in a
flexible way.

When you want to store an item which
is taller than the distance between two
shelves, slide the manually movable
body shelf holding it from its grips as
shown in the figure and this will enable

you to move the shelf upwards. By

sliding the grip to the right, you can
move the manual body shelf only 45
mm upwards.

The manually movable body shelf can
only be moved with max 10 kg load
on it.

If more than 10 kg will be loaded, then
it should be used as a fixed shelf like
others. In this case, if it is required to
adjust the shelf height, first empty the
food stuff, adjust it as per your height
requirement and then load it with the
food stuff. The shelf is intended to
carry max. 40 kg while used as a fixed
shelf.

30

EN

Icematic and ice storage
container

*May not be available in all models
Using the Icematic

Fill the Icematic with water and place
it into its seat. Your ice will be ready
approximately in two hours. Do not
remove the Icematic from its seating to
take ice.

Turn the knobs on the ice reservoirs
clockwise by 90 degrees.

Ice cubes in the reservoirs will fall
down into the ice storage container
below.

You may take out the ice storage
container and serve the ice cubes.

If you wish, you may keep the ice
cubes in the ice storage container.

Ice storage container

Ice storage container is only intended
for accumulating the ice cubes. Do not
put water in it. Otherwise, it will break.

Ice Machine

(in some models)

Auto Ice machine system allows you
to obtain ice from the refrigerator
easily. After the water system pipe
connection will be done, the ice can
be taken from the ice drawer. First ice
cubes will be ready in approximately
2 hours in the Ice machine drawer
located in the freezer compartment.
Do not put water in it to make ice as
it may break. The ice container is not
used for storing foods.

31

EN

Description and cleaning of
odor filter

*May not be available in all models

Odor filter prevents unpleasant odor
build-up in your refrigerator.

Pull the cover into which the odor filter
is installed downwards from the front
section and remove as illustrated.
Leave the filter under sunlight for one
day. Filter will be cleaned during this
time. Install the filter back to its place.

Odor filter must be cleaned once in a
year.

32

EN

Humidity Controlled Crisper
(FreSHelf)

*optional

Humidity controlled crisper feature
keeps the humidity of vegetables and
fruits under control and allows keeping
the food fresh for a much longer time.

We recommend you to place
vegetables with leaves such as lettuce,
spinach and vegetables vulnerable to
humidity loss not vertical on their roots
but horizontal in the crispers.

While placing the vegetables consider
their weight and place the heavy and
solid vegetable to the bottom, light and
soft vegetables to the top.

Do not leave vegetables within
plastic bags in the crispers. Leaving
vegetables in plastic bags will make
them spoil in a very short time. If it is
required to separate vegetables for
hygienic purposes, then use porous
paper packing materials instead of
plastic bags.

Do not place fruits, mainly apple and
also pear, apricot, peach etc. which
produce ethylene gas together with
other vegetables-fruits in the same
crisper. The ethylene produced
by these fruits will cause other
vegetables-fruits to mature rapidly and
then cause them to spoil in a shorter
time.

33

EN

6 Maintenance and cleaning

ANever use gasoline, benzene or similar

substances for cleaning purposes.

BWe recommend that you unplug the

appliance before cleaning.

BNever use any sharp abrasive

instrument, soap, household
cleaner, detergent and wax polish for
cleaning.

CUse lukewarm water to clean the

cabinet of your refrigerator and wipe
it dry.

CUse a damp cloth wrung out in

a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe
it dry.

BMake sure that no water enters the

lamp housing and other electrical
items.

BIf your refrigerator is not going to be

used for a long period of time, unplug
the power cable, remove all food,
clean it and leave the door ajar.

CCheck door seals regularly to ensure

they are clean and free from food
particles.

ATo remove door racks, remove all the

contents and then simply push the
door rack upwards from the base.

ANever use cleaning agents or water

that contain chlorine to clean the
outer surfaces and chromium coated
parts of the product. Chlorine causes
corrosion on such metal surfaces.

ADo not use sharp, abrasive tools,

soap, household cleaning agents,
detergents, kerosene, fuel oil,
varnish etc. to prevent removal and
deformation of the prints on the
plastic part. Use lukewarm water
and a soft cloth for cleaning and then
wipe it dry.

Protection of plastic
surfaces

Do not put the liquid oils or oil-cooked

C

meals in your refrigerator in unsealed
containers as they damage the
plastic surfaces of your refrigerator. In
case of spilling or smearing oil on the
plastic surfaces, clean and rinse the
relevant part of the surface at once
with warm water.

34

EN

7 Troubleshooting

Please review this list before calling the service. It will save your time and
money. This list includes frequent complaints that are not arising from defective
workmanship or material usage. Some of the features described here may not
exist in your product.

The refrigerator does not operate.

• The plug is not inserted into the socket correctly. >>>Insert the plug into the
socket securely.

• The fuse of the socket which your refrigerator is connected to or the main fuse
have blown out. >>>Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL

CONTROL and FLEXI ZONE).

• Door has been opened frequently. >>>Do not open and close the door of

refrigerator frequently.

• Ambient is very humid. >>>Do not install your refrigerator into highly humid
places.

• Food containing liquid is stored in open containers. >>>Do not store food with
liquid content in open containers.

• Door of the refrigerator is left ajar. >>>Close the door of the refrigerator.

• Thermostat is set to a very cold level. >>>Set the thermostat to a suitable level.

• Compressor is not running

• Protective thermic of the compressor will blow out during sudden power

failures or plug-out plug-ins as the refrigerant pressure in the cooling system
of the refrigerator has not been balanced yet. The refrigerator will start running
approximately after 6 minutes. Please call the service if the refrigerator does not
startup at the end of this period.

• The fridge is in defrost cycle. >>>This is normal for a full-automatically defrosting
refrigerator. Defrosting cycle occurs periodically.

• The refrigerator is not plugged into the socket. >>>Make sure that the plug is fit
into the socket.

• Temperature settings are not made correctly. >>>Select the suitable temperature
value.

• There is a power outage. >>>Refrigerator returns to normal operation when the

power restores.

The operation noise increases when the refrigerator is running.

• The operating performance of the refrigerator may change due to the changes in
the ambient temperature. It is normal and not a fault.

The refrigerator is running frequently or for a long time.

35

EN

• New product may be wider than the previous one. Larger refrigerators operate
for a longer period of time.

• The room temperature may be high. >>>It is normal that the product operates
for longer periods in hot ambient.

• The refrigerator might be plugged in recently or might be loaded with food.
>>>When the refrigerator is plugged in or loaded with food recently, it will take
longer for it to attain the set temperature. This is normal.

• Large amounts of hot food might be put in the refrigerator recently. >>>Do not
put hot food into the refrigerator.

• Doors might be opened frequently or left ajar for a long time. >>>The warm air
that has entered into the refrigerator causes the refrigerator to run for longer
periods. Do not open the doors frequently.

• Freezer or fridge compartment door might be left ajar. >>>Check if the doors are
closed completely.

• The refrigerator is adjusted to a very low temperature. >>>Adjust the refrigerator
temperature to a warmer degree and wait until the temperature is achieved.

• Door seal of the fridge or freezer may be soiled, worn out, broken or not
properly seated. >>>Clean or replace the seal. Damaged/broken seal causes
the refrigerator to run for a longer period of time in order to maintain the current
temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

• The freezer temperature is adjusted to a very low value. >>>Adjust the freezer
temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

• The fridge temperature is adjusted to a very low value. >>>Adjust the fridge
temperature to a warmer degree and check.

Food kept in the fridge compartment drawers is frozen.

• The fridge temperature is adjusted to a very high value. >>>Adjust the fridge
temperature to a lower value and check.

Temperature in the fridge or freezer is very high.

• The fridge temperature is adjusted to a very high value. >>>Fridge compartment
temperature setting has an effect on the temperature of the freezer. Change the
temperatures of the fridge or freezer and wait until the relevant compartments
attain a sufficient temperature.

• Doors are opened frequently or left ajar for a long time. >>>Do not open the
doors frequently.

• Door is ajar. >>>Close the door completely.

• The refrigerator is plugged in or loaded with food recently. >>>This is normal.

When the refrigerator is plugged in or loaded with food recently, it will take longer
for it to attain the set temperature.

• Large amounts of hot food might be put in the refrigerator recently. >>>Do not
put hot food into the refrigerator.

36

EN

• Vibrations or noise.

• The floor is not level or stable. >>> If the refrigerator rocks when moved slowly,

balance it by adjusting its feet. Also make sure that the floor is strong enough to
carry the refrigerator, and level.

• The items put onto the refrigerator may cause noise. >>>Remove the items on

top of the refrigerator.

There are noises coming from the refrigerator like liquid flowing, spraying, etc.

• Liquid and gas flows occur in accordance with the operating principles of your
refrigerator. It is normal and not a fault.

Whistle comes from the refrigerator.

• Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

• Hot and humid weather increases icing and condensation. It is normal and not a
fault.

• Doors are opened frequently or left ajar for a long time. >>>Do not open the
doors frequently. Close them if they are open.

• Door is ajar. >>>Close the door completely.

Humidity occurs on the outside of the refrigerator or between the doors.

• There might be humidity in the air; this is quite normal in humid weather. When
the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.

• No regular cleaning is performed. >>>Clean the inside of the refrigerator regularly

with a sponge, lukewarm water or carbonate dissolved in water.

• Some containers or package materials may cause the smell. >>>Use a different
container or different brand packaging material.

• Food is put into the refrigerator in uncovered containers. >>>Keep the food in

closed containers. Microorganisms spreading out from uncovered containers
can cause unpleasant odours.

• Remove the foods that have expired best before dates and spoiled from the

refrigerator.

The door is not closing.

• Food packages are preventing the door from closing. >>>Replace the packages

that are obstructing the door.

• The refrigerator is not completely even on the floor. >>>Adjust the feet to
balance the refrigerator.

• The floor is not level or strong. >>>Make sure that the floor is level and capable
to carry the refrigerator.

Crispers are stuck.

• The food is touching the ceiling of the drawer. >>>Rearrange food in the drawer.

If The Surface Of The Product Is Hot.

37

EN

8 Beko Customer Care

Before you call Beko for service or assistance...
Refer to your User Guide and check the following:

1. Your Appl iance is correctly installed.

2. Your Appliance is connected to power.

3. You are familiar with its normal mode of operation

4. You have read the ‘Recommended solutions for the problems’

If after checking the points above, the problem still exists, please call our Beko

Customer Care hotline as listed below:-

If calling from Australia....

Beko Customer Care and talk to one of our consultants.

Toll Free Toll Free 1300AUBEKO 1300 282 356
Email:[e-mail] * Fax: [phone]

If calling from New Zealand....

Beko Customer Care and talk to one of our consultants.

Toll Free 0800NZBEKO 0800 69 2356
Email: [e-mail] * Fax: [phone]

* If you contact us by Email please provide the following details:

Your name and Address
Date of Purchase
Model Number
Serial Number
Complete description of the problem or request

EN

38

www.beko.com.tr

www.beko.com

.au

57 1824 0000/AV
EN
