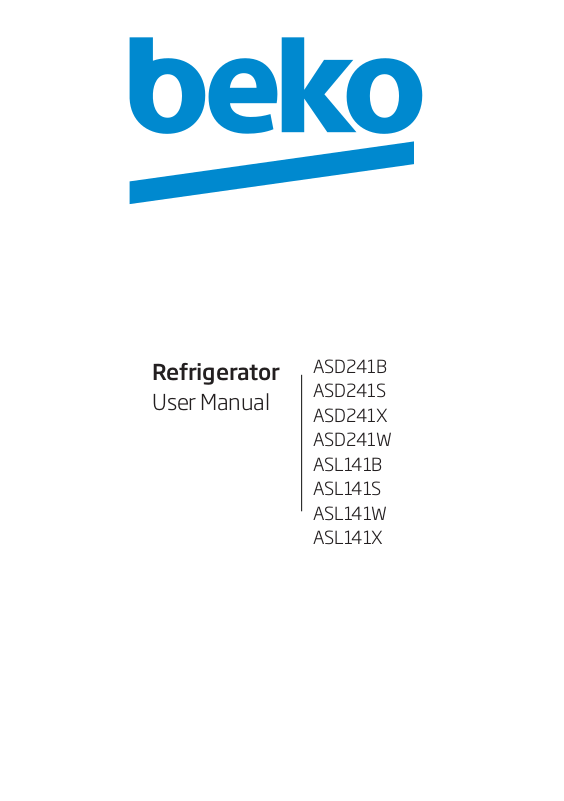

Refrigerator

User Manual

ASD241B ASD241S ASD241X ASD241W ASL141B ASL141S ASL141W ASL141X

Please read this manual first!

Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most

meticulous quality control procedures, will provide you with effective service. For this, we recommend you to carefully read the entire manual of your product before using it and keep

it at hand for future references.

The user manual will help you use the product in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

Important information or useful usage

tips.

Warning against dangerous conditions for life and property.

Warning against electric voltage.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National

Environment Regulations.

www.beko.com

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Important instructions for safety and environment 3

2 Your refrigerator 6

3 Installation 7

3.1. Appropriate installation location . . . . . . .7

3.2. Installing the plastic wedges. . . . . . . . . .7

3.3. Electrical connection . . . . . . . . . . . . . . .8

3.4. Adjusting the feet. . . . . . . . . . . . . . . . . .8

3.5. Illumination lamp . . . . . . . . . . . . . . . . . .9

3.6. Door open warning. . . . . . . . . . . . . . . . .9

3.7. Transportation of the product . . . . . . . . .9

4 Preparation 10

4.1. Things to be done for energy saving. . .10

4.2. Efficient operation . . . . . . . . . . . . . . . .10

4.3. Recommendations on the fridge

compartment. . . . . . . . . . . . . . . . . . . .10

4.4. Initial use. . . . . . . . . . . . . . . . . . . . . . .11

5 Operating the product 12

5.1. Indicator panel. . . . . . . . . . . . . . . . . . .12

5.2. Neo-Frost Cooling System . . . . . . . . . .15

5.3. Freezing fresh food . . . . . . . . . . . . . . .15

5.4. Recommendations for preserving the frozen

food . . . . . . . . . . . . . . . . . . . . . . . . . .16

5.5. Placing the food. . . . . . . . . . . . . . . . . .16

5.6. Deep-freeze information. . . . . . . . . . . .16

5.7. Icematic and ice storage container . . . .17

5.8. Ice making. . . . . . . . . . . . . . . . . . . . . .17

5.9. Chiller compartment. . . . . . . . . . . . . . .18

5.10. Butter & cheese section . . . . . . . . . . .18

5.11. Egg section . . . . . . . . . . . . . . . . . . . . .18

5.12. Crisper . . . . . . . . . . . . . . . . . . . . . . . .18

5.13. Odour filter . . . . . . . . . . . . . . . . . . . . .19

5.14. Drip tray . . . . . . . . . . . . . . . . . . . . . . .19

5.15. Water Dispenser . . . . . . . . . . . . . . . . .20

5.16. Using the water dispenser . . . . . . . . . .20

5.17. Filling the water dispenser's tank . . . . .20

5.18. Cleaning the water tank . . . . . . . . . . .21

6 Maintenance and cleaning 22

6.1 Avoiding bad odours. . . . . . . . . . . . . . .22

6.2 Protecting the plastic surfaces . . . . . . .22

7 Troubleshooting 23

2 / 27 EN

Refrigerator / User Manual

1 Important instructions for safety and environment

• Do not connect your appliance to the electricity supply until all packing and transit protectors have been removed.

• If transported horizontally leave to stand upright for at least 4 hours before switching on to allow compressor oil to settle

• If you are discarding an old refrigerator with a lock or latch fitted to the door, disable the lock/ latch, ensure that it is left in a safe condition to prevent the entrapment of young children.

• This fridge/freezer must only be used for its intended purpose i.e the storing and freezing of edible foodstuff.

• Do not dispose of the appliance on a fire. At Beko, the care and protection of our environment is an ongoing commitment. This appliance which is among the latest range introduced is particularly environment friendly. Your appliance contains non CFC / HFC natural

substances in the cooling system (Called R600a) and in the insulation (Called cyclopentane) which

are potentially flammable if exposed to fire. Therefore, take care not to damage, the cooling circuit / pipes of the appliance in transportation and in use. In case of damage do not expose the appliance to fire or potential ignition source and immediately ventilate the room where the appliance is situated.

• We suggest you contact your local authority for disposal information and facilities available.

• See Installation Instructions on page 8 for information on suitable location.

• To obtain the best possible performance and trouble free operation from your appliance it is very important to carefully read these instructions.

• On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.

• Ensure that the plug remains readily accessible. Do not use multiple adapter or extension cable.

• Failure to observe these instructions may invalidate your right to free service during the guarantee period.

Refrigerator / User Manual

• Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the

food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• We suggest you keep these instructions in a safe place for easy reference.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

Electrical requirements

Before you insert the plug into the wall socket

make sure that the voltage and the frequency shown on the rating plate inside the appliance corresponds to your electricity supply.

Rating label is on the left hand side of fridge inner

liner.

3 / 27 EN

Important instructions for safety and environment

We recommend that this appliance be connected to the mains supply via a suitable switched and fused socket. The appliance must be positioned so that the plug is accessible.

Should the mains lead of the appliance become

damaged or should it need Replacing at any time,

it must be replaced by a special purpose made mains lead which can only be obtained from a

Beko authorised service agent.

Warning! This appliance must be earthed

If the fitted moulded plug is not suitable for your socket, then the plug should be cut off and an appropriate plug fitted. Destroy the old plug which is cut off as a plug with bared cord could cause a shock hazard if inserted into a socket elsewhere in the house.

The moulded plug on this appliance incorporates a 13 A fuse. Should the fuse need to be replaced

an ASTABEAB approved BS 1362 fuse of the same

rating must be used. Do not forget to refit the fuse cover. In the event of losing the fuse cover the plug must not be used until a replacement fuse cover has been fitted.

Colour of the replacement fuse cover must be the same colour as that visible on the pin face of the plug. Fuse covers are available from any good electrical store.

Important! Fitting A Different Plug

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your

plug proceed as follows: (See diagram).

1. Connect the green-yellow or green (Earth) wire

to the terminal in the plug marked ‘E’ or with the symbol or coloured green and yellow or green.

2. Connect the blue (Neutral) wire to the terminal in

the plug marked ‘N’ or coloured black.

3. Connect the brown (Live) wire to the terminal in

the plug marked ‘L’ or coloured red. With alternative plugs a 13 A fuse must be fitted either in the plug or adaptor or in the main fuse box. If in doubt contact a qualified electrician.

GREEN & YELLOW

GREEN

BLUE

BLACK

6mm.

32mm.

BROWN

RED

22mm.

6mm.

CORD GRIP

12mm.

6mm.

FUSE

FITTED WITH

CARTRIDGE FUSE

FIT BS 1362 REPLACEMENT

BS 1362 13A FUSE ALWAYS

4 / 27 EN

Refrigerator / User Manual

Important instructions for safety and environment

Energy saving tips

1. Ensure your appliance is installed in a well

ventilated area.

2. Ensure the time between buying chilled/frozen food and placing them in your appliance is kept at minimum, particularly in summer. We recommend you use a cool bag or a special carrier bag to carry perishable food.

3. Do not leave the door (s) of your appliance open

longer than necessary and ensure they are closed properly after each opening.

4. Defrost frozen food in the fridge compartment, so that frozen food acts as an ice pack to assist cooling in the fridge.

5. Energy consumption of this appliance is measured while freezer compartment is loaded without use of top shelf lid and the drawers except the bottom drawer. It is advised that freezer compartment is loaded without use of drawers except the bottom drawer in order to achieve maximum loading capacity.

Compliance with rohs directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain

harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment

Regulations. Do not dispose of the packaging

materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Compliance with WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product

bears a classification symbol for waste electrical and electronic

equipment (WEEE).This product has

been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Refrigerator / User Manual

5 / 27 EN

2 Your refrigerator

Congratulations on your choice a Beko quality Appliance which has been designed to give you service for many years.

*14

1- Freezer compartment 2- Fridge compartment 3- Fan 4- Butter-cheese compartments 5- Glass shelves 6- Fridge compartment door racks and egg

compartment

7- Water dispenser tank

*Optional: Figures in this user manual are schematic and may not match the product exactly. If the relevant parts are not available in the product you purchased, it applies to other models.

8- Odour filter 9- Chiller compartment 10- Crisper compartment 11- Adjustable feet 12- Frozen food storage compartments 13- Freezer compartment door racks 14- Ice makers

6 / 27 EN

Refrigerator / User Manual

3 Installation

Always have the repair procedures carried out by

the Authorised Service Agent. Manufacturer shall

not be held liable for damages that may arise from procedures carried out by unauthorised persons.

To make the product ready for use, make sure that the electricity installation is appropriate before calling the Authorised Service Agent. If not, call a qualified electrician to have any necessary arrangements carried out.

Preparation of the location and electrical installation at the place of installation is

C B

B A

under customer's responsibility.

Product must not be plugged in during installation. Otherwise, there is the risk of death or serious injury!

WARNING: Manufacturer shall not

be held liable for damages that may arise from procedures carried out by unauthorised persons.

WARNING: Prior to installation, visually

check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.

Make sure that the power cable is not

pinched or crushed while pushing the product into its place after installation or cleaning procedures.

3.1. Appropriate installation location

WARNING: If the door of the room where

the product will be placed is too small for the product to pass, then the product's

• Choose a place at where you would use the

product comfortably.

• Install the product at least 30 cm away from

heat sources such as hobs, ovens, heaters and stoves.Product must not be subjected to direct sun light and kept in humid places after installation.

• Appropriate air ventilation must be provided

around your product in order to achieve an efficient operation. If the product is to be placed in a recess in the wall, pay attention to leave at least 5 cm distance with the ceiling and side walls.

• Do not place the product on the materials such

as rugs or carpets.

• Place the product on an even floor surface to

prevent jolts.

• Do not install the product in places where the

temperature falls below -5°C.

3.2. Installing the plastic wedges

Plastic wedges are used to create the distance for the air circulation between the product and the rear wall. Insert the 2 plastic wedges onto the rear ventilation cover as illustrated in the figure. To install the wedges, remove the screws on the product and use the screws given in the same pouch with the wedges.

doors can removed and the product turned aside to pass it through.

If two coolers are to be installed side by side, there should be at least 4 cm distance between them.

Refrigerator / User Manual

7 / 27 EN

Installation

• The specified voltage must be equal to your

mains voltage.

• Do not make connections via extension cables

or multi-plugs.

WARNING: Damaged power cable must

B B

be replaced by the Authorised Service Agents.

WARNING: If the product has a failure,

it should not be operated unless it is repaired by the Authorised Service

Agent! There is the risk of electric shock!

3.4. Adjusting the feet

If the product stands unbalanced after installation adjust the feet. Taking help from someone to slightly lift the refrigerator will facilitate this process.

3.3. Electrical connection

Connect the product to a grounded outlet protected by a fuse complying with the values in the rating plate. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• Electrical connection must comply with national

regulations.

• Power cable plug must be within easy reach

after installation.

• The voltage and allowed fuse or breaker protection are specified in the Rating Plate

which is affixed to interior of the product. If the current value of the fuse or breaker in the house does not comply with the value in the rating plate, have a qualified electrician install a suitable fuse.

WARNING: First unplug the product.

Product must not be plugged in when

Turn the front feet to balance the product. The corner where the foot exists is lowered when you turn in the direction of arrow and raised when you turn it in the opposite direction.

adjusting the feet. There is the risk of electric shock!

8 / 27 EN

Refrigerator / User Manual
