Beiter VT User Manual

Update 01/2004

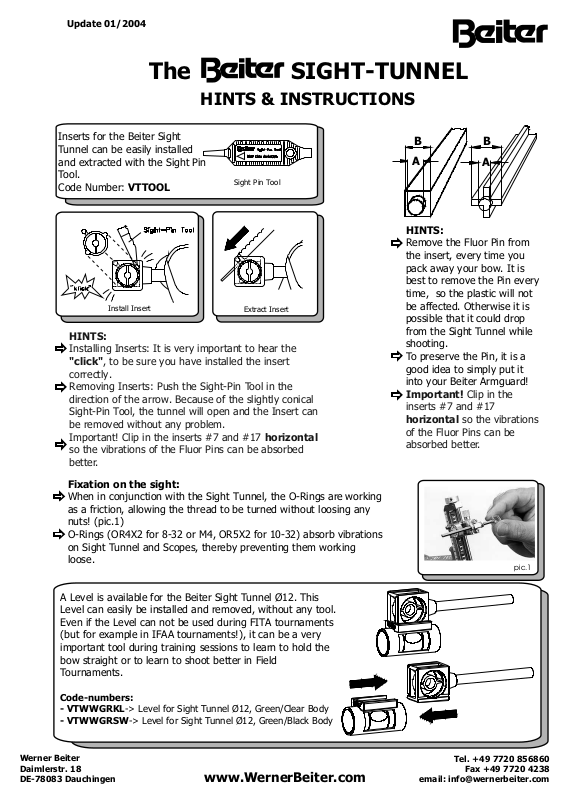

The SIGHT-TUNNEL

HINTS & INSTRUCTIONS

Inserts for the Beiter Sight
Tunnel can be easily installed
and extracted with the Sight Pin
Tool.
Code Number: VTTOOL

Install Insert

Sight Pin Tool

Extract Insert

HINTS:
Installing Inserts: It is very important to hear the
"click", to be sure you have installed the insert

correctly.
Removing Inserts: Push the Sight-Pin Tool in the
direction of the arrow. Because of the slightly conical
Sight-Pin Tool, the tunnel will open and the Insert can
be removed without any problem.
Important! Clip in the inserts #7 and #17 horizontal
so the vibrations of the Fluor Pins can be absorbed
better.

B

A

B

A

HINTS:

Remove the Fluor Pin from
the insert, every time you
pack away your bow. It is
best to remove the Pin every
time, so the plastic will not
be affected. Otherwise it is
possible that it could drop
from the Sight Tunnel while
shooting.
To preserve the Pin, it is a
good idea to simply put it
into your Beiter Armguard!

Important! Clip in the
inserts #7 and #17
horizontal so the vibrations
of the Fluor Pins can be
absorbed better.

Fixation on the sight:

When in conjunction with the Sight Tunnel, the O-Rings are working
as a friction, allowing the thread to be turned without loosing any
nuts! (pic.1)
O-Rings (OR4X2 for 8-32 or M4, OR5X2 for 10-32) absorb vibrations
on Sight Tunnel and Scopes, thereby preventing them working
loose.

A Level is available for the Beiter Sight Tunnel Ø12. This
Level can easily be installed and removed, without any tool.
Even if the Level can not be used during FITA tournaments
(but for example in IFAA tournaments!), it can be a very
important tool during training sessions to learn to hold the
bow straight or to learn to shoot better in Field
Tournaments.

Code-numbers:

- VTWWGRKL-> Level for Sight Tunnel Ø12, Green/Clear Body

- VTWWGRSW-> Level for Sight Tunnel Ø12, Green/Black Body
