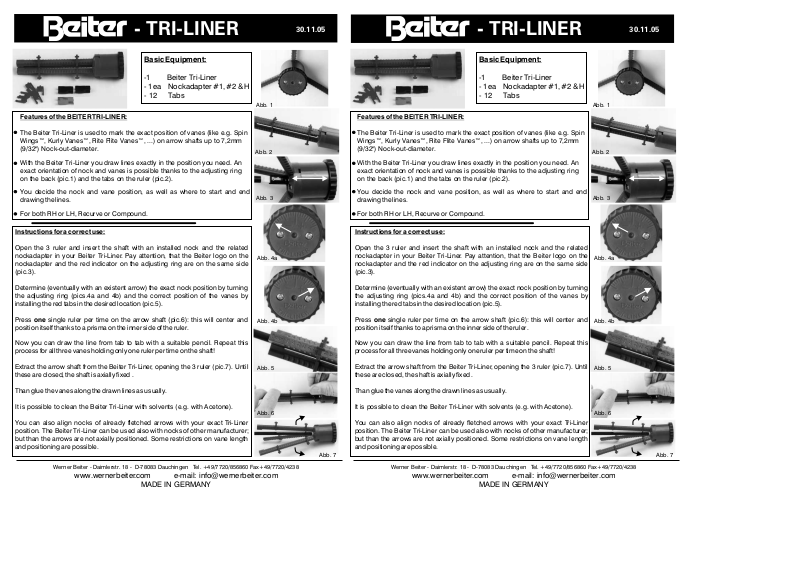

Beiter TL User Manual

- TRI-LINER

30.11.05

- TRI-LINER

30.11.05

Basic Equipment:

-1 Beiter Tri-Liner

- 1 ea Nockadapter #1, #2 & H

- 12 Tabs

Features of the BEITER TRI-LINER:

The Beiter Tri-Liner is used to mark the exact position of vanes (like e.g. Spin
Wings™, Kurly Vanes™, Rite Flite Vanes™, ...) on arrow shafts up to 7,2mm
(9/32") Nock-out-diameter.

With the Beiter Tri-Liner you draw lines exactly in the position you need. An
exact orientation of nock and vanes is possible thanks to the adjusting ring
on the back (pic.1) and the tabs on the ruler (pic.2).

You decide the nock and vane position, as well as where to start and end
drawing the lines.

For both RH or LH, Recurve or Compound.

Instructions for a correct use:

Open the 3 ruler and insert the shaft with an installed nock and the related
nockadapter in your Beiter Tri-Liner. Pay attention, that the Beiter logo on the
nockadapter and the red indicator on the adjusting ring are on the same side
(pic.3).

Determine (eventually with an existent arrow) the exact nock position by turning
the adjusting ring (pics.4a and 4b) and the correct position of the vanes by
installing the red tabs in the desired location (pic.5).

Press one single ruler per time on the arrow shaft (pic.6): this will center and
position itself thanks to a prisma on the inner side of the ruler.

Now you can draw the line from tab to tab with a suitable pencil. Repeat this
process for all three vanes holding only one ruler per time on the shaft!

Extract the arrow shaft from the Beiter Tri-Liner, opening the 3 ruler (pic.7). Until
these are closed, the shaft is axially fixed .

Than glue the vanes along the drawn lines as usually.

It is possible to clean the Beiter Tri-Liner with solvents (e.g. with Acetone).

You can also align nocks of already fletched arrows with your exact Tri-Liner
position. The Beiter Tri-Liner can be used also with nocks of other manufacturer;
but than the arrows are not axially positioned. Some restrictions on vane length
and positioning are possible.

Werner Beiter - Daimlerstr. 18 - D-78083 Dauchingen Tel. [phone] Fax[phone]

www.wernerbeiter.com e-mail: [e-mail]

MADE IN GERMANY

Abb. 1

Abb. 2

Abb. 3

Abb. 4a

Abb. 4b

Abb. 5

Abb. 6

Abb. 7
