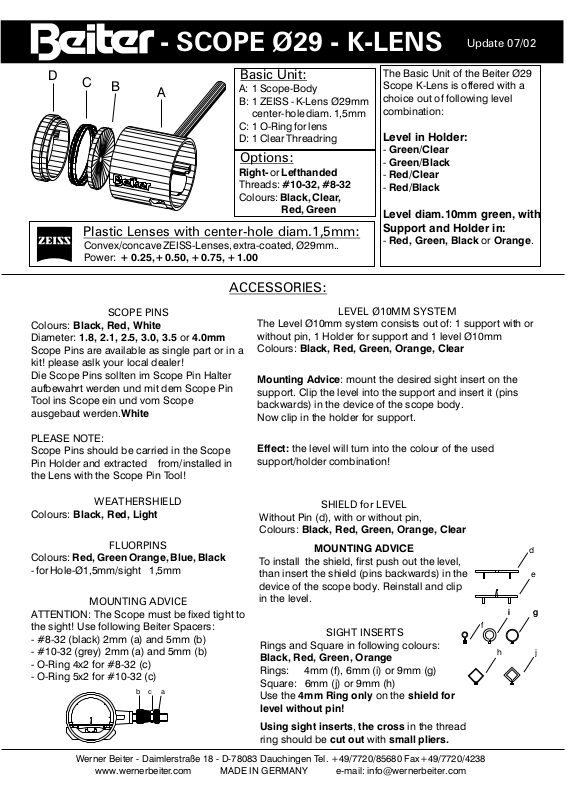

Beiter SC29K User Manual

- SCOPE Ø29 - K-LENS

Update 07/02

D

C

B

A

Plastic Lenses with center-hole diam.1,5mm:

Convex/concave ZEISS-Lenses, extra-coated, Ø29mm..
Power: + 0.25,+ 0.50, + 0.75, + 1.00

ACCESSORIES:

SCOPE PINS

Colours: Black, Red, White
Diameter: 1.8, 2.1, 2.5, 3.0, 3.5 or 4.0mm
Scope Pins are available as single part or in a
kit! please aslk your local dealer!
Die Scope Pins sollten im Scope Pin Halter
aufbewahrt werden und mit dem Scope Pin
Tool ins Scope ein und vom Scope
ausgebaut werden.White

Basic Unit:

A: 1 Scope-Body
B: 1 ZEISS - K-Lens Ø29mm
center-hole diam. 1,5mm
C: 1 O-Ring for lens
D: 1 Clear Threadring

Options:

Right- or Lefthanded
Threads: #10-32, #8-32
Colours: Black, Clear,

Red, Green

The Basic Unit of the Beiter Ø29
Scope K-Lens is offered with a
choice out of following level
combination:

Level in Holder:

- Green/Clear

- Green/Black

- Red/Clear

- Red/Black

Level diam.10mm green, with
Support and Holder in:

- Red, Green, Black or Orange.

LEVEL Ø10MM SYSTEM

The Level Ø10mm system consists out of: 1 support with or
without pin, 1 Holder for support and 1 level Ø10mm
Colours: Black, Red, Green, Orange, Clear

Mounting Advice: mount the desired sight insert on the
support. Clip the level into the support and insert it (pins
backwards) in the device of the scope body.
Now clip in the holder for support.

PLEASE NOTE:
Scope Pins should be carried in the Scope
Pin Holder and extracted from/installed in
the Lens with the Scope Pin Tool!

WEATHERSHIELD

Colours: Black, Red, Light

FLUORPINS

Colours: Red, Green Orange, Blue, Black

- for Hole-Ø1,5mm/sightn1,5mm

MOUNTING ADVICE

ATTENTION: The Scope must be fixed tight to
the sight! Use following Beiter Spacers:

- #8-32 (black) 2mm (a) and 5mm (b)

- #10-32 (grey) 2mm (a) and 5mm (b)

- O-Ring 4x2 for #8-32 (c)

- O-Ring 5x2 for #10-32 (c)

c

a

b

Effect: the level will turn into the colour of the used
support/holder combination!

SHIELD for LEVEL

Without Pin (d), with or without pin,
Colours: Black, Red, Green, Orange, Clear

MOUNTING ADVICE

To install the shield, first push out the level,
than insert the shield (pins backwards) in the
device of the scope body. Reinstall and clip
in the level.

f

SIGHT INSERTS

Rings and Square in following colours:

Black, Red, Green, Orange

Rings: 4mm (f), 6mm (i) or 9mm (g)
Square: 6mm (j) or 9mm (h)
Use the 4mm Ring only on the shield for

level without pin!

d

e

g

g

ii

h

j

Using sight inserts, the cross in the thread
ring should be cut out with small pliers.
