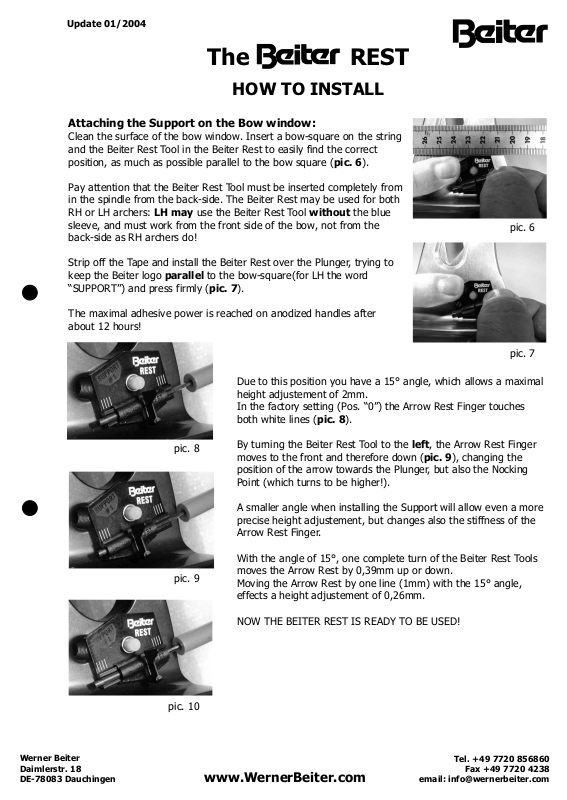

Beiter RE User Manual

Update 01/2004

The REST

HOW TO INSTALL

Attaching the Support on the Bow window:

Clean the surface of the bow window. Insert a bow-square on the string
and the Beiter Rest Tool in the Beiter Rest to easily find the correct
position, as much as possible parallel to the bow square (pic. 6).

Pay attention that the Beiter Rest Tool must be inserted completely from
in the spindle from the back-side. The Beiter Rest may be used for both
RH or LH archers: LH may use the Beiter Rest Tool without the blue
sleeve, and must work from the front side of the bow, not from the
back-side as RH archers do!

Strip off the Tape and install the Beiter Rest over the Plunger, trying to
keep the Beiter logo parallel to the bow-square(for LH the word
“SUPPORT”) and press firmly (pic. 7).

pic. 6

The maximal adhesive power is reached on anodized handles after
about 12 hours!

Due to this position you have a 15° angle, which allows a maximal
height adjustement of 2mm.
In the factory setting (Pos. “0”) the Arrow Rest Finger touches
both white lines (pic. 8).

pic. 8

pic. 9

By turning the Beiter Rest Tool to the left, the Arrow Rest Finger
moves to the front and therefore down (pic. 9), changing the
position of the arrow towards the Plunger, but also the Nocking
Point (which turns to be higher!).

A smaller angle when installing the Support will allow even a more
precise height adjustement, but changes also the stiffness of the
Arrow Rest Finger.

With the angle of 15°, one complete turn of the Beiter Rest Tools
moves the Arrow Rest by 0,39mm up or down.
Moving the Arrow Rest by one line (1mm) with the 15° angle,
effects a height adjustement of 0,26mm.

pic. 7

Werner Beiter
Daimlerstr. 18
DE-78083 Dauchingen

pic. 10

NOW THE BEITER REST IS READY TO BE USED!

www.WernerBeiter.com

Tel. [phone]

Fax [phone]

email: [e-mail]

Update 01/2004

Code# Description

RE76661512065 Rest, Finger 15-12-0,65
RE76661617065 Rest, Finger 16-17-0,65
RE76661723077 Rest, Finger 17-23-0,77
RE7666151206510 Rest, Finger 15-12-0,65, 10 pcs.
RE7666161706510 Rest, Finger 16-17-0,65, 10 pcs.
RE7666172307710 Rest, Finger 17-23-0,77, 10 pcs.
RE7666S1 Rest, Support #1, incl. Glue Strip
RE7666S2 Rest, Support #2, incl. Glue Strip
RE7666S3 Rest, Support #3, incl. Glue Strip
RE7666SP Rest, Spindle
RE7666KL Rest, Glue Strip
RE7687 Rest Tool

BEITER REST SPARE PARTS

The REST

HOW TO USE

PLEASE NOTE:

The Beiter Rest can not have unlocked screws! The only moving part is the Spindle: without the
inserted Rest Tool, the spindle can no longer move!
The finger may - especially at the beginning - wear: this may be compensated with the height
adjustement. If the wear is too extreme, the Finger can be exchanged easily, precisely and quickly.
If used under extreme conditions (e.g. A too high or too low nocking point, or a not precise tuning
causing clearance problems), the Finger may wear faster, than with a correct set-up.

CHANGING THE FINGER:

You may easily change from Aluminum to Carbon and back,
finding always again exact the same position: simply change
from the finger “12” to “23” and vice-versa.
Another reason o change the Finger, may be the fact that the
Finger brakes or wears due to an incorrect tune. A small
groove may be compensated with the height adjustement.

pic. 11

IMPORTANT!

Every Finger is produced out of a single mould, so each Finger is identical
to the other!
To exchange the Finger, insert the Beiter Rest Tool completely into the
Spindle (for LH without the sleeve, if there is not enough space), and turn
clockwise (to the right pic. 11) until the Finger is not anymore guided by
the Spindle and touches the sleeve. Extract the Finger while the Spindle
will stay clipped on the Support.

Now insert the Finger in the Support, positioning it into the lower guide (pic. 12) and clipping it on the
upper guide like a push-botton (pic. 13). Insert the Beiter Rest Tool again completely into the Spindle
and press simultaneously against the Finger with it and tourn counter-clokckwise (to the left, pic. 14)
to engage the dirst thread.
Left-Hand archers must push with their finger against the Finger to engage it.
Now you can move the Beiter Arrow Rest Finger in the desired position!

Werner Beiter
Daimlerstr. 18
DE-78083 Dauchingen

www.WernerBeiter.com

pic. 12

pic. 13

pic. 14
