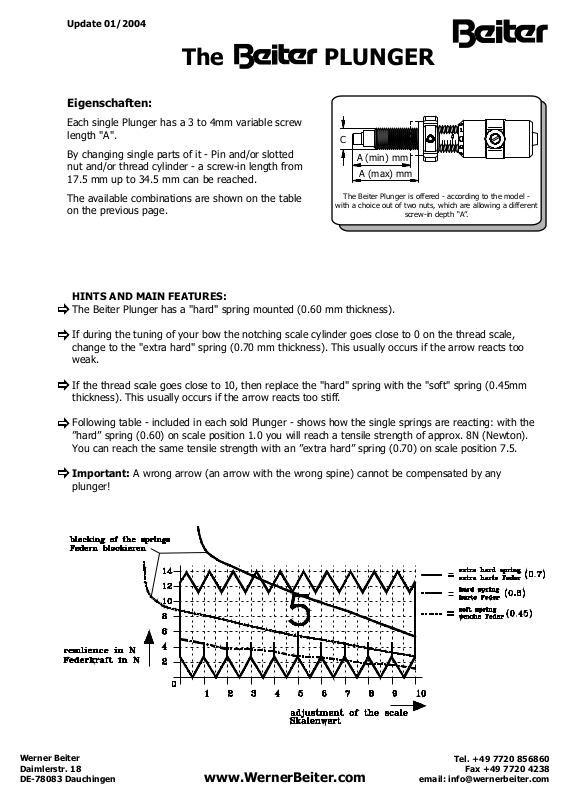

Beiter PL User Manual

Update 01/2004

The PLUNGER

Eigenschaften:

Each single Plunger has a 3 to 4mm variable screw
length "A".

By changing single parts of it - Pin and/or slotted
nut and/or thread cylinder - a screw-in length from

17.5 mm up to 34.5 mm can be reached.

The available combinations are shown on the table
on the previous page.

HINTS AND MAIN FEATURES:

The Beiter Plunger has a "hard" spring mounted (0.60 mm thickness).

C

A (min) mm

A (max) mm

The Beiter Plunger is offered - according to the model -

with a choice out of two nuts, which are allowing a different

screw-in depth “A”.

If during the tuning of your bow the notching scale cylinder goes close to 0 on the thread scale,
change to the "extra hard" spring (0.70 mm thickness). This usually occurs if the arrow reacts too
weak.

If the thread scale goes close to 10, then replace the "hard" spring with the "soft" spring (0.45mm
thickness). This usually occurs if the arrow reacts too stiff.

Following table - included in each sold Plunger - shows how the single springs are reacting: with the
”hard” spring (0.60) on scale position 1.0 you will reach a tensile strength of approx. 8N (Newton).
You can reach the same tensile strength with an ”extra hard” spring (0.70) on scale position 7.5.

Important: A wrong arrow (an arrow with the wrong spine) cannot be compensated by any
plunger!
