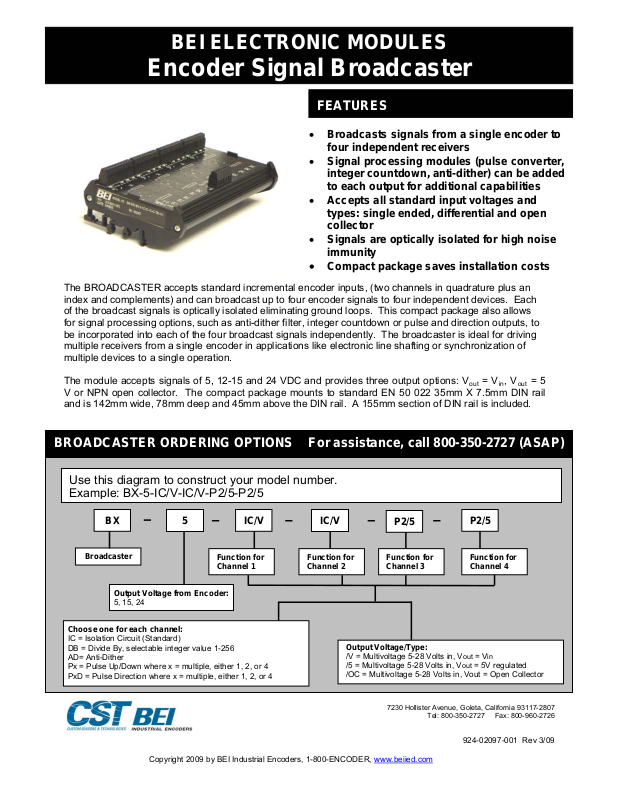

BEI ELECTRONIC MODULES
Encoder Signal Broadcaster
The BROADCASTER accepts standard incremental encoder inputs, (two channels in quadrature plus an index and complements) and can broadcast up to four encoder signals to four independent devices. Each of the broadcast signals is optically isolated eliminating ground loops. This compact package also allows for signal processing options, such as anti-dither filter, integer countdown or pulse and direction outputs, to be incorporated into each of the four broadcast signals independently. The broadcaster is ideal for driving multiple receivers from a single encoder in applications like electronic line shafting or synchronization of multiple devices to a single operation.
The module accepts signals of 5, 12-15 and 24 VDC and provides three output options: V V or NPN open collector. The compact package mounts to standard EN 50 022 35mm X 7.5mm DIN rail and is 142mm wide, 78mm deep and 45mm above the DIN rail. A 155mm section of DIN rail is includ
BROADCASTER ORDERING OPTIONS For assistance, call 800-350-2727 (ASAP)
Use this diagram to construct your model number. Exam
le: BX-5-IC/V-IC/V-P2/5-P2/5
BX
5 IC/V
IC/V
Broadcaster
Function for Channel 1
Output Voltage from Encoder:
5, 15, 24
FEATURE
Broadcasts signals from a single encoder to four independent receivers
Signal processing modules (pulse converter, integer countdown, anti-dither) can be added to each output for additional capabilities
Accepts all standard input voltages and types: single ended, differential and open collector
Signals are optically isolated for high noise immunity
Compact package saves installation costs
Function for Channel 2
P2/5
Function for Channel 3
= Vin, V
out
P2/5
Function for Channel 4
out
ed.
= 5
Choose one for each channel:
IC = Isolation Circuit (Standard) DB = Divide By, selectable integer value 1-256 AD= Anti-Dither Px = Pulse Up/Down where x = multiple, either 1, 2, or 4 PxD = Pulse Direction where x = multiple, either 1, 2, or 4
Output Voltage/Type:
/V = Multivoltage 5-28 Volts in, V /5 = Multivoltage 5-28 Volts in, V /OC = Multivoltage 5-28 Volts in, Vout = Open Collector
out = Vin
out = 5V regulated
7230 Hollister Avenue, Goleta, California 93117-2807
Copyright 2009 by BEI Industrial Encoders, 1-800-ENCODER, www.beiied.com
Tel: 800-350-2727 Fax: 800-960-2726
924-02097-001 Rev 3/09
CONNECTION INSTRUCTIONS (for Isolated Circuit and Anti-Dither Functions)
A
/
/
V
p
p
)
A
V
g
A
V
p
Differential Line Driver (See Figure 1)
Encoder signals from 5 VDC to 24 VDC (must specify the voltage when ordering)
This is the preferred type of encoder output as it has the best noise immunity. Connect each encoder signal to its like input (A to A, A/ to A/,
.
etc
Figure 1 Standard Connection to Optical Isolator Module
A A A/ A/
B B B/ B/
Z Z Z/ Z/
+V
0V
Encoder Differential Line Driver Out
Optical Isolator
Broadcaster Broadcaster Broadcaster Module
REG
ut
+V
0V
Z Z/
A
B B
S
0V
Single Ended Line Driver (See Figure 2)
Encoder signal from 5 VDC to 24 VDC (must specify the voltage when ordering)
Connect broadcaster A to optical isolator module input channel A, B to B and Z to Z. Connect the A/, B/, and Z/ inputs of the optical isolator to circuit common of the encoder supply. Single ended operation is limited to shorter cable runs and is more susce
Figure 2 Connection Diagram Single Ended Line Driver
AA
B B
Z Z
+V
0V
Encoder Sin
le Ended Line Driver Output
Optical Isolator
A/
B/
Z/
REG
tible to noise.
A
/
B B/
Z Z/
S
0V
+V
Encoder Supply
0V
Open Collector with or without Internal Pull­up Resistors (See Figure 3)
Encoder NPN (sinking) outputs.
Connect encoder output A to optical isolator module input A/, B to B/ and Z to Z/. Connect the A, B, and Z inputs of the broadcaster to the auxiliary output terminal on the broadcaster module. This connection results in a logic inversion within the broadcaster module. To compensate for the logic reversal, swap A for A/, B for B/, and Z for Z/ at the broadcaster outputs.
Copyright 2009 by BEI Industrial Encoders, 1-800-ENCODER, www.beiied.com
Figure 3 Connec
ion Diagram
Opent Coll le
ector to Optical Modu
Broadcaster
A or A/
B or B/
Z or Z/
+V
0V
Encoder O
7230 Hollister Avenue, Goleta, California 93117
Optical Isolator
Broadcaster
A A/
B B/
Z
Z/
AUX 5V
en Collector Output
Tel: 800-350-2727 Fax: 800-960-
A
/
B B/
Z Z/
REG
Optical Regulation
Power Supply
S
0V
+V
0V
-2807
924-02097-001 Rev 3/09
2726
ENCODER SIDE
BROADCASTER BLOCK DIAGRAM
TERMINATION PINOUTS
PIN DESCRIPTION NOTES
A, A/ Channel A Inputs
B, B/ Channel B Inputs
Z, Z/ Channel Z Inputs
T1, T2, T3 Uncommitted Terminals
DRIVER SIDE
PIN DESCRIPTION NOTES
+ V
0 V Power supply common
EN Output Enable
A, A/ Channel A Outputs
B, B/ Channel B Outputs
Z, Z/ Channel Z Outputs
Power supply 5 – 28 VDC
125 mA + load current typ.
Input levels consistent with specified value in model number (5 V, 15 V, 24 V). Signal input current 25 mA nom. See BEI OIM Applications Guide for single ended and open collector connection diagrams
Non-committed terminals. Provided for use as connection points for encoder power.
Supply lines between driver sections are not connected. Driver must be powered in order to produce an output. Supply voltage need not be the same for different driver sections. HI = Output Active, LO = High Impedance Internal pull-up to V+
Output levels consistent with driver type and supply voltage (V/V outputs).
7230 Hollister Avenue, Goleta, California 93117-2807
Copyright 2009 by BEI Industrial Encoders, 1-800-ENCODER, www.beiied.com
Tel: 800-350-2727 Fax: 800-960-2726
924-02097-001 Rev 3/09
Additional Modules and Accessories
POWER SUPPLY
With a wide range of acceptable input voltages (AC and DC) this DIN Rail mountable power supply is usable in virtually all industrial applications worldwide. It has built in surge protection to reduce faults due to transients and it has 100% reserve capacity for startup and overload conditions.
CABLE AND CABLE ASSEMBLIES
Cable reels for your own custom wiring requirements or cable assemblies are available, using high quality custom BEI standard cable consisting of four, low capacitance shielded twisted pairs with an overall shield, extra large conductors for power, and signal ground; all within an abrasion-resistant PVC jacket.
Cable Reels
100 ft. reel Part No. 37048-003-100 500 ft. reel Part No. 37048-003-500
Cable Assemblies Part Nos. for MS3106F14S-6S Mating Connector
10 ft. # 31186-1410 20 ft. # 31186-1420 30ft. # 31186-1430
Part Nos. for MS3106F16S-1S Mating Connector
10 ft. # 31186-1610 20 ft. # 31186-1620 30ft. # 31186-1630
Part Nos. for MS3106F18S-1S Mating Connector
10 ft. # 31186-1810 20 ft. # 31186-1820 30ft. # 31186-1830
7230 Hollister Avenue, Goleta, California 93117-2807
Copyright 2009 by BEI Industrial Encoders, 1-800-ENCODER, www.beiied.com
Tel: 800-350-2727 Fax: 800-960-2726
924-02097-001 Rev 3/09
