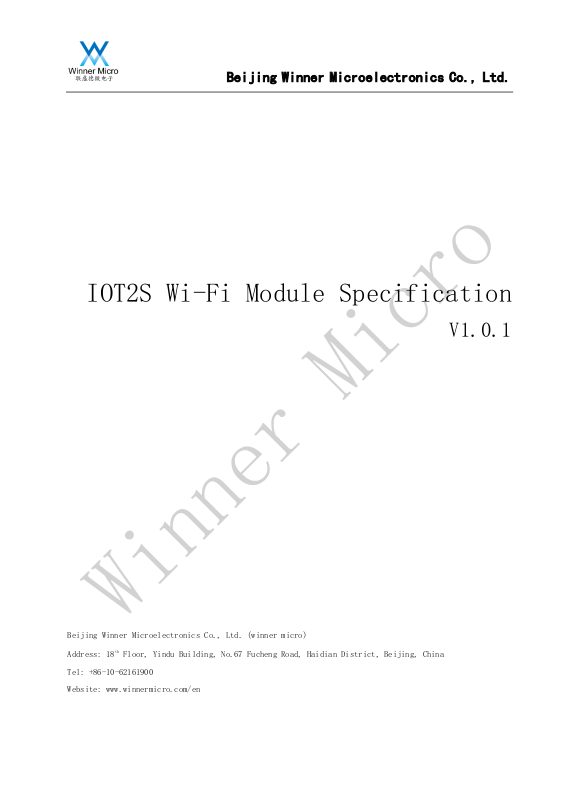

Beijing Winner Microelectronics Co., Ltd.
IOT2S Wi-Fi Module Specification
V1.0.1
Beijing Winner Microelectronics Co., Ltd. (winner micro)
Address: 18th Floor, Yindu Building, No.67 Fucheng Road, Haidian District, Beijing, China
Tel: +86-10-62161900
Website: www.winnermicro.com/en
Beijing Winner Microelectronics Co., Ltd.
Document History
Version
Complete Date
Revision Record
Author
Auditor
V1.0.0
2018-11-07
Initial Release
Kanghb
Ray
V1.0.1
2019-02-28
1.Modify power consumption with
new version SDK;
2.Add IO definition.
Kevin
Ray
Beijing Winner Microelectronics Co., Ltd.
Content
1 Introduction .................................................................................................................................................. 1
2 Product Features ........................................................................................................................................... 1
2.1 Interface: ....................................................................................................................................... 1
2.2 Wireless ........................................................................................................................................ 1
2.3 Others ........................................................................................................................................... 1
3 Product Specification .................................................................................................................................... 2
4 Interface ........................................................................................................................................................ 3
5 Reference Circuit Design .............................................................................................................................. 4
Beijing Winner Microelectronics Co., Ltd.
1
1 Introduction
IOT2S is the Wi-Fi module based on IoT Wi-Fi SoC W600. It integrates PCB antenna and gold finger
interface. This Wi-Fi module can be used for smart appliance, smart home, smart toy and
industry field.
2 Product Features
2.1 Interface:
➢ Gold finger interface with 2mm spacing
➢ 2 x UART ports, band rate range 1200bps~2Mbps
➢ Integrate PWM controller, max output frequency is 20MHz, max input frequency is 20MHz
➢ Integrate I²C
➢ Integrate GPIO
➢ Integrate I²S
2.2 Wireless
➢ Support GB15629.11-2006, IEEE802.11 b/g/n standard
➢ Frequency range: 2.4~2.4835 GHz
➢ Support Wi-Fi WMM/WMM-PS/WPA/WPA2/WPS
➢ Support Wi-Fi Direct
➢ Support EDCA channel access
➢ Support 20/40M bandwidth
➢ Support STBC, GreenField, Short-GI and reverse transmission
➢ Support RIFS interframe space
➢ Support AMPDU, AMSDU
➢ Support IEEE802.11n MCS 0~7, MCS32 transmission rate is up to 150Mbps
➢ Support Short Preamble in 2/5.5/11Mbps
➢ Support HT-immediate Compressed Block Ack, Normal Ack, No Ack
➢ Support CTS to self
➢ Support STA/AP/AP+STA function
➢ Support up to 32 multicast networks with different encryption methods in BSS
➢ As AP in BSS, the sum of sites and groups is up to 32 and in IBSS is up to 16
2.3 Others
➢ Support programmabel GPIO control
Beijing Winner Microelectronics Co., Ltd.
2
➢ Support AT+command protocol based on ASCII code with UART interface
➢ Support multiple network protocols: TCP/UDP/ICMP/DHCP/DNS/HTTP
➢ Support DHCP Server, DNS Server
➢ Support extensible WEB server
➢ Support firmware online update
3 Product Specification
Table 3-1 Specification List
Item
Parameter
Note
Wi-Fi
Wi-Fi Mode
IEEE802.11b/g/n
RF impedance
50Ω
SWR
<-10dB
Frequency Range
2.4~2.4835 GHz
Reception Sensitivity
20MHz MCS7@-71dBm；
40MHz MCS7@-68dBm；
54Mbps@-73dBm；
11Mbps@-87dBm；
1Mbps@-95dBm；
Data rate in PHY
802.11n MCS 0~7 150Mbps
Modulation Mode
DSSS, OFDM, DBPSK, DQPSK, CCK, QAM16/64
Output Power
IEEE802.11b, DSSS 1Mbps, POUT = +17dBm；
IEEE802.11g, OFDM 54Mbps, POUT = +12dBm；
IEEE802.11n, OFDM MCS7, POUT = +10dBm；
Hardware
Interface
UART, GPIO, PWM, I²C
Data Rate
2Mbps@UART (Max)
Working Voltage
3.0V – 3.6V
Working Current
20mA – 110mA
Working Humidity
5%~90%（无凝结）
Storage Temperature
-40~+125 ℃
Working Temperature
-40~+85℃
Size
15.0mm×17.3mm
Software
Network Type
STA/AP/AP+STA/Wi-Fi Direct
Authentication
WEP/WPA-PSK/WPA2-PSK
Encryption
WEP64/WEP128/TKIP/CCMP(AES)
WPS
WPS
Beijing Winner Microelectronics Co., Ltd.
3
Energy Conservation
PS-POLL/Standby
Network Protocol
TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP
Interface Protocol
AT+Command
4 Interface
IOT2S module is shown in Figure 4-1
Figure 4-1 IOT2S
Table 4-1 PIN Description
No.
Name
Type
Default Function
Note
1
3V3 P Power Pin
2
PB17
I/O
GPIO_B17
PWM_2
3
GND P GND
4
PB16
I/O
GPIO_B16
PWM_3
5
RX1
I/O
UART1_RX
6 PB15
I/O
GPIO_B15
PWM_4
7
TX1
I/O
UART1_TX
8
NC 9
PB14
I/O
GPIO_B14
10
RST
I/O
Hardware Reset
11
PB13
I/O
GPIO_B13
Beijing Winner Microelectronics Co., Ltd.
4
5 Reference Circuit Design
Figure 6-1 IOT2S Reference Design
FCCWARNING
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void the user's
authority to operate this equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.
15.105 Information to the user.
(b) For a Class B digital device or peripheral, the instructions furnished the
user shall include the following or similar statement, placed in a prominent
location in the text of the manual:
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20
cm between the radiator and your body.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The availability of some specific channels and/or operational frequency bands
are country dependent and are firmware programmed at the factory to match
the intended destination.
The firmware setting is not accessible by the end user.
The final end product must be labelled in a visible area with the following:
“Contains Transmitter Module 2AGQ7-IOT2S”
