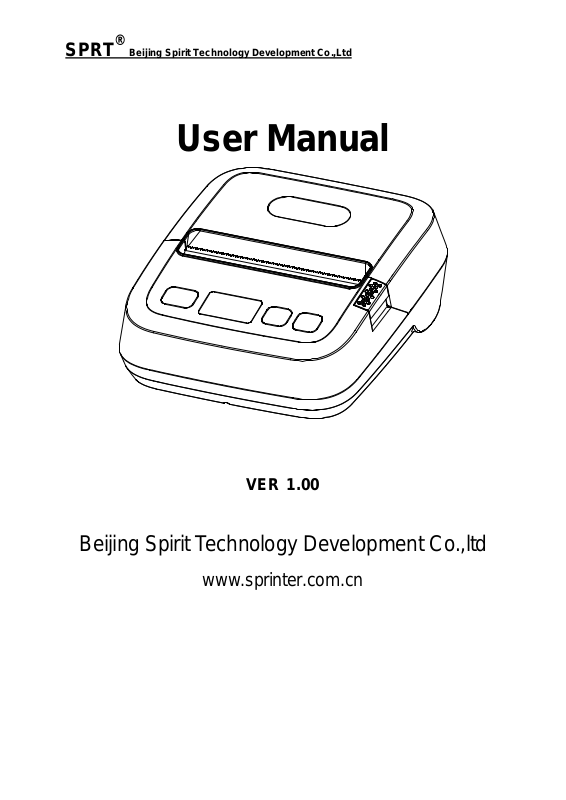

Beijing Spirit Technology Development SP L52BTDM User Manual

SPRT

®

Beijing Spirit Technology Development Co.,Ltd

User Manual

VER 1.00

Beijing S pirit Technology Development Co.,lt d

www.sprinter.com.cn

SPRT

®

Beijing Spirit Technology Development Co.,Ltd

Content

NOTICE ........................................................................................... 1

Notice of Safety .......................................................................... 1

Notice of Using ........................................................................... 2

Notice of Storing ......................................................................... 3

Chapter 1 Outer Appearan ce ........................................................ 4

Chapter 2 Characterist ic Specificat ion ......................................... 5

2.1 Printing Specificat ion ........................................................... 5

2.2 Physical Parameters ............................................................ 6

2.3 Environment Parameter s .................................................... 6

2.4 Other Specification ............................................................... 7

Chapter 3 Operation Met hod ........................................................ 8

3.1 Using Pr eparation ................................................................ 8

3.1.1 Battery Installatio n ......................................................... 8

3.1.2 Paper Roll Install ation ................................................... 9

3.2 Basic function usage ............................................................ 9

3.2.1 Switch On .................................................................... 10

3.2.2 Switch Off ..................................................................... 10

3.2.3 Self-Test ....................................................................... 10

3.2.4 Paper Feeding (M anual Feeding) ............................. 11

3.2.5 Hexadecimal Pr inting .................................................. 11

3.2.6 Printer Parameters Setting ......................................... 12

3.2.7 Battery Charging ......................................................... 13

3.2.8 Set Into Upgrading M ode ........................................... 14

3.3 Printer Parameters Setting ................................................ 14

3.4 Printer Interface Con nection and Pr inting ........................ 15

3.4.1 Serial Port Connect ion ................................................ 15

SPRT

®

Beijing Spirit Technology Development Co.,Ltd

3.4.2 USB Connection ......................................................... 16

3.4.3 Bluetooth Connect ion ................................................. 17

3.5 Buzzer ................................................................................. 19

3.6 LCD indication .................................................................... 19

Chapter 4 Other Infor mation ....................................................... 21

4.1 Command Progra mming Manual ................................... 21

4.2 Description of pre-printed Black Mark ............................ 21

Appendix A .................................................................................... 23

Appendix B .................................................................................... 26

SPRT

®

Beijing Spirit Technology Development Co.,Ltd

NOTICE

Please read this manual care fully be fore usi ng the
printer!

Notice of Saf ety

Be sure to use th e speci fied battery and pow er
supply provided by our c ompany. Ot herwise i t may cause
fire, explosion or damag e print er, mea nwhil e, the bat tery
also may be damaged.

Don’t put batter y into t he fire , don’t disasse mble or
heat the battery , don’t be short circ uit, it may c ause fire,
explosion or damage pri nter; meanwhi le, the battery also
may be damaged.

If the printer w ould not be use d for a l ong ti me, b e
sure to take off t he bat tery , otherw ise the b attery may
leak liquid which is corrosive liquid,

If improp er oper ation ca uses batt ery leak liq uid, and
it paste in the s kin or c lothes, pleas e rinse it by cl ean
water, if paste i n the ey es, pl ease ri nse th em thor oughly
by clean water a nd see a doc tor.

Please do not ope n the paper case cover when i t is
printing or just when pri nting is fini shed, do not touch the
printer head w ith hand or body , over heat may cause

1

SPRT

®

Beijing Spirit Technology Development Co.,Ltd

scald.

Notice of Using

Please do not prin t the r eceipt wit h over 1m le ngth.
Otherwise, it may cause the damage of printi ng
mechanism.

Water or other liq uid s hould not be spi lled in to the
printer, also t he pri nter s hould not be a ppeared in t he rain,
or else may caus e printe r damag e.

Please do not open the paper cas e cov er when it is
printing, otherw ise the pri nter may work improperl y.

If printer is using USB connec tion to wor k, should
not unplug the U SB cabl e, or el se some pr inti ng data
may be lost. When print er is usi ng USB c onnecti on to
work, the distanc e of co mmunica tion sho uld be wi thin 10
meters, otherw ise the pr inter d oesn’ t print or pri nts
rubbish codes.

Too high（45 ℃）or too low（5 ℃） environment
temperature and t oo hig h (85％) or too low (20％)
environment hu midity bo th effect the pr inting quali ty.

The printer pap er roll w ith poor quality or stor ed for
too long time als o may reduce t he pri nting q uality even
damage the printer.

Under the black mark detecti ng mode, the pri nter
requires that the pre-printed black mark is accordant w ith
the printing rule of black mar k (please re fer to details in

2

SPRT

®

Beijing Spirit Technology Development Co.,Ltd

Chapter 4.2), o therwi se the bl ack mar k can not be
detected correctl y.

Be sure to use u p the po wer of the batt ery be fore
charge up it, as it can ensure the us ing li fe of the batter y.

Notice of Storing

The printer shoul d be pl aced i n such an envi ronment
that the temperat ure is betw een-20 ℃ and 60
relative humidit y is betw een 10% and 9 0%.

If the printer w ill be s tored for a lo ng time, ple ase be
sure to take out the bat tery , otherw ise may da mage th e
battery and printer.

Declaration
It is A class product, which may cause radio interference
in the living environment. In this situation, users need to

take feasible and effect ive meas ures.

3

SPRT

1

6

2

7

3

8

4

5

纸 仓盖 Pri nter c over

US B接 口 Inter fac e con necto r

控 制面板 C on tr ol pan el
充 电接口 Po we r co n nec to r

打 印机芯 Pr i nt ing hea d

调 节纸宽 拨轮
Pa per widt h ad just wh ee l

纸 卷挡板 Pape r rol l baffle

主 体 Main body

9

开 门按键 O pencas e button

10 胶 辊 Rubb er ro ller

®

Beijing Spirit Technology Development Co.,Ltd

Chapter 1 Outer Appearance

1.1 Outer A ppeara nce

SP-L51 ther mal pri nter

Pic.1

Pic.2

4

SPRT

®

Beijing Spirit Technology Development Co.,Ltd

1.2 Model Number

SP-L52 Support USB and Blu etooth Inter face as

default

Model No. Interface
SP-L52US USB+Serial port
SP-L52BTMM Bluetooth (Androi d and IOS )+USB
SP-L52BTDM Bluetooth (Androi d and IOS )+USB
SP-L52i IOS 2.0 Bluetooth + USB
SP-L52U USB

Chapter 2 Characteristic Specification

2.1 Printing Specification

Printing Method: T hermal line
Paper Width: 112mm±0.5mm;

104mm±0.5mm;

79.5mm±0.5mm;
58mm±0.5mm;

Effective Printing Width: 104mm; 100mm;72mm;

5

SPRT

®

Beijing Spirit Technology Development Co.,Ltd

48mm;
Resolution: 8dots/ mm（203dpi）

Dots in each line: 112mm: 832dots /line;
104mm: 800dots/line;
78mm: 576dots/line;

58mm: 384 dots/line;

Printing Speed: M ax 80mm/s

Paper Thickness: 60～140μm

Printable Conten t:

Character set: G B18030 (Chinese)

BIG5(traditional Chinese),
GB12345(traditional Chinese),
Shift+JIS(Japanese),
ASCII, Custom Charest, figure

Bar code:

1D:UPCA,UPCE,EAN13,EAN8,CODE3

9,ITF25,CODABAR,CODE93,CODE 128

2D: PDF417,QR CODE,DATA Matrix

2.2 Physical P ara meters

Dimension (W×L×H): 69 (L) X 150.3(W) X70 (H) m m

Physical Weight: 624g (excluding roll paper)

Paper Roll Diamet er: Max 58.0mm

Interface: USB, Bluetoo th ,Serial port

2.3 Environment Parameters

Operating Temp: 0 ℃~50℃

Operating Humidity : 10 %~80%

6

SPRT

®

Beijing Spirit Technology Development Co.,Ltd

Storage Temp: -20 ℃~ 60℃

Storage Humidity : 10%~ 90%

2.4 Other S peci fic ation

● Paper Loading Method: drop-in easy paper
loading ( please refer to details in 3.1.2 Paper Roll
Installation).

● Black Mark Location: available(details please see

4.2 pre-printed black ma rk manual).

● Printing Control Command: ESC/POS compatible

command set/CPC L comman d set

(Refer to<Portable Printer Command Program

Manual >).

● Power Supply: 7.4VDC/2300mAh rechargeable

polymer lithium batter y.

● Power Alarm: when the battery is low, the battery

indicator on LCD blinks

● Battery Charging: quick charging, it will be charged

full about 2 hours;

● Auto Sleep: printer will auto sleep when it hav e no t
received printing data or key operation in 5 seconds,
press FEED butto n/MOD E butto n/Pow er swit ch or pr inter
receive any printing data in auto-sleep period wi ll wake
up the printer.

● Battery Duration: under25% printing density, at

least 200 meters, t he standby time is over 6 days. These
parameters are just for reference; long term usage will
cause the capacity decline, and cannot ensure the time

7
