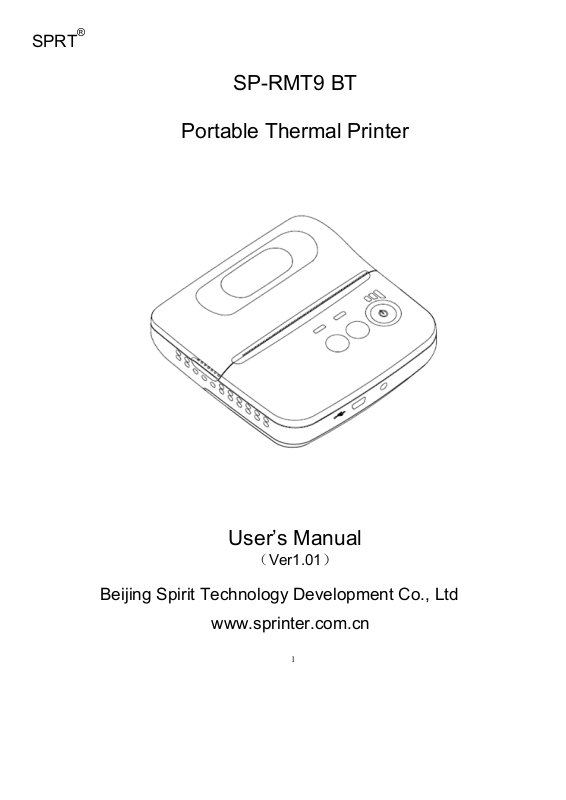

SPRT®
SP-RMT9 BT
Portable Thermal Printer
User’s Manual
（Ver1.01）
Beijing Spirit Technology Development Co., Ltd
www.sprinter.com.cn
1
Content
NOTICE ............................................................................................................................................................... 3
Notice of Safety ............................................................................................................................................. 3
Notice of Using .............................................................................................................................................. 3
Notice of Storing ............................................................................................................................................ 3
Chapter 1 Outer Appearance and Model No. ................................................................................................ 4
1.1 Outer Appearance .................................................................................................................................... 4
1.2 Model No. ................................................................................................................................................ 4
Chapter 2 Characteristic Specification ............................................................................................................ 5
2.1 Printing Specification .............................................................................................................................. 5
2.2 Other Specification .................................................................................................................................. 6
Chapter 3 Operation Method ................................................................................................................................ 7
3.1 Using Preparation .................................................................................................................................... 7
3.1.1 Battery Installation ......................................................................................................................... 7
3.1.2 Paper Roll Installation ................................................................................................................... 7
3.2 Basic function usage ................................................................................................................................ 8
3.2.1 Switch On ...................................................................................................................................... 8
3.2.2 Switch Off ...................................................................................................................................... 8
3.2.3 Paper Feeding (Manual Feeding) ................................................................................................... 9
3.2.4 Self-Test ......................................................................................................................................... 9
3.2.5 Hexadecimal Printing .................................................................................................................... 9
3.2.6 Printer Parameters Setting ............................................................................................................. 9
3.2.7 Battery Charging .......................................................................................................................... 10
3.3 Printer Parameters Setting ..................................................................................................................... 10
3.4 Printer Interface Connection and Printing ............................................................................................. 10
3.4.1 USB Connection .......................................................................................................................... 10
3.4.2 Bluetooth Connection .................................................................................................................. 10
3.4.3 Function of Bluetooth Address Binding ...................................................................................... 11
3.5 Indicator and Buzzer .............................................................................................................................. 11
Chapter 4 Other Information ............................................................................................................................... 14
4.1 Command Programming Manual ........................................................................................................... 14
4.2 Description of Black Mark Pre-print ..................................................................................................... 14
APPENDIX A ..................................................................................................................................................... 15
NOTICE
Please read this manual carefully before using the printer!
Notice of Safety
Be sure to use the specified battery and power supply provided by our company. Otherwise it
may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged.
Don’t put battery into the fire, don’t disassemble or heat the battery, don’t be short circuit, it
may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged.
If the printer would not be used for a long time, be sure to take off the battery, otherwise the
battery may leak liquid which is corrosive liquid, if improper operation causes battery leak
liquid, and it paste in the skin or clothes, please rinse it by clean water, if paste in the eyes,
please rinse them thoroughly by clean water and see a doctor. Please do not open the paper
case cover when it is printing or just when printing is finished, do not touch the printer head
with hand or body, overheat may cause scald.
Notice of Using
Water or other liquid should not be spilled into the printer, also the printer should not be
appeared in the rain, or else may cause printer damage. Please do not open the paper case
cover when it is printing, otherwise the printer may work improperly. If printer is using USB
connection to work, should not unplug the USB cable, or else some printing data may be lost.
When printer is using USB connection to work, the distance of communication should be
within 10 meters, otherwise the printer doesn’t print or prints rubbish codes. Too high（45℃）
or too low（5℃） environment temperature and too high (85％) or too low (20％) environment
humidity both effect the printing quality. The printer paper roll with poor quality or stored for
too long time also may reduce the printing quality even damage the printer. Under the black
mark detecting mode, the printer requires that the pre-printed black mark is accordant with the
printing rule of black mark (please refer to details in Chapter 4.2), otherwise the black mark
can not be detected correctly. Be sure to use up the power of the battery before charge up it,as
it can ensure the using life of the battery.
Notice of Storing
The printer should be placed in such an environment that the temperature is between-40℃ and
70 ,℃ and the relative humidity is between 10% and 95%. If the printer will be stored for a
long time, please be sure to take out the battery, otherwise may damage the battery and printer.
Normal thermal paper receipt can’t be kept too long, if you need to keep the receipt for a long
period, please choose long-term effective thermal paper. The thermal paper should be keep
away from high temperature environment and point-blank sunshine, please store it where is
away from light if it have been open.
Chapter 1 Outer Appearance and Model No.
1.1 Outer Appearance
[CHARGE]: Battery Charging Indicator [ERROR]: Error Indicator
[FEED]: Feed Button [MODE]: Mode Button
1.2 Model No.
SP—RMT9 Support USB Interface
SP—RMT9BT Support USB and Bluetooth Interface
Chapter 2 Characteristic Specification
2.1 Printing Specification
Printing Method Thermal line
Print
Character
Paper Spec
Paper Supply Method Drop-in easy loading
Reliability
Printing Speed 80mm/s
Resolution 8 dots/mm, 576dots/line
Effective Printing Width 72mm
Character Set ASCII,GB2312-80(Chinese)
Printing Font ANK: 12 x 24Chinese: 24 x 24
Character per Line 48
Paper Type Thermal paper
Paper Width 79.5± 0.5mm
Paper Roll Diameter Max: 40.0mm
Roll Core Inner Diameter 13mm(min.)
Paper Thickness 0.06 to 0.07mm
MCBF 15 million lines
TPH 100km
Barcodes
Emulation ESC/POS
Driver Windows 98 / 2000 / NT / XP / VISTA/Win7/windows Mobile /windows CE
Sensor Paper End Sensor
Interface T9-BT:USB,Bluetooth;T9U:USB
Power Adaptor 9V DC/2A
Battery Power 7.4V DC, 1.5A rechargeable Li-ion battery
Battery duration 120m continuous printing
Physical Weight 260g(excluding roll paper)
EAN-13,EAN-8,UPC-A,UPC-E,CODE39,CODE93,CODE128
CODABAR,INTERLEAVED25
Dimension(W×L×H) 103×99×46mm
Color Beige/Black
Environment Operating Temp
Storage Temp
Operating Humidity 10%~80%
Storage Humidity 10%~95%
0℃~50℃
-40℃~70℃
2.2 Other Specification
● Paper Loading Method: drop-in easy loading ( please refer to details in 3.1.2 Paper Roll
Installation).
● Black Mark Location: available(details please see 4.2 pre-printing black mark manual).
● Paper End Sensor: when paper is out, the ERROR Indicator will constant on lighting, The
buzzer rings when it is printing, and it will stop printing.
● Printing Control Command: ESC/POS compatible command set
(refer to<T9 Printer Developer Manual >).
● Power Supply: 7.4VDC/1500mAh rechargeable polymer lithium battery.
● Power Alarm: when the battery is low, the battery indicator blinks
● Battery Charging: quick charging ,it will be charged full about 3 hours;
● Battery Duration: under25% printing density ,at least 120 meters, the standby time is over
100 hours.
These parameters are just for reference, long term usage will cause the capacity decline, and
can not ensure the time of printing.
Chapter 3 Operation Method
3.1 Using Preparation
3.1.1 Battery Installation
1. Put the battery into the battery slot.
2. Install the battery cover.
3.1.2 Paper Roll Installation
1. Hold both sides of the paper case cover, and open it.
2. Pay attention to use paper that effective printing side is outside in the printing paper face
when you install the new paper roll.
3. Pull out a part of paper and put them in the middle of the paper out orifice.
4. Shut down paper case cover and cut off the redundant paper
3.2 Basic function usage
3.2.1 Switch On
Press【POWER】button, the power indicator is on, about 1 second later you will hear ‘one low
one high ’prompt tone. The printer will turn into work mode when loosen the【POWER】button.
The battery indicator shows power of the battery.
3.2.2 Switch Off
Under status of switch on ,the printer will send out the prompt tone of ‘one low one high ’ after
pressed the【POWER】button for 1 second, the power indicator go out, then loosen the
【POWER】button, the printer is off.
3.2.3 Paper Feeding (Manual Feeding)
Under the normal work status, press 【FEED】 button, the paper feeding begins, and stop when
loosen 【FEED】 button. When the printer works in black mark mode, press【FEED】button,
the printer begins to feed paper and stops over the position of black mark. If the paper is not the
black mark paper, the printer stops automatically after feeds paper for 30cm.
3.2.4 Self-Test
After receiving the printer, user can check its current setting and status at anytime.
Self-test way is as below: Power off, then hold down the 【FEED】 button and press the power
button at the same time. Then loosen the【FEED】button and power button when you hear ‘one
low one high ’prompt tone, the current setting and status will be printed out.
Hexadecimal Printing
3.2.5
The function of hexadecimal printing is to print the information received from host machine
by hexadecimal numbers and corresponding characters. It will be convenient to debug
application.
Into hexadecimal printing: Power off, hold down the【MODE】button and press the power
button at the same time. Then loosen the power button and press the【FEED】button when you
hear ‘one low one high’ prompt tone of power on. After that you may loosen the 【MODE】
button and 【FEED】 button. The printer turns into the hexadecimal printing mode and print the
presentation.
Quit hexadecimal printing :The way to quit hexadecimal printing mode is switch off the printer
or press the 【FEED】 button for three times. The printer will also print the presentation which
shows that the printer have quitted hexadecimal printing mode.
3.2.6
Printer Parameters Setting
This function may set some simple printing parameters.
Entering parameter setting: Switch off, then hold down the 【MODE】 button and press the
【POWER】 button at the same time. Then loosen the 【POWER】 button and【MODE】button
when you hear ‘one low one high ’prompt tone. The printer turns into the parameters setting
mode. Print out the first item which can be set parameters and the current numerical value.
Please see details in the appendix as below.
Quitting parameter setting:
Hold down【MODE】and【FEED】buttons, then loosen 【MODE】
button and 【FEED】 button. Saving the set parameter and exiting the parameter setting mode.
The setting parameters won’t be saved if you directly press the 【POWER】 button to turn off
the printer.
3.2.7 Battery Charging
The battery will run out after a period of usage. When it nearly runs out, printer will give a
alarm through the battery indicator flashing, at this time, user needs to charge up the battery.
The charging method is as following: connecting the adapter to the power socket with 220V,
50HZ, then plug the power charging plug to the power socket of the printer, so the power
charging begins. During the course of power charging, the charging indicator 【CHARGE】
goes red, and【CHARGE】turns to blue when the charging is full. It takes about 3 hours to
charge up the battery. Using the printer during the course of charging power will make the
charging time go longer. It shows the failure if the charging indicator【CHARGE】goes blue and
red during the course of charging. Such as faulty installation of battery, faulty contact of battery
or internal temperature of battery is too high or too low.
3.3 Printer Parameters Setting
Users can set more parameters by using the specified〈T9 Setting Tools〉software through
computer. The setting includes: language、font、printing density、default code page、bluetooth
device name and password etc. The setting method please refer to the <T9Setting Tools
Software Help>, offered with the software together.
3.4 Printer Interface Connection and Printing
3.4.1 USB Connection
The SP-RMT9 printer of standard accessories includes Mini USB cable which connects printer.
The USB type belongs to the slave device type.
3.4.2 Bluetooth Connection
Handheld device, laptop and other information terminal devices with Bluetooth can drive
SP-RMT9 to print by the Bluetooth interface. SP-RMT9 portable printer is compatible with
Bluetooth2.0 standard. Power class is CLASS 2, effective communication distance is 10meters.
The Bluetooth of the printer belongs to the slave device. The initial name of the printer is
SP-RMT9 Printer, the initial password is ‘1234’; users can change the printer name and
password by using<T9 Setting Tools> software. Please see the details in help file of <T9
Setting Tools>.
Before working, SP-RMT9 Portable Thermal Printer need to be pairing with primary device，
matching begins with the host device. Usual matching course is as below:
1. Switch on printer;
2. Host device searches for the outer Bluetooth device;
3. If there are other Bluetooth devices, please select SP-RMT9 BT Printer;
4. Enter the password ‘1234’;
5. Pairing finished.
Please see details in primary device Bluetooth function instruction for reference.
Notice:
1, When pairing, please make SP-RMT9 BT switch on.
2. Once SP-RMT9 has paired with the host successful, it can’t be paired with other Bluetooth
device until it unconnected with the host.
3, The power indicator flashing after paired successful.
3.4.3 Function of Bluetooth Address Binding
Bluetooth Binding: once the printer remembers the device’s address, it only can connect with
the first device and can’t connect with others. So in this case, if the printer needs to connect
with other devices, user can delete the remembered address or set the mode is not binding.
No binding: in this case, the printer can be searched or paired by other devices. So when the
printer needs to connect with a fixed device, it would be better to bind address. Please see the
details in help file of<T9 Setting Tools>
3.5 Indicator and Buzzer
There are four indicators, they are red and blue【CHARGE】light, red【ERROR】light, blue
【BATTERY】indicator and blue【POWER】indicator. The meanings of each indicators are as
below:
【POWER】indicator
Light constant on: printer is on, Bluetooth is with disconnect status
Light flashing: printer is on, Bluetooth is with connection status
【CHARGE】indicator
Blue light constant on: charging is completed;
Red light constant on: in charging;
Blue and red lights on: there are some mistakes, please check whether the battery should be
good contact or not, and the temperature is normal or not.
【ERROR】indicator
Constant on lighting: printer out of paper
Light flashing: printer has mistakes. Different types of mistake, different ways of flashing
1. The mistake can be automatically recovered when the indicator continuous flashing.
Including the temperature mistake of printer head and opening of paper case cover.
Error
Temperature of
printer head
Description
The temperature of printer head is too
high, it will recover automatically
when the temperature is normal
The flashing way of【ERROR】
ERROR
Paper case cover of
printer
2. The mistake can’t be automatically recovered when the indicator flashing some times and
constant on then cycle. The times of flashing means the type of mistake.
Error
Memory ERROR The printer can’t work normally after
Over voltage
The paper case cover is opened when
it is printing. Close the paper case
cover, it will recover automatically
Description
the memory need to be read-write
calibration
The voltage of power is too high
The flashing way of [ERROR]
ERROR
Owe voltage
The CPU
execution
Temperature
detection circuit
The voltage of power is too low
The CPU execution to the wrong
address
Connection of temperature detection
circuit connection error
【BATTERY】indicator
The battery indicator composed by three parts in order to show the battery status.
Three parts light on: battery is high
Two parts light on: battery is medium
One part light on: battery is low
Minimum part flashing: battery is extremely low, it must be charged
Three parts flashing at same time: power supply should be over voltage (external power supply
without battery)
There is also a buzzer to indicate various status of the printer. The meanings are as below:
One low one high: power on;
One high one low: power off;
Circulation continuous two lows: printer at mistakes status
Chapter 4 Other Information
4.1 Command Programming Manual
<T9 Technical Manual> is a technical manual for engineer to develop printer utility, and users
can claim our company for it. This manual including the technical description of hardware
interface ( Bluetooth, USB interface ), technical documentation of printing control command set,
and others such as how to print black mark and locate by it.

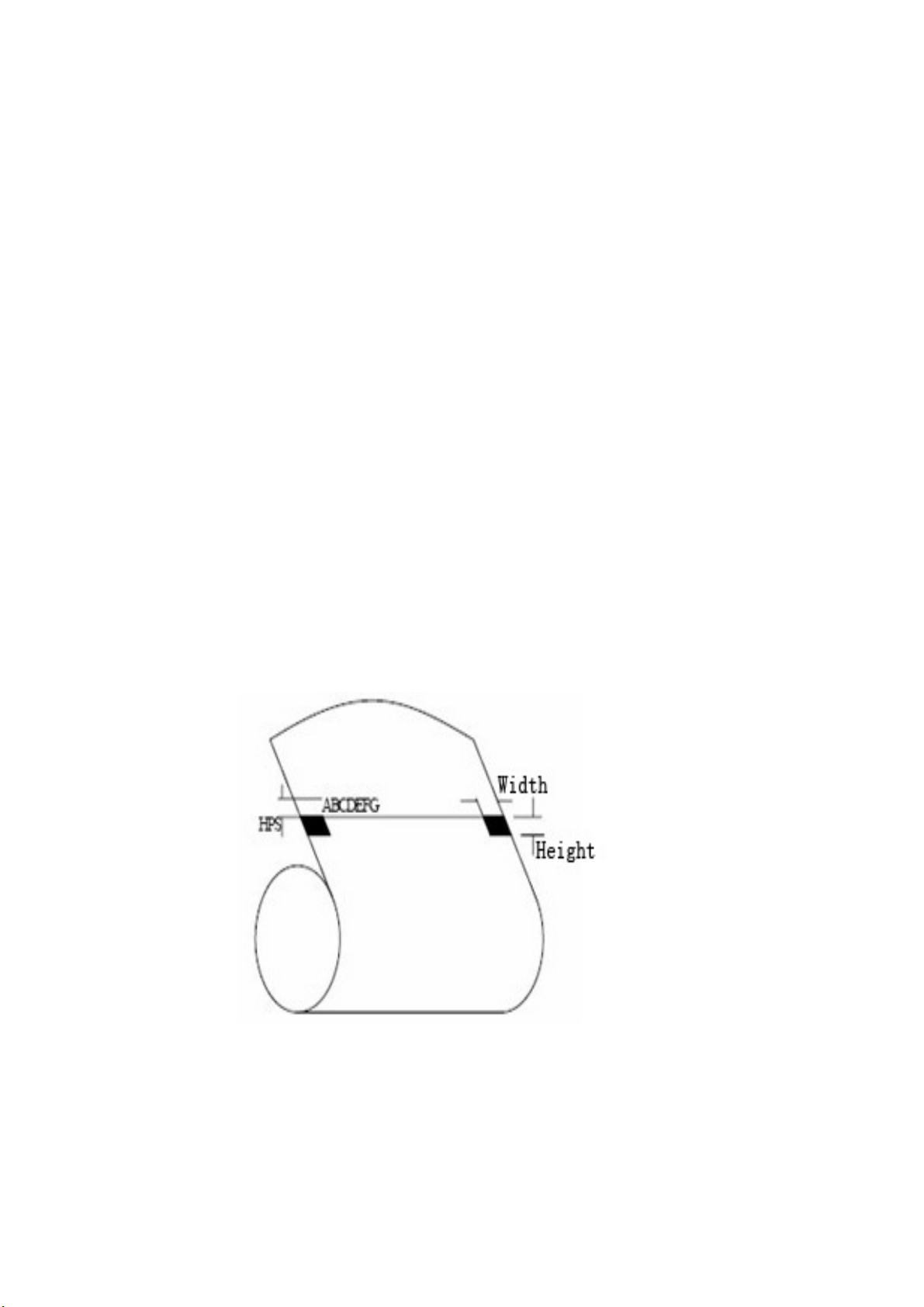

4.2 Description of Black Mark Pre-print
If user use pre-print black mark to locate the receipt, please be sure to abide by the following
black mark pre-print regulation when print the black mark paper, if not ,it will cause that the
printer can not identify the black mark.
The black mark pre-print regulations are as below:
Printing Position: As the picture above, the black mark should be printed on the right or left
edge of the side of words.
Width range: width≥7mm
Height range: 4mm≤height≤6mm
Reflectivity of infrared ray : <10% (infrared ray reflectivity of other parts of the black mark
paper is>65%)
HPS: it is the distance between edges of black mark and loading position.
4.5mm≤Hps≤6.5mm
APPENDIX A
This appendix is the method of setting default parameters of printer by buttons.
Setting instruction: Using 【MODE】 button to choose setting item. Pressing this button once, the setting item will go
to the next and also print out the current val ue of this item. Using 【FEED】button to choose the setting value of item.
Press the button once, the setting value will go to the next.
Summary setting:
MODE MODE MODE
Language
MODE MODE
MODE MODE MODE
Printing
Language：
FEED FEED
ANK
FEED
Font：
FEED
12×24
FEED
Density：
FEED FEED
Low
FEED
Sensor sensibility：
FEED FEED
Low
FEED
Font Density Sensor
Power-off
mode
Simplified Chinese
9×17
Blackmark
position
Traditional
Chinese
Middle
High
Middle
High
Blackmark
mode
Blackmark mode：
FEED
Off
FEED
On
Blackmark position：
FEED
Right
FEED
Left
Power-off mode：
FEED FEED FEED
Never
FEED
10min
20min
30min
Printing direction：
FEED
Normal
FEED
Reverse
direction
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Warning
This is a class A product. In the domestic environment, this
product may cause radio interference, in which case the user
may be required to take adaptable measures.
Beijing Spirit Technology Development Co., Ltd
Address: No.26,Ave 4,Chuangye Middle Road, Shangdi Information
Industry Park , Beijing, China
Post Code:100085
Tel:+861051661178
Fax:+861051661178-190
E-mail: info@sprt-printer.com
Loading...
