Beijing Noitom Technology MSWBTPLUS User Manual

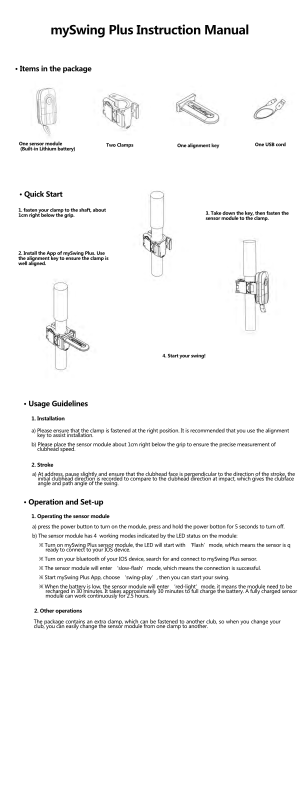

mySwing Plus Instruction Manual

· Items in the package

One sensor module
(Built-in Lithium battery)

Two Clamps

· Quick Start

1. fasten your clamp to the shaft, about
1cm right below the grip.

2. Install the App of mySwing Plus. Use
the alignment key to ensure the clamp is
well aligned.

One alignment key

3. Take down the key, then fasten the
sensor module to the clamp.

One USB cord

4. Start your swing!

· Usage Guidelines

1. Installation

a) Please ensure that the clamp is fastened at the right position. It is recommended that you use the alignment
key to assist installation.

b) Please place the sensor module about 1cm right below the grip to ensure the precise measurement of
clubhead speed.

2. Stroke

a) At address, pause slightly and ensure that the clubhead face is perpendicular to the direction of the stroke, the
initial clubhead direction is recorded to compare to the clubhead direction at impact, which gives the clubface
angle and path angle of the swing.

· Operation and Set-up

1. Operating the sensor module

a) press the power button to turn on the module, press and hold the power botton for 5 seconds to turn off.

b) The sensor module has 4 working modes indicated by the LED status on the module:

※ Turn on mySwing Plus sensor module, the LED will start with ‘Flash’mode, which means the sensor is q
ready to connect to your IOS device.

※ Turn on your bluetooth of your IOS device, search for and connect to mySwing Plus sensor.

※ The sensor module will enter ‘slow-flash’mode, which means the connection is successful.

※ The sensor module will enter ‘slow-flash’mode, which means the connection is successful.

※ Start mySwing Plus App, choose ‘swing-play’, then you can start your swing.

※ When the battery is low, the sensor module will enter ‘red-light’mode, it means the module need to be
recharged in 30 minutes. It takes approximately 30 minutes to full charge the battery. A fully charged sensor
module can work continuously for 2.5 hours.

2. Other operations

The package contains an extra clamp, which can be fastened to another club, so when you change your
club, you can easily change the sensor module from one clamp to another.

FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the followingmeasures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.
