北京敏光科技有限公司 Beijing Lightsensing Technologies Ltd
Response spectrum testing

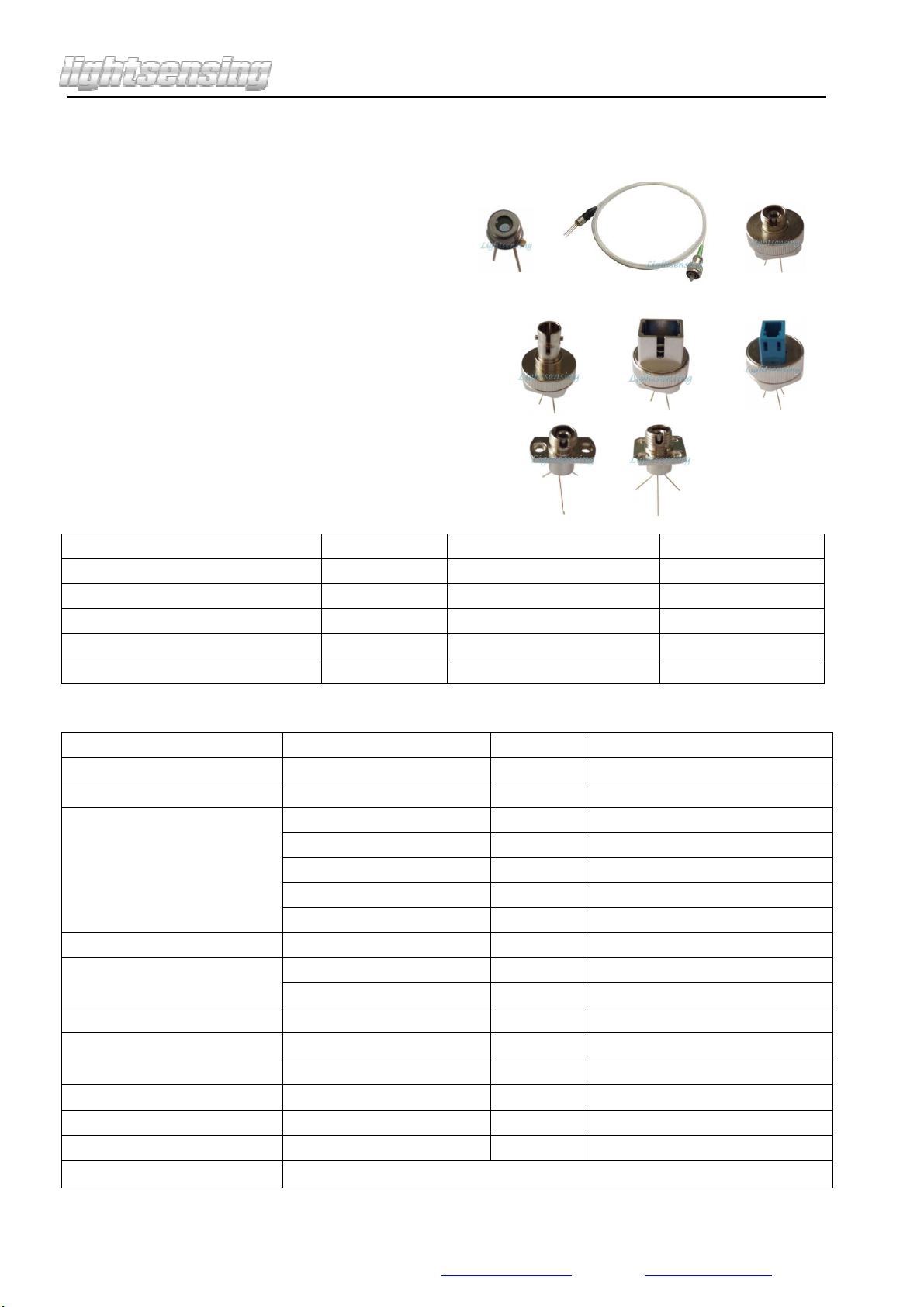

CWFC CWSC 2JKFC
4JKFC
CWLC
0
F
iber coupling

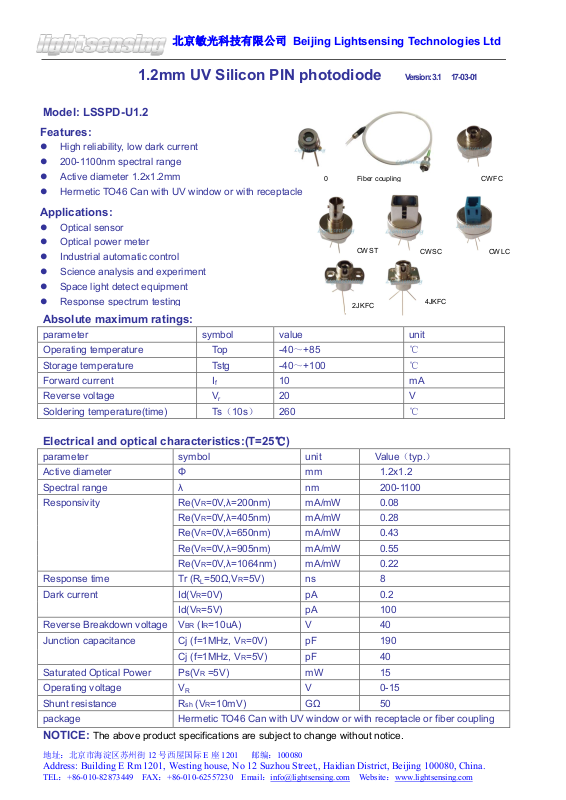

1.2mm UV Silicon PIN photodiode Version: 3.1 17-03-01
Model: LSSPD-U1.2
Features:
High reliability, low dark current
200-1100nm spectral range
Active diameter 1.2x1.2mm
Hermetic TO46 Can with UV window or with receptacle
Applications:
Optical sensor
Optical power meter
Industrial automatic control
Science analysis and experiment
Space light detect equipment
CWST
Absolute maximum ratings:
parameter symbol value unit
Operating temperature Top -40～+85 ℃
Storage temperature Tstg -40～+100 ℃
Forward current If 10 mA
Reverse voltage Vr 20 V
Soldering temperature(time) Ts（10s） 260 ℃
Electrical and optical characteristics:(T=25℃)
parameter symbol unit Value（typ.）
Active diameter Φ mm 1.2x1.2
Spectral range λ nm 200-1100
Responsivity Re(VR=0V,λ=200nm) mA/mW 0.08
Re(VR=0V,λ=405nm) mA/mW 0.28
Re(VR=0V,λ=650nm) mA/mW 0.43
Re(VR=0V,λ=905nm) mA/mW 0.55
Re(VR=0V,λ=1064nm) mA/mW 0.22
Response time Tr (RL=50Ω,VR=5V) ns 8
Dark current Id(VR=0V) pA 0.2
Id(VR=5V) pA 100
Reverse Breakdown voltage VBR (IR=10uA) V 40
Junction capacitance Cj (f=1MHz, VR=0V) pF 190
Saturated Optical Power Ps(VR =5V) mW 15
Operating voltage VR V 0-15
Shunt resistance Rsh (VR=10mV) GΩ 50
package Hermetic TO46 Can with UV window or with receptacle or fiber coupling
NOTICE: The above product specifications are subject to change without notice.
地址：北京市海淀区苏州街 12 号西屋国际 E 座 1201 邮编：100080
Address: Building E Rm 1201, Westing house, No 12 Suzhou Street,, Haidian District, Beijing 100080, China.
Cj (f=1MHz, VR=5V) pF 40
Page 2
北京敏光科技有限公司 Beijing Lightsensing Technologies Ltd

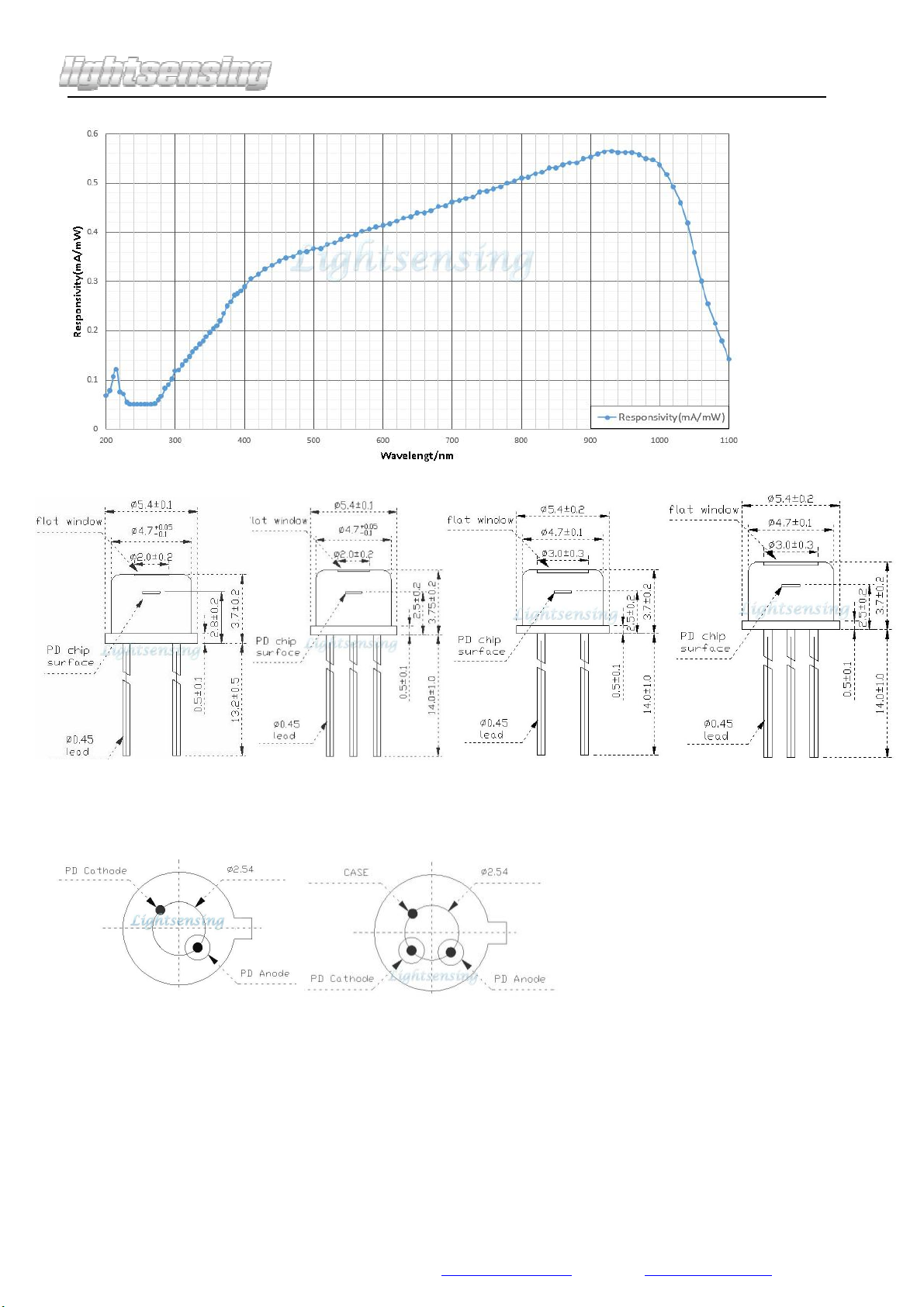

The typical Responsivity curve
TO package and Lead
2mm Flat UV window 2PIN TO
Model: 0
2mm Flat UV window 3PIN TO
Model: 0
3mm Flat UV window 2PIN TO
Model: 03
3mm Flat UV window 3PIN TO
Model: 03
2 PIN Bottom View
3 PIN B Type PIN description
Bottom View
Note: In order to get other dimensions, please contact us.
地址：北京市海淀区苏州街 12 号西屋国际 E 座 1201 邮编：100080
Address: Building E Rm 1201, Westing house, No 12 Suzhou Street,, Haidian District, Beijing 100080, China.
Page 3
Order information
LSSPD-U1.2-X-X
北京敏光科技有限公司 Beijing Lightsensing Technologies Ltd
X=2P 2 PIN out
X=3P 3 PIN out
X=0 TO-46 Can with 2mm UV window cap
X=03 TO-46 Can with 3mm UV window cap
X=SMFA/P TO-46 Can with SM Fiber coupling with FC-APC/FC-PC connector
X=SMSA TO-46 Can with SM Fiber coupling with SC-APC connector
X=5MMFA/P TO-46 Can with 50um MM Fiber coupling with FC-APC/FC-PC connector
X=6MMFA/P TO-46 Can with 62.5um MM Fiber coupling with FC-APC/FC-PC connector
X=10MMFA/P TO-46 Can with 105um MM Fiber coupling with FC-APC/FC-PC connector
X=20MMFA/P TO-46 Can with 200um MM Fiber coupling with FC-APC/FC-PC connector
X=CWFC TO-46 Can with replaceable receptacle with FC connector
X=CWSC TO-46 Can with replaceable receptacle with SC connector
X=CWLC TO-46 Can with replaceable receptacle with LC connector
X=CWST TO-46 Can with replaceable receptacle with ST connector
X=2JKFC TO-46 Can with fixed receptacle with FC connector and 2 pieces of fix holes
X=4JKFC TO-46 Can with fixed receptacle with FC connector and 4 pieces of fix holes
X=Other By customer’s request. Example, We can provide photodiode with filter.
The cautions
1: The above product specifications are subject to change without notice.
2: The suitable ESD protection is required in storage, transportation and using
3: The fiber bending radius no less than 20mm for avoiding fiber damaged ,Be sure the fiber coupling
facet is clean before connecting it to opto-circuit.
