4.The absolute values
parameter
symbol
value
unit
Operating temperature
Top
-20～+60
℃
Storage temperature
Tstg
-20～+80
℃
Reverse voltage
Vr15V
Soldering temperature(time)
Ts(10s)
260
℃
parameter
symbol
unit
Value（typ.）
Active diameter
mm
10×10
Spectral range
λnm200-1100
Responsivity
Re(Vr=5V,λ=200nm)
mA/mW
0.08
Re(Vr=5V,λ=405nm)
mA/mW
0.26
Re(Vr=5V,λ=650nm)
mA/mW
0.40
Re(Vr=5V,λ=940nm)
mA/mW
0.55
Re(Vr=5V,λ=1064nm)
mA/mW
0.22
Dark current
Id(0V)
pA
10
Id(5V)
nA
2
Reverse Breakdown voltage
VBR(Id=10uA)
V
60
Total capacitance
Cj (f=1MHz, Vr=0V)
pF
3000
Cj (f=1MHz, Vr=5V)
pF
500
Saturated Optical Power
Ps(Vr=5V)
mW
25
Reverse operating voltage
VrV0-15
Shunt resistance
Rsh (Vr=10mV)
MΩ
100
Package
Non-hermetic Ceramic package with quartz glass window

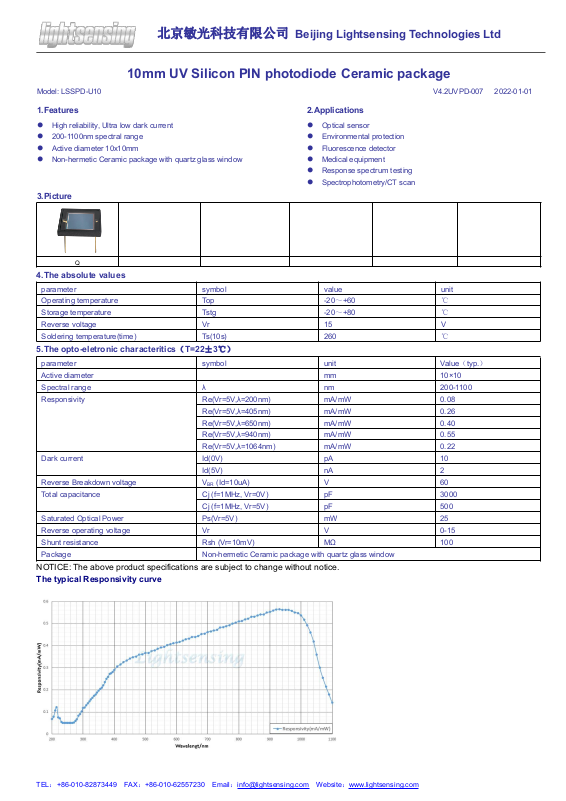

10mm UV Silicon PIN photodiode Ceramic package
Model: LSSPD-U10
V4.2UVPD-007 2022-01-01
1.Features
2.Applications
High reliability, Ultra low dark current
200-1100nm spectral range
Active diameter 10x10mm
Non-hermetic Ceramic package with quartz glass window
Optical sensor
Environmental protection
Fluorescence detector
Medical equipment
Response spectrum testing
Spectrophotometry/CT scan
3.Picture
Q
北京敏光科技有限公司 Beijing Lightsensing Technologies Ltd
5.The opto-eletronic characteritics（T=22±3℃）
NOTICE: The above product specifications are subject to change without notice.

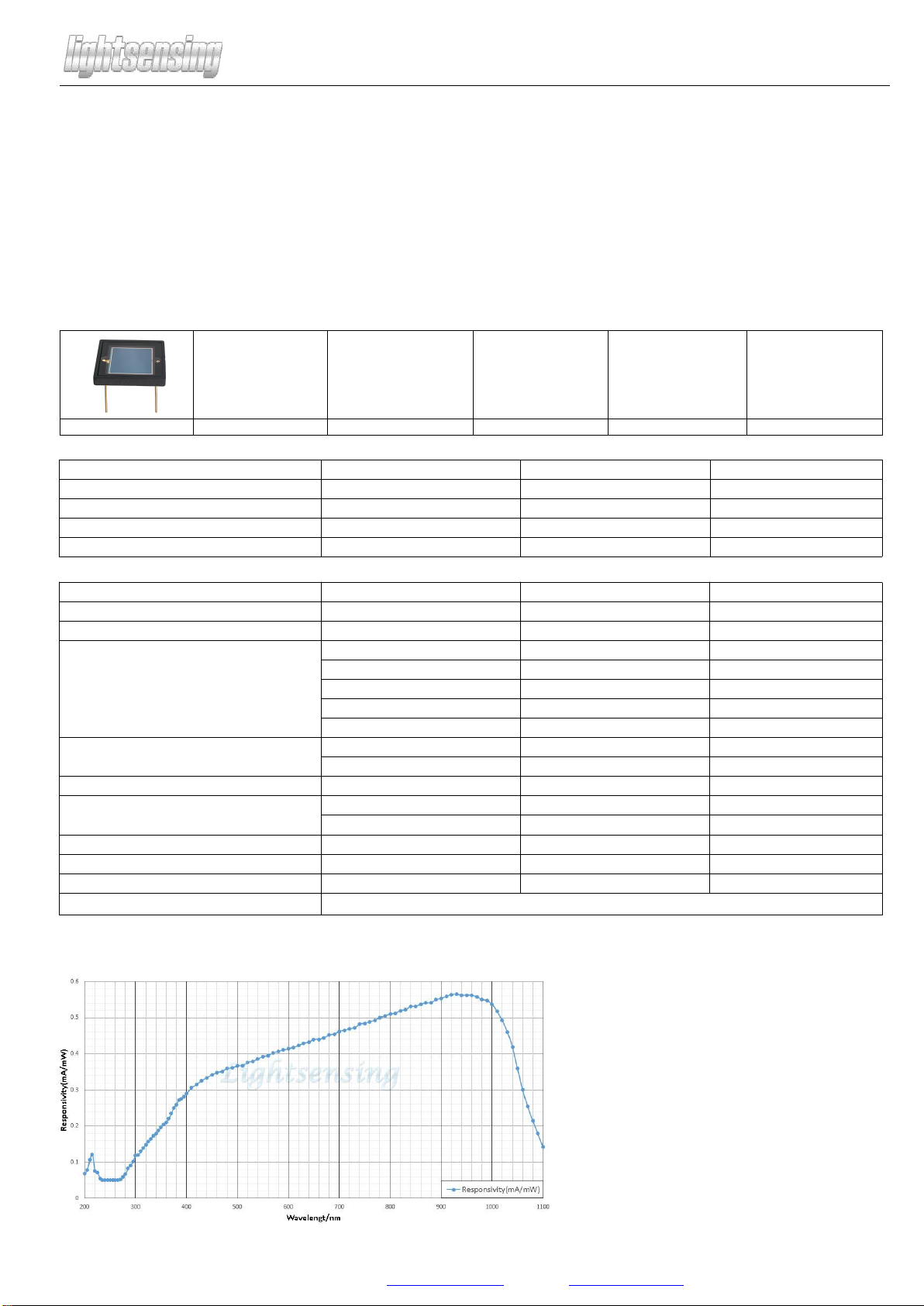

The typical Responsivity curve
Page 2
北京敏光科技有限公司 Beijing Lightsensing Technologies Ltd

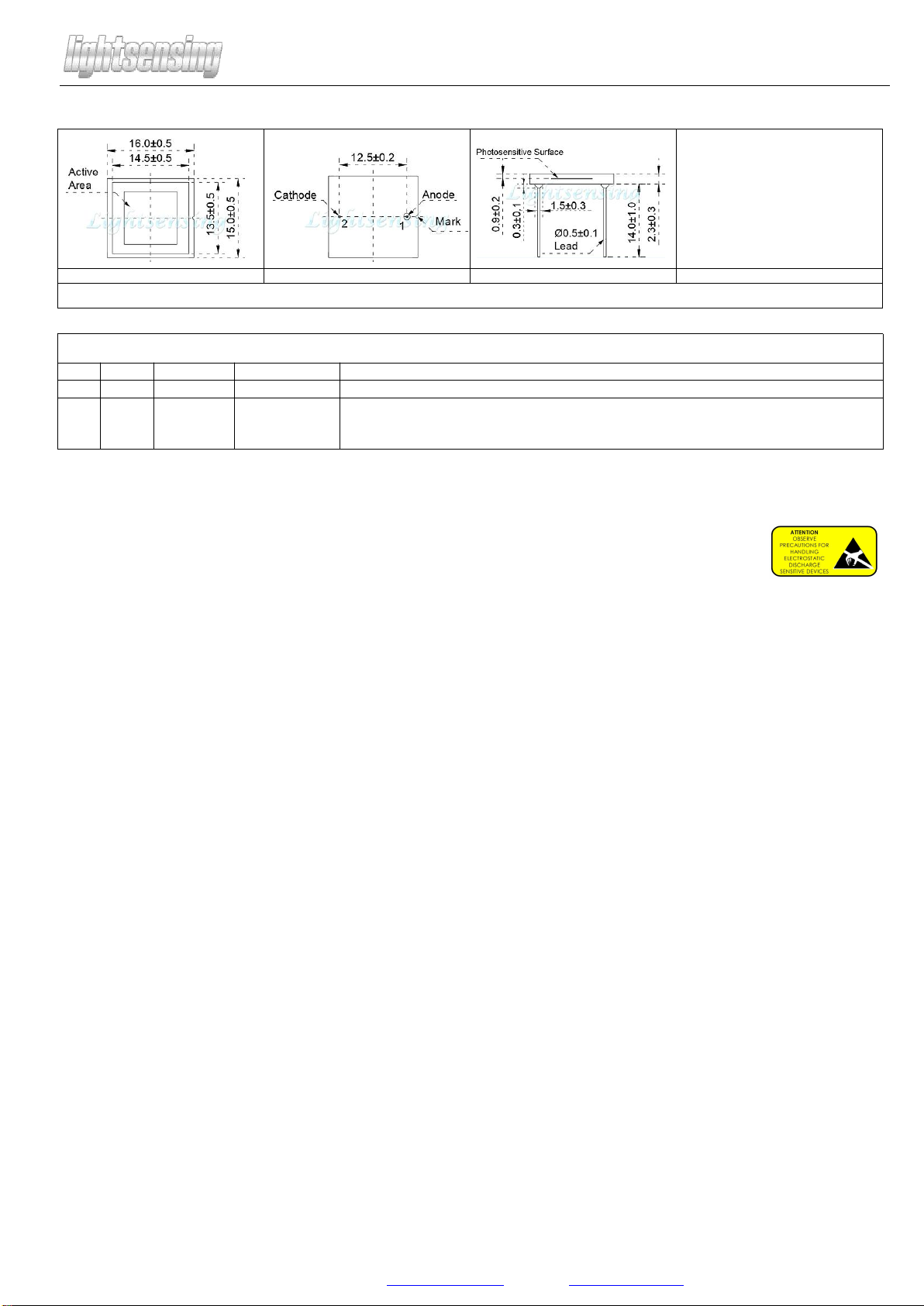

6. The package Dimensions and Lead
Top View of Ce package
Bottom View of Ce package
Side View of Ce package
Note: For more information on dimension, please contact us
Ceramic package product order information:LS=Lightsensing
LS
SPD
-U10
-Ce
-Q
PD type
Active Area
package
SPD=
Si PD
10=10X10mm
Ce=Ceramic package
Q=quartz glass window
Other
7.Order information
8. The cautions！
1: The above product specifications are subject to change without notice.
2: The suitable ESD protecting measures are recommend in storage,transporting and using.
