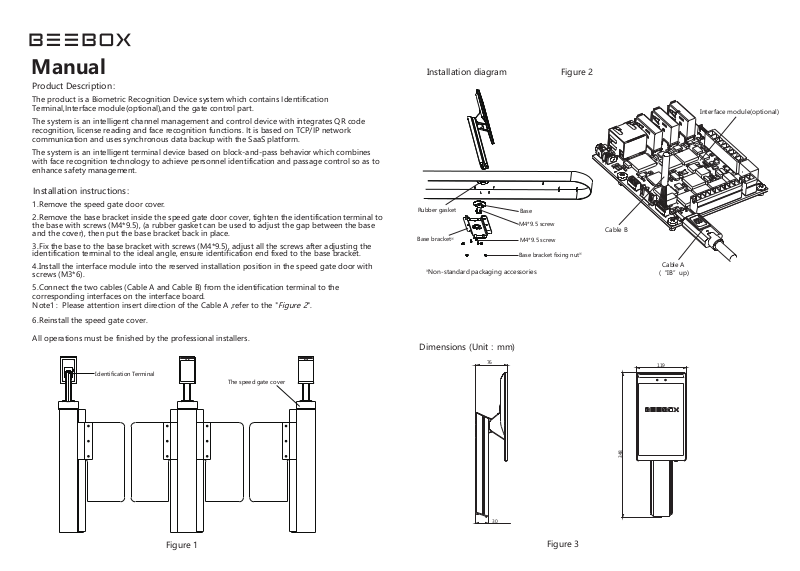

Manual
Product Description：
The product is a Biometric Recognition Device system which contains Identification
Terminal,Interface module(optional),and the gate control part.
The system is an intelligent channel management and control device with integrates QR code
recognition, license reading and face recognition functions. It is based on TCP/IP network
communication and uses synchronous data backup with the SaaS platform.
The system is an intelligent terminal device based on block-and-pass behavior which combines
with face recognition technology to achieve personnel identification and passage control so as to
enhance safety management.
Installation instructions：
1.Remove the speed gate door cover.
2.Remove the base bracket inside the speed gate door cover, tighten the identification terminal to
the base with screws (M4*9.5), (a rubber gasket can be used to adjust the gap between the base
and the cover), then put the base bracket back in place.
3.Fix the base to the base bracket with screws (M4*9.5), adjust all the screws after adjusting the
identification terminal to the ideal angle, ensure identification end fixed to the base bracket.
4.Install the interface module into the reserved installation position in the speed gate door with
screws (M3*6).
5.Connect the two cables (Cable A and Cable B) from the identification terminal to the
corresponding interfaces on the interface board.
Note1：
Please attention insert direction of the Cable A ,refer to the "
6.Reinstall the speed gate cover.
Figure 2
".
Installation diagram
Rubber gasket
Base bracket
※
※
Non-standard packaging accessories
Figure 2
Base
M4*9.5 screw
M4*9.5 screw
Base bracket fixing nut
Interface module(optional)
Cable B
※
Cable A
(“IB”up)
All operations must be finished by the professional installers.
Identification Terminal
The speed gate cover
Figure 1
Dimensions (Unit：mm)
76
30
119
348
Figure 3
Specification
Rotatable Angle：46°~77°
Figure 4
Port Description
Figure 5
Cable A
GND
RS485_A
RS485_B
GND
RS232_RX
RS232_TX
+12VDC
+
_
IN
Cable B
Relay_NO
Relay_COM
TTL
Relay_NC
6°
WG_D1_I
GND
25°
USB5
GND
WG_D0_I
WG_D0_O
WG_D1_O
USB4
Audio
LAN
USB1
USB2
USB3
Product Number
Living Security
Qr code Scanning
Multi-touch
OS
Camera
Display
Operating temperature
Relative Humidity
Power Cord Rating
Dimensions
Communication Method
Physical Interface
Power On
BRD-AG-SD1
Support
Support(optional)
Support
Android 7.0
Professional Wide-angle Dual Camera (Visible Light & Infrared)
8.0inch Touch LCD，800*1280
-10℃ ~ 55℃
5%-95%(Non-condensing)
DC 12V 3A
119*76*348mm
Wi-Fi
Bluetooth
Ethernet
Wiegand TX*1，Wiegand RX*1，Relay*1，RS232*1，RS485*1，
USB2.0*3，RJ45*1，Audio*1
Support
2.4 GHz/5 GHz（5150MHz-5250MHz;
5725MHz-5850MHz, IEEE 802.11a/g/b/n；IEEE 802.11ac
BT4.1+BLE
Support
FCC Warning:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
317-00487-01
© 2018 Beijing Beebox Technology Co.,Ltd. all rights reserved. Printed in China.
Add: 23A,JingYuan Arts Center, No.3 GuangQu Road,ChaoYang District,Beijing,100124
