BeiHai Innotech Technology CKWL1021 User Manual

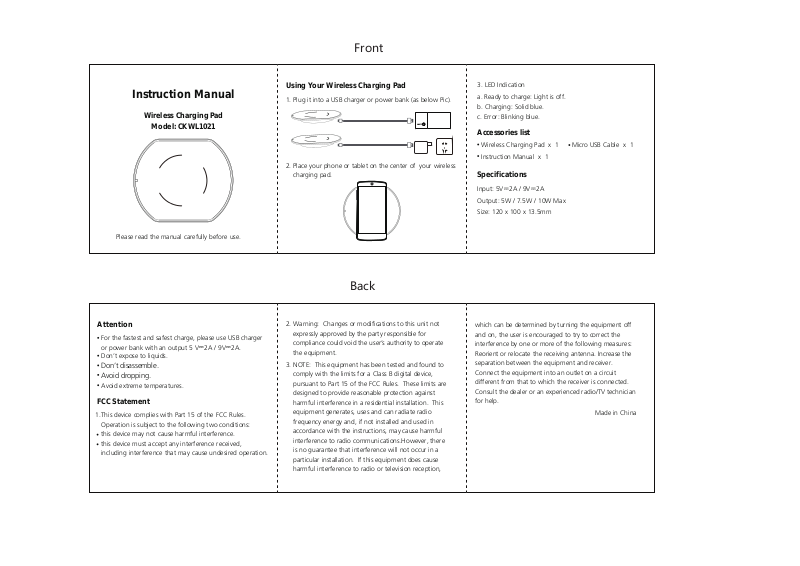

Front

Instruction Manual

Wireless Charging Pad

Model: CKWL1021

Please read the manual carefully before use.

Attention

For the fastest and safest charge, please use USB charger
or power bank with an output 5 V 2A / 9V 2A.

Don’t expose to liquids.

Don’t disassemble.
Avoid dropping.

Avoid extreme temperatures.

FCC Statement

1.This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:
this device may not cause harmful interference.
this device must accept any interference received,
including interference that may cause undesired operation.

Using Your Wireless Charging Pad

1. Plug it into a USB charger or power bank (as below Pic).

2. Place your phone or tablet on the center of your wireless
charging pad.

Back

2. Warning: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.

3. NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,

3. LED Indication

a. Ready to charge: Light is off.
b. Charging: Solid blue.
c. Error: Blinking blue.

Accessories list

Wireless Charging Pad x 1 Micro USB Cable x 1

Instruction Manual x 1

Specifications

Input: 5V 2A / 9V 2A

Output: 5W / 7.5W / 10W Max

Size: 120 x 100 x 13.5mm

which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the
separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.

Made in China

FCC Caution：

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.
