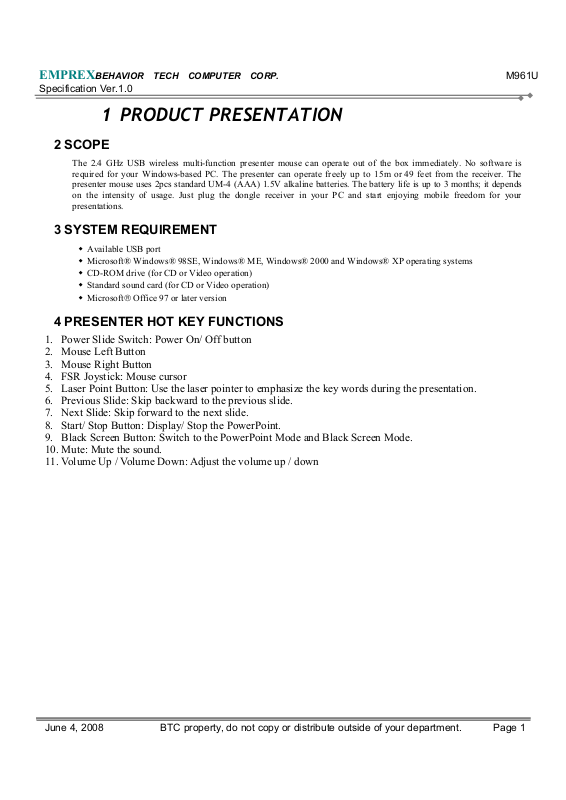

EMPREXBEHAVIOR TECH COMPUTER CORP. M961U
Specification Ver.1.0
1 PRODUCT PRESENTATION
2 SCOPE
The 2.4 GHz USB wireless multi-function presenter mouse can operate out of the box immediately. No software is
required for your Windows-based PC. The presenter can operate freely up to 15m or 49 feet from the receiver. The
presenter mouse uses 2pcs standard UM-4 (AAA) 1.5V alkaline batteries. The battery life is up to 3 months; it depends
on the intensity of usage. Just plug the dongle receiver in your PC and start enjoying mobile freedom for your
presentations.
3 SYSTEM REQUIREMENT
Available USB port
Microsoft® Windows® 98SE, Windows® ME, Windows® 2000 and Windows® XP operating systems
CD-ROM drive (for CD or Video operation)
Standard sound card (for CD or Video operation)
Microsoft Office 97 or later version
4 PRESENTER HOT KEY FUNCTIONS
1. Power Slide Switch: Power On/ Off button
2. Mouse Left Button
3. Mouse Right Button
4. FSR Joystick: Mouse cursor
5. Laser Point Button: Use the laser pointer to emphasize the key words during the presentation.
6. Previous Slide: Skip backward to the previous slide.
7. Next Slide: Skip forward to the next slide.
8. Start/ Stop Button: Display/ Stop the PowerPoint.
9. Black Screen Button: Switch to the PowerPoint Mode and Black Screen Mode.
10. Mute: Mute the sound.
11. Volume Up / Volume Down: Adjust the volume up / down
June 4, 2008 BTC property, do not copy or distribute outside of your department. Page 1
EMPREXBEHAVIOR TECH COMPUTER CORP. M961U
Specification Ver.1.0
5 LAYOUT
June 4, 2008 BTC property, do not copy or distribute outside of your department. Page 2
EMPREXBEHAVIOR TECH COMPUTER CORP. M961U
Specification Ver.1.0
6 HARDWARE SPECIFICATION
1 MECHANICAL SPECIFICATIONS
1.1 Physical Characteristics
Length : 123.4 mm
Width : 38 mm
Height : 28.7 mm
Weight : 50 (battery not included)
1.2 Mechanical Performance
R Mouse Force of : 130 ± 50gf
L Mouse Force of : 125 ± 25gf
Previous / Next Slide : 130 ± 50gf
Start / Stop : 130 ± 50gf
Black Screen : 130 ± 50gf
Laser Point : 130 ± 50gf
Power Slide S/W : 150 ± 25 g
Mute : 160 ± 50 g
Volume Up / Down : 160 ± 50 g
1.3 Packing Information
Length x Width x Height (mm)
Packing (1
250 x 195 x 80 0.23
piece)
Carton (24
406 x 394 x 533
pieces)
1.4 Container Load
W/O
20 feet (pcs) 40 feet (pcs)
5,760 11,520
Pallet
Weight
(kg)
7
June 4, 2008 BTC property, do not copy or distribute outside of your department. Page 3
EMPREXBEHAVIOR TECH COMPUTER CORP. M961U
Specification Ver.1.0
2 ELECTRICAL SPECIFICATIONS
2.1 Transmitter
Presenter Mouse
Supply Voltage
Working Cur ren t
Standby Current
Effective Operating
Distance
Battery Life
Low Battery Voltage
Minimum Operating
Vo lt ag e
Number of ID
2.2 Receiver
3V, 2 x AAA (LR03)
Alkaline cells
≤ 20 mA
≤ 1 mA
Up to 15 meters
Up to 3 months
2.4V +/- 0.1V
≧2V
32,768
Frequency
No of ID
Supply Voltage
Power Consumption
2.3 Connector
VCC 1
- Data 2
+ Data 3
Ground 4
Shield
USB Connector
Shell
Presenter Mouse
2.410 – 2.473GHz
32,768
4.4 ~5.25 V
100mA (Max.)
June 4, 2008 BTC property, do not copy or distribute outside of your department. Page 4
EMPREXBEHAVIOR TECH COMPUTER CORP.
M
2.4 Presenter Mouse Battery Life (17.78 Weeks)
The usage:
1. Two AAA alkaline batteries for 3V power supply
2. Works 1hour a day, 5 days a week
3. FSR works 0.25 hr / day, Key button works 0.5 hr / day, Laser Pointer works 0.25 / day
4. AAA battery capacity = 1100 mAh
5. When the presenter is not in use, turn the power switch to off.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
co-location
FCC RF Radiation Exposure Statement: This equipment complies with FCC
RF radiation exposure limits set forth for an uncontrolled environment. This
device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
Any changes or modifications (including the antennas) made to this device that
are not expressly approved by the manufacturer may void the user’s
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
June 4, 2008 BTC property, do not copy or distribute outside of your
department. Page 5
