Behavior Tech Computer MSM843TUL User Manual

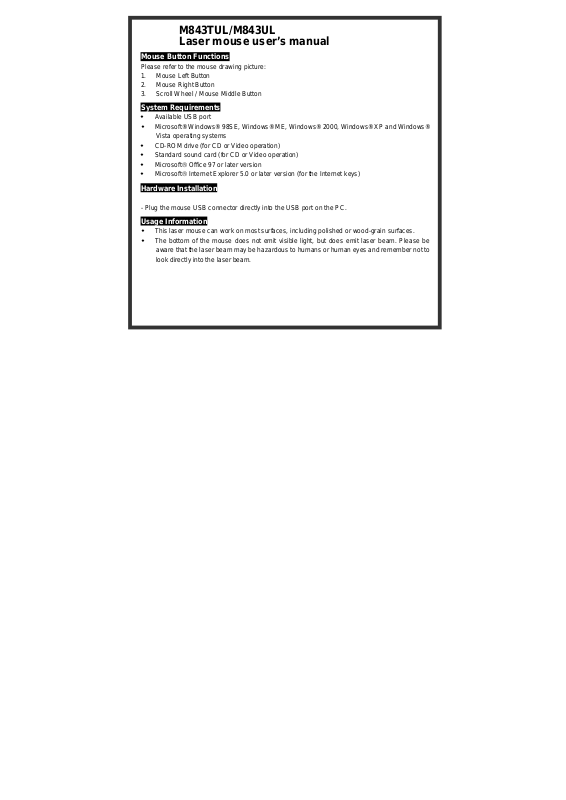

M843TUL/M843UL

Laser mouse user’s manual

Mouse Button Functions

Please refer to the mouse drawing picture:

1. Mouse Left Button

2. Mouse Right Button

3. Scroll Wheel / Mouse Middle Button

System Requirements

 Available USB port
 Microsoft® Windows® 98SE, Windows® ME, Windows® 2000, Windows® XP and Windows®

Vista operating systems

 CD-ROM drive (for CD or Video operation)
 Standard sound card (for CD or Video operation)
 Microsoft® Office 97 or later version
 Microsoft® Internet Explorer 5.0 or later version (for the Internet keys)

Hardware Installation

- Plug the mouse USB connector directly into the USB port on the PC.

Usage Information

 This laser mouse can work on most surfaces, including polished or wood-grain surfaces.
 The bottom of the mouse does not emit visible light, but does emit laser beam. Please be

aware that the laser beam may be hazardous to humans or human ey es and remember no t to
look directly into the laser beam.

MouseMaestro Driver Installation

 USB Device Driver

The USB device driver is included in your Windows operating system.
During the initial installation of the mouse USB device, the system will automatically detect that a
new hardware device has been added and will bring up the "Add New Hardware Wizard" dialogue
box. Follow the Wizard's USB driver installation steps. Once this installation step is completed, the
basic functions of the USB device will work under the operating system. The additional functions
are provided only after the MouseMaestro driver is installed.

 MouseMaestro Input Device Driver

1. Insert the CD labeled " MouseMaestro Input Device Driver " into your CD-ROM.

2. The CD will run automatically and bring up the Setup dialogue box.

3. Follow the on-screen instructions to install the driver.

4. The driver icon
loaded.

Important Information

 For more detailed information, please refer to the Help file in the Driver CD in the Help

directory. The ways to display the Help file are as follows:

- After driver installation, please click the driver icon at the right-bottom in the Windows system

tray. Click the Help button on the left-bottom of the driver Configuration dialog box and the
help file will pop up. Or

- Please see “Help\ Help.htm” in the Driver CD.\

 Mouse Motion Wake Up Function:

If you want to use the "Motion Wake Up function" in the Standby mode, you first have to
enable the PC power management function. Please follow the steps below: Please open
Windows Start Menu → Settings → Control Panel → Mouse → Hardware →
HID-compliant mouse → Properities → Power Management → check "Allow this device to
bring the computer out of standby" and click OK to finish the procedure.

 Resolution Adjustment:

You can easily adjust mouse resolution through the “MouseMaestro Input Device Driver.”

will show at the right-bottom in the Windows system tray when the driver is
