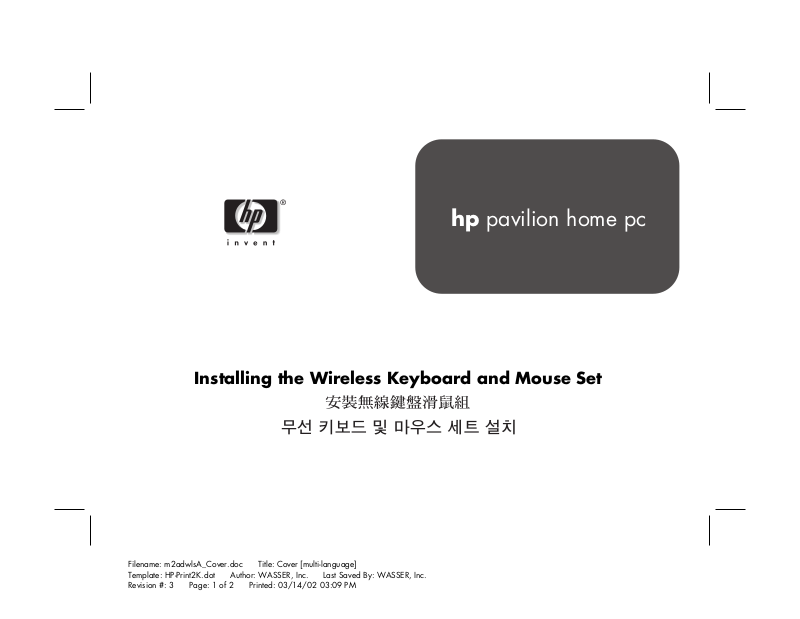

hp
pavilion home pc
Installing the Wireless Keyboard and Mouse Set
Filename: m2adwlsA_Cover.doc Title: Cover [multi-language]
Template: HP-Print2K.dot Author: WASSER, Inc. Last Saved By: WASSER, Inc.
Revision #: 3 Page: 1 of 2 Printed: 03/14/02 03:09 PM
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to
computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Filename: m2adwlsA_Cover.doc Title: Cover [multi-language]
Template: HP-Print2K.dot Author: WASSER, Inc. Last Saved By: WASSER, Inc.
Revision #: 3 Page: 2 of 2 Printed: 03/14/02 03:09 PM
Installing the Wireless
Keyboard and Mouse Set
A
The wireless keyboard and mouse set consists
of a receiver (A) that plugs into the computer, a
wireless keyboard (B), and a wireless mouse (C).
Note:
This wireless set is compatible with your
HP Pavilion home PC and not intended
for use with other computers.
Note:
English
B
C
You can replace the batteries in the mouse and
keyboard without turning off the computer, but the
computer must be on to change the ID settings on
the three units.
Installing the Wireless Keyboard and Mouse Set
Filename: m2adwlsA.doc Title: Cover [multi-language]
Template: HP-Print2K.dot Author: WASSER Studios Last Saved By: WASSER, Inc.
Revision #: 35 Page: 1 of 8 Printed: 03/25/02 11:03 AM
1
Getting the Mouse Ready
G
H
J
Getting the Keyboard Ready
E
Note:
Do not use rechargeable batteries in the mouse.
Note:
1
Do not use rechargeable batteries in the keyboard.
Install the two AA alkaline batteries (provided)
in the wireless keyboard: Remove the cover
Install the two AA alkaline batteries (provided) in
the wireless mouse: Remove the cover (E) from
the bottom of the mouse, and insert the batteries.
Note the battery icons, and make sure batteries
are placed in the correct direction. Snap the
(G) from the back of the keyboard, and insert
the batteries into the compartment (H). Note
the battery icons, and make sure batteries are
placed in the correct direction. Snap the cover
back into place.
cover back into place.
Adjust the keyboard height by lifting the
2
adjustment bar (J).
2
HP Pavilion home PC
Filename: m2adwlsA.doc Title: Cover [multi-language]
Template: HP-Print2K.dot Author: WASSER Studios Last Saved By: WASSER, Inc.
Revision #: 35 Page: 2 of 8 Printed: 03/25/02 11:03 AM
Getting the Receiver Ready
1
Turn off your computer, and disconnect the
power cord and modem/phone cable.
2
Connect the receiver plugs to the mouse PS/2
connector and to the keyboard PS/2 connector
on the back of the computer. Match the
connector colors: the keyboard connector (L) is
purple; the mouse connector (M) is green.
M
L
3
Position the receiver (A) 20 centimeters
(8 inches) away from other electrical devices.
L
A
20 cm
8 in
M
English
Installing the Wireless Keyboard and Mouse Set
Filename: m2adwlsA.doc Title: Cover [multi-language]
Template: HP-Print2K.dot Author: WASSER Studios Last Saved By: WASSER, Inc.
Revision #: 35 Page: 3 of 8 Printed: 03/25/02 11:03 AM
3
Setting Up the Wireless Set
1
Connect the power cord and modem/phone
cable to the computer. Turn on the computer.
2
On the bottom of the receiver, press the
ID button (D) once. The top green activity light
will start to blink and will continue blinking
until the next two steps are completed or until
30 seconds pass.
D
3
On the bottom of the mouse, press the
ID button (F) once. The mouse contains
IDs
256 channels, or
, that are randomly
selected when you press the ID button. This
helps protect against interference from other
wireless mice in the same area.
F
4
Filename: m2adwlsA.doc Title: Cover [multi-language]
Template: HP-Print2K.dot Author: WASSER Studios Last Saved By: WASSER, Inc.
Revision #: 35 Page: 4 of 8 Printed: 03/25/02 11:03 AM
HP Pavilion home PC
4
On the bottom of the keyboard, press the
ID button (I) once. The keyboard contains
IDs
256 channels, or
, that are randomly
selected when you press the ID button. This
helps protect against interference from other
wireless keyboards in the same area.
I
Important:
The mouse goes into a sleep or suspend
mode after 20 minutes of inactivity. Click a button
on the mouse to wake it up. (Moving the mouse
does not wake it up.)
Installing the Low Battery
Indicator Software
If you have a Microsoft® Windows® Me or
Windows 98 operating system, you need to
install the
software solution
indicator software.
Note:
To install the low battery indicator software:
Insert the Microsoft Windows 98 & Me
1
keyboard software solution CD into a CD-ROM
or DVD-ROM drive.
Double-click My Computer.
2
Double-click the drive icon that has the
3
inserted CD.
Double-click the RF_MMKBD file.
4
Click Setup.
5
When the installation is complete, click OK.
6
Microsoft Windows 98 & Me keyboard
CD that contains the low battery
Skip these steps if you have Windows XP.
English
Installing the Wireless Keyboard and Mouse Set
Filename: m2adwlsA.doc Title: Cover [multi-language]
Template: HP-Print2K.dot Author: WASSER Studios Last Saved By: WASSER, Inc.
Revision #: 35 Page: 5 of 8 Printed: 03/25/02 11:03 AM
5
7
Remove the CD.
Using the Wireless Set
8
Restart the computer. Click
Down
, select
Restart
Start, Shut
from the drop-down
list, and then click OK.
Resetting ID Buttons When
Replacing Batteries
When the batteries are replaced in the mouse or
keyboard, the ID buttons on the bottom of each
unit in the wireless set must be reset to allow the
mouse and keyboard to work with the receiver.
To reset the ID buttons, the computer must be
turned on. You must press the receiver ID button
first and then press the mouse and keyboard ID
buttons. Refer to the steps in the section “Setting
Up the Wireless Set
Note:
You can replace the batteries in the mouse and
keyboard without turning off the computer, but the
computer must be on to change the ID settings on
the three units.
.”
The lights on the receiver indicate (from the top):
3
Receiver activity (The top light flashes when
you move or click the mouse or press any key
on the keyboard.)
3
Scroll lock on
3
Caps lock on
3
Number lock on
Low Battery Icons
The computer displays a keyboard icon or a
mouse icon in the upper-right corner of the screen
to indicate low batteries in that unit.
6
Filename: m2adwlsA.doc Title: Cover [multi-language]
Template: HP-Print2K.dot Author: WASSER Studios Last Saved By: WASSER, Inc.
Revision #: 35 Page: 6 of 8 Printed: 03/25/02 11:03 AM
HP Pavilion home PC
