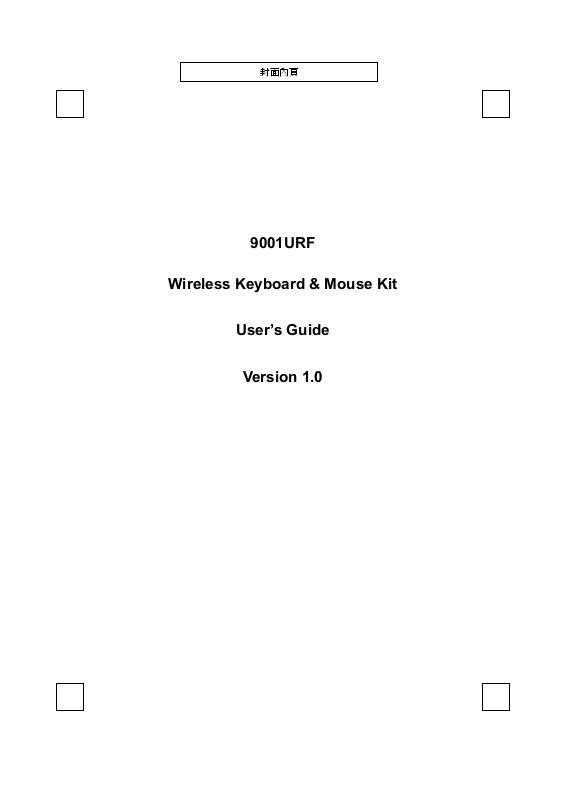

9001URF
Wireless Keyboard & Mouse Kit
User’s Guide
Version 1.0
The information in this document is subject to change without notice and does not represent a commitment
on the part of the vendor.
No warranty of representation, either expressed or implied, is made with respect to the quality, accuracy or
fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to
the content of this document and/or the products associated with it at any time without obligation to notify
any person or organisation of such changes.
In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages
arising out of the use or inability to use this product or documentation, even if advised of the possibility of
such damages.
Copyright © 2001. All rights reserved
IBM, PC/AT and PS/2 are registered trademarks of International Business Machines Corporation.
Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation in the United
States of America and/or other countries.
All other trademarks are trademarks of their respective holders.
Table of Contents
1Introduction.................................................................................................1
What's in this package ..............................................................................1
2 System Requirements ................................................................................3
3 Hardware Installation ................................................................................5
4 Software Installation ................................................................................13
4.1 Keyboard Driver Installation............................................................13
4.2 Mouse Driver Installation .................................................................13
5 Using the Keyboard and Mouse............................................................15
5.1 Using the Keyboard .........................................................................15
5.2 Using the Mouse Driver....................................................................16
6 Troubleshooting ........................................................................................21
1 Introduction
Congratulations on your purchase of this wireless RF keyboard and mouse!
This keyboard and mouse will finally free you of the constraints of your
desktop by providing a wireless connection between your
keyboard/mouse and your PC. Pass around the keyboard or mouse
during meetings without having to bother about a cable blocking your
way or write e-mails and surf the Internet from the comfort of your living
room couch!
This keyboard and mouse kit consists of a keyboard, a mouse and a
receiver. The keyboard and mouse can operate freely within a radius of
at least 3.28 feet (1meter) from the receiver, which itself has a maximum
range from your PC of around 3.28 feet (1meter). The wireless keyboard
contains seven Internet keys and one ACPI key to make you save more
hand-movement and access to Internet much quickly. Beside, the
wireless mouse uses an optical sensor instead of mouse ball. The precise
sensor detects motion on hundreds of surfaces, including wood, plastic,
or even your pants leg, and prevents you from the interference caused
by dust. Because the keyboard and mouse use radio frequencies to
transmit the wireless signal it has no constrictions on viewing angles such
as with infrared devices like your TV’s remote control, etc.
Besides providing unprecedented freedom of movement when
operating the keyboard or mouse, the kit also offers more extra
functionality by introducing dedicated buttons for often used Internet
browser functions as well as Sleep functions. (Please note: The Internet
keys work only under Microsoft Internet Explorer 5.0 or later version!).
And last but not least, this package also provides a special driver, which
provides unique shortcut functions.
In order to enjoy your keyboard and mouse to their full potential we
recommended you read this manual carefully prior to installation.
What's in this package
A wireless keyboard with palmrest
A wireless mouse
A receiver
1
A driver CD
Batteries (2 pcs of AA; 2 pcs of AAA alkaline batteries)
2
2 System Requirements
Microsoft Windows 98, Windows ME, Windows 2000 or Windows
XP operating system
Microsoft Internet Explorer 5.0 or later version (for the Internet keys)
The system supporting ACPI or APM II (for power management
buttons)
ATX mother board and ATX power supply (for power management
buttons)
Please refer to table below for the other system requirements for the
features.
Operating System
Function Description
Windows NT 4.0 /
Windows 95 /
Windows 98
Windows ME /
Windows 2000 /
Windows XP
Wireless
Functionality
Keyboard Extra
Multimedia Buttons
Keyboard Extra
ACPI Keys
Keyboard Battery
Low Function
Keyboard LED Light
Function
Mouse Driver
Shortcut Function
Available immediately
after hardware
installation
Requires keyboard
driver installation (see
driver CD for details)
Requires enabling of
system ACPI (Power
Management) function
Requires installation of
keyboard driver (see
driver CD for details)
Requires installation of
keyboard driver (see
driver CD for details)
Requires installation of
mouse driver (see driver
Available immediately
after hardware
installation
Requires keyboard
driver installation (see
driver CD for details)
Available immediately
after hardware
installation
Requires installation of
keyboard driver (see
driver CD for details)
Requires installation of
keyboard driver (see
driver CD for details)
Requires installation of
mouse driver (see driver
3
CD for details) CD for details.)
4
3 Hardware Installation
Slide Switch Setting
Step 1: Make sure your PC is switched off.
Step 2: Take the receiver and select channel CH1 or CH2 by using the
slide switch on the side of the receiver. (Remember your
selection.)
CH2
CH1
Back View of Receiver
Step 3: Connect the receiver to your PC by plugging in the receiver’s USB
into your PC.
Front View of Receiver Plug
Step 4: Take the keyboard and make sure the batteries on the back are
installed correctly. (Follow the polarity signs in the battery
compartment.)
Channel Switch of Receiver
Back View of Receiver Plug
5
