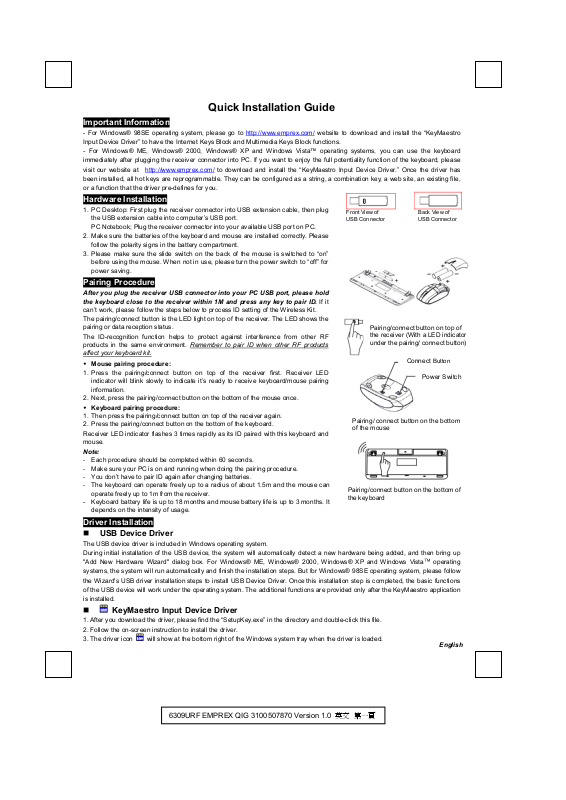

Quick Installation Guide
Important Information
- For Windo ws® 98SE operating system, please go t o http://www.emprex.com/ website to download and install the “KeyMaestro
Input Device Driver” to have the Internet Keys Block and Multimedia Keys Block functions.
-
For Windows® ME, W indows® 2000, W indows® XP and Windows Vista™ operating systems, you can use the keyboard
immediately after plugging the receiver connec tor into PC. If you want to enjoy the full potentiality function of the keyboard, please
visit our website at http://www.emprex.com/
been installed, all hot keys are reprogrammable. They can be configured as a string, a combination key, a web site, an existing file,
or a function that the driver pre-defines for you.
Hardware Installation
1. PC Desktop: First plug the receiver connector into USB extension cable, then plug
the USB extensi on cable into computer’s USB port.
PC Notebook; Plug the receiver connector into your available USB port on PC.
2. Make sure the batteries of the keyboard and mouse are installed correctly. Please
follow the polar ity signs in th e battery compartment.
3. Please make sure the slide switch on the back of the mous e is switched to “on”
before using the mouse . When not in use, please turn the power switch to “off” for
power saving.
Pairing Procedure
After you plug the receiver USB connector into your PC USB port, please hold
the keyboard close t o the recei ver within 1M and press any key to pair ID. If it
can’t work, please follow the steps below to process ID setting of the Wireless Kit.
The pairing/connect button is the LED light on top of the receiver. The LED shows the
pairing or data reception status.
The ID-recognition function helps to protect against interferenc e from other RF
products in the same environm ent. Remember to pair ID when other RF products
affect your keyboard kit.
Mouse pairing procedure:
1. Press the pairing/connect button on top of the receiv er first. Receiver LED
indicator will blink slowly to indicate it’s ready to receive keyboard/mouse pairing
information.
2. Next, press the pairing/connect button on the bottom of the mouse once.
Keyboard pairing procedure:
1. Then press the pairing/connect button on top of the receiver again.
2. Press the pairing/connect button on the bottom of the keyboard.
Receiver LED indicator flashes 3 times rapidly as its ID paired with this keyboard and
mouse.
Note:
-
Each procedure should be completed within 60 seconds.
-
Make sure your PC is on and running when doing the pairing procedure.
-
You don’t have to pair ID again after changing batteries.
-
The keyboard can operate freely up to a radius of about 1.5m and the mouse can
operate freely up to 1m from the r eceiver.
-
Keyboard battery life is up to 18 months and mouse battery life is up to 3 months. It
depends on the intensity of usage.
Driver Installation
USB Device Driver
The USB device driver is included in Windows operating system.
During initial installation of the USB device, the system will automatically detect a new hardware being added, and then bring up
"Add New Hardware Wizard" dia log box. For Windows® ME, Windows® 2000, Windows® XP and Windows Vista™ operating
systems, the system will run automatically and finish the installation steps. But for Windows® 98SE operating s ystem, please follow
the Wizard's USB driver installation steps to install USB Device Driver. Once this installation ste p is completed, the basic functions
of the USB device will work under the operating system. The additional functions are provided only after the KeyMaestro application
is installed.
KeyMaestro Input Device Driver
1. After you download the driver, please find the “SetupKey.exe” in the directory and double-click this file.
2. Follow the on-screen instruction to install the driver.
3. The driver icon
will show at the bottom right of the Windows system tray when the driver is loaded.
to download and install the “KeyMaestro Input Device Driver.” Once the driver has
Front View of Back View of
USB Connector USB Connector
Pairing/connect button on top of
the receiver (With a LED indicator
under the pairing/ connect button)
Pairing/ connect button on the bottom
of the mouse
Pairing/connect button on the bottom of
the keyboard
Connect Button
Power Switch
English
6309URF EMPREX QIG 3100507870 Version 1.0 英文
第一頁
快速安裝指南
重要資訊
- 若您為 Windows® 98SE 使用者，請至 http://www.emprex.com/ 下載並安裝 "KeyMaestro 輸入裝置驅動程式" 以使用網際網路鍵
- 若您為 Windows® ME、Windo ws® 2000、Windows® XP 和 Windows Vista使用者，當您將接收器的連接頭連接到電腦之後即
硬體安裝
1. 桌上型電腦: First plug the receiver connector into USB extension cable, then plug the
2. 安裝鍵盤和滑鼠的電池，並請注意電池正負極方向。
3.
設定程序
當您將接收器的
公尺以內按任一鍵來設定ID。
定 ID。
位在接收器上方的 LED 燈就是接收器的 ID 設定鍵，此LED 燈會顯示 ID 設定或訊號接收的
狀態。
此 ID 設定的功能在於防止電腦與鍵盤、滑鼠間之無線訊號被其他在同一環境下的無線產品所
影響。
滑鼠設定程序:
1. 先按一次接收器上方的 ID 設定鍵。 此時接收器ID 設定鍵下方的 LED 燈會緩慢閃爍以
2. 然後請按一次滑鼠底部的 ID 設定鍵。
鍵盤設定程序:
1.
2. 然後請按鍵盤底部的 ID 設定鍵。
此時接收器的 LED 燈會快速閃爍 3 次以表示它已接收到鍵盤和滑鼠的設定訊號。
注意：
- 每組ID
- 電腦為開機狀態下，才可設定 ID。
- 當您更換電池之後不需重設 ID 即可繼續使用此無線鍵盤滑鼠組。
- 此無線鍵盤的有效操作距離可達 1.5 公尺，滑鼠的有效操作距離可達1 公尺。
- 鍵盤電池壽命可達 18 個月，滑鼠電池壽命可達 3 個月，視使用頻率而定。
和多媒體鍵的功能。
可立即使用此鍵盤。 若您想享有更多的快捷鍵(Hotkey)功能， 請至 http://www.emprex.com/
驅動程式"。驅動程式安裝完成之後，所有快捷鍵的功能都是可以更改的。您可以更改功能為一個字串、複合功能鍵、網址、檔案、
或是由程式預設的功能。
USB extension cable into computer’s USB port.
筆記型電腦: 將接收器連接到電腦上，接收器的接頭連接到電腦的連接埠。
請先確定滑鼠底部的電源開關已切換至”啟動
使用滑鼠時可將電源開關切換至”關閉(off)”以節省電池電量。
USB
若受其他無線產品的干擾，請務必重新設定ID。
表示它已準備好接收鍵盤和滑鼠的設定訊號。
請按一次接收器上方的ID設定鍵。
設定的過程需在
的狀態之後方可使用此滑鼠。當您不
(on)”
連接頭插入電腦的
如果鍵盤或滑鼠無法正常運作的話，請依照下列的步驟重新設
秒之內
60
USB
連接埠之後，請將鍵盤靠近接收器，在距離
完成。
下載並安裝 "KeyMaestro 輸入裝置
USB 連接頭正面圖 USB 連接頭背面圖
1
滑鼠底部 ID 設定鍵
接收器上方 ID 設定鍵
(ID 設定鍵下方有 LED 燈)
設定鍵
ID
電源開關
鍵盤底部 ID 設定鍵
安裝驅動程式
USB 裝置驅動程式
USB 裝置驅動程式已附在 Windows 操作系統中。
首次安裝 USB 裝置時，系統會自動偵測新增硬體然後跳出”Add New Hardwar e Wizard”對話框。若您為 Windows® ME、W indows®
2000、Windows® XP 和 Windows Vista使用者，系統會自動執行並完成安裝步驟。但若您為 Windows® 98SE 使用者，請依照 Wizard
USB 驅動程式的指示完成安裝步驟。安裝步驟完成後即可使用 USB 裝置的基本功能。其他的附加功能則需等到應用程式安裝完成後
方可使用。
KeyMaestro
1. 當您下載完驅動程式之後，請雙擊根目錄中的"SetupKey.exe"檔案。
2. 依螢幕指示完成安裝步驟。
3.
當驅動程式的圖示
輸入裝置驅動程式
出現在右下角的工作列上時，即表示驅動程式載入成功。
6309URF EMPREX QIG 3100507870 Version 1.0-Vista
繁體中文 第二頁
Chinese
