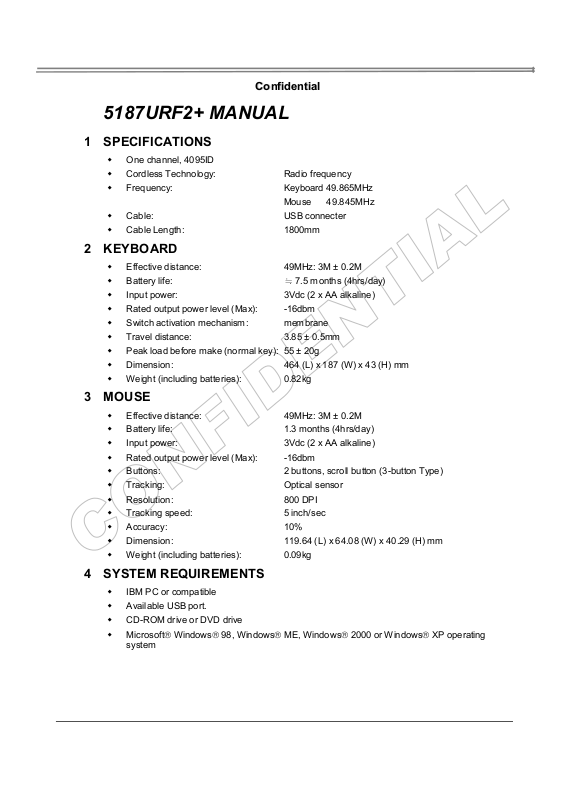

Behavior Tech Computer MS5187URF492, KB5187URF492 Users manual

C
o
n
f
i
d
e
n
t
i
a
C
o
n
f
i
d
l
e
n
t
i
a
l
1 SPECIFICATIONS
w One channel, 4095ID
w Cordless Technology: Radio frequency
w Frequency: Keyboard 49.865MHz
Mouse 49.845MHz
w Cable: USB connecter
w Cable Length: 1800mm
2 KEYBOARD
w Effective distance: 49MHz: 3M ± 0.2M
w Battery life: 7.5 months (4hrs/day)
w Input power: 3Vdc (2 x AA alkaline)
w Rated output power level (Max): -16dbm
w Switch activation mechanism: membrane
w Travel distance: 3.85 ± 0.5mm
w Peak load before make (normal key): 55 ± 20g
w Dimension: 464 (L) x 187 (W) x 43 (H) mm
w Weight (including batteries): 0.82kg
3 MOUSE
w Effective distance: 49MHz: 3M ± 0.2M
w Battery life: 1.3 months (4hrs/day)
w Input power: 3Vdc (2 x AA alkaline)
w Rated output power level (Max): -16dbm
w Buttons: 2 buttons, scroll button (3-button Type)
w Tracking: Optical sensor
w Resolution: 800 DPI
w Tracking speed: 5 inch/sec
w Accuracy: 10%
w Dimension: 119.64 (L) x 64.08 (W) x 40.29 (H) mm
w Weight (including batteries): 0.09kg
4 SYSTEM REQUIREMENTS
w IBM PC or compatible
w Available USB port.
w CD-ROM drive or DVD drive
w Microsoftâ Windowsâ 98, Windowsâ ME, Windowsâ 2000 or Windowsâ XP operating
system
