Behavior Tech Computer KB5187URF272, MS5187URF272 User Manual

5187URF2

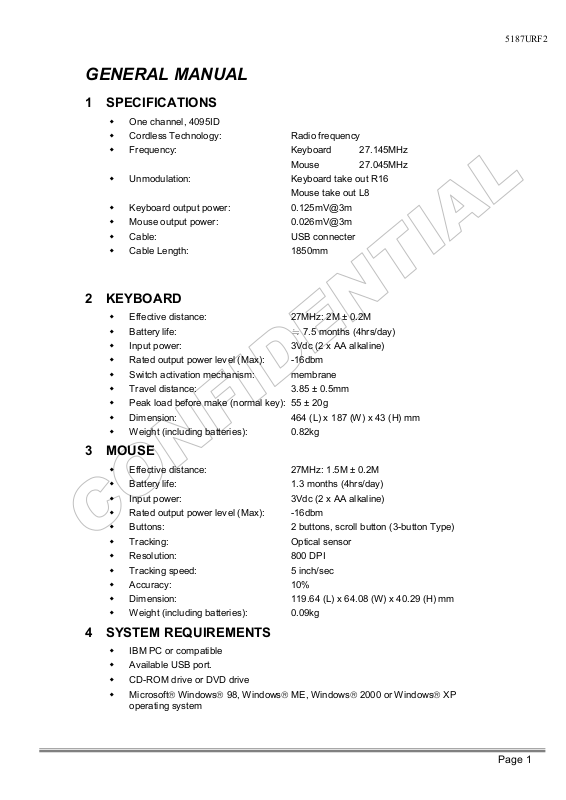

GENERAL MANUAL

1 SPECIFICATIONS

w One channel, 4095ID

w Cordless Technology: Radio frequency

w Frequency: Keyboard 27.145MHz

Mouse 27.045MHz

w Unmodulation: Keyboard take out R16

Mouse take out L8

w Keyboard output power: 0.125mV@3m

w Mouse output power: 0.026mV@3m

w Cable: USB connecter

w Cable Length: 1850mm

2 KEYBOARD

w Effective distance: 27MHz: 2M ± 0.2M

w Battery life: 7.5 months (4hrs/day)≒

w Input power: 3Vdc (2 x AA alkaline)

w Rated output power level (Max): -16dbm

w Switch activation mechanism: membrane

w Travel distance: 3.85 ± 0.5mm

w Peak load before make (normal key): 55 ± 20g

w Dimension: 464 (L) x 187 (W) x 43 (H) mm

w Weight (including batteries): 0.82kg

3 MOUSE

w Effective distance: 27MHz: 1.5M ± 0.2M

w Battery life: 1.3 months (4hrs/day)

w Input power: 3Vdc (2 x AA alkaline)

w Rated output power level (Max): -16dbm

w Buttons: 2 buttons, scroll button (3-button Type)

w Tracking: Optical sensor

w Resolution: 800 DPI

w Tracking speed: 5 inch/sec

w Accuracy: 10%

w Dimension: 119.64 (L) x 64.08 (W) x 40.29 (H) mm

w Weight (including batteries): 0.09kg

4 SYSTEM REQUIREMENTS

w IBM PC or compatible

w Available USB port.

w CD-ROM drive or DVD drive

w Microsoftâ Windowsâ 98, Windowsâ ME, Windowsâ 2000 or Windowsâ XP

operating system

Page 1
