OWNER’S MANUAL

LCD TV MODELS

32LB9D

PLASMA TV MODELS

42PB4DA 50PB4DA 60PB4DA

www.lgusa.com / www.lg.ca

As an ENERGY STAR Partner LGE U. S. A.,Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

ENERGY STAR is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency(EPA).

is a trademark of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

LG TV with this logo displays Full HD(high-definition) 1080p native resolution by receiving and processing a Full HD 1080p signal.

LG TV with this logo can play MP3 music from a MP3 player, such as iPOD, and JPEG images from a digital camera through the USB device.

With HDMI CEC support of LG’s audio/video device connected to the HDMI (high-definition multimedia interface), LG TV with this logo works easily with one remote control.

It has three HDMI ports that connect audio and video devices with one cable and produces the highest quality digital images and sound.

TruSurround XT

Manufactured under license from Dolby Laboratories. “

Dolby

“and the double-D symbol are trademarks of

Dolby Laboratories.

High-definition television. High-resolution digital television broadcast and playback system composed of roughly a million or more pixels, 16:9 aspect-ratio screens, and AC3 digital audio. A subset of digital television, HDTV formats include 1080i and 720p resolutions.

LG's own special digital image generator, consisting of a full digital image processor, six different main picture quality factors.

R

TruSurround XT

1

WARNING / CAUTION

To prevent fire or shock hazards, do not expose this product to rain or moisture.

FCC NOTICE

Class B digital device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

CAUTION

Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK). NO

USER SERVICEABLE PARTS INSIDE. REFER TO

QUALIFIED SERVICE PERSONNEL.

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

2

IMPORTANT SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the apparatus.

This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The important safety instructions shall be entitled “Important Safety Instructions”. The following safety

instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction:

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified by the manufacturer.

Unplug this apparatus when unused for long periods of time.

1

2

3

4

5

6

7

8

3

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Never touch this apparatus or antenna during a thunder or lighting storm.

Do not allow a impact shock or any objects to fall into the product, and do not drop onto the screen with something.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.

CAUTION concerning the Power Cord : Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use

of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Outdoor use marking : WARNING - To reduce the risk of fire or elec-

tric shock, do not expose this appliance to rain or moisture.

Wet Location Marking : Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on or over apparatus.

GGRROOUUNNDDIINN GG

Ensure that you connect the earth ground wire to prevent possible electric shock. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker.

Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

DDIISSCCOONNNNEECCTTIINN GG DDEEVVIICCEE FFRROOMM MMAAII NNSS

Mains plug is the disconnecting device. The plug must remain readily operable.

Owner Ma

nual

9

12

10

11

13

14

15

16

17

Powe r Supply

Short-circuit

Breaker

4

FEATURE OF THIS TV

What is a Plasma TV?

Using plasma is the best way to achieve flat panel displays with excellent image quality and large screen sizes that are easily viewable. The Plasma TV can be thought of as a descendant of the neon lamp and or a series of fluorescent lamps.

How does it work?

Plasma TV is an array of cells, known as pixels, which are comprised of three sub-pixels, corresponding to the colors red, green, and blue. Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phosphors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors.

Plasma TV offers a rich, dynamic display because each sub-pixel is individually controlled by advanced electronics to produce over 16 million different colors. This means that you get perfect images that are easily viewable in a display that is fewer than five inches thick.

160° - Wide angle range of vision

Your flat panel plasma screen offers an exceptionally broad viewing angle of over 160 degrees. This means that the display is clear and visible to viewers anywhere in the room.

Wide Screen

The wide screen offers a theater-like experience in your own home.

Multimedia

Connect your plasma display to a PC and use it for conferencing, games, and Internet browsing. The Picture-in-Picture feature allows you to view your PC and video images simultaneously.

Versatile

The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs do not fit.

The Plasma TV Manufacturing Process: a few minute colored dots may be present on the Plasma TV screen

The Plasma TV is composed of 0.9 to 2.2 million

cells. A few cell defects will normally occur in the Plasma TV manufacturing process. Several tiny, minute colored dots visible on the screen should be acceptable. This also occurs in other Plasma TV manufacturers' products. The tiny dots appearing does not mean that this Plasma TV is defective. Thus a few cell defects are not sufficient cause for the Plasma TV to be exchanged or returned. Our production technology minimizes these cell defects during the manufacture and operation of this product.

Cooling Fan Noise-

This feature is not available for all models.

In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the Plasma TV is equipped with cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans are operating and cooling the Plasma TV.

The fan noise doesn't have any negative effect on the Plasma TV's efficiency or reliability. The noise from these fans is normal during the operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is not sufficient cause for the Plasma TV to be exchanged or returned.

FOR LCD TV

If the TV feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with TV.

Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.

Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

OOnn DDiissppoossaall

a. The fluorescent lamp used in this product contains

a small amount of mercury.

b. Do not dispose of this product with general

household waste.

c. Disposal of this product must be carried out in

accordance to the regulations of your local authority.

PREPARATION

7

PREPARATION

ACCESSORIES

Ensure that the following accessories are included with your product. If an accessory is missing, please contact the dealer where you purchased the product.

User must use shielded signal interface cables (D-sub 15 pin cable) with ferrite cores to maintain standard compliance for the product.

The accssories can be different from the figures shown here.

OOppttiioonn EExxttrraass

FFoorr LLCCDD TTVV mmooddeellss

Cable

Management

4-Bolts for stand

assembly

(Refer to p.12)

1- Screw for

stand fixing

(Refer to p.13)

FFoorr PPllaassmmaa TTVV mmooddeellss

* Slightly wipe stained spot on the exterior only with the polishing cloth

for the product exterior if there is stain or fingerprint on surface of the exterior.

* Do not wipe roughly when removing stain. Please be cautions of that

excessive pressure may cause scratch or discoloration.

Polishing Cloth

LCD TV PLASMA TV

Owner's Manual

http://www.lgusa.com

www.lg.ca

D-sub 15 pin Cable

1.5V 1.5V

Owner’s Manual Power Cord

75ohm Round Cable

Remote Control,

Batteries

123

456

78

0

9

B

A C

K

V O

L

C

H

M U

T E

F A

V

B R

I G

H T

-

M

E N

U

B

R I G

H T

+

E

N

T E

R

E

X IT

T

I M

E R

RATIO

S I M

P L

IN K

P

O W

E R

V CR

T

V

D V

D

A UD

IO

C A

B L

E

ST

B

M O

D

E

TV

INPU

T

I N

P U

T

C

H

F A

V

M

E N

U

B R

I G H

T +

E N

T

E R

T

I M

E R

RATIO

S IM

P

L IN

K

1

VO

L

M

U T

E

EXIT

CD Manual

2- TV Bracket

Bolts

(Refer to p.16)

2- TV Brackets,

2- Wall Brackets

(Refer to p.16)

For 60 inches

2- TV Bracket Bolts

(Refer to p.16)

2- TV Brackets,

2- Wall Brackets

(Refer to p.16)

2- Wall Brackets

(Refer to p.16)

2- Eye Bolts

(Refer to p.16)

For 42/50 inches

PREPARATION

8

FRONT PANEL INFORMATION

PREPARATION

■

Here shown may be somewhat different from your TV.

■

NOTE: If your product has a protection tape attached, remove the tape. And then wipe the product with a cloth (If a polishing cloth is included with your product, use it).

Plasma TV Model

POWER Button

INPUT Button

MENU Button

ENTER Button

VOLUME (

FF,GG

)Buttons

CHANNEL (

EE,DD

)Buttons

Power/Standby Indicator

Illuminates red in standby mode. Illuminates white when the set is switched on.

Remote Control Sensor

INPUT

MENU

ENTER

VOL

CH

PREPARATION

9

LCD TV Model

CH

VOL

ENTER

MENU

INPUT

Remote Control Sensor

Intelligent Eye

Adjusts picture according to the surrounding conditions.

Power/Standby Indicator

Illuminates red in standby mode. Illuminates green when the set is switched on.

CH

VOL

ENTER

MENU

INPUT

CHANNEL (

EE,DD

) Buttons

VOLUME (

FF,GG

) Buttons

ENTER Button

MENU Button

INPUT Button

POWER Button

PREPARATION

10

BACK PANEL INFORMATION

PREPARATION

Plasma TV Model

LCD TV Model

AV IN 2

L/MONO

R

AUDIO

VIDEO

S-VIDEO

USB

RGB IN

COMPONENT IN

AUDIO

(RGB/DVI)

RGB(PC)

REMOTE

CONTROL IN

ANTENNA/

CABLE IN

1

2

RS-232C IN

(CONTROL & SERVICE)

VIDEO

AUDIO

VIDEO

AUDIO OUT

OPTICAL

COAXIAL

MONO

( )

AUDIO

S-VIDEO

DIGITAL AUDIO OUT

AV IN 1

R

HDMI/DVI IN

3

2

1

■

Here shown may be somewhat different from your TV.

1

3

4

5

6

7

8

2

11

10

9

AV IN 2

L/ MONO

R

AUDIO

VIDEO

USB IN

RGB IN

HDMI/DVI IN

COMPONENT IN

AUDIO

(RGB/DVI)

RGB(PC)

REMOTE

CONTROL IN

ANTENNA/

CABLE IN

1

2

3

RS-232C IN

(CONTROL & SERVICE)

VIDEO

AUDIO

VIDEO

AUDIO OUT

OPTICAL COAXIAL

MONO

( )

AUDIO

S-VIDEO

DIGITAL AUDIO OUT

AV IN 1

R

1

3

4

5

6

7

8

2

11

10

9

PREPARATION

11

HDMI/DVI IN Connect a HDMI signal to 1, 2 or 3.

Or DVI (VIDEO) signal to the 1, 2 or 3 port with a DVI to HDMI cable.

COMPONENT IN

Connect a component video/audio device to these jacks.

RGB (PC) AUDIO (RGB/DVI)

Connect the monitor output from a PC to the appropriate input port.

REMOTE CONTROL PORT

Connect your wired remote control.

RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC.

ANTENNA/CABLE IN

Connect over-the air signals to this jack. Connect cable signals to this jack.

DIGITAL AUDIO OUT

Connect digital audio to various types of equipment. Note: In standby mode, these ports do not work.

AUDIO OUT

Connect analog audio to various types of equipment.

AV (Audio/Video) IN 1/2

Connect audio/video output from an external device to these jacks.

S-VIDEO

Connect S-Video out from an S-VIDEO device.

USB INPUT

Power Cord Socket

For operation with AC power. Caution: Never attempt to operate the TV on DC

power.

1

2

3

4

5

6

7

8

9

10

11

PREPARATION

12

STAND INSTALLATION (Only 32LB9D)

PREPARATION

Carefully place the product screen side down on a cushioned surface that will protect product and screen from damage.

Assemble the product stand with the product as shown.

Install the 4 bolts securely, in the back of the product in the holes provided.

1

2

3

PREPARATION

13

ATTACHING THE TV TO A DESK (Only 32LB9D model)

1-Screw

(provided as parts

of the product)

Stand

Desk

The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product.

GG

This apparatus must be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the machine may cause injury/death.

WARNING

PREPARATION

14

BACK COVER FOR WIRE ARRANGEMENT

PREPARATION

Plasma TV Model

Hold the CABLE MANAGEMENT with both hands and pull it backward as shown.

Connect the cables as necessary. To connect an additional equipment, see the EXTERNAL EQUIPMENT SETUP section.

1

2

Install the CABLE MANAGEMENT as shown.

3

■

Here shown may be somewhat different from your TV.

CABLE MANAGEMENT

PREPARATION

15

LCD TV Model

Connect the cables as necessary. To connect an additional equipment, see the

EXTERNAL EQUIPMENT SETUP section.

Install the CABLE MANAGEMENT as shown. (Insert it as pushing the loops on the both sides

of the cable management.)

How to remove the CABLE MANAGEMENT

GG

Hold the CABLE MANAGEMENT with both hands and pull it out.

(Pull it out as holding the loops on the both sides of the

cable management.)

CABLE MANAGEMENT

TWIST HOLDER

GG

Do not hold the CABLE MANAGEMENT when moving the product.

- If the product is dropped, you may be injured or the product may be broken.

NOTE

!

1

2

Bundle the cables using the supplied TWIST HOLDER.

3

PREPARATION

16

ATTACHING THE TV TO A WALL

PREPARATION

We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards. Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction, potentially causing injury or damaging the product. Caution: Please make sure that children don’t climb on or hang from the TV.

Plasma TV Model LCD TV Model

■

Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the picture.

*If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.

Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately) to the wall. Match the height of the bracket that is mounted on the wall to the holes in the product.

Ensure the eye-bolts or brackets are tightened securely.

■

Use a sturdy rope (not provided as parts of the product, must purchase separately) to tie the product. It is safer to tie the rope so it becomes horizontal between the wall and the product.

■

Here shown may be somewhat different from your TV.

42/50 inches 60 inches

PREPARATION

17

DESKTOP PEDESTAL INSTALLATION

For proper ventilation, allow a clearance of 4inches on all four sides from the wall.

GG

Ensure adequate ventilation by following the clearance recommendations.

CAUTION

Plasma TV Model LCD TV Model

4 inches

PREPARATION

18

VESA WALL MOUNTING

PREPARATION

This product accepts a VESA-compliant mounting interface pad. (optional) There 4 threaded holes are available for attaching the bracket.

GG

Screw length needed depends on the wall mount used. For further information, refer to the VESA Wall Mounting Instruction Guide.

NOTE

!

Plasma TV Model LCD TV Model

R

600 mm

400 mm

100 mm

200 mm

PREPARATION

19

ANTENNA OR CABLE CONNECTION

1. Antenna (Analog or Digital)

Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.

For optimum picture quality, adjust antenna direction if needed.

2. Cable

Wall Antenna Socket

Outdoor Antenna (VHF, UHF)

Cable TV Wall Jack

Multi-family Dwellings/Apartments (Connect to wall antenna socket)

RF Coaxial Wire (75 ohm)

Single-family Dwellings /Houses (Connect to wall jack for outdoor antenna)

Be careful not to bend the bronze wire when connecting the antenna.

Copper Wire

GG

The TV will let you know when the analog, cable, and digital channel scans are complete.

NOTE

!

■

To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.

■

If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.

■

If the antenna is not installed properly, contact your dealer for assistance.

Antenna

UHF

Signal Amplifier

VHF

3. Using both cable and antenna

Cable TV Wall Jack

Antenna

RF Coaxial Wire (75 ohm)

ANTENNA/

CABLE IN

R

ANTENNA/

CABLE IN

R

ANTENNA/

CABLE IN

R

ANTENNA/

CABLE IN

R

Diplexer

(Signal

Combiner)

■

Here shown may be somewhat different from your TV.

EXTERNAL EQUIPMENT SETUP

20

EXTERNAL EQUIPMENT SETUP

HD RECEIVER SETUP

This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.

When connecting Component cable

1. How to connect

Connect the video outputs (Y, PB, PR

)

of the digital set

top box to the

CC OOMMPPOONNEENNTT IINN VVIIDDEEOO 11

jacks on

the set. Match the jack colors (Y = green, P

B = blue, and PR = red).

Connect the audio output of the digital set-top box to the

CC OOMMPPOONNEENNTT IINN AAUU DD IIOO 11

jacks on the set.

2

1

2. How to use

■

Turn on the digital set-top box. (

Refer to the owner’s manual for the digital set-top box. operation

)

■

Select

CC OO MMPP OO NNEENNTT 11

input source by using the

II NN PPUU TT

button on the remote control.

■

If connected to

CC OO MMPP OONNEENNTT IINN 22

input, select

CC oo mmpp oonn eenntt 22

input source.

■

To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.

■

This part of EXTERNAL EQUIPMENT SETUP mainly use picture for LCD TV model.

RGB IN

AUDIO

(RGB/DVI)

RGB(PC)

RE

CONT

RS

(CONTR

COMPONENT IN

1

2

VIDEO

AUDIO

Y L RPB PR

( )

S-VIDEO

1

2

Signal

480i

480p

720p

10 8 0 i

10 8 0 p

Component 1/2

Yes

HDMI1/2/3

No

Yes

Y, CB/PB, CR/PR

Horizontal Vertical

Frequency(KHz)Frequency(Hz

)

15.73 59.94

15.73 60.00

31.47 59.94

31.50 60.00

44.96 59.94

45.00 60.00

33.72 59.94

33.75 60.00

26.97 23.94

27.000 24.00

33.71 29.97

33.72 59.94

33.750 30.00

Resolution

720x480i

720x480p

1280x720p

1920x1080i

1920x1080p

EXTERNAL EQUIPMENT SETUP

21

RGB IN

COMPONENT I

AUDI

(RGB/D

RGB(PC)

1

2

VIDEO

HDMI/DVI IN

HDMI-DTV OUTPUT

( )

3

2

1

When connecting HDMI cable

Connect the digital set-top box to

HHDDMMII//DD VVII IINN11

,

22

or

33

jack on the set.

No separated audio connection is necessary. HDMI supports both audio and video.

1. How to connect

2. How to use

■

Turn on the digital set-top box. (

Refer to the owner’s manual for the digital set-top box.

)

■

Select

HHDDMMII11,HHDDMMII22 orHHDDMMII33

input source with using

the

IINNPPUUTT

button on the remote control.

■

If the digital set-top box player does not support Auto HDMI, you need to set the output resolution appropriately.

2

1

HDMI1/DVI-DTV, HDMI2-DTV mode

Horizontal Vertical

Frequency(KHz)Frequency(Hz

)

31.47 59.94

31.47 60.00

44.960 59.94

45.000 60.00

33.720 59.94

33.750 60.00

26.97 23.94

27.000 24.00

33.71 29.97

33.750 30.00

67.432 59.939

67.500 60.00

Resolution

720x480

1280x720

1920x1080i

1920x1080p

EXTERNAL EQUIPMENT SETUP

22

EXTERNAL EQUIPMENT SETUP

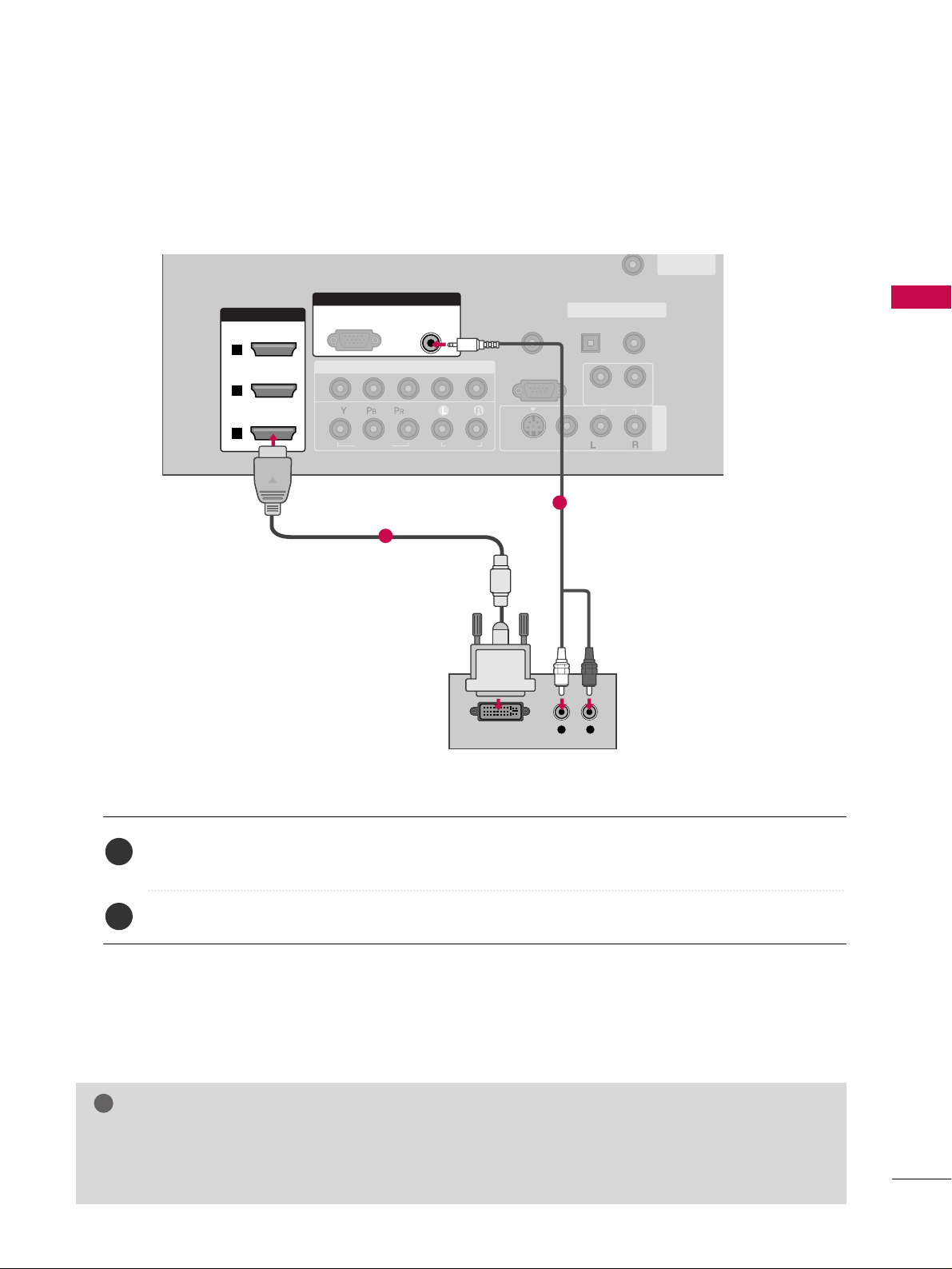

When connecting HDMI to DVI cable

( )

AV IN 1

AUDIO OUT

VIDEO

MONO

( )

AUDIO

S-VIDEO

COMPONENT IN

REMOTE

CONTROL IN

1

2

RS-232C IN

(CONTROL & SERVICE)

VIDEO

AUDIO

OPTICAL COAXIAL

DIGITAL AUDIO OUT

HDMI/DVI IN

RGB IN

AUDIO

(RGB/DVI)

L R

DVI-DTV OUTPUT

RGB(PC)

ANTENNA/

CABLE IN

3

2

1

Connect the DVI output of the digital set-top box to the

HHDDMMII//DD VVII IINN11, 22

or

33

jack on the set.

Connect the audio output of the digital set-top box to the

AAUUDDIIOO((RRGGBB//DDVVII

))

jack on the set.

1. How to connect

■

Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.

)

■

Select

HHDDMMII11,HHDDMMII22 orHHDDMMII33

input source with using the

IINNPPUUTT

button on the remote control.

2. How to use

2

1

2

EXTERNAL EQUIPMENT SETUP

23

DVD SETUP

When connecting Component cable

Component Input ports

To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV

YPB PR

Video output ports

on DVD player

Y

P

B

B-Y

Cb

Pb

P

R

R-Y

Cr

Pr

Connect the video outputs (Y, PB

, PR

)

of the DVD to the

CC OOMMPPOONNEENNTT IINN VV IIDDEEOO11

jacks on the set.

Match the jack colors (

Y = green, P

B = blue, and PR = red

)

.

Connect the audio outputs of the DVD to the CC OOMMPPOONNEENNTT IINN AAUU DD IIOO11

jacks on the set.

1. How to connect

2. How to use

■

Turn on the DVD player, insert a DVD.

■

Select

CCOOMMPPOONNEENNTT 11

input source by using the

II NN PPUU TT

button on the remote control.

■

If connected to

CC OOMMPPOONNEENNTT IINN 22

input, select

CC oo mmpp oonn eenntt 22

input source.

■

Refer to the DVD player's manual for operating instructions.

2

1

RGB IN

AUDIO

(RGB/DVI)

RGB(PC)

R

CO

(CO

COMPONENT IN

1

2

VIDEO

AUDIO

Y L RPB PR

( )

S-VIDEO

1 2

EXTERNAL EQUIPMENT SETUP

24

EXTERNAL EQUIPMENT SETUP

When connecting with an S-Video cable

Connect the S-VIDEO output of the DVD to the SS --VV II DDEE OO

input on the set.

Connect the audio outputs of the DVD to the

AAUUDDIIOO

input jacks on the set.

1. How to connect

2. How to use

■

Turn on the DVD player, insert a DVD.

■

Select

AAVV11

input source by using the

II NN PPUU TT

button on the

remote control.

■

If connected to

AAVV IINN 22

, select

AAVV22

input source.

■

Refer to the DVD player's manual for operating instructions.

When connecting HDMI cable

Connect the HDMI output of the DVD to the HHDDMMII //DD VV II II NN 11, 22

, or 33jack on the set.

No separated audio connection is necessary. HDMI supports both audio and video.

1. How to connect

2. How to use

■

Select

HHDDMMII11,HHDDMMII22

,or

HHDDMMII33

input source by using

the

II NN PPUU TT

button on the remote control.

■

Refer to the DVD player's manual for operating instructions.

■

If the DVD does not support Auto HDMI, you need to set the output resolution appropriately.

2

1

2

1

REMOTE

CONTROL IN

RS-232C IN

(CONTROL & SERVICE)

OPTICAL COAXIAL

DIGITAL AUDIO OUT

AUDIO OUT

ANT

CAB

( )

AUDIO

AV IN 1

VIDEO

MONO

( )

S-VIDEO

L R

S-VIDEO

AUDIO

1

2

RGB IN

COMPONENT IN

AUDIO

(RGB/DVI

RGB(PC)

1

2

VIDEO

A

HDMI/DVI IN

( )

3

2

1

HDMI-DVD OUTPUT

1

EXTERNAL EQUIPMENT SETUP

25

VCR SETUP

When connecting with an antenna

■

To avoid picture noise (interference), leave an adequate distance between the VCR and TV.

■

Use the ISM feature in the Option menu to avoid having a fixed image remain on the screen for a long period of time

(Only

Plasma TV model). If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen. This phenomenon is common to all manufactures and in consequence the manufactures warranty does not cover the product bearing this phenomenon.

Connect the RF antenna out socket of the VCR to the

AANNTTEENNNN AA//CCAA BBLLEE II NN

socket on the set.

Connect the antenna cable to the RF antenna in socket of the VCR.

1. How to connect

■

Set VCR output switch to 3 or 4 and then tune TV to the same channel number.

■

Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.

)

2. How to use

2

1

( )

REMOTE

CONTROL IN

RS-232C IN

(CONTROL & SERVICE)

OPTICAL COAXIAL

DIGITAL AUDIO OUT

ANTENNA/

CABLE IN

AUDIO

AV IN 1

AUDIO OUT

VIDEO

MONO

( )

AUDIO

S-VIDEO

L R

S-VIDEO VIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

Wall Jack

Antenna

1

2

EXTERNAL EQUIPMENT SETUP

26

EXTERNAL EQUIPMENT SETUP

GG

Do not connect to both Video and S-Video at the same time. In the event that you connect both Video and the S-Video cables, only the S-Video will work.

CAUTION

When connecting with a RCA cable

GG

The picture quality is improved: compared to normal composite (RCA cable) input.

NOTE

!

Connect the

AAUUDDIIOO/VVII DD EE OO

jacks between TV and VCR. Match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red)

1. How to connect

2. How to use

■

Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.

)

■

Select

AAVV11

input source by using the

II NN PPUU TT

button on

the remote control.

■

If connected to

AAVV IINN 22

, select

AAVV22

input source.

When connecting with an S-Video cable

Connect the S-VIDEO output of the VCR to the SS --VV II DD EE OO

input on the set.

Connect the audio outputs of the VCR to the

AAUUDDIIOO

input jacks on the set.

1. How to connect

2. How to use

■

Insert a video tape into the VCR and press PLAY on the VCR. (

Refer to the VCR owner’s manual.

)

■

Select

AAVV11

input source by using the

II NN PPUU TT

button on the

remote control.

■

If connected to

AAVV IINN 22

, select

AAVV22

input source.

1

2

1

GG

If you have a mono VCR, connect the audio cable from the VCR to the

AAUUDDIIOO

LL //MMOONN OO

jack of the set.

NOTE

!

REMOTE

CONTROL IN

RS-232C IN

(CONTROL & SERVICE)

OPTICAL COAXIAL

DIGITAL AUDIO OUT

AUDIO OUT

ANTEN

CABL

AUDIO

AV IN 1

VIDEO

MONO

( )

S-VIDEO

AUDIO

L R

S-VIDEO VIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

1

( )

REMOTE

CONTROL IN

RS-232C IN

(CONTROL & SERVICE)

OPTICAL COAXIAL

DIGITAL AUDIO OUT

AUDIO OUT

ANTE

CAB

AUDIO

AV IN 1

VIDEO

MONO

( )

S-VIDEO

AUDIO

L R

S-VIDEO VIDEO

OUTPUT SWITCH

ANT IN

ANT OUT

( )

1

2

EXTERNAL EQUIPMENT SETUP

27

OTHER A/V SOURCE SETUP

AV IN 2

L/ MONO

R

AUDIO

VIDEO

S-VIDEO

USB

L R

VIDEO

Camcorder

Video Game Set

Connect the

AAUUDDIIOO/VVIIDDEEOO

jacks between TV and external equipment. Match the jack colors

.

(

Video = yellow, Audio Left = white, and

Audio Right = red

)

1. How to connect

2. How to use

■

Select

AAVV22

input source by using the

II NN PPUU TT

button on the remote control.

■

If connected to

AAVV IINN 11

input, select

AAVV11

input source.

■

Operate the corresponding external equipment.

1

EXTERNAL EQUIPMENT SETUP

28

PC SETUP

EXTERNAL EQUIPMENT SETUP

This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

When connecting D-sub 15 pin cable

Connect the RGB output of the PC to the

RRGGBB ((PP CC

))

jack on the set.

Connect the PC audio output to the

AAUUDDIIOO

((

RRGGBB// DD VV II

))

jack on the set.

1. How to connect

2. How to use

■

Turn on the PC and the TV.

■

Select

RRGGBB--PPCC

input source by using the

II NN PPUU TT

button

on the remote control.

2

1

( )

S-VIDEO

COMPONENT IN

C

1

2

(CO

VIDEO

AUDIO

RGB IN

AUDIO

(RGB/DVI)

RGB(PC)

RGB OUTPUT AUDIO

1

2

EXTERNAL EQUIPMENT SETUP

29

When connecting HDMI to DVI cable

Connect the DVI output of the PC to the

HHDDMMII//DDVVII IINN11, 22

or

33

jack on the set.

(Use the HDMI to DVI cable)

Connect the PC audio output to the

AAUUDDIIOO ((RRGGBB//DDVVII

))

jack on the set.

1. How to connect

2. How to use

■

Turn on the PC and the TV.

■

Select

HHDDMMII11,HHDDMMII22 orHHDDMMII33

input source by using the

II NN PPUU TT

button on the remote control.

2

1

( )

AV IN 1

AUDIO OUT

VIDEO

MONO

( )

AUDIO

S-VIDEO

COMPONENT IN

REMOTE

CONTROL IN

1

2

RS-232C IN

(CONTROL & SERVICE)

VIDEO

AUDIO

OPTICAL COAXIAL

DIGITAL AUDIO OUT

HDMI/DVI IN

RGB IN

AUDIO

(RGB/DVI)

L R

DVI-PC OUTPUT

RGB(PC)

ANTENNA/

CABLE IN

3

2

1

2

GG

If the PC has a DVI output and no HDMI output, a separated audio connection is necessary.

GG

If the PC does not support Auto DVI, you need to set the output resolution appropriately.

NOTE

!

EXTERNAL EQUIPMENT SETUP

30

EXTERNAL EQUIPMENT SETUP

GG

To get the the best picture quality, adjust the PC graphics card to 1920x1080, 60Hz.

GG

Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.

GG

Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC mode. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the VIDEO menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change

the PC graphic card or consult the manufacturer of the PC graphic card.

GG

Avoid keeping a fixed image on the screen for a long period of time. The fixed image may become permanently imprinted on the screen.

GG

The synchronization input form for Horizontal and Vertical frequencies is separate.

NOTES

!

EXTERNAL EQUIPMENT SETUP

31

RGB-PC, HDMI1/DVI-PC mode

Horizontal Vertical

Frequency(KHz)Frequency(Hz

)

31.469 70.08

31.469 59.94

37.879 60.31

48.363 60.00

47.776 59.87

47.720 59.799

47.130 59.65

Resolution

720x400

1360x768

640x350

* RGB-PC mode only: 640x350, 720X400

640x480

800x600

1024x768

1280x768

1366x768

Supported Display Specifications

EXTERNAL EQUIPMENT SETUP

32

EXTERNAL EQUIPMENT SETUP

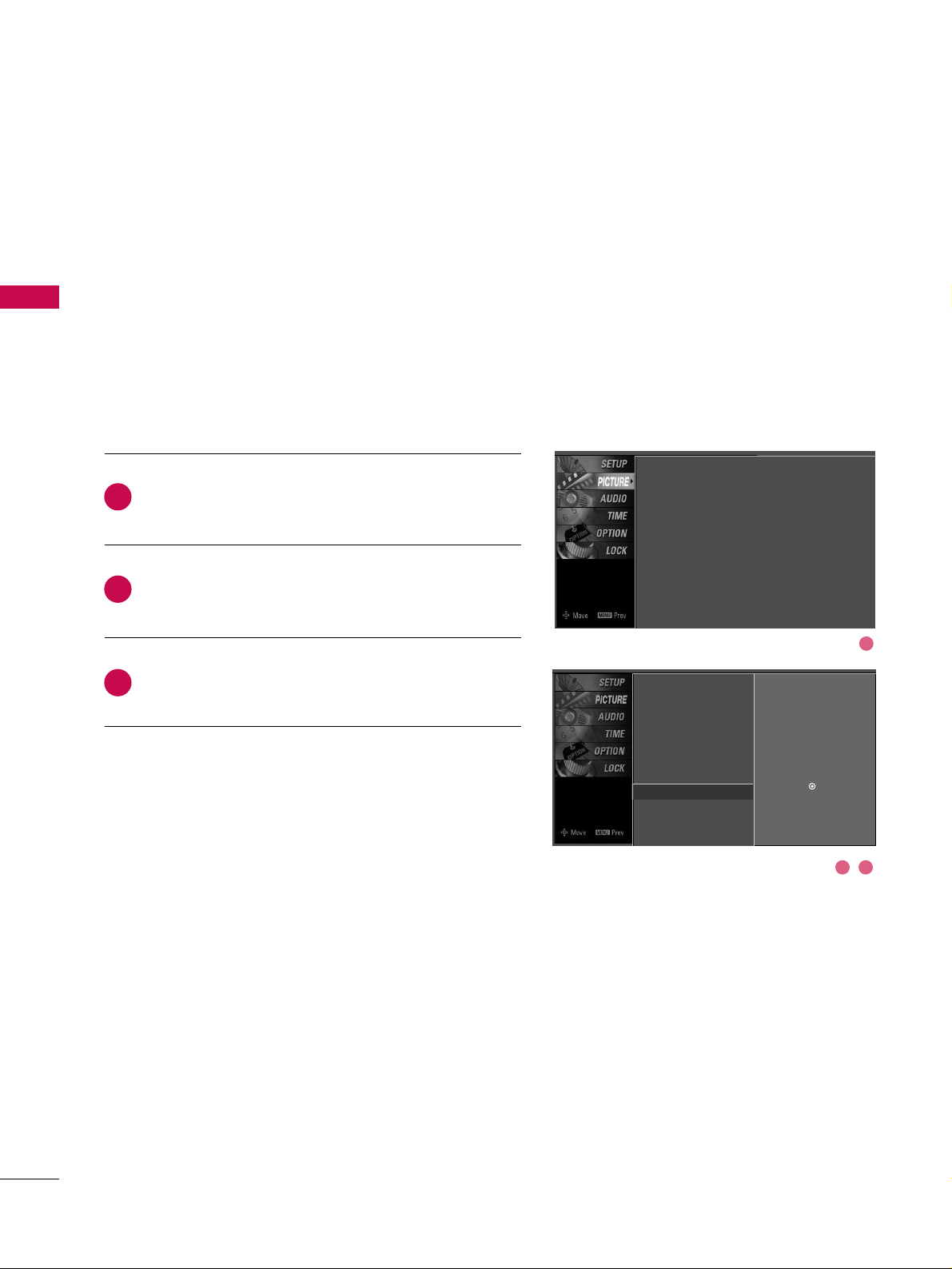

Screen Setup for PC mode

Overview

Press the

MMEE NN UU

button and then use DDor EEbutton

to select the

PP II CCTTUU RR EE

menu.

Press the GGbutton and then use DDor EEbutton to select

SS ccrree ee nn

.

Press the

GG

button to enter the screen adjustment

menu.

When the RGB input, of the set is connected to a PC Output, Select RGB-PC with using the

IINNPPUUTT

button on the

remote control. When you change the resolution, select the proper resolution

in present input to see the best picture appearance.

2

3

1

Picture Mode

Color Temperature

XD

Advanced

Aspect Ratio

Picture Reset

Screen

G

Selection ( Gor ) leads you to the screen adjustment menu.

Picture Mode : User1

Color Temperature : Cool

XD

Advanced

Aspect Ratio : 16:9

Picture Reset

Screen

1

2 3

EXTERNAL EQUIPMENT SETUP

33

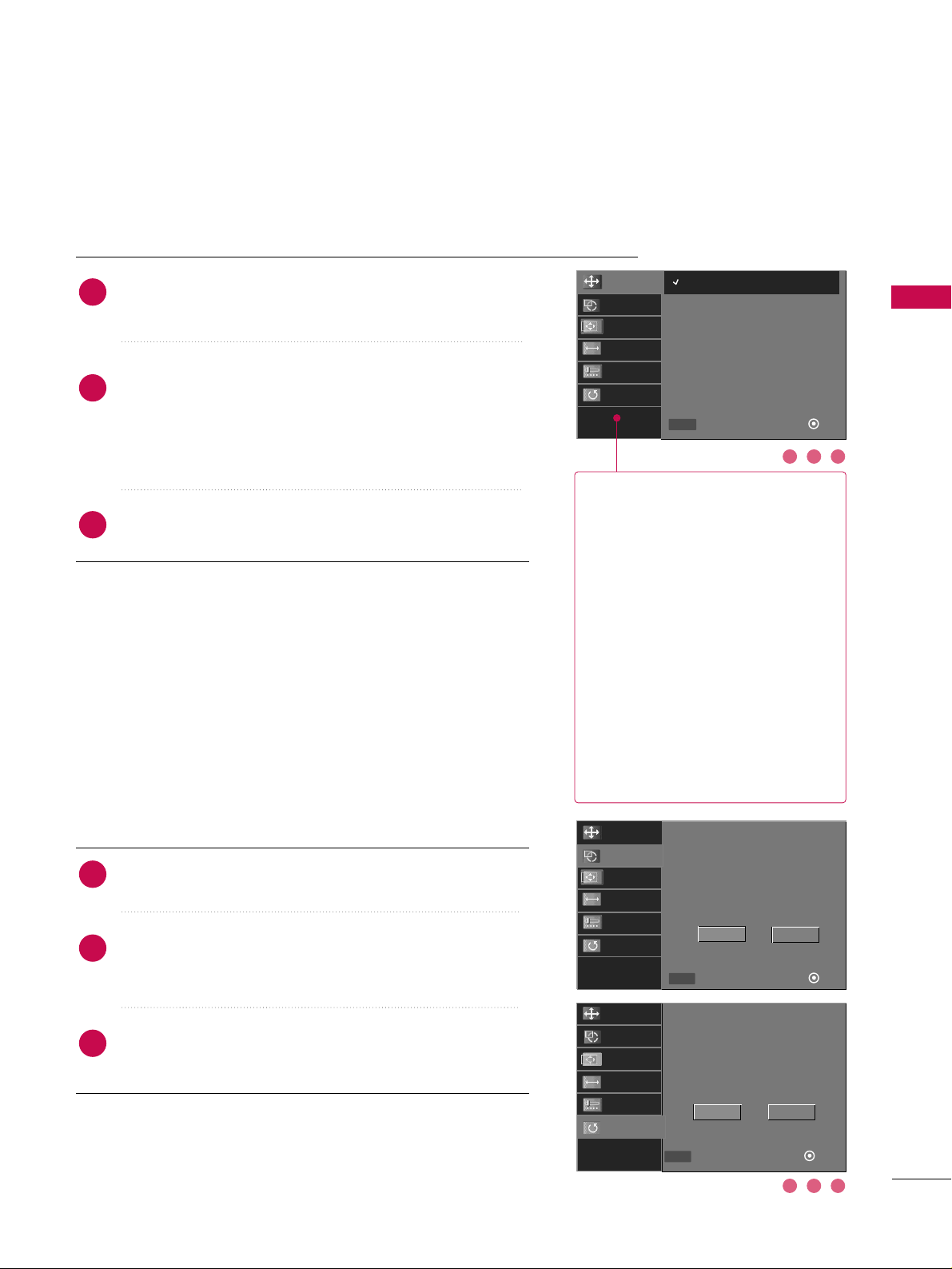

RReessoolluuttiioonn

XGA(1024, 1280, 1360) isn’t

distinguished because of having

the same H/V Sync Time. This function is you to select the Default Sync Time.

PPoossiittiioonn

This function is to adjust picture to left/right and up/down as you prefer.

SSiizzee

This function is to minimize any vertical bars or stripes visible on the screen background. And the horizontal screen size will also change.

PPhhaassee

This function allows you to remove any horizontal noise and clear or sharpen the image of characters.

Use DDor EEbutton to select

RReessoolluuttiioonn, PPoossiittiioonn, SSiizzee

,

or

PPhhaassee

.

Press the

EENNTTEERR

button and then use

DD EE

FF GG

button to make appropriate adjustments.

■

The

PPhhaassee

adjustment range is

--1166~++1166

.

■

The

SSiizzee

adjustment range is

--3300~++3300

.

Press the

EENNTTEERR

button.

Adjustment for screen Resolution, Position, Size, and Phase

Use DDor EEbutton to select

RReesseett

or

AAuuttoo

.

Press the

EENNTTEERR

button and then use

FF

or GGbutton to

select

YYeess

.

Press the

EENNTTEERR

button.

Auto Configuration and Initializing (Reset to original factory values)

2

3

1

2

3

1

To initialize the adjusted values.

2 31

Initialize Settings.

Yes No

Select

FF GG

MENU

Resolution

Auto Config.

Position

Size

Phase

Reset

Resolution

Auto Config.

Position

Size

Phase

Reset

Select

DD

EE

MENU

1024 x 768

1280 x 768

1360 x 768

Resolution

Auto Config.

Position

Size

Phase

Reset

Auto config.

Yes

No

Select

FF GG

MENU

EXTERNAL EQUIPMENT SETUP

34

USB IN SETUP

EXTERNAL EQUIPMENT SETUP

The TV has a special signal output capability which allows you to hook up the second TV or monitor.

AV IN 2

L/ MONO

R

AUDIO

VIDEO

S-VIDEO

USB

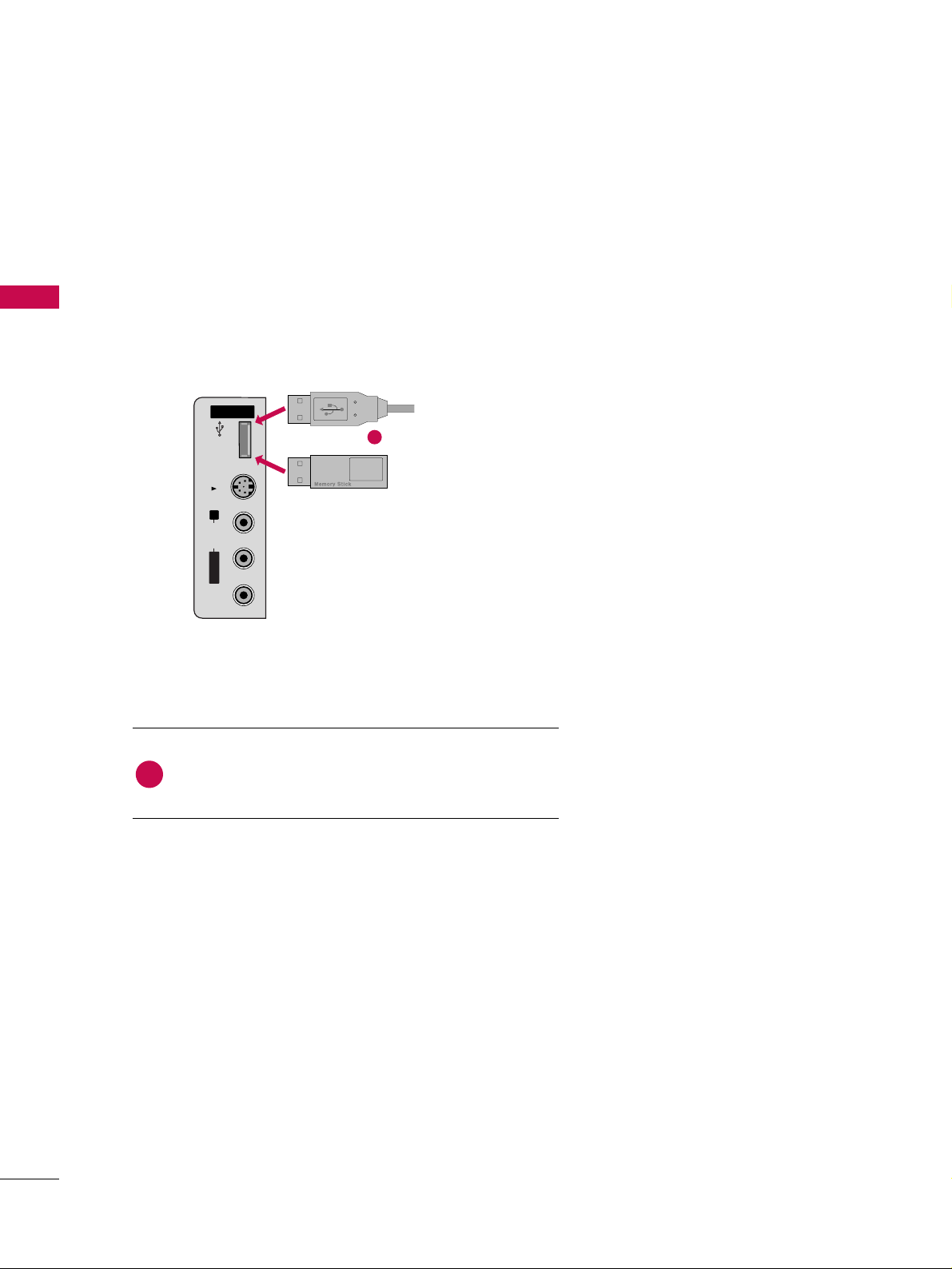

Connect the USB device to the

UUSS BB II NN

(or

UUSSBB

) jack

on the side of TV.

1. How to connect

1

2. How to use

■

After connecting the

UUSS BB II NN

(or

UUSSBB

) jack, you use the

function. (

GG

pp..4488

)

MEDIAMEDIA

HOST HOST

1

or

EXTERNAL EQUIPMENT SETUP

35

AUDIO OUT SETUP

Send the TV’s audio to external audio equipment via the Digital Audio Output (Optical)port.

GG

When connecting with external audio equipments, such as amplifiers or speakers, please turn the TV speakers off. (

GG

pp..7711

)

NOTE

!

GG

Do not look into the optical output port. Looking at the laser beam may damage your vision.

GG

Block the SPDIF out(optical/coaxial) about the contents with ACP(Audio Copy Protection) function.

CAUTION

Connect one end of the optical or coaxial cable to the TV’s OOPP TTIICC AALL

or

CCOOAAXXIIAALL

port of

DDIIGGIITTAALL AAUUDDIIOO OOUUTT

.

Connect the other end of the optical or coaxial cable to the digital audio input on the audio equipment.

Set the “TV Speaker option - Off ” in the AUDIO menu. (

GG

pp..7711

). See the external audio equipment instruction manual

for operation.

1. How to connect

2

3

1

Connect audio outputs to the TV’s

AAUUDDIIOO OOUUTT

jacks.

Set the “TV Speaker option - Off” in the AUDIO menu. (

GG

pp.. 7711

). See the external audio equipment instruction

manual for operation.

1. How to connect

2

1

Analog

Digital

REMOTE

CONTROL IN

RS-232C IN

(CONTROL & SERVICE)

OPTICAL COAXIAL

DIGITAL AUDIO OUT

ANTENNA/

CABLE IN

AV IN 1

AUDIO OUT

VIDEO

MONO

( )

AUDIO

S-VIDEO

L R

AUDIO

1

( )

REMOTE

CONTROL IN

RS-232C IN

(CONTROL & SERVICE)

ANTENNA

CABLE IN

AV IN 1

AUDIO OUT

VIDEO

MONO

( )

AUDIO

S-VIDEO

OPTICAL

DIGITAL AUDIO OUT

COAXIAL

1

2

WATCHING TV / CHANNEL CONTROL

36

REMOTE CONTROL FUNCTIONS

WATCHING TV / CHANNEL CONTROL

When using the remote control, aim it at the remote control sensor on the TV.

APM

CC

AUTO DEMO

M/C EJECT

TV INPUTTV INPUT

STBSTB

MENU

BRIGHT +

B

RIGHT -

TIMER

RATIO

SIMPLINK

BACKBACK

TV INPUT

STB

BACK

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT

MEDIA HOSTMEDIA HOST

MEDIA HOST

MENU

BRIGHT +/-

THUMBSTICK

(Up/Down/Left

Right/ENTER)

EXIT

TIMER

RATIO

SIMPLINK

VOLUME UP

/DOWN

MUTE

FAV

CHANNEL

UP/DOWN

BACK

— (DASH)

■

Controls the mode.

■

Control video cassette recorders or DVD players.

Displays the main menu.

■

Adjust brightness on screen.

■

It turns to the default settings brightness by changing

mode source.

■

Navigate the on-screen menus and adjust the system

settings to your preference.

Clear all on-screen displays and return to TV viewing from any menu.

Select the amount of time before your TV turns off automatically.

GG

pp..8822

Change the aspect ratio.

GG

pp..5555

See a list of AV devices connected to TV.

When you toggle this button, the SimpLink menu appears at the screen.

Increase/decrease the sound level.

Switch the sound on or off.

GG

pp..3388

Scroll through the programmed Favorite channels.

GG

pp..4422

Select available channels.

Tune to the last channel viewed.

Used to enter a program number for multiple program channels such as 2-1, 2-2, etc.

MEDIAMEDIA

HOST HOST

mode control

buttons

MEDIAMEDIAMEDIA

HOST HOST HOST

MEDIA

HOST

NUMBER button

VCR/DVD

buttons

WATCHING TV / CHANNEL CONTROL

37

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT

MEDIA HOST

Inside the Sliding Cover


SOUND

SAP

CC

MARK

USB EJECT

Adjust the factory preset picture depend on the viewing environment.

GG

pp.. 5577

Select the appropriate type of sound for

type of program.

GG

pp.. 6688

Select MTS sound: Mono, Stereo, and SAP analog mode. Change the audio language DTV mode.

GG

pp.. 7722

Select the Caption On/Off.

GG

pp..7755

Enter the selected functions.

GG

pp..5500

Remove the USB device.

GG

pp..3344

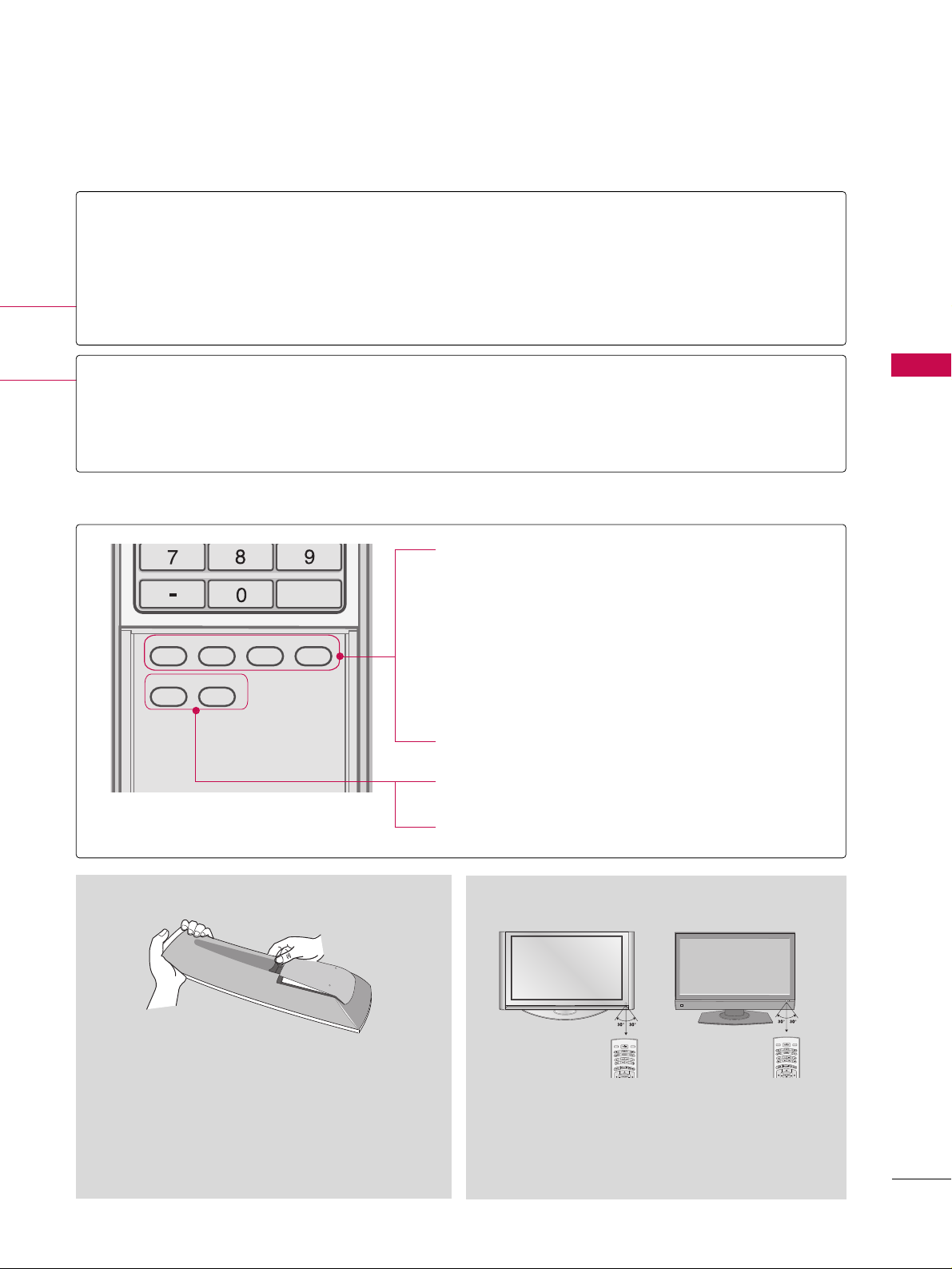

Installing Batteries

■

Open the battery compartment cover on the back side and install the batteries matching correct polarity (+with +,-with -).

■

Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones.

■

Close cover.

■

Use a remote control up to 7 meters distance and 30 degree (left/right) within the receiving unit scope.

■

Dispose of used batteries in a recycle bin to preserve environment.

Remote control effective range

POWER

TV INPUT

INPUT

MODE

MEDIAMEDIAMEDIA

HOST HOST HOST

MEDIA

HOST

Turns your TV or any other programmed equipment on or off, depending on the mode.

In AV 1-2, Component 1-2, RGB-PC, HDMI1, HDMI2 and HDMI3 input sources, screen returns to the last TV channel.

External input modes rotate in regular sequence: Antenna, Cable, AV1-2, Component 1-2, RGB-PC, HDMI1, HDMI2, HDMI3 (Antenna, Cable, AV 1-2, Component 1-2, RGB-PC, HDMI1, HDMI2, HDMI3 input sources are linked automatically, only if these are connected ).

Select the remote operating mode: TV, DVD, VCR, AUDIO, CABLE or STB. * If the mode of another product is selected, a button on the remote control which is not used

for the selected product can control the TV.

Enter to the mode.

MEDIAMEDIA

HOST HOST

MARK

SOUND

USB EJECT


SAP

BACK

CC

LIVE TV

INPUT

MODE

D

-

AY +

Y

A

D

LIVE TV

INPUT

MODE

DAY +

-

Y A D

WATCHING TV / CHANNEL CONTROL

38

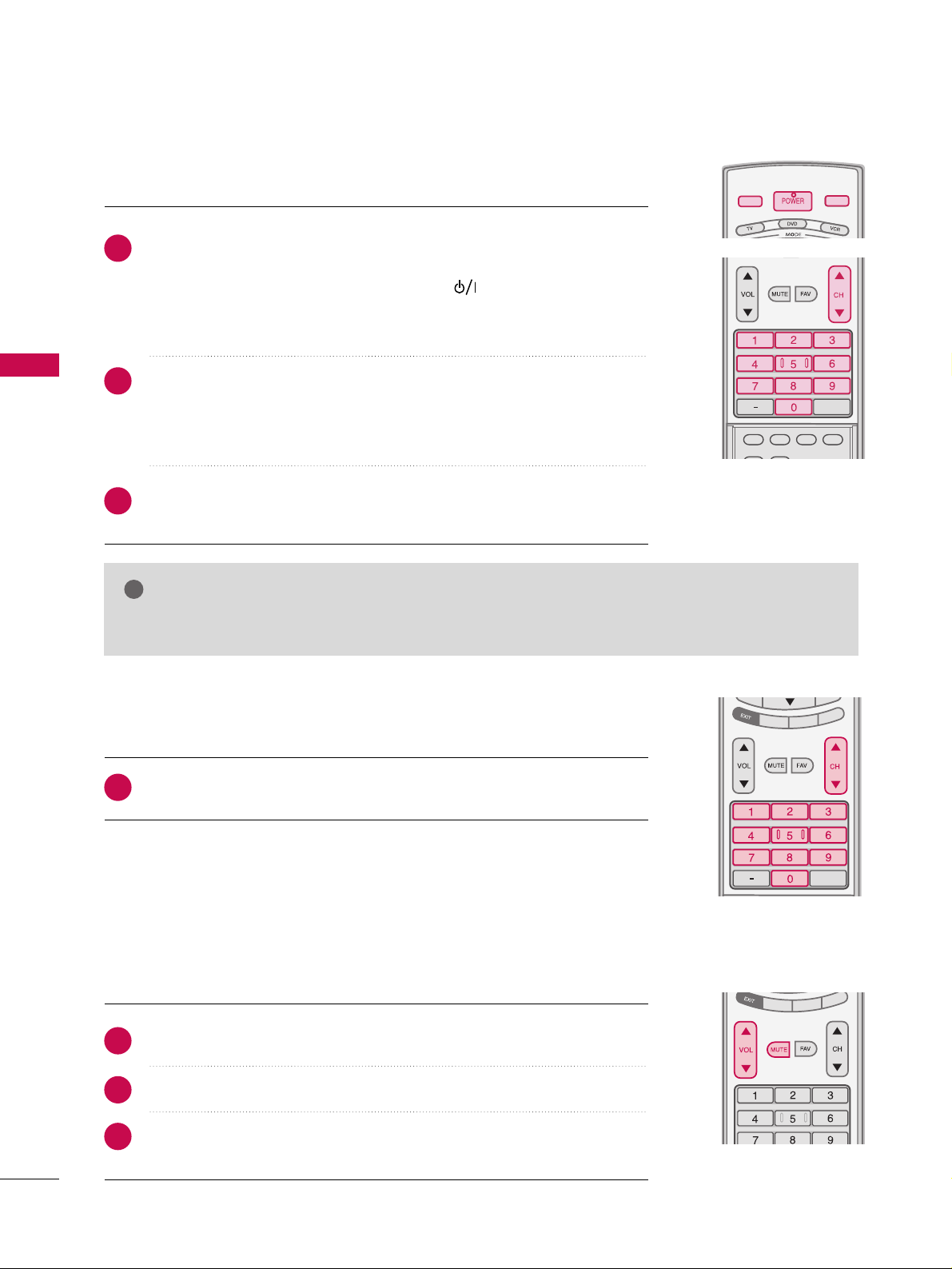

TURNING ON TV

WATCHING TV / CHANNEL CONTROL

NOTE

!

GG

If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

First, connect power cord correctly. At this moment, the TV switches to standby mode.

■

In standby mode to turn TV on, press the ,

IINNPPUUTT,CCHH ((

DD

or

EE

))

button on the TV or press the

PPOOWWEERR, IINNPPUUTT, TTVV IINNPPUUTT, CCHH((

DD

or

EE

)), NNuummbbeerr ((00~99))

button on the remote control.

Select the viewing source by using the

TTVV IINNPPUUTT, IINNPPUUTT

button on the

remote control.

■

This TV is programmed to remember which power state it was last set to, even if the power cord is out.

When finished using the TV, press the

PPOOWWEERR

button on the remote

control. The TV reverts to standby mode.

TV INPUTTV INPUT

INPUT

TV INPUT

STB


SOUNDSOUND

SAPSAP

CCCC

MARKMARK

USB EJECTUSB EJECT

BACKBACK

MEDIA HOST

1

2

3

TV INPUT

STB

TIMER

RATIO

SIMPLINK

BACKBACK

TV INPUT

STB

BACK

TV INPUT

STB

BACK

TV INPUT

STB

BACK

MEDIA HOST

Press the

CCHH ((

DD

or

EE

))

or

NNUUMMBBEERR

buttons to select a channel number.

1

VOLUME ADJUSTMENT

CHANNEL SELECTION

Press the

VVOOLL ((

DD

or

EE

))

button to adjust the volume.

If you want to switch the sound off, press the

MMUUTTEE

button.

You can cancel the Mute function by pressing the

MMUUTTEE

or

VVOOLL ((

DD

or

EE

))

button.

TV INPUT

STB

TIMER

RATIO

S

IMPLINK

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

MEDIA HOST

Adjust the volume to suit your personal preference.

1

2

3

WATCHING TV / CHANNEL CONTROL

39

ON-SCREEN MENUS SELECTION

Press the

MMEENNUU

button and then use DDor EEbutton to select the each menu.

Press the

GG

button and then use

DD EE FF GG

button to display the available menus.

Your TV's OSD (On Screen Display)may differ slightly from what is shown in this manual.

2

1

SETUP


TIME

Auto Tuning

Manual Tuning

Channel Edit

AUDIO

Picture Mode : User1

Color Temperature : Cool

XD

Advanced

Aspect Ratio : 16:9

Picture Reset

Screen

Sound Mode : Standard

Auto Volume : On

Balance : 0

TV Speaker : On

Clock : Oct 19, 2006, 03:44 AM

Off Time : Off

On Time : Off

Sleep Time : Off

Auto Sleep : Off

Language : English

Input Label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

OPTION

LOCK

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

For USA

For Canada

Only Plasma TV model

WATCHING TV / CHANNEL CONTROL

40

CHANNEL SETUP

WATCHING TV / CHANNEL CONTROL

Press the

MMEE NN UU

button and then use DDor EEbutton

to select the

SS EE TT UU PP

menu.

Press the GGbutton and then use DDor EEbutton to select

AAuutt oo TT uu nnii nngg

.

Press the

EENN TTEE RR

button to begin the channel search.

Allow

AAuutt oo TT uu nnii nngg

to complete the channel search

cycle for

AANN TTEENNNNAA

and

CC AABBLLEE

.

Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list.

Run Auto Tuning again after any Antenna/Cable connection changes.

A password is required to gain access to Auto Tuning menu if the Lock System is turned on.

2

3

1

TV INPUTTV INPUT

STBSTB

BRIG

HT +

BRI

GHT -

TIMER

R

A

TIO

S

IMPLINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Auto Scan (Auto Tuning)

Auto Tuning

G

Manual Tuning

Channel Edit

Selection ( Gor ) leads you to the Auto Tuning screen.

Auto Tuning

Manual Tuning

Channel Edit

Selection ( Gor ) leads you to the Auto Tuning screen.

NOTE

!

Analog TV antenna Digital DTV antenna Analog CATV cable

Digital CADTV cable

Processing Auto Tuning...

DTV Ch.23

Found Channel(s): 16

Press to stop the current scan and start ANALOG ANTENNA channel scan.

MENU Prev

Manual Tuning

Channel Edit

1

2

3

WATCHING TV / CHANNEL CONTROL

41

A password is required to gain access to Manual Tuning menu if the Lock System is turned on.

If selecting DTV or CADTV input signal, you can view the on-screen signal strength monitor to see the quality of the signal being received.

Press the

MMEE NN UU

button and then use

DD

or EEbutton

to select the

SSEETTUUPP

menu.

Press the

GG

button and then use DDor EEbutton to

select

MMaannuuaall TTuunniinngg

.

Press the

GG

button and then use DDor EEbutton to

select

TTVV, DDTTVV, CC AATTVV

, and

CC AADDTTVV

.

Press the GGbutton and then use DDor EEbutton to select channel you want to add or delete.

Press the

EENNTTEERR

button to add or delete the channel.

Press

EEXXIITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

TV INPUTTV INPUT

STBSTB

BRIG

HT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

2

1

4

3

6

5

NOTE

!

GG

This digital channel number is a physical channel number, which is different from the normal channel number shown in Channel Edit.

Add/Delete Channel (Manual Tuning)

Auto Tuning

Manual Tuning

G

Channel Edit

Select channel type and RF-channel number.

DTV 2

Auto Tuning

Manual Tuning

Channel Edit

Select channel type and RF-channel number.

DTV

GG

12

Press to delete the channel.

DTV 12-0

DD EE

Bad Normal Good

Auto Tuning

Manual Tuning

Channel Edit

1

2

3 4 5

WATCHING TV / CHANNEL CONTROL

42

WATCHING TV / CHANNEL CONTROL

From the default channel list created from the Auto Tuning channel search, you can create two different types of channel lists in memory: “custom list” and “favorite channel list”.

A custom list can be created by toggling each channel on or off with ENTER button. The channels in the Custom List are displayed in black and the channels deleted from the Custom List are displayed in gray. Once a channel is highlighted you can add or delete the channel by referring to the small window at the top-left corner of the screen.

You can create your own Favorite List. Use the

FF AAVV

button on the remote control when a channel is highlighted and then add or delete the channel to/from your Favorite List.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

SSEETTUUPP

menu.

Press the

GG

button and then use DDor EEbutton to

select

CC hhaa nn nnee ll EEddiitt

.

Press the

GG

button. You will now see a screen filled

with channel numbers and a preview picture.

Use

DD EE FF GG

button to select a channel and then

use the

EENNTTEERR

button to add or delete it. Press

FFAAVV

button to add the channel to the Favorite List. The surfing icon will appear in front of that channel number.

Press

EEXXIITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

TV INPUT

STBSTB

BRIG

HT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

2

1

4

3

5

Channel Editing

Auto Tuning

Manual Tuning

Channel Edit

G

Selection (Gor ) leads you to the channel edit screen.

Auto Tuning

Manual Tuning

Channel Edit

1

2

3 4

WATCHING TV / CHANNEL CONTROL

43

INPUT LIST

Press the

II NNPPUUTT

button to display external device that is

connected to the unit, on screen. Press the

EE NNTTEERR

button to change the input to the active

external device. Use the

DD

or EEbutton to select the input

source.

TV INPUT

STBSTB

MENU

BRI

GH

T +

B

RIGH

T -

TIMER

RATIO

S

I

MPLINK

INPUT

MEDIA HOSTMEDIA HOST

AAnntteennnnaa

: Select it when watching the DTV/TV.

CCaabbllee

: Select it when watching the CADTV/CATV.

AAVV 11,, AAVV 22

: Select it when watching the VCR or external equipment.

CCoommppoonneenntt 11--22

: Select it when using the DVD or the Digital set-top box depend on connector.

RRGGBB--PPCC

: Select it when using PC depend on connector.

HHDDMMII,, HHDDMMII22,, HHDDMMII33

: Select it when using DVD, PC or Digital set-top box depend on connector.

Antenna

Cable

AV 1

AV 2

Component1

EE

Input List

AV 2

AAnntteennnnaa CCaabbllee

If all external input sources are connected:

If no external input sources are not connected:

If there is any external input source connected:

(ex: When connected only to AV 2)

AAnntteennnnaa CCaabbllee

AAVV11

AAnntteennnnaa CCaabbllee AAVV22

AAVV22 CCoommppoonneenntt11

HHDDMMII22 HHDDMMII11 RRGGBB--PPCC CCoommppoonneenntt22

2

3

1

HHDDMMII33

WATCHING TV / CHANNEL CONTROL

44

WATCHING TV / CHANNEL CONTROL

This operates only for the devices with the logo. Please check the logo.

This allows you to control and play other AV devices connected to the display through HDMI cable without

additional cables and settings.

TV INPUTTV INPUT

STBSTB

MENU

BRIGHT

+

B

RIGHT -

TIMER

RATIO

SIM

P

LINK

MEDIA HOSTMEDIA HOST

TV INPUT

STB

MEDIA HOST

MENU

Connect the HDMI/DVI IN 1, 2 or 3 terminal of the TV to the rear terminal (HDMI output) of the Simplink device with the HDMI cable.

After connecting the HDMI jack for the home theater with simplink function in the above method, connect the DIGITAL AUDIO OUT OPTICAL on the back of the TV to the DIGITAL AUDIO IN terminal on the back of the simplink device with the Optical cable.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

OO PPTTII OO NN

menu.

Press the

GG

button and then use DDor EEbutton to

select

SS iimm ppLLiinn kk

.

Press the

GG

button and then useDDor EEbutton to

select

OO nn

.

Press

EEXXIITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

NOTE

!

GG

When operating the external device with SimpLink, press the TV button among the MODE button on the

remote control.

GG

When you switch the Input source with the INPUT button on the remote control, you can stop the opera-

tion of device worked by SimpLink.

GG

When you select or operate the media device with home theater function, the speaker automatically switch-

es to home theater speaker (HT speaker).

GG

When you execute ‘Photo List, Music List ’function during DVD playback included in home theater sup-

ported the SimpLink stops and the applicable function is executed after switching the input to TV.

SimpLink Preparations

2

3

4

5

1

2

3 4

Language : English

Input label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

Language

Input Label

SimpLink

G

Key Lock

Caption

ISM Method

Low Power

Set ID

Off

On

WATCHING TV / CHANNEL CONTROL

45

TV INPUTTV INPUT

STBSTB

MENU

BR

I

GH

T +

B

RIGH

T -

TIMER

R

A

TIO

S

IMPLINK

MEDIA HOSTMEDIA HOST

SIMPL

INK

SIMPL

INK

■

DDiirr eecctt PPll aayy::

After connecting AV devices to TV, you can directly control the

devices and play media without additional settings.

■

SS ee lleecctt AAVV ddee vviicc ee::

Enables you to select one of AV devices connected to TV and

play it.

■

DDiisscc ppllaa yy bbaa cckk::

Control connected AV devices by pressing the

,,

,, , ,

,

DD EE

FF GG

,

EENNTTEERR

buttons and buttons for play, stop, pause,

fast reverse, fast forward, chapter skip.

■

PPoowweerr ooffff aallll ddeevviicceess::

When you power off TV, all connected devices are turned off.

■

SS wwiittcc hh aauuddii oo--oouutt::

Offers an easy way to switch audio-out.

(A device, which is connected to TV through HDMI cable but does not support SimpLink, does not provide this function)

SimpLink Menu

TTVV vvii eewwiinngg

: Switch to the previous TV

channel regardless of the current mode. DDII SSCC pp llaayybb aacckk

: Select and play discs. When multiple discs are available, the titles of discs are conveniently displayed at the bottom of the screen.

VVCCRR ppll aayybb aacckk

: Play and control the con-

nected VCR. HHDDDD RRee ccoorr ddiinngg ss ppllaa yy bbaacckk

: Play and

control recordings stored in HDD. AAuu ddiioo OOuu tt tt oo HHTT ssppee aakkeerr//AAuuddiioo

OO uu tt ttoo TTVV

: Select HT speaker or TV

speaker for Audio Out.

SimpLink Functions

1

2

3

4

5

GG

Selected Device

GG

When no device is connected (displayed in gray)

GG

When a device is connected (displayed in bright color)

1

2

3

4

5

After selecting the

TTVV

button of the MODE on the remote control,

press the

SS II MM PP LLII NN KK

button.

Use

DD EE FF GG

button to select the desired device and then press

the

EENNTTEERR

button.

Control connected AV devices by pressing the

, , ,

,,,

,

DDEE

FF GG

,

EENN TTEE RR

buttons.

2

1

3

21 3

WATCHING TV / CHANNEL CONTROL

46

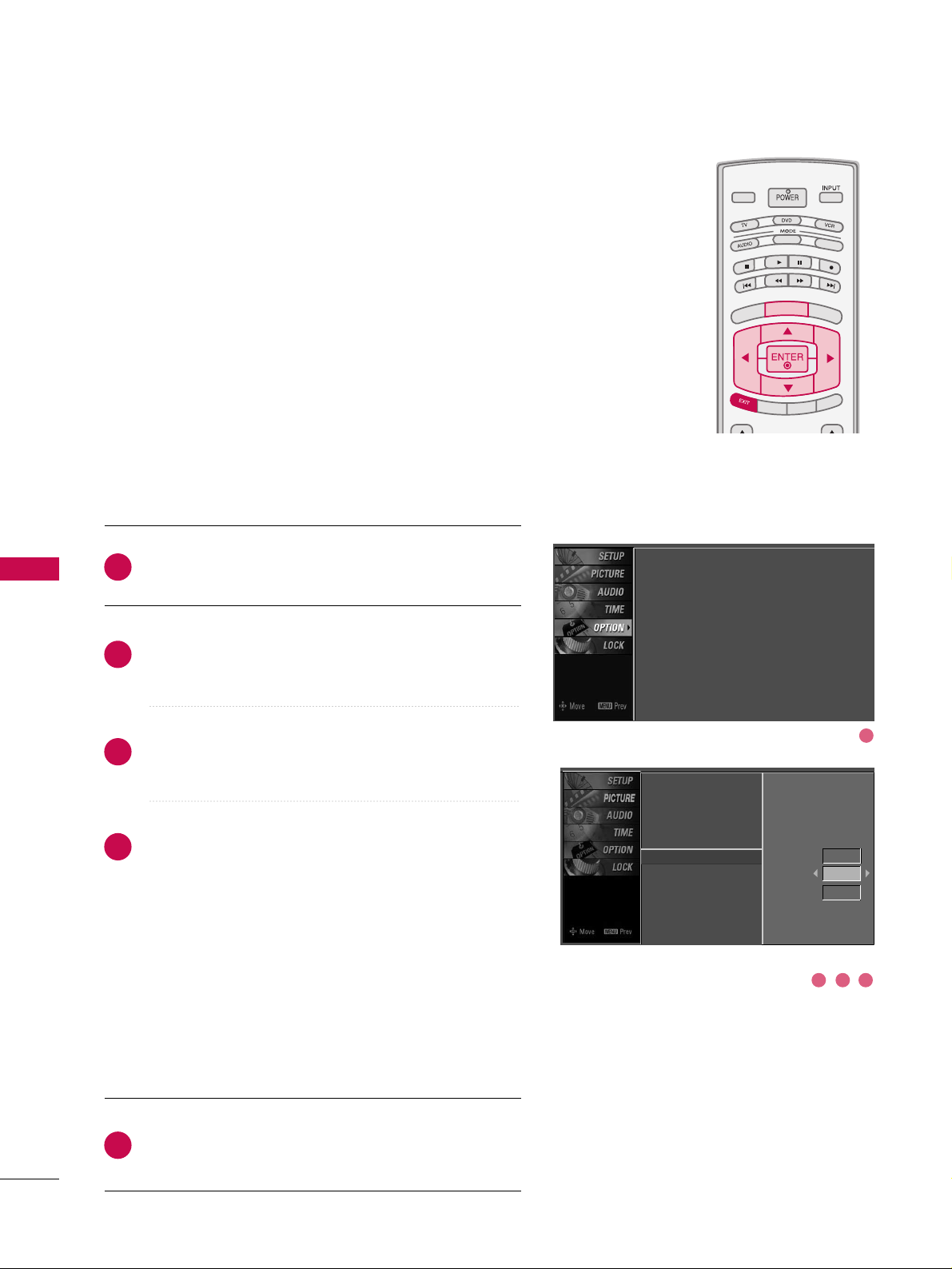

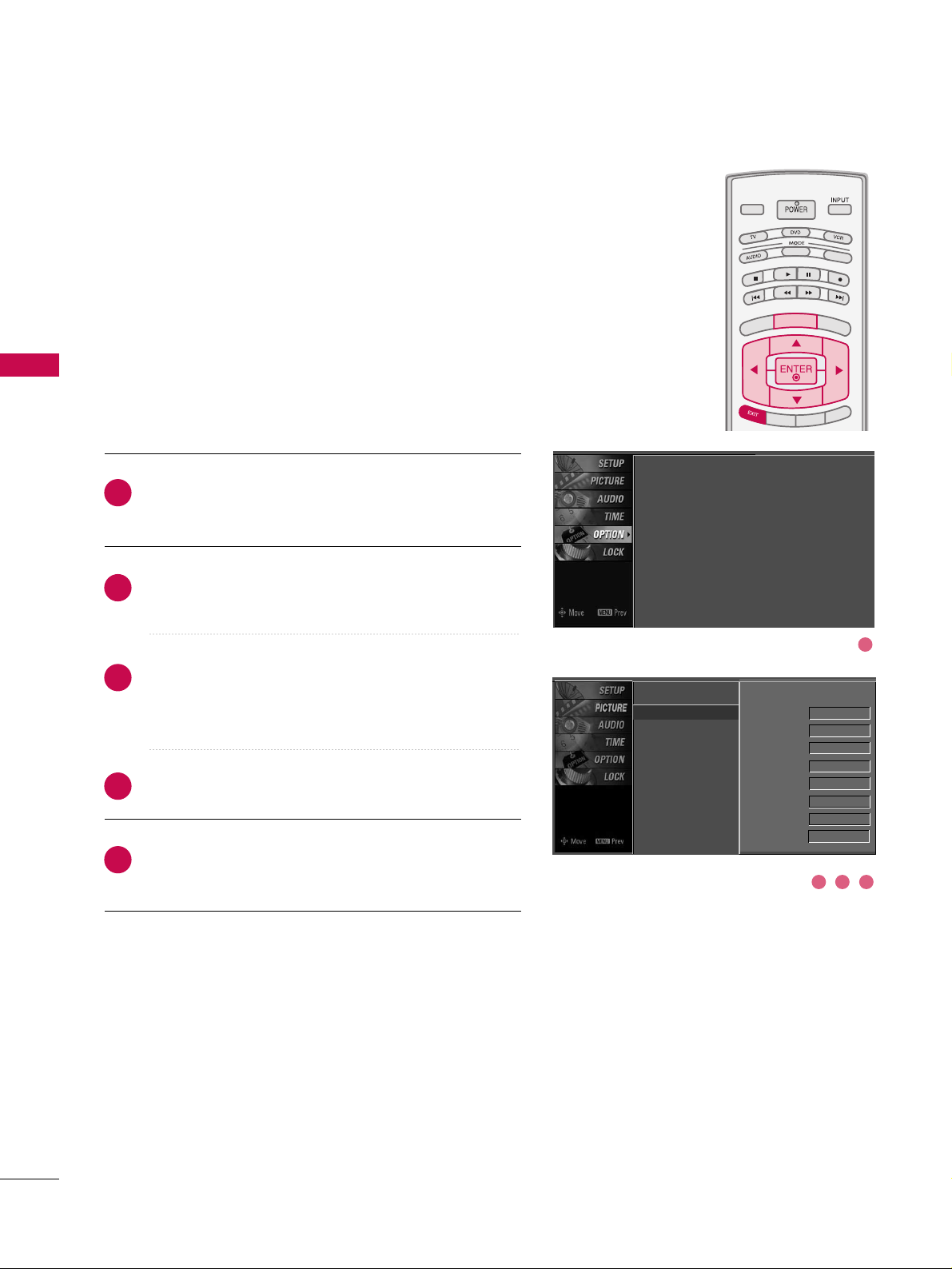

INPUT LABEL

WATCHING TV / CHANNEL CONTROL

Sets a label to each input source which is not in use when you press the INPUT button.

Press the

MMEENNUU

button and then use

DD

or EEbutton to

select the

OOPPTTIIOONN

menu.

Press the

GG

button and then useDDor EEbutton to

select

IInnppuutt LLaabbeell

.

Press the

GG

button and then useDDor EEbutton to select the source: AV1, AV2, Component1, Component2, RGB-PC, HDMI1, HDMI2 or HDMI3.

Press the

FF

or GGbutton to select the label.

Press

EEXXIITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

2

3

4

5

1

TV INPUTTV INPUT

STBSTB

BRIG

HT +

BRI

GHT -

TI

MER

R

A

TIO

S

IMP

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Language

Input label

G

SimpLink

Key Lock

Caption

ISM Method

Low Power

Set ID

AV1 Cable Box

AV2 VCR

Component1 DVD

Component2 Set Top Box

RGB-PC VCR

HDMI1 Game

HDMI2 Satellite

HDMI3 Cable Box

Language : English

Input label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

1

2 3 4

WATCHING TV / CHANNEL CONTROL

47

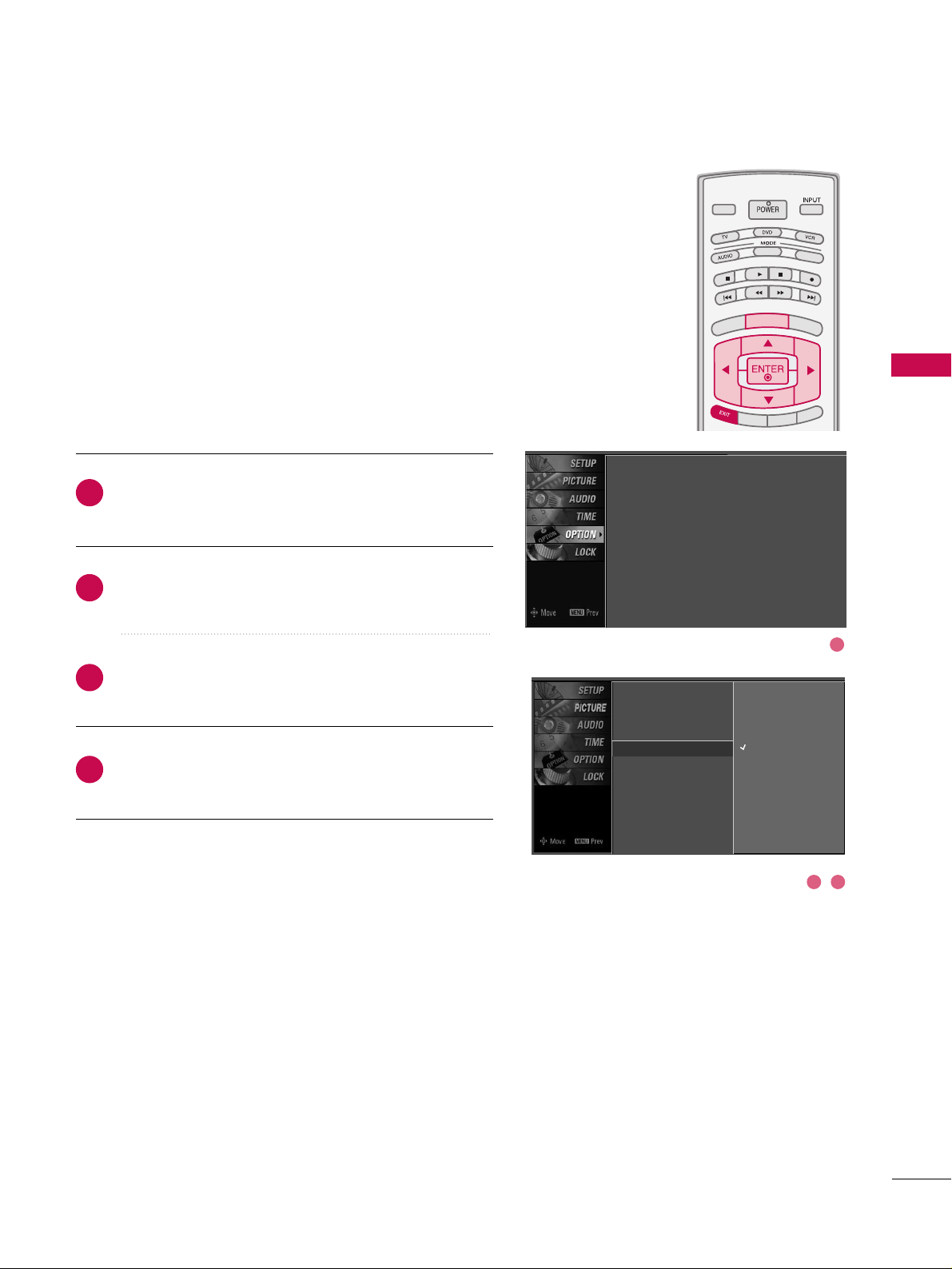

KEY LOCK

The TV can be set up so that it can only be used with the remote control.

This feature can be used to prevent unauthorized viewing by locking out the front panel controls.

This TV is programmed to remember which option it was last set to even if you turn the TV off.

Press the

MMEENNUU

button and then use

DD

or EEbutton to

select the

OOPPTTIIOONN

menu.

Press the

GG

button and then useDDor EEbutton to

select

KKeeyy LLoocckk

.

Press the

GG

button and then useDDor EEbutton to

select

OO nn

or

OOffff

.

Press

EEXXIITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

2

3

4

1

TV INPUTTV INPUT

STBSTB

BRIG

HT +

BRI

GHT -

TI

MER

R

A

TIO

SIM

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Language : English

Input label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

1

2 3

Language

Input Label

SimpLink

Key Lock

G

Caption

ISM Method

Low Power

Set ID

Off

On

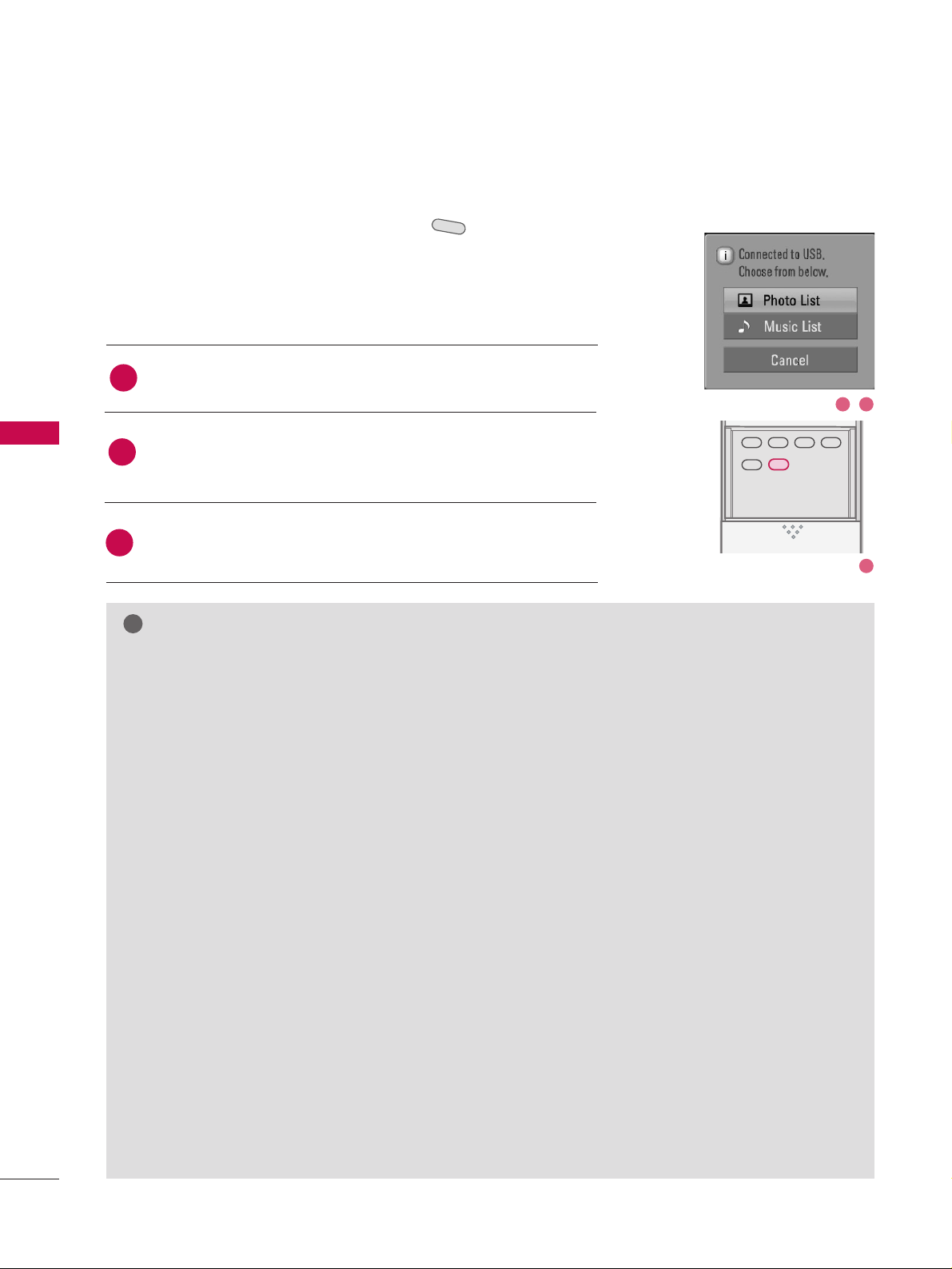

ENTRY MODES

MEDIA HOST

48

MEDIAMEDIA

HOST HOST

MEDIAMEDIAMEDIA

HOST HOST HOST

MEDIA

HOST

When you connect a USB device or press the button, this screen is displayed, automatically.

In USB device, you can not add a new folder or delete the existing folder.

MEDIA HOST

Press the

DD

or EEbutton to select the desired item.

Press the

EENNTTEERR

button to move to

PPhhoottoo LLiisstt orMMuussiicc LLiisstt

of

USB device.

Press the

UUSSBB EEJJEECCTT

button of remote control before removing

the USB device.

1

2

NOTE

!

3

BACK


SOUNDSOUND

SAPSAP

MARKMARK

USB EJECTUSB EJECT

CCCC

Media Host Menu

GG

Press the

UUSSBB EEJJEECCTT

button of remote control

before removing the USB device.

GG

Only a USB storage device is recognizable.

GG

If the USB storage device is connected through a USB hub, the device is not recognizable.

GG

A USB storage device using an automatic recognition program may not be recognized.

GG

A USB storage device which uses its own driver may not be recognized.

GG

In case of a card reader, up to four memory cards are concurrently recognizable.

GG

The recognition speed of a USB storage device may depend on each device.

GG

Please do not turn off the TV or unplug the USB device when the connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged. To unplug the USB storage device, please press the

UUSSBB EEJJEECCTT

button on the remote control, and then unplug it safely.

GG

Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may cause the product to malfunction or

fail to be played. Never forget to use only a USB storage device which has normal music files or image files.

GG

Please use only a USB storage device which was formatted as a FAT or a NTFS file system provided with the Windows operating system. In case of a storage device formatted as a different utility program which is not supported by Windows, it may not be recognized.

GG

In case of a hard disk drive (HDD) formatted as NTFS, writing and deletion are not allowable.

GG

Please connect power to a USB storage device which requires an external power supply. If not, the device may not be recognized.

GG

Please connect a USB storage device with cable is offered by USB maker. If connected with cable is not offered by USB maker or an excessively long cable, the device may not be recognized.

GG

Some USB storage devices may not be supported or operated smoothly.

GG

If the name of a folder or file is too long, it will not be displayed or recognized.

1 2

3

PHOTO LIST

MEDIA HOST

49

Screen Components

Current page/Total pages Total number of marked thumbnail

photos Corresponding buttons

on the remote control

Usable USB memory

It’s available to playback the photo file(*.jpg) in the USB device.

The On Screen Display may be different from your set. Images are an example to assist with the TV operation.

1

2 3

2

3

4

MEDIA HOST

50

MEDIAMEDIA

HOST HOST

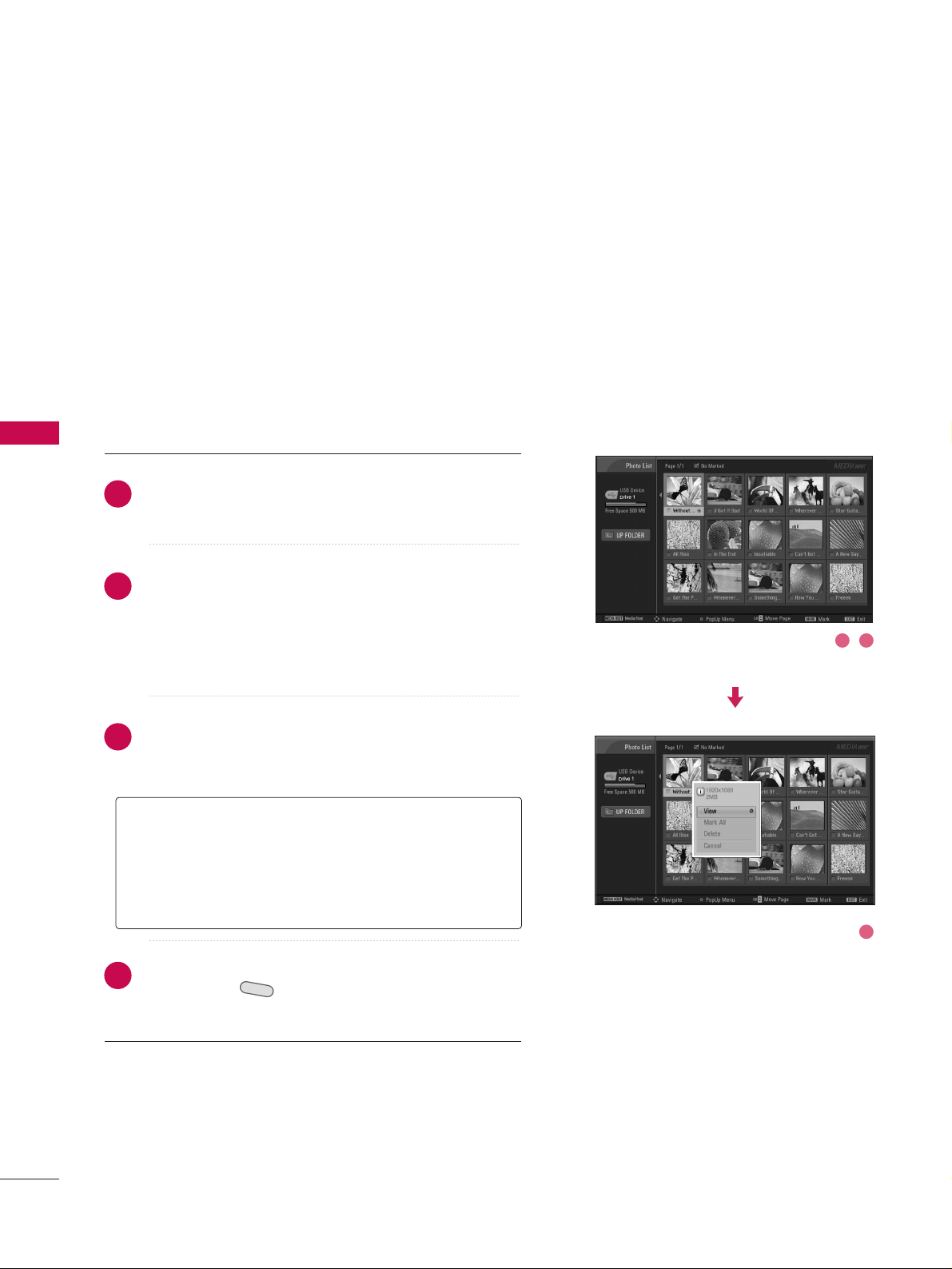

Photo Selection and PopUp Menu

As shown, up to 15 thumbnail photos are listed per page.

Use the

CC HH

DD

or

EE

button to navigate in the thumb-

nail photo page.

Use the

MMAARRKK

button to mark or unmark a photo. When one or more photos are marked, you can view individual photos or a slide show of the marked photos. If no photos are marked, you can view all photos individually or all photos in the folder in a slide show.

Use

DD EE

FF GG

button to navigate the appropriate

thumbnail photos, then press the

EENNTTEE RR

button to

show the PopUp menu.

Repeatedly, press

EEXXII TT

button to return to TV viewing or press the button to return to the Media Host menu.

MEDIA HOST

1

2

GG

VViieeww

: Display the selected item.

GG

MMaarrkk AAllll

: Mark all photos on the screen.

GG

DDeelleettee

: Delete the selected photo item.

GG

CCaanncceell

: Close the pop-up menu.

3

4

1 2

3

MEDIA HOST

51

Set up the menu in Full-Sized Screen

You can change the settings to display photos stored on a USB device, on a full-sized screen.

Detailed operations are available on full-sized photo view screen.

The aspect ratio of a photo may change the size of the photo displayed on the screen in full size.

Use the

CC HH

DD

or

EE

button to navigate the thumbnail

photo page.

Use

DD EE

FF GG

button to navigate the appropriate

thumbnail photos, then press the

EENNTTEE RR

button to

show the PopUp menu.

Use

DD

or EEbutton to Move to the

VViiee ww

menu, then

press the

EENNTTEE RR

button.

The selected photo is displayed in full size.

2

1

4

3

1 2 3

4

GG

SS lliidd ee SS hh ooww

: When no picture is selected, all photos in the current folder are displayed during slide show. When selected, the selected photos are displayed during slide show. To start slide show, press

EENNTTEE RR

button on

■ Set the time interval of the slide show in

OO ppttii oonn

.

■ A slide show continues for a maximum of 4 hours.

After 4 hours, the slide show will end and go to TV mode or external input mode.

GG

BBGG MM

: Listen to music while viewing photos in full

size. To start BGM, press

EENN TT EERR

button on .

■ Set the BGM device and album in

OO ppttii oonn

.

GG

((RRoott aattee))

: Rotate photos.

■ Rotates the photo 90°, 18 0 °, 270°, 360° clock-

wise upon

EENNTTEE RR

button on

((RRoott aattee))

.

GG

DDeell ee ttee

: Delete photos. Use FFor GGbutton to

select

DDeell ee ttee

and press

EENNTTEE RR

button.

MEDIA HOST

52

MEDIAMEDIA

HOST HOST

GG

OO ppttii oonn

: Set values for

SS lliidd ee SSppee eedd

and

MMuussii cc

ffoo lldd eerr

. Use

FF

or GGbutton to select

OO ppttii oonn

and

press

EENNTTEE RR

button.

■

Use

FF

or

GG

button and

EENNTTEE RR

button to set val-

ues. Then go to and press

EENNTTEE RR

to save

the settings.

■

You cannot change

MMuussiicc FFoolldd eerr

while BGM is

playing.

GG

HHii ddee

: Hide the menu on the full-sized screen. Use

FF

or

GG

button to select

HHii ddee

and press

EENN TT EERR

button.

■

To see the menu again on the full-sized screen, press

EENNTTEE RR

button to display.

Use

DD EE

FF GG

button to select the previous or next

photo. Use

DD EE

FF GG

button to select and control the menu

on the full-sized screen.

Use

EEXXII TT

button to go back to the photo list from

the full-sized screen.

Repeatedly, press

EEXXII TT

button to return to TV viewing or press button to return to the Media Host menu.

MEDIA HOST

NOTE

!

GG

If it is Progressive JPEG format, some photos may be not decorded.

5

6

7

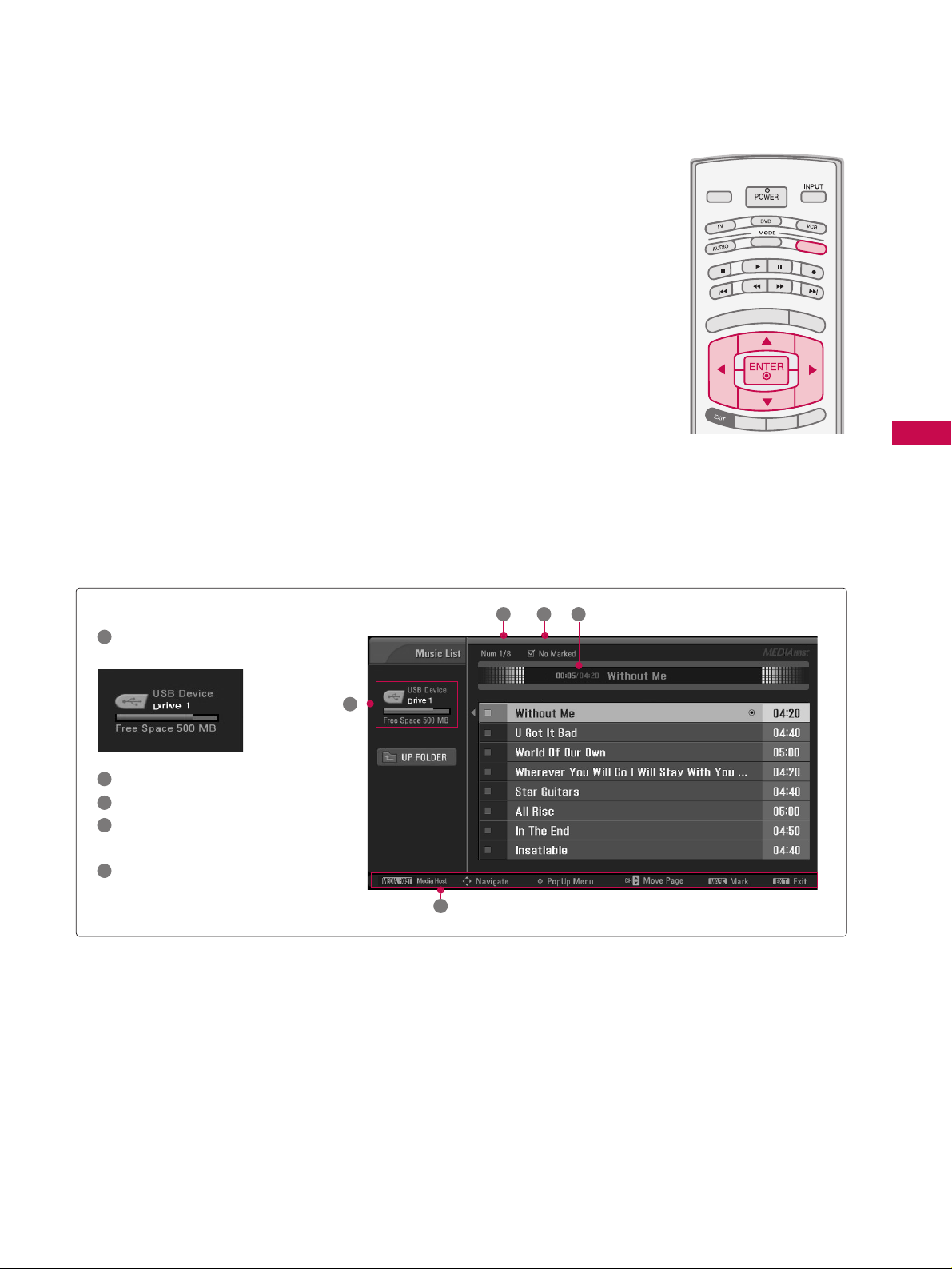

MUSIC LIST

MEDIA HOST

53

Purchased music files(*.MP3) may contain copyright restrictions. Playback of these files may not be supported by this model.

Music file on your USB device can be played by this unit.

The On Screen Display may be different from your set. Images are an example to assist with the TV operation.

TV INPUTTV INPUT

STBSTB

MENU

B

R

I

GH

T +

B

R

I

GH

T

-

TI

ME

R

RATIO

S

I

M

P

L

IN

K

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Screen Components

Current page/Total pages Total number of marked musics Current playing time/Total play-

ing time Corresponding buttons on the

remote control

Usable USB memory

1

2

3

4

5

1

2

5

3 4

MEDIA HOST

54

MEDIAMEDIA

HOST HOST

Use the

CC HH

DD

or

EE

button to navigate in the music

titles page.

Use

MMAARRKK

button to mark or unmark a music. When one or more music files are marked, the marked musics will be played in sequence. For example, if you want to listen to only one music repeatedly, just mark the music only and play it. If no music is marked, all the music in the folder will be played in sequence.

Use

DD EE

button to navigate the appropriate musics,

then press the

EENNTTEE RR

button to show up the pop-up

menu.

Repeatedly, press

EEXXII TT

button to return to TV viewing or press button to return to the Media Host menu.

■

If you don't press any button for a while during the playing, the play information box (as shown in the below) will float as a screen saver.

■

The ‘Screen Saver’?

Screen saver is to prevent screen pixel damage due to an fixed image remaining on the screen for a extended period of time.

MEDIA HOST

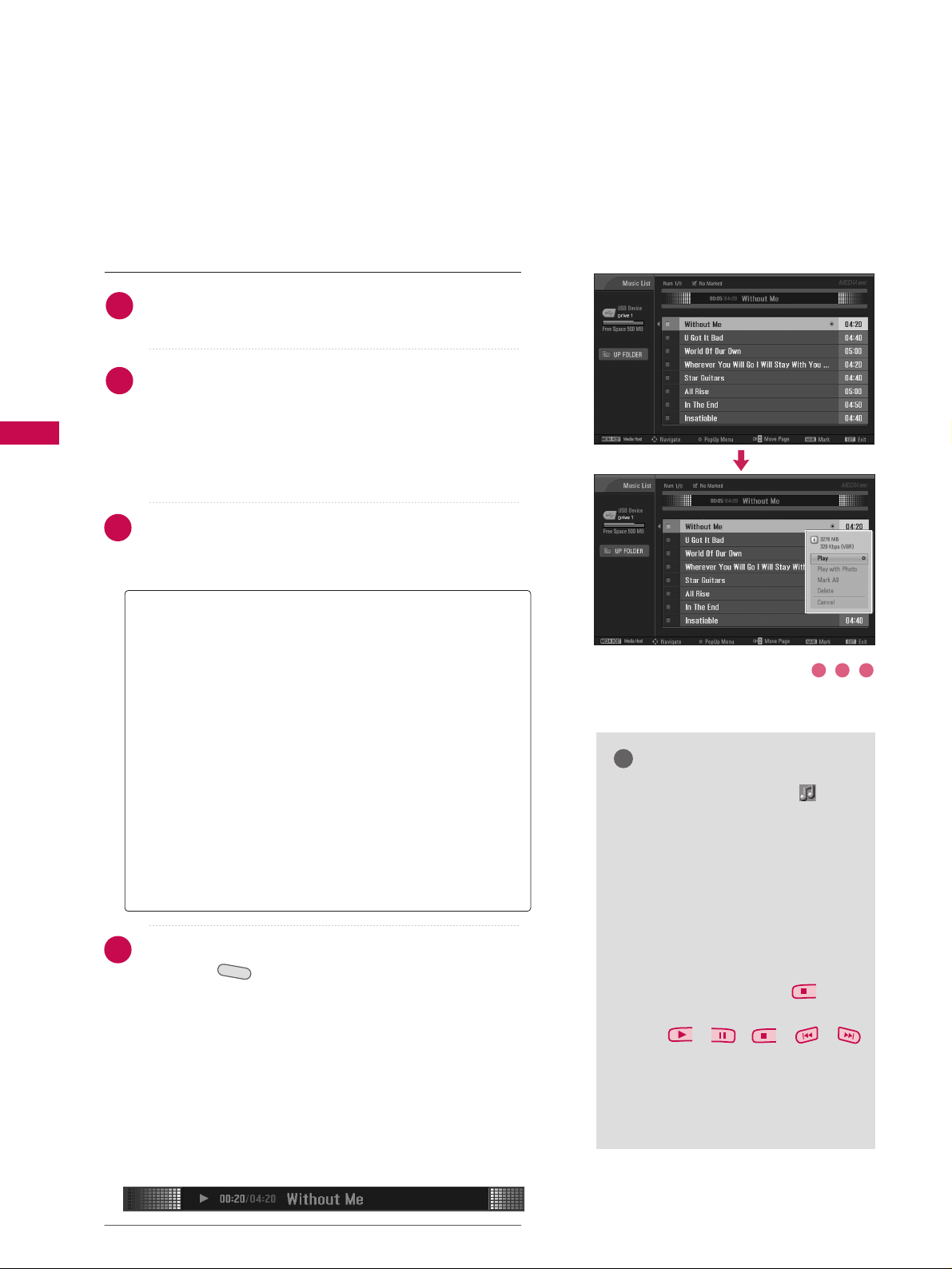

Music Selection and PopUp Menu

As shown , up to 8 music titles are listed per page.

NOTE

!

GG

When music is playing, is displayed in front of the music title.

GG

A damaged or corrupted music does not play but displays 00:00 in playtime.

GG

A music downloaded from a paid service with copyright protection does not start but displays inappropriate information in playtime.

GG

If you press

EENNTTEERR

,

EEXXIITT

buttons, screen saver is stopped.

GG

The

,,,,

buttons on the remote control are also available in this mode.

GG

It’s not avaiable to playe MP3 file under 16Kbyt.

GG

PP llaa yy

(During stop): Play the selected musics.

Once a music finishes playing, the next selected one will be played. When there are no selected musics to play, the next one in the current folder will be played. If you go to a different folder and press the

EENNTTEE RR

button, the current music in playback will

stop.

GG

SS tt oopp PPll aayy

(During playback): Stop the playing

musics.

GG

PP llaayy WWii tthh PP hh oottoo

: Start playing the selected musics

and then move to the Photo List.

GG

MMaa rrkk AAll ll

: Mark all musics in the folder.

GG

DDeell ee ttee

: Delete the selected musics.

GG

CC aann cceell

: Close the pop-up menu.

1

2

3

4

1 2 3

PICTURE CONTROL

55

PICTURE SIZE (ASPECT RATIO) CONTROL

PICTURE CONTROL

TV INPUTTV INPUT

STBSTB

MENU

BRIGHT +

BR

I

GHT

-

TI

ME

R

S

I

MP

L

IN

K

TV INPUT

STB

RATIORATIO

MEDIA HOSTMEDIA HOST

MEDIA HOST

This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV. When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be displayed.

■

RGB-PC input source use 4:3 or 16:9 aspect ratio.

■

DTV, CADTV, HDMI, or DVI input source use

JJ uusstt SSccaann

.

NOTE

!

GG

If a fixed image is displayed on the screen for a long time, the image may become imprinted on the screen and remain visible. This phenomenon is common to all manufactures and in consequence the manufactures warranty does not cover the product bearing this phenomenon.

Press the

RRAATTIIOO

button repeatedly to select the desired picture format.

■

You can also adjust

AAssppeecctt RRaattiioo

in the

PPIICCTTUURREE

menu.

1

Set by program

Selects the proper picture proportion to match the source’s image.

4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio.

16:9

Adjust the picture horizontally, in a linear proportion to fill the entire screen.

Set By Program

4:3

16:9

Set By Program

(4:3 4:3)

(16:9 16:9)

PICTURE CONTROL

56

PICTURE CONTROL

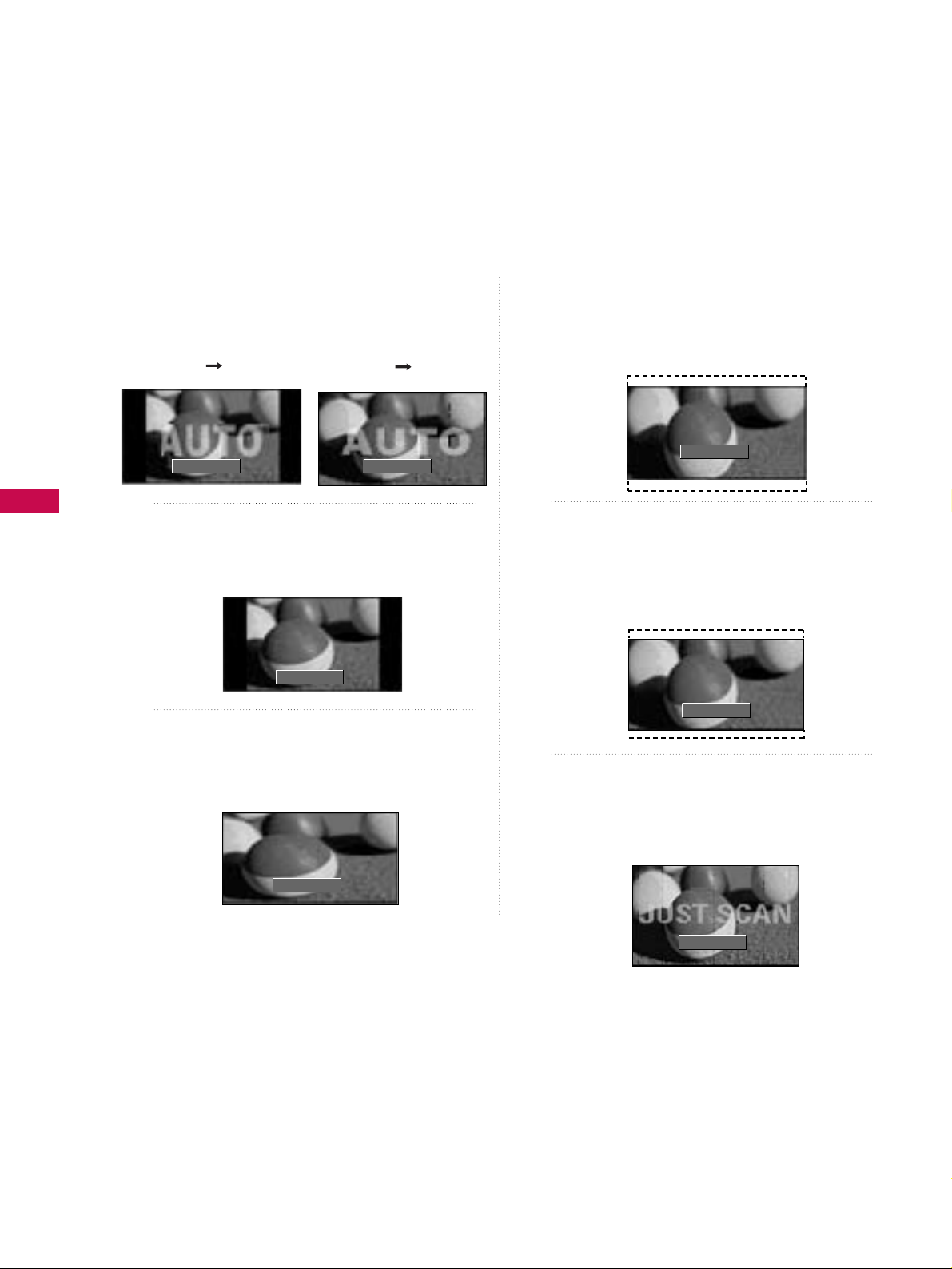

Set by program

Selects the proper picture proportion to match the source’s image.

4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio.

16:9

Adjust the picture horizontally, in a linear proportion to fill the entire screen.

Zoom 1

Choose Zoom 1 when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.

Zoom 2

Choose Zoom 2 when you want the picture to be altered, both vertically extended and cropped. The picture taking a halfway trade off between alteration and screen coverage.

Just Scan

Following selection will lead to you view the picture of best quality without loss of original picture in high resolution image.

Set By Program

4:3

16:9

Just Scan

Zoom 1

Zoom 2

Set By Program

(4:3 4:3)

(16:9 16:9)

TV INPUT

STB

BACKBACK

SOUNDSOUND

SAPSAP

CCCC

MARKMARK

USB EJECTUSB EJECT

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT


MEDIA HOST

PICTURE CONTROL

57

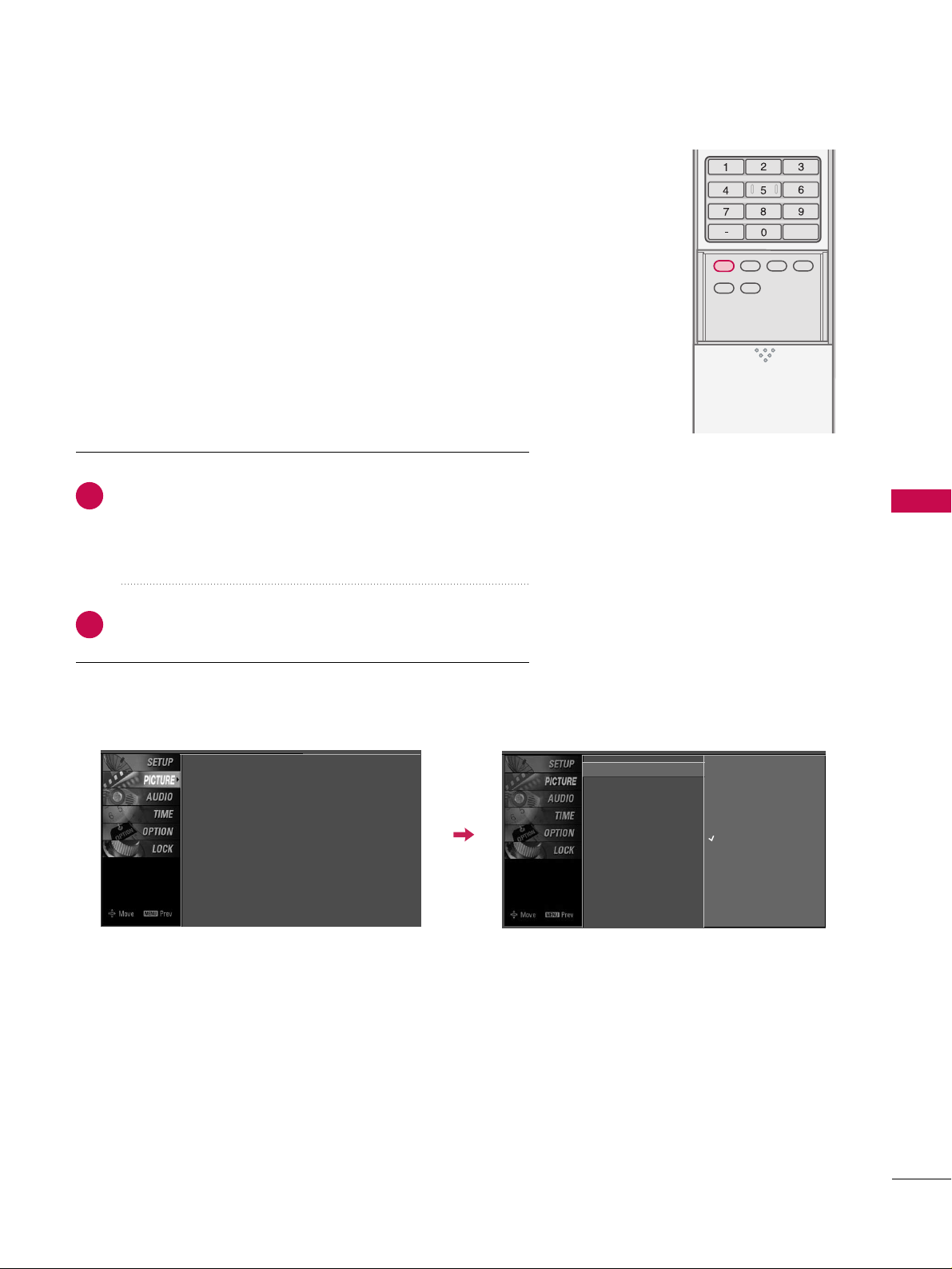

PRESET PICTURE SETTINGS

Picture Mode - Preset

Press the

PP IICCTTUU RR EE

button repeatedly to select the picture

appearance setup option as below : II nntt eell lliiggeenntt EEyyee

(LCD TV only),

DDyynnaammiicc, SS tt aann ddaarrdd

,

MMii lldd, UUsseerr 11

, and

UUsseerr 22

(your own settings).

Press the

EEXX IITT

button to save and return to TV viewing.

Picture Mode adjusts the TV for the best picture appearance. Select the preset value in the Picture Mode menu based on the program category.

II nntteellllii ggeenntt EE yy ee, DD yy nnaa mm ii cc, SStt aa nndd aa rrdd, MMii ll dd

Settings are preset for the optimum picture quality at the factory and are not adjustable.

In the

UUsseerr11

and

UUsseerr22

modes only, user can directly adjust

the contrast, brightness, color, sharpness, tint.

■

You can also use the

PPIICCTTUURREE

menu to adjust

PP iicc tt uu rree MMooddee

.

2

1

Picture Mode

G

Color Temperature

XD

Advanced

Aspect Ratio

Picture Reset

Screen

Intelligent Eye

Dynamic

Standard

Mild

User 1

User 2

Picture Mode : User1

Color Temperature : Cool

XD

Advanced

Aspect Ratio : 16:9

Picture Reset

Screen

PICTURE CONTROL

58

PICTURE CONTROL

TV INPUTTV INPUT

STBSTB

BRIG

HT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Color Tone - Preset

Choose one of three automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to cool to see less intense colors with more blue.

When selecting Picture Mode options (Dynamic, Standard and Mild),

CCoo lloorr TT eemmppee rraa ttuurree

is automatically change.

When selecting Picture Mode options (User 1 and User 2), you can choose the

CCoo lloorr TT eemmppee rraa ttuurree

.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

PP IICCTTUU RR EE

menu.

Press the GGbutton and then useDDor EEbutton to select

CCoo lloorr TTee mmppeerraatt uurree

.

Press the

GG

button and then useDDor EEbutton to

select either

CC ooooll,MMeeddiiuumm, WWaarrmm

or

UUsseerr

.

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

2

3

4

1

2 3

Picture Mode

Color Temperature

G

XD

Advanced

Aspect Ratio

Picture Reset

Screen

Cool

Medium

Warm

User

Picture Mode : User1

Color Temperature : Cool

XD

Advanced

Aspect Ratio : 16:9

Picture Reset

Screen

PICTURE CONTROL

59

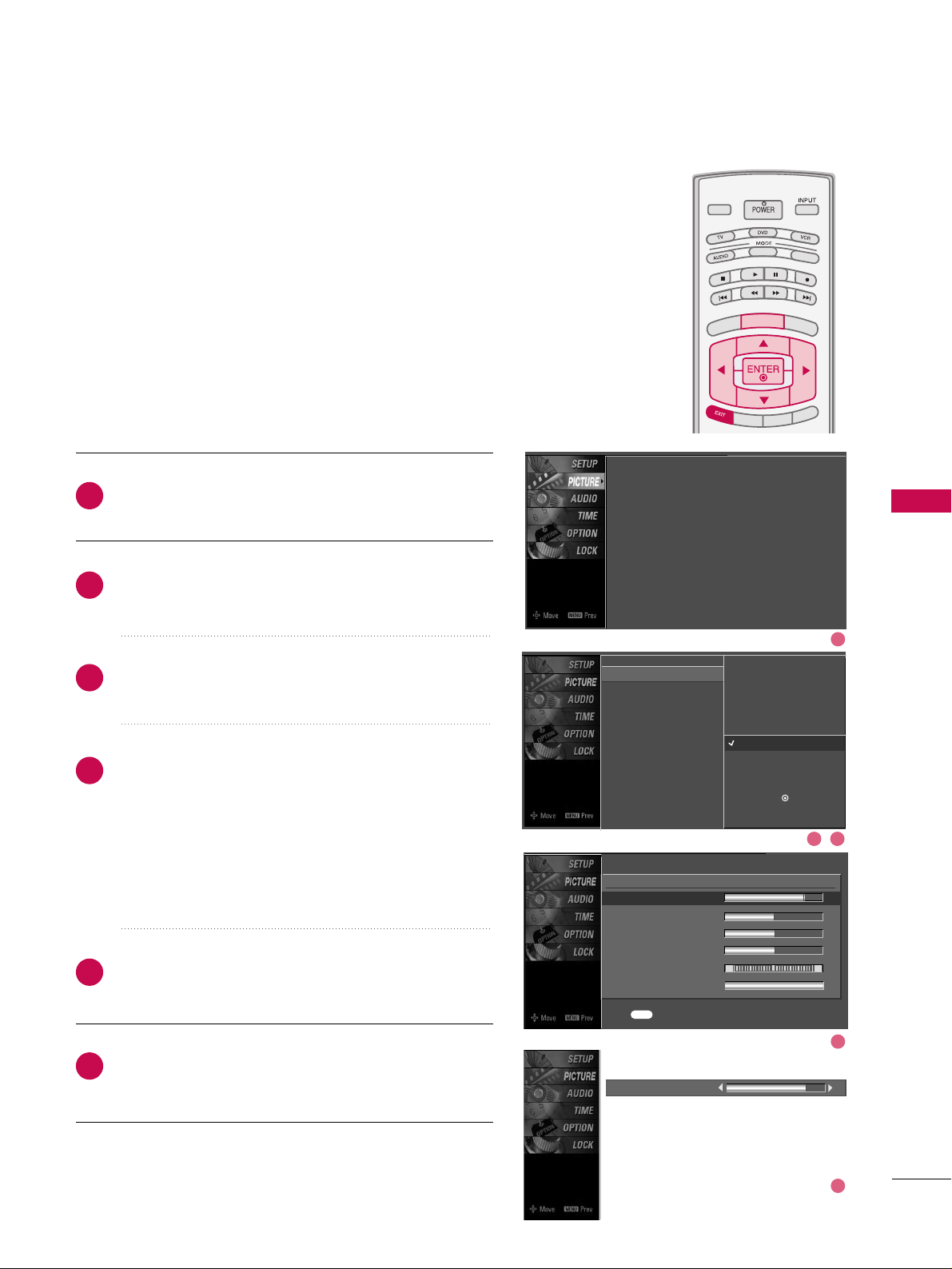

MANUAL PICTURE ADJUSTMENT

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

IMP

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Picture Mode - User Mode

Adjust the picture appearance to suit your preference and viewing situations.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

PP IICCTTUU RR EE

menu.

Press the GGbutton and then useDDor EEbutton to select

PP iicc tt uu rree MMooddee

.

Press the

GG

button and then useDDor EEbutton to

select

UUsseerr 11

or

UUsseerr 22

.

Press the

GG

button and then useDDor EEbutton to

select the desired picture option

((

CCoo nntt rraa sstt

,

BBrriigghhttnneessss,CCoolloorr,SShhaarrppnneessss

,

TTiinntt

, or

BBaacckk LLiigghhtt

))

.

■

BBaacckk LLiigghhtt

To control the brightness of the screen, adjust the brightness of LCD panel.

Press the

GG

button and then useFFor GGbutton to

make appropriate adjustments.

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

2

3

4

5

6

1

Contrast 85

EE

Picture Mode : User1

Color Temperature : Cool

XD

Advanced

Aspect Ratio : 16:9

Picture Reset

Screen

EE

User1

Contrast 85

G

Brightness 50

Color 50

Sharpness 50

Tint 0

Back Light 100

R G

Press to confirm.

MENU

Picture Mode

Color Temperature

XD

Advanced

Aspect Ratio

Picture Reset

Screen

Intelligent Eye

Dynamic

Standard

Mild

User 1

G

User 2

Selection ( Gor ) leads you to the detailed setting screen.

1

2 3

4

5

PICTURE CONTROL

60

PICTURE CONTROL

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

RATIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

You can also adjust the detailed settings (Red, Green, Blue) by selecting the

CCoolloorr TTeemm ppeerraattuurree--UUssee rr

menu.

This feature operate only if the picture mode set

UUsseerr 11

or

UUsseerr 22

.

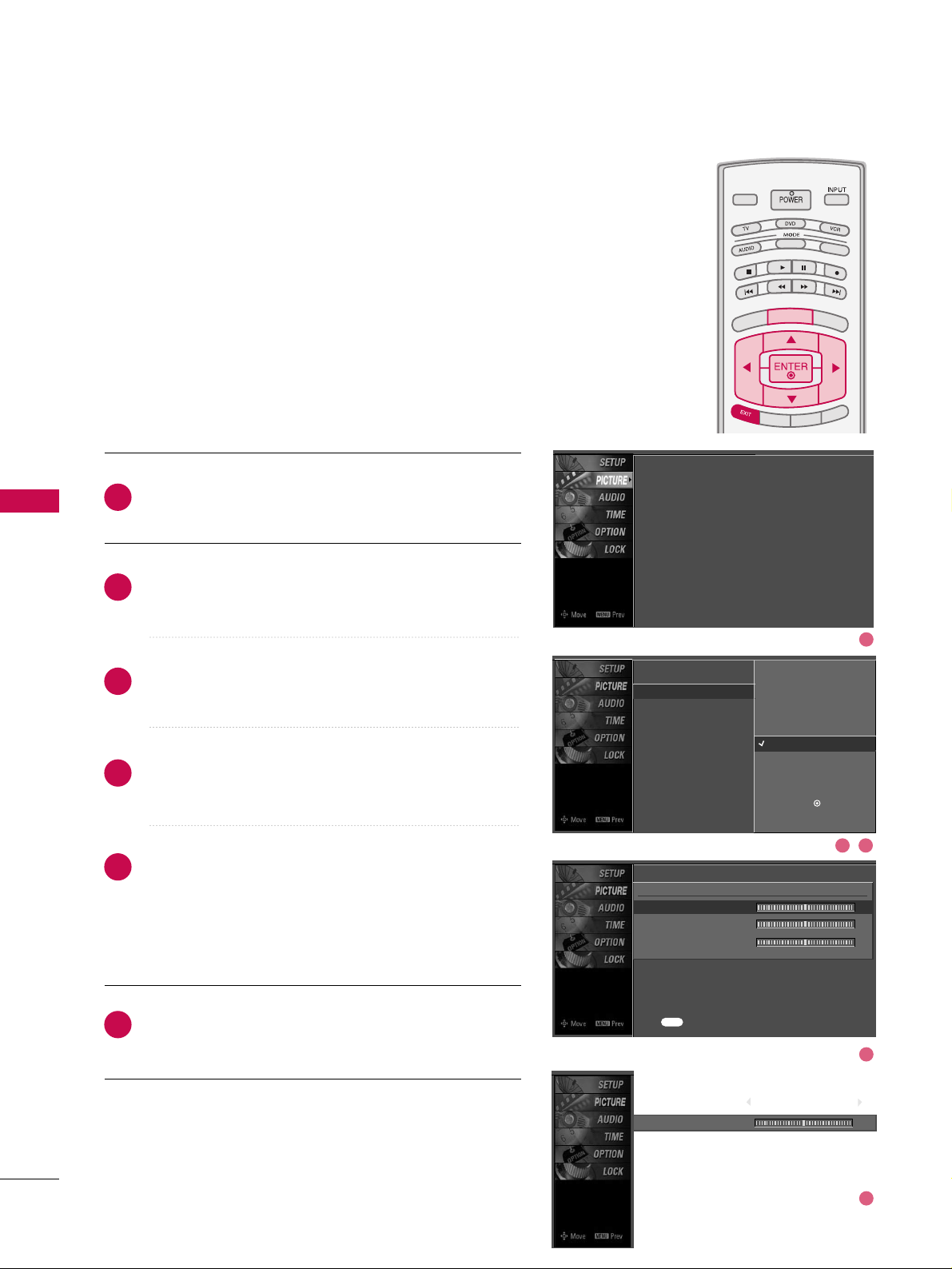

Color Tone - User Mode

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

PP IICCTTUU RR EE

menu.

Press the GGbutton and then useDDor EEbutton to select

CCoo lloorr TTee mmppeerraatt uurree

.

Press the

GG

button and then useDDor EEbutton to

select

UUsseerr

.

Press the

GG

button and then useDDor EEbutton to

select

RRee dd, GGrr eeee nn

, or

BBll uu ee

.

Press the

GG

button and then useFFor GGbutton to

make appropriate adjustments.

■

The adjustment range of

RRee dd, GGrr eeee nn

, or

BBll uu ee

is

-20~ +20.

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

2

3

4

5

6

1

Red 0

EE

Picture Mode

Color Temperature

XD

Advanced

Aspect Ratio

Picture Reset

Screen

Press to confirm.

MENU

Selection ( Gor ) leads you t o the detailed setting screen.

Cool

Medium

Warm

User

G

User

Red 0

G

Green 0

Blue 0

Picture Mode : User1

Color Temperature : Cool

XD

Advanced

Aspect Ratio : 16:9

Picture Reset

Screen

EE

1

2 3

4

5

PICTURE CONTROL

61

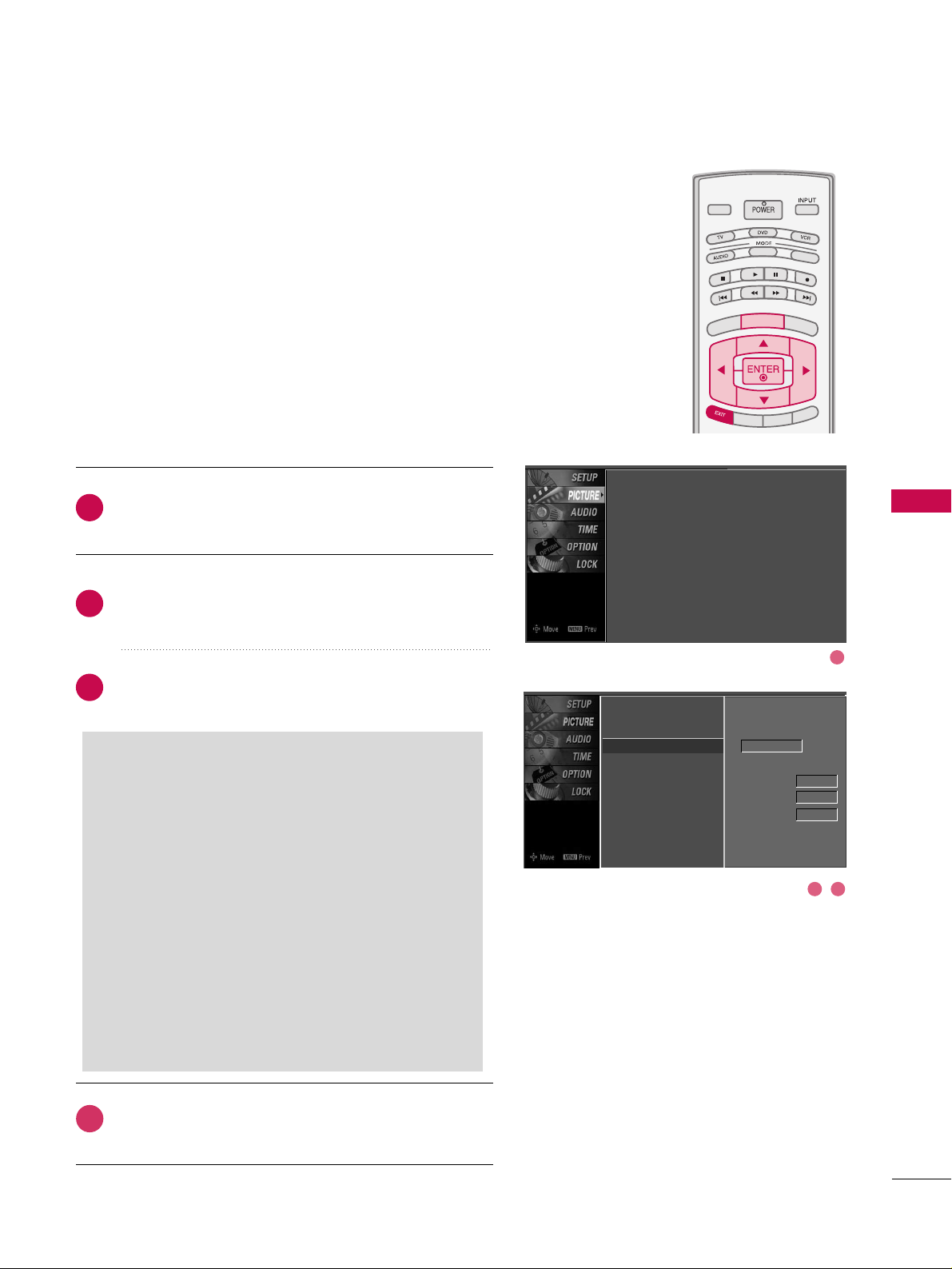

XD - PICTURE IMPROVEMENT TECHNOLOGY

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

IMP

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

PP IICCTTUU RR EE

menu.

Press the

GG

button and then useDDor EEbutton to

select

XX DD

.

Press the

GG

button and then useFFor GGbutton to

select

AAuu ttoo orMMaa nn uu aall

.

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

XD is LG Electronic’s unique picture improving technology to display a real HD source through an advanced digital signal processing algorithm.

When selecting Picture Mode options (Dynamic, Standard, and Mild), XD is automatically changed to Auto.

When selecting Picture Mode options (User 1 and User 2), you can choose the Auto / Manual.

When selecting the Manual, you can adjust the XD Contrast, XD color and XD Noise.

Picture Mode

Color Temperature

XD

G

Advanced

Aspect Ratio

Picture Reset

Screen

Manual

XD Contrast On

XD Color On

XD Noise On

2

3

4

1

SSee lleecctt iinn gg tt hhee MMaannuuaall

1. Press the

EE

button and then use DDor EEbut-

ton to select

XX DD CC oonn tt rraa sstt, XX DD CC oolloo rr

or

XX DD NN ooiissee

.

■

XX DD CC oo nn tt rraa sstt::

Optimizing the contrast automatically according to the brightness of the reflection.

■

XX DD CC oolloorr::

Adjusting the colors of the reflection automatically to reproduce as closely as possible to the natural colors.

■

XX DD NN ooiissee ::

Removing the noise up to the point where it does not damage the original picture.

2. Use the

FF

or GGbutton to select

OO nn

or

OO ffff

.

Picture Mode : User1

Color Temperature : Cool

XD

Advanced

Aspect Ratio : 16:9

Picture Reset

Screen

1

2 3

PICTURE CONTROL

62

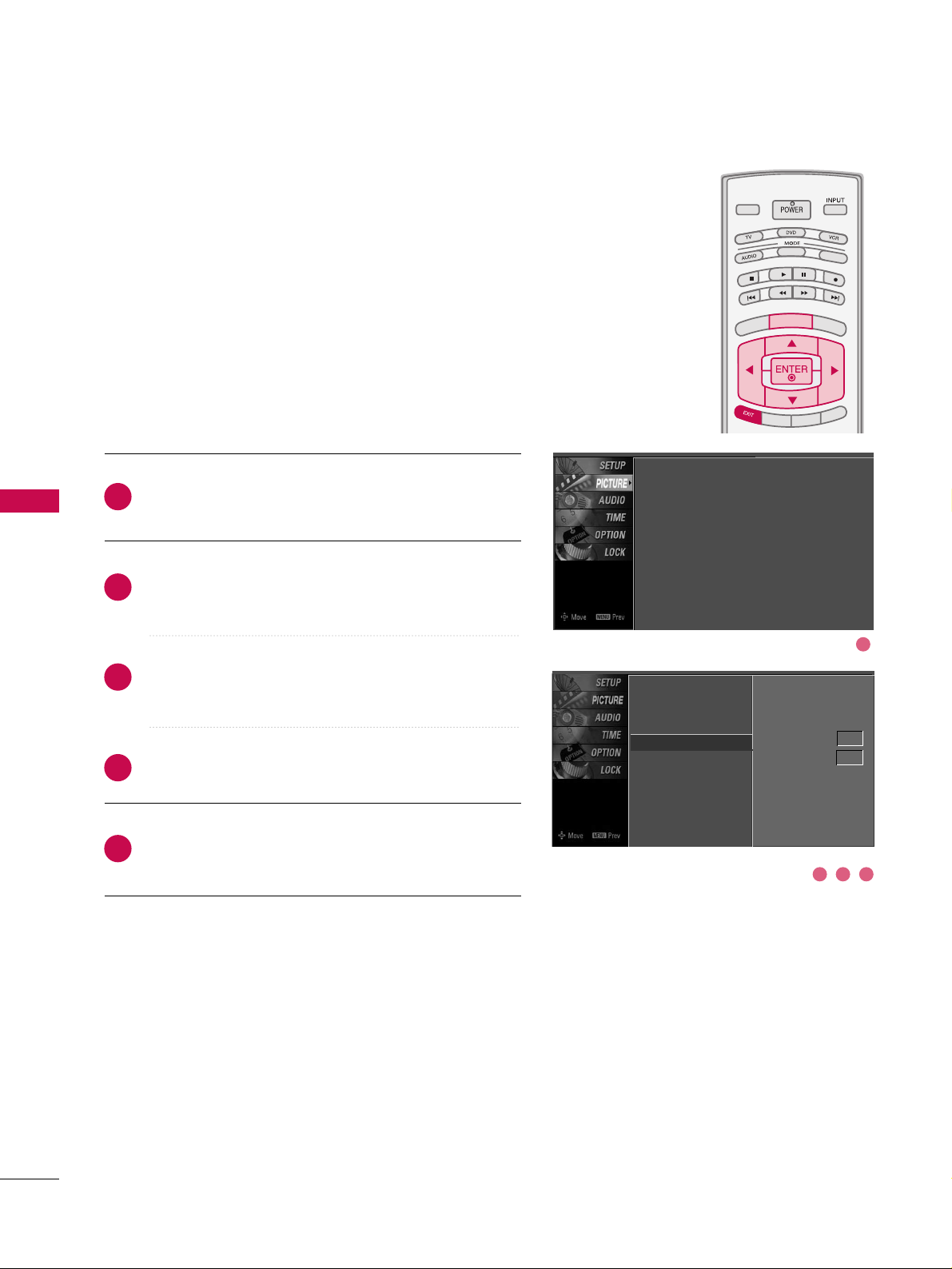

ADVANCED - CINEMA 3:2 PULL DOWN MODE

PICTURE CONTROL

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

IMP

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

PP IICCTTUU RR EE

menu.

Press the GGbutton and then useDDor EEbutton to select

AAddvvaanncceedd

.

Press the

GG

button and then useDDor EEbutton to

select

CCii nnee mmaa 33 ::22 MMoodd ee

.

Use

FF

or GGbutton to select

OO nn

or

OO ffff

.

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

Set up the TV for the best picture appearance for viewing movies.

When you operate Cinema 3:2 Mode (3:2 Pull-Down Mode or Cinema Correction Mode), the TV will adjust 24 fps video from movies to 30 fps video for display.

This feature operates only in TV (Analog, DTV), AV1, AV2, and Component 480i mode.

2

3

4

5

1

Picture Mode

Color Temperature

XD

Advanced

G

Aspect Ratio

Picture Reset

Screen

Cinema 3:2 Mode Off

Black Level Low

Picture Mode : User1

Color Temperature : Cool

XD

Advanced

Aspect Ratio : 16:9

Picture Reset

Screen

2 3 4

1

PICTURE CONTROL

63

ADVANCED - BLACK (DARKNESS) LEVEL

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

RATIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

PP IICCTTUU RR EE

menu.

Press the GGbutton and then useDDor EEbutton to select

AAddvvaanncceedd

.

Press the

GG

button and then useDDor EEbutton to

select

BBllaa cckk lleevveell

.

Press the

GG

button and then useFFor GGbutton to

select

LL ooww

or

HHii gg hh

.

■

LL ooww

The screen gets darker.

■

HHii gg hh

The screen gets brighter.

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

Adjusting the contrast and the brightness of the screen using the black level of the screen.

This feature operates only in AV1, AV2, HDMI1, HDMI2, or HDMI3 mode.

2

3

4

5

1

Picture Mode

Color Temperature

XD

Advanced

G

Aspect Ratio

Picture Reset

Screen

Cinema 3:2 Mode Off

Black Level Low

Picture Mode : User1

Color Temperature : Cool

XD

Advanced

Aspect Ratio : 16:9

Picture Reset

Screen

2 3 4

1

PICTURE CONTROL

64

PICTURE RESET

PICTURE CONTROL

TV INPUTTV INPUT

STBSTB

BRIG

HT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

PP IICCTTUU RR EE

menu.

Press the GGbutton and then useDDor EEbutton to select

PPiiccttuurree RReesseett

.

Press the

GG

button to reset the Picture menu options

to original values.

Use to quickly reset all the Picture menu options to their original factory preset values.

2

3

1

Picture Mode

Color Temperature

XD

Advanced

Aspect Ratio

Picture Reset

G

Screen

Selection ( Gor ) resets to the factory settings(defaults).

Picture Mode : User1

Color Temperature : Cool

XD

Advanced

Aspect Ratio : 16:9

Picture Reset

Screen

2 3

1

PICTURE CONTROL

65

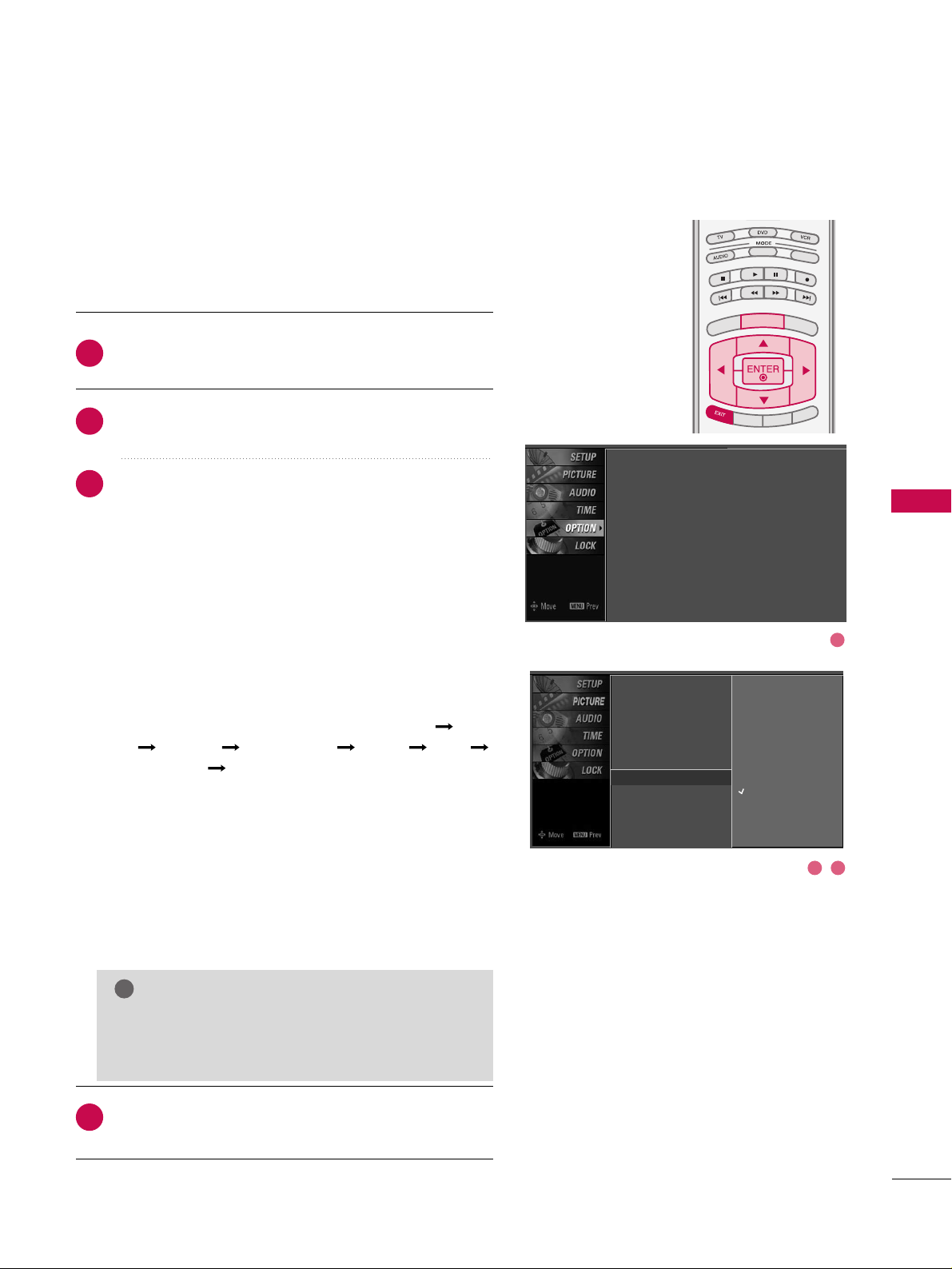

IMAGE STICKING MINIMIZATION (ISM) METHOD

-

Plasma TV only

TV INPUT

STBSTB

BRIG

HT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

OO PPTTII OO NN

menu.

Press the

GG

button and then useDDor EEbutton to

select

II SSMM MMeetthhoodd

.

Press the

GG

button and then useDDor EEbutton to

select either

NN oorr mmaa ll, OO rrbbiittee rr, II nnvveerrssiioo nn

, or

WWhhii ttee

WWaasshh

.

■

NN oorr mmaa ll

If image sticking is never a problem, ISM is not necessary - set to Normal.

■

OO rrbbiittee rr

Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid a ghost image on the screen, the image will move once per 2 minutes : Left Right

Upside Downside Right Left

Downside Upside.

■

II nnvveerrssiioo nn

Inversion will automatically invert the plasma display panel color every 30 minutes.

■

WWhhiitt ee WWaa sshh White Wash removes ghost images from the screen. Use sparingly. Watch the TV normally for a while before

using this feature to see if the ghost image disappears on its own.

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

2

3

4

1

A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost image. Use our unique method to minimize any fixed image on the screen.

GG

An excessive ghosted image may be impossible to

clear entirely with White Wash. To return to normal viewing, press the any button.

NOTE

!

Language : English

Input Label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

Language

Input Label

SimpLink

Key Lock

Caption

ISM Method

G

Low Power

Set ID

Normal

Orbiter

Inversion

White Wash

2 3

1

PICTURE CONTROL

66

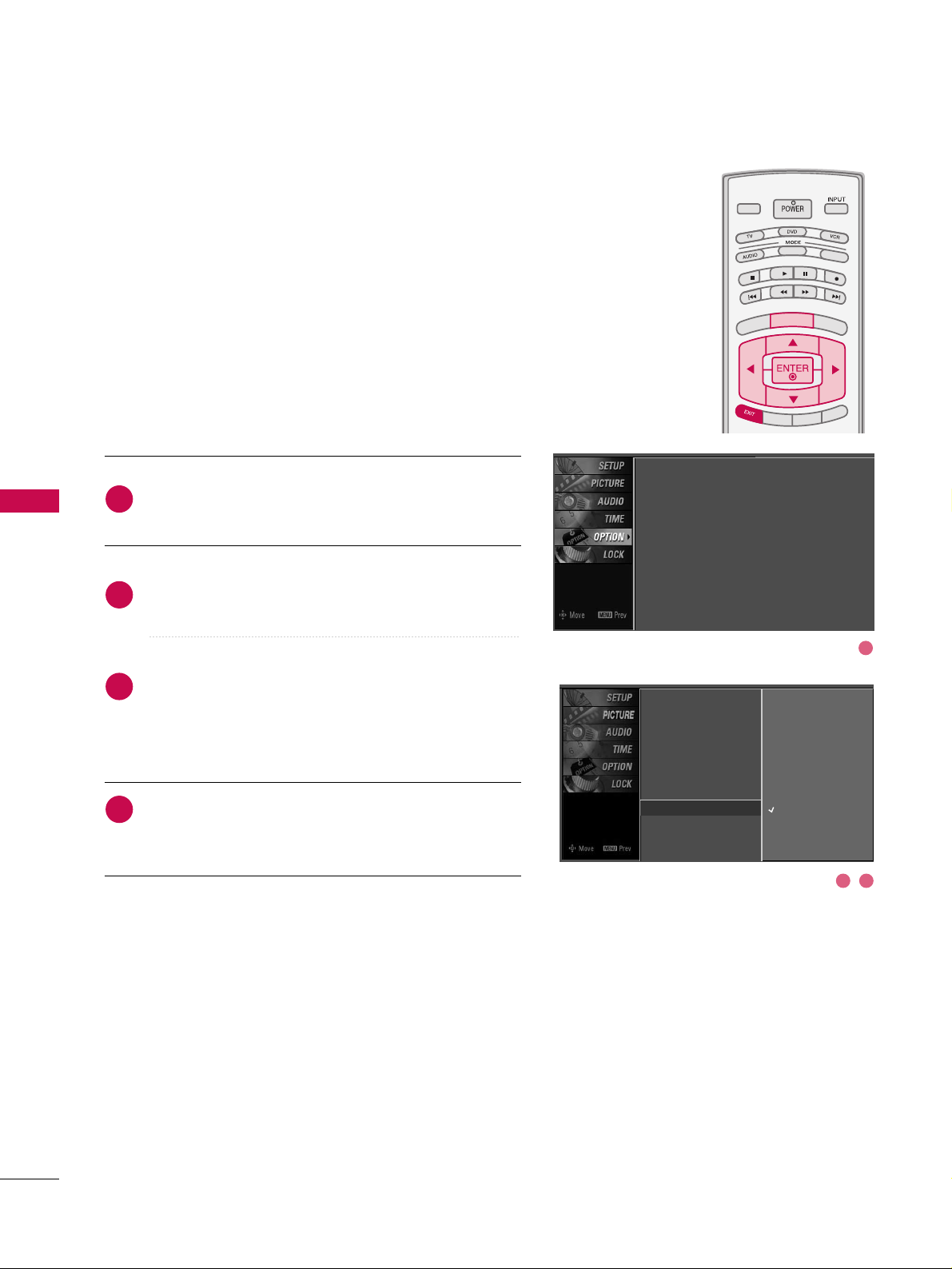

LOW - POWER PICTURE MODE

-

Plasma TV only

PICTURE CONTROL

Low power reduces the plasma display power consumption.

TV INPUTTV INPUT

STBSTB

BR

IGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

OO PPTTII OO NN

menu.

Press the

GG

button and then useDDor EEbutton to

select

LL ooww PPoowwee rr

.

Press the GGbutton and then useDDor EEbutton to select

OO nn

or

OO ffff

.

■

When you select

OO nn

, the screen darkens.

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

2

3

4

1

Language : English

Input Label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

Language

Input Label

SimpLink

Key Lock

Caption

ISM Method

Low Power

G

Set ID

Off

On

2 3

1

SOUND & LANGUAGE CONTROL

67

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

RATIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

AUTO VOLUME LEVELLER (AUTO VOLUME)

SOUND & LANGUAGE CONTROL

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

AAUUDDIIOO

menu.

Press the GGbutton and then useDDor EEbutton to select

AAuutt oo VVoolluumm ee

.

Press the

GG

button and then useDDor EEbutton to

select

OO nn

or

OO ffff

.

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

Scans for changes in sound levels during commercials, then adjusts the sound to match the specified audio level. Auto Volume makes sure that the volume level remains consistent whether you are watching a commercial or a regular TV program.

2

3

4

1

Sound Mode

Auto Volume

G

Balance

TV Speaker

Off On

Sound Mode : Standard

Auto Volume : On

Balance : 0

TV Speaker : On

2 3

1

TV INPUT

STB

BACKBACK


SOUND

SAPSAP

CCCC

MARKMARK

USB EJECTUSB EJECT

TV INPUT

STB

BACK


SOUND

CC

MARK

USB EJECT

TV INPUT

STB

BACK


SOUND

SAP

MARK

USB EJECT

TV INPUT

STB

BACK

SOUND

SAP

CC

MARK

USB EJECT

TV INPUT


MARK

MEDIA HOST

SOUND & LANGUAGE CONTROL

68

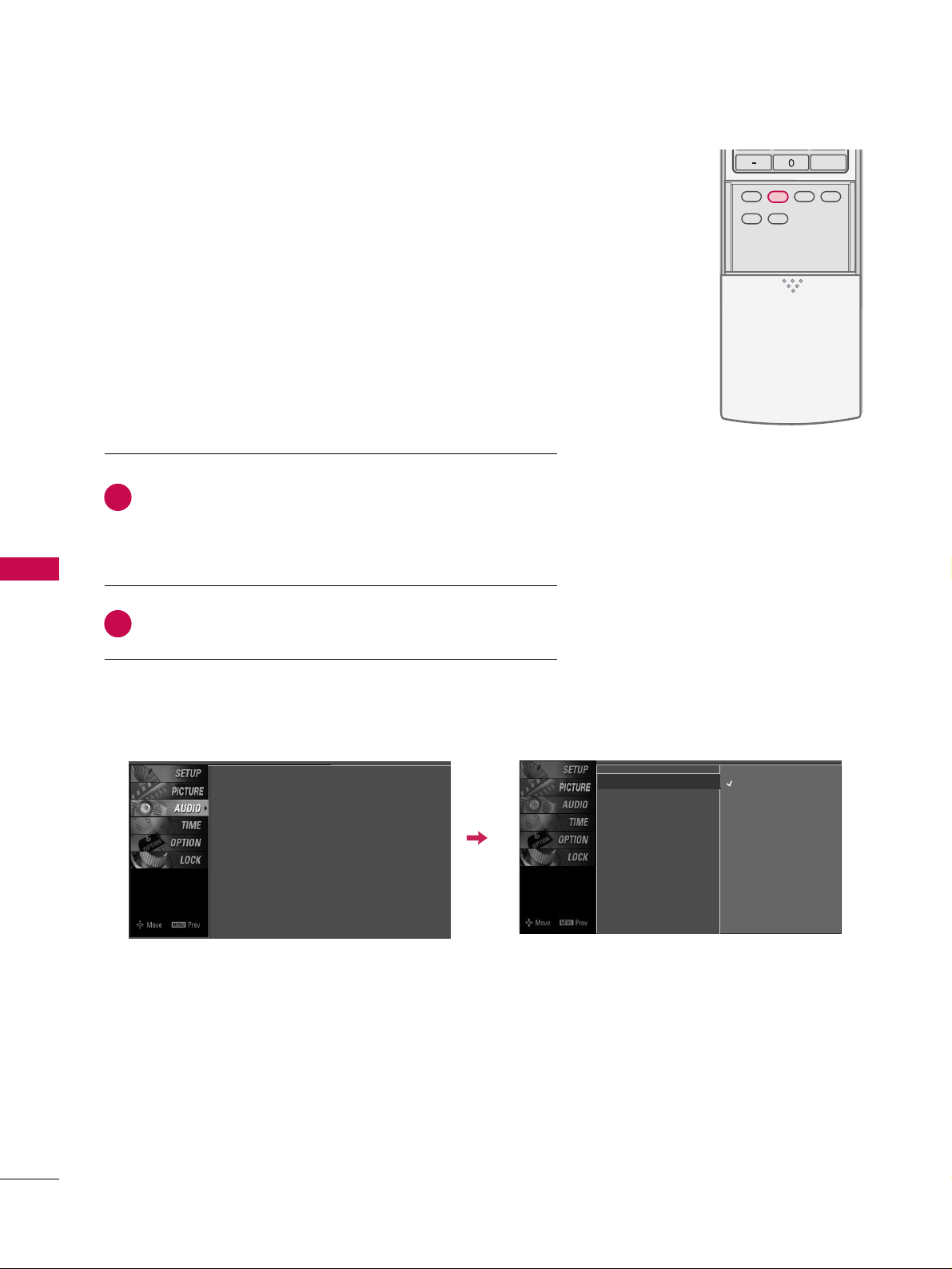

PRESET SOUND SETTINGS (SOUND MODE)

Sound Mode lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound options based on the program content.

SStt aa nndd aa rrdd, MMuussii cc, MMoovvii ee

, and

SSpp oo rrttss

are preset for good

sound quality at the factory and are not adjustable.

Press the

SSOOUUNNDD

button repeatedly to select the appropriate

sound setup as below : SS tt aann ddaarrdd, MMuussiicc, MMoo vviiee, SS ppoorrttss

, and

UUsseerr

(

your own

settings

).

Press

EEXX IITT

button to return to TV viewing.

■

You can also adjust

SS oouu nndd MMooddee

in the

AAUUDDIIOO

menu.

2

1

Sound Mode

G

Auto Volume

Balance

TV Speaker

Standard

Music

Movie

Sports

User

Sound Mode : Standard

Auto Volume : On

Balance : 0

TV Speaker : On

SOUND & LANGUAGE CONTROL

69

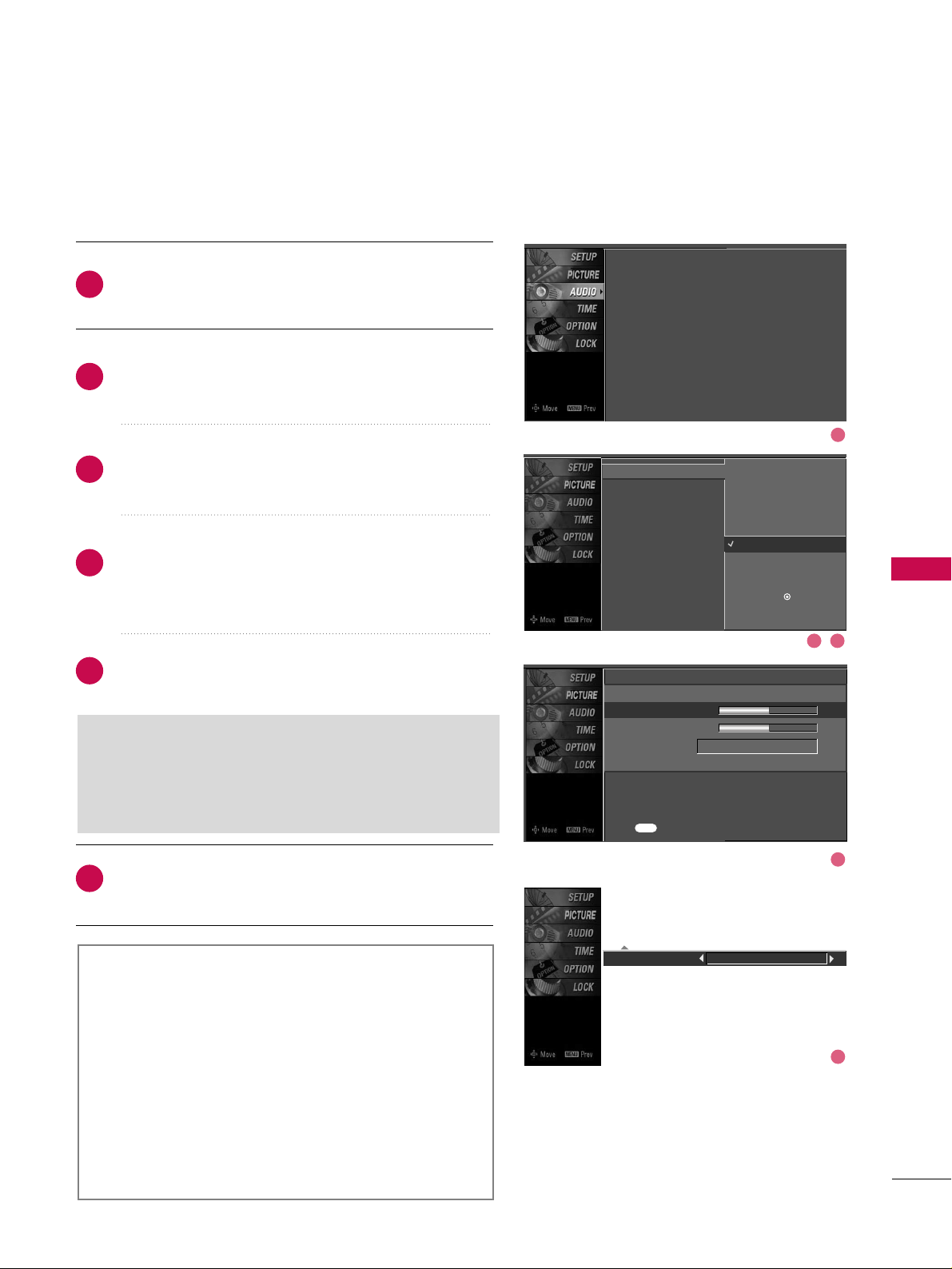

SOUND SETTING ADJUSTMENT - USER MODE

Front Surround 3D EchoSound System

SSRRSS TT rruuSS uu rrrr oouu nndd XXTT Takes advantage of any multi-channel format without

needing to add extra speakers or equipment. Dialog clarity, bass enrichment, and the addition of stereo audio enhancement produces an immersive sound experience from standard stereo material.

33DD EEcchhooSSoouunn dd SSyysstteemm Creates a stunning simulated stereo effect from any mono

sound and a realistic three-dimensional sound with a very wide and deep sound stage.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

AAUUDDIIOO

menu.

Press the

GG

button and then useDDor EEbutton to

select

SS oouu nndd MMooddee

.

Press the

GG

button and then useDDor EEbutton to

select

UUsseerr

.

Press the GGbutton and then useDDor EEbutton to select the desired sound option (

TTrree bbllee,BBaa ssss

,or

FFrroonntt SS uu rrrr oouu nndd

).

Press the

GG

button and then useFFor GGbutton to

make appropriate adjustments.

SS ee lleecctt iinngg tthhee FFrroonntt ss uu rrrr oouunn dd Press the

GG

button and then use FFor GGbutton to

select

OO ffff, 33DD EEcchhoo SSoo uu nndd SSyysstteemm

or

SS RR SS

(

Sound

Retrieval System)

TTrruuSS uu rrrroouunndd XXTT

.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

Adjust the sound to suit your taste and room situations.

Sound Mode

Auto Volume

Balance

TV Speaker

Selection ( Gor ) leads you to the detailed setting screen.

Standard

Music

Movie

Sports

User

G

2

3

4

5

6

1

Sound Mode : Standard

Auto Volume : On

Balance : 0

TV Speaker : On

User

Treble 50

G

Bass 50

Front Surround Off

Press to confirm.

MENU

1

2 3

4

5

SOUND & LANGUAGE CONTROL

70

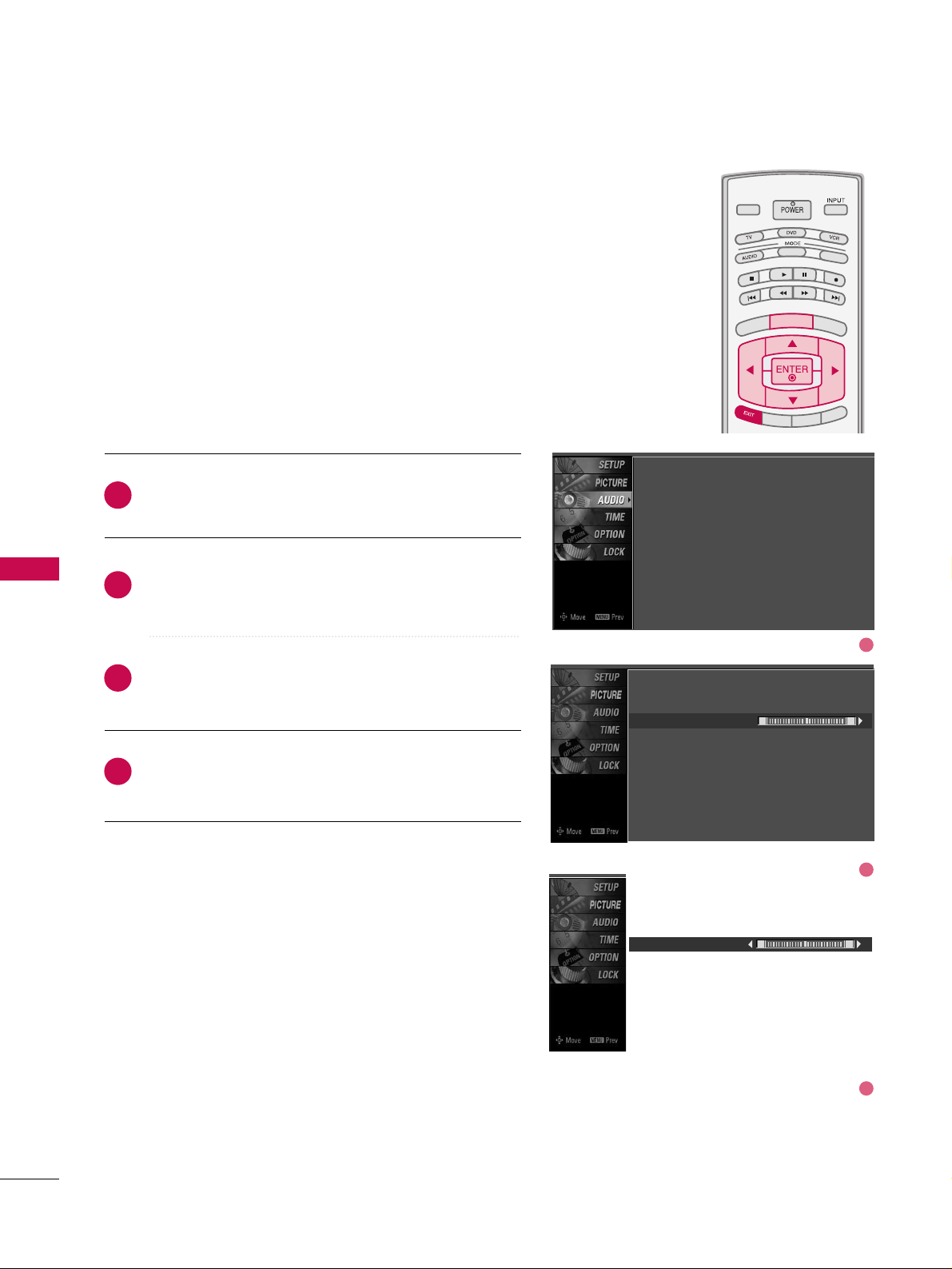

BALANCE

SOUND &LANGUAGE CONTROL

TV INPUTTV INPUT

STBSTB

BRIG

HT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

AAUUDDIIOO

menu.

Press the GGbutton and then useDDor EEbutton to select

BBaall aannccee

.

Press the

GG

button and then useFFor GGbutton to

make appropriate adjustments.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

Adjust the left/right sound of speaker to suit your taste and room situations.

L R

Balance 0

2

3

4

1

Sound Mode

Auto Volume

Balance 0

TV Speaker

L R

Sound Mode : Standard

Auto Volume : On

Balance : 0

TV Speaker : On

1

2

3

SOUND & LANGUAGE CONTROL

71

TV SPEAKERS ON/OFF SETUP

TV INPUTTV INPUT

STBSTB

BRIG

HT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

AAUUDDIIOO

menu.

Press the

GG

button and then useDDor EEbutton to

select

TTVV SSppeeaa kkeerr

.

Press the

GG

button and then useDDor EEbutton to

select

OO nn

or

OO ffff

.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

Turn the TV speakers off if using external audio equipment. Feature turns the TV Speakers option On or Off.

Sound Mode

Auto Volume

Balance

TV Speaker

G

Off

On

2

3

4

1

Sound Mode : Standard

Auto Volume : On

Balance : 0

TV Speaker : On

1

32

SOUND & LANGUAGE CONTROL

72

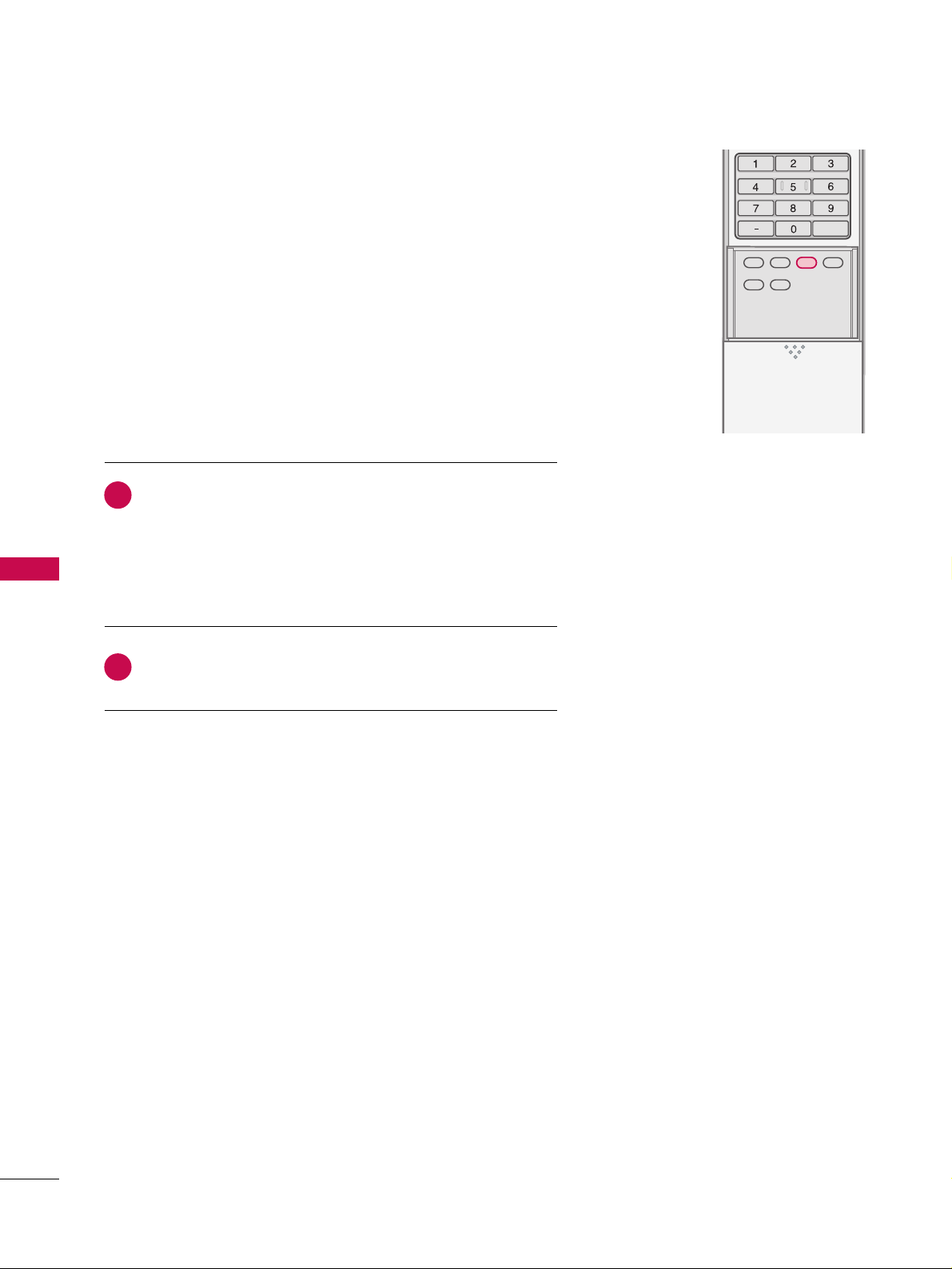

STEREO/SAP BROADCAST SETUP

SOUND &LANGUAGE CONTROL

TV INPUT

STB

BACKBACK


SOUNDSOUND

SAP

CC

MARKMARK

USB EJECTUSB EJECT

TV INPUT

STB

BACK


SOUND

SAP

MARK

USB EJECT

TV INPUT

STB

BACK

SOUND

SAP

CC

MARK

USB EJECT

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT

MEDIA HOST

This TV can receive MTS stereo programs and any SAP (Secondary Audio Program)that accompanies the stereo program if the station transmits an additional sound signal as well as the original one and when you select Stereo or SAP on the remote control.

Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected.

Select Mono if you want to listen to the mono sound in remote areas during stereo/SAP broadcasting.

Stereo or SAP can be received in Analog channel.

Use the

SS AA PP

button to select your desired MTS mode in

analog signal. Each time you press the

SS AA PP

button,

MMoo nn oo

,

SS tteerr eeoo

, or

SS AA PP

appear in turn.

■

If other languages available on the digital signal, select them with the

SS AA PP

button.

Press

EEXX IITT

button to save and return to TV viewing.

2

1

SOUND & LANGUAGE CONTROL

73

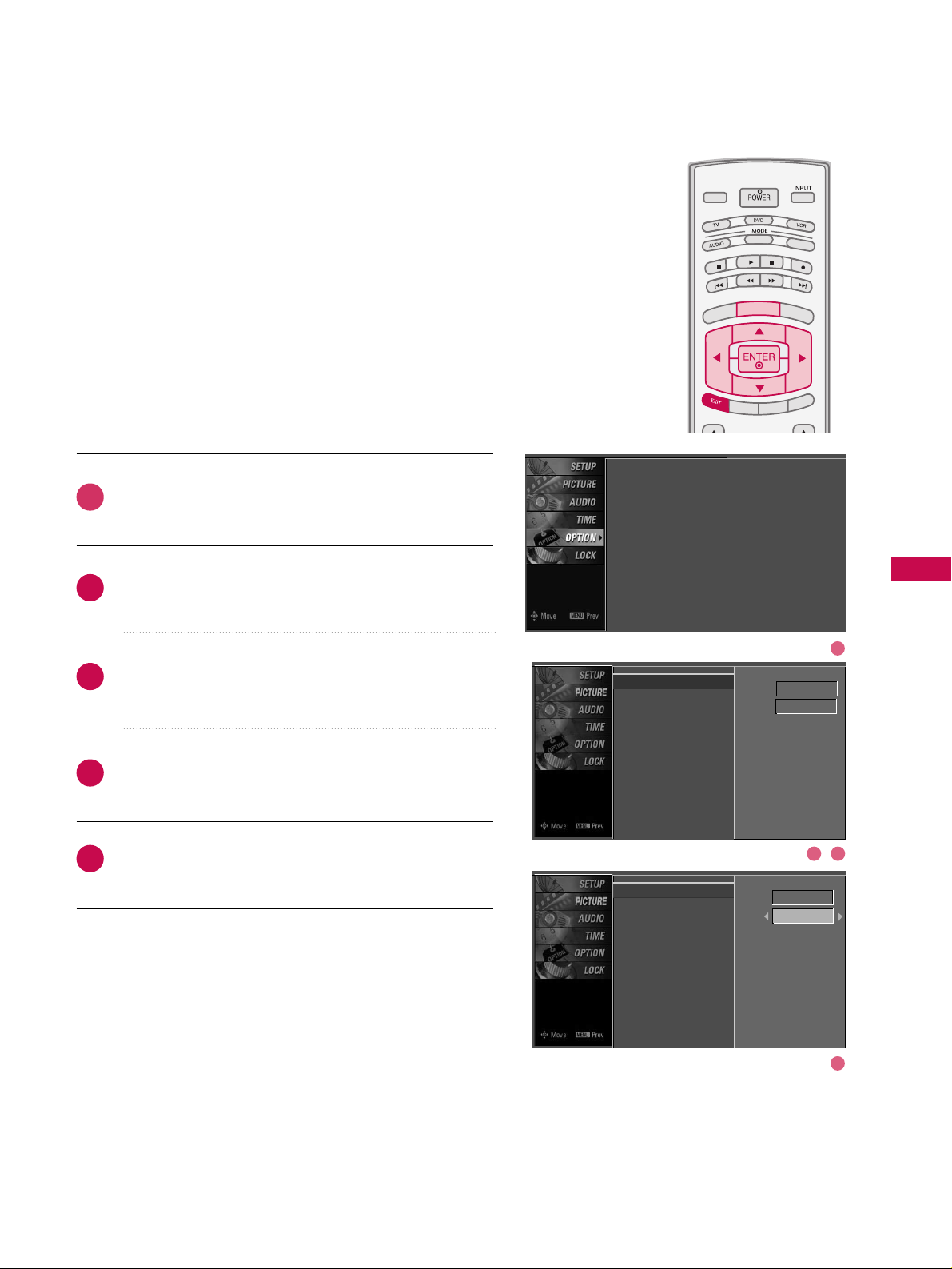

AUDIO LANGUAGE

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Other languages may be available if a digital signal is provided by the broadcasting station.

This feature operates only in DTV/CADTV mode.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

OO PPTTII OO NN

menu.

Press the

GG

button and then useDDor EEbutton to

select

LL aann gg uuaaggee

.

Press the

GG

button and then useDDor EEbutton to

select

AAuu ddii oo

.

Use

FF

or GGbutton to select :

EEnn gg lliisshh, SS ppaannii sshh

, or

FF rreenncchh

.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

2

3

4

5

1

Language : English

Input Label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

Language

G

Input Label

SimpLink

Key Lock

Caption

ISM Method

Low Power

Set ID

Menu English

Audio English

Language

Input Label

SimpLink

Key Lock

Caption

ISM Method

Low Power

Set ID

Menu English

Audio English

1

4

32

SOUND & LANGUAGE CONTROL

74

ON-SCREEN MENUS LANGUAGE SELECTION

SOUND &LANGUAGE CONTROL

TV INPUTTV INPUT

STBSTB

BRIG

HT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

The menus can be shown on the screen in the selected language. First select your language.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

OO PPTTII OO NN

menu.

Press the GGbutton and then useDDor EEbutton to select

LL aann gguuaaggee ..

Press the

GG

button and then useDDor EEbutton to

select

MMee nnuu..

Press the

GG

button and then useFFor GGbutton to

select your desired language. From this point on, the on-screen menus will be shown

in the selected language.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

1

2

3

4

5

Language

Input Label

SimpLink

Key Lock

Caption

ISM Method

Low Power

Set ID

Menu English

Audio English

Language

G

Input Label

SimpLink

Key Lock

Caption

ISM Method

Low Power

Set ID

Menu English

Audio English

Language : English

Input Label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

1

4

32

SOUND & LANGUAGE CONTROL

75

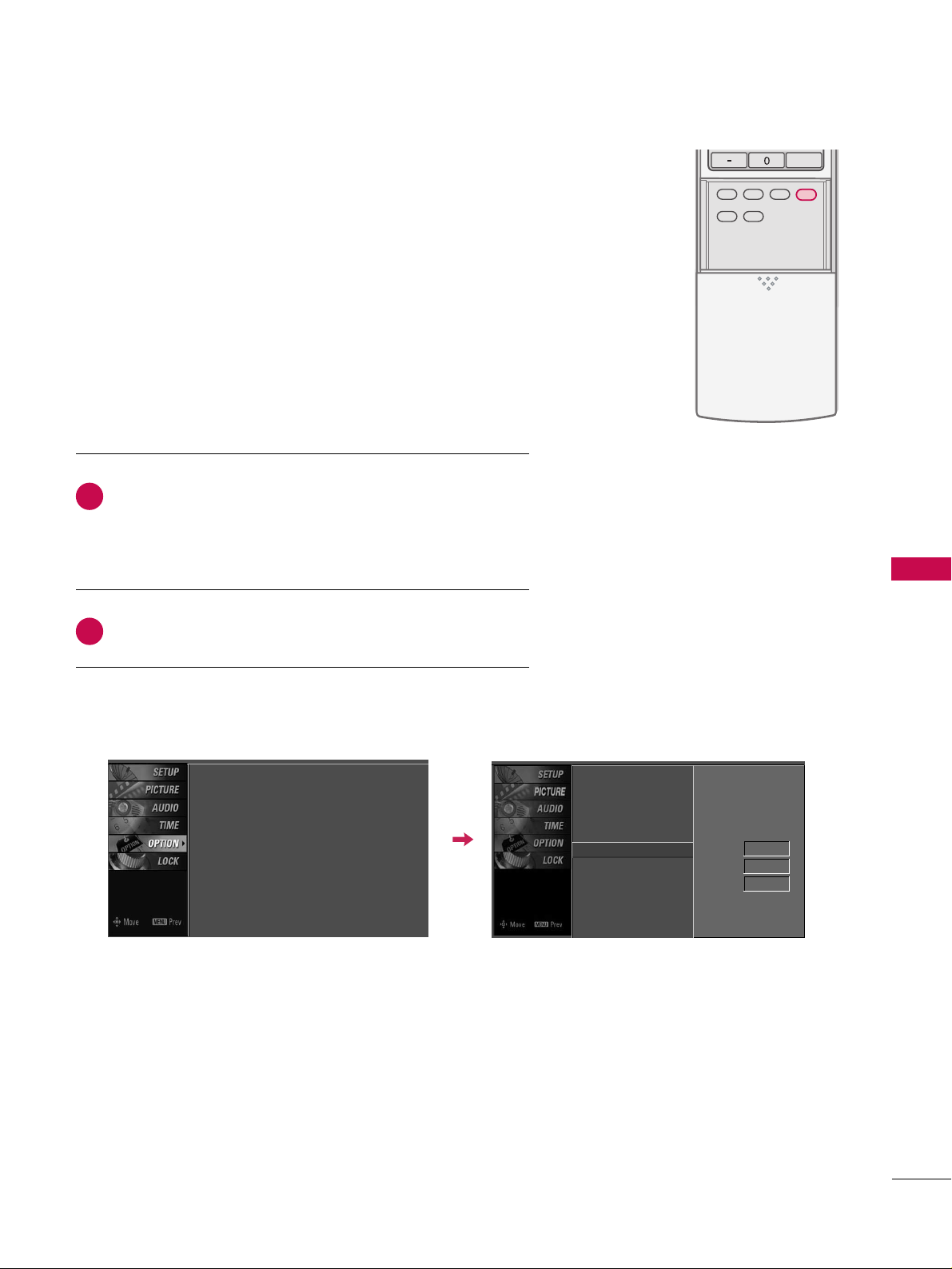

CAPTION MODE

TV INPUT

STB

BACKBACK


SOUNDSOUND

SAPSAP

CC

MARKMARK

USB EJECTUSB EJECT

TV INPUT

STB

BACK

SOUND

SAP

CC

MARK

USB EJECT

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT

MEDIA HOST

Use the

CC CC

button to select Caption

OO nn

or

OO ffff

.

■

When selecting

OO ffff

,

Sub-menus for Analog, DTV, and

Digital Option become disabled.

Press

EEXX IITT

to save and return to TV viewing.

2

1

Caption must be provided to help people with hearing loss watch TV.

■

You can also adjust

CCaappttii oonn

in the

OOPPTTIIOONN

menu.

Language : English

Input Label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

Language

Input Label

SimpLink

Key Lock

Caption

G

ISM Method

Low Power

Set ID

Mode On

Analog Text1

Digital Service3

Digital Option

SOUND & LANGUAGE CONTROL

76

SOUND &LANGUAGE CONTROL

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

IMP

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Analog Broadcasting System Captions

Select a caption mode for displaying captioning information if provided on a program. Analog caption displays information at any position on the screen and is usually the program's dialog.

Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna/Cable.

This TV is programmed to memoririze the caption/text mode which was last set when you turn the power off.

This function is only available when

CCaa pp ttiioonn

Mode is set

OO nn

.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

OO PP TTIIOONN

menu.

Press the

GG

button and then useDDor EEbutton to

select

CCaappttiioo nn ..

Press the

GG

button and then useDDor EEbutton to

select

AAnnaalloogg..

Use

FF

or GGbutton to select

CC CC11, CC CC22, CC CC33, CC CC44

,

TTeexxtt11, TTeexxtt22, TTeexxtt33

or

TTeexxtt44

■

CCAAPPTTIIOONN

The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for the hearing impaired.

■

TTEE XXTT

The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provided by the broadcaster.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

1

2

3

4

5

Language : English

Input Label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

Language

Input Label

SimpLink

Key Lock

Caption

ISM Method

Low Power

Set ID

Mode On

Analog Text1

Digital

Service3

Digital Option

1

3 42

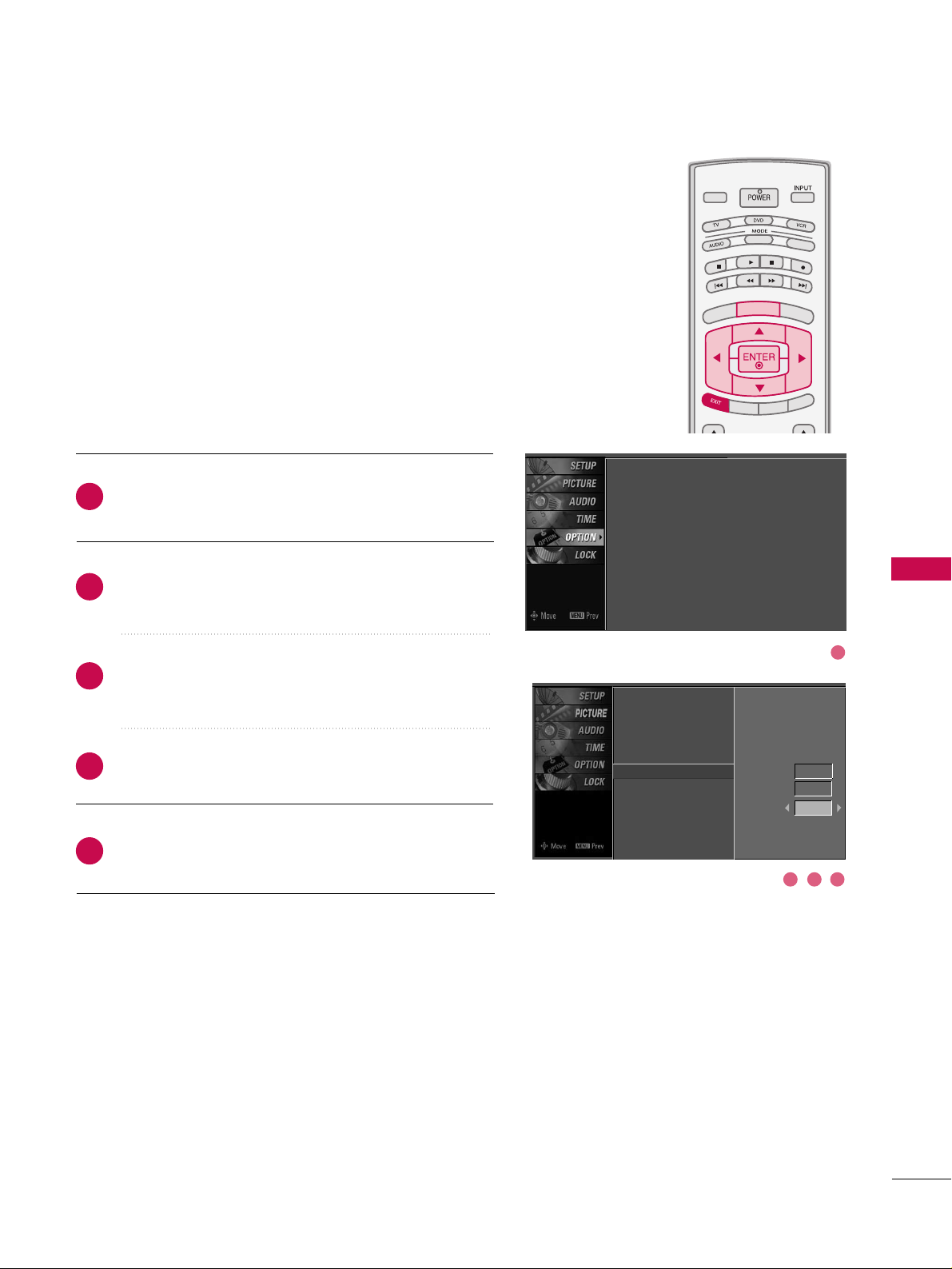

SOUND & LANGUAGE CONTROL

77

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

OO PPTTII OO NN

menu.

Press the GGbutton and then useDDor EEbutton to select

CCaappttii oonn

.

Press the

GG

button and then useDDor EEbutton to

select

DDiiggii ttaall

.

Use

FF

or GGbutton to select

SS ee rrvviicc ee11~SS ee rrvviicc ee66

.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

Choose the language you want the DTV/CADTV Captions to appear in.

Other Languages can be chosen for digital sources only if they are included on the program.

This function in only available when Caption Mode is set On.

2

3

4

5

1

Digital Broadcasting System Captions

Language : English

Input Label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

Language

Input Label

SimpLink

Key Lock

Caption

ISM Method

Low Power

Set ID

Mode On

Analog Text1

Digital

Service3

Digital Option

1

3 42

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

IMP

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

SOUND & LANGUAGE CONTROL

78

SOUND &LANGUAGE CONTROL

Caption Option

Customize the DTV/CADTV captions that appear on your screen.

This function in only available when Caption Mode is set On.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

OO PPTTII OO NN

menu.

Press the

GG

button and then useDDor EEbutton to

select

CCaappttii oonn

.

Press the GGbutton and then useDDor EEbutton to select

DDiiggiitt aall OOppttii oonn

.

Press the

GG

button and then useFFor GGbutton to

select

CC uussttoo mm

.

Use

DD

or EEbutton to customize the

SS ttyyll ee, FF oonntt

, etc.,

to your preference. A preview icon is provided at the bottom of the screen,

use it to see the caption language.

■

SSiizzee

: Set the word size.

■

FFoonntt

: Select a typeface for the text.

■

TTeexxtt CCoolloorr

: Choose a color for the text.

■

TTeexxtt OOppaacciittyy

: Specify the opacity for the text color.

■

BBgg ((BBaacckkggrroouunndd))CCoolloorr

: Select a background color.

■

BBgg ((BBaacckkggrroouunndd))OOppaacciittyy

: Select the opacity for

the background color.

■

EEddggee TTyyppee

: Select an edge type.

■

ddggee CCoolloorr

: Select a color for the edges.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

2

3

4

5

6

1

Language

Input Label

SimpLink

Key Lock

Caption

ISM Method

Low Power

Set ID

Mode On

Analog Text1

Digital Service3

Digital Option

G

Selection ( Gor ) leads you to th e

Caption Option screen.

Language : English

Input Label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

Language

Input Label

SimpLink

Key Lock

Caption

ISM Method

Low Power

Set ID

Mode On

Analog Text1

Digital Service3

Digital Option

G

Style Custom

Size A Standard Font Font 0 Text Color White Text Opacity

Solid Bg Color Black Bg Opacity Solid Edge Type None Edge Color Black

Selection ( Gor ) leads you to the

Caption Option screen.

1

32

54

SOUND & LANGUAGE CONTROL

79

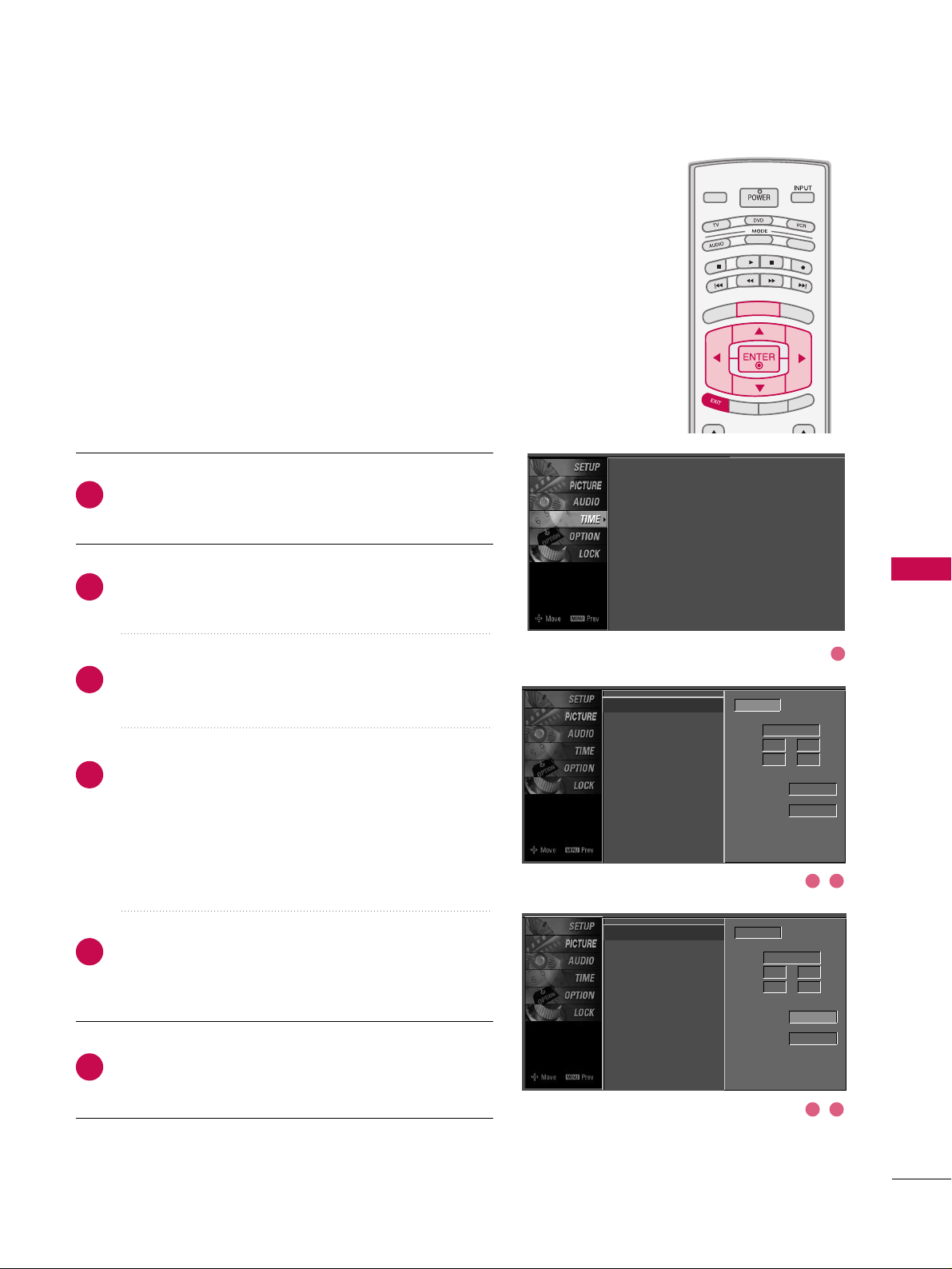

CLOCK SETTING

TIME SETTING

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Auto Clock Setup

The time is set automatically from a digital channel signal. The digital channel signal includes information for the

current time provided by the broadcasting station. Set the clock manually if the current time is set incorrectly

by the auto clock function.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

TTII MMEE

menu.

Press the GGbutton and then useDDor EEbutton to select

CC lloocckk

.

Press the

GG

button and then useDDor EEbutton to

select

AAuu ttoo

.

Press the

GG

button and then useDDor EEbutton to

select your viewing area time zone: U.S.A :

EEaa ssttee rr nn, CC ee nn ttrr aa ll, MM oouu nn ttaaiinn, PP aa ccii ff iicc

,

AAllaa sskkaa

or

HHaa wwaaii ii

.

Canada :

EEaa ssttee rr nn, CC eenn ttrr aall, MMoo uu nn ttaa iinn, PP aaccii ffii cc

,

NN eeww FF..llaanndd

or

AAttllaa nntt iicc

.

Press the

GG

button and then useDDor EEbutton to

select

AAuu ttoo, OO ffff, OO nn

, depending on whether or not

your viewing area observes Daylight Saving time.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

2

3

4

5

6

1

Clock

G

Off Time

On Time

Sleep Time

Auto Sleep

Time Zone Eastern

Auto

Daylight Saving

Clock : Oct 19, 2006, 03:44 AM

Off Time : Off

On Time : Off

Sleep Time : Off

Auto Sleep : Off

Year - - - Date - - / - Time - - : - - - -

Auto

Clock

G

Off Time

On Time

Sleep Time

Auto Sleep

Auto

Year - - - Date - - / - Time - - : - - - -

Auto

Time Zone Eastern

Daylight Saving

DD EE

G

DD EE

G

1

32

54

TIME SETTING

80

TV INPUTTV INPUT

STBSTB

BRIG

HT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

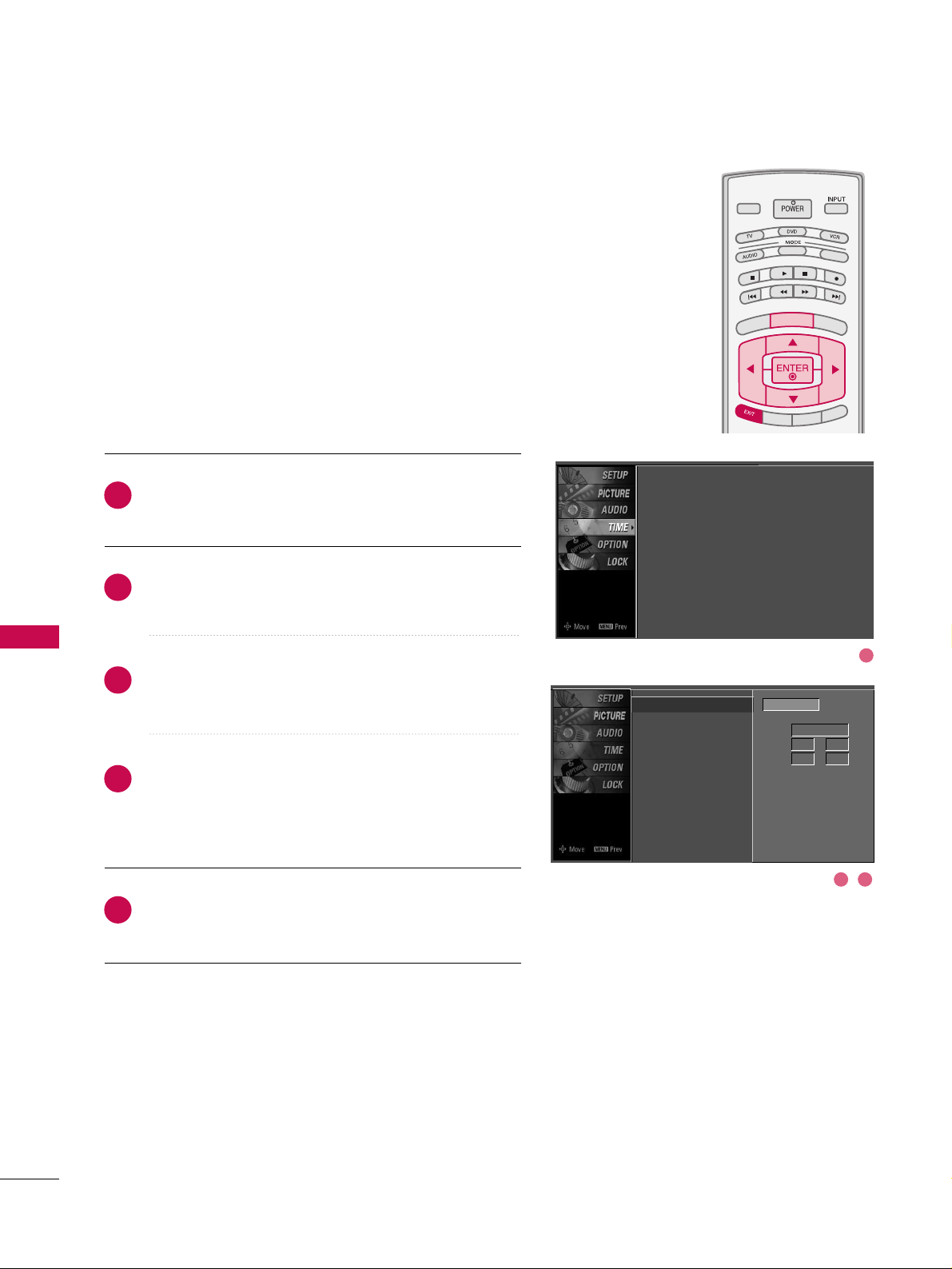

Manual Clock Setup

If the current time setting is wrong, reset the clock manually.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

TTII MMEE

menu.

Press the GGbutton and then useDDor EEbutton to select

CC lloocckk

.

Press the

GG

button and then useDDor EEbutton to

select

MMaa nn uu aall

.

Press the

GG

button and then useFFor GGbutton to select either the year, date, or time option. Once selected, use the

DD

or EEbutton to set the year, date,

and time options.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

2

3

4

5

1

Clock

G

Off Time

On Time

Sleep Time

Auto Sleep

Clock : Oct 19, 2007, 03:44 AM

Off Time : Off

On Time : Off

Sleep Time : Off

Auto Sleep : Off

Year - - - Date - - / - Time - - : - - - -

Manual

DD EE

G

1

32

TIME SETTING

81

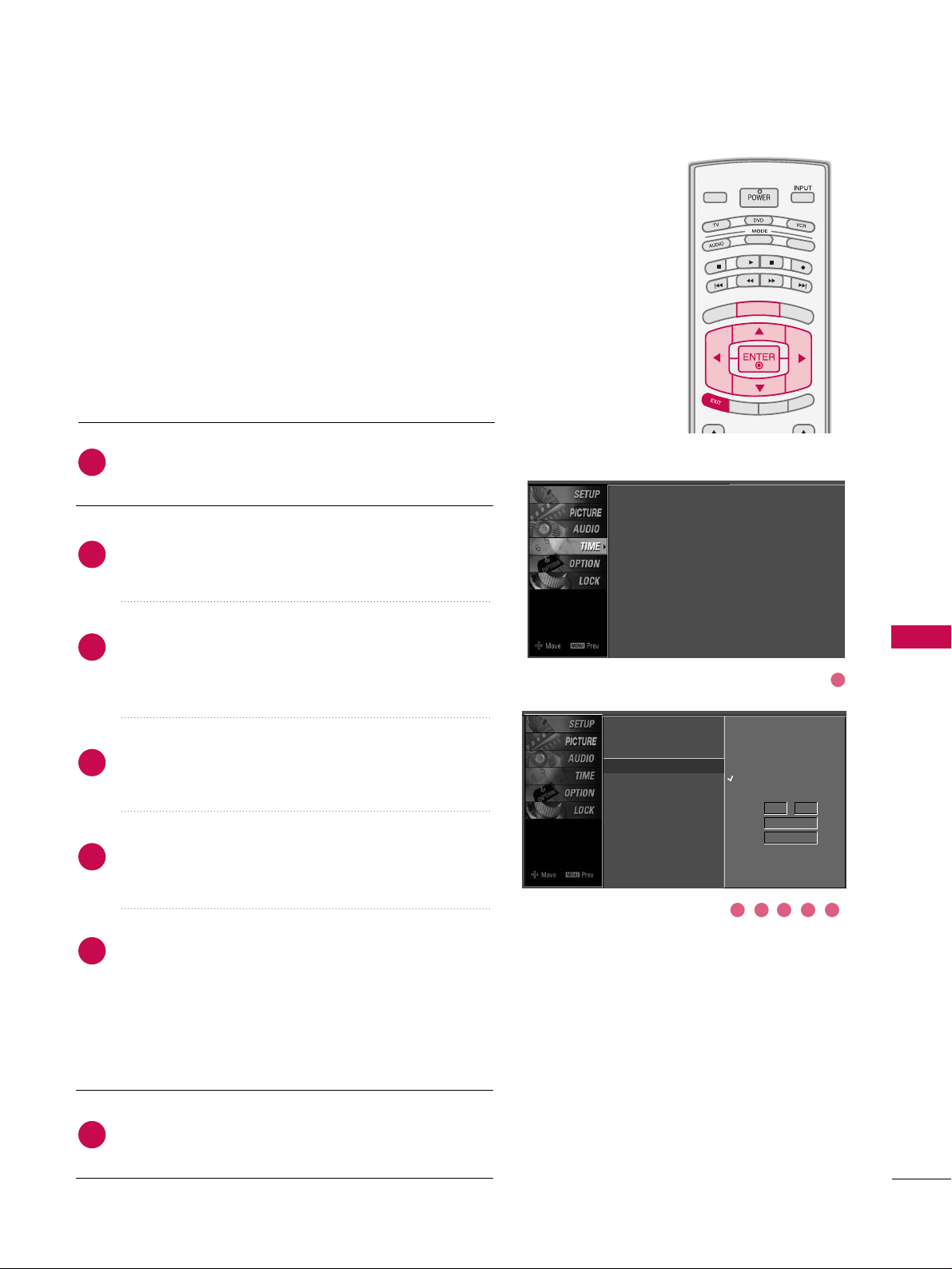

AUTO ON/OFF TIMER SETTING

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

This function operates only if the current time has been set. The

OO ff ff TT iimm ee

function overrides the

OO nn TTiimmee

function if

they are both set to the same time. The TV must be in standby mode for the

OO nn TT ii mm ee

to work.

If you do not press any button within 2 hours after the TV turns on with the

OO nn TT ii mm ee

function, the TV will automati-

cally revert to standby mode.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

TTII MMEE

menu.

Press the

GG

button and then useDDor EEbutton to

select

OO ffff TTii mmee

or

OO nn TTii mmee

.

Press the GGbutton and then useDDor EEbutton to select

OO nn

.

■

To cancel the

OO nn//OO ffff ttii mmee

function, select

OO ffff

.

Press the

GG

button and then useDDor EEbutton to the

hour.

Press the GGbutton and then useDDor EEbutton to the minutes.

OO nn llyy OOnn TTii mmee Press the

GG

button and then useDDor EEbutton to

select the channel at turn-on.

Press the

GG

button and then useDDor EEbutton to the

sound level at turn-on.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

2

3

4

5

6

7

1

Clock

Off Time

On Time

G

Sleep Time

Auto Sleep

Off On

Time 6 : 30 AM Ch. TV 2-0 Vol 17

Clock : Oct 19, 2007, 03:44 AM

Off Time : Off

On Time : Off

Sleep Time : Off

Auto Sleep : Off

1

32 54 6

TIME SETTING

82

TIME SETTING

SLEEP TIMER SETTING

TV INPUTTV INPUT

STBSTB

ME

NU

B

R

I

G

H

T +

BRI

GH

T

-

RATIO

S

I

MP

L

IN

K

TV INPUT

STB

TV INPUT

STB

TIMERTIMER

MEDIA HOSTMEDIA HOST

MEDIA HOST

The Sleep Time turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off.

Press the

TTII MMEERR

button repeatedly to select the number of

minutes. First the

OO ffff

option appears on the screen, followed by the following sleep time options : 10, 20, 30, 60, 90, 120, 180, and 240 minutes.

When the number of minutes you want is displayed on the screen, press the

EENN TTEE RR

button. The timer begins to count

down from the number of minutes selected.

To check the remaining minutes before the TV turns off, press the

TTII MMEERR

button once.

To cancel the Sleep Time, press the

TTIIMM EERR

button repeatedly

to select

OO ffff

.

■

You can also set up the

SS lleeeepp TT iimm ee

in the

TTII MM EE

menu.

2

3

4

1

Clock

Off Time

On Time

Sleep Time

G

Auto Sleep

Off

10 min

20 min

30 min

60 min

90 min

120 min

180 min

240 min

Clock : Oct 19, 2006, 03:44 AM

Off Time : Off

On Time : Off

Sleep Time : Off

Auto Sleep : Off

TIME SETTING

83

AUTO SHUT-OFF SETTING

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

TV will be automatically turned off, in case of No Signal for 10 m i n u t e s .

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

TTII MMEE

menu.

Press the

GG

button and then useDDor EEbutton to

select

AAuutt oo SS lleeeepp

.

Press the

GG

button and then useDDor EEbutton to

select

OO nn

or

OO ffff

.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

2

3

4

1

Clock

Off Time

On Time

Sleep Time

Auto Sleep

G

Off On

TV will be automatically turned off, in case of No Signal for 10 minutes.

Clock : Oct 19, 2007, 03:44 AM

Off Time : Off

On Time : Off

Sleep Time : Off

Auto Sleep : Off

1

32

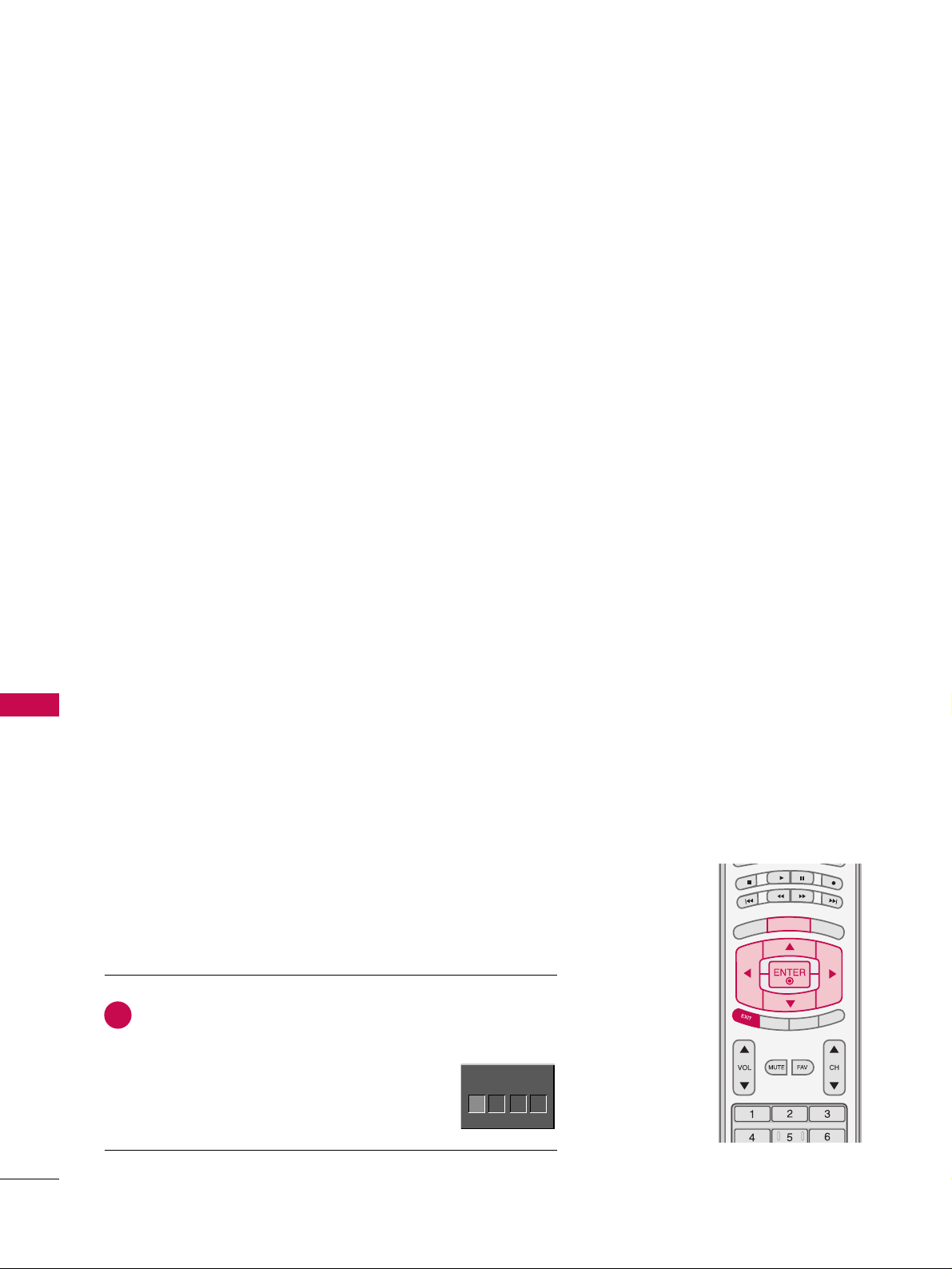

PARENTAL CONTROL / RATING

84

PARENTAL CONTROL / RATINGS

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories. It is also possible to block all program viewing for a time period. To use this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating System (MPAA)only.

Ratings for Television programs including made-for-TV movies :

■

TV-G(General audience

)

■

TV-PG(Parental guidance suggested

)

■

TV-14(Parents strongly cautioned

)

■

TV-MA (Mature audience only

)

■

TV-Y(All children

)

■

TV-Y7(Children 7 years older

)

SET PASSWORD & LOCK SYSTEM

Set up blocking schemes to block specific channels, ratings, and external viewing sources.

A password is required to gain access to this menu.

Press the

MMEENNUU

button and then use the

DD

or EEbutton

to select the

LL OO CCKK

menu. Then, press the

GG

button.

■

Enter the password as requested.

■

The TV is set up with the initial

password “0-0-0-0”.

TV INPUT

STB

BRIGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOST

Enter Password

1

Enter Password

** **

Setting up Your Password

PARENTAL CONTROL / RATING

85

After inputting the password, use theDDor EEbutton to choose

SSee tt ppaa ssssww oorrdd

.

Press the

GG

button and then choose any 4 digits for

your new password. As soon as the 4 digits are entered, re-enter the same

4 digits on the

CCoo nn ffiirrmm

.

Then your changed password has been memorized.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

Change the password by inputting a new password twice.

Lock System

Set Password

G

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

New

Confirm

2

3

1

**** ****

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

For USA For Canada

After inputting the password, use the

DD

or EEbutton

to choose

LL oocc kk SSyysstteemm

.

Press the

GG

button and then use theDDor EEbutton

to select

OO nn

or

OO ffff

.

■

When you select

OO nn

, the Lock System is enable.

Press

EEXXII TT

button to return to TV viewing or press

MMEE NNUU

button to return to the previous menu.

Enables or disables the blocking scheme you set up previously.

Lock System

G

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Off On

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

2

3

1

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

For USA For Canada

Set Password

Lock System

1

2

1

2

PARENTAL CONTROL / RATING

86

CHANNEL BLOCKING

PARENTAL CONTROL /RATINGS

EXTERNAL INPUT BLOCKING

Blocks any channels that you do not want to watch or that you do not want your children to watch.

After inputting the password, use the

DD

or EEbutton

to choose

BBlloocckk CC hhaa nnnneell

.

Press the

GG

button. You will now see a screen filled

with channel numbers and a preview picture.

Use

DD EE FF GG

button to select a channel and then

use the

EENN TTEE RR

button to block or unblock it.

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

Lock System

Set Password

Block Channel

G

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Selection ( Gor ) leads you to the

block channel screen.

2

3

4

1

Enables you to select a source to block from the external source devices you have hooked up.

After inputting the password, use the

DD

or EEbutton

to choose

II nnppuu tt BBlloocckk

.

Press the

GG

button and then use theDDor EEbutton

to select a source.

Use the

FF

or GGbutton to select

OO nn

or

OO ffff

on the

each source.

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

G

AV1 On

AV2 On

Component1 Off

Component2 On

RGB-PC

Off

HDMI1 Off

HDMI2 Off

HDMI3 Off

2

3

4

1

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

For USA For Canada

1

32

1

32

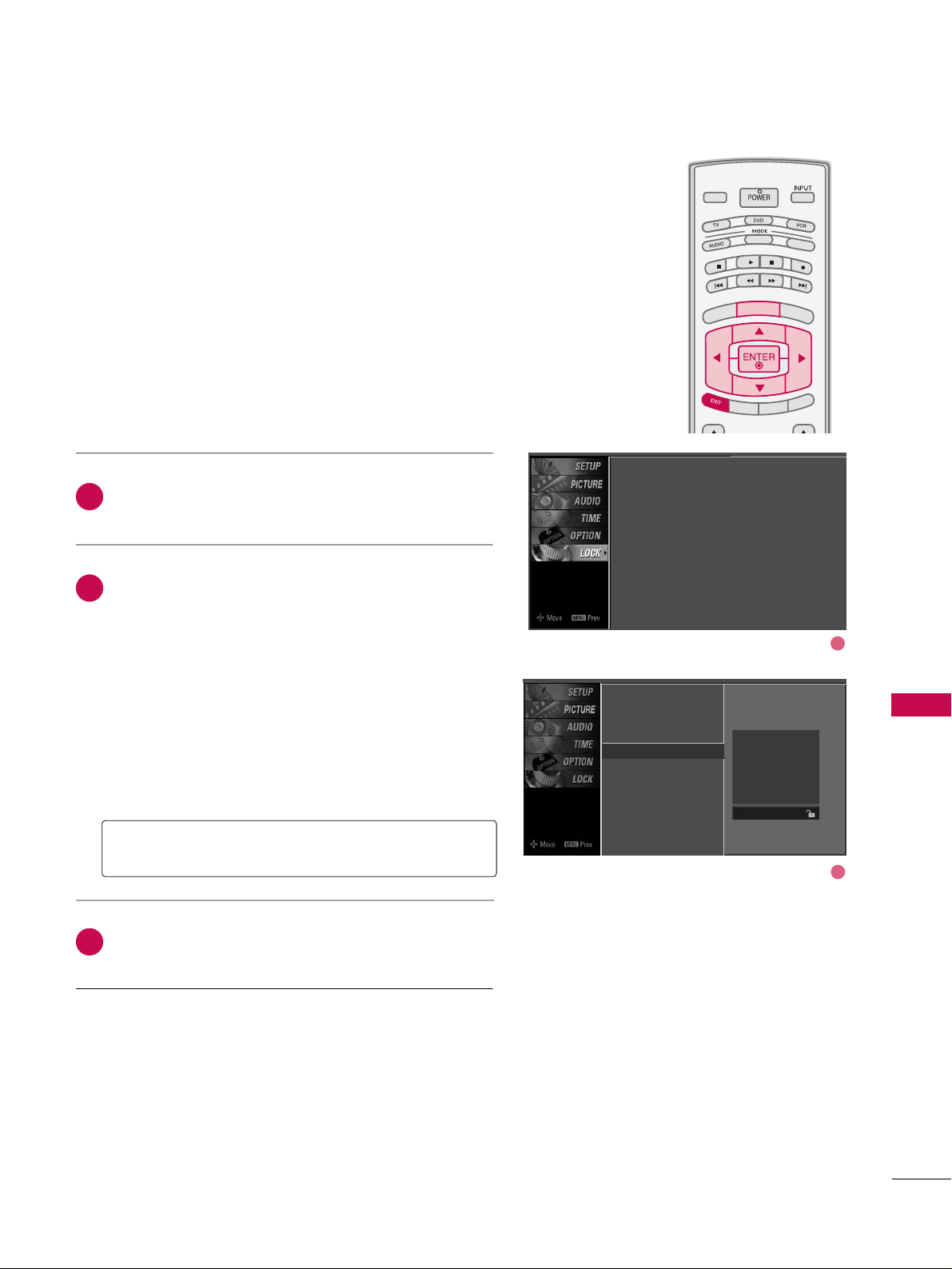

PARENTAL CONTROL / RATING

87

MOVIE & TV RATING

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

GHT -

TI

MER

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOSTMEDIA HOST

MEDIA HOST

Movie Rating (MPAA)

-

for USA only

Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.

After inputting the password, use the

DD

or EEbutton

to choose

MMoovviiee RRaa ttiinngg

.

Press the GGbutton and then use theDDor EEbutton to select GG,

PP GG, PP GG --1133, RR, NN CC--1177

or XX.

■

G (General audience)

■

PG (Parental guidance suggested)

■

PG-13 (Parents strongly cautioned)

■

R (Restricted)

■

NC-17 (No one 17 and under admitted)

■

X (Adult only)

■

Blocking Off (Permits all programs)

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

GG

If you set PG-13 : G and PG movies will be available, PG-13, R, NC-17 and X will be blocked.

Lock System

Set Password

Block Channel

Movie Rating

G

TV Rating-Children

TV Rating-General

Input Block

Blocking off : permits all programs

G PG PG-13 R NC-17

X Blocking Off

2

3

1

2

Lock System :

Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

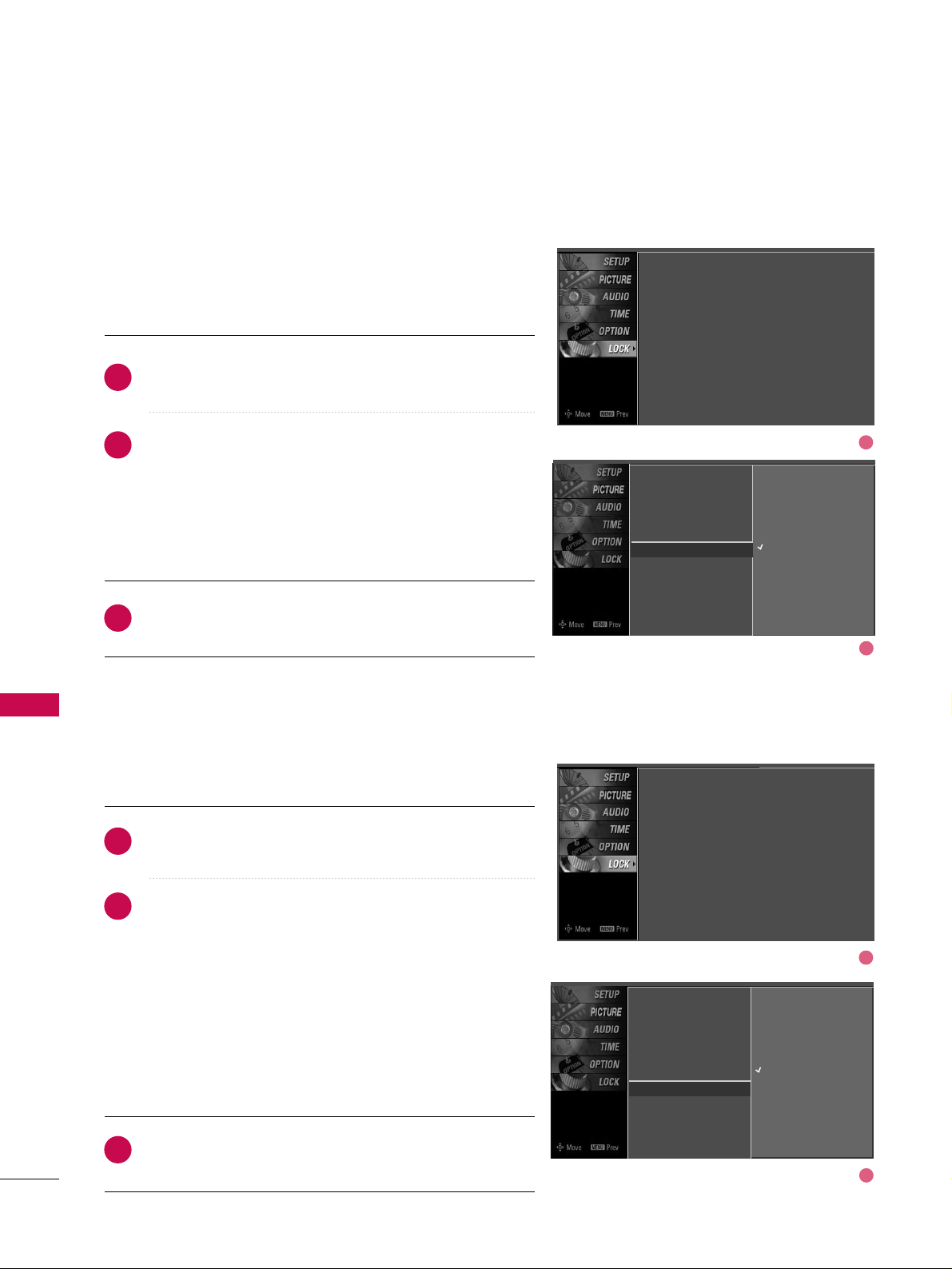

PARENTAL CONTROL / RATING

88

PARENTAL CONTROL /RATINGS

TV Rating Children

-

for USA only

After inputting the password, use theDDor EEbutton to choose

TTVV RR aattiinngg --CChhiillddrr ee nn

.

Press the

GG

button and then use theDDor EEbutton to

select

AAgg ee

, or

FFaannttaa ssyy VViioo lleenncc ee

.

Press the

GG

button and then use theDDor EEbutton to

select block options.

■

Age(applies to TV-Y, TV-Y7)

■

Fantasy Violence(applies to TV-Y7)

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can view those programs.

TV Rating General

-

for USA only

After inputting the password, use theDDor EEbutton to choose

TTVV RR aattiinngg --GGeenneerraall

.

Press the

GG

button and then use theDDor EEbutton to

select

AAgg ee, DDiiaa lloogguuee, LL aann gg uuaaggee, SS eexx

or

VViiooll eennccee

.

Press the

GG

button and then use theDDor EEbutton to

select block options.

■

Age(applies to TV-G,TV-PG,TV-14,TV-MA)

■

Dialogue-sexual dialogue (applies to TV-PG,TV-14)

■

Language-adult language (applies to TV-PG,TV-14,TV-MA)

■

Sex-sexual situations (applies to TV-PG,TV-14,TV-MA)

■

Violence (applies to TV-PG,TV-14,TV-MA)

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

G

TV Rating-General

Input Block

Age Fantasy Violence

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

G

Input Block

Age

Dialogue

Language

Sex

Violence

2

3

1

2

3

1

2

1

2

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

PARENTAL CONTROL / RATING

89

TV Rating English

-

for CANADA only

After inputting the password, use theDDor EEbutton to choose

TTVV RR aattiinngg --EEnn ggll iisshh

.

Press the

GG

button and then use theDDor EEbutton to

select EE, CC,

CC 88++, GG, PP GG, 1144++, 1188++

, or

BBlloocc kkiinn gg OOff ff

.

■

E (Exempt)

■

C (Children)

■

C8+ (Children eight years and older)

■

G (General programming, suitable for all audiences)

■

PG (Parental Guidance )

■

14+ (Viewers 14 years and older)

■

18+ (Adult programming)

■

Blocking Off (Permits all programs)

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

Selecting canadian english language rating system.

TV Rating French

-

for CANADA only

After inputting the password, use theDDor EEbutton to choose

TTVV RR aattiinngg --FFrreenncc hh

.

Press the

GG

button and then use theDDor EEbutton

to select EE, GG,

88aann ss++, 1133aannss++, 1166aannss++, 1188aannss++

,

or

BBlloocckkiinngg ooffff

.

■

E(Exempt)

■

G(General)

■

8ans+ (General-Not convenient for little children)

■

13ans+ (Not convenient for children of 13 years and younger)

■

16ans+ (Not convenient for children of 16 years and younger)

■

18ans+ (This programs is only for adults)

■

Blocking off (Permits all programs)

Press

EEXX IITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

Selecting canadian french language rating system.

Lock System

Set Password

Block Channel

TV Rating-English

G

TV Rating-French

Input Block

Lock System

Set Password

Block Channel

TV Rating-English

TV Rating-French

G

Input Block

2

3

1

2

3

1

Blocking off : permits all programs

E C C8+ G PG 14+ 18+

Blocking Off

Blocking off : permits all programs

E G 8 ans+ 13 ans+

16 ans+

18 ans+

Blocking Off

1

2

1

2

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

APPENDIX

90

APPENDIX

TROUBLESHOOTING

TThhee ooppeerraattiioonn ddooeess nnoott wwoorrkk nnoorrmmaallllyy..

TThhee vviiddeeoo ffuunnccttiioonn ddooeess nnoott wwoorrkk..

No picture &No sound

No or poor color

or poor picture

Poor reception on

some channels

Lines or streaks

in pictures

Horizontal/vertical bars

or picture shaking

Picture appears slowly

after switching on

The remote control

doesn’t work

Power is suddenly

turned off

■

Check to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote control directly at the TV.

■

Ensure that the batteries are installed with correct polarity (+ to +, - to -).

■

Ensure that the correct remote operating mode is set: TV, VCR etc.

■

Install new batteries.

■

Is the sleep timer set?

■

Check the power control settings. Power interrupted.

■

No broadcast on station tuned with Auto off activated.

■

Check whether the product is turned on.

■

Try another channel. The problem may be with the broadcast.

■

Is the power cord inserted into wall power outlet?

■

Check your antenna direction and/or location.

■

Test the wall power outlet, plug another product’s power cord into the outlet where the product’s power cord was plugged in.

■

This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes.

■

Adjust Color in menu option.

■

Keep a sufficient distance between the product and the VCR.

■

Try another channel. The problem may be with the broadcast.

■

Are the video cables installed properly?

■

Activate any function to restore the brightness of the picture.

■

Check for local interference such as an electrical appliance or power tool.

■

Station or cable product experiencing problems, tune to another station.

■

Station signal is weak, reorient antenna to receive weaker station.

■

Check for sources of possible interference.

■

Check antenna (Change the direction of the antenna).

APPENDIX

91

TThheerree iiss aa pprroobblleemm iinn PPCC mmooddee.. ((OOnnllyy PPCC mmooddee aapppplliieedd))

■

Adjust resolution, horizontal frequency, or vertical frequency.

■

Check the input source.

■

Work the Auto configure or adjust clock, phase, or H/V position. (Option)

■

Check the signal cable.

■

Reinstall the PC video card.

The signal is out of range

Screen color is unstable

or single color

Vertical bar or stripe on

background &

Horizontal Noise &

Incorrect position

■

Press the VOL or VOLUME button.

■

Sound muted? Press MUTE button.

■

Try another channel. The problem may be with the broadcast.

■

Are the audio cables installed properly?

■

Adjust Balance in menu option.

■

A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a fault with the product.

Picture OK & No sound

Unusual sound from

inside

the product

No output from one

of the speakers

TThhee aauuddiioo ffuunnccttiioonn ddooeess nnoott wwoorrkk..

APPENDIX

92

MAINTENANCE

APPENDIX

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new TV.

Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen.

Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

■

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

■

Please be sure not to use a wet cloth.

Extended Absence

GG

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

CAUTION

2

1

APPENDIX

93

PRODUCT SPECIFICATIONS

■

The specifications shown above may be changed without prior notice for quality improvement.

42PB4DA

(42PB4DA-UA)

50PB4DA

(50PB4DA-UA)

60PB4DA

(60PB4DA-UA)

MODELS

44.5 x 30.2 x 12.2 inches

1130.0 x 768.1 x 310.4mm

44.5 x 28.1 x 3.3 inches

1130.0 x 715.0 x 85.0 mm

75.8 pounds / 34.4 kg

68.0 pounds / 30.8 kg

51.5 x 35.7 x 14.6 inches

1308.0 x 906.1 x 370.0 mm

51.5 x 33.3 x 3.5 inches

1308.0 x 845.0 x 89.5 mm

93.5 pounds / 42.4 kg

83.1 pounds / 37.7 kg

60.9 x 41.8 x 17.6 inches

1548.0 x 1061.0 x 448.0 mm

60.9 x 38.9 x 3.9 inches

1548.0 x 988.0 x 98.5 mm

163.1 pounds / 81.0 kg

135.6 pounds / 61.5 kg

AC100-240V ~ 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ohm

32 ~ 104°F (0 ~ 40°C)

Less than 80%

-4 ~ 140°F (-20 ~ 60°C)

Less than 85%

Dimensions

(Width x Height x Depth)

Weight

Power requirement

Television System

Program Coverage

External Antenna Impedance

Environment condition

Including stand

Excluding stand

including stand

excluding stand

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

APPENDIX

94

APPENDIX

32LB9D

(32LB9D-UJ)

MODELS

31.7 x 24.4x 11.2 inches

805.8 x 619.7 x 283.8 mm

31.7 x 21.8 x 3.1 inches

805.8 x 554.1 x 79.0 mm

32.6 pounds / 14.8 kg

27.8 pounds / 12.6 kg

AC100-240V ~ 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ohm

32 ~ 104°F (0 ~ 40°C)

Less than 80%

-4 ~ 140°F (-20 ~ 60°C)

Less than 85%

Dimensions

(Width x Height x Depth)

Weight

Power requirement

Television System

Program Coverage

External Antenna Impedance

Environment condition

Including stand

Excluding stand

including stand

excluding stand

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

APPENDIX

95

PROGRAMMING THE REMOTE CONTROL

The provided universal remote control can be programmed to operate most remote-controllable devices. Note that the remote may not control all models of other brands.

Programming a code into a remote mode

To find out whether your remote control can operate each device without programming, turn on the device

(such as a VCR) and press the corresponding mode button on the remote. After that, press the

PPOOWWEERR

button. If the device is turned off and it responds properly the remote control need not be programmed. If not, the remote should be programmed to operate the device. The programming procedures are explained below.

Press the

MMEENNUU

and

MMUUTTEE

button continuously at the same time for two seconds; the currently selected

device button is illuminated. If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case,

you have to repeat from step 2.

Enter the appropriate code from the code table on the following pages. When pressing the button, the light blinks at a time. If the device turned off, the programming is successful.

Press the

MMEENNUU

button to store the code. After blinking twice, this code is stored.

Test the remote control functions to see if the device responds properly. If not, steps 2-5.

2

3

4

5

1

APPENDIX

96

Remote Control Code

APPENDIX

Brand Codes Brand Codes Brand Codes

AIWA 034 AKAI 016 043 046 124

12 5 14 6 AMPRO 072 ANAM 031 033 103 AUDIO DYNAMICS

012 02 3 03 9 04 3 BROKSONIC 035 037 129 CANON 028 031 033 CAPEHART 108 CRAIG 003 040 135 CURTIS MATHES 031 033 041 DAEWOO 005 007 010 064

0 6 5 10 8 110 111

112 116 117 119 DAYTRON 108 DBX 012 023 039 043 DYNATECH 034 053 ELECTROHOME 059 EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

12 9 131 138 15 3 FISHER 003 008 009 010 FUNAI 034 GE 031 033 063 072

10 7 10 9 14 4 147 GO VIDEO 132 136 HARMAN KARDON 012 045 HITACHI 004 018 026 034

043 063 137 150 INSTANTREPLAY 031 033 JCL 031 033 JCPENNY 012 013 015 033

040 066 101 JENSEN 043 JVC 012 031 033 043

048 050 055 060

13 0 15 0 15 2 KENWOOD 014 034 039 043

047 048 LG (GOLDSTAR) 001 012 013 020

101 10 6 114 12 3 LLOYD 034 LXI 003 009 013 014

017 03 4 101 106 MAGIN 040

MAGNAVOX 031 033 034 041

067 068

MARANTZ 012 031 033 067

069 MARTA 101 MATSUI 027 030 MEI 031 033 MEMOREX 003 010 014 031

033 034 053 072

101 10 2 13 4 139 MGA 045 046 059 MINOLTA 013 020 MITSUBISHI 013 020 045 046

049 051 059 061

151 MTC 034 040 MULTITECH 024 034 NEC 012 023 039 043

048 NORDMENDE 043 OPTONICA 053 054 PANASONIC 066 070 074 083

13 3 14 0 14 5

PENTAX 013 020 031 033

063 PHILCO 031 034 067 PHILIPS 031 033 034 054

067 071 101 PILOT 101 PIONEER 013 021 048 PORTLAND 108 PULSAR 072 QUARTZ 011 014 QU ASA R 033 066 075 145 RCA 013 020 033 034

040 041 062 063

107 109 140 144

14 5 14 7 REALISTIC 003 008 010 014

031 033 034 040

053 054 101 RICO 058 RUNCO 148 SALORA 014

SAMSUNG 032 040 102 104

10 5 10 7 10 9 112 113 115 12 0 12 2

12 5 SANSUI 022 043 048 135 SANYO 003 007 010 014

10 2 13 4 SCOTT 017 037 112 129

131 SEARS 003 008 009 010

013 014 017 0 20

031 042 073 081

101 SHARP 031 054 149 SHINTOM 024 SONY 003 009 031 052

056 057 058 076

077 078 149 SOUNDESIGN 034 STS 013 SYLVANIA 031 033 034 059

067 SYMPHONIC 034 TANDY 010 034 TATUNG 039 043 TEA C 034 039 043 TECHNICS 031 033 070 TEKNIKA 019 031 033 034

101 THOMAS 034 TMK 006 TOSHIBA 008 013 042 047

059 082 112 131 TOTEVISION 040 101 UNITECH 040 VECTOR RESEARCH

012 VICTOR 048 VIDEO CONCEPTS

012 03 4 04 6 VIDEOSONIC 040 WARDS 003 013 017 024

031 033 034 040

053 054 131 YAM AH A 012 034 039 043 ZENITH 034 048 056

058 072 080 101

VCR

APPENDIX

97

Cable Box

Brand Codes Brand Codes Brand Codes

ABC 003 004 039 042

046 052 053 AJIN 112 ANTRONIK 014 ARCHER 005 007 014 024 CABLE STAR 026 CENTURION 092 CENTURY 007 CITIZEN 007 COLOUR VOICE 065 090 COMBANO 080 081 COMTRONICS 019 030 DIAMOND 023 EAGLE 020 030 040 EASTERN 057 062 066 ELECTRICORD 032 GE 072 GEMINI 008 022 025 054 GI 052 074 GOLDEN CHANNEL

030 HAMLIN 049 050 055 HITACHI 052 055 HOSPITALITY 070 077 JERROLD 002 003 004 008

009 010 052 069

074 LG (GOLDSTAR) 001 106 101 005 M-NET 037 MACOM 033 MAGNAVOX 010 012 064 079 MEMOREX 100 MOVIE TIME 028 032 NSC 015 028 038 071

073 OAK 016 031 037 053 PANASONIC 044 047 PARAG O N 10 0

PHILIPS 006 012 013 020

065 085 090 PIONEER 034 051 052 063

076 POST NEWS WEEK016 PRUCER 059 PTS 011 048 071 072

073 074 PULSAR 100 RCA 047 REGAL 049 050 REGENCY 057

REMBRANT 025 SAMSUNG 102 107 030 068 SCIENTIFIC ATLANTA

003 011 041 042

043 045 046 SHERITECH 022 SIGNAL 030 SIGNATURE 052 SL MARX 030 SPRUCER 047 078 STARCOM 002 004 008 009 STARGATE 008 030 TADIRAN 030 TAEKWANG 110 TAIHAN 105 TANDY 017 TEXSCAN 029 TOCO M 039 040 056 TOSHIBA 100 UNIKA 007 014 024 UNITED CABLE 004 053 UNIVERSAL 005 007 014 024

026 027 032 035 VIEWSTAR 012 015 018 086

087 088 089 ZENITH 100 114 060 093

ALPHASTAR DSR 123 AMPLICA 050 BIRDVIEW 051 126 129 CHANNEL MASTER

013 014 015 018

036 055 CHAPARRAL 008 009 012 077 CITOH 054 CURTIS MATHES 050 145 DRAKE 005 006 007 010

011 05 2 112 116

141 DX ANTENNA 024 046 056 076 ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

12 2 ELECTRO HOME 089 EUROPLUS 114 FUJITSU 017 021 022 027

13 3 13 4 GENERAL INSTRUMENT

003 004 016 029

031 059 101 HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104 HUGHES 068 JANIEL 060 147 JERROLD 061 KATHREIN 108 LEGEND 057 LG 001 LUTRON 132 LUXOR 062 144 MACOM 010 059 063 064

065 MEMOREX 057 NEXTWAVE 028 124 125 NORSAT 069 070 PACE SKY SATELLITE

14 3 PANASONIC 060 142 PANSAT 121 PERSONAL CABLE 117 PHILIPS 071 PICO 105 PRESIDENT 019 102 PRIMESTAR 030 110 111

PROSAT 072 RCA 066 106 REALISTIC 043 074 SAMSUNG 123 SATELLITE SERVICE CO

028 035 047 057 085

SCIENTIFIC ATLANTA

032 138 SONY 103 STARCAST 041 SUPER GUIDE 020 124 125 TEECOM 023 026 075 087

088 090 107 130

13 7 TOSHIBA 002 127 UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101 135 136 VIEWSTAR 115 WINEGARD 128 146 ZENITH 081 082 083 084

091 120

HDSTB

APPENDIX

98

Audio

APPENDIX

DVD

Brand Codes Brand Codes Brand Codes

AIWA 014 028 070 096

125 129 139 229

230 AKAI 163 ANAM 003 014 017 023

059 106 189 216

217 2 35 23 6 BURMECTER 252 CARVER 086 CLARION 199 DAEWOO 027 053 060 084

10 2 14 8 19 8 2 21 DENON 015 075 130 143 FANTASIA 071 FINEARTS 022 FISHER 089 099 LG(GOLDSTAR) 001 021 024 029

087 107 108 110

19 0 191 19 2 210

211 212 2 39 HAITAI 034 035 188 222 HARMAN/KARDON 068 JVC 004 013 141 KEC 185 186 187 KOHEL 030 NAD 045 046 KENWOOD 038 050 067 089

17 0 17 1 19 7 2 0 6

215 2 22 INKEL 037 058 062 069

078 079 095 121

12 2 14 9 15 0 15 1

15 2 15 3 15 4 15 5

15 7 15 8 15 9 16 0 189 207 222 224 225 226 227 243 247

LOTTE 014 016 036 098

10 0 17 2 17 3 174 17 5 17 6 17 7 17 8 17 9 18 0 181 18 3 201 202 208 213 214 219 223 232

238 24 0 LXI 103 MAGNAVOX 111 MARANTZ 002 018 020 025

034 041 081 090

097 112 MCINTOSH 049 MCS 104 MEMOREX 107 NAD 046 ONKYO 013 040 041 047

048 056 057 132

13 3 14 0 OPTIMUS 158 PANASONIC 007 033 064 113

14 2 2 2 0 2 41 2 51 PENNEY 104 PHILIPS 026 112 143 PIONEER 039 042 043 063

065 091 093 094

115 123 12 7 2 5 0 QUASAR 113 RCA 080

RCX 092 REALISTIC 103 106 SAMSUNG 124 145 146 182

19 3 19 4 19 5 2 0 3

204 244 245 246 SANSUI 011 135 138 144 SANYO 019 083 234 SCOTT 106 186 SHARP 031 032 051 052

072 082 117 119

156 184 199 200

206 209 SHERWOOD 005 006 158 SONY 044 045 109 114

118 12 6 24 8 2 4 9 TAEKWANG 012 020 073 074

076 077 105 161

16 2 16 3 16 4 16 5

16 6 16 7 16 8 16 9

205 231 233 242

TEAC 010 085 106 136

18 5 18 7 2 3 7 TECHNICS 101 113 128 134

14 7 2 18 TOSHIBA 137 THE 061 VICTOR 088 131 WARDS 089 YAMAHA 054 055 066 092

19 9

APEX DIGITAL 022 DENON 020 014 GE 005 006 HARMAN KARDON 027 JVC 012 LG 001 010 016 025 MAGNAVOX 013 MARANTZ 024

MITSUBISHI 002 NAD 023 ONKYO 008 017 PANASONIC 003 009 PHILIPS 013 PIONEER 004 026 PROCEED 021 PROSCAN 005 006

RCA 0 05 006 SAMSUNG 011 015 SONY 007 THOMPSON 005 006 TOSHIBA 019 008 YAMAHA 009 018 ZENITH 010 016 025

Behavior Tech Computer 42PB4DAUA, 60PB4DAUA, 50PB4DAUA, KB5139U User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

WARNING / CAUTION

IMPORTANT SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

CONTENTS

FEATURE OF THIS TV

PREPARATION

ACCESSORIES

FRONT PANEL INFORMATION

BACK PANEL INFORMATION

STAND INSTALLATION (Only 32LB9D)

ATTACHING THE TV TO A DESK (Only 32LB9D model)

BACK COVER FOR WIRE ARRANGEMENT

ATTACHING THE TV TO A WALL

DESKTOP PEDESTAL INSTALLATION

VESA WALL MOUNTING

ANTENNA OR CABLE CONNECTION

EXTERNAL EQUIPMENT SETUP

HD RECEIVER SETUP

When connecting Component cable

When connecting HDMI cable

When connecting HDMI to DVI cable

DVD SETUP

When connecting Component cable

When connecting with an S-Video cable

When connecting HDMI cable

VCR SETUP

When connecting with an antenna

When connecting with a RCA cable

When connecting with an S-Video cable

OTHER A/V SOURCE SETUP

PC SETUP

When connecting D-sub 15 pin cable

When connecting HDMI to DVI cable

Screen Setup for PC mode

USB IN SETUP

AUDIO OUT SETUP

WATCHING TV / CHANNEL CONTROL

REMOTE CONTROL FUNCTIONS

Installing Batteries

Remote control effective range

TURNING ON TV

VOLUME ADJUSTMENT

CHANNEL SELECTION

ON-SCREEN MENUS SELECTION

CHANNEL SETUP

Auto Scan (Auto Tuning)

Add/Delete Channel (Manual Tuning)

Channel Editing

INPUT LIST

SimpLink Preparations

SimpLink

SimpLink Menu

SimpLink Functions

INPUT LABEL

KEY LOCK

ENTRY MODES

MEDIA HOST

PHOTO LIST

MUSIC LIST

PICTURE CONTROL

PICTURE SIZE (ASPECT RATIO) CONTROL

PRESET PICTURE SETTINGS

Picture Mode - Preset

Color Tone - Preset

MANUAL PICTURE ADJUSTMENT

Picture Mode - User Mode

Color Tone - User Mode

XD - PICTURE IMPROVEMENT TECHNOLOGY

ADVANCED - CINEMA 3:2 PULL DOWN MODE

ADVANCED - BLACK (DARKNESS) LEVEL

PICTURE RESET

SOUND & LANGUAGE CONTROL

AUTO VOLUME LEVELLER (AUTO VOLUME)

PRESET SOUND SETTINGS (SOUND MODE)

SOUND SETTING ADJUSTMENT - USER MODE

BALANCE
