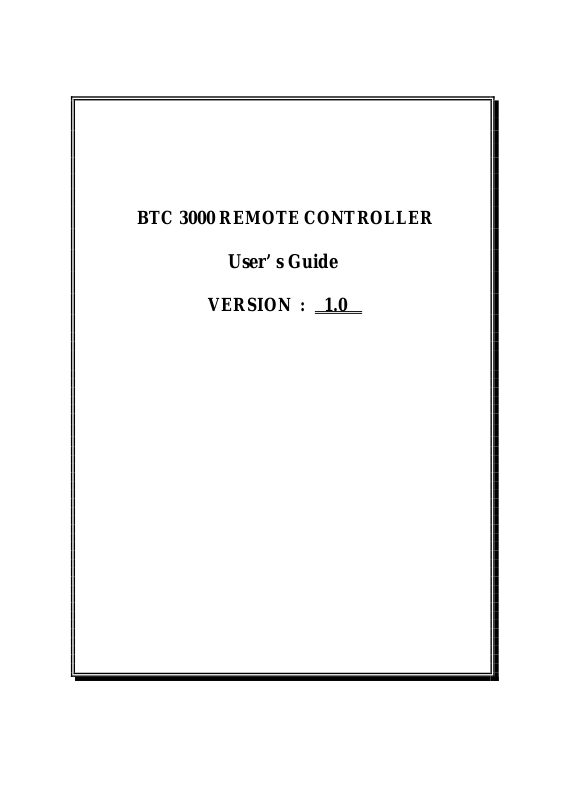

BTC 3000 REMOTE CONTROLLER
User’s Guide
VERSION : 1.0
Table of Contents
1. PURPOSE ............................................................................................................................................1
1.1 General Description ....................................................................................................................1
2. GENERAL SPECIFICATIONS..........................................................................................................2
2.1 Operation Temperature Range.....................................................................................................2
2.2 Operation Humidity Range..........................................................................................................2
2.3 Material Parts & UL Number ......................................................................................................2
3 LAYOUT ...........................................................................................................................................3
4 BLOCK DIAGRAM..........................................................................................................................4
BEHAVIOR TECH COMPUTER CORP. Remote Controller Ver.1.0
1. PURPOSE
The following specifications is applied to this remote controller.
1.1 General Description
Length: 162 mm.
Width: 56.5 mm.
Height: 42 mm.
Weight: 86 g.
May 23, 2000 Page 1
BEHAVIOR TECH COMPUTER CORP. Remote Controller Ver.1.0
2. GENERAL SPECIFICATIONS
2.1 Operation Temperature Range
Operation Temperature Range : 0°C ~ 45°C
Storage Temperature Range : -20°C ~ 60°C
2.2 Operation Humidity Range
Operation Humidity Range : 20% ~ 90%
Storage Humidity Range : 90%RH or less (Non-Condensing)
2.3 Material Parts & UL Number
Component Material Type of
Material
Enclosure &
Base cover
Battery Cover HIPS
LED Cover PC
Rubber
Dome
HIPS
HIPS
HIPS
HIPS
HIPS
PC
Silicone
Silicone
PH-88
HR-1360+
350
PH-88
HR-1360+
350
PCVM-112
8B35
DY35-840
KE-951
Flame
Class
94HB
94HB
94HB
94HB
94HB
94HB
94V2
94V2
94HB
94HB
UL No. Manufacturer of Material
E56070
E115797
E115332A
E56070
E115797
E115332A
E118859
E61257
E55519
E48923
P.C.B XPC ETL-601 94HB E95862
Connector Socket
(Wafer)
Nylon 66
Nylon 66
A3K
JP2411
94V2
94V2
E41871
E127691
Chi Mei Industrial Co., Ltd.
Cheil Industries Inc.
Gppc Chemical Corp.
Chi Mei Industrial Co., Ltd.
Cheil Industries Inc.
Gppc Chemical Corp.
Mobay Corp.
General Electric.
Dow Ccooling Trray Silicon Co., Ltd.
Shin-Etsu Chemical Co., Ltd.
Eternal Chemical Co., Ltd.
Basf Aktiengesellschaft
Just Make Terminal & Machine Co.,
Ltd.
May 23, 2000 Page 2
BEHAVIOR TECH COMPUTER CORP. Remote Controller Ver.1.0
3 LAYOUT
3000 LAYOUT
May 23, 2000 Page 3
BEHAVIOR TECH COMPUTER CORP. Remote Control Ver.1.0
4 BLOCK DIAGRAM
Keyboard
Receiver
May 23, 2000 Page 4
