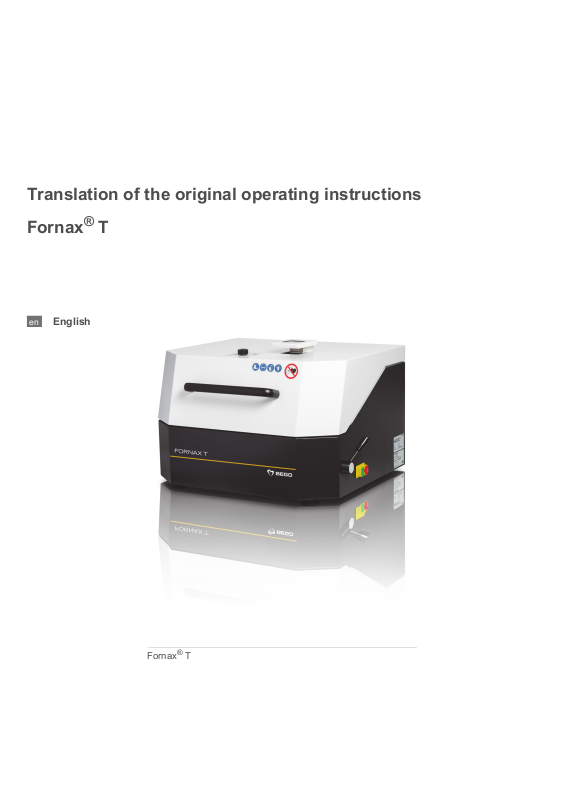

Translation of the original operating instructions
en
Fornax
English
®
T
Fornax® T
English ⋅ Fornax® T
en
This device documentation is part of the
device and must be enclosed when selling
or transferring the device.
• The device has been designed solely for use in
dental laboratories and comparable institutions
for research, commercial and training purposes. The device must only be operated by dental
professionals, or they must provide supervision
if trainees or other persons operate the device.
• The operating instructions must be read and
understood before the device is used. This
applies, in particular, to Safety Instructions.
Damages caused by non-compliance with
these operating instructions will invalidate any
and all warranty claims. We will also not accept
liability for any resulting consequential damages.
• Symbols used
Table of contents
General information................................................3
Unpacking / Packing ..............................................6
Safety instructions..................................................7
Unit description ....................................................10
Scope of delivery and extras................................ 11
Technical data ......................................................12
Installation ............................................................13
Basic principles ....................................................16
Basic principles: Crucible .....................................18
Operation .............................................................20
Casting table ........................................................26
Care and maintenance.........................................28
Troubleshooting ...................................................29
Signs, labels and stickers.....................................30
Disposal ...............................................................31
Declaration of Conformity..........................Appendix
This symbol indicates very important
information. Failure to comply with it may
result in personal injury.
This symbol warns of hot parts.
Prohibited for persons with pacemakers.
This symbol indicates that safety gloves
have to be worn.
Use eye protection (protective glasses
against mechanical hazards).
This symbol indicates that protective
clothing must be worn.
Use protective footwear.
Read the operating instructions carefully.
This symbol marks important information.
Failure to comply with it may result in
damage to the unit or the work result may
be unsuccessful.
86107 BA-en/01
2
en
General Information
Importance of the operating Instructions
English ⋅ Fornax® T
These operating instructions includes all information
required in accordance with the relevant rules for
the safe operation of the device described herein.
The operating instructions are a part of the device.
The operating instructions should therefore
• always be kept at hand near the device until the
device is disposed of,
• and must be passed on with the device when it
is sold, transferred or rented/leased out.
Contact the manufacturer if you are unsure about
anything in the operating instructions.
We welcome any suggestions or contributions;
please feel free to contact us. Your effort will help us
make the operating instructions more user-friendly
and respond more effectively to your wishes and
needs.
Target group
This document is directed toward everyone who
works with this device or performs service tasks that
are described in this document.
Contact information
BEGO Bremer Goldschlägerei Wilh. Herbst GmbH & Co. KG
Wilhelm-Herbst-Str. 1
28359 Bremen • Germany
Telephone: +49 421 2028-0
Service-Hotline Phone: +49 421 2028-270
www.bego.com
Copyright by BEGO Bremer Goldschlägerei Wilh. Herbst GmbH & Co. KG
These operating instructions are protected by copyright. All rights reserved.
No part of this document may be reproduced without the express written permission of BEGO Bremer
Goldschlägerei Wilh. Herbst GmbH & Co. KG!
86107 BA-en/01
3
English ⋅ Fornax® T
en
DANGER
WARNING
CAUTION
NOTICE
Conventions
These operating instructions contain references to
residual hazards, important user tips and handling
instructions that are identified with the following
symbols and words.
This reference identifies hazards that
can cause serious bodily injury or
death if the relevant hazard instructions are not followed or not followed
properly.
This reference identifies hazards that
can cause bodily injury or property
damage if the relevant hazard instructions are not followed or not followed
properly.
This reference identifies only those
hazards that are potential damaging
to property and the environment.
This symbol identifies user tips and particularly
useful information. It helps you optimally exploit
all the functions of your machine.
1. Sequential actions are described in sequentially
numbered paragraphs.
→
Cross-references are identified with this symbol.
4
86107 BA-en/01
en
Warranty and Liability
English ⋅ Fornax® T
Our "General terms and conditions of sale and
delivery" apply. These terms and conditions are
available to the operator since the conclusion of the
contract at the latest.
Warranty and liability claims for personal injury and
property damage are excluded if these are attributable to one or more of the following causes:
• Improper use of the device
• Improper installation, commissioning, operating
and maintenance of the device;
• Operating the device with safety and protective
facilities that are defective, improperly installed
or inoperative
• Failure to observe the notes contained in these
operating instructions regarding the transport,
storage, installation, commissioning, operation,
service and maintenance of this device;
• Unauthorized structural modifications to this
device;
• Inadequate monitoring/inspection of device
parts that are subject to wear;
Exclusion of liability in case of modifications:
If a modification by the user affects any aspect of the
performance data or intended functioning, as
described in the relevant standards, of the
centrifugal casting machine, the person or organization that undertook the modification is responsible
for obtaining a new classification and new labelling
for the centrifugal casting machine. This person or
organization then assumes the status of "manufacturer".
• Improperly performed repairs;
• Disastrous situations/emergencies caused by
foreign objects or force majeure.
86107 BA-en/01
5
English ⋅ Fornax® T
en
Unpacking / Packing
86107 BA-en/01
6
en
Safety instructions
WARNING
WARNING
English ⋅ Fornax® T
The HF Fornax® T centrifugal casting machine is
designed exclusively for casting dental alloys, with
the exception of titanium. Any other use is deemed
to be improper. No liability will be accepted for any
damages resulting from improper use.
Danger from toxic gases!
Titanium reacts violently with the
crucibles. This may lead to bodily
injury and damage to the device!
• Wear suitable protective equipment
when working with the machine.
• When casting dental alloys, do not
use titanium!
General safety instructions
Place where effective
The device has been designed solely for use in
dental laboratories and comparable establishments
for research, commercial and training purposes.
The device may only be installed on a sufficiently
stable surface.
The unit must only be used in dry rooms.
Operator and operating personnel
The device must only be operated by dental professionals; trainees and other persons operating the
device must be supervised.
Wear the protective clothing prescribed for use in
dental laboratories and observe the rules of
conduct.
The device may only be operated by staff members
who are familiar with and follow the instructions of
this operating manual.
The operating manual must be easily accessible
when the machine is operated. Observe the national
accident prevention regulations in addition to this
operating manual.
Alloys containing beryllium produce strong oxides
during melting, cause substantial wear to the
crucibles and remain there in significant amounts.
Danger from toxic materials!
Carcinogenic particles are released
when beryllium is processed!
• Wear mouth protection and ensure
good suction extraction when casting and finishing!
The safety instructions must be followed in order to
prevent personal injury and damage to the machine.
We shall not be liable for damage due to failure to
comply with the safety instructions.
Handling the machine
Check if the specifications on the type plate correspond to the power supply network before
connecting the device. Consult a specialist in case
of uncertainty.
The device is categorised under protection class I
and may only be connected to properly earthed
power sources (earth contact sockets).
Modifications of the machine are not permitted.
Always keep signs and stickers such that they are
easy to read. They must not be removed.
Check the machine and leads for damage regularly.
The machine must not be operated if it has any
defects that may result in risks for the employees or
third persons.
Protect the leads against heat, oil and sharp edges.
The leads must not be used to carry the machine or
to pull out the mains plug.
86107 BA-en/01
7
English ⋅ Fornax® T
en
Repair work
Repairs may be carried out solely by BEGO
customer service personnel or by persons
authorized by the BEGO customer service
department.
Metallic housings must be grounded properly so
as to prevent them from carrying current. Otherwise
they are extremely dangerous because the
housings may be live due to damage to the
machine! Since a check to ensure a de-energized
state is mandatory after every intervention in the
machine (Germany: check in accordance with DIN
VDE 0701-1), only qualified electricians may open
the machine!
Only BEGO replacement and wearing parts may be
used.
Installation
The device is categorised under protection class I
and may only be connected to properly earthed
power sources (earth contact sockets).
When laying cables and hoses, make sure that they
are protected from hot components (e.g., moulds).
The cooling water temperature must never drop
below 10°C (50°F). If not observed, condensation
forming on the coil may have an adverse effect on
the heat output. If condensed water get onto the hot
mould, it may vaporized explosively.
Danger of burns when draining the cooling water!
The water can reach temperatures up to 70° C if the
unit was used for casting beforehand.
Care and maintenance
Switch off the machine and pull out the mains plug
before performing any care, cleaning or maintenance work.
Only use dry or slightly moist cloths for cleaning. Do
not spray the machine with water or immerse it in
water.
Maintenance of safety-relevant components
The unit has been designed for a service life of 10
years from the date of manufacture. No liability is
accepted for damages arising from operation of the
unit after this period.
Safety-relevant components must be checked
regularly and replaced as required. This work must
be carried out solely by BEGO customer service
personnel or by repair centres authorised by the
BEGO customer service department. For that
purpose, regular maintenance, including annual
inspections and an inspection after five years,
carried out by personnel authorized by BEGO is
recommended.
86107 BA-en/01
8
en
Special safety instructions regarding this device
DANGER
WARNING
WARNING
WARNING
NOTICE
English ⋅ Fornax® T
Danger due to electric shock
• The device is categorised under
protection class I and may only be
connected to properly earthed power sources (earth contact sockets).
Danger of deflagration
• The cooling water temperature must
never drop below 10°C (50°F). Otherwise condensation water may
land on the hot moulds and vaporize
explosively.
Danger from waste gases
• Ensure there is adequate ventilation
in view of the waste gases arising
during the casting of dental alloys.
Electromagnetic radiation!
• Persons with electronic implants
(for instance, pacemakers) may not
remain in the same room in which
the ready-to-operate machine is
located.
• The warning signs provided (symbol: "pacemaker") are to be placed
at the entrances to the room in
which the ready-to-operate machine
is located!
Burn hazard from hot parts!
• Wear protective clothing (protective
apron), safety shoes, safety goggles and protective gloves.
• Always use mould tongs to move
moulds and hot crucibles.
• Touch hot crucible inserts and hot
cast metal with forceps only..
• Place hot parts only on a fireproof
surface.
• Danger of burns when draining the
cooling water!
• Carry out maintenance and cleaning work before casting or only after
the machine has cooled down.
Important!
• When laying cables and hoses, ensure that
they are protected from hot components (e.g.,
moulds)!
• Do not cover the ventilation slots located on the
left and the back of the machine!
86107 BA-en/01
• Never operate the device without supervision!
9
English ⋅ Fornax® T
en
Device description
Fornax® T
Fornax® T is a compact benchtop casting centrifuge
with powerful induction heating for all normal
precious metal and non-precious metal alloys
(except titanium). Appropriate adjusting mechanisms for different mould sizes (weights) provide for
a fast, economic operation.
Functions:
1 Setting /starting the timer
2 Setting the IR sensor (temperature limits)
3 Opening the cover
4 Adjusting the crucible inserts for precious
metals
5 Cooling water indicator
6 Heater indicator
7 Cover
8 Casting arm (slider and counter-weight)
9 Main switch
10 Raising/lowering the crucible coil (releasing the
cast)
11 Splash guard
12 Cooling water tank
13 Emergency release
86107 BA-en/01
10
en
Scope of delivery, wearing parts and extras
Scope of delivery
REF Quantity Designation
86107 1 Translation of the original operating instructions
52483* 1 Ceramic crucible
52454* 1 Graphite insert
52455* 1 Ceramic insert
1 Mould former, size 3*
1 Mould former, size 6*
1 Mould former, size 9*
English ⋅ Fornax® T
16092 1 Symbol "Pacemaker"
16647 1 Crucible stand
- 1 Power supply cable (country specific)
* Wearing part. Expendable and wearing parts are neither subject to the warranty nor the guarantee.
Accessories
REF Quantity Designation
39754 1 Mould tongs 55 cm
11599 1 Mould tongs 64 cm
17800 1 Transformer
52627 1 Mould former, size 3
52628 1 Mould former, size 6
52629 1 Mould former, size 9
52525 65 g Auromelt
52526 80 g Wiromelt
54883 1 Glassy carbon inserts
** not included in the scope of delivery
86107 BA-en/01
11
English ⋅ Fornax® T
en
Technical data
Height opened.............................................910 mm
Height closed ..............................................455 mm
Width...........................................................710 mm
Depth ..........................................................615 mm
Weight ..........................................................79.4 kg
230 V AC, 50 / 60 Hz, 3680 VA.................................................................................................... REF 26480
For special voltage 200/210/240 V AC......................................................................................... REF 26481
Nominal voltage....................... 230 V AC, 50/60 Hz
Nominal output ...........................................3680 VA
Heating output ................................3.6 kVA, 65 kHz
Noise emission ...................................... < 80 dB (A)
Ambient temperature..............................10… 30 °C
(50…86 °F)
(consisting of REF 26480 and REF 17800)
86107 BA-en/01
12
en
Installation
WARNING
Installation
English ⋅ Fornax® T
The warning signs provided (symbol:
"pacemaker") are to be placed at the
entrances to the room in which the
ready-to-operate machine is located!
1. The device may only be installed on a sufficiently stable surface.
2. Use two open-ended wrenches (13 and 17
mm) to turn the feet of the unit clockwise and/
or counterclockwise until the unit is properly
aligned and level. Check the alignment with
the aid of a spirit level.
3. Place the crucible stand in its intended space
below the crucible coil as protection against
hot casting beads. Please observe the following pages for opening the cover.
86107 BA-en/01
13
English ⋅ Fornax® T
en
Electricity
Check if the specifications on the type plate correspond to the power supply network before
connecting the device. Consult an electrician in
case of uncertainty.
The device is subject to protection class I and must
only be connected to properly grounded and
protected power sources.
Recommendation: Always operate the device in a
single power circuit (min. 16A fuse).
Installation in countries without 230 V
network
The electrical installation must only be carried out by
a qualified electrician!
Use the transformer (accessory REF 17800) for
connection.
1. Adapt the power connection of the transformer
to local circumstances.
2. Insert the Fornax
former.
The device is subject to protection class I and must
only be connected to properly grounded and
protected power sources.
®
-power plug into the trans-
86107 BA-en/01
14
en
Cooling
NOTICE
M
o
de
l
N
o
.
:
S
/N
:
26425
3590
01
230 V
50/60 H
Z
4100 V
A
Ma
n
u
f
act
u
r
e
d
:
2
0
12
W
4
5
S
c
h
u
tz
ar
t
:
I
P
2
1
K
B
5
m
i
n
WARNING
NOTICE
English ⋅ Fornax® T
Switch the device on and open it (see page 16) The
indicator light stays on permanently if the coolant
water level of the device is sufficient (if not, error
message E13 will appear).
1. Allow the unit to cool down without turning it off
in case error message E 23 is displayed..
2. Open cover.
3. Remove the stopper from the cooling water
tank.
4. Add potable water to approx. 2 cm below the
rim, using a suitable container (e.g. bottle, jug).
5. Finally, replace both stoppers.
It is important to watch the fill level of the cooling
water tank when adding water as the unit does
not have a level indicator.
6. Keep a suitable container (2) handy to drain
excessive water.
7. Press the upper ring of the quick connector (1)
located on the bottom right of the rear unit
cover down.
8. Pull the stopper (3) out and collect the water
draining from the tank.
Risk of burns!
The water can reach temperatures up
to 70° C if the unit was used for
casting beforehand!
9. Replace the stopper.
After initial commissioning, run the device for at
least 2 minutes to allow for the cooling water to
circulate and check the water level again.
86107 BA-en/01
15
English ⋅ Fornax® T
en
NOTICE
NOTICE
Basic principles
Switching the device on and off
Opening the device
Important!
Before starting up please read and observe the
operating instructions, especially the safety
instructions (page 7), in order to prevent damage
to property and injury to persons.
1. Use the main switch on the right side of the
unit to switch the unit on and off.
Adjust crucible insert
The device can be opened if the indicator light next
to the "open cover" button is on.
1. Press button "Open cover"
2. Lift the cover.
.
If the unit is not properly locked, the indicator light
next to the "open cover" button will flash. Slightly
raise the cover and close/lock it again.
The rotation acceleration of the spinning process
needs to be reduced when a graphite or glassy
carbon insert is used to melt precious metals.
1. Adjust the crucible insert by pressing the "crucible insert" button.
2. The adjusted crucible is displayed by the status of the control lamps (see illustration).
16
86107 BA-en/01
en
Setting the timer
NOTICE
Adjusting the mould weight
English ⋅ Fornax® T
1. Use the "-" and "+" buttons (hour glass symbol)
to set the timer (see casting table, page 26
continue heating / holding time); press the start
button when done.
The timer can be reset by pressing the "-" and "+"
buttons simultaneously.
Every time a different mould size is used, the
position of the sliding counterweights on the casting
arm need to be adjusted to properly balance the
weight of the installed mould.
1. Unlock the sliding counterweight by pulling it
upward.
2. Set the tare weight of the mould by sliding the
counterweight accordingly.
The yellow pin the the center of the adjustment
weight or the adjustment bar indicates the set
mould weight on the scale.
3. Lock the sliding counterweight in its position by
pushing it down when finished.
86107 BA-en/01
17
English ⋅ Fornax® T
en
WARNING
NOTICE
Basic principles: Crucible
Adjusting the crucible locking device
Burn hazard from hot parts!
• Always use mould tongs to move
hot crucibles.
• Always use mould tongs to move
hot crucible inserts!
The crucible in use can be locked in its position by
means of the crucible locking device, thus ensuring
that the melt is safely drained by the centrifugal
force.
1. Loosen the wing screw on the crucible lock.
The crucible locking device can now be
adjusted.
2. Pull die crucible locking device backwards
using the wing screw.
3. Insert and align the crucible so that the outlet
of the crucible fits into the opening provided for
that purpose.
4. Push the wing screw back towards the crucible
so that the crucible locking device is locked in
its position.
5. Tighten the wing screw.
Fornax ceramic crucibles (RE 52483) do not
need to be preheated before casting.
18
Recommendation: Only use BEGO crucibles (REF
52483 - identifiable by the BEGO logo).
86107 BA-en/01
en
Filling the crucible
NOTICE
NOTICE
English ⋅ Fornax® T
1. Fill the desired alloy into the clamped crucible.
2. In the case of special alloys, sprinkle a pinch of
BEGO Auromelt HF melting powder on the
alloy (see table on page 26).
Melting powder made by other manufacturers
may impair the casting result!!
Auromelt HF should be used very sparingly
(only a pinch)!
ATTENTION!
• Observe minimum and maximum quantities!
3. Depending on the selected alloy, place an
additional graphite insert (REF 52454), glassy
carbon insert (REF 54883) or ceramic insert
(REF 52455) into the ceramic crucible during
the melting process (see casting table
page 26)!
Alloys with a high palladium content are generally
casted in a ceramic insert. A glassy carbon insert
can be used if the alloy chips rise during the
heating process and thus do not have the proper
temperature (failed "incorporation" in the
induction field):
• with palladium contents up to 30% of the graphite insert,
• with palladium contents over 30% of the glassy
carbon insert, which reliably prevents carbon
from being absorbed by the alloy.
Pile alloy plates loosely into the ceramic crucible as
it may otherwise crack during heating!
Recommendation: Fill in old metal first, top off with
new metal.
Always use crucible and inserts for the same alloy.
Crucibles can be written on with a pencil.
86107 BA-en/01
19
English ⋅ Fornax® T
en
WARNING
NOTICE
Operation
Preheating
Premelting is necessary to keep the "cast delay
time" (time to melt the alloy after insertion of the
mould) as short as possible.
1. Align the crucible with the center of the crucible
coil by turning the casting arm and moving the
the slider back and forth.
2. Lift the crucible coil. Pull the handle located on
the right exterior side of the device forward for
this purpose.
3. To avoid fusing, the knob must be set to up to
50% according to the alloy-specific value. The
setting controls the switching of the heater on
and off according to the measured IR radiation
of the alloy.
4. The preheating process is started by closing
the cover.
The "heating" button will light up to indicate
that the heating process is in progress
Never look into the melt without
protective glass and protective
eyewear!
ATTENTION!
• Do not premelt the alloy for too long as this may
result in uncharacteristic behaviour of the alloy
later on.
During the premelting process, the castings
should only deform slightly and not melt completely!
• As these are only reference values, the castings must be observed. If the castings deform
more than just slightly, the premelting process
must be stopped (and the value setting must be
reduce with the knob).
• Do not move the handle to raise/lower the crucible coil during the premelting process as this
will initiate the spinning process prematurely!
5. Open the cover to stop the premelting process.
The heating process will be interrupted.
20
86107 BA-en/01
en
Insert mould
WARNING
CAUTION
NOTICE
English ⋅ Fornax® T
Burn hazard from hot parts!
• Always use mould tongs to move
moulds.
• Wear suitable protective equipment
when operating the device!
1. Insert the preheated mould into the mould
holder. The mouth of the ingot mould must
face the crucible.
Mould temperatures above
1050°C may cause the device to
overheat.
Never use damaged or cracked
moulds.
2. Lower the crucible coil to adjust the mould distance. Push the handle located on the right
exterior side of the device backward for this
purpose.
Ideally, the setup should be carried out with a cold
mould before it is placed into the preheating
oven. A "dummy" may be used alternatively.
A setup with a hot mould is required if the
presetting did not take place or if the model
casting moulds have different shapes, for
instance if they are imbedded with crepe sleeves.
(here, moulds may have different heights and
diameters)
86107 BA-en/01
3. Oval moulds (see image) may be inserted as
well. For this purpose, the angle of the crucible
holder can be adjusted individually by loosening and/or tightening the mounting screws.
21
English ⋅ Fornax® T
en
NOTICE
NOTICE
4. Unlock the slider. Turn the clamping lever (1)
counterclockwise for this purpose. The lever
position can be changed individually, see note.
If necessary, raise the clamping lever first (1.1)
and then rotate it (1.2).
5. The slider can only be moved with the handle
(2).
6. Use the adjustment lever (3) to properly align
the mould; the mouth of the ingot mould must
be aligned with the center of the crucible outlet.
The specified mould size can be seen on the
toothed bar.
22
Caution!
If the mould is not properly installed, the alloy
may splash into the unit instead of flowing into the
mould after melting and releasing the cast!
Note: The rotation direction is counterclockwise
Center align the pouring spout of the crucible
inside the casting funnel!
86107 BA-en/01
English ⋅ Fornax® T
en
NOTICE
NOTICE
7. Move the slider towards the mould by its handle (4).
.
ATTENTION!
• The ceramic crucible may get damaged if the
slide is not moved back smoothly!
• The slider is properly positioned when the crucible pouring spout reaches into casting funnel
of the mould.
• A gap (approx. 1-3 mm) remains between the
edge of the mould and the slider to avoid any
damage on the mould as well as defective castings.
8. Lock the slider. Turn the clamping lever (5)
clockwise for this purpose. The slider can now
only be moved to this point.
The clamping lever must point towards the
crucible when it is locked!
86107 BA-en/01
23
English ⋅ Fornax® T
en
NOTICE
WARNING
Melting
Ideally, the melting process should always be
carried out at the max. setting (knob to 100%)!
In isolated cases, the premelting and melting
process may be carried out with a reduced setting.
The corresponding values must be individually
determined by the user and can be entered into the
table on page 26. The corresponding procedure
also applies for non-Bego alloys.
Melting procedure
When the last solid part has sunk completely into
the melt, continue to heat as long as is indicated in
the table on page 26!
After the end of the further heating time casting can
be carried out, provided that the melt is ready for
casting after a visual check. The time needs to be
used for an exact setting of the continuous heating
time during the melting process.
Important!
The motion of the melt is caused by the magnetic
field, not by the heat. The moving melt is
therefore not a "boiling" melt!
1. Align the crucible with the center of the crucible
coil by turning the casting arm and moving the
the slider back and forth.
2. Lift the crucible coil. Pull the handle located on
the right exterior side of the device forward for
this purpose.
3. Insert the preheated mould into the mould
holder. The pouring spout of the mould must
face towards the crucible (page 21/22).
4. The melting process is started by closing the
cover.
The "heating" button will light up to indicate
that the heating process is in progress
5. For the melting process, turn the knob to the
max. heating setting (100%) or to the individually determined heat output, respectively.
24
Never look into the melt without
protective glass and protective
eyewear!
6. Look through the protective lens to observe the
melt.
7. Start the timer (with the continuous heating/
holding time entered in the casting table page
26) when the last solid part has completely
sunk into the melting bath.
8. An acoustic signal (beep) will sound when the
time set on the timer has expired.
86107 BA-en/01
English ⋅ Fornax® T
en
WARNING
9. Visually check the melt; lower the crucible coil
if the melt appears to be ready for casting.
Push the handle located on the right exterior
side of the device backward for this purpose.
10. The spinning process will start.
The cover will be unlocked automatically when the
spinning process is completed (after approx. 35
seconds). (audible click)
The indicator lamp "Open cover" blinks.
11. Lift cover.
Burn hazard from hot parts!
Always use mould tongs to move
moulds.
12. Remove the mould.
13. Repeat the steps described above, starting
with the selection of the proper crucible insert,
for additional casting processes (see 16).
14. When all casting processes are completed,
turn the unit off with the main switch located on
the right side of the unit's housing.
86107 BA-en/01
25
English ⋅ Fornax® T
en
**
**
Casting table
Continuous
Alloys
heating /
Preheating temperatures
holding time*
Au LFC BioPlatinLloyd® 14...17 sec 700 °C (1290 °F) -- Auromelt
BioPontoStar® 15...18 sec 850 °C (1530 °F)
✔
BioPontoStar® XL 17...22 sec 850 °C (1530 °F)
✔
LFC PlatinLloyd® KF 10...13 sec 700 - 750 °C (1290 - 1380 °F)
- PlatinLloyd® M/100 10...13 sec 700 °C (1290 °F)
PontoLloyd® G 22...25 sec 850 °C (1530 °F)
✔
PontoLloyd® P 18...22 sec 850 °C (1530 °F)
✔
LFC Pontonorm 12...15 sec 700 °C (1290 °F)
PontoStar® G/H 17...20 sec 850 °C (1530 °F)
✔
Au LFC AuroLloyd® KF 17...20 sec 700 °C (1290 °F)
- AuroLloyd® M 17...20 sec 700 °C (1290 °F)
BegoCer® G 12...18 sec 850 - 950 °C (1530 - 1740 °F) -- Auromelt
✔
BegoStar® 22...25 sec 850 °C (1530 °F)
✔
Pd
Ag LFC BegoStar® LFC 17...20 sec 700 °C (1290 °F) -- Auromelt
LFC ECO d’OR 17...20 sec 700 °C (1290 °F)
Eco
NiCr
CoCr
LFC Wirobond® LFC 04...08 sec 900 - 1000 °C (1650 - 1830 °F)
* The determined continuous heating times correspond with our technical process experience with castings using
exclusively new materials and are provided as recommendations. The specified values may deviate depending on
the specific alloys, in particular when using non-BEGO alloys.
Note: The table on the following page is provided to record individually determined continuous heating times.
** A glassy-carbon insert may be used as an alternative to the ceramic insert.
BegoPal®/S 13...16 sec 850 °C (1530 °F) -- Auromelt
✔
BegoPal® 300 13...16 sec 850 - 950 °C (1530 - 1740 °F) -- Auromelt
✔
BegoStar® ECO 07...11 sec 850 °C (1530 °F) -- Auromelt
✔
Wirocer plus 06...12 sec 900 - 950 °C (1650 - 1740 °F)
✔
Wiron® 99 07...10 sec 900 - 950 °C (1650 - 1740 °F)
✔
Wiron® light 03...07 sec 800 °C (1472 °F)
✔
Wirobond® C 07...10 sec 900 - 1000 °C (1650 - 1830 °F)
✔
Wirobond® SG/280 02...04 sec 900 - 1000 °C (1650 - 1830 °F)
✔
- Wironit
- Wironit® LA 06...08 sec 950 - 1050 °C (1740 - 1920 °F)
- WIRONIUM
- WIRONIUM® extra-
- WIRONIUM® plus 06...08 sec 950 - 1050 °C (1740 - 1920 °F)
®
Wironit® extra-hard 02...10 sec 950 - 1050 °C (1740 - 1920 °F)
®
hard
07...10 sec 950 - 1050 °C (1740 - 1920 °F)
02...04 sec 950 - 1050 °C (1740 - 1920 °F)
06...08 sec 950 - 1050 °C (1740 - 1920 °F)
Crucible
and
insert
Melting
powder
86107 BA-en/01
26
English ⋅ Fornax® T
en
Au
Au
Pd
Ag
Alloys
Continuous
heating /
holding time*
Preheating temperatures
Crucible
and
insert
Melting
powder
NiCr
CoCr
86107 BA-en/01
27
English ⋅ Fornax® T
en
DANGER
WARNING
NOTICE
NOTICE
Service and Maintenance
Warning of electric shock!
Danger to life!
Switch off the machine and pull out
the mains plug before performing any
care or maintenance work.
For power connection without mains
plug: remove fuses, secure the
devices against restart and make sure
that it is not live.
Burn hazard from hot parts!
Carry out maintenance and cleaning
work before working or only after the
machine has cooled down.
If necessary, clean the machine on the outside with
a dry or slightly moist cloth.
Check the casting chamber daily for impurities
(casting pearls) and if necessary clean with cloth or
vacuum cleaner.
28
ATTENTION!
Do not use compressed air for cleaning as
residues (casting beads) may get caught in the
coil windings and subsequently inhibit heating!
Remove any contamination from both side of the
sight glass at regular intervals.
86107 BA-en/01
en
Troubleshooting
DANGER
WARNING
English ⋅ Fornax® T
Warning of electric shock!
Danger to life!
Switch off the machine and pull out
the mains plug before eliminating any
malfunctions!
For power connection without mains
plug: remove fuses, secure the
devices against restart and make sure
that it is not live.
General remarks on eliminating malfunctions:
• Switch off unit,
• Eliminate malfunction,
• Switch on the device.
• Notify Service if messages appear repeatedly.
Error messages
Error message Remedy
E 01 E 02 E 04 E 22 Switch off unit! Notify Customer Service.
• Have servicing work carried out only by authorized BEGO workshops!
Service-Hotline: +49 (421) 2028 - (270 ... 274)
Risk of injury!
• Eliminate malfunctions only when
wearing appropriate protective
equipment!
E 13 Refill cooling water.
E 23
E 24 E 25 E 27 E 50 Switch off unit! Notify Customer Service.
Allow machine and cooling water to cool down while the unit is powered on.
Check water level and refill cooling water if necessary.
Emergency release
86107 BA-en/01
1. Unplug the power cord.
2. Insert a pointed object (e.g. screwdriver)
approx. 1.5 cm into the bore on the right side of
the housing and carefully release the interlock
(1).
Do not use force!
The interlock will make an audible sound when
it is unlocked.
3. Lift the cover using the handle (2).
29
English ⋅ Fornax® T
en
Signs, labels and stickers
86107 BA-en/01
30
en
Disposal
English ⋅ Fornax® T
Instructions for the disposal of the device
(Applicable only within the European Union)
The adjacent symbol on the ID plate of the BEGO device indicates that the device,
in accordance with the European directive on waste electrical and electronic
equipment, may not be disposed of as normal domestic waste.
As a customer, you contribute to the protection of the environment when you dispose
of the device correctly.
Disposal in Germany
BEGO offers you a disposal solution for all BEGO devices sold and put into operation
in Germany subsequent to August 13, 2005. Please contact us when it is time to
dispose of the device.
Disposal in other countries of the European Union
Please contact the company from which you purchased the BEGO device when it is
time to dispose of it. They will provide you with information concerning correct
disposal in your region.
86107 BA-en/01
31
Loading...
