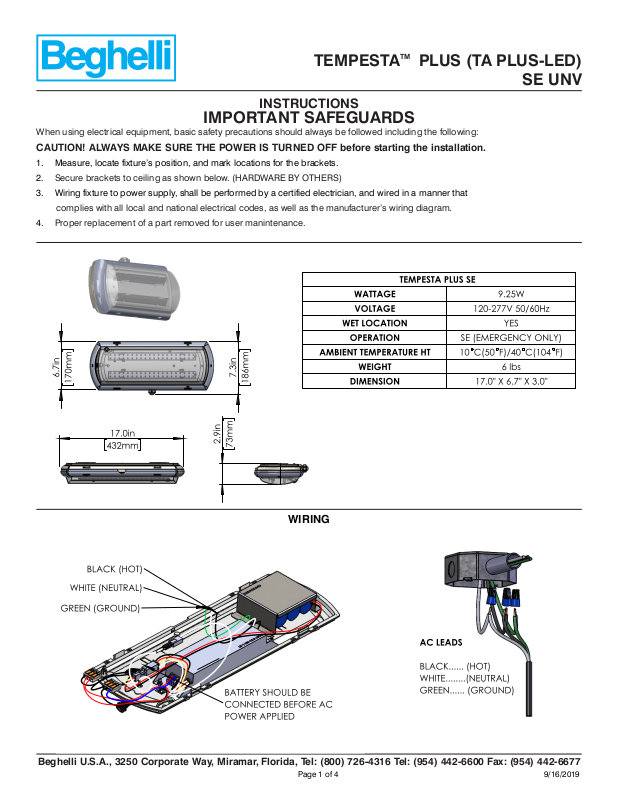

Beghelli TEMPESTA PLUS SE Instructions Manual

TEMPESTA PLUS (TA PLUS-LED)

TM

INSTRUCTIONS

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be followed including the following:

CAUTION! ALWAYS MAKE SURE THE POWER IS TURNED OFF before starting the installation.

1. Measure, locate fixture’s position, and mark locations for the brackets.

2. Secure brackets to ceiling as shown below. (HARDWARE BY OTHERS)

3. Wiring fixture to power supply, shall be performed by a certified electrician, and wired in a manner that

complies with all local and national electrical codes, as well as the manufacturer’s wiring diagram.

4. Proper replacement of a part removed for user manintenance.

SE UNV

WIRING

Beghelli U.S.A., 3250 Corporate Way, Miramar, Florida, Tel: [phone] Tel: [phone] Fax: [phone]

Page 1 of 4

9/16/2019

A

A.

Using a at head screwdriver,
push-in to release lock (repeat
for 3 other clips).

REMOVING LENS

(HARDWARE BY OTHERS)

(2) 1/2” TRADE SIZE KNOCK-OUTS

REMOVING ELECTRICAL ASSEMBLY

C

B.

Using a at head screwdriver,
twist to release lock (repeat
for 3 other clips).

B

C.

Install back plate on the wall
at designated location (hard-

ware by others).

Beghelli U.S.A., 3250 Corporate Way, Miramar, Florida, Tel: [phone] Tel: [phone] Fax: [phone]

9/16/2019Page 2 of 4

MOUNTING POSITIONS

CEILING MOUNT LED POSITIONWALL MOUNT LED POSITION

Beghelli U.S.A., 3250 Corporate Way, Miramar, Florida, Tel: [phone] Tel: [phone] Fax: [phone]

9/16/2019Page 3 of 4

LED INDICATOR / TEST SWITCH

IMPORTANT: Indicator (LED light) illuminated indicates battery in charge mode when AC power is applied. It is recommended and
required by applicable code to test emergency function to ensure proper operation of the system; push the test switch for
thirty (30) seconds every 30 days to ensure the emergency driver is functioning as LED light source illuminated. Conduct a
ninety minute (90)discharge test one time (1) per year; LED light source should be illuminated for a minimum of ninety minutes (90).

LED INDICATOR LEGENDS

TEST SWITCH OPERATIONS

1. EM Test: Press and hold test button to enter EM mode for testing, in all normal AC powered situations including
low power standby modes.

2. Manual Self-Diagnostic: quick press the test button three times within three seconds to force the controller to
enter a Self-Diagnostic cycle. To quit the self-diagnostic cycle after engaged press and hold the test button for
ve seconds.

3. Enable/Disable Auto Self-Diagnostic: Press and hold the test button for two seconds, then release and quickly
press the test button two times, then release and press and hold the test button for two more seconds. When
properly executed the indicator on the test button will display the appropriate Enable/Disable status. A ashing
of 2.5s ON/0.5s OFF mean "Enabled", while a ashing of 0.5s ON/2.5s OFF means "Disabled". Once Enable/Disable
is set the status color on the test button will remain the same throughout normal operation (refer to LED INDICATOR
LEGENDS).
