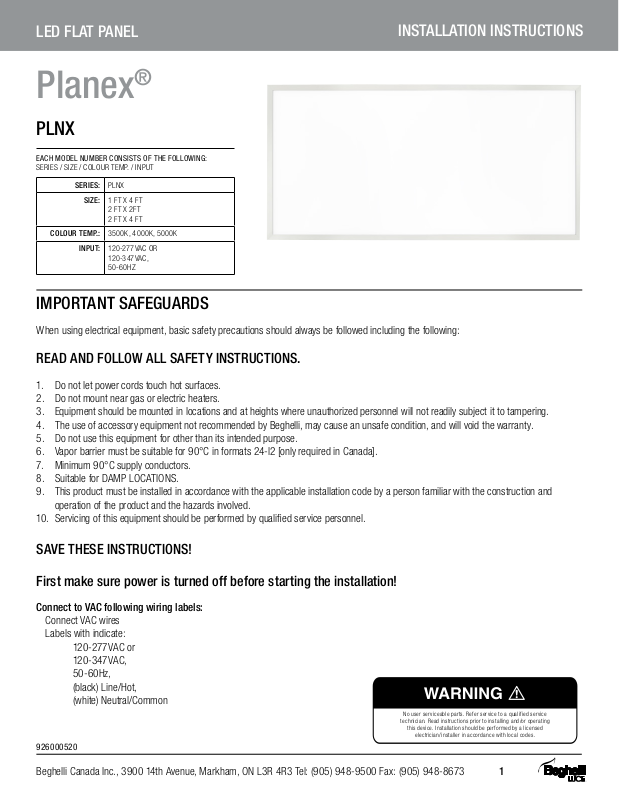

Beghelli Planex PLNX Installation Instructions Manual

LED FLAT PANEL

®

Planex

PLNX

EAC H MODEL NUMB ER CON SIST S OF THE FOLLOWING:

SERIES / SIZE / COLOUR TEMP. / INPUT

SERIES: PLNX

SIZE: 1 FT X 4 FT

2 FT X 2F T
2 FT X 4 FT

COLOUR TEMP.: 3500K, 4000K, 5000K

IN PUT: 120-277VAC OR

120 -347VAC ,
50-60HZ

IMPORTANT SAFEGUARDS

INSTALLATION INSTRUCTIONS

When using electrical equipment, basic safety precautions should always be followed including the following:

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

1. Do not let power cords touch hot surfaces.

2. Do not mount near gas or electric heaters.

3. Equipment should be mounted in locations and at heights where unauthorized personnel will not readily subject it to tampering.

4. The use of accessory equipment not recommended by Beghelli, may cause an unsafe condition, and will void the warranty.

5. Do not use this equipment for other than its intended purpose.

6. Vapor barrier must be suitable for 90°C in formats 24-l2 [only required in Canada].

7. Minimum 90°C supply conductors.

8. Suitable for DAMP LOCATIONS.

9. This product must be installed in accordance with the applicable installation code by a person familiar with the construction and
operation of the product and the hazards involved.

10. Servicing of this equipment should be performed by qualified service personnel.

SAVE THESE INSTRUCTIONS!

First make sure power is turned off before starting the installation!

Connect to VAC following wiring labels:
Connect VAC wires

Labels with indicate:
120-277VAC or
120-3 47VAC,
50-60Hz,
(black) Line/Hot,
(white) Neutral/Common

No user serviceable parts. Refer service to a qualified service

technici an. Read ins tructi ons prior t o installin g and/or o perating

this devi ce. Insta llation sh ould be per formed by a l icensed

electrician/installer in accordance with local codes.

926000520

1Beghelli Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: [phone] Fax: [phone]

PLANEX

®

PLNX | LED FLAT PANEL

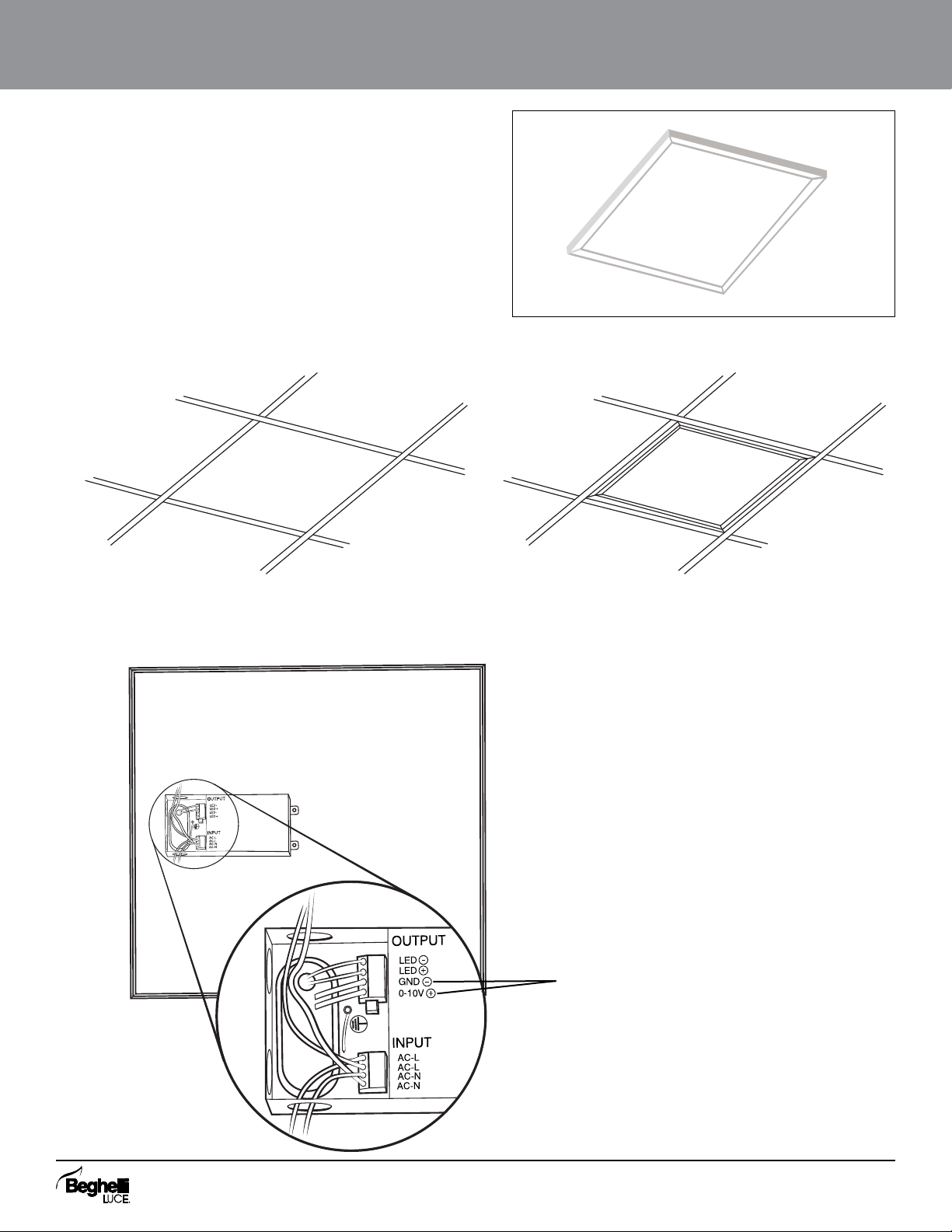

T-bar Mounting

1. Insert the LED panel light into the ceiling according to figures 1 and 2.
The installation of the panel light:
As shown in figure 1, select the appropriate size of ceiling; place
the panel lights directly onto the t-bar (figure 2).

MOUNTING

Figure 1

2. Connect wires line, neutral and ground of the input of LED driver with power supply (figure 3).

3. If the Planex needs the dimming function, the external controller needs to link with the LED driven dimming interface, as shown in figure 3.

Figure 3

Figure 2

Dimming

926000520

2 Beghelli Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: [phone] Fax: [phone]

PLANEX

4. Secure the fixture to build structure.

®

PLNX | LED FLAT PANEL

MOUNTING

SAVE THESE INSTRUCTIONS!
