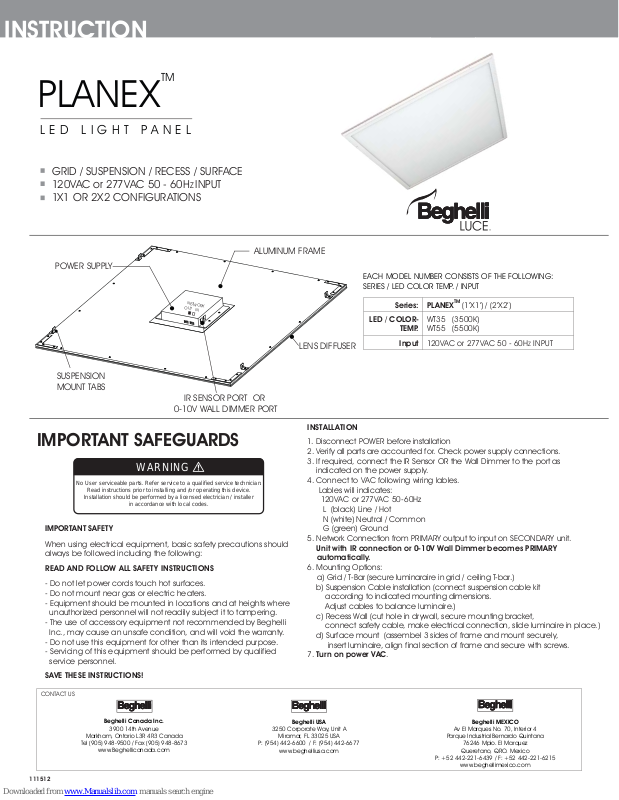

INSTRUCTION
PLANEX
LED LIGHT PANEL
GRID / SUSPENSION / RECESS / SURFACE
120VAC or 277VAC 50 - 60HZ INPUT
1X1 OR 2X2 CONFIGURATIONS
POWER SUPPLY
TM
NETWORK
OUT
ALUMINUM FRAME
EACH MODEL NUMBER CONSISTS OF THE FOLLOWING:
SERIES / LED COLOR TEMP. / INPUT
IN
LENS DIFFUSER
Series: PLANEX
LED / COLOR-
TEMP.
Input 120VAC or 277VAC 50 - 60HZ INPUT
TM
(1’X1’) / (2’X2’)
WT35 (3500K)
WT55 (5500K)
SUSPENSION
MOUNT TABS
IR SENSOR PORT OR
0-10V WALL DIMMER PORT
IMPORTANT SAFEGUARDS
WARNING
No User serviceable parts. Refer service to a qualified service technician.
Read instructions prior to installing and /or operating this device.
Installation should be performed by a licensed electrician / installer
IMPORTANT SAFETYGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
- Do not let power cords touch hot surfaces.
- Do not mount near gas or electric heaters.
- Equipment should be mounted in locations and at heights where
unauthorized personnel will not readily subject it to tampering.
- The use of accessory equipment not recommended by Beghelli
Inc., may cause an unsafe condition, and will void the warranty.
- Do not use this equipment for other than its intended purpose.
- Servicing of this equipment should be performed by qualified
service personnel.
SAVE THESE INSTRUCTIONS!
in accordance with local codes.
INSTALLATIONGUARDS
1. Disconnect POWER before installation
2. Verify all parts are accounted for. Check power supply connections.
3. If required, connect the IR Sensor OR the Wall Dimmer to the port as
indicated on the power supply.
4. Connect to VAC following wiring lables.
Lables will indicates:
120VAC or 277VAC 50-60Hz
L (black) Line / Hot
N (white) Neutral / Common
G (green) Ground
5. Network Connection from PRIMARY output to input on SECONDARY unit.
Unit with IR connection or 0-10V Wall Dimmer becomes PRIMARY
automatically.
6. Mounting Options:
a) Grid / T-Bar (secure luminaraire in grid / ceiling T-bar.)
b) Suspension Cable installation (connect suspension cable kit
according to indicated mounting dimensions.
Adjust cables to balance luminaire.)
c) Recess Wall (cut hole in drywall, secure mounting bracket,
connect safety cable, make electrical connection, slide luminaire in place.)
d) Surface mount (assembel 3 sides of frame and mount securely,
insert luminaire, align final section of frame and secure with screws.
7. Turn on power VAC.
CONTACT US
Beghelli Canada Inc.
3900 14th Avenue
Markham, Ontario L3R 4R3 Canada
Tel (905) 948-9500 / Fax (905) 948-8673
www.Beghellicanada.com
111512
Beghelli USA
3250 Corporate Way, Unit A
Miramar, FL 33025 USA
P: (954) 442-6600 / F: (954) 442-6677
www.beghelliusa.com
Beghelli MEXICO
Av El Marques No. 70, Interior 4
Parque Industrial Bernardo Quintana
76246 Mpio. El Marquez
Queretano, QRO. Mexico
P: +52 442-221-6439 / F: +52 442-221-6215
www.beghellimexico.com
Standard
MAIN AC
120VAC or 277VAC
N
G
NETWORK
OUT
IN
INSTALLATION
L
IR sensor
CATALOG CODE DM
0-10V Wall dimmer
CONNECT TO VAC
L (BLACK) LINE / HOT
N (WHITE) NEUTRAL / COMMON
G (GREEN) GROUND
N
G
NETWORK
OUT
IN
IR
CATALOG CODE WMD
L
MAIN AC
120VAC or 277VAC
NETWORK
OUT
IN
CONNECT TO VAC
L (BLACK) LINE / HOT
N (WHITE) NEUTRAL / COMMON
G (GREEN) GROUND
VR/Z
IR
N
G
NETWORK
OUT
IN
(IE: W/ DOUBLE SIDED TAPE, SECURELY ATTACH THE IR SENSOR DIRECTLY
TO THE GRID / CEILING.)
MAIN AC
120VAC or 277VAC
L
0-10V WALL DIMMER
(PROVIDED BY OTHERS)
for switch wiring details,
please refer to manufacturers installation guide.
Gray
Purple
Red
IR SENSOR
Network Connections (optional)
FOR ALL CONFIGURATIONS (Use RJ11 network head)
PRIMARY
NETWORK
OUT
IN
INPUT
OUTPUT
Buffer
Black
SECONDARY SECONDARY
NETWORK
OUT
IN
(NOTE: USE RJ11 CABLES, MAX 16.5FT/5 METERS IN LENGTH)
NETWORK
OUT
IN
(MAX 10 UNITS ALLOWED)
MOUNTING
T-Bar / Grid Installation
SUSPENSION CABLE MOUNT
CATALOG CODE GRD
CATALOG CODE SPS50
Suspension Mount Detail
CATALOG CODE SPS
J-BOX
(PROVIDED BY OTHERS)
CROSS BAR
CANOPY
CABLE GRIPPER
ZIP TIES
AIRCRAFT CABLE
ZIP TIES
CABLE MOUNTING TABS (X4)
Suspension Cable Mounting Dimensions
TM
Planex
DIM A B C D
1X1
2X2
11.75” 2.05” 2.20” 22.5”
298.45mm 53.0mm 55.88mm 571.5mm
23.75” 2.05” 2.20” 11.5”
603.25mm 53.0mm 55.88mm 293mm
POWER CORD
GRIPPER
SET SCREW / PIN
CATALOG CODE SPS
D
C
B
A
Recess Wall Installation
MOUNTING
CATALOG CODE RWM
7.00”
5.80”
4 typical 1/4” holes
3.00”
CUT HOLE FOLLOWING DIMENSION
AND SECURE WITH PROPER SCREWS.
(PROVIDED BY OTHERS)
Surface Mount Installation
CATALOG CODE SM
SECURE MOUNTING BRACKET
TO SAFETY CABLE
CONNECT AC AND THEN SLIDE
LUMINAIRE INTO PLACE.
ASSEMBLE ALL FOUR SIDES OF THE
FRAME.
DETAIL A
INSERT LUMINAIRE INTO THE SECURED FRAME.
MAKE SURE TO PROPERLY ALIGN LUMINAIRE
WITH FRAME SLOT (SEE DETAIL A).
SECURE FRAME INTO POSITION (HARDWARE
PROVIDED BY OTHERS) AND THEN REMOVE
ONE SIDE OF THE FRAME.
FINAL VIEW FRAME/FIXTURE
WITH LUMINAIRE ALL THE WAY IN AND
SECURE, INSTALL THE FINAL FRAME
SECTION AND TIGHTEN.
