ILLUMINA® BS100LED
INSTALLATION INSTRUCTIONS
INDUSTRIAL
VAPOR TIGHT
Beghelli Canada
3900 14th Avenue
Markham, Ontario L3R 4R3 Canada
P: (905) 948-9500
F: (905) 948-8673
www.BeghelliCanada.com
Beghelli USA
3250 Corporate Way
Miramar, Florida 33025 USA
P: 800 726 4316 / P: 954 442 6600
F: 954 442 6677
www.BeghelliUSA.com
926000292
Beghelli Mexico
Av El Marques No. 70, Interior 4
76246 Mpio. El Marquez
Queretano, QRO. Mexico
P: +52 442-221-6439 / F: +52 442-221-6215
www.BeghelliMexico.com
BS100LED
INSTALLATION INSTRUCTIONS
ILLUMINA
®
BS100LED
INDUSTRIAL
30W, 48W & 70W MODEL
120V to 277V or 347V INPUT
HT & SA
4FT LENGTH
LENS/DIFFUSER
LED STRIP
LENS CLIP ( 8 TOTAL)
REFLECTOR
FIXTURE HOUSING
CONDUIT KNOCKOUTS
(BOTH ENDS)
EACH MODEL NUMBER CONSISTS OF THE FOLLOWING:
SERIES / OPERATION / LED COLOUR TEMP. / INPUT
SERIES: BS10 0LED
OPERATION: HT & SA
LED/COLOUR
TEMPERATURE:
IN PUT: 120V TO 277V OR 347V INPUT
WT35 (3500K)
WT40 (4000K)
WT50 (5000K)
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed including the
following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
1. Do not let power cords touch hot surfaces.
2. Do not mount near gas or electric heaters.
3. Always mount equipment in a location that is not subjected to tampering by unauthorized
personnel.
4. The use of accessory equipment not recommended by Beghelli, may cause an unsafe condition,
and will void the warranty.
5. Do not use this equipment other than its intended purpose.
6. Servicing of this equipment should be performed by qualified service personnel.
SAVE THESE INSTRUCTIONS!
926000292
BS100LED
FIRST MAKE SURE POWER IS TURNED OFF!
TYPICAL INSTALLATION
1. Remove diffuser / lens.
2. Remove the reflector and mounting hardware bag.
3. Install conduit fitting.
4. Securely mount the fixture hardware provided. The fixture can be snapped onto the hardware as
illustrated.
5. Prepare fixture for wiring / hang reflector from internal clips.
6. Connect AC supply and ground as labeled on the provided wire leads. CAP unused wire!
CAUTION! Failure to CAP unused wire may result in a shock hazard or unsafe condition as
well as equipment failure. Route wires and secure them in place.
IMPORTANT: For the BS100LED “SA” DO NOT JOIN CONVERTER CONNECTOR UNTIL INSTALLATION
IS COMPLETE AND AC POWER IS SUPPLIED TO THE EMERGENCY DRIVER. SA option must specify
120V or 277V.
7. Insert LED reflector.
8. Ensure the reflector lip engages the tab channels on the housing before snapping the reflector in
No user s ervic eable pa rts. Refer service to a qualified ser vice
technician. Read instructions prior to installing and/or operating
this device. Installation should be performed by a licensed
electrician/installer in accordance with local codes.
position.
9. Install diffuser clips. Reposition the diffuser/lens and snap each of the eight (8) clips into place
(a “clack” sound is made).
10. Turn on AC.
SAVE THESE INSTRUCTIONS!
926000292
BS100LED

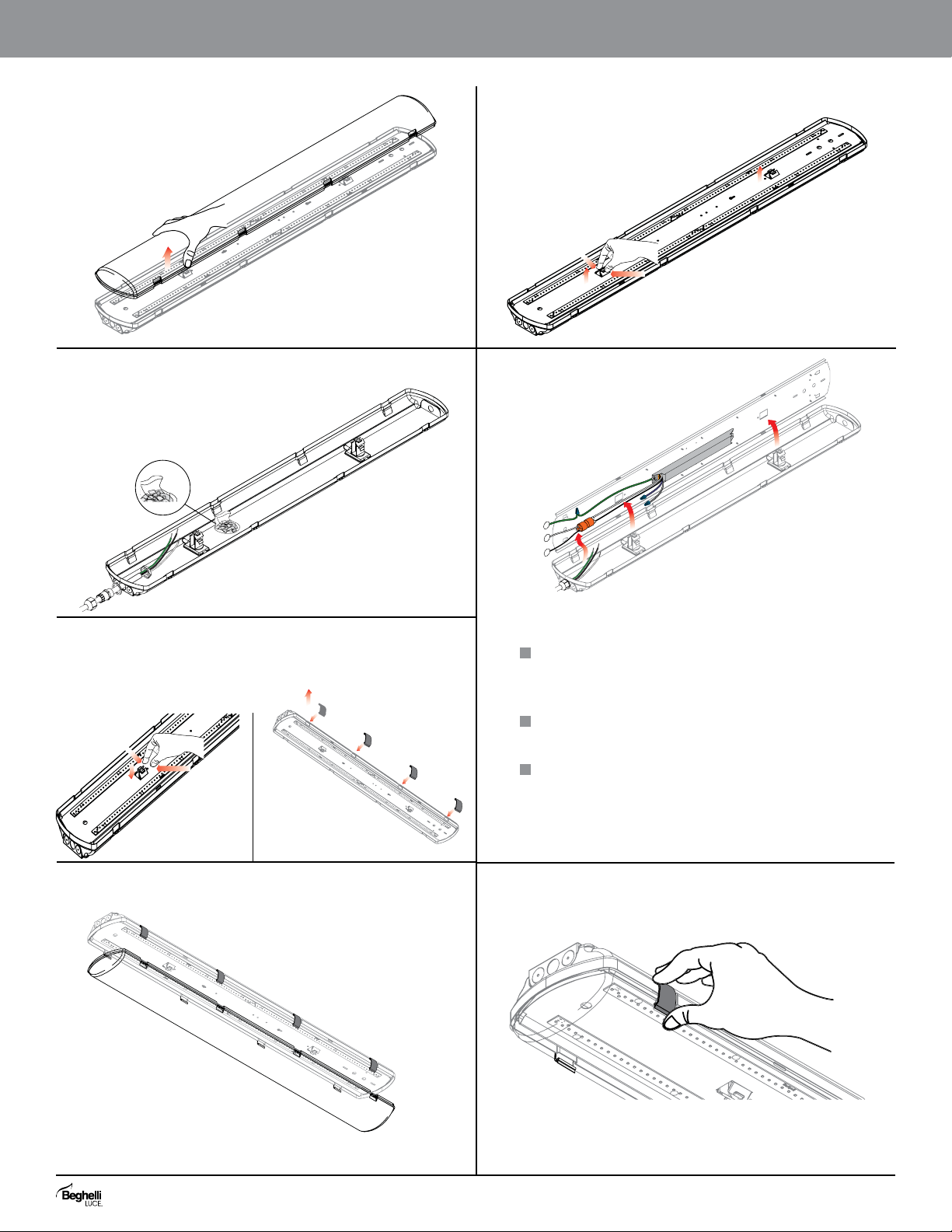

TYPICAL INSTALLTION
1. REMOVE DIFFUSER / LENS 2. REMOVE LED REFLECTOR FROM HOUSING
3. EXTRACT MOUNTING HARDWARE,
INSTALL CONDUIT FITTING (included)
5. INSTALL LED REFLECTOR
6. INSTALL DIFFUSER CLIPS
4. CONNECT TO POWER
G
N
FROM
L
MAIN AC
LABELED WIRE LEADS ARE PROVIDED FOR
LINE / HOT, NEUTRAL / COMMON AND
GROUND.
LABELS WILL INDICATE THE RATED INPUT
VOLTAGE: 120V TO 277V OR 347V 60HZ.
EXACT POWER SUPPLY AND WIRING
CONFIGURATION MAY DIFFER FROM IMAGE
ABOVE: FOLLOW ACTUAL WIRE LABELS.
7. INSTALL DIFFUSER/LENS
926000292
8. SECURE DIFFUSER/LENS WITH CLIPS
BS100LED
MOUNTING
DIMENSIONS
26.00”
50.75”
1/2” IP CONDUIT
KNOCKOUT
0.50”
3.70”
4.20”
STAINLESS STEEL
MOUNTING PLATE
.250”
1.825”
.554”
.630”
INSTALL MOUNTING HARDWARE
SURFACE MOUNT SINGLE PENDANT MOUNT (SPK)
CHAIN HANG MOUNT (CH)
WALL MOUNT
FIXTURE REMOVAL (IF NECESARY)
926000292
BS100LED
MOUNTING OPTIONS
FEED SUSPENSION
CANOPY KIT
CANOPY
WIRE TIES
AIRCRAFT CABLE MOUNTING
NON FEED SUSPENSION
CANOPY KIT
CROSS BAR
(screws not included)
CABLE GRIPPER
J-BOX
DOUBLE PENDANT MOUNTING
FEED SUSPENSION
CANOPY KIT
LOCK NUT
(for double lock
on stem)
SLIP RING
(TO POSITION
CANOPY)
NON FEED SUSPENSION
CANOPY KIT
J-BOX
CROSS BAR
(2) SCREWS IN J-BOX
(screws not included)
CANOPY
SET SCREW
FOR SLIP RING
WIRE TIES
AIRCRAFT CABLE
POWER CORD
STAINLESS STEEL
MOUNTING PLATE
STEM (1/4” IPS)
POWER CORD
STAINLESS STEEL
MOUNTING PLATE
926000292
LOCK NUT
LOCK NUT
BS100LED
MOUNTING OPTIONS
TRUNION MOUNT (TM) PIVOT MOUNT (PM)
JUNCTION MOUNT (JM)
MAGNETIC MOUNT (MM)
1/4-20 NUTS
MOUNTING CLIP
AS SUPPLIED WITH
FIXTURE
MAGNET
1/4-20 SCREW
Purple(+)
Gray(-)
Main AC
DIMMING WIRING DIAGRAM
Main AC
DIMMING
0-10V WALL DIMMER.
Dims to 10%.
For dimmer switch wiring details, please refer to dimmer manufacturer’s installation guide.
(Dimmer not supplied by Beghelli)
NOTE: WIRE LOCATIONS WILL VARY. REFERENCE WIRES BY COLOUR NOT LOCATION
