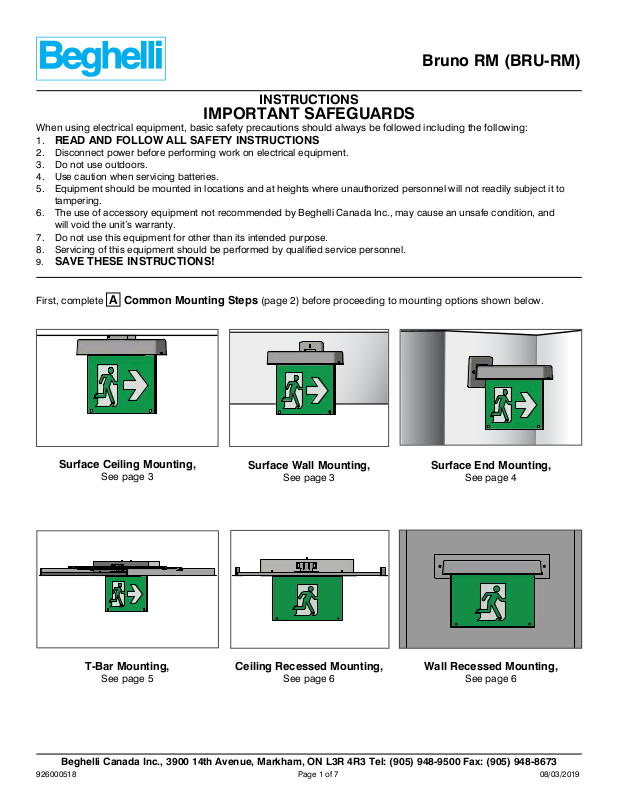

Bruno RM (BRU-RM)
INSTRUCTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS
2. Disconnect power before performing work on electrical equipment.
3. Do not use outdoors.
4. Use caution when servicing batteries.
5. Equipment should be mounted in locations and at heights where unauthorized personnel will not readily subject it to
tampering.
6. The use of accessory equipment not recommended by Beghelli Canada Inc., may cause an unsafe condition, and
will void the unit’s warranty.
7. Do not use this equipment for other than its intended purpose.
8. Servicing of this equipment should be performed by qualied service personnel.
9. SAVE THESE INSTRUCTIONS!

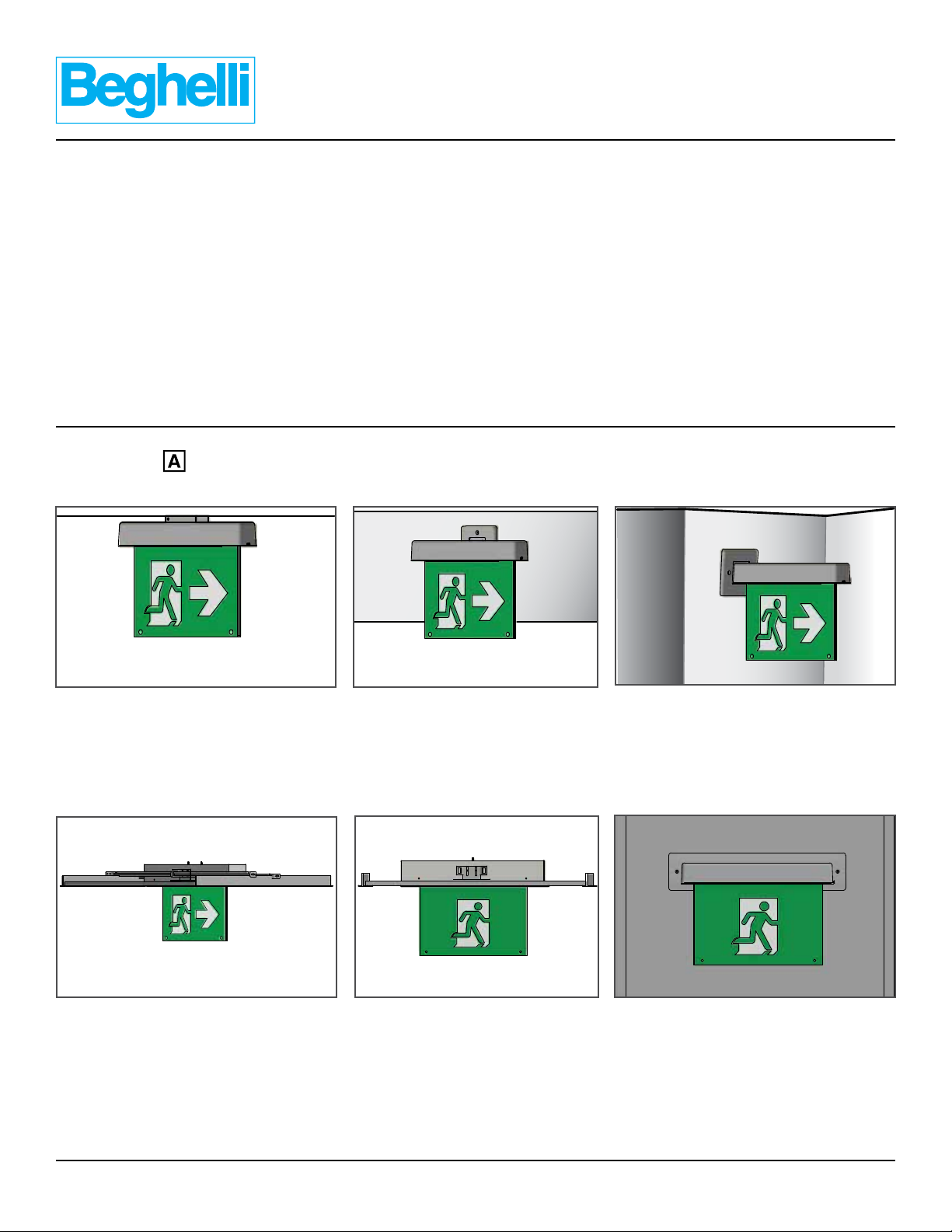

First, complete Common Mounting Steps (page 2) before proceeding to mounting options shown below.
Surface Ceiling Mounting,
See page 3
T-Bar Mounting,
See page 5
Surface Wall Mounting,
See page 3
Ceiling Recessed Mounting,
See page 6
Surface End Mounting,
See page 4
Wall Recessed Mounting,
See page 6
Beghelli Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: (905) 948-9500 Fax: (905) 948-8673
926000518 Page 1 of 7
08/03/2019

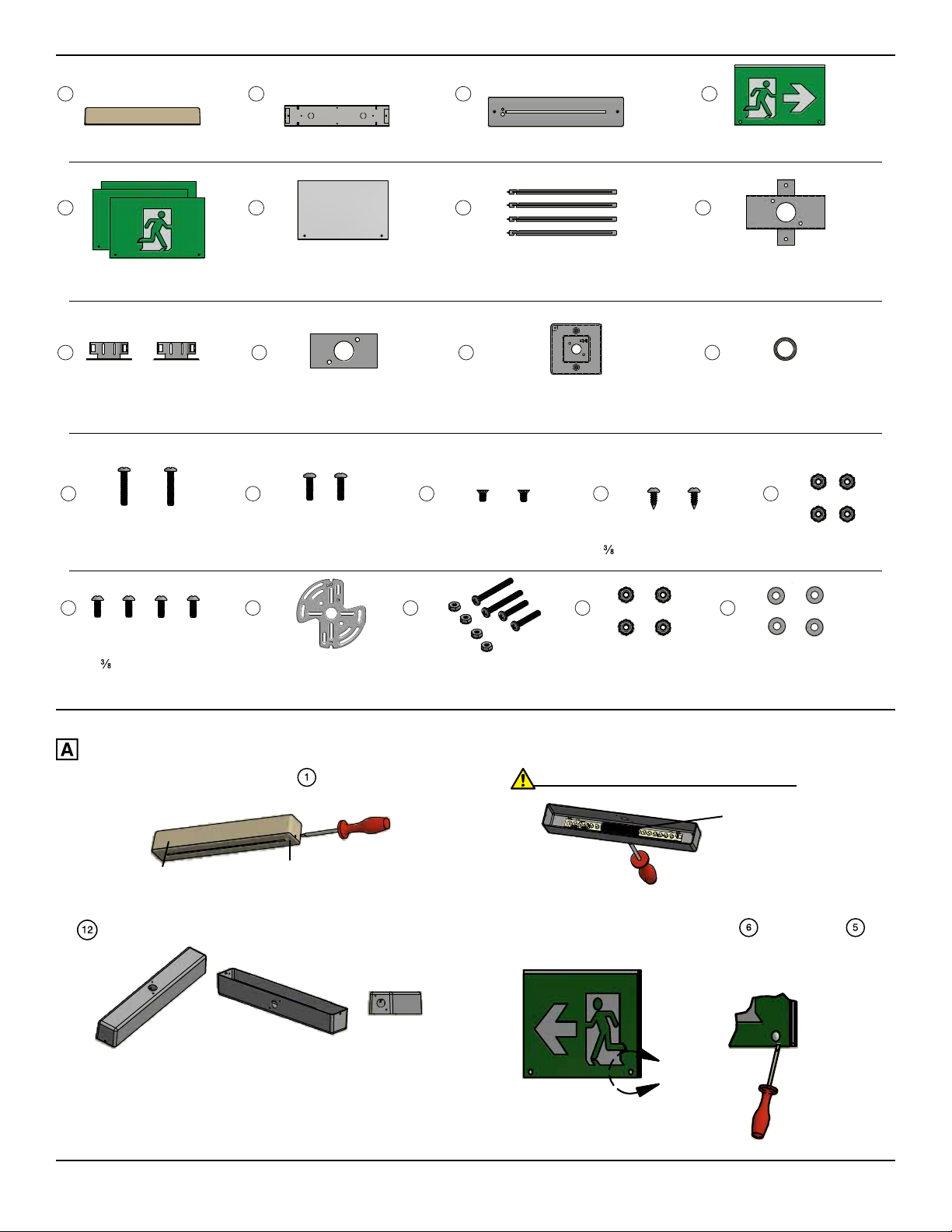

Components
1
2
COMMON STEPS
SURFACE CEILING MOUNT
1
2
COMMON STEPS
SURFACE CEILING MOUNT
1
2
COMMON STEPS
SURFACE CEILING MOUNT
DETAIL A
SCALE 0.24 : 1
1
2
COMMON STEPS
SURFACE CEILING MOUNT
1
2
3
4
Box assembly
5
Pictograms
9
Mounting bracket (x2)
13
6
10
Back box
White insert
Wedge
6-32¾" Pan head screw (x2)146-32½" Pan head screw (x2)
Trim plate
7
Angle bars (x4)
11
Canopy
15
6-32¼" Flat head screw (x2)
8
12
16
6 " Pan head st screw (x2)
Lens
Bracket
¾" Bushing
17
6-32 K-lock nut (x4)
18
19
Spider plate
20
Spider plate screw kit
INSTALLATION
Common Mounting Steps:
1. Remove cover from box assembly by removing screw on
end of box assembly.
Box assembly
2. Knock out appropriate holes for mounting and install ¾" bushing
in entry hole and feed wires through.
Cover
21
8-32 K-lock nuts (x4)
Remove protective sleeve from LED strip.
5.
6. For self-powered sign, plug battery into LED board.
7. Select pictogram. Install white insert
22
#8 washer (x4)8-32 " Pan head screw (x4)
Protective sleeve
or pictogram .
3. For t-bar or ceiling recessed, knock out top holes.
A
4. For ceiling, knock out top, for surface end, knock out end, for
surface wall, knock out side.
Underneath pictogram,
insert at head screwdriver
to pop up button carefully
Beghelli Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: (905) 948-9500 Fax: (905) 948-8673
926000518 Page 2 of 7
DETAIL A
SCALE .24:1
08/03/2019
8. Slide lens assembly into cover .
DETAIL A
SCALE 0.24 : 1
A
1
2
COMMON STEPS
SURFACE CEILING MOUNT
UNDERNEATH FIBER
INSERT FLAT HEAD SCREWDRIVER
TO POP UP BUTTON CAREFULLY
DETAIL A
SCALE 0.24 : 1
A
1
2
COMMON STEPS
SURFACE CEILING MOUNT
UNDERNEATH FIBER
INSERT FLAT HEAD SCREWDRIVER
TO POP UP BUTTON CAREFULLY
1
SURFACE CEILING MOUNT
1
1
1
SURFACE CEILING MOUNT
1
SURFACE CEILING MOUNT
1
2
SURFACE END MOUNT

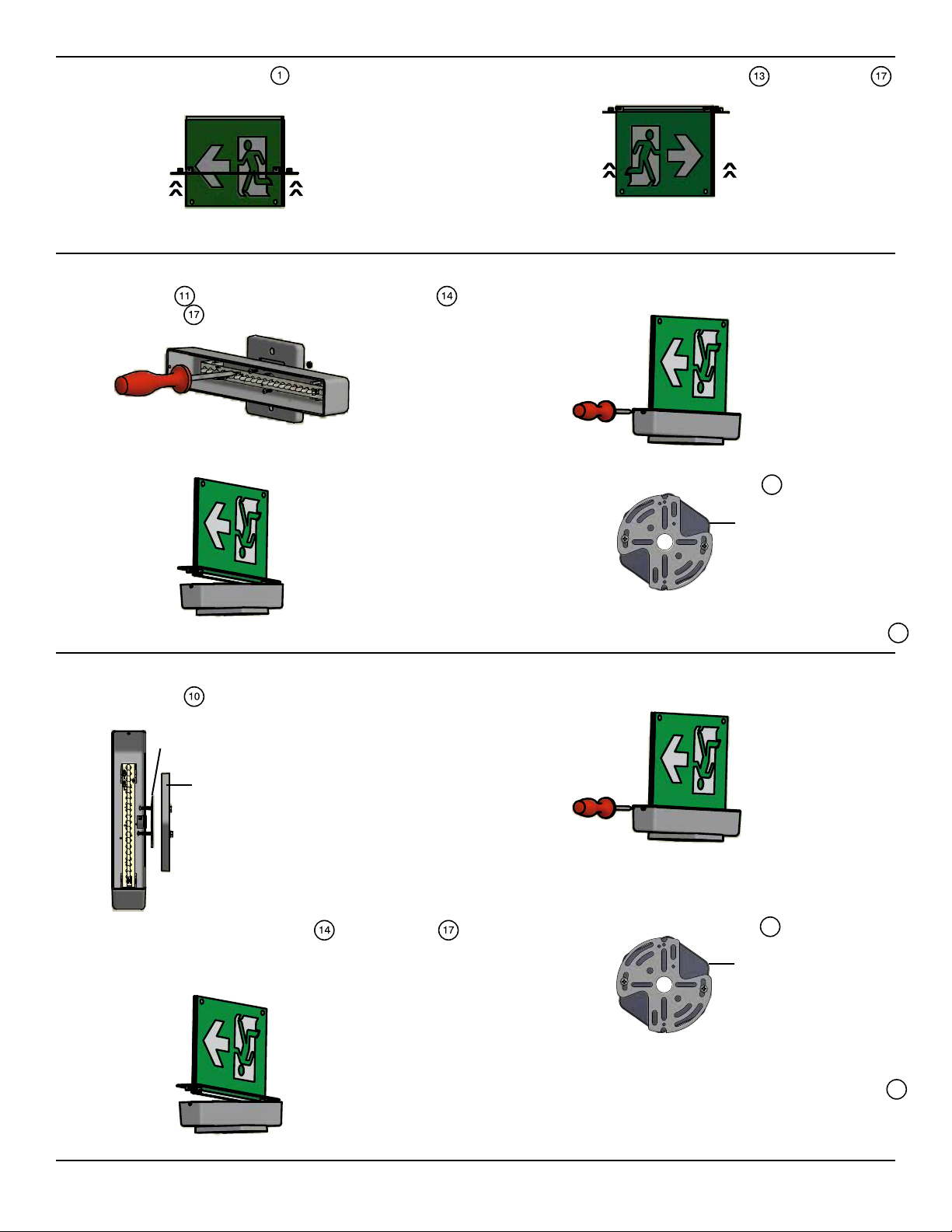

9. Secure using two ¾" pan head screws and k-lock nuts .
Surface Ceiling Mounting:
1. Install canopy
and k-lock nuts
to box using two ½" pan head screws
.
2. Install cover and lens assembly into box.
Slide lens through
3. Secure with screw.
4. Thread wires through the spider plate.
Secure with k-lock nuts
19
Octagon
box
Surface Wall Mounting:
1. Position wedge and canopy with the thick side of wedge
Canopy
up.
Wedge
Secure with two ½" pan head
2.
screws and k-lock nuts
3. Install cover and lens assembly into box.
5. Make electrical connections (see Wiring Diagram, page 6).
6. Adjust the orientation of the spider plate to proper position.
4. Secure with screw.
5. Thread wires through the spider plate.
.
6. Make electrical connections (see Wiring Diagram, page 6).
7. Adjust the orientation of the spider plate to proper position.
19
Octagon
box
20
20
Beghelli Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: (905) 948-9500 Fax: (905) 948-8673
926000518 Page 3 of 7
08/03/2019
1
2
A A
B B
COMMON STEPS FOR RECESSED MOUNT
1
SURFACE END MOUNT
COMMON STEPS FOR RECESSED MOUNT
DETAIL A
SCALE .4
DETAIL A
SCALE .4
1
SURFACE CEILING MOUNT
1
1
2
A A
B B
COMMON STEPS FOR RECESSED MOUNT
DETAIL A
SCALE .4

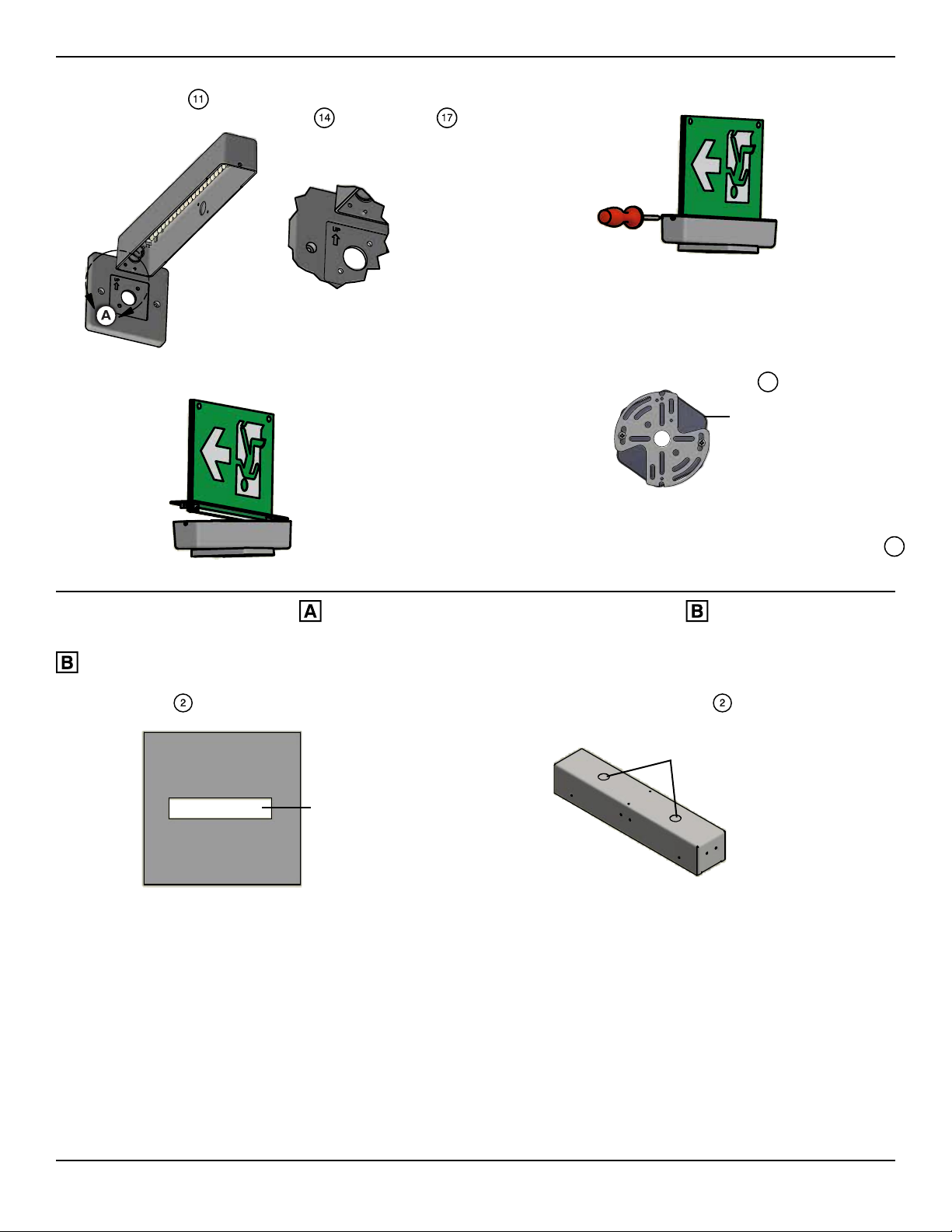

Surface End Mounting:
1. Position canopy .
2.
Secure with two ½" pan head
NOTE:
orientation
of canopy
“up”.
DETAIL A
SCALE .4
screws
and k-lock
nuts
4. Secure with screw.
.
3. Install cover and lens assembly into box.
NOTE: Follow steps 1 through 8 in Common Mounting Steps before proceeding onto Common Steps for
Recessed Mounting.
Common Steps for Recessed Mounting:
1. Use back box
as template cut opening.
5. Thread wires through the spider plate.
6. Make electrical connections (see Wiring Diagram, page 6).
7. Adjust the orientation of the spider plate to proper position.
2. Knock out entry hole in back box .
Knock out one
entry hole
19
Octagon
box
20
Cut for
opening
Beghelli Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: (905) 948-9500 Fax: (905) 948-8673
926000518 Page 4 of 7
3. Install strain-relief (not supplied).
08/03/2019

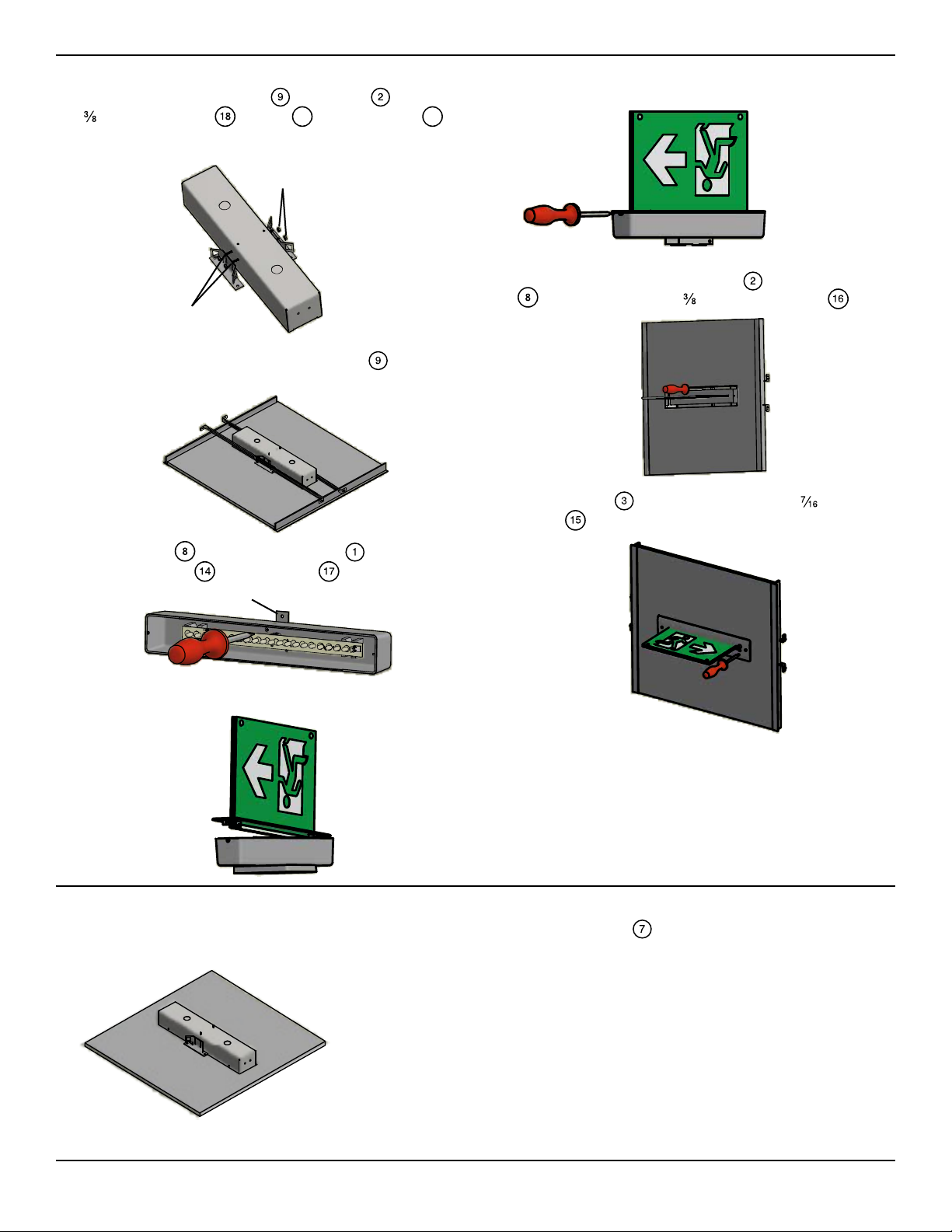

T-Bar Mounting:
1
2
T-BAR MOUNT
CEILING/WALL RECESSED MOUNT
WALL RECESSED MOUNT
1
2
T-BAR MOUNT
CEILING/WALL RECESSED MOUNT
WALL RECESSED MOUNT
1
2
T-BAR MOUNT
CEILING/WALL RECESSED MOUNT
1
2
T-BAR MOUNT
CEILING/WALL RECESSED MOUNT
WALL RECESSED MOUNT
1
1
1
2
T-BAR MOUNT
CEILING/WALL RECESSED MOUNT
WALL RECESSED MOUNT
WALL RECESSED MOUNT
1. Install two mounting brackets to back box using four
" pan head screws , washer 22, and K-lock nuts 21.
NOTE: Mounting brackets can be installed on sides or ends
of backbox.
Secure with k-lock nuts
6. Secure with screw.
3
/8" pan head screws from
Insert
inside back box
2. Slide four angle bars into mounting brackets .
3. Install backbox assembly in ceiling.
4. Install bracket
pan head screws
5. Install cover and lens assembly into box.
to top of box assembly using two ½"
and k-lock nuts .
Bracket
7. Make electrical connections (see Wiring Diagram, page 6).
8. Position assembly up into back box
to back box using two " self tapping screws .
and secure bracket
9. Slide trim plate
screws
.
over lens and secure with " flat head
Ceiling Recessed Mounting:
For Ceiling Recessed Mounting, follow T-Bar Mounting instructions and exclude angle bars
.
Beghelli Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: (905) 948-9500 Fax: (905) 948-8673
926000518 Page 5 of 7
08/03/2019

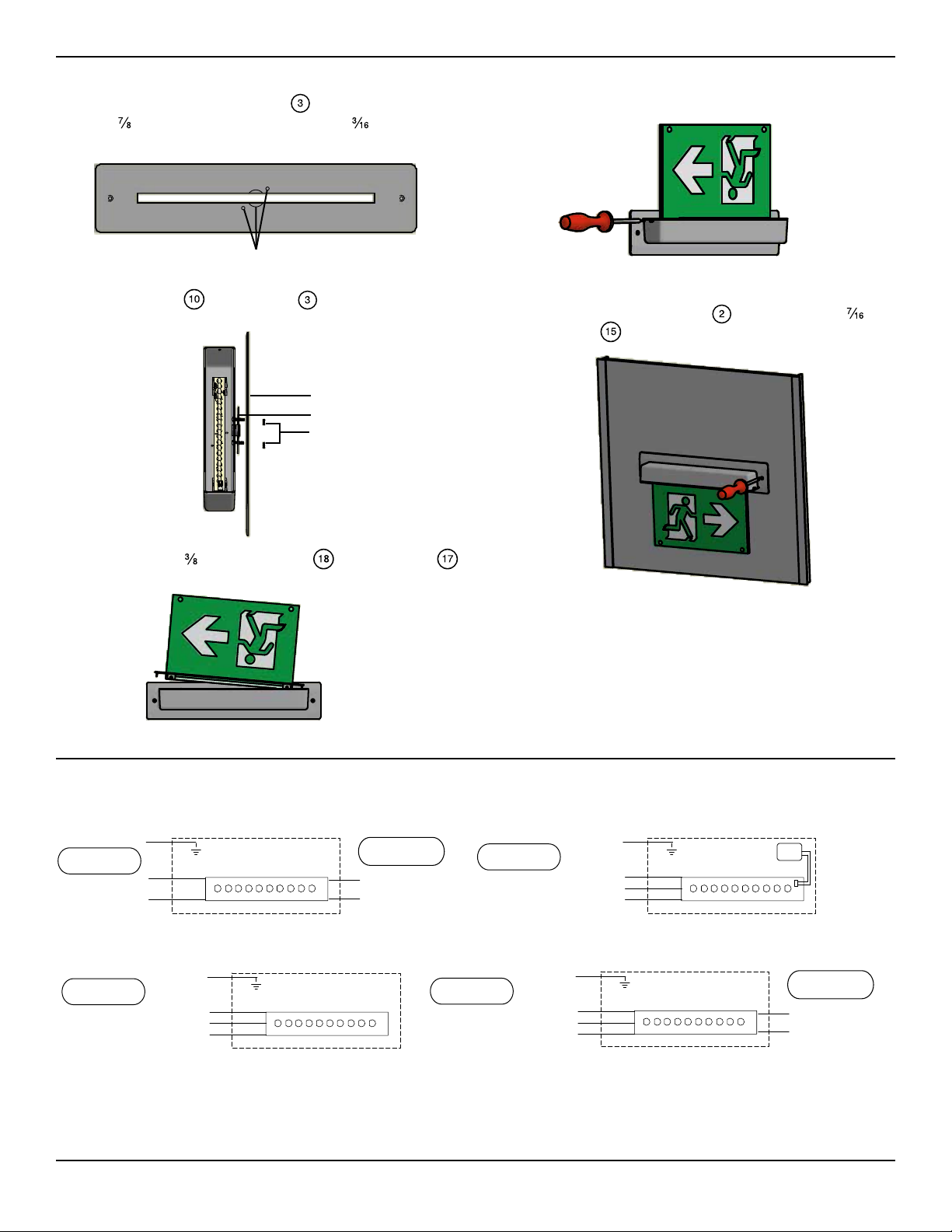

Wall Recessed Mounting:
1
CEILING/WALL RECESSED MOUNT
WALL RECESSED MOUNT
1
WALL RECESSED MOUNT
1
CEILING/WALL RECESSED MOUNT
WALL RECESSED MOUNT
WALL RECESSED MOUNT
1
CEILING/WALL RECESSED MOUNT
WALL RECESSED MOUNT
YELLOW Positive 6 to 24VDC
SELF-POWERED SIGN
DUAL UNIVERSAL AC SIGN
NOTE: Cap unused AC Wire!
NOTE: Cap unused AC Wire!
1. Drill out three holes on trim plate . Use marks on trim
plate
" diameter mounting holes and two " diameter
mounting holes.
Drill out holes
5. Secure with screw.
2. Position wedge and trim plate with thick side of
wedge up.
Trim plate
Wedge
K-lock nuts
3. Secure with two " pan head screws
4. Install cover lens assembly into box.
and k-lock nuts
6. Make electrical connections (see Wiring Diagram, page 6).
7. Position assembly to back box
head screws
.
and secure using " flat
.
GREEN Ground
24 hours
Unswitched Supply
BLACK 105 to 360VAC
WHITE Neutral
24 hours
Unswitched Supply
RED 347VAC or ORANGE 200-277VAC
Chassis GND
GREEN Ground
BLACK 120VAC
WHITE Neutral
LED Board
AC ONLY SIGN
Chassis GND
LED Board
From Generator OR
Emergency Supply
BROWN 105 to 360VAC
BLUE Neutral
Wiring Diagram
Beghelli Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: (905) 948-9500 Fax: (905) 948-8673
926000518 Page 6 of 7
24 hours
Unswitched Supply
RED 347VAC or ORANGE 200-277VAC
24 hours
Unswitched Supply
RED 347VAC or ORANGE 200-277VAC
GREEN Ground
BLACK 120VAC
WHITE Neutral
GREEN Ground
Chassis GND
BLACK 120VAC
WHITE Neutral
NOTE: Cap unused AC Wire!
AC & UNIVERSAL DC SIGN
Chassis GND
LED Board
LED Board
Ni-Cd
Battery
Emergency Supply
FROM Battery Pack
PURPLE Negative
08/03/2019
MAINTENANCE
1. Code requires that the equipment be tested every 30 days for 30 seconds, and that written records be maintained.
Further, the equipment is to be tested once a year for the required time duration. The the equipment is to be
repaired whenever the equipment fails to operate as intended during the duration test. Written records of test results
and any repairs made must be maintained. Beghelli Canada Inc. strongly recommends compliance with these code requirements.
2. The lamps listed herein when used according to the instructions with this unit are in accordance with the requirements of CSA
Standard C22.2, No. 141 – Unit Equipment for Emergency Lighting.
3. Clean faceplates/lenses on a regular basis.
NOTE: Always turn off AC power before servicing. The servicing of any parts should be performed by qualied service personnel. The
use of replacement parts not furnished by Beghelli Canada Inc., may cause equipment failure and will void the warranty.
TROUBLESHOOTING
EXIT SIGN DOES NOT COME ON AT ALL
1. Check AC supply - be sure unit has 24 hour AC supply (unswitched).
2. AC supply is OK and indicator light is out, replace PC Board Assembly.
3. This could be the result of a switched AC supply to the unit (which has been turned off at some point).
SAVE THESE INSTRUCTIONS
Beghelli Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: (905) 948-9500 Fax: (905) 948-8673
926000518 Page 7 of 7
08/03/2019
