LIMBURG Collection
ACCENTA - Decorative LED semi-recessed ceiling luminaire
Material: Luminaire housing constructed of aluminum. Trim ring
finish is painted white, stainless steel, polished stainless steel, or
brass. Driver box is constructed of aluminum.
Glass: Hand-blown, three-ply opal glass, satin matte finish with
thread.
Electrical: 4.3W LED luminaire, 6.5 total system watts, -30°C
start temperature. LED module(s) are available from factory for
easy replacement. 120V through 277V LED driver is located in
ceiling mounted box, 0-10V dimming. LED color temperature is
3000K with a >80 CRI Available in 2700K (>80 CRI); add suffix K2
to order.
Note: LEDs supplied with luminaire. Due to the dynamic nature
of LED technology, LED luminaire data on this sheet is subject
to change at the discretion of BEGA-US. For the most current
technical data, please refer to www.bega-us.com.
Note: A minimum of 7" ceiling clearance is required for installation.
Options: Ceiling pan available, specify suffix CP. Optional IC rated
ceiling housing available, airtight with air leakage less than 2.0
CFM in accordance with ASTM E283, specify suffix IC. Optional
Chicago Plenum IC rated ceiling housing available, specify suffix
CCEA.
Finish: Ceiling trim ring options
• White Code number .1
• Stainless steel Code number .2
• Polished stainless steel Code number .3
• Brass Code number .4
Select the desired trim ring material finish by using the appropriate
code number as suffix.
CSA certified to U.S. and Canadian standards, suitable for damp
locations. Interior use only.
Weight: 0.7 lbs
Type:
LIMBURG Product:
Project:
Voltage:
Color:
Options:
Modified:

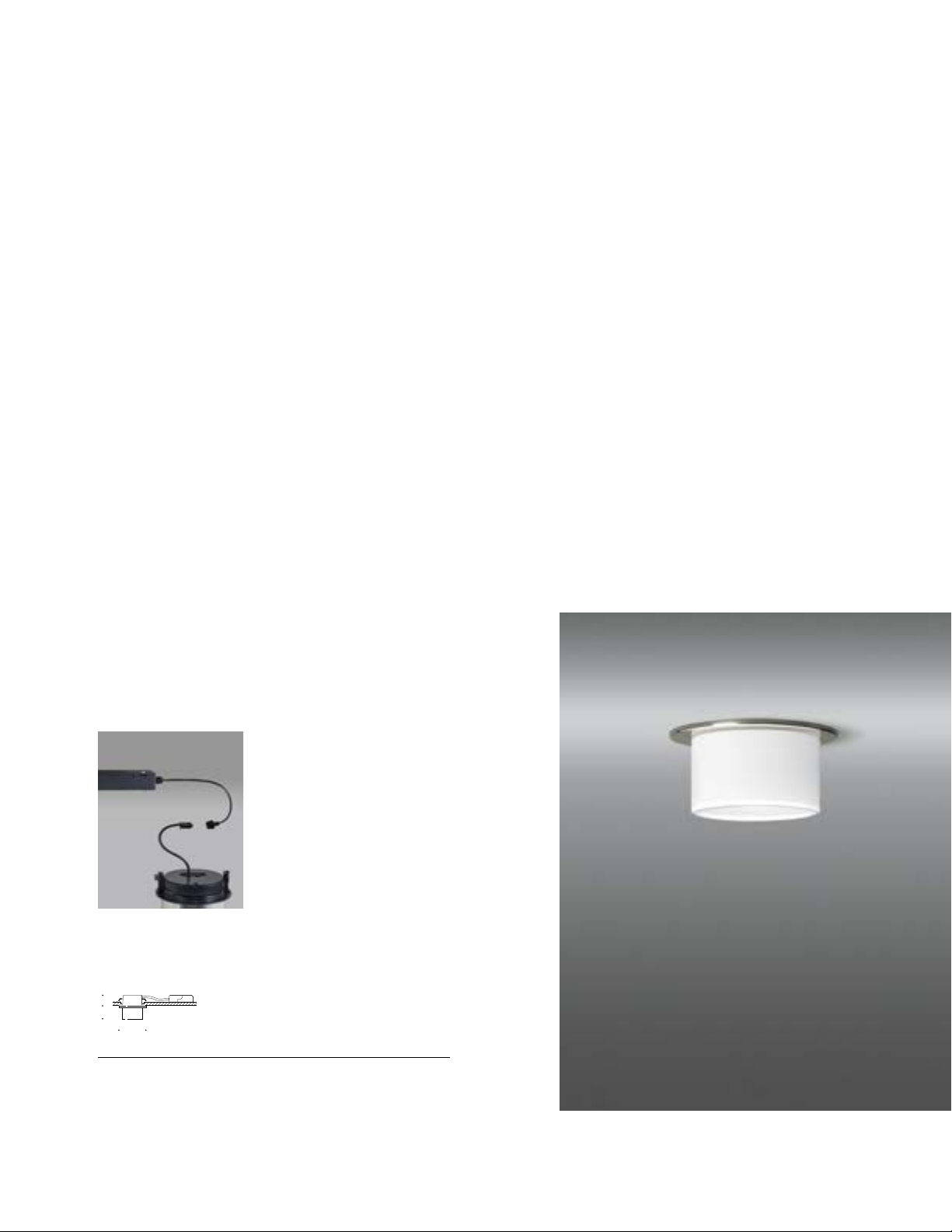

The luminaires can be connected
to the remote power supply unit via
a simple plug connection for easy
and economical installation.
B
C
A
Finish Lamp A B C
L 3869.1 White 4.3 W LED 3 1/82 1 1/
L 3869.2 Stainless steel 4.3 W LED 3 1/82 1 1/
L 3869.3 Polished stainless steel 4.3 W LED 3 1/82 1 1/
L 3869.4 Brass 4.3 W LED 3 1/82 1 1/
2
2
2
2
