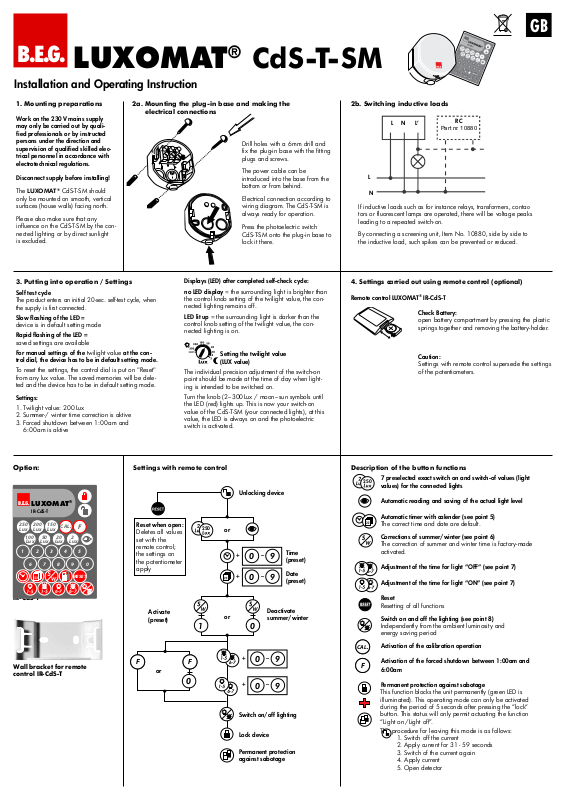

GB
B.E.G.
LUXOMAT® CdS-T-SM
Installation and Operating Instruction
1. Mounting preparations
Work on the 230V mains supply
may only be carried out by qualified professionals or by instructed
persons under the direction and
supervision of qualified skilled electrical personnel in accordance with
electrotechnical regulations.
Disconnect supply before installing!
The
LUXOMAT® CdS-T-SM should
only be mounted on smooth, vertical
surfaces (house walls) facing north.
Please also make sure that any
influence on the CdS-T-SM by the con
nected lighting or by direct sunlight
is excluded.
3. Putting into operation / Settings
Self test cycle
The product enters an initial 20-sec. self-test cycle, when
the supply is first connected.
Slow flashing of the LED =
device is in default setting mode
Rapid flashing of the LED =
saved settings are available
For manual settings of the twilight value at the control dial, the device has to be in default setting mode.
To reset the settings, the control dial is put on "Reset"
from any lux value. The saved memories will be deleted and the device has to be in default setting mode.
Settings:
1. Twilight value: 200 Lux
2. Summer-/ winter time correction is aktive
3. Forced shutdown between 1:00am and
6:00am is aktive
2a. Mounting the plug-in base and making the
electrical connections
-
Displays (LED) after completed self-check cycle:
no LED display = the surrounding light is brighter than
the control knob setting of the twilight value, the connected lighting remains off.
LED lit up = the surrounding light is darker than the
control knob setting of the twilight value, the connected lighting is on.
The individual precision adjustment of the switch-on
point should be made at the time of day when lighting is intended to be switched on.
Turn the knob (2–300Lux / moon– sun symbols until
the LED (red) lights up. This is now your switch-on
value of the CdS-T-SM (your connected lights), at this
value, the LED is always on and the photoelectric
switch is activated.
Drill holes with a 6mm drill and
fix the plug-in base with the fitting
plugs and screws.
The power cable can be
introduced into the base from the
bottom or from behind.
Electrical connection according to
wiring diagram. The CdS-T-SM is
always ready for operation.
Press the photoelectric switch
CdS-T-SM onto the plug-in base to
lock it there.
Setting the twilight value
(LUX value)
2b. Switching inductive loads
L N L’
L
N
If inductive loads such as for instance relays, transformers, contactors or fluorescent lamps are operated, there will be voltage peaks
leading to a repeated switch-on.
By connecting a screening unit, Item No. 10880, side by side to
the inductive load, such spikes can be prevented or reduced.
Settings carried out using remote control (optional)
4.
Remote control LUXOMAT® IR-CdS-T
Check Battery:
open battery compartment by pressing the plastic
springs together and removing the battery-holder.
Caution:
Settings with remote control supersede the settings
of the potentiometers.
RC
Part nr. 10880
Option:
B.E.G.
LUXOMAT
IR-CdS-T
Lux
Lux
100
2 1
IR-CdS-T
Wall bracket for remote
control IR-CdS-T
®
150200250
CAL.
Lux
50
7 6
F
20
2
Lux
LuxLuxLux
4 53
9 08
RESET
6-7
6-7
Settings with remote control Description of the button functions
7 preselected exact switch on and switch-of values (light
250
values) for the connected lights
Automatic reading and saving of the actual light level
Automatic timer with calender (see point 5)
The correct time and date are default.
Corrections of summer/winter (see point 6)
The correction of summer and winter time is factory-made
activated.
Adjustment of the time for light “OFF“ (see point 7)
Adjustment of the time for light “ON“ (see point 7)
Reset
Resetting of all functions
Switch on and off the lighting (see point 8)
Independently from the ambient luminosity and
energy saving period
Activation of the calibration operation
CAL.
Activation of the forced shutdown between 1:00am and
F
6:00am
Permanent protection against sabotage
This function blocks the unit permanently (green LED is
illuminated). Th
during the period of 5 seconds after pressing the “lock“
button. This status will only permit actuating the function
“Light on/Light off”.
The procedure for leaving this mode is as follows:
1. Switch off the current
2. Apply current for 31 - 59 seconds
3. Switch of the current again
4. Apply current
5. Open detector
is operating mode can only be activated
Reset when open:
Deletes all values
set with the
remote control;
the settings on
the potentiometer
apply
Activate
(preset)
F
or
250
1 0
F
0
Unlocking device
or
+
–
0
+
–
0
or
+
0
+
0
Switch on/off lighting
Lock device
Permanent protection
against sabotage
Time
9
(preset)
Date
9
(preset)
Deactivate
summer/winter
–
9
–
9
5. Set time and day
Set the time
First press the “Unlock” key, then press the “Clock” key.
Now the LED ashes rapidly.
After each character received, the relay/light will switch.
After the 4th character the relay/light will switch and the
LED will ash less rapidly.
Set day / calendar
First press the “Unlock” key, then press the “Calendar”
key. Now the LED ashes quickly. Enter data in the
following format:
days (DD) (01 – 31)
months (MM) (01 – 12)
years (YY) (00 – 99)
Weekdays (Wd) ( 1 – 7)
e.g..: 08. March 2002 Friday
DD MM YY Wd
08 03 02 5
After each character received, the relay/light will switch.
After the 7th character the relay/light will switch and the
LED will ash less rapidly.
6. Activation of forced shutdown
With forced shutdown the light tting will stay switched
off between 1am and 6 am. Any additional programming
during this time period is not necessary. Beyond this time
period, the device is switching the light depending on
brightness.
To adjust the forced shutdown mode, please push the "F"
button, when the device is unlocked. The LED starts ashing quickly. Afterwards please choose "1" for activation
or "0" for deactivation of the feature.
When the forced shutdown is deactivated, the photo electric switch will switch the lights, depending on the adjusted
energy saving periods. (chapter 10).
F
7. Correction for summer/ winter
The change to daylight saving time is already activated
in the factory.
Deactivate daylight saving time by pressing the “S/W”
key, then the “0” key. The function is activated by pressing the “S/W” key, then the “1” key.
8. Recalibration of the system time
The CdS-T-AP can recalibrate the system time intelligently. The
device uses a calculation to reduce the likelyhood of the system
clock deviating from real time. For the Cds-T-AP to use the correct value to calculate the system time the following conditions
are necessary:
- The device is in operation for longer than 1 month.
- The system time deviates at least 2 minutes and maximum of 5
hours from the real time.
If one or both conditions are not applied, the calibration
operation is deactivated.
CAL.
9. Calibration of system time with remote control
IR-CdS-T
Unlocking device
CAL.
starting calibration operation (LED ashes quickly)
–
0 9
Input of the current time in hh:mm (24h display)
Locking device
After every received digit, the relay will switch the light tting
and the LED indicator will ash slower.
When the calibration is succesfull, it is acknowledged by the
LED indicator ashing quickly for approx. 10 seconds.
Note: The calibrations value will reset by reprogramming of
date and time. (chapter 5)
10. Energy saving periods
Energy saving periods
The appliance has two programmable energy saving periods:
a) for day 1 (Monday) – day 5 (Friday)
b) for day 6 (Saturday) – day 7 (Sunday)
Setting the time for “Light OFF”
First press the “Unlock” key, then press the
“Light OFF 1-5” or “Light OFF 6-7” key.
Now the LED ashes rapidly.
Enter the data in the format of 10/1 hours and 10/1 minutes.
Only a time between 12:00 - 23:59 can be entered.
After each character received, the relay/light will switch.
After the 4th character the relay/light will switch and the LED
will ash less rapidly.
Setting the time for “Light ON”
First press the “Unlock” key , then press the
“Light ON 1–5” or the “Light ON 6–7” key.
Now the LED ashes rapidly. Enter data in the
hours : minutes format e.g. 04:15.
Only times between 00:00 – 11:59 can be entered.
After each character received, the relay/light will switch.
After the 4th character the relay/light will switch and the LED
will ash less rapidly.
Note: If the energy saving period is not required, the “OFF”
time 1–5 or 6–7 must be at 23:59 and the “ON” time 1–5 or
6–7 must be 00:00.
Alternatively, a “RESET” will erase all saved data, and after
that all of the factory settings are active again (see chapter
“RESET”).
11. Activation “Switch on/off lighting”
Because of the sabotage protection the function “Light off”
is deactivated in the factory. When required it must be
activated again (The “Light on” function is always active):
1. Mains to be disconnected
2. Mains to be connected - a self test cycle of 20sec.
starts (the LED is flashing).
Activation/deactivation of the function “Light Off” can
3.
be done only during the self testing cycle.
For a
ctivation of the function “Light OFF” the button
“Switch on/off lighting” must be pressed during the
self testing cycle (the LED will flash quickly).
For deactivation “Light OFF” the button “Reset” must
be pressed during the self testing cycle (the LED will
flash slowly).
Caution: The implementation of “Reset” with potentiometers
(see point 3) or with remote control does not influence the
activation/deactivation of the function “Light OFF”.
12 .
Technical data
Power supply: 230V~ ±10 %
Switching power: 2300W cos ϕ =1 / 1150VA cosϕ = 0.5
Function “energy saving”: “Light off” 5 hrs. during night –
with IR-CdS-T only
Light values: 2 - 300Lux (Potentiometer),
2 - 250 Lux (IR-CdS-T)
Ambient temperature: -25°C to +50°C
Degree of protection/class: IP54 / II
Dimensions: 69x65x52mm
Declaration of Conformity: The product complies with
the low voltage recommendation 2006/95/EC and the
EMV recommendation 2004/108/EC.
13. Article / Part-Nr. / Accessory
LUXOMAT® CdS-T-SM 92367
®
LUXOMAT
Remote control:
IR-CdS-T (incl. wall bracket) 92368
14. Dimensions
28 26
54
69
20,5
28
20,5
8 9
63
N L'
L
TOP
46
MAN 6602 – 18 0213-2
