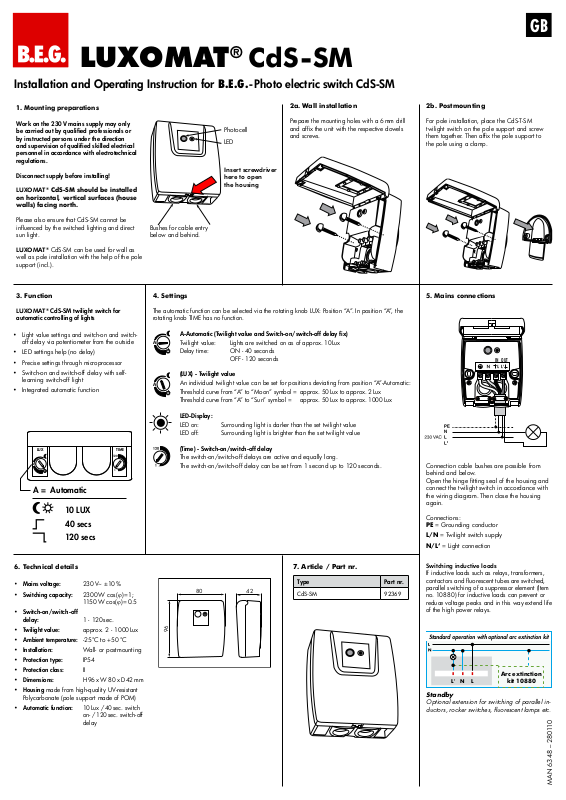

Installation and Operating Instruction for B.E.G.-Photo electric switch CdS-SM
1.
Mounting preparations
Work on the 230V mains supply may only
be carried out by qualified professionals or
by instructed persons under the direction
and supervision of qualified skilled electrical
personnel in accordance with electrotechnical
regulations.
Disconnect supply before installing!
LUXOMAT® CdS-SM should be installed
on horizontal, vertical surfaces (house
walls) facing north.
Please also ensure that CdS-SM cannot be
inuenced by the switched lighting and direct
sun light.
LUXOMAT® CdS-SM can be used for wall as
well as pole installation with the help of the pole
support (incl.).
3. Function
LUXOMAT® CdS-SM twilight switch for
automatic controlling of lights
• Light value settings and switch-on and switchoff delay via potentiometer from the outside
• LED settings help (no delay)
• Precise settings through microprocessor
• Switch-on and switch-off delay with selflearning switch-off light
• Integrated automatic function
LUX
A
TIME
120
1
A = Automatic
10 LUX
40 secs
120 secs
Bushes for cable entry
below and behind.
4. Settings
The automatic function can be selected via the rotating knob LUX: Position “A”. In position “A”, the
rotating knob TIME has no function.
A-Automatic (Twilight value and Switch-on/switch-off delay fix)
A
Twilight value: Lights are switched on as of approx. 10Lux
Delay time: ON - 40 seconds
(LUX) - Twilight value
An individual twilight value can be set for positions deviating from position “A”-Automatic:
A
Threshold curve from “A” to “Moon” symbol = approx. 50Lux to approx. 2Lux
Threshold curve from “A” to “Sun” symbol = approx. 50 Lux to approx. 1000Lux
LED-Display:
LED on: Surrounding light is darker than the set twilight value
LED off: Surrounding light is brighter than the set twilight value
(Time) - Switch-on/switch-off delay
The switch-on/switch-off delays are active and equally long.
The switch-on/switch-off delay can be set from 1 second up to 120 seconds.
CdS-SM
2a. Wall installation 2b. Postmounting
Prepare the mounting holes with a 6 mm drill
Photocell
LED
Insert screwdriver
here to open
the housing
OFF - 120 seconds
and afx the unit with the respective dowels
and screws.
®
For pole installation, place the CdS-T-SM
twilight switch on the pole support and screw
them together. Then afx the pole support to
the pole using a clamp.
5. Mains connections
OUTIN
Connection cable bushes are possible from
behind and below.
Open the hinge tting seal of the housing and
connect the twilight switch in accordance with
the wiring diagram. Then close the housing
again.
Connections:
PE = Grounding conductor
L/N = Twilight switch supply
N/L‘ = Light connection
6. Technical details
• Mains voltage
•
Switching capacity
•
Switch-on/switch-off
delay: 1 - 120sec.
•
Twilight value
•
Ambient temperature:
•
Installation
•
Protection type
•
Protection class
•
Dimensions
•
Housing
Polycarbonate (pole support made of POM)
•
Automatic function: 10 Lux /40 sec. switch
: 230V~ ±10 %
: 2300W cos(ϕ)= 1;
1150W cos(ϕ) =0.5
: approx. 2 - 1000 Lux
-25°C to +50°C
: Wall- or post mounting
: IP54
: II
:
made from high-quality UV-resistant
H 96x W 80 x D42 mm
on- /120sec. switch-off
delay
7. Article / Part nr.
80
96
2
Type Part nr.
CdS-SM 92369
Switching inductive loads
If inductive loads such as relays, transformers,
contactors and uorescent tubes are switched,
parallel switching of a suppressor element (Item
no. 10880) for inductive loads can prevent or
reduce voltage peaks and in this way extend life
of the high power relays.
Standard operation with optional arc extinction kit
L' N L
Standby
Optional extension for switching of parallel inductors, rocker switches, fluorescent lamps etc.
Arc extinction
kit 10880
MAN 6348 – 280110
