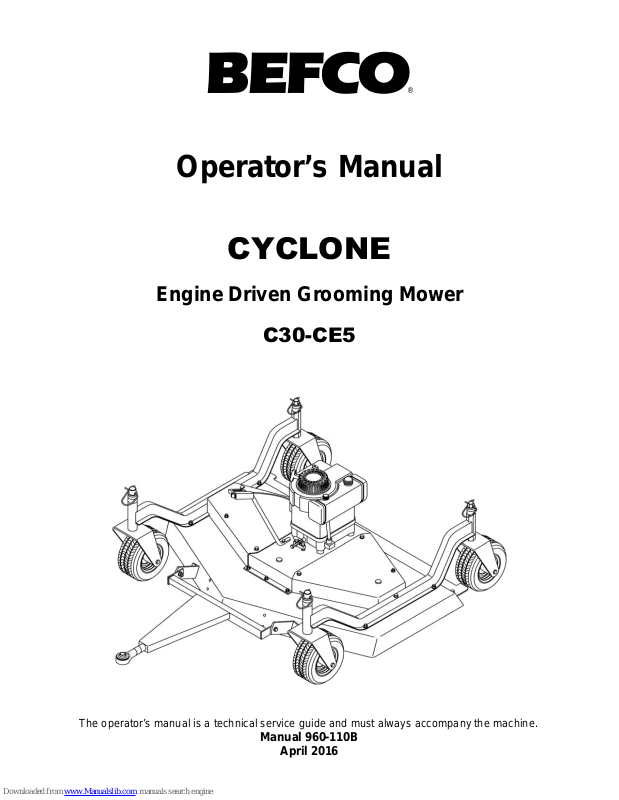

BEFCO®
Operator’s Manual
CYCLONE
Engine Driven Grooming Mower
C30-CE5
The operator’s manual is a technical service guide and must always accompany the machine.
Manual 960-110B
April 2016
SAFETY
Take note! This safety alert symbol found throughout this manual is used to call your
attention to instructions involving your personal safety and the safety of others. Failure to
follow these instructions can result in injury or death.
This symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
Signal Words
Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The
appropriate signal words for each have been selected using the following guidelines:
DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or
serious injury.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury, and includes hazards that are exposed when guards are removed. It may also be used
to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury.
INDEX
1 - GENERAL INFORMATION
2 - SAFETY PRECAUTIONS
3 - OPERATION
4
41.01 - General
41.02 - Warranty Information
51.03 - Model and Serial Number ID
6
62.01 - Preparation
72.02 - Starting and Stopping
72.03 - Messages and Signs
9
93.01 - Operational Safety
113.02 - Set Up
113.03 - Cutting Height Adjustment
123.04 - Pre-Operational Check
123.05 - Attaching to the Towing Vehicle
133.06 - Start Up
4 - MAINTENANCE
5 - REPAIR PROCEDURES
6 - TROUBLESHOOTING
143.07 - Working Speed
153.08 - Operating Techniques
163.09 - Uneven Terrain
173.10 - Transport
18
184.01 - Maintenance Safety
194.02 - Service
204.03 - Blade Maintenance
224.04 - Belt Tension
234.05 - Belts Replacement
26
265.01 - Blade Spindle
265.02 - Suggested Spare Parts
265.03 - Storage
27
7 - PRE-DELIVERY CHECKLIST
8 - WARRANTY
PARTS MANUAL
INDEX 3 BEFCO
28
29
33
CYCLONE OPERATOR’S MANUAL
1 - GENERAL INFORMATION
Thank you and congratulations for having chosen our implement. Your new grooming
mower is a technologically advanced machine constructed of high quality, sturdy
components that will fulfill your working expectations. Read this manual carefully. It will
instruct you on how to operate and service your mower safely and correctly. Failure to
do so could result in personal injury and/or in equipment damage.
1.01 - General
CAUTION: Unless otherwise specified, all hardware is metric. Use only metric
tools on metric hardware. Other tools that do not fit properly can slip and cause
injury.
CAUTION: Right hand and left hand sides of the implement are determined by
facing in the direction the implement will travel when going forward (see fig. 2).
1.02 - Warranty Information
Carefully read the Warranty section1, detailing coverage and limitations of this warranty.
Warranty is provided for customers who operate and maintain their equipment as
described in this manual. Warranty registration is accomplished by the dealer by
completing and forwarding the Warranty Registration form to the Company, along with
a copy of the dealer’s invoice. It is in your best interest to insure that this has been
done.
Warranty does not cover the following:
1. Cleaning, transporting, mailing and service call charges.
2. Engine.
3. Normal wear items such as belts, blades, bearings, etc.
4. Depreciation or damage caused by normal wear, accidents, improper maintenance,
improper protection or improper use.
5. The use of non-original spare parts and accessories.
1
GENERAL INFORMATION 4 BEFCO
See Chapter 8 - Warranty.
CYCLONE OPERATOR’S MANUAL
Your Authorized Company Dealer has genuine parts in stock. Only these approved
replacement parts should be used.
This limited warranty covers defective material and workmanship. The cost of normal
maintenance or repairs for accidents or improper use and related labor will be borne by
the owner.
NOTE: Engine warranty, service and parts must be obtained through an
authorized service center for Briggs & Stratton engines.
1.03 - Model and Serial Number ID
Attached to the frame is an ID plate showing the model and the serial number. Record
your implement model and serial number in the space provided below. Your dealer
needs this information to give you prompt, efficient service when you order parts.
GENERAL INFORMATION 5 BEFCO
YCLONE OPERATOR’S MANUAL
C
2 - SAFETY PRECAUTIONS
Safety is the primary concern in the design and manufacture of our products.
Unfortunately our efforts to provide safe equipment can be wiped out by a single
careless act of an operator.
In addition to the design and configuration of equipment, hazard control and accident
prevention are dependent upon the awareness, concern, prudence and proper training
of personnel involved in the operation, transport, maintenance and storage of
equipment. It is the operator’s responsibility to read and understand all safety and
operating instructions in the manual and to follow these.
Allow only properly trained personnel to operate the mower. Working with unfamiliar
equipment can lead to careless injuries. Read this manual, the engine manual and the
manual for your tractor, before assembly or operation, to acquaint yourself with the
machines. It is the mower owner’s responsibility, if this machine is used by any person
other than yourself, is loaned or rented, to make certain that the operator, prior to
operating, reads and understands the operator’s manuals and is instructed in safe and
proper use.
2.01 - Preparation
1. Before operating equipment read and understand the operator’s manual and the
safety signs (see fig. 2).
2. Thoroughly inspect the implement before initial operation to assure that all
packaging materials, i.e. wires, bands, and tape have been removed.
3. Personal protection equipment including hard hat, safety glasses, safety shoes, and
gloves are recommended during assembly, installation, operation, adjustment,
maintaining and/or repairing the implement.
4. Operate the mower only with a towing vehicle equipped with an approved
Roll-Over-Protective-System (ROPS). Always wear your seat belt. Serious injury or
even death could result from falling off the vehicle.
5. Clear area to be cut of stones, branches or other debris that might be thrown,
causing injury or damage.
6. Operate only in daylight or good artificial light.
7. Ensure mower is properly mounted, adjusted and in good operating condition.
8. Ensure that all safety shielding and safety signs are properly installed and in good
condition.
9. Use only approved drawbar hitch points.
10.Handle gasoline with care, it is highly flammable. Use only approved gasoline
containers.
11.Never remove fuel cap or add gasoline to a running engine or a hot engine. Never fill
the fuel tank indoors. If spilling occurs wipe up immediately.
SAFETY PRECAUTIONS 6 BEFCO
YCLONE OPERATOR’S MANUAL
C
12.To reduce fire hazard, keep engine free of grass, leaves or excessive grease.
13.Do not change the engine governor settings or over-speed the engine.
2.02 - Starting and Stopping
1. Be sure that no one is near the machine prior to engaging or while the machine is
working.
2. Be sure the towing vehicle is in “Neutral” before starting engine.
3. Mower operating power is supplied from mower engine. Refer to your engine manual
for engagement and disengagement instructions. Know how to stop the towing
vehicle and mower quickly in case of an emergency.
4. Open doors if engine is running in the garage; exhaust fumes are dangerous. Do not
run engine indoors.
5. After striking an obstacle, stop mower engine, remove the wire from the spark plug,
shut the towing vehicle down and thoroughly inspect for damage before restarting.
6. Do not operate if mower vibrates excessively. Excessive vibration is an indication of
damage.
7. Stop mower engine before backing up. Do not cut in reverse. Carefully observe area
behind mower before backing up.
8. Stop mower engine and watch out for traffic when crossing gravel drives, walks or
roads.
9. Stop mower engine, towing vehicle engine and set parking brake before leaving
operator’s position.
10. Stop mower engine, towing vehicle engine, disconnect spark plug wire, set parking
brake and wait for all movement to stop before making any repairs or adjustments.
11.Never adjust cutting height or leveling linkage while the engine is running.
12.Stop mower engine when transporting or not in use.
13. When leaving towing vehicle unattended, set parking brake, stop both engines and
remove key.
14. Never store the equipment with gasoline in the tank inside a building where fumes
may reach an open flame or spark. Allow engine to cool before storing in any
enclosure.
2.03 - Messages and Signs
1. Read and adhere to all safety and operating decals on this machine (see fig. 2).
2. Before dismounting towing vehicle: allow moving parts to stop, stop both engines,
set brake and remove the key of unattended equipment.
3. Keep away from rotating blades.
4. Keep guards and shields in place and in good condition.
SAFETY PRECAUTIONS 7 BEFCO
YCLONE OPERATOR’S MANUAL
C
5. Do not mow with bystanders in area.
6. Allow no riders on towing vehicle or mower.
7. Allow moving parts to stop before repair.
8. Securely support mower before working underneath.
Additional warning and operating decals are available at no extra charge. Please specify
model and serial number when ordering.
Fig. 2 - Safety decals - implement; replace immediately if damaged.
right side
Red reflective decal
left side
SAFETY PRECAUTIONS 8 BEFCO
YCLONE OPERATOR’S MANUAL
C
3 - OPERATION
You have purchased an engine three spindle grooming mower designed primarily for
mowing of grassy areas using an ATV (all terrain vehicle) or a garden tractor. It attaches
to the towing vehicle drawbar using a category 1 ball hitch and pin.
This mower is perfect for the maintenance of parks, private lawns, industrial parks,
airports, hospital grounds, schools, highways, golf courses, sport complexes, etc. The
C30-CE5 is equipped with a powerful 10.5 HP Briggs & Stratton I/C engine with
centrifugal clutch. It has a working width of 5’.
The mower is powered by a vertical shaft gasoline engine. The centrifugal clutch is
attached to the vertical shaft of the engine which, via high resistance belts, transmits
power to pulleys coupled to the three individual spindle shafts. Blades are secured to
these shafts which turn at a high blade tip speed to cut the grass.
Our C30-CE5 grooming mower comes equipped with 4 wheels. Aside from regulating
the cutting height, the wheels are set in such a way as to allow the mower to follow the
contour of the terrain and give a precise level cut even in undulating conditions.
3.01 - Operational Safety
CAUTION: Our mowers are designed considering safety as the most important
aspect and are the safest available in today’s market. Unfortunately, human
carelessness can override the safety features built into our machines. Injury
prevention and work safety, aside from the features on our mowers, are very
much due to the responsible use of the equipment. It must always be operated
prudently following with great care, the safety instructions laid out in this manual.
1. The use of this equipment is subject to certain hazards which cannot be prevented
by mechanical means or product design. All operators of this equipment must read
and understand this entire manual and the engine manual, paying particular
attention to safety and operating instructions, prior to using.
2. Do not operate the towing vehicle and mower when you are tired, sick or when using
medication.
3. Keep all helpers and bystanders at least 300 feet from a rotary mower. Only properly
trained people should operate this machine.
4. The majority of accidents involve injury of bystanders by objects thrown by the
rotating blades, and operators being knocked off the towing vehicle by low hanging
limbs and then being run over by the mower. Accidents are most likely to occur with
machines that are loaned or rented to someone who has not read the operator’s
manual and is not familiar with a rotary mower.
OPERATION 9 BEFCO
YCLONE OPERATOR’S MANUAL
C
5. Test the safety kill switch on the mower to ensure that the mower will cut off when
key is removed.
6. Before operating, attach the kill switch rope to the operator’s belt strap and to the
towing vehicle on the front of operator’s seat.
7. Always stop the towing vehicle, set brake, shut off both the mower engine and the
towing vehicle engine, remove the ignition key and allow mower blades to come to a
complete stop before dismounting towing vehicle. Never leave equipment
unattended with the towing vehicle running.
8. Never place hands or feet under mower with engine running or before you are sure
all motion has stopped. Stay clear of all moving parts.
9. Do not allow riders on the mower or towing vehicle at any time. There is no safe
place for riders.
10.Do not operate unless all personnel, livestock and pets are at least 300 feet away to
prevent injury by thrown objects.
11.Before backing up, turn off mower engine and look behind carefully.
12.Install and secure all guards and shields before starting or operating.
13.Keep hands, feet, hair and clothing away from moving parts.
14.This rotary mower is designed for use with all terrain vehicles (ATVs) or garden
tractors.
15.Never operate towing vehicle and mower under trees with low hanging limbs.
Operators can be knocked off the towing vehicle and then run over by the rotating
blades.
16. The rotating parts of this machine have been designed and tested for rugged use.
However, they could fail upon impact with heavy, solid objects such as steel guard
rails and concrete abutments. Such impact could cause the broken objects to be
thrown outward at very high velocities. To reduce the possibility of property damage,
serious injury, or even death, never allow the cutting blades to contact such
obstacles.
17.Frequently check mower blades. They should be sharp, free of nicks and cracks and
securely fastened.
18. Stop mower immediately upon striking an obstruction. Turn mower engine off, turn
towing vehicle engine off, remove key, disconnect spark plug wire, set towing vehicle
brake and wait for all movement to stop. Inspect and repair any damage before
resuming operation.
19. Stay alert for holes, rocks and roots in the terrain and other hidden hazards. Keep
away from drop-offs.
20.Use extreme care and maintain minimum ground speed when transporting on
hillside, over rough ground and when operating close to ditches or fences. Be careful
when turning sharp corners.
21. Reduce speed on slopes and sharp turns to minimize tipping or loss of control. Be
careful when changing directions on slopes. Do not start or stop suddenly on slopes.
Avoid operation on steep slopes.
22.When making tight turns, do not allow pull hitch to ride up on towing vehicle tires.
23. Inspect the entire machine periodically2. Look for loose fasteners, worn or broken
parts, and leaky or loose fittings.
2
OPERATION 10 BEFCO
See Chapter 4 - Maintenance.
YCLONE OPERATOR’S MANUAL
C
24. Pass diagonally through sharp dips and avoid sharp drops to prevent “hanging up”
towing vehicle and mower.
25.Avoid sudden starts and stops while traveling up or downhill.
26. Always cut down slopes; never across the face. Avoid operation on steep slopes.
Slow down on sharp turns and slopes to prevent tipping and/or loss of control.
3.02 - Set Up
Notice to dealer: Pre-delivery setup and service including lubrication is the
responsibility of the authorized dealer. It is up to him to assure that the machine is in
perfect condition and ready to be used. It is his responsibility to ensure that the
customer is aware of all safety aspects and operational procedures for the mower and
the engine. He must also fill out the Pre-Delivery Checklist3 prior to delivering the
mower.
CAUTION: Stand clear of bands when cutting as they could be under sufficient
tension to cause them to fly loose. Take care in removing bands and wire, they
often have extremely sharp edges and cut very easily.
3.03 - Cutting Height Adjustment
WARNING: Keep hands and feet away from moving blades.
Be sure both towing vehicle engine and mower engine are off, spark plug wire is
disconnected, parking brake is locked, and key is removed before making any
adjustments.
Before working under mower install blocks or stands under the deck to prevent it
from falling.
The cutting height is the distance from the blades to the ground. The cutting height is
adjusted by moving the spacers on the wheel yokes. Placing spacers between the
wheel arm and the wheel yoke raises the cutting height by the size of the spacer.
Removing the spacers lowers it by the same height (see fig. 3).
Be sure all wheel arms are adjusted equally. This is the only way to ensure a completely
uniform cut. The cutting height is adjustable from 1” to 4”. Cutting lower than 2”
under most circumstances should be avoided.
IMPORTANT: Very low cutting heights should be avoided. Damaging shock loads
occur when the blades strike the ground repeatedly. This can cause damage to
the mower.
3
OPERATION 11 BEFCO
See Chapter 7 - Pre-Delivery Checklist.
YCLONE OPERATOR’S MANUAL
C
Fig. 3
The cutting height is
adjusted by moving the
height adjustment spacers
on the wheel yokes above or
below the wheel arm.
3.04 - Pre-Operational Check
IMPORTANT: Check each of the following, carefully, prior to engaging the equipment:
1. The spindle bearings have been greased.
2. The belts for proper tension.
3. No wrappings or foreign objects are around the blades or belts.
4. The blades are properly installed and the blade bolts properly torqued4.
5. All hardware is tight.
6. All safety shields and guards are in place and tightly attached.
7. No people or animals are in the work area.
WARNING: Shut off mower engine and remove spark plug wire from spark plug
before making adjustments, servicing or cleaning the machine. Failure to do so
could result in accidental starting of engine causing possible injury or death.
3.05 - Attaching to the Towing Vehicle
The C30-CE5 is designed to be towed behind a lawn tractor or an ATV.
To attach the mower to the tractor do the following:
1. Back the towing vehicle up to the mower.
2. Turn off engine and set parking break of towing vehicle.
3. Attach a category 1 hitch pin to towing vehicle drawbar.
4
OPERATION 12 BEFCO
See Table 1, page 25.
YCLONE OPERATOR’S MANUAL
C
4. Slide a rubber washer and mower swivel hitch on the hitch pin and secure with a
lynch pin. Make sure hitch pin goes completely through each piece and is secured to
prevent accidental separation.
CAUTION: Towing vehicle front end stability is necessary for safe operation when
pulling equipment.
CAUTION: Always ensure that the towing vehicle’s tire pressure is correct
according to the vehicle’s operator’s manual.
DANGER: Failure to ensure a secure hitching of the implement to the towing
vehicle can cause serious injury or death.
3.06 - Start Up
Before starting to mow, never forget that the operator is responsible for the following:
1. Safe and correct driving of the towing vehicle and mower.
2. To learn precise safe operating procedures for both the towing vehicle and the
mower.
3. To ensure all maintenance and lubrication has been performed on the mower.
4. To have read and understood all safety aspects for the mower and the engine in the
respective operator’s manuals.
5. To have read and understood all safety decals on the mower.
6. Checking the condition of the blades. Worn or damaged blades should be changed
before starting5.
7. Checking to ensure that the cutting edge is the leading edge of the blade
8. Checking that there is no wire, weed, grass or other material wrapped around
blades.
9. Checking the towing vehicle tires for the proper pressure in accordance with the
tractor operator’s manual.
10.Making sure the proper attire is worn. Avoiding loose fitting clothing which can
become entangled. Wearing sturdy, tough-soled work shoes and protective
equipment for eyes, hands, ears and head. Never operate mower in bare feet,
sandals or sneakers.
11.Checking area for stones, branches and other debris that might be thrown.
12.Ensuring proper lighting is available, sunlight or good artificial lighting.
13.Ensuring the kill switch safety is properly attached.
6
.
5
6
OPERATION 13 BEFCO
See Section 4.03 - Blade Maintenance.
See Section 4.03 - Blade Maintenance.
YCLONE OPERATOR’S MANUAL
C
To start mower engine do the following:
1. Install the kill switch plug.
2. Open the fuel valve.
3. Push throttle in the “CHOKE” position. If the engine is warm, place the throttle in
“SLOW” position.
4. Place one foot on the mower deck and one foot firmly anchored on ground. Make
sure foot on ground does not get underneath mower. Pull starter cord briskly
returning slowly until engine starts.
5. When engine cranks, slow to idle and allow the engine to warm up for several
minutes. When engine is warm adjust throttle to desired speed.
NOTE: If engine is hard to crank consult the engine manufacturer’s operator’s manual.
DANGER: Keep hands and feet away from underneath the mower. When starting
the engine place one foot on the mower deck and one foot firmly anchored to the
ground safely away from underneath the mower deck.
To start cutting ensure that:
1. The kill switch tether cord is connected from the switch through the operator’s belt
loop to towing vehicle forward of operator’s seat.
2. Parking brake is released.
3. The lowest gear is selected in order to begin cutting at a slow speed. Adjust speed
gradually in relation to the condition of the ground.
DANGER: Ensure that the safety kill switch is working properly. Test to make
sure that the mower will cut off when the switch is removed. Never operate the
mower without the safety kill switch properly attached. Failure to do so could
cause serious injury or death.
To shut down mower engine do the following:
1. Idle the engine down.
2. Set parking brake.
3. Pull out kill switch plug.
4. Stop the engine of the towing vehicle.
5. Close fuel valve.
6. Allow the mower blades to come to a complete stop before dismounting.
The mowing speed depends on ground conditions, mowing height, and grass thickness.
Only a test run will enable you to gauge the optimal working speed for your conditions.
OPERATION 14 BEFCO
3.07 - Working Speed
YCLONE OPERATOR’S MANUAL
C
Under most conditions a 3 to 5 mph ground speed is best. As a rule of thumb, and if the
conditions permit, grass dispersion is increased by higher ground speeds.
The mulching kit is an option available for our mowers. This kit, containing 3 multilevel
cutting edge blades and add-on containment baffling which bolts to the underside of the
mower deck, mulches and pulverizes grass and leaves.
Another benefit of the mulching kit is safety. In fact, the kit greatly reduces the possibility
of thrown objects. This is particularly important when mowing around schools, public
parks and golf courses.
If you are using a mulching kit, you need to reduce your ground speed to under 2 mph
(see fig. 4).
Fig. 4
The mulching kit is an
available option,
consisting in 3
multilevel cutting edge
blades and add-on
containment baffling
which bolts to the
underside of the mower
deck, to mulch and
pulverize grass and
leaves.
3.08 - Operating Techniques
All of the following factors are important in selecting the proper forward speed:
1. Height of grass.
2. Type of grass.
3. Density of grass.
4. Type of terrain.
5. Grass condition, wet or dry.
This mower has been designed to cut grass with heights from 4” to 8”. It is
recommended to avoid cutting grass taller than 10”. For the best results, try cutting the
grass at least once per week during growing season. Tall, dense grass should be cut at
OPERATION 15 BEFCO
YCLONE OPERATOR’S MANUAL
C
low speed, while thin medium grass can be cut at a faster ground speed. For cleaner
cuts and efficient mowing, the blades must be kept sharp7.
Under certain conditions, towing vehicle tires may roll some grass down and prevent it
from being cut at the same height as the surrounding area. If this occurs reduce the
towing vehicle ground speed. The lower ground speed will permit the grass to at least
partially rebound. Under some conditions grass will not rebound enough to be cut
evenly, resulting in an uneven appearance. In general, lower cutting height gives a more
even cut with less tendency to leave tire tracks. If cut is still not satisfactory, cut the area
twice.
Mow extremely tall grass twice. On the first pass use a high cutting height. On the
second pass position the mower at the desired height and, when practical, mow at a
right angle in travel to the first pass.
It is better to cut grass more often, than too short. Short grass deteriorates rapidly in hot
weather and invites weed growth during growing season.
Plan your pattern to travel straight forward whenever possible. The rear tires of the
mower are locked in the running position to help stabilize the mower on inclines.
DANGER: The mower blades can throw objects hundreds of feet which could
result in personal or property damage.
Pick up all rocks and other debris before mowing.
Enter new areas carefully. Cut grass higher at first, allowing mower to clear
hidden objects.
CAUTION: For emergency reasons learn how to stop the towing vehicle and
mower quickly. Stop mower engine, stop towing vehicle engine, lock parking
brake and allow the mower blades to come to a complete stop before
dismounting the tractor.
3.09 - Uneven Terrain
DANGER: Be careful of rollover when operating towing vehicle and mower over
uneven ground.
The following precautions should always be observed when working on uneven terrain:
1. In extremely uneven terrain rear wheel weights, front tractor weights, and/or tire
ballast should be used to improve stability.
7
OPERATION 16 BEFCO
See Sharpening Blades in section 4.03 - Blade Maintenance.
YCLONE OPERATOR’S MANUAL
C
2. Observe the type of terrain and develop a safe working pattern.
3. Whenever traction or stability is doubtful, first test drive over the terrain without
attaching the mower.
4. Operate the implement up and down steep slopes, not across slopes, to prevent the
tractor from tipping. Avoid sudden stops and starts, and slow down before changing
directions on a slope.
5. Pass diagonally through sharp dips and avoid sharp drops to prevent hanging up the
tractor and implement.
6. Slow down on sharp turns and slopes to prevent tipping or loss of control.
7. Avoid tipping the mower while cutting.
8. Watch for holes, roots or other hidden objects. Do not use near the edge of a gully,
ditch or stream bank.
3.10 - Transport
Before transporting:
1. Always select a safe ground speed that is appropriate for the terrain.
2. Beware of traffic on public roads. Install a SMV (Slow Moving Vehicle) sign when
traveling on roads or streets. Comply with all federal, state and local laws.
3. Reduce ground speed when turning and take care that the implement does not strike
obstacles such as trees, fences or buildings.
OPERATION 17 BEFCO
YCLONE OPERATOR’S MANUAL
C
4 - MAINTENANCE
DANGER: Stop mower engine, stop towing vehicle engine, lock parking brake,
remove key and disconnect spark plug wire, before performing any service or
maintenance.
Install blocks or stands under the mower deck to prevent it from falling. Always
use personal protection devices, such as glasses or gloves when performing
maintenance.
Keep fingers out of slots to prevent injury.
4.01 - Maintenance Safety
NOTE: For engine maintenance refer to engine manufacturer’s operator’s manual.
1. Good maintenance is your responsibility.
2. Keep service area clean and dry. Be sure electrical outlets and tools are properly
grounded. Use adequate light for the job at hand.
3. Make sure there is plenty of ventilation. Never operate the engine of the mower or
the towing vehicle in a closed building. The exhaust fumes may cause asphyxiation.
4. Make no repair or adjustments with the engine running. Before working on the
machine, shut off both engines, set the brakes, remove the ignition key and
disconnect spark plug wire.
5. Be certain all moving parts on attachment have come to a complete stop before
attempting to perform maintenance.
6. Never work under equipment unless it is blocked securely.
7. Always use personal protection devices such as eye, hand and hearing protectors,
when performing any service or maintenance.
8. Frequently check mower blades. They should be sharp, free of nicks and cracks and
securely fastened.
9. Periodically tighten all bolts, nuts and screws and check that all cotter pins are
properly installed to ensure unit is in a safe condition.
10. When completing a maintenance or service function, make sure all safety shields
and devices are installed before placing unit in service.
11.Do not attempt to mount a tire unless you have the proper equipment and
experience to do the job.
12. Inflating or servicing tires can be dangerous. Whenever possible, trained personnel
should be called to service and/or mount tires.
MAINTENANCE 18 BEFCO
YCLONE OPERATOR’S MANUAL
C
13.If fuel needs to be added, allow engine to cool before filling. Use only approved
funnel and container to handle gasoline. Do not fuel tank indoors. Wipe up spilled
gasoline.
14.After servicing, be sure all tools, parts and service equipment are removed.
15. Never replace hex bolts with less than grade five bolts unless otherwise specified,
i.e. shear bolts8.
16.Where replacement parts are necessary for periodic maintenance and servicing,
genuine replacement parts must be used to restore your equipment to original
specifications. The company will not claim responsibility for use of unapproved parts
and/or accessories and other damages as a result of their use.
17. Unauthorized modifications to the machine may impair the function and/or safety of
the machine and reduce its life. If equipment has been altered in any way from
original design, the manufacturer does not accept any liability for injury or warranty.
4.02 - Service
The accompanying illustrations show lubrication points. The chart gives the frequency of
lubrication in hours, based on normal operating conditions. Severe or unusual
conditions may require more frequent lubrication.
Use a good quality SAE multipurpose type grease for all locations shown. Be sure to
clean fittings thoroughly before using grease gun.
Refer to engine manufacturer’s operator’s manual for service requirements on engine.
Hourly:
1. Check the condition of mower blades for nicks or dull edges. Sharpen if necessary.
2. Replace bent or damaged blades
9
.
3. Also check blades for damage after hitting an obstruction.
4. Clean foreign material from mower deck and belt area.
Fig. 5
Every 8 hours:
Wheel yokes lubrication.
8
9
MAINTENANCE 19 BEFCO
Refer to Table 1 - Torque Specifications, page 25.
See Section 4.03 - Blade Maintenance.
YCLONE OPERATOR’S MANUAL
C
1. Lubricate the wheel yokes: Apply two or three shots of grease to the wheel arm
grease fittings (see fig. 5).
2. Engine oil level: Add oil as necessary. See the engine manufacturer’s operator’s
manual for further information on engine.
Every 25 hours: Check hardware tightness; mower vibrations can loosen bolts.
Check tightness of the hardware periodically, using Table 1 as a guide10.
Every 50 hours:
1. Lubricate the three spindles with two or three shots of multipurpose grease (see fig.
6). The top grease fittings are easily accessible from the top of the deck by simply
removing the plastic dust guards.
2. Check belt tension11.
Fig. 6
Lubrication of the spindle
shafts easily accessible from
the top of the deck.
4.03 - Blade Maintenance
WARNING: To avoid possible injury always wear proper eye and hand protection
when servicing mower blade.
In order for the mower to work properly and to always obtain a precision cut, proper
blade maintenance is important.
Blades must be kept sharp, at their original length and corners maintained. A blade
must be replaced if, due to wear or damage, its original shape has been distorted.
Installing or removing blades
If the mower blades need to be installed, do the following:
10
11
MAINTENANCE 20 BEFCO
See Table 1, Torque Specifications, page 25.
See Section 4.04 - Belt Tension.
YCLONE OPERATOR’S MANUAL
C
1. The blade turns in a counter clockwise direction when viewed from the bottom of
the deck. The cutting edge must be towards the direction of rotation. The lift wing of
the blades is closest to the deck and the cutting edge away from it (see fig. 7).
2. Install the cup washer (see fig. 7) over the blade bolt and secure the blade in place
as described above.
3. With a wrench, block the spindle and tighten the bolt to 103 lb.ft. (see fig. 8).
4. To remove the blades reverse the procedure.
1
2
3
4
5
6
11
7
8
9
10
Fig. 7 - Spindle assembly.
1. grease fitting
2. hexagonal nut
3. pulley
4. rotor support
5. cover
7. blade
8. cup washer
9. blade bolt
10. cutting edge close to ground
11. lift wing
Ground
6. shaft
WARNING: Do not substitute blades or any bolt for the blade retaining bolt.
Company blades and blade retaining bolts are specially made for this application.
Using non original parts can effect the quality of cut and may also cause damage
to the mower.
MAINTENANCE 21 BEFCO
YCLONE OPERATOR’S MANUAL
C
1
2
Fig. 8
3
1. spindle
2. blade
3. blade bolt
DANGER: Proper torque must be used when tightening the blade retaining bolt. If
these safety precautions are not followed, the blade could come off during
operation and be thrown hundreds of feet from the mower.
Sharpening Blades
Blade sharpening is extremely important in order to get the best cutting results. Sharp
blades permit a high quality cut.
To sharpen blades, first remove them following the above instructions.
Place the blade in a vise and sharpen them by using a hand file or grinder. Do not
sharpen the blades to a sharp cutting edge. The cutting edge should be between 1/64”
to 1/32” to prevent excessive pitting and dulling of the blades. Sharpen both ends of the
blade equally for balance and always maintain corners. Always keep all three blades
sharpened equally in order to maintain balance.
CAUTION: Unbalanced or warped blades can cause damage to the mower and/or
personal injury. Replace damaged blades before operating the mower. Sharpen
both ends of the mower blades equally or until the blade is balanced.
The C30-CE5 mower is equipped with two belts, a main drive belt that runs from the
centrifugal clutch to the center spindle pulley and a secondary belt that runs between
the 3 pulleys.
MAINTENANCE 22 BEFCO
4.04 - Belt Tension
YCLONE OPERATOR’S MANUAL
C
Belt tension control
1. Check the main drive belt by applying a force of 3-4 lb. pushing against the belt
halfway between the centrifugal clutch and the center spindle pulley. The belt
1
deflection should be between
/8”-1/4”.
2. Check the secondary belt tension by applying a force of 12-15 lb. pushing against
the belt halfway between the pulleys. The belt deflection should be between
5
/16”-3/8”.
Belt tension adjustment
1
1. If the main drive belt deflects more than
/4”, tighten the belt by loosening the four
engine nuts and turning the adjustment bolt clockwise until the belt is within the
specified range. Then re-tighten the four engine nuts.
2. The secondary belt has an automatic belt tensioner. The tension is created by a
spring connecting a tensioner pulley to a fixed hitch plate with 3 positions (see fig.
9). Upon delivery, the spring is located in the first position. When the belt stretches
after use, adjust the tension by relocating the spring in the other two holes. If the belt
has stretched to the point that the belt is not tight enough even in the last hole, then
it is necessary to replace the belt.
Fig. 9 - Secondary belt positioning.
1. tensioner
3
2
1
2. secondary belt
3. side pulley
4. spring
5. hitch plate
If the belts have stretched or damaged to the point where the proper tension cannot be
obtained they must be changed.
To replace the belts (see #4 & 8, fig. 10) do the following:
1. Remove belt shield. Clean foreign material from the mower deck and belt area.
2. Loosen the four engine nuts.
3. Loosen the belt tensioner bolt.
4. Loosen rear nuts holding central plate (do not remove them).
5. Remove front nuts holding central plate.
6. Release spring tensioner to loosen secondary belt.
7. Lift the front of the central plate and remove old belts.
MAINTENANCE 23 BEFCO
5
4.05 - Belts Replacement
4
YCLONE OPERATOR’S MANUAL
C
8. Replace both belts.
9. Lower central plate. Replace front nuts. Tighten front and rear nuts holding down
central plate. Tighten four engine bolts. Tighten belt tensioner bolt.
10.Replace spring tensioner.
11.Check both belts for proper tension.
12.Reinstall the belt shields.
2
Fig. 10
1. centrifugal clutch
3
8
7
6
1
5
3
4
2. central pulley
3. side pulleys
4. secondary belt
5. belt tensioner
6. hitch plate
7. spring
8. main belt
MAINTENANCE 24 BEFCO
YCLONE OPERATOR’S MANUAL
C
TABLE 1 - TORQUE SPECIFICATIONS
Metric (ISO)
treaded
bolts head
marking
Bolt
Thread
size
mm
When using lock washers with nuts, increase torque values by 5%.
mm
0.8M5
1M6
1.25M8
1M8
1.5M10
1.25M10
1M10
1.75M12
1.5M12
1.25M12
2M14
1.5M14
2M16
1.5M16
2.5M18
2M18
1.5M18
2.5M20
1.5M20
2.5M22
1.5M22
3M24
2M24
3M27
2M27
3.5M30
2M30
4M36
Class 8.8Class 5.8
Class 10.9
ft-lbN.mft-lbN.mft-lbN.m
794634
111571046
273618251216
283819261317
527135482331
557538512433
587839532635
9112362844054
9412864874156
9813366904459
144195981336284
1542091051426994
22330215220697131
236320161218104141
310421218295133181
327443229311145196
343465241327150203
437592306415189256
476646335454212288
595807418567254344
644873452613281381
7501017526714327444
8081095567769360488
110314967741050484656
117615948251119530719
1499203310471420668906
16592250118016007381000
260735351830248211311534
Inch (SAE)
treaded
bolts head
marking
Thread
Bolt
inch
size
inch
tpi
201/4”
281/4”
185/16”
245/16”
163/8”
243/8”
147/16”
207/16”
131/2”
201/2”
129/16”
189/16”
115/8”
185/8”
103/4”
163/4”
97/8”
147/8”
81”
121”
71-1/8”
121-1/8”
71-1/4”
121-1/4”
61-3/8”
121-3/8”
61-1/2”
121-1/2”
Grade 8Grade 5Grade 2
ft-lbN.mft-lbN.mft-lbN.m
121681157
1419101368
253317241115
273719261317
445931422027
496735472331
709549673243
7810655753648
106144751024866
120163851155575
1542081091477095
17123212116479106
21228715020397132
240325170230110149
376509266361172233
420569297403192261
606822430582167226
668906473642184249
9091232644873250339
9951348704955273371
128817467941077354480
144519588911208397539
1817246311201519500677
2012272812411682553750
2382323014691992655888
27123677167322687461011
31614286194926438691179
35574823219429749781326
TABLE 2 - C30 ENGINE MOWER - TECHNICAL FEATURES
Series C30, rear discharge, cat. 1 ball
Model
Working
width
MAINTENANCE 25 BEFCO
Overall
width
Weight
lb.
Rotor
rpm/min
Blades tip
speed ft/min
#
Blades
Cutting
height
# Belts
& type
size
4 - 8.4”x3.2”2 BX1” - 4”314173267338862”60”C30-CE5
Engine# Wheels &
Briggs &
Stratton
10.5 HP
YCLONE OPERATOR’S MANUAL
C
5 - REPAIR PROCEDURES
CAUTION: All repair procedures must be done by authorized dealerships. It is not
recommended that untrained individuals perform any repair work. The following
operations are detailed for qualified personnel only.
5.01 - Blade Spindle
To remove a blade spindle:
1. Remove the belt
12
.
2. Remove the nut holding the pulley to the spindle shaft (see fig. 7).
3. Remove the blades13.
4. Unbolt the bolts holding the rotor support to the mower deck.
5. If necessary remove and replace the bearings from the rotor using presses or
extractors.
6. Reassemble in reverse order ensuring that the nut securing the top pulley (see
fig. 7) is tightened to 118 lb. ft.
5.02 - Suggested Spare Parts
It is suggested that the following spare parts be kept on hand for the mower at all times
to prevent a minor problem from delaying work.
QuantityDescription
3Blades
3Blade bolts
3Washers
2Belts
After seasonal use it is important to perform the following for prolonged storage:
1. Wash the mower carefully.
2. Inspect the mower and replace worn or damaged parts.
3. Tighten all hardware.
4. Grease all areas indicated under Maintenance
5. Loosen the belts if the mower is to be stored for an extended length of time.
6. Cover the mower from the elements in order to have it in perfect condition for the
start of the next season.
12
13
14
REPAIR PROCEDURES 26 BEFCO
See Section 4.05 - Belt Replacement.
See Section 4.03 - Blade Maintenance.
See Chapter 4 - Maintenance.
5.03 - Storage
14
.
YCLONE OPERATOR’S MANUAL
C
6 - TROUBLESHOOTING
WARNING: Be sure mower engine and towing vehicle engine are off, parking
brake is locked, key is removed and spark plug wire is disconnected before
making any adjustments.
SOLUTIONPOSSIBLE CAUSEPROBLEM
Uneven cutting.
but not cutting.
Belt slippage.
Mower vibrates.
Grass build up
at exit.
Belts are tight
when installing.
Streaking
conditions in
swath.
windrows.
Mower engine
stalls often.
Cup washer not between blade
and bolt.
Ground speed too fast.
Blades need sharpening.
Caster wheels uneven.
Engine not at full rpm.
Direction of blades is wrong.Blades turning
Lack of tension.
Object clogging mower.
Debris in pulleys.
Object wrapped around blade.
Belt damaged.
Wet grass.
Grass too high.
Wrong belt size.
Installed belts incorrectly.
Too wet to mow.
Blades cannot cut grass
pressed down by wheels.
Dull blades.
Blades worn down, preventing
overlap.
Ground speed too low.Cut grass
Mower engine speed too slow.
Ground speed too fast.
Engine malfunction.
Check washer location on all 3
spindles.
Shift to lower gear.
Sharpen blades.
Adjust wheel position.
Increase engine rpm.
Blade should turn CCW when
you face deck bottom. See
Blades Maintenance section.
Tighten belt.
Remove object.
Clean pulleys.
Remove object.
Replace belt.
Tighten belt.Belt slipping.Belt squeal.
Allow grass to dry.
Raise mower, shift to lower
gear, make two passes over
grass. Mow grass high 1st pass,
2nd pass cut to desired height.
Check belt size.
See Belts Replacement section.
Allow grass to dry.
Maintain engine speed and shift
to lower gear.
Sharpen blade. See Blades
Maintenance section.
Change blades.
Increase ground speed.
Check engine speed.
Increase engine speed.
Decrease speed.
Refer to Engine Operator’s
Manual.
TROUBLESHOOTING 27 BEFCO
YCLONE OPERATOR’S MANUAL
C
7 - PRE-DELIVERY CHECKLIST
To the dealer: Inspect the machine thoroughly after assembly to assure it is
functioning properly before delivering it to the customer. The following checklist
is a reminder of points to cover. Check off each item as it is found satisfactory or
after proper adjustment is made.
Engine oil level.
Gearbox oil level.
Guards and shield properly fastened.
Lubrication of grease fittings.
All hardware properly tightened.
All decals properly located and readable (see fig. 2).
Blades properly installed, blade bolts and nuts tightened.
Overall condition (touch up scratches, clean and polish).
Test run, check for excessive vibration or overheating of bearings.
Operator’s Manual.
Review the Operator’s Manual with the customer. Explain the following:
Warranty.
Safe operation and service.
Correct machine installation and operation.
Daily and periodic lubrication, maintenance and inspections.
Troubleshooting.
Operational procedures and storage.
Parts and service.
Fill out the Pre-Delivery Checklist and Warranty Registration form.
Give customer the Operator’s Manual and encourage the customer to read the
manual carefully.
IMPORTANT: Warranty is not valid unless Pre-Delivery Checklist and Warranty
Registration form in Operator’s Manual is completed in detail and mailed to the
Company.
Model Number: __________ Serial Number: __________
Delivery Date: __________ Dealer’s Signature: __________
PRE-DELIVERY CHECKLIST 28 BEFCO
YCLONE OPERATOR’S MANUAL
C
8 - WARRANTY
BEFCO’s responsibility will be limited to substitution of the acknowledged defective
merchandise to the same place of delivery as the previous one was supplied.
1. LIMITED WARRANTY
BEFCO, Inc. herein referred to as the Company, warrants its machines and related
accessories, hereafter referred to as the Machine, to be free from defects in material
and workmanship, for a period of twelve (12) months from the date of invoice to the first
registered owner; this limited warranty does not apply to common wear items and
excludes engine, belts, shear pins, oil, grease, tires, tubes, hydraulic hoses, knives and
PTO shafts.
Labor will be reimbursed at $40.00 per hour based on BEFCO’s time schedule.
Cost of transport to the servicing dealer is the responsibility of the customer.
Warranty coverage shall not be transferable from the first owner to any subsequent
owner.
2. DISCLAIMER OF ALL OTHER WARRANTIES AND REMEDIES
Neither the Company nor any company affiliated with the Company makes any
warranties, representations or promises, expressed or implied, as to the quality,
performance or application of its products other than those set forth herein and
does not make any implied warranty of merchantability or fitness.
The only remedies the purchaser has in connection with the breach, or
performance of any warranty on the Company’s Machine are those set forth
herein. In no event will the dealer, the Company, or any company affiliated with
the Company, be liable for:
a. Injuries or damages of any kind or nature, direct, consequential or
contingent to person or property.
b. Any expenses incurred by the owner to repair, replace or rework any
allegedly defective item.
c. Any loss, cost, forfeiture or damages (including loss of profits; loss of
crops; loss because of delay in field operations; any expenses or loss
incurred for labor, supplies, substitute machine rental; liabilities of the
owner to its customers or third persons; and all other consequential
damages, losses, liabilities or damages for any other reasons) whether
direct or indirect, and whether or not resulting from or contributed to by the
default or negligence of the Company, its agents, employees and
subcontractors which might be claimed as a result of the use or failure of
the equipment delivered.
The Company’s liability based on this limited warranty or any other applicable
laws shall be limited to replacement or refund of the purchase price of the
product.
The limited warranty extended herein gives you specific rights and you may also
have other rights which vary from state to state. Neither the dealer nor the
Company personnel has the authority to make any representation or to modify
the terms and limitations of this warranty in any way.
WARRANTY 29 BEFCO
YCLONE OPERATOR’S MANUAL
C
Other than the limited warranty extended hereby there is no other expressed
warranty in connection with the design, safety or use of any of the Company’s
products except as to title. All implied warranties are expressly disclaimed
pursuant to the terms of this warranty.
3. CUSTOM WORK
If the Machine is used for commercial purposes such as custom work, the period
warranted for the Machine is limited to six (6) months from the date of delivery to the
first registered owner and does not cover any labor charges incurred.
4. RENTAL
If the Machine is used for rental purposes the period warranted for the Machine is
limited to thirty (30) days from the date of delivery to the first registered owner and does
not cover any labor charges incurred.
5. REGISTRATION
In order to qualify for coverage on this limited warranty, the product and name of the
original purchaser must be registered with the Company by a completed Machine
Pre-Delivery Checklist and Warranty Registration along with a copy of the dealer’s
invoice to the first registered owner to the Company within fourteen (14) days after the
date of delivery to the original purchaser.
6. WARRANTY SERVICE
Warranty Service must be performed by a dealer authorized by BEFCO. If the warranty
service requested is approved, the owner shall pay only for labor beyond the rate
allowed, for overtime labor, and for any mileage charge for transporting the equipment
to and from the dealer’s shop. It is assumed that the dealer has the appropriate general
and special tools to service the Machine. Time required for replacement of knives, oil,
grease and to remove excessive dirt from the Machine is not subject to reimbursement
by the Company. The owner is required to clean the Machine before presenting it to the
dealer for service work. The Machine must be delivered within thirty (30) days after
failure date by the owner to the dealer to be eligible for warranty consideration.
7. UNAPPROVED SERVICE OR MODIFICATION
All obligations of the Company under this limited warranty shall be terminated if:
a. Proper service and operation instructions as outlined in the Operator’s Manual
and on the instruction sticker on the Machine, are not followed.
b. The Machine is modified or altered in any way not approved by the Company.
c. The Company does not receive a copy of the dealers invoice to the first
registered owner within fourteen (14) days from the date of delivery.
d. The Company has not been paid in full, by the dealer, for the Machine.
8. ACCIDENTS AND NORMAL MAINTENANCE
This limited warranty covers defective material and workmanship. It does not cover
depreciation or damage caused by normal wear, accidents, improper maintenance,
improper protection or improper use. The costs of normal maintenance or repairs for
accidents or improper use, and related labor will be borne by the owner.
9. REPLACEMENT PARTS
BEFCO, Inc. warrants replacement parts to be free from defect in material and
workmanship for a period of thirty (30) days from the date of delivery to the original
purchaser.
WARRANTY 30 BEFCO
WARRANTY REGISTRATION
BEFCO, Inc.
P.O. Box 6036
Rocky Mount, NC 27802-6036 Tel: (252) 977.9920 - Fax: (252) 977.9718
Acct. #
Model # Serial #
Pre-Delivery Checklist:
Oil in engine.
Greased fittings.
Safety guards in place.
All hardware tight.
Bolts torqued correctly.
Attached unit to tractor. Yes/No.
Field adjusted. Yes/No.
Test run. Dry/Infield.
Safety decals.
Operator’s Manual.
The machine described above, had been
prepared for delivery according to the
Pre-Delivery Checklist and the Customer has
been instructed in its care and operation and
the condition of warranty.
Inspected by:
Retail CustomerDealer
StreetStreet Country
Town State ZipTown State Zip
PhoneDate of delivery Invoice #
Tractor make:
Model: ; HP
Type of operation: Private homeowner,
Landscaping, Commercial maintenance, Golf
Course, Municipality, Turf Farm, others:
Approximate number of acres machine will be
used on annually:
I hereby acknowledge that:
I have received and accepted delivery of the
machine described.
The equipment was checked thoroughly for
loose or missing parts and has been adjusted
in accordance with the Pre-Delivery Checklist.
I have read and understand the nature and
extent of the warranty and understand clearly
that there were and are no other
representations of warranties either expressed
or implied, made by anyone. I have been
advised on proper operation, maintenance and
lubrication procedure of this equipment.
I have been instructed on and do understand
the application, limitation and capacities this
equipment was designed and recommended
for, all as described in the Operator’s Manual
and literature published by the Company.
Date: Date:
Customer’s Signature: Dealer’s Signature:
This registration along with a copy of the invoice must be sent to BEFCO, Inc.
within 14 days of date of purchase.
Fold here
BEFCO, Inc.
Sender:
Place stamp
here
Warranty Department
P.O. Box 6036
Rocky Mount, NC 27802-6036
Cut along this line
BEFCO®
Parts Manual
CYCLONE
Engine Driven Grooming Mower
C30-CE5
BEFCO C30-CE5 (US).lwp
Printed on April 13, 2016
Parts Manual 04/2016
C30-CE5 Ver. C
CYCLONE FRAME OPERATOR’S MANUAL
C30-CE5
P
ARTS MANUAL 34 BEFCO
04/2016
CYCLONE FRAME OPERATOR’S MANUAL
C30-CE5
Qty.DescriptionPart #Ref.
1Frame, rear discharge 60"; Ver. A & below020-87401
1Frame, rear discharge 60"; Ver. B & above025-1501P
1Rear extension 60"; C30-CE5170-10002
2Wheel arm 60”; C30-CE5000-87113
2Wheel yoke, round shaft000-87854
2Wheel yoke, hex shaft000-87385
4Pin, wheel yoke000-87836
4Height adj. spacer 1", round for hex. shaft; Ver. A & below005-85557
4Height adj. spacer 1", hex for hex. shaft; Ver. B & above005-8560
2Height adj. spacer 1/2", round for hex. shaft; Ver. A & below005-85568
2Height adj. Spacer 1/2”, hex for hex shaft; Ver. B & above005-8561
4Height adj. spacer 1/4” round for hex. shaft; Ver. A & below005-85579
4Height adj. spacer 1/4” hex for hex shaft; Ver. B & above005-8562
4Height adj. spacer 1”, round shaft000-658610
2Height adj. spacer 1/2”, round shaft000-658711
4Height adj. spacer 1/4”, round shaft000-658912
4Wheel w/hard tire, complete000-852613
8Bushing, wheel (not shown)000-6613
4Spacer, wheel000-852814
2Belt shield w/o tab 60"020-881715
3Cap000-664716
1Central plate 5’; C30-CE5020-8430B17
1Plate, belt tensioner000-887218
1Spacer, belt tensioner503-370B19
000-885620
15
1Stand, throttle; Ver. A & below
1Stand, throttle; Ver. B & above503-891B
1Drawbar; Ver. A & below000-876521
1Drawbar; Ver. B & above000-8763
1Ball joint000-877322
1Belt BX 36; C30-CE5000-885023
1Belt BX 124000-894224
2Pulley SPB 130x1, side spindles000-866625
1Pulley SPB 130x2, center spindle; C30-CE5000-662126
1Key 1/4”x2”503-892B27
3Nut SP M25-1.50 Z000-669828
1Pulley, belt tensioner 000-856129
1Support, belt tensioner; Ver. B (#324152) & below000-856330
1Support, belt tensioner; Ver. C (#324153) & above005-1741
1Hitch plate000-857131
1Spring000-972632
1Engine plate, short000-886133
1Engine plate, long000-8865
1Engine, Briggs & Stratton000-885834
4Spacer, engine adjustment000-887035
1Clutch centrifugal000-885136
1Kill switch, complete503-658B37
1Throttle501-682B38
000-885539
Bolt HH 7/16"-20x1.00" G8 Z F
1
1Spacer000-885340
15
P
04/2016
Part no longer available, customer should order part #503-891B instead.
ARTS MANUAL 35 BEFCO
CYCLONE FRAME OPERATOR’S MANUAL
C30-CE5
P
ARTS MANUAL 36 BEFCO
04/2016
CYCLONE FRAME OPERATOR’S MANUAL
C30-CE5
Qty
.DescriptionPart #Ref.
3Bolt HH M10-1.50x20 C8.8 Z F000-634941
10Washer flat Ø10 Z000-203442
18Nut PT M10-1.50 C6 Z TK003-015643
2Bolt HH M10-1.50x90 C8.8 Z P002-618544
14Washer flat Ø10 Z003-015745
2Grease fitting M10-1.00000-106546
4Bolt HH M14-2.00x140 C8.8 Z P000-661547
4Nut PT M14-2.00 C6 Z TK003-035848
2Bolt HH M10-1.50x110 C8.8 Z F000-881849
2Nut ES M10-1.50 Z TK001-410650
3Nut ES M10-1.50 Z TN001-523751
5Bolt HH M10-1.50x25 C8.8 Z F003-317652
4Washer lock Ø10000-128053
5Nut HH M10-1.50 C6 Z TK000-127954
1Bolt HH M12-1.75x80 C8.8 Z F000-712855
1Nut HH M12-1.75 C6 Z MD000-110656
2Bolt HH M10-1.50x40 C8.8 Z F; Ver. B (#324152) & below003-861457
2Bolt HH M10-1.50x80 C8.8 Z F; Ver. C (#324153) & above001-5236
2Bolt HH M14-2.00x40 C8.8 Z F; Ver. A & below007-423258
2Bolt HH M16-2.00x40 C8.8 Z F; Ver. B & above003-2687
1Nut PT M18-2.50 C6 Z TK001-750659
1Bolt HH M10-1.50x35 C8.8 Z F009-128160
2Washer flat Ø20004-655561
4Nut ES M08-1.25 Z TK009-138462
1Washer flat Ø12 Z007-610663
1Bolt CR M06-1.00x80 C4.8 Z000-873064
1Nut ES M06-1.00 Z TK005-016565
2Nut PT M20-2.50 C6 Z TK000-550766
1Bolt SP M10-1.50, belt tensioner; Ver. C (#324153) & above005-175167
1Washer flat Ø16 Z; Ver. C (#324153) & above005-175368
1Cap, plastic008-865869
2Nut PT M16-2.00 C6 Z TK000-558170
8Bolt HH M10-1.50x30 C8.8 Z F000-127871
1Bolt HH M20-2.50x45 C8.8 Z F000-953872
4Cap005-157073
1Nylon rope, front 2930 mm.002-370574
1U clamp complete000-975775
P
ARTS MANUAL 37 BEFCO
04/2016
CYCLONE SPINDLE OPERATOR’S MANUAL
C30-CE5
P
ARTS MANUAL 38 BEFCO
01/2016
A
g
g
A
CYCLONE SPINDLE OPERATOR’S MANUAL
C30-CE5
Qty.DescriptionPart #Ref.
2Pulley SPB 130x1000-86661
2Side spindle assembly, complete000-85332
1Central spindle assembly, complete; C30-CE5000-8533M
3Shim Ø25x35x2000-66063
4
6205 Z000-6634
3Bearin
3Spacer, spindle000-85365
Ø8 PR STR002-90366
3Grease fittin
3Spindle000-85387
3Cover, spindle000-66368
2Shaft, side spindle000-85579
1Shaft, central spindle; C30-CE5000-8807
3Key 8x7x25000-663910
3Blade standard 60"000-664111
3Blade mulching 60"000-6641M
3Blade high lift 60"000-6641B
3Blade low lift 60"000-6641F
3Blade Gator 60"000-6641G
3Disc spring 000-856012
3Bolt blade SP M14-1.50x32000-665913
3Nut SP M25-1.50 Z000-669814
12Nut PT M10-1.50 C6 Z TK003-015615
12Bolt HH M10-1.50x30 C8.8 Z F000-127816
17
3Bearing 6205 ZZ000-6626
1Pulley SPB 130x2; C30-CE5000-662118
P
ARTS MANUAL 39 BEFCO
01/2016
CYCLONE DECALS OPERATOR’S MANUAL
C30-CE5
P
ARTS MANUAL 40 BEFCO
01/2016
CYCLONE DECALS OPERATOR’S MANUAL
C30-CE5
Qty.DescriptionPart #Ref.
2Decal “DANGER - Rotating blades; Thrown objects”950-818B1
2Decal “DANGER - Replace shields”, placed under belt shields950-213B2
1Decal “WARNING - Falling off”950-406B3
1Decal “WARNING - Crushing and pinching hazard”950-407B4
1Decal “WARNING - Safety kill switch”950-191B5
1Decal “CAUTION - To avoid serious injury”950-111B6
1Decal “Cyclone”950-298B7
1Decal “C30”950-234B8
1Decal “CE5”950-336B9
1DECAL “B”950-226B10
2Decal “BEFCO”950-106B11
1Decal “BEFCO, Inc.” address950-381B12
1Decal “Made in USA”950-358B13
2Decal, red reflective950-366B14
1Operator’s & Parts Manual “Cyclone C30-CE5”960-110B
P
ARTS MANUAL 41 BEFCO
01/2016
CYCLONE ACCESSORIES: MULCHING KIT OPERATOR’S MANUAL
C30-CE5
P
ARTS MANUAL 42 BEFCO
01/2016
CYCLONE ACCESSORIES: MULCHING KIT OPERATOR’S MANUAL
C30-CE5
Qty.DescriptionPart #Ref.
2Bolt HH M10-1.50x35 C8.8 Z F009-12815
-Washer fender Ø10 Z003-01576
6Nut HH M12-1.75 C6 Z TK000-303811
-Bolt HH M10-1.50x20 C8.8 Z F000-634923
-Nut PT M10-1.50 C6 Z TK003-015625
1Baffling, front 60”011-582426
1Baffling, rear 60”011-582527
3Blade mulching 60"000-6641M28
Use only original spare parts
All rights reserved. It is unlawful to copy, reprint or use any of the information or details in this manual
without the expressed written permission of the Company. Technical information provided in this
manual is approximate, the Company reserves the right to modify or improve the models shown for
technical or commercial purposes. Pictures in this manual do not necessarily show the machine as
delivered.
P
ARTS MANUAL 43 BEFCO
01/2016
BEFCO C30-CE5 (US).lwp
Printed in the USA, April 13, 2016
®
P.O. Box 6036
Rocky Mount, NC 27802-6036
Tel.: 252.977.9920 - Fax: 252.977.9718
www.befco.com
®
Loading...
