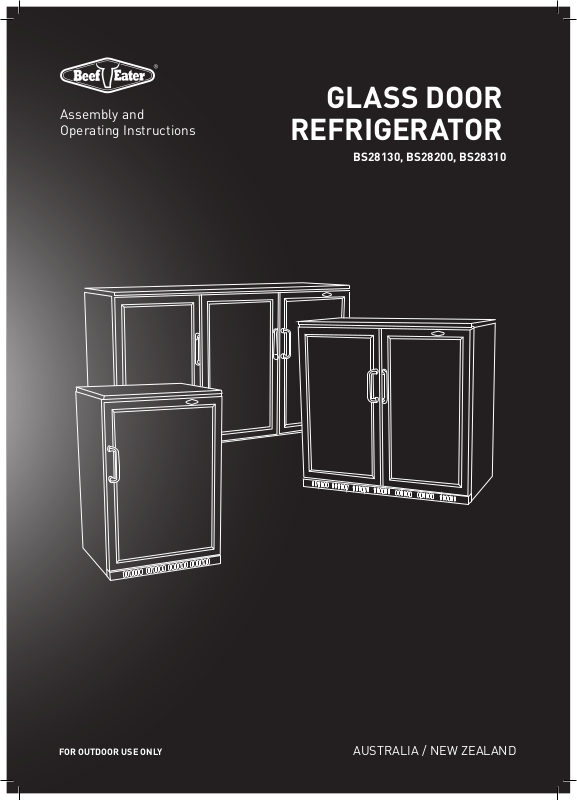

BeefEater BS28200 User Manual
Assembly and
GLASS DOOR
Operating Instructions
REFRIGERATOR
BS28130, BS28200, BS28310
FOR OUTDOOR USE ONLY
AUSTRALIA / NEW ZEALAND
CONTENTS
WARNING
WARNING
TIPS & INFORMATION
ENVIRONMENTAL TIPS
CONTENTSCONGRATULATIONS
Dear customer,
Congratulations and thank you for choosing our outdoor
display fridge. We are sure you will find it a pleasure to use.
Before you use the outdoor display fridge, we recommend
that you read through the relevant sections of this manual,
which provide a description of your appliance and its
functions.
To avoid the risks that are always present when you use
an appliance, it is important that the appliance is installed
correctly and that you read the safety instructions carefully to
avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the appliance, please check it is not
damaged. If in doubt, do not use the appliance but contact
your local customer care centre.
This appliance complies with requirements of relevant
Australian Standards.
Conditions of use
These important notes apply to your appliance, failure to
adhere to these conditions of use may affect your ability to
make a claim under the manufacture’s warranty.
• This appliance must be serviced only by a qualified
licenced person.
• This product is intended for personal, domestic or
household use only, not commercial use.
• This product is intended for outdoor use only.
• This product must be installed, operated and maintained
as per the instructions.
• Ventilation holes in the unit must not be obscured by the
installation.
Please ensure you read the instruction manual fully
before you call for service, or a full service fee could
be applicable.
Important safety instructions .......................................................3
Before using for the first time ......................................................5
Electrical control ..........................................................................6
Operating the light ........................................................................8
Warranty .....................................................................................11
Please read the user manual carefully and store in a handy
place for later reference.
The symbols you will see in this booklet have these
meanings:
WARNING
This symbol indicates information concerning your
personal safety.
CAUTION
This symbol indicates information on how to avoid damaging
the appliance.
IMPORTANT
This symbol indicates tips and information about use
of the appliance.
ENVIRONMENT
This symbol indicates tips and information about economical
and ecological use of the appliance.
Record model and serial number here:
Model number: ...............................................................................
Serial number: ................................................................................
PNC: ................................................................................................
2
TIPS & INFORMATION
ENVIRONMENTAL TIPS
WARNING
TIPS & INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
Please read the user manual carefully and store in a handy
place for later reference.
IMPORTANT
Important – check for any damages or marks
If you find the barbecue is damaged or marked, you must
report it within 7 days if you wish to claim for damage/marks
under the manufacturer’s warranty. This does not affect
your statutory rights.
ENVIRONMENT
Information on disposal for users
• Most of the packing materials are recyclable.
Please dispose of those materials through your local
recycling depot or by placing them in appropriate
collection containers.
• If you wish to discard this product, please contact
your local authorities and ask for the correct method
of disposal.
WARNING
This appliance must be serviced only by a qualified
licensed person.
Improper installation, adjustment, alteration or
maintenance can cause injury or property damage and
may affect your ability to claim under the manufacturer’s
warranty.
Please contact your nearest BeefEater Service
Department for additional information or assistance
for an approved installer.
Note to the installer
This manual must remain with the owner for future reference.
This outdoor display fridge has been designed to be built-in in
a cabinet or similar “Outdoor Kitchen” arrangement.
This appliance is intended to be used in household and similar
applications only.
Before starting the installation, consideration should be given
to how the installation is to be carried out, ensuring
• Adequate space and clearances.
• Preventing exposure to the elements.
• Preventing any exposure to direct sun light.
• Availability of earthed power.
• The mechanical strength of supporting structures.
The installation work must be undertaken by a qualified and
competent person in conformity to the rules concerning
connection of electric power and wiring rules.
The manufacturer does not accept any liability for any
damage or injury caused by improper installation.
Before connecting to the mains supply ensure that the mains
voltage corresponds with the voltage on the outdoor display
fridge’s rating label.
Make sure the electric plant of your house is correctly
earthed.
When installed, the outdoor display fridge must be
positioned to ensure no moisture ingress into the appliance
or the appliance compartment.
• Before carrying out any kind of maintenance or cleaning,
disconnect the outdoor display fridge from the mains
supply.
• The appliance must not be operated or left out in the
weather. Do not expose the outdoor display fridge to rain
or wet conditions.
• This appliance is not intended (including children) with
reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not
play with the appliance.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• There shall be adequate ventilation of the area when the
outdoor display fridge is used, and vents provided must
be kept clear, clean and open.
• There is a fire risk if cleaning is not carried out in
accordance with the instructions, or if damage occurs to
cooling system.
• Always ensure the outdoor display fridge is kept at
the correct settings for the required operation of the
appliance.
• Do not use cooking utensils to handle things inside,
or clean the interior of the outdoor display fridge, as
damage to liners may result.
• During use rear of appliance becomes hot. Care should
be taken to avoid touching elements at rear of the
outdoor display fridge.
• Children should never be allowed to sit or stand on any
part of the appliance.
• Use this appliance only for its intended use.
• This appliance is intended for household use only. It is
designed to be used in sheltered areas only and must
not be exposed to the elements.
• Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended.
IMPORTANT
The outdoor display fridge must never operate in direct
sunlight. The outdoor display fridge will not operate to
specifications if sunlight penetrates the glass doors.
Prolonged exposure to direct sunlight inside the outdoor
display fridge will result in increased temperature, excessive
energy consumption, and even premature component
failure, and will not be covered by warranty.
3SAFETY
IMPORTANT SAFETY INSTRUCTIONS
TIPS & INFORMATION
WARNING
WARNING
IMPORTANT
Before switching your BeefEater outdoor display fridge on
for the first time, read the information in this user manual
carefully. This manual contains important information
relating to the assembly, operation and maintenance of the
appliance.
Please keep this booklet in a safe place for future reference.
If you ever sell your BeefEater outdoor display fridge, hand
this user manual to the new owner.
The manufacture does not accept responsibility for any
damages that may arise due to non-observation of these
instructions. The user is liable for any material damage
or bodily injury (product liability) cause by using the
refrigerator carelessly or failing to follow instructions.
• Do not use damaged appliance. If you are in any doubt,
consult a suitably qualified technician.
• Connection and installation of your BeefEater outdoor
display fridge are to be carried out in strict compliance
with the instructions in this manual.
• For safety, the appliance must be properly earthed in
accordance with specifications
• Do not damage any parts of the appliance which carry
refrigerant by piercing, perforating, crushing, twisting or
scraping. If the refrigerant comes into contact with the
eyes, it may cause serious eye injury.
• Always remember to unplug the appliance before
cleaning. Never unplug your appliance by pulling on the
power cable. Always grip plug firmly and pull straight
out from the socket. Always check that the plug and
cable are undamaged.
• All repairs must be carried out by a qualified technician.
Inadequate repairs may be dangerous. Never try to
repair the outdoor display fridge yourself.
• Should the cover of the interior light or fan fall off or
break, switch the outdoor display fridge off immediately
and replace the cover.
• Ensure your chosen location has a flat and stable
surface. The unit may be leveled by turning either or
both of the adjustable feet in the front corners. Check
the unit is level using a spirit level.
• Do not obstruct or cover the ventilation aperture.
• Make sure there is a suitable power Outlet (240 volts,
10 amps outlet) with proper grounding to power the
refrigerator.
Disposal of Old Appliances
Be sure to make any locks unusable, remove any door(s) and
discard separately.
Before disposing of an old appliance, make sure it is
switched off and safe. Unplug the appliance and break any
locks in order to avoid becoming trapped.
NOTE: refrigeration system contains gas and refrigerants
which require specialised waste disposal. Some vulnerable
materials in a refrigerator can be recycled .Contact your
local waste disposal depot for proper disposal of an old
appliance and contact your local authority or dealer if you
have any questions.
Please ensure the cooling systems and tubes of your
refrigerator are not damaged prior to disposal.
You can contribute to environmental awareness by insisting
on an appropriate non-polluting method of disposal.
Disposal of Packaging
Do not allow children to play with the packaging, and
dispose of plastic bags safely.
The cardboard may be broken or cut into smaller pieces
and recycled. Any wrapping cover is made of polyethylene.
The polyethylene pads and padding contain no fluorochloric
hydrocarbons, and as such are most suitable for adequate
recycling.
WARNING
R600a refrigerant warning
This appliance contains flammable R600a refrigerant. Avoid
safety hazards by carefully installing, handling, servicing and
disposing of this appliance.
• Ensure that the tubing of the refrigerant circuit is not
damaged during transportation and installation.
• Leaking refrigerant may cause eye injuries or ignite.
3
• The room for installing appliance must be at least 1m
per 8g of refrigerant. The amount of refrigerant in the
appliance can be found on the rating plate inside the
appliance.
• If you are unsure of the refrigerant check the rating
plate inside the refrigerator compartment.
• It is a hazardous for everyone other than an Authorised
Service Person to service this appliance. In Queensland
Australia the Authorisation Service Person MUST hold a
Gas Work Authorisation for hydrocarbon refrigerants to
carry out servicing or repairs which involve the removal
of covers.
• Keep ventilation openings in the appliance enclosure or
in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Chemical hazard: do not allow children to play with the
old appliance.
Contact your local authority for disposal procedures.
4 SAFETY
WARNING
Loading...
