BEC Technologies MX-210NPV User Manual
Last revised: June, 2018
Version release: v1.01
User Manual
BEC MX-210NPV
4G/LTE Wi-Fi Router with PoE
Copyright Notice
Copyright@ 2017 BEC Technologies Inc. All rights reserved.
BEC Technologies reserves the right to change and make improvement to this manual at any time
without prior notice.
No part of this document may be reproduced, copied, transmitted in any form or by any means without
prior written permission from BEC Technologies, Inc.
Support Contact Information
Contact Support: http://bectechnologies.net/support/.
Telephone: +1 972 422 0877
TABLE OF CONTENTS
CHAPTER 1: INTRODUCTION ......................... 1
INTRODUCTION TO YOUR ROUTER .............................................................. 1
FEATURES & SPECIFICATIONS .................................................................... 3
HARDWARE SPECIFICATIONS ..................................................................... 5
CHAPTER 2: PRODUCT OVERVIEW ............... 6
IMPORTANT NOTE FOR USING THIS ROUTER ................................................ 6
PACKAGE CONTENTS ............................................................................... 6
DEVICE DESCRIPTION .............................................................................. 7
Front Panel LEDs................................................................................................ 7
Rear Panel Connectors ...................................................................................... 8
SYSTEM RECOVERY PROCEDURES ............................................................... 9
CABLING .............................................................................................. 9
CHAPTER 3: BASIC INSTALLATION ............ 10
NETWORK CONFIGURATION – IPV4 ......................................................... 11
Configuring PC in Windows 10 (IPv4) .............................................................. 11
Configuring PC in Windows 7/8 (IPv4) ............................................................. 13
Configuring PC in Windows Vista (IPv4) .......................................................... 15
NETWORK CONFIGURATION – IPV6 ......................................................... 17
Configuring PC in Windows 10 (IPv6) .............................................................. 17
Configuring PC in Windows 7/8 (IPv6) ............................................................. 19
Configuring PC in Windows Vista (IPv6) .......................................................... 21
DEFAULT SETTINGS ............................................................................... 23
CHAPTER 4: DEVICE CONFIGURATION ...... 24
LOGIN TO YOUR DEVICE ......................................................................... 24
STATUS .............................................................................................. 26
Device Info ...................................................................................................... 26
System Status .................................................................................................. 28
System Log ...................................................................................................... 28
4G/LTE Status .................................................................................................. 29
Wireless Status ................................................................................................ 31
Statistics .......................................................................................................... 32
DHCP Table ...................................................................................................... 36
ARP Table ........................................................................................................ 36
VRRP Status ..................................................................................................... 36
QUICK START ...................................................................................... 37
DEVICE CONFIGURATION ....................................................................... 40
Interface Setup ................................................................................................ 40
Internet ........................................................................................................................ 40
LAN ............................................................................................................................... 48
Wireless ........................................................................................................................ 52
Wireless MAC Filter ...................................................................................................... 56
Loopback ...................................................................................................................... 57
Dual WAN ........................................................................................................ 58

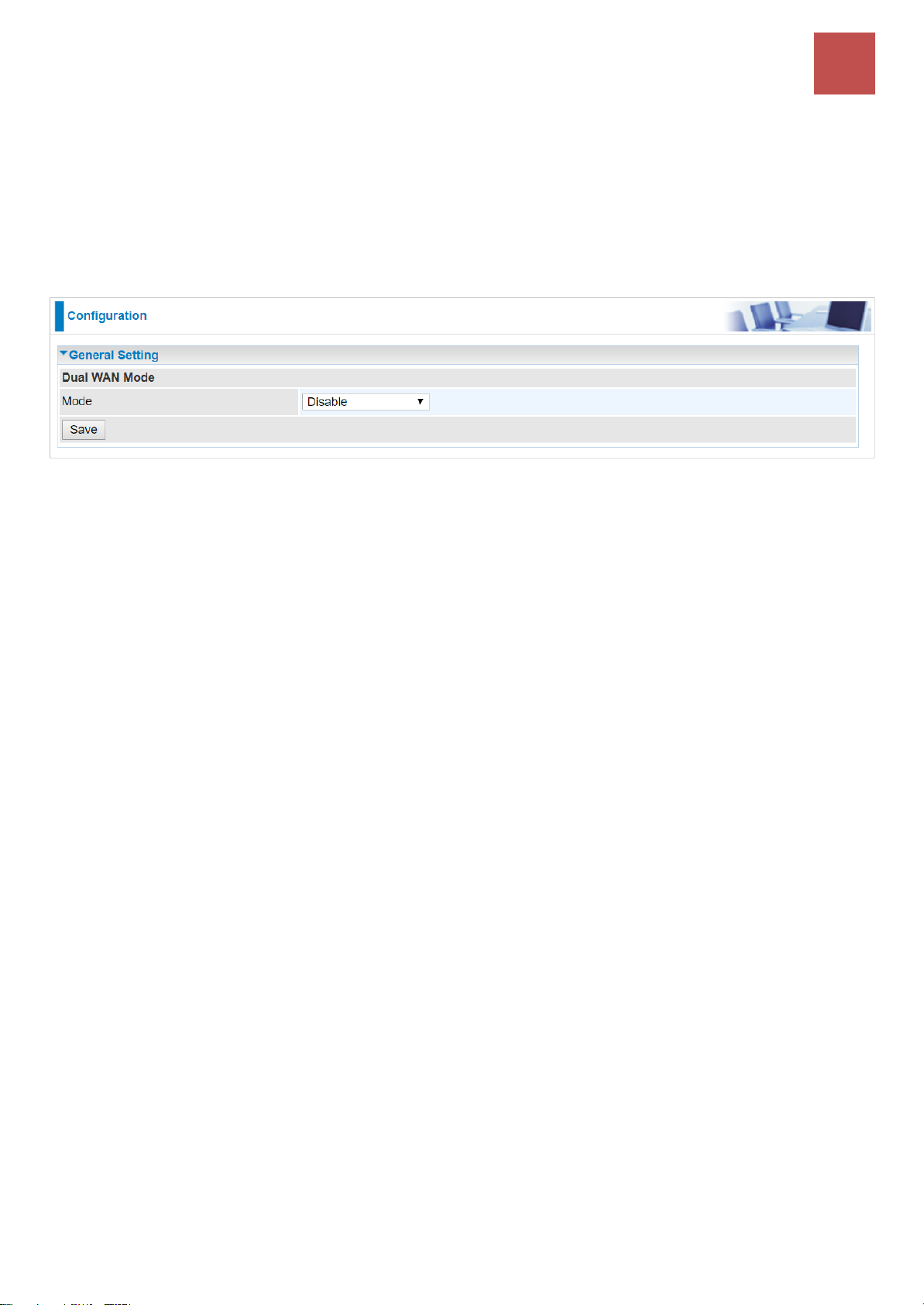

General Setting ............................................................................................................. 58
Outbound Load Balance ............................................................................................... 62

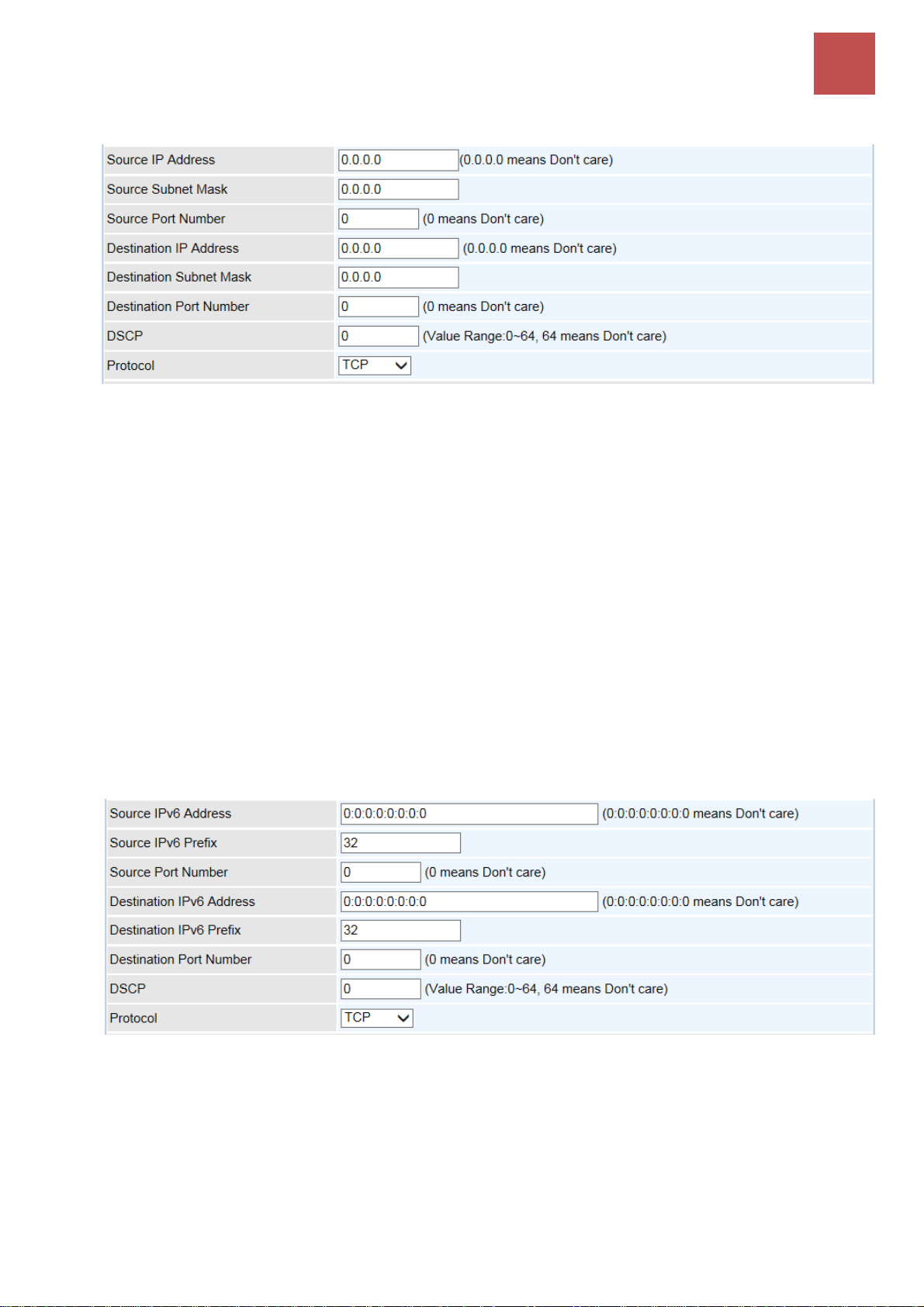

Protocol Binding ........................................................................................................... 63
Advanced Setup .............................................................................................. 65
Firewall ......................................................................................................................... 65
Routing ......................................................................................................................... 66
NAT ............................................................................................................................... 67

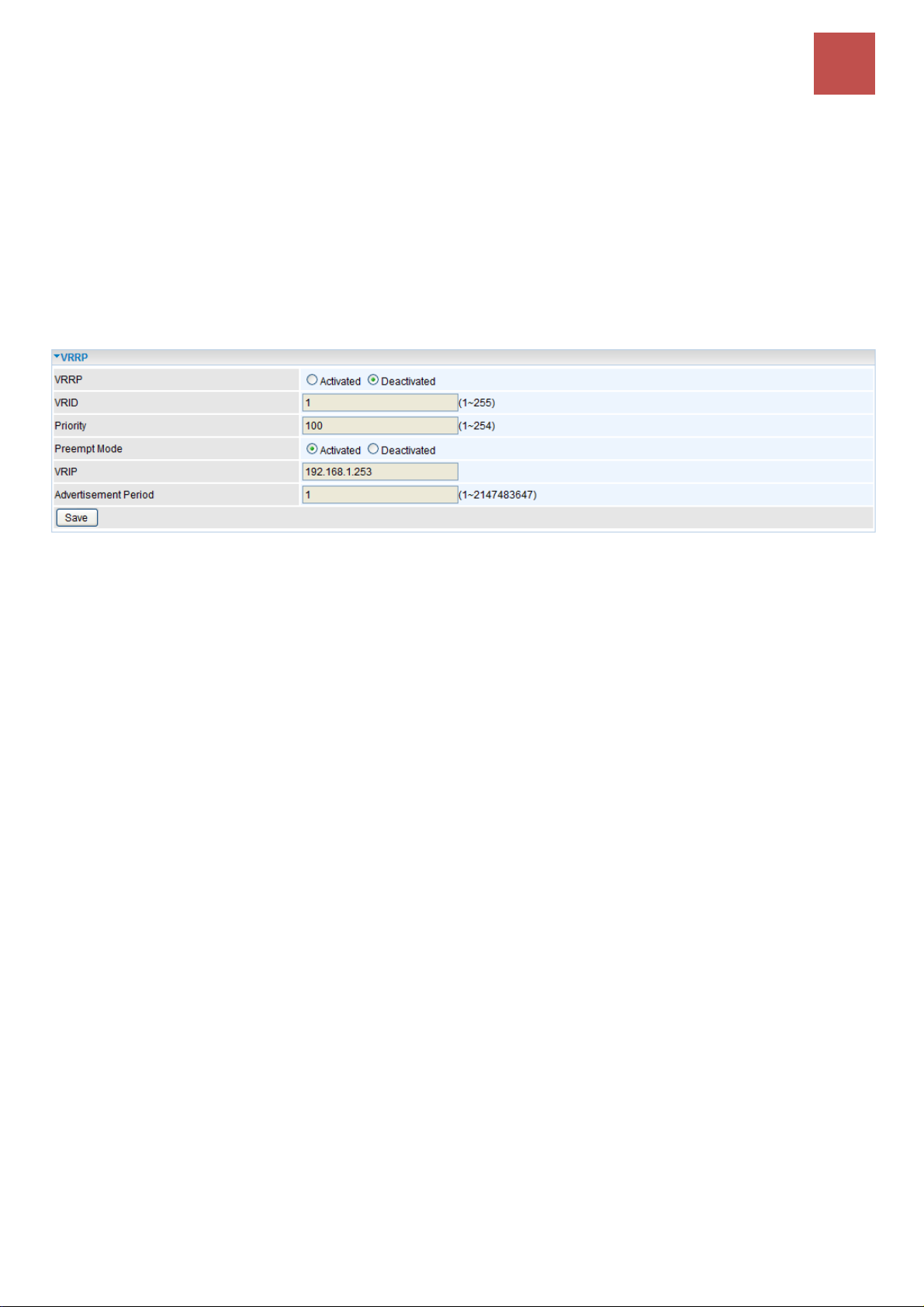

VRRP............................................................................................................................. 72

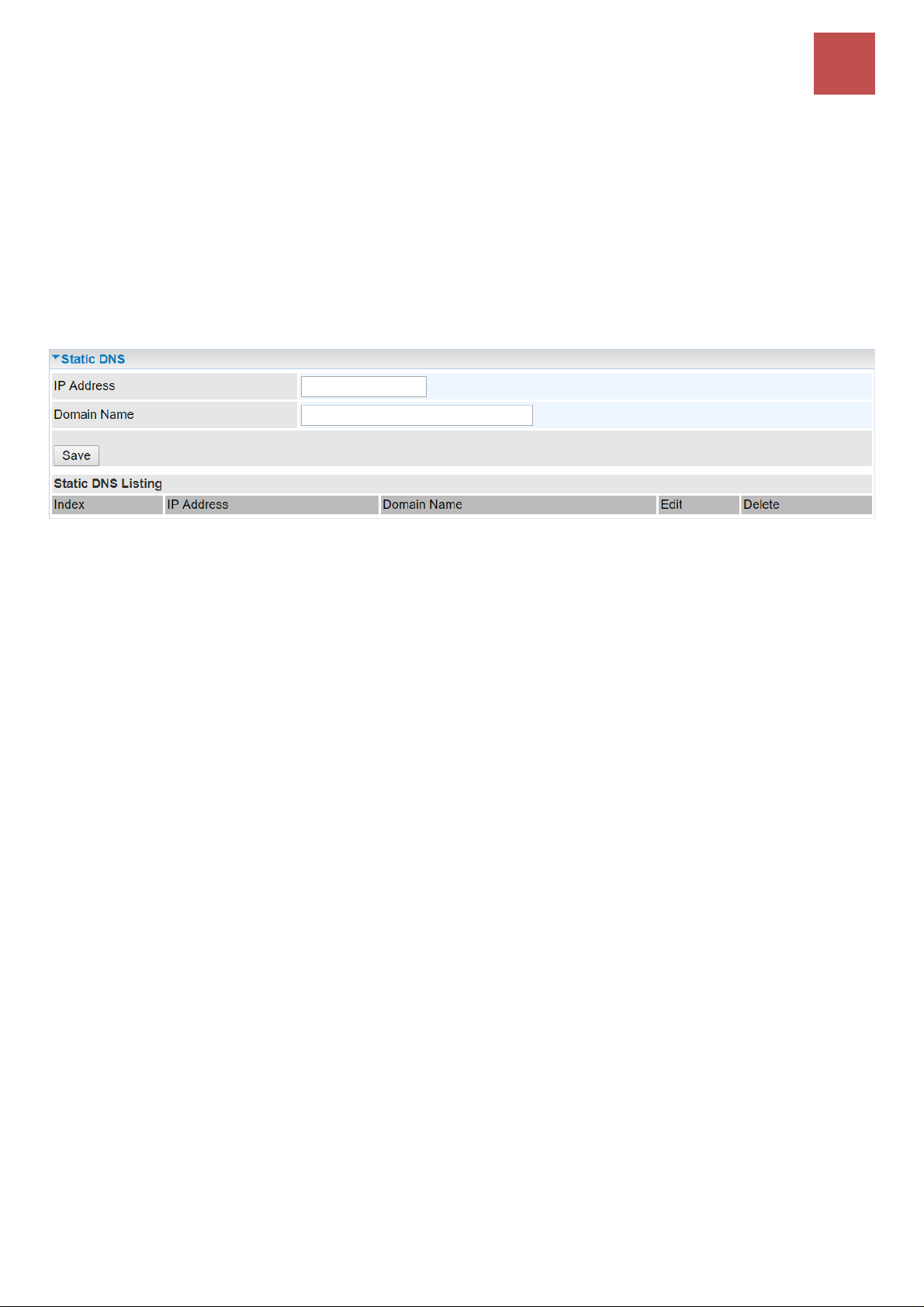

Static DNS ..................................................................................................................... 73

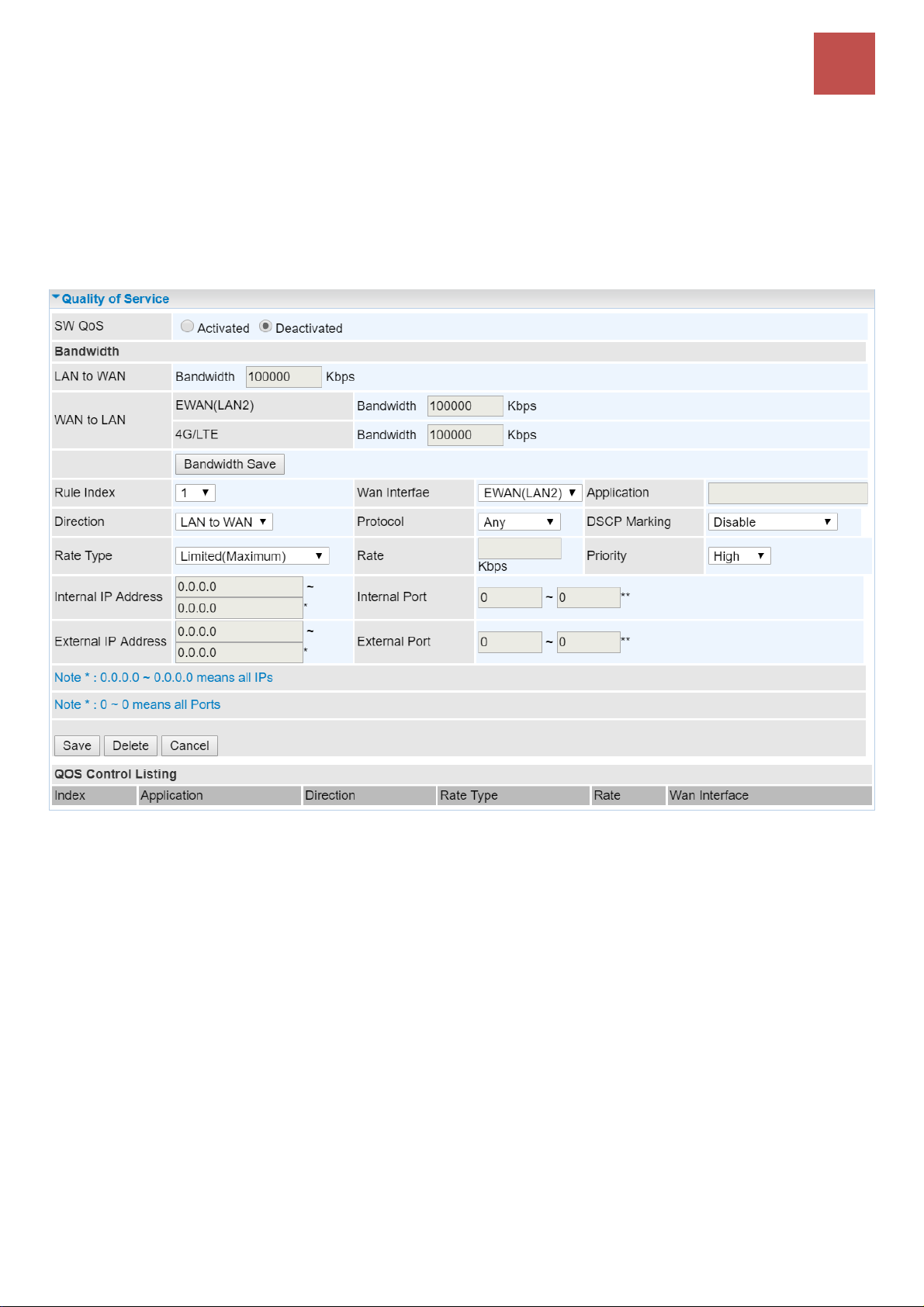

QoS ............................................................................................................................... 74
Time Schedule .............................................................................................................. 76
Mail Alert ..................................................................................................................... 77
Access Management ....................................................................................... 78
Device Management .................................................................................................... 78
SNMP ........................................................................................................................... 79
Syslog ........................................................................................................................... 81
Universal Plug & Play ................................................................................................... 82
Dynamic DNS (DDNS) ................................................................................................... 83
Access Control .............................................................................................................. 85

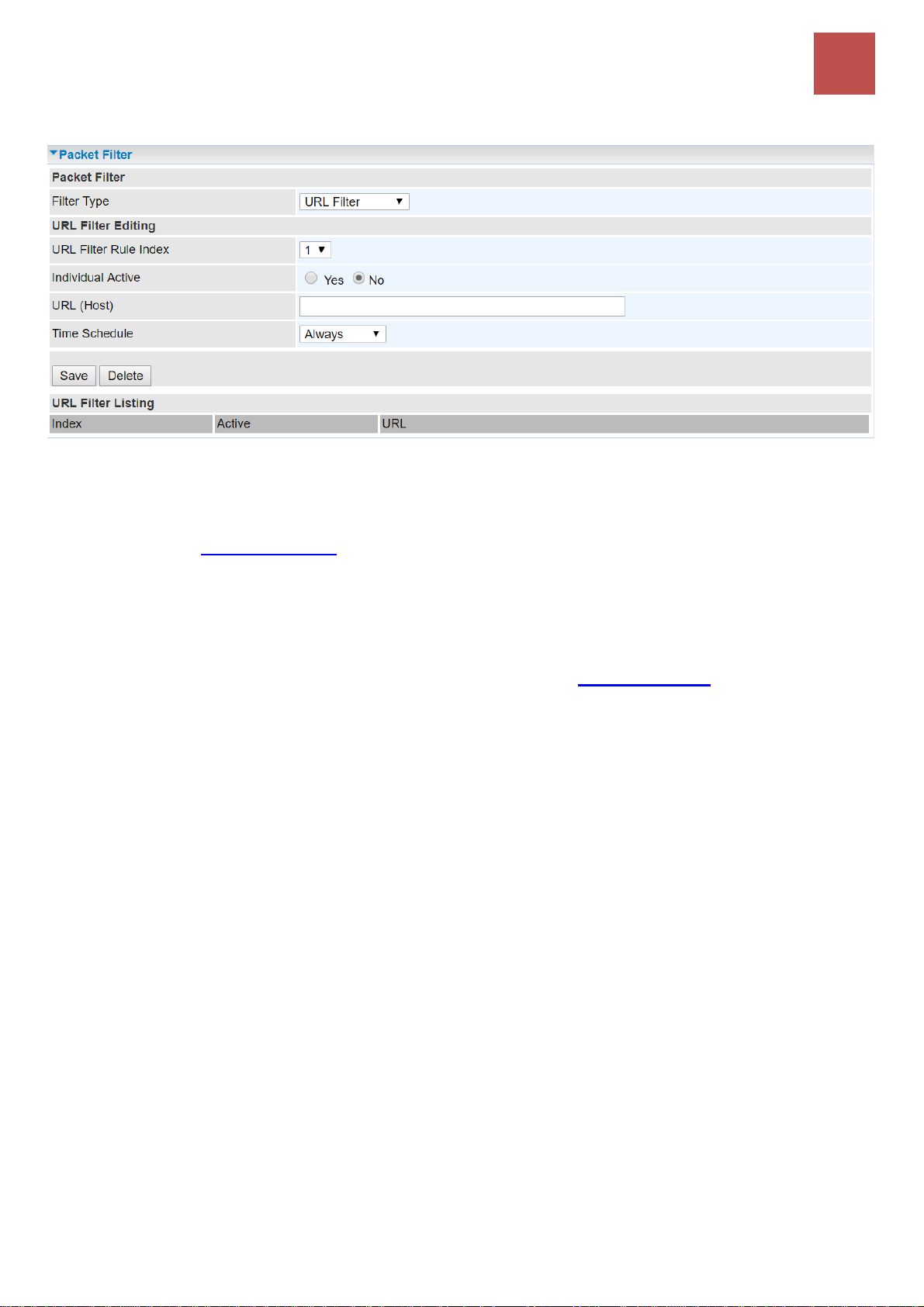

Packet Filter .................................................................................................................. 87
CWMP (TR-069) ............................................................................................................ 91
Parental Control ........................................................................................................... 93
BECentral Management ............................................................................................... 94
Maintenance ................................................................................................... 95
User Management ....................................................................................................... 95
Certificate Management .............................................................................................. 97
Time Zone ..................................................................................................................... 99
Firmware & Configuration .......................................................................................... 100
System Restart ............................................................................................................ 101
Auto Reboot ............................................................................................................... 102
Diagnostics Tool .......................................................................................................... 103
CHAPTER 5: TROUBLESHOOTING ............ 106
Problems with the Router ............................................................................. 106
Problem with LAN Interface .......................................................................... 106
Recovery Procedures ..................................................................................... 107
APPENDIX: PRODUCT SUPPORT & CONTACT
................................ ................................ ....... 108
Introduction
1
BEC MX-210NPV User Manual
CHAPTER 1: INTRODUCTION
Introduction to your Router
The BEC MX-210NPV 4G/LTE 11n with PoE Router is a compact, affordable and high-performance
fixed 4G/LTE Router incorporated 11n technology and offers flexible options such as dual-WAN
failover by seamless connecting to other Internet Service Provider to avert internet downtown,
redundant power source for safe & quick power installation via one of the versatile LAN/PoE-PD ports
and secure network connection and data privacy with VPN encryption capabilities to provide a reliable
and cost-effective alternative solution for business continuity.
4G/LTE Mobility
The MX-210NPV is a classic 4G/LTE router with dual WAN interfaces for redundancy or seamless
failover between mobile carrier network and the wireline, an interchangeable Gigabit Ethernet
LAN/WAN, to ensure continuous Internet connectivity.
Seamless Wi-Fi Coverage
The MX-210NPV integrates a 802.11n access point supporting data rates of up to 300Mbps. Security

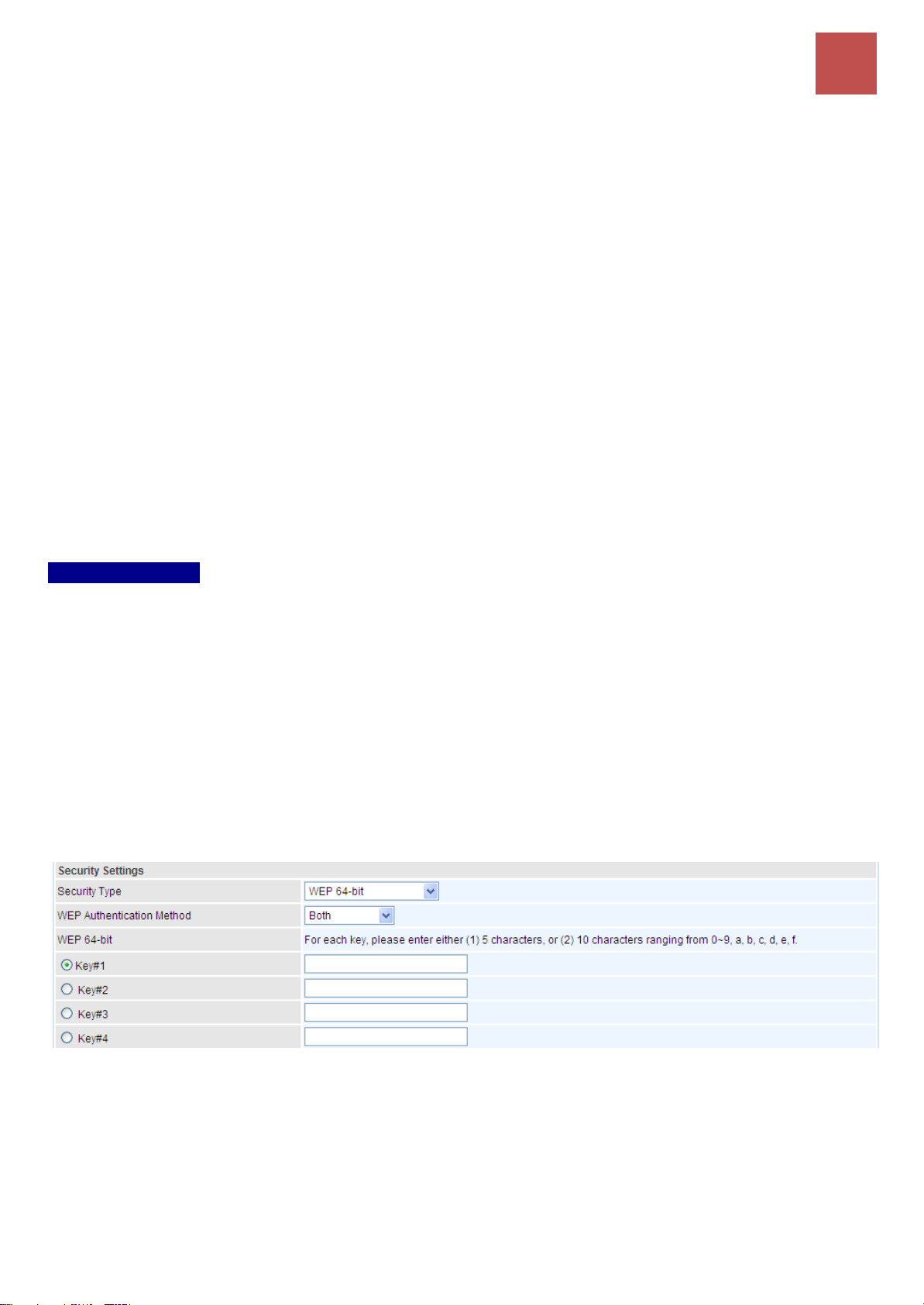

functionality includes: WEP 64/128 bit, WPA, WPA2 (PSK, TKIP and AES, 802.1X, SSID broadcast
disable and wireless MAC address filtering and MSSID with Client Isolation to enhance the level of
transmission security and access control over the Wireless LAN. The router also supports the Wi-Fi
Protected Setup (WPS) standard, allowing users to establish a secure wireless network by simply
pushing a button. If the network requires wider coverage, the built-in Wireless Distribution System
(WDS) repeater function allows users to expand the wireless network without the need for any external
wires or cables.
IPv6 Supported
Internet Protocol version 6 (IPv6) is a version of the Internet Protocol that is designed to succeed IPv4.
IPv6 has a vastly larger address space than IPv4. The router is already supporting IPv6, you can use
it in IPv6 environment no need to change device. The dual-stack protocol implementation in an
operating system is a fundamental IPv4-to-IPv6 transition technology. It implements IPv4 and IPv6
protocol stacks either independently or in a hybrid form. The hybrid form is commonly implemented in
modern operating systems supporting IPv6.
Quick Start Wizard
Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you
connected to the Internet immediately.
Introduction
2
BEC MX-210NPV User Manual
Firmware Upgradeable
Device can be upgraded to the latest firmware through the WEB based GUI.
24/7 Cloud Management and Network Visibility
Remote monitoring, management and control of devices in real-time is essential for IoT networking
devices, M2M and critical applications. The BECentral®, BEC’s Cloud Based Remote Management,
is a comprehensive device management platform designed to minimize deployment, lower support
expenses and maximize the operational efficiency and profitability of the operator.
Introduction
Features & Specifications
3
BEC MX-210NPV User Manual
Features & Specifications
• 4G/LTE and/or Ethernet IP broadband connectivity
• High performance SX antenna for increased coverage, signal reception and efficiency
• Versatile Gigabit LAN & Ethernet WAN (GbE WAN) for Cable/Fiber/xDSL high WAN throughput
• Verstalile
Gigabit LAN & PoE
•
Firewall Security with DoS Preventing and Packet Filtering
•
Quality of Service Control for traffic prioritization management
•
Universal Plug and Play (UPnP) Compliance
• Ease of Use with Quick Installation Wizard
•
Small form factor with multiple mounting options, easily installed by a single person
Availability and Resilience
• Dual-WAN Interfaces
• Auto fail-over and failback
• High performance external antennas
Network Protocols and Features
• IPv4, IPv6, IPv4 / IPv6 dual stack
• IP Tunnel IPv6 in IPv4 (6RD)
• IP Tunnel IPv4 in IPv6 (DS-Lite)
• NAT, static routing and RIP-1/2
• Universal Plug and Play (UPnP) compliant
• Dynamic Domain Name System (DDNS)
• Virtual server and DMZ
• SNTP, DNS relay
• IGMP proxy and IGMP snooping
• MLD proxy and MLD snooping
• Supports port-based Virtual LAN (VLAN)
Firewall
•
Built-in NAT Firewall
•
Stateful Packet Inspection (SPI)
• DoS attack prevention including Land Attack, Ping of Death, etc.
Introduction
Features & Specifications
4
BEC MX-210NPV User Manual
• Access control
• IP&MAC filter, URL Content Filter
• Password protection for system management
• VPN pass-through
Quality of Service Control
•
Traffic prioritization management based-on Protocol, Port Number and IP Address (IPv4/ IPv6)
Management
• Quick Installation wizard
•
Web-based GUI for remote and local management (IPv4/IPv6)
•
Firmware upgrades and configuration data upload and download via web-based GUI
•
Supports DHCP server / client / relay
• Supports
SNMP
•
TR-069 supports remote management
• BECentral
®
Cloud Management
Introduction
Hardware Specifications
5
BEC MX-210NPV User Manual
Hardware Specifications
Physical interface
• 4G/LTE: Two (2) detachable antennas
• WAN: Cellular 4G/LTE (and/or ETH WAN Optional)
• Ethernet LAN: 2-port 10/100/1000Mbps, auto-crossover (MDI/ MDI-X) switch
• SIM Card: One (1) slot
• Reset Button
• Power Source: DC or PoE
• LED Indicators: Power / Internet / LTE / Ethernet
Physical Specifications
• Dimensions (W*H*D): 5.19" x 1.38" x 3.71" (132mm x 35mm x 94mm)
Product Overview
6
BEC MX-210NPV User Manual
CHAPTER 2: PRODUCT OVERVIEW
Important Note for Using This Router
Package Contents
✓ BEC MX-210NPV Router * 1
✓ Quick Installation Guide * 1
✓ RJ-45 Ethernet cable *1
✓ DC Power Adapter, 12V 1.2A* 1
✓ Do not use the router in high humidity or high temperature.
✓ Do not use the same power source for the MX-210NPV on
other equipment.
✓ Do not open or repair the case yourself. If the device becomes
too hot, turn off the power immediately and have it repaired at
a qualified service center.
✓ Avoid using this product and all accessories outdoors.
Warning
✓ Place the router on a stable surface.
✓ Only use the power adapter that comes with the package. Using
a different voltage rating power adaptor may damage the router.
Attention
Product Overview
Device Description (Front Panel LEDs)
7
BEC MX-210NPV User Manual
Device Description
Front Panel LEDs
LED
STATUS
DESCRIPTION
Power
Green
System is up and ready
Red
Boot failure
Ethernet Port
LAN 1 ~ 2
Green
Transmission speed is at Gigabit speed (1000Mbps)
Orange
Transmission speed is at 10/100Mbps
Blinking
Data being transmitted/received
Wireless
Green
Wireless connection established
Green blinking
Data being transmitted / received
Orange
WPS configuration is in progress
LTE
(Received Signal
Strength
Indicator)
Green
RSSI greater than -69 dBm. Excellent signal condition
Green
Flashing quickly
RSSI from -81 to -69 dBm. Good signal condition
Orange
Flashing quickly
RSSI from -99 to -81 dBm. Fair signal condition.
Orange
Flashing slowly
RSSI less than -99 dBm. Poor signal condition.
Orange
No signal and the cellular module is in service
Off
No LTE module or LTE module fails
Green & Orange
MX-210NPV is either in debug mode or in upgrading firmwere process
Internet
Green
IP address has received, and traffic is passing thru the device.
Red
IP address request has failed.
Off
MX-210NPV is either in bridged mode or WAN connection not ready.
Product Overview
Device Description (Rear Panel Connectors)
8
BEC MX-210NPV User Manual
Rear Panel Connectors
INTERFACE
MEANING
1
4G/LTE Antenna
Connectors
(Main/Aux)
SMA female connectors.
Manually screw the cellular antennas tight to the female connectors.
Connect to Main if decide to use one antenna instead of two.
2
Power Source
Power ON/OFF switch
(1) with Power Switch ON: power up by the supplied DC power adapter
(2) with Power Switch OFF: power up by the PoE battery unit
3
Power Jack
(DC IN)
Connect the supplied Power Adapter to this jack.
4
Rest
After the device is powered on, press it 6 seconds or above: to restore to factory default
settings (this is used when you cannot login to the router, e.g. forgot your password)
5
Gigabit Ethernet
(LAN 1 / PoE)
Ethernet LAN: Connected to an Gigabit (1000Mbps) Ethernet device
Ethernet PoE: Connect with a 802.3at Gb PoE injector to provide power to the MX-210NPV
6
Gigabit Ethernet
(LAN 1 / EWAN)
Ethernet LAN: Connected to an Gigabit (1000Mbps) Ethernet device
Ethernet WAN: Software configurable in the GUI. Connected with a broadband connection
device
7
SIM Card Slot
Insert the mini SIM card (2FF) with the gold contact facing down.
Push the mini SIM card (2FF) inwards to eject it
* Power off the MX-210NPV before inserting or removing the SIM card(s)
1 2 3
4 5 6
7
1
Product Overview
System Recovery Procedure & Cabling
9
BEC MX-210NPV User Manual
System Recovery Procedures
The purpose is to allow users to restore the MX-210NPV to its initial stage when the device is outage,
upgraded to a wrong / broken firmware, cannot access to the GUI with wrong username and/or
password, etc.
Step 1 – Configure your PC Network IP Address
Before performing the system recovery, assign this IP address and Netmask to your PC,
192.168.1.100 and 255.255.255.0 respectively.
Step 2 – Reset your MX-210NPV Device
2.1 Power off your MX-210NPV
2.2 Power on the MX-210NPV while pushing the RESET button with a small pointed object (such as
paper clip, needle, toothpick, etc.).
2.3 When the POWER LED turns RED, keep holding and pushing the RESET button until the
INTERNET LED flashes in GREEN
Step 3 – Restore your MX-210NPV Device
With INTERNET light flashes green, MX-210NPV is in recovery mode and ready for a new Firmware.
3.1 Open a web browser and type the IP address, 192.168.1.1, to access to the recovery page.
NOTE: In the recovery mode, MX-210NPV will not respond to any PING or other requests.
3.2 Browse to the new Firmware image file then click Upload to start the upgrade process.
3.3 INTERNET LED turns red means the Firmware upgrade is in process.
DO NOT power off or reboot the device, it would permanently damage your MX-210NPV.
3.4 INTERNET LED turns green after the Firmware upgrade completed
3.5 Power cycle on & off to regain access to the MX-210NPV.
Cabling
One of the most common causes of problems is bad cabling. Make sure that all connected devices
are turned on. On the front panel of the product is a bank of LEDs. Verify that the LAN Link and LEDs
are lit. If they are not, verify that you are using the proper cables.
Basic Installation
10
BEC MX-210NPV User Manual
CHAPTER 3: BASIC INSTALLATION
The router can be configured with your web browser. A web browser is included as a standard
application in the following operating systems: Windows Vista / 7 / 8, Linux, Mac OS, etc. The product
provides an easy and user-friendly interface for configuration.
PCs must have an Ethernet interface installed properly and be connected to the router either directly
or through an external repeater hub and have TCP/IP installed or configured to obtain an IP address
through a DHCP server or a fixed IP address that must be in the same subnet as the router. The
default IP address of the router is 192.168.1.254 and the subnet mask is 255.255.255.0 (i.e. any
attached PC must be in the same subnet and have an IP address in the range of 192.168.1.1 to
192.168.1.253). The best and easiest way is to configure the PC to get an IP address automatically
from the router using DHCP. If you encounter any problems accessing the router’s web interface it
may also be advisable to uninstall any kind of software firewall on your PCs, as they can cause
problems accessing the 192.168.1.254 IP address of the router. Users should make their own
decisions on how to best protect their network.
Please follow the steps below for your PC’s network environment installation. Check your PC’s
network components first. The TCP/IP protocol stack and Ethernet network adapter must be installed.
If not, please refer to your Windows-related or other operating system manuals.
Any TCP/IP capable workstation can be used to communicate with
or through the MX-210NPV. To configure other types of
workstations, please consult the manufacturer’s documentation.
Attention
Basic Installation
Windows 10 (IPv4)
11
BEC MX-210NPV User Manual
Network Configuration – IPv4
Configuring PC in Windows 10 (IPv4)
1. Click .
2. Click
3. Then click on Network and Internet.
4. Under Related settings, select
Network and Sharing Center
5. When the Network and Sharing
Center window pops up, select and
click on Change adapter settings on
the left window panel.
6. Select the Local Area Connection,
and right click the icon to select
Properties.
Basic Installation
Windows 10 (IPv4)
12
BEC MX-210NPV User Manual
7. Select Internet Protocol Version 4
(TCP/IPv4) then click Properties.
8. In the TCP/IPv4 properties window,
select the Obtain an IP address
automatically and Obtain DNS
Server address automatically radio
buttons. Then click OK to exit the
setting.
9. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
Basic Installation
Windows 7/8 (IPv4)
13
BEC MX-210NPV User Manual
Configuring PC in Windows 7/8 (IPv4)
1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.
3. When the Network and Sharing
Center window pops up, select and
click on Change adapter settings on
the left window panel.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
Basic Installation
Windows 7/8 (IPv4)
14
BEC MX-210NPV User Manual
5. Select Internet Protocol Version 4
(TCP/IPv4) then click Properties.
6. In the TCP/IPv4 properties window,
select the Obtain an IP address
automatically and Obtain DNS
Server address automatically radio
buttons. Then click OK to exit the
setting.
7. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
Basic Installation
Windows Vista (IPv4)
15
BEC MX-210NPV User Manual
Configuring PC in Windows Vista (IPv4)
1. Go to Start. Click on Network.
2. Then click on Network and Sharing
Center at the top bar.
3. When the Network and Sharing
Center window pops up, select and click
on Manage network connections on
the left window pane.
4. Select the Local Area Connection, and
right click the icon to select Properties.
Basic Installation
Windows Vista (IPv4)
16
BEC MX-210NPV User Manual
5. Select Internet Protocol Version 4
(TCP/IPv4) then click Properties.
6. In the TCP/IPv4 properties window,
select the Obtain an IP address
automatically and Obtain DNS Server
address automatically radio buttons.
Then click OK to exit the setting.
7. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
Basic Installation
Windows 10 (IPv6)
17
BEC MX-210NPV User Manual
Network Configuration – IPv6
Configuring PC in Windows 10 (IPv6)
1. Click .
2. Click
3. Then click on Network and Internet.
4. Under Related settings, select
Network and Sharing Center
5. When the Network and Sharing
Center window pops up, select and
click on Change adapter settings on
the left window panel.
6. Select the Local Area Connection,
and right click the icon to select
Properties.
Basic Installation
Windows 10 (IPv6)
18
BEC MX-210NPV User Manual
7. Select Internet Protocol Version 6
(TCP/IPv6) then click Properties.
8. In the TCP/IPv6 properties window,
select the Obtain an IPv6 address
automatically and Obtain DNS
Server address automatically radio
buttons. Then click OK to exit the
setting.
9. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
Basic Installation
Windows 7/8 (IPv6)
19
BEC MX-210NPV User Manual
Configuring PC in Windows 7/8 (IPv6)
1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.
3. When the Network and Sharing
Center window pops up, select and
click on Change adapter settings on
the left window panel.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
Basic Installation
Windows 7/8 (IPv6)
20
BEC MX-210NPV User Manual
5. Select Internet Protocol Version 6
(TCP/IPv6) then click Properties.
6. In the TCP/IPv6 properties window,
select the Obtain an IPv6 address
automatically and Obtain DNS
Server address automatically radio
buttons. Then click OK to exit the
setting.
7. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
Basic Installation
Windows Vista (IPv6)
21
BEC MX-210NPV User Manual
Configuring PC in Windows Vista (IPv6)
1. Go to Start. Click on Network.
2. Then click on Network and Sharing
Center at the top bar.
3. When the Network and Sharing
Center window pops up, select and
click on Manage network
connections on the left window
pane.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
Basic Installation
Windows Vista (IPv6)
22
BEC MX-210NPV User Manual
5. Select Internet Protocol Version 6
(TCP/IPv6) then click Properties.
6. In the TCP/IPv6 properties window,
select the Obtain an IP address
automatically and Obtain DNS Server
address automatically radio buttons.
Then click OK to exit the setting.
7. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
Basic Installation
Default Settings
23
BEC MX-210NPV User Manual
Default Settings
Before configuring the router, you need to know the following default settings.
Web Interface: (Username and Password)
Administrator
Username: admin
Password: admin or a unique12-digit password can be found on the device label.
Device LAN IP Settings
IP Address: 192.168.1.254
Subnet Mask: 255.255.255.0
DHCP Server:
DHCP server is enabled.
Start IP Address: 192.168.1.100
IP pool counts: 100
If you ever forget the username/password to login to the router, you may
press the RESET button up to 6 seconds then release it to restore the factory
default settings.
Caution: After pressing the RESET button for more than 6 seconds then
release it, to be sure you power cycle the device again.
Device Configuration
Login to Your Device
24
BEC MX-210NPV User Manual
CHAPTER 4: DEVICE CONFIGURATION
Login to your Device
Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and
click “Go”, a user name and password window prompt appears.
The default username and password are “admin” and “admin” respectively for the Administrator.
For the User account, default username and password is “user” and “user”.
NOTE: This username / password may vary by different Internet Service Providers.
Congratulations! You have successfully logged on to your MX-210NPV
Device Configuration
Login to Your Device
25
BEC MX-210NPV User Manual
Once you have logged on to your MX-210NPV via your web browser, you can begin to set it up
according to your requirements. On the configuration homepage, the left navigation pane links you
directly to the setup pages, which includes:
Section
Status
Quick Start
(Wizard Setup)
Configuration
Sub-
Items
Device Info
System Status
System Log
4G/LTE Status
Wireless Status
Statistics
DHCP Table
ARP Table
VRRP Status
Interface Setup
- Internet
- LAN
- Wireless
- Wireless MAC Filter
- Loopback
Dual WAN
- General Setting
- Outbound Load Balance
- Protocol Binding
Advanced Setup
- Firewall
- Routing
- Dynamic Routing
- NAT
- VRRP
- Static DNS
- QoS
- Time Schedule
- Mail Alert
Access Management
- Device Management
- SNMP
- Syslog
- Universal Plug & Play
- Dynamic DNS
- Access Control
- Packet Filter
- CWMP (TR-069)
- Parental Control
- BECentral Management
Maintenance
- User Management
- Certificate Management
- Time Zone
- Firmware & Configuration
- System Restart
- Auto Reboot
- Diagnostic Tool
Please see the relevant sections of this manual for detailed instructions on how to configure your MX-
210NPV device.
Loading...
