BECKHOFF CP67xx User Manual

Installation and Operating instructions for
Built-in Panel PC CP67xx
Version: 2.0 Date: 2009-07-07
General Notes
1.
General Notes 2
Notes on the documentation 2 Liability conditions 2 Description of safety symbols 2 Basic safety measures 3 Operator’s obligation to exercise diligence 4 Operator requirements 4 UL-Certificate of Compilance 4
2.
Product Description 5
Appropriate Use 5 Connections 5
Pin assignment 5
Connector description 6
Serial interface 6 Power supply 6 Network interfaces 6 USB interfaces 6 Protective Earthing 6
3.
Installation Instructions 7
Transport and Unpacking 7
Transport 7 Unpacking 7
Installation of the PC in the control cabinet 8
Protective Earthing 8 Assembly dimensions 9 Mounting of the Built-in Panel PC 10
Connecting the Built-in Panel PC 11
Connecting cables 11 Protective Earthing 11
4.
Operating Instructions 12
Switching the Built-in Panel PC on and off 12 Operation 12 Keyboard codes 12 Compact Flash memory card 14 Servicing and maintenance 15

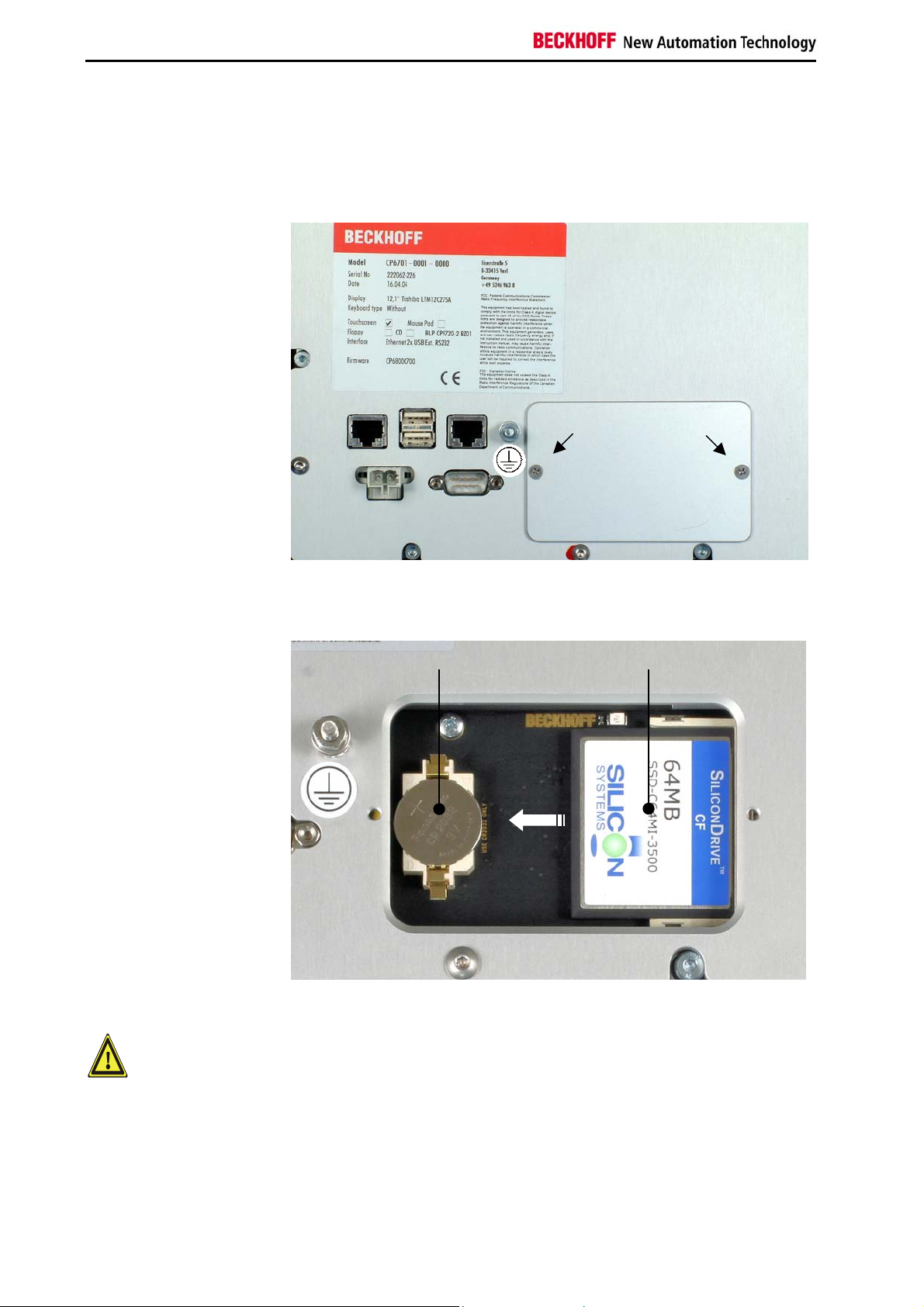

Cleaning the Built-in Panel PC 15 Servicing 15 Replacement of the Battery 15 Replacing the fluorescent lamps in the display 15 Lamp sets 16
Emergency procedures 16 Shutting down 16
Disposal 16
5.
Troubleshooting 17
Fault correction 17 Beckhoff Support & Service 18
Beckhoff branches and partner companies 18 Beckhoff Headquarters 18 Beckhoff Support 18 Beckhoff Service 18
6.
Appendix 19
Technical data 19 Approvals 19
FCC: Federal Communications Commission Radio Frequency Interference Statement 19 FCC: Canadian Notice 19
CP67xx 1
General Notes

General Notes

Notes on the documentation

This description is only intended for the use of trained specialists in control
and automation engineering who are familiar with the applicable national standards. It is essential that the following notes and explanations are followed when installing and commissioning these components.

Liability conditions

The responsible staff must ensure that the application or use of the products described satisfy all the requirements for safety, including all the relevant laws, regulations, guidelines and standards.
The documentation has been prepared with care. The products described are, however, constantly under development. For this reason, the documentation may not always be have been fully checked for consistency with the performance data, standards or other characteristics described. None of the statements in this manual represent a guarantee for as set out in § 443 of the German Civil Code or a statement about the assumed use according to the contract as set out in § 434 para. 1 clause 1 no. 1 of the German Civil Code. In the event that it contains technical or editorial errors, we retain the right to make alterations at any time and without warning. No claims for the modification of products that have already been supplied may be made on the basis of the data, diagrams and descriptions in this documentation.
© This documentation is protected by copyright. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden.

Description of safety symbols

The following safety symbols are used in this operating manual. They are
intended to alert the reader to the associated safety instructions.
This symbol is intended to highlight risks for the life or health of personnel.
This symbol is intended to highlight risks for equipment, materials or the environment.
This symbol indicates information that contributes to better understanding.
i
Danger
Warning
Note
2 CP67xx
General Notes

Basic safety measures

Only switch the PC off after closing the software
Warning
Danger
i
Note
Before the Built-in Panel PC is switched off, software that is running must be properly closed.
Otherwise it is possible that data on the hard disk is lost. Please read the section Switching the Built-in Panel PC on and off.
Before opening the housing, and whenever the Built-in Panel PC is not being used for control purposes (such as during functional checks after a repair), all parts of the equipment must first be switched off, after which the Built-in Panel PC is to be disconnected from the equipment.
Disconnect the device by unplugging the connectors on the rear side of the Built-in Panel PC.
Items of equipment that have been switched off must be secured against being switched on again.
Displays used for the Built-in Panel PC’s LC-display are operated with a voltage of up to 1000 V, depending on type. For that reason:
The supply voltage must be disconnected before the housing of the Built-in Panel PC is opened!
Assembly work on the Built-in Panel PC during operation may damage the device:
if metal objects such as screws or tools fall onto operating circuit boards.
if connecting cables internal to the Built-in Panel PC are removed or inserted during operation.
CP67xx 3
General Notes

Operator’s obligation to exercise diligence

The operator must ensure that
the Industrial PC is only used for its intended purpose (see Product
Description section);
the Industrial PC is only operated in a sound condition and in working order;
the instruction manual is in good condition and complete, and always available for reference at the place of installation of the Industrial PC;
the Industrial PC is operated, maintained and repaired only by suitably qualified and authorized personnel.
the personnel is instructed regularly about relevant occupational safety and environmental protection aspects, and is familiar with the operating manual and in particular the safety notes contained herein.
none of the safety and warning notes attached to the Industrial PC are removed, and all notes remain legible.
National regulations depending on the machine type
Warning
Procedure in the event of a fault
Depending on the type of machine and plant in which the Industrial PC is used, national regulations governing the controllers of such machines will apply, and must be observed by the operator. These regulations cover, amongst other things, the intervals between inspections of the controller.
The operator must initiate such inspections in good time.
Only trained persons may open the Industrial PC housing!
The operator is responsible for ensuring that only trained electrical staff opens the housing of the Industrial PC.
In the event of faults at the Industrial PC, the list in the section
Troubleshooting can be used to determine the measures to be taken.

Operator requirements

Read the operating instructions
Software knowledge
Anyone who uses the Industrial PC must have read these operating instructions.
Every user must be familiar with all the functions of the software installed on the Industrial PC to which he has access.

UL-Certificate of Compilance

We herewith confirm that the Built-in Panel PC CP67xx of Beckhoff Automation GmbH meets the requirements of the Underwriters Laboratories Inc.
Certificate Number: 280607 – E220403 Report Reference: E220403, April 16th, 2007 Issue Date: 2007 June 28
Standards for Safety
4 CP67xx
The correspondance of the mentioned product with these requirements is proved by the fact that this product meets with the following single standards:
UL 60950-1, 1st Edition, 2006-07-07 (Information Technology Equipment – Safety - Part 1: General Requirements)
CSA C22.2 No. 60950-1-03, 1st Edition, 2006-07 (Information
Technology Equipment - Safety - Part 1: General Requirements)
®
(UL)-standard:
Product Description

Product Description

Appropriate Use

The CP67xx Built-in Panel PC is designed for industrial application in
machine and plant engineering. In addition to the integrated PC, a TFT display, touch screen/ pad (optional) and a PC keyboard (optional) are accommodated in an aluminum housing. The Panel PC is installed in the front of control cabinets.
Do not use the Built-in Panel PC in areas of explosive hazard
The Built-in Panel PC must not be used where there is a risk of explosion.

Connections

Built-in Panel PC CP67xx connections
X 100 Serial interface
X 101 Power supply
X 102, X 103 Network

Pin assignment

D-SUB plug 9-pin (RS 232)
SLWG 1X2-pole WAGO built-in CAGE CLAMP (WAGO 721-602 / 019-000)
RJ-45 connector (Ethernet 10/ 100 Mbit)
Pin Signal Pin Signal
1
CD
2
RxD
3
TxD
4
DTR
5
GND
Pin Signal Pin Signal
1
+ 24V
Pin Signal Pin Signal
Housing
1 2 3 4
Screen TD + TD ­RD + n.c.
11
6
DSR
7
RTS
8
CTS
9
RI
GND
5
n.c.
6
RD -
7
n.c.
8
n.c.
CP67xx 5
Product Description
X 104 USB1, USB2 USB ports
USB Type-A twin circuit board mounting (FCI 72309-0030B USB Double Receptacle A-Type)
Pin Signal Pin Signal
1
5V
2
D-
3
D+
4
GND

Connector description

Serial interface COM1

Power supply

Network
USB1 – USB2

Protective Earthing

Serial interface

The Built-in Panel PC is equipped with a COM1 (X 100) serial interface (Type RS232) for the connection of serial peripheral devices.
Power supply
The power supply for the Built-in Panel PC is established via the Cage clamp socket (X 101).
A power supply connector is provided with the Built-in Panel PC.

Network interfaces

The RJ-45 sockets (X 102, X 103) enable connection of the Built-in Panel PC to an Ethernet network.

USB interfaces

The two USB2.0 interfaces (X 104, connector type A) are used for connecting peripheral devices with USB connection.
Protective Earthing
The low resistance protective earthing connection is established via the ground bolt, which is located at the rear of the housing.
6 CP67xx
Installation Instructions

Installation Instructions

Please also refer to chapter General Notes.

Transport and Unpacking

The specified storage conditions must be observed (see chapter Technical
data).

Transport

Despite the robust design of the unit, the components are sensitive to
strong vibrations and impacts. During transport, your Industrial PC should therefore be protected from excessive mechanical stress. Therefore, please use the original packaging.
Danger of damage to the unit!
Warning
If the device is transported in cold weather or is exposed to extreme variations in temperature, make sure that moisture (condensation) does not form on or inside the device.
Prior to operation, the unit must be allowed to slowly adjust to room temperature. Should condensation occur, a delay time of approximately 12 hours must be allowed before the unit is switched on.

Unpacking

Proceed as follows to unpack the unit:
1. Remove packaging.
2. Do not discard the original packaging. Keep it for future relocation.
3. Check the delivery for completeness by comparing it with your order.
4. Please keep the associated paperwork. It contains important information for handling the unit.
5. Check the contents for visible shipping damage.
6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service.
CP67xx 7
Installation Instructions

Installation of the PC in the control cabinet

The Built-in Panel PC CP67xx is designed for mounting in control cabinets
in machine and plant engineering applications.
The ambient conditions specified for operation must be observed (see the section on Technical data).
Preparation of the control cabinet
i
Note
Warning
Installation in a control cabinet wall
The control cabinet wall must be prepared with the required mounting opening for the computer unit according to the Built-in Panel PC’s dimensions.
When the unit is installed in an enclosure, adequate space for ventilation must be provided.
Please note the following points during installation of the Built-in Panel PC:
Position the Panel PC in such a way that reflections on the screen are avoided as far as possible.
Use the position of the screen as a guide for the correct installation height; it should be optimally visible for the user at all times.
The Panel PC should not be exposed to direct sunlight.
When the unit is in its mounting position, the ventilation openings must
not be obstructed.
Extreme environmental conditions should be avoided as far as possible. Protect the rear of your PC from dust, humidity and heat.
Proceed as follows:
1. Insert the Built-in Panel PC at the intended control cabinet wall position and protect it from falling out, prior to final mounting.
2. Release the clamping levers with a No. 3 Allen key, turn the clamping levers to the side through 90° and retighten the screws.

Protective Earthing

Protective Earthing
The low resistance protective earthing connection is established via the ground bolt, which is located at the rear of the housing.
8 CP67xx
Installation Instructions

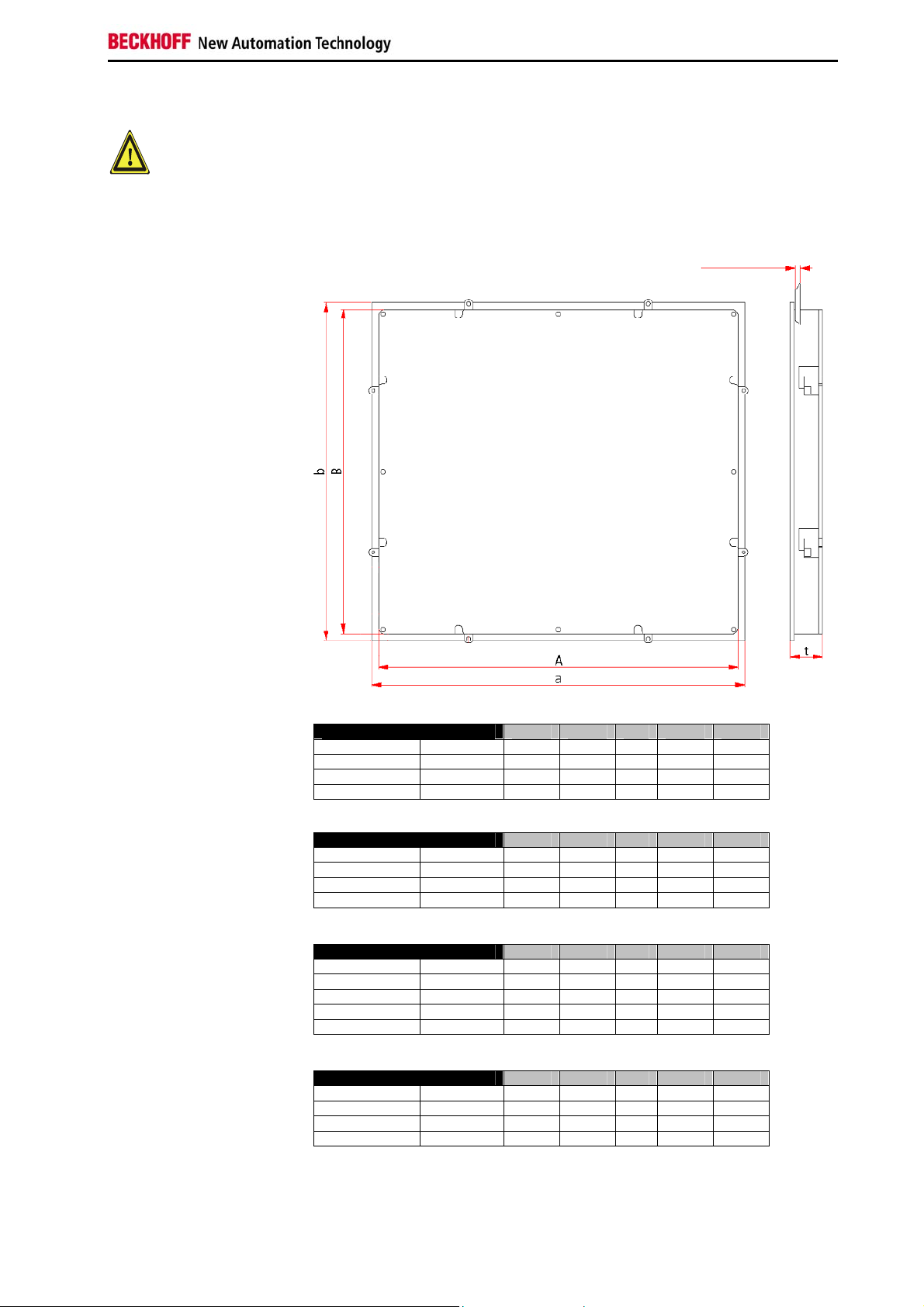

Assembly dimensions

The assembly of the unit must take place with the orientation diagrammed here.
Warning
The figure shows the dimensions of the Built-in Panel PCs. Please refer to
the tables for cutout dimensions.
All dimensions are in mm.
Built-in Panel PC CP670x
Wall Thickness 2-5
Built-in Panel PC CP671x
Built-in Panel PC CP672x
Built-in Panel PC CP673x
Dimensions a b t A B
CP6709 6,5“ display 272.3 181 42 258.3 167 CP6701 12“ display 372.2 342.2 32 358.2 328.2 CP6702 15“ display 430.4 403 32 416.4 389 CP6703 19“ display 508.4 463 43 494.4 449
Dimensions a b t A B
CP6719 6,5“ display 272.3 221 42 258.3 207 CP6711 12“ display 372.2 342.2 32 358.2 328.2 CP6712 15“ display 430.4 403 32 416.4 389 CP6713 19“ display 508.4 463 43 494.4 449
Dimensions a b t A B
CP6729 6,5“ display 340.4 221 42 326.4 207 CP6721 12“ display 414 336 32 400 322 CP6721-0002 12“ display 444.2 336 32 430.2 322 CP6722 15“ display 519.4 378.2 32 505.4 364.2 CP6723 19“ display 567.4 434 43 553.4 420
Dimensions a b t A B
CP6731 12“ display 410.4 378.2 32 396.4 364.2 CP6731-0002 12“ display 430.4 378.2 32 416.4 364.2 CP6732 15“ display 489.4 418.2 32 475.4 404.2 CP6733 19“ display 508.4 543 43 494.4 529
CP67xx 9
Installation Instructions

Mounting of the Built-in Panel PC

Please refer to the tables for the Built-in Panel PC cutout dimensions.
Mounting of the Built-in Panel PC
Release clamping levers,
Folding them out
Insert the Built-in Panel PC into the cutout.
Release the clamping levers with a No. 2.5 Allen key.
Turn the clamping levers to the side through 90°
and retighten them.
and retighten the screws.
10 CP67xx
Installation Instructions

Connecting the Built-in Panel PC

The Built-in Panel PC must never be connected or disconnected in an area
Danger
Warning

Protective Earthing

that is subject to explosion hazard! Risk of explosion!
The mains plug of the Panel PC must be disconnected!
Please read the documentation for the external devices prior to connecting them.
During thunderstorms, plug connector must neither be inserted nor removed.
When disconnecting a plug connector, always handle it at the plug. Do not pull the cable!

Connecting cables

The connections are located at the rear of the Built-in Panel PC and are documented in the Product Description section.
When connecting cables to the Panel PC, please adhere to the following order:
Disconnect the Panel PC from the power supply.
Connect all cables at the Panel PC and at the devices to be
connected.
Ensure that all screw connections between connectors and sockets are tight!
Reconnect all devices to the power supply.
Protective Earthing
The low resistance protective earthing connection is established via the ground bolt, which is located at the rear of the housing.
CP67xx 11
Operating Instructions

Operating Instructions

Please also refer to chapter General Notes.

Switching the Built-in Panel PC on and off

Switch on
Shutting down and switching off
The Built-in Panel PC does not have its own mains power switch. As soon as the power supply is switched on the Panel PC is activated.
Control software, as typically applied in Industrial PCs, enables the assignment of different rights to all users. A user who is not entitled to shut down the software may not switch off the Built-in Panel PC as an attempt to shut it down when the software is running could result in the loss of software data on the Compact Flash memory card (CF card).
First shut down, then switch off the Panel PC!
Warning
Warning

Operation

i
Note
Type-dependent number of keys
Operation
Hom e En d
Pg Up Pg Dn
If the Built-in Panel PC is shut down while the software is writing a file onto the CF Card memory card, the file will be destroyed. Control software typically writes something to the CF card every few seconds, so that the probability of causing damage by switching off while the software is running is very high.
When you have shut down the Panel PC, you have to switch off power supply for at least 10 seconds before rebooting the system. After resetting power supply the Panel PC will start booting automatically.
Operation
The Built-in Panel PC’s membrane keypad may only be actuated by fingertips.
Attempts to actuate it with other objects can easily result in the destruction of the device. Neither may the membrane keypad be operated with a touch screen pen.
The touch screen may only be actuated by finger tips or with the touch screen pen. The operator may wear gloves but there must be no hard particles such as metal shavings, glass splinters embedded in the glove.

Keyboard codes

Depending on the precise type, the Control Panel can have fewer keys than those described here.
The cursor is the blinking character that marks the point at which the next character entered will be displayed. The cursor is also known as the insertion point. The cursor keys each move the cursor one place in the associated direction.
The Home key moves the cursor to the beginning of the line, while the End key moves it to the end of the line.
The Pg Up key scrolls one page back, the Pg Dn key scrolls one page forward.
The Tab key takes the cursor to the next input field, while Shift and Tab moves to the previous input field.
12 CP67xx
Operating Instructions
The mouse cursor can be moved over the screen with the aid of the touch
L
Del
Ins
Pr i n t
Pau se
En t e r
R
screen or of the touch pad (optional). The keys correspond to the left and right hand keys of a Microsoft mouse. The Del key deletes the character to the right of the cursor.
The Ins key causes characters to the right of the cursor to be overwritten. The overwrite mode is cancelled by pressing the key again.
Print-Screen prints a hard copy of a text screen on the printer.
The Pause key stops the computer until another key is pressed (only under MS-DOS).
Your input is confirmed with the Enter key.
Backspace deletes the character to the left of the cursor.
Sh i f t
Ca p s Lock
Ct r l Al t
If the Shift key is pressed at the same time as another key, then instead of the numbers you obtain the character printed above the number, and you obtain upper case letters instead of lower case letters. Pressing the Caps Lock key once activates and locks the Shift key. Pressing the Shift key cancels this function.
Rather like the effect of the Shift key, Ctrl and Alt also change the meaning of another key that is pressed at the same time.
This key brings up the Start menu of the operating system in use (Windows 95, 98, ME, NT, 2000, XP).
Pressing this key opens the property sheet of the active (or marked) object.
Esc
The Esc key has the effect of closing dialog windows and of interrupting some of the computer’s working operations.
All other keys bring the character printed on them onto the display at the
2
position of the cursor.
The meaning of the function keys, F1 to F10, is determined by the software
Q W
F1 F2 F3 F4
...
!
1
@
and is displayed at the bottom edge of the display.
F5 F6 F7 F8
F9 F1 0 F1 1 F1 2
Ei n s ch u b St r e i f e n
Ei n s ch u b St r e i f e n
Ei nschub St r e i f e n
Ein sch ub St r e i f e n
The function of the special keys above the display is also determined by the software. The function is displayed at the top edge of the display. The special keys each have an orange LED controlled by the software.
CP67xx 13
Operating Instructions

Compact Flash memory card

Compact Flash memory card
Removing the cover
A Compact Flash memory card (CF card) is located behind a cover at the rear of the Built-in Panel PC. It is provided to save the operating system. Only use memory cards with extended temperature ranges according to industrial standards!
To change the CF card, first of all unscrew the two screws (see above photo) with a crosstip screwdriver. The aluminum cover can be removed and enables access to the memory card and the battery (see below photo).
Removing the CF card
Warning
Insertion of CF card
battery
The CF card can be removed with due care along the guides.
Avoid any use of force! Otherwise the contact pins may be damaged!
Installation is in reverse of the above order.
CF card
14 CP67xx
Operating Instructions
Please also refer to chapter General Notes.
First switch off the Built-in Panel PC
The front of the Built-in Panel PC can be cleaned with a soft, damp

Servicing and maintenance

Cleaning the Built-in Panel PC

Switch off the Built-in Panel PC and all devices connected to it, so that keys cannot be unintentionally actuated.
cleaning cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches.

Servicing

i
Note
Since fluorescent lamps represent a consumable item in a display, they
i
Note
Replacement for the 12 inch display
The Built-in Panel PC is maintenance-free.

Replacement of the Battery

A lithium battery is installed in the Panel PC to buffer data. This battery can be replaced and is located beside the CF card (see chapter Compact Flash
memory card).
Article description: Battery 3V/ 225mAh 2032 coin cell.

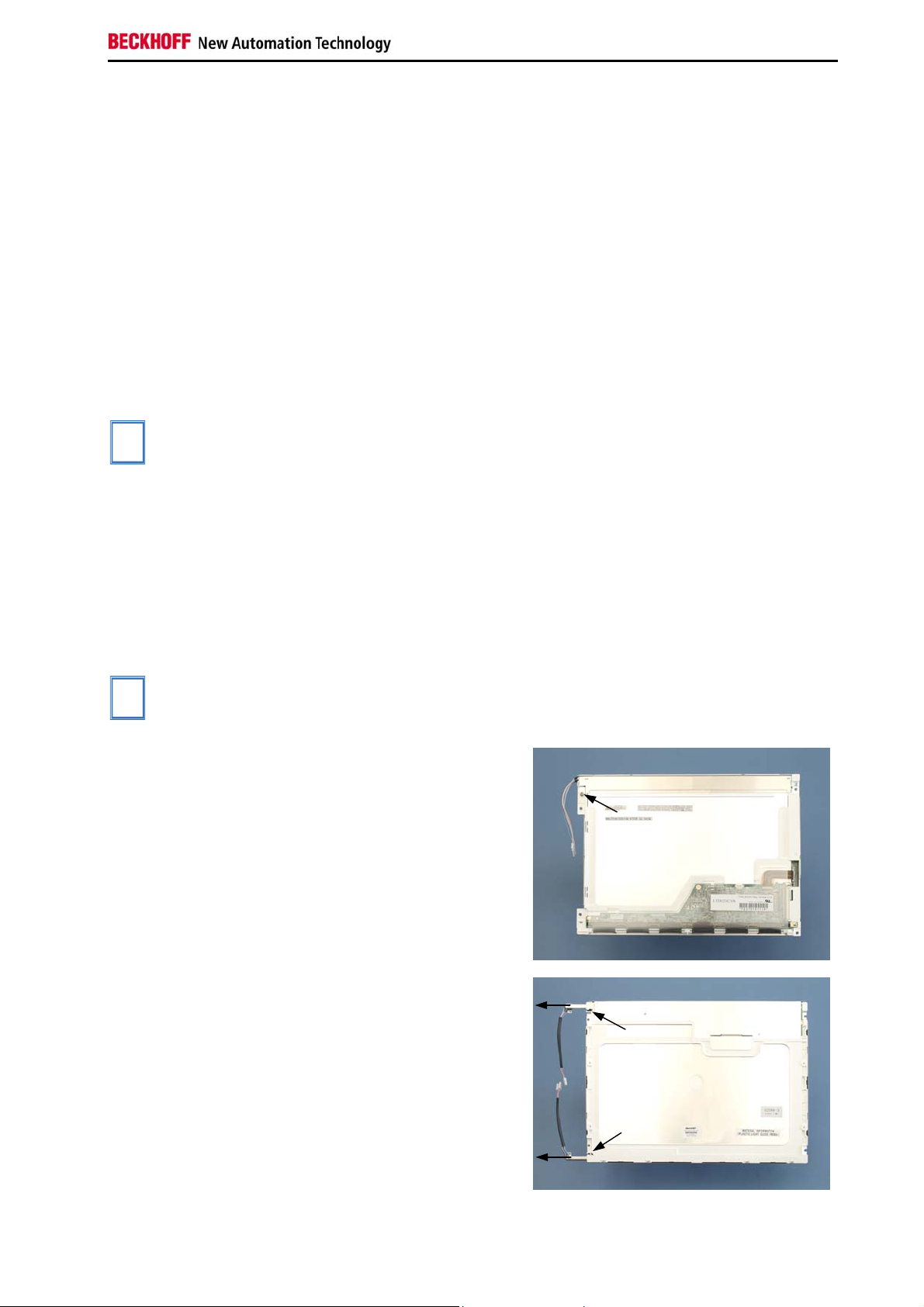

Replacing the fluorescent lamps in the display

must be replaced after a few years, depending on the number of operating hours.
The fluorescent lamps of the 12 inch and 15 inch displays can be replaced by a technically competent person.
Replacement of the fluorescent lamps may require partial disassembly of the display!
First release the screw (2) with a small Philips screwdriver, then tilt the fluorescent tubes with their brackets (1) carefully outwards.
2
1
After the exchange of the fluorescent lamps the installation takes place in reverse order.
Replacement for the 15 inch display
CP67xx 15
First release the two screws (1) and (2) with a small Philips screwdriver, then carefully pull out the fluorescent lamps in direction of the arrows.
After the exchange of the fluorescent lamps the installation takes place in reverse order.
1
2
Operating Instructions

Lamp sets

Order number
C9900 - L364
C9900 - L366
Background illumination unit for
12 inch TFT display LTD121C30S
15 inch TFT display LQ150X1LW71N

Emergency procedures

Dismantle the Built-in Panel PC
Observe national electronics scrap regulations
In case of fire, the Built-in Panel PC should be extinguished with powder or nitrogen.

Shutting down

Disposal

The device must be fully dismantled in order to dispose of it. The housing can be sent for metal recycling.
Electronic parts such as lamps and circuit boards must be disposed of in accordance with national electronics scrap regulations.
16 CP67xx
Troubleshooting

Troubleshooting

Please also refer to chapter General Notes.
Pixel errors in the TFT display are production-caused and represent
i
Note
Fault Cause Measures
No Panel PC function No power supply to Panel PC
Panel PC boots, software starts, but control does not operate correctly
The Panel PC has only partial function, or only functions some of the time, for instance the picture is dark or absent
no complaint-reason!

Fault correction

Cable not connected
The cause of the error is in the software or in parts of the equipment outside the Panel PC
Faulty fluorescent bulb in the display
Defective components in Panel PC
Check power supply cable
1. Correctly connect cable
2. Call Beckhoff Service
Call the manufacturer of the machine or the software
Replace fluorescent tube in the display in accordance with description
Call Beckhoff Service
CP67xx 17
Troubleshooting

Beckhoff Support & Service

Beckhoff and their partners around the world offer comprehensive support
and service, guaranteeing fast and competent assistance with all questions related to Beckhoff products and system solutions.

Beckhoff branches and partner companies

Please contact your Beckhoff branch office or partner company for local
support and service on Beckhoff products!
The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com
You will also find further documentation

Beckhoff Headquarters

Beckhoff Automation GmbH Eiserstraße 5 33415 Verl Germany
Phone: +49(0)5246/963-0 Fax: +49(0)5246/963-198 e-mail: info@beckhoff.com

Beckhoff Support

Beckhoff offers you comprehensive technical assistance, helping you not only with the application of individual Beckhoff products, but also with wide­ranging services:
worldwide support
design, programming and commissioning of complex automation
systems
training program for Beckhoff system components
Hotline: Fax: +49(0)5246/963-9157 e-mail: support@beckhoff.com
+49(0)5246/963-157

Beckhoff Service

The Beckhoff service center supports you in all matters of after-sales service:
on-site service
repair service
spare parts service
hotline service
Hotline: Fax: +49(0)5246/963-479 e-mail: service@beckhoff.com
Quote the project number If servicing is required, please quote the project number of your product.
+49(0)5246/963-460
for Beckhoff components there.
18 CP67xx
Appendix

Appendix

Technical data

Dimensions
Operation in areas that are subject to explosion hazard
The following conditions must be observed during operation: Environmental conditions
Shock resistance Sinusoidal vibration:
Protection class
Power supply
EMC compatibility
Transport and storage
Dimensions (W x H x D): see section Assembly dimensions
The Built-in Panel PC must not be used where there is a risk of explosion.
Ambient temperature: 0 to 55°C Atmospheric humidity: Maximum 95%, non-condensing
(EN 60068-2-6) 10 to 58 Hz: 0.035 mm
58 to 500 Hz: 0.5 G (~ 5 m/ s2)
Impact: (EN 60068-2-27/ 29) 5 G (~ 50 m/ s²), duration: 30 ms
Front side: IP65 Rear side: IP20
Supply voltage: 24 V Power consumption: approx. 23 W with 6.5“ display
approx. 27 W with 12“ display approx. 38 W with 15“ display approx. 45 W with 19“ display
Resistance to interference: conforms to EN 61000-6-2
Emission of interference: conforms to EN 61000-6-4
The same values for atmospheric humidity and shock resistance are to be observed during transport and storage as in operation. Suitable packaging of the Built-in Panel PC can improve the resistance to impact during transport. The ambient temperature during storage and transport must be between -20°C and +65°C.
(20.4 – 28.8 VDC)
DC
i
Note
FCC Approval for USA
FCC Approval for Canada
Pixel errors in the TFT display are production-caused and represent no complaint-reason!

Approvals

FCC: Federal Communications Commission Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC: Canadian Notice

This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications.
CP67xx 19
Loading...
