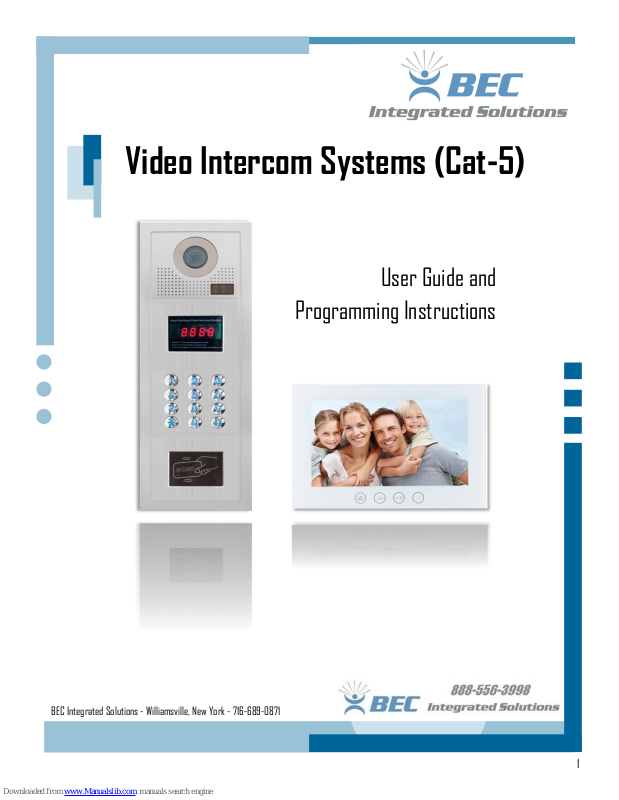

User Guide and
Programming Instructions
Video Intercom Systems (Cat-5)
BEC Integrated Solutions - Williamsville, New York - 716-689-0871
Getting Started
Video Intercom Systems (Cat-5)
Congratulations on your new Video Intercom System! At BEC Integrated Solutions, we are proud to provide secure, reliable solutions for your home or business. This manual is to help to answer any operational questions
you might have throughout your system’s lifetime.
Door Entry
The door panel included with your system should have been installed and programmed to ring upon entering an apartment/unit number using the pin-pad (Ex. 101, 203, etc.). Once entered, the unit will ring until answered at the respective room station. When answered, speak as you would normally.
By default the call time is 45 seconds. Press any button to extend the call length.
The person at the indoor station may press the unlock key during the call to
grant entry. Press the ‘#’ sign to cancel a call or any action at any
time.
To gain entry to the building using the RF Reader, swipe the key fob or key card given by the owner in front of the reader and the door will click open.
To gain entry to the building using the Public Access Code (provided by the installer/owner) Press 9* then enter the public password (by default the code is 8888) (Ex. 9* 8888)
To gain entry to the building using the Residential Access Code (provided by the installer/owner, this code
can
be changed) Press 8*, enter the room number, then the
assigned password (Ex. For room 101, with password ‘1234’, Press 8* + 0101 + 1234).
To CHANGE your Residential Access Code, press 5*, enter the room number, type the original password, then type your new password. (Ex. For room 101, Press 5* + 0101 + 1234 + 4321)
3
Indoor Monitor
Video Intercom Systems (Cat-5)
The indoor monitor included with the system has four illuminated buttons on the face, and three scrolling adjusters on the edge for Volume, Brightness, and Contrast.
1. Alarm/Concierge (If Applicable)
2. Monitor
3. Unlock
4. Talk/Answer
For an incoming call, press Talk to answer then talk as you would normally.
You may press Unlock only during the
initial ring
or
during the call
to release the door latch to al-
low entry.
Press the Monitor button to view the camera at the door station any time the monitor is off
To change the ringtone, press and hold Unlock until you hear the tone, then press Alarm/Concierge to cycle through the different ringtones. Once you’ve chosen the tone, press Unlock to save your selection.
If your system includes the optional Picture Memory room station, there are 5 buttons (Menu, Up, Down, Left, Right) on the side of the panel for controlling the On-Screen Display. With this feature, the panel will take one still image for each call that is received at that station. While the display is active, you can scroll through past images using the controls. You may also adjust settings (date/time, display settings,
etc.) using the on screen menu.
We hope you enjoy your system, and if you have any questions or need troubleshooting help,
please call our technical support line. Thank you for your business!
4
5225 Sheridan Drive Georgetown Square Williamsville, NY 14221
Phone: 1-716-689-0871 Toll-Free: 1-888-556-3998 Email: support@becsolutionsllc.com http://www.becintegrated.com
Revised 9/15/2016
