Page 1
Last revised: November, 2014
BEC 6300VNL
GigaConnect
®
4G/LTE VoIP Wireless Broadband Router
User Manual
Version release: v1.07
Page 2
TABLE OF CONTENTS
CHAPTER 1: INTRODUCTION ........................ 1
INTRODUCTION TO YOUR ROUTER................................................................ 1
FEATURES & SPECIFICATIONS ...................................................................... 3
HARDWARE SPECIFICATIONS ....................................................................... 5

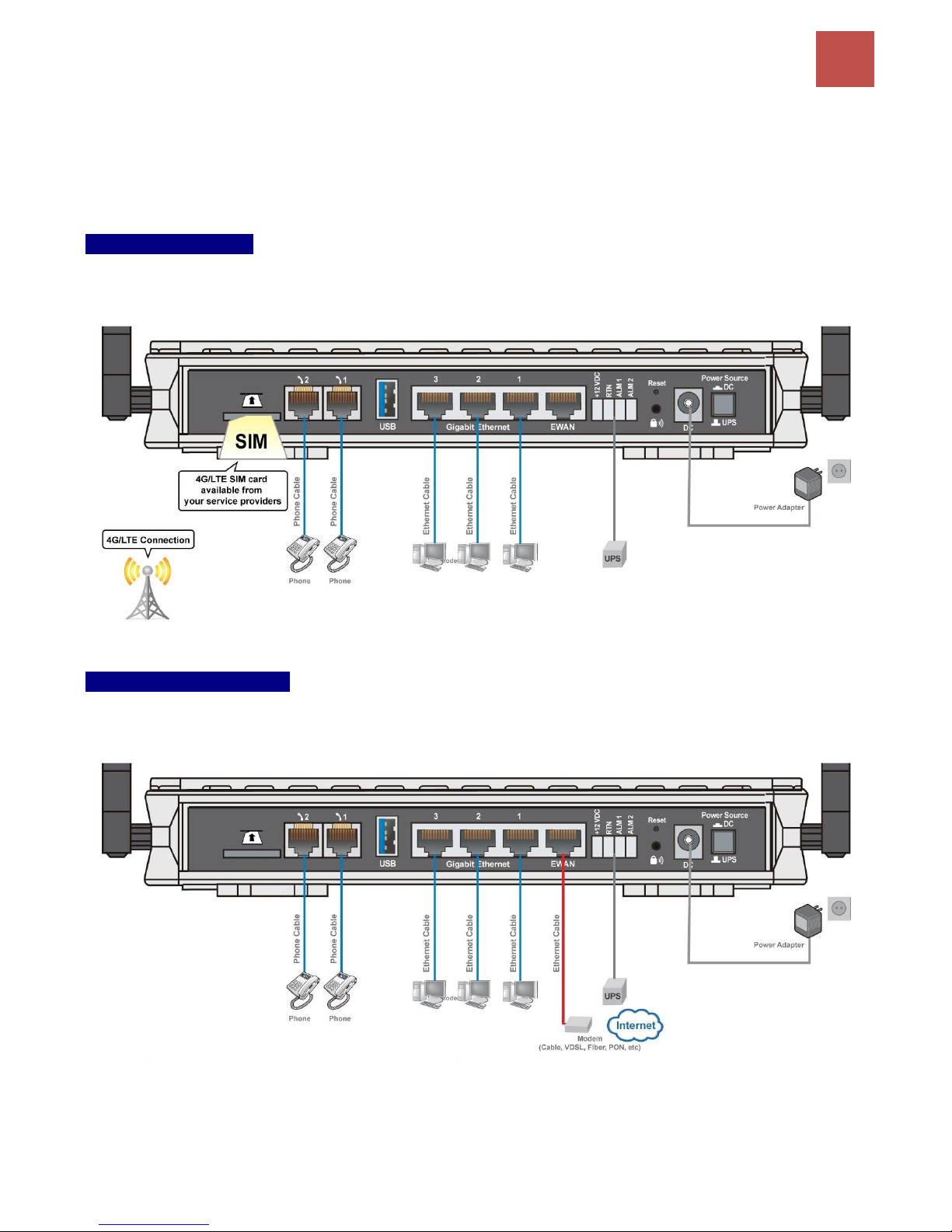

APPLICATION DIAGRAM ............................................................................ 6
CHAPTER 2: PRODUCT OVERVIEW .............. 7
IMPORTANT NOTE FOR USING THIS ROUTER .................................................. 7
DEVICE DESCRIPTION ................................................................................ 8

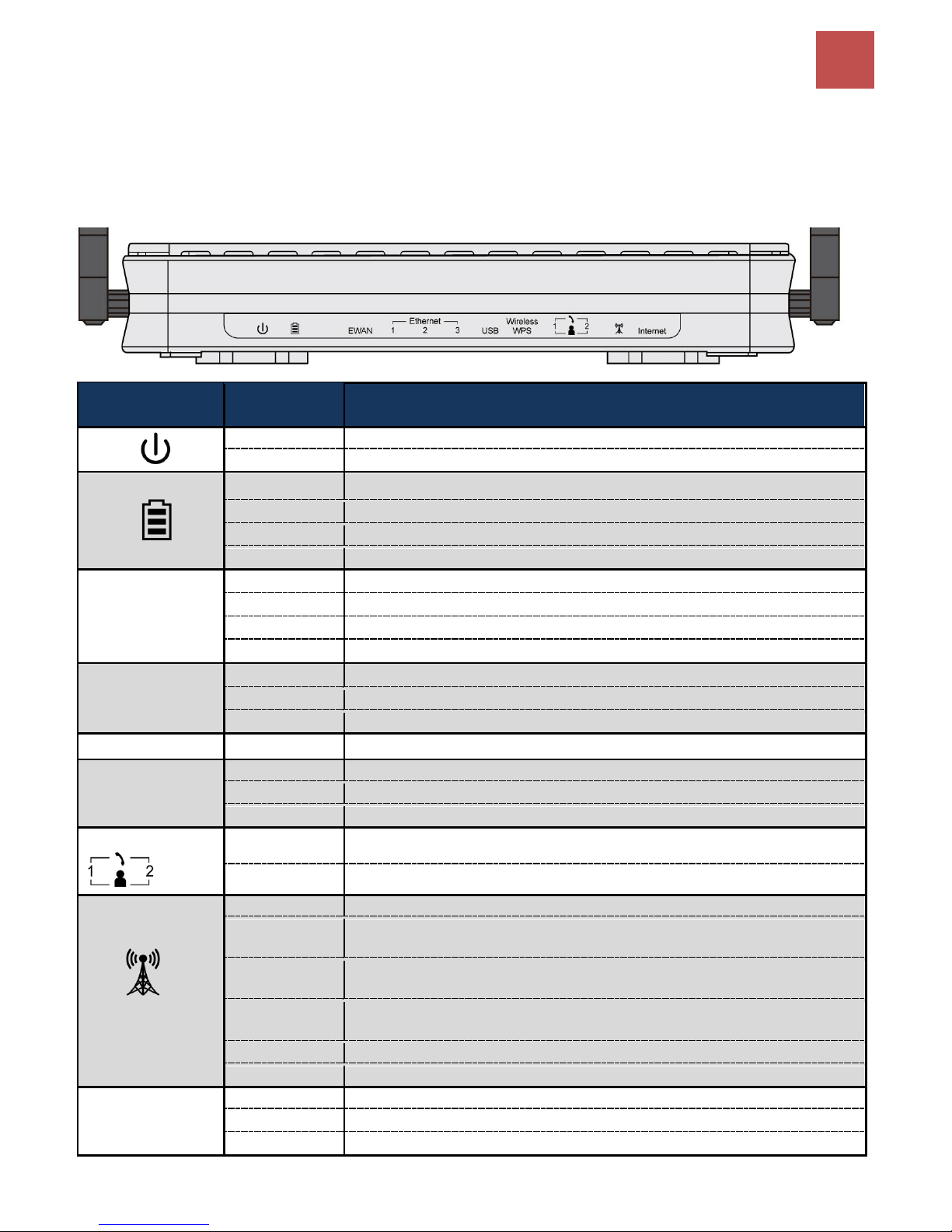

Front Panel LEDs .................................................................................................. 8

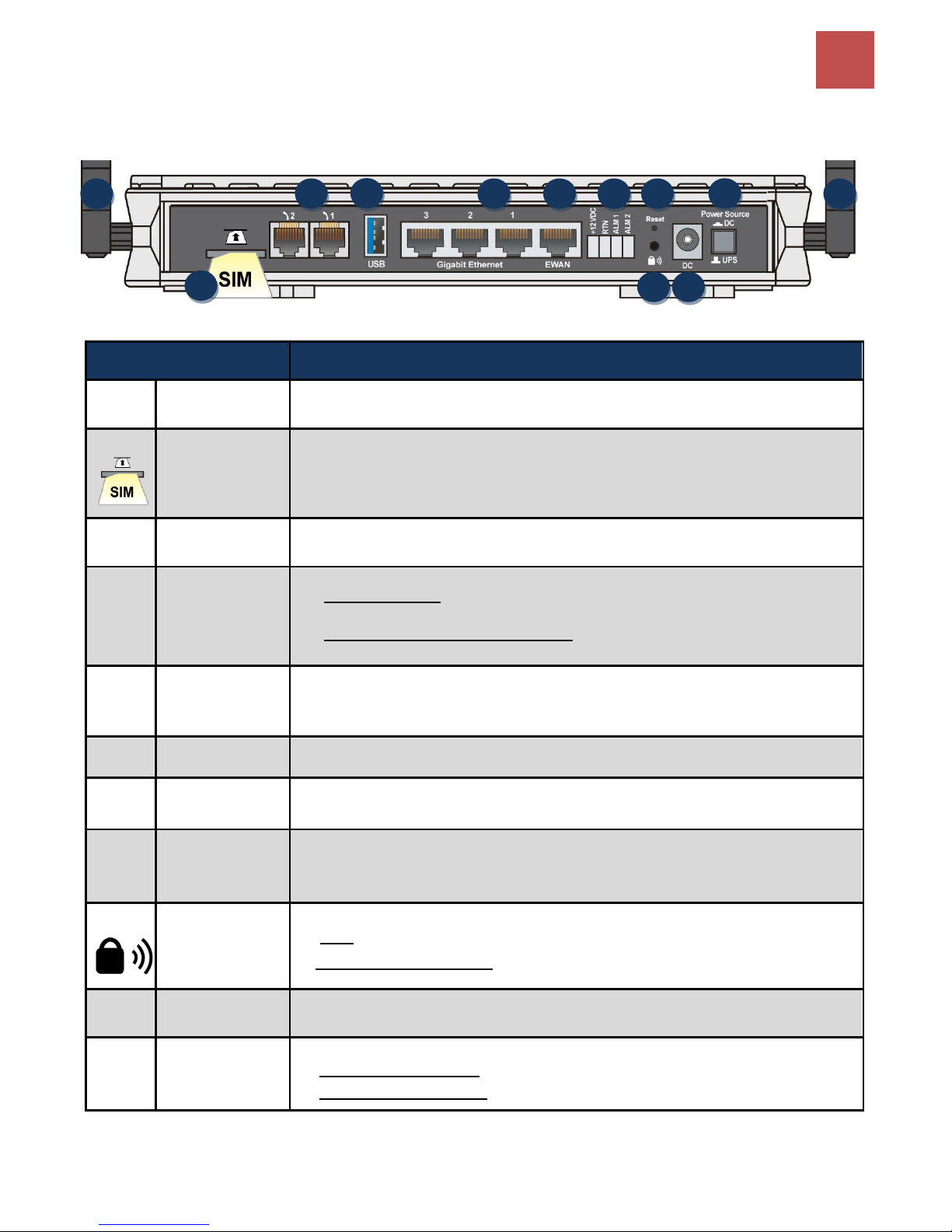

Rear Panel Connectors ......................................................................................... 9
POWER SOURCE ..................................................................................... 10
CABLING ............................................................................................... 11
CHAPTER 3: BASIC INSTALLATION ............ 12
NETWORK CONFIGURATION – IPV4 ........................................................... 13

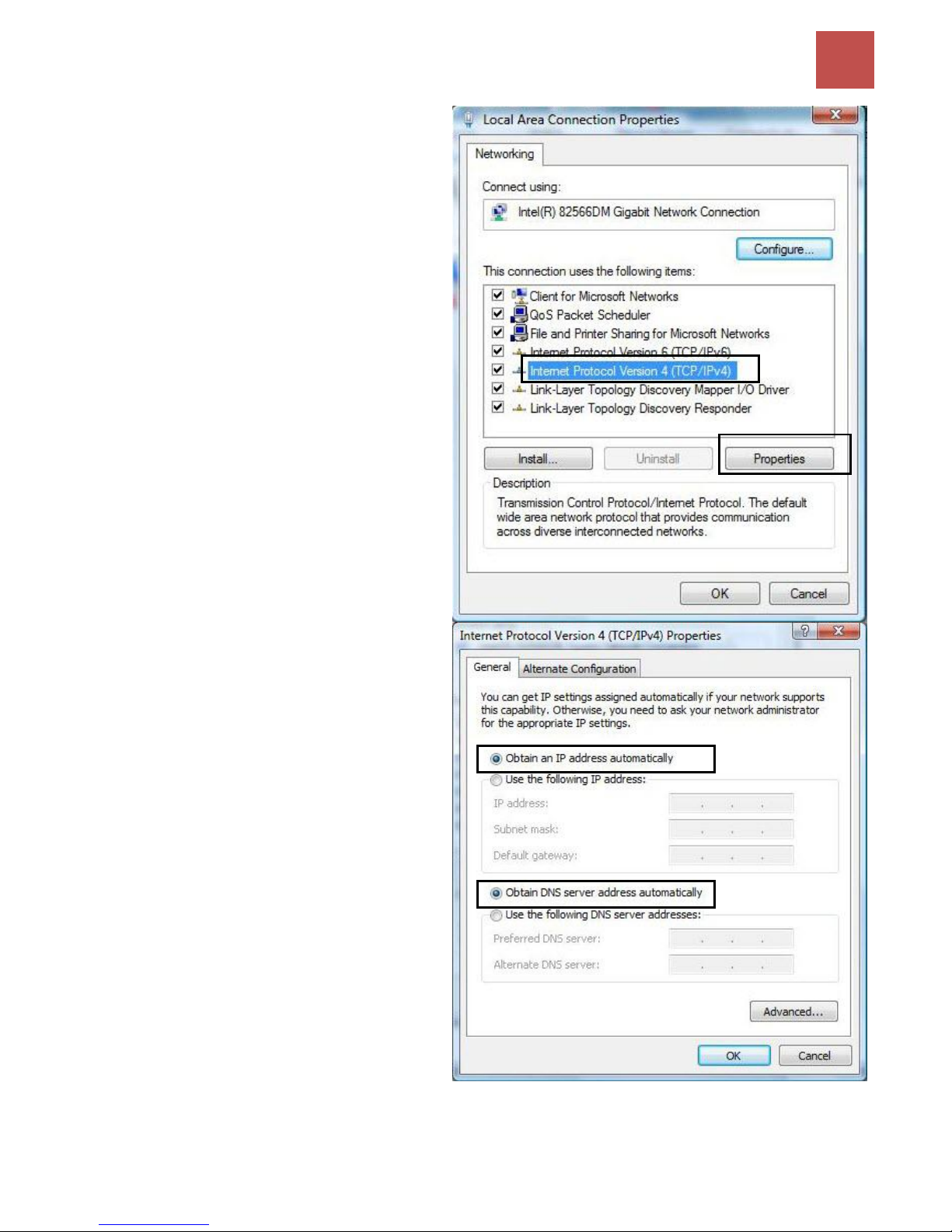

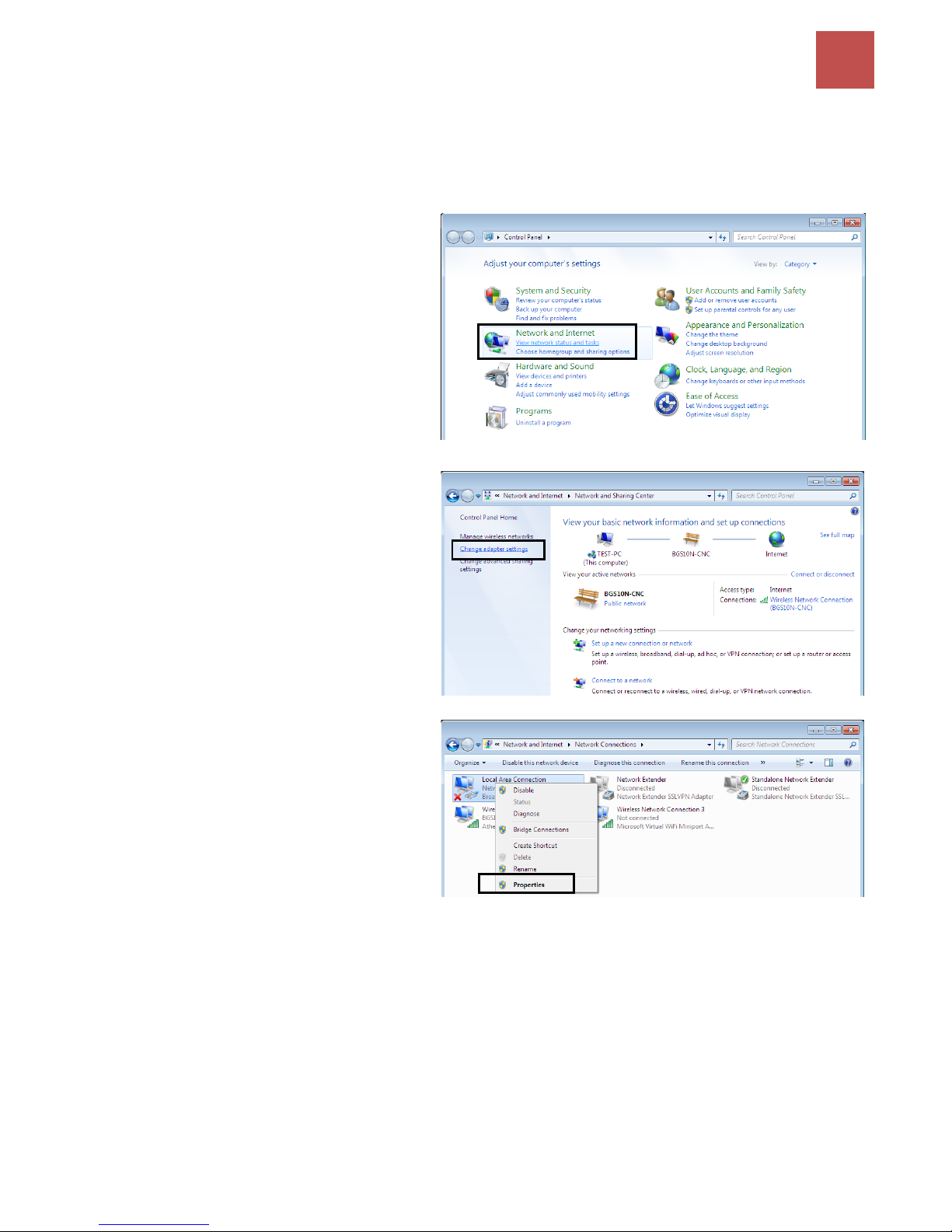

Configuring PC in Windows 7 (IPv4) .................................................................. 13
Configuring PC in Windows Vista (IPv4) ............................................................ 15
Configuring PC in Windows XP (IPv4) ................................................................ 17
Configuring PC in Windows 2000 (IPv4) ............................................................ 18

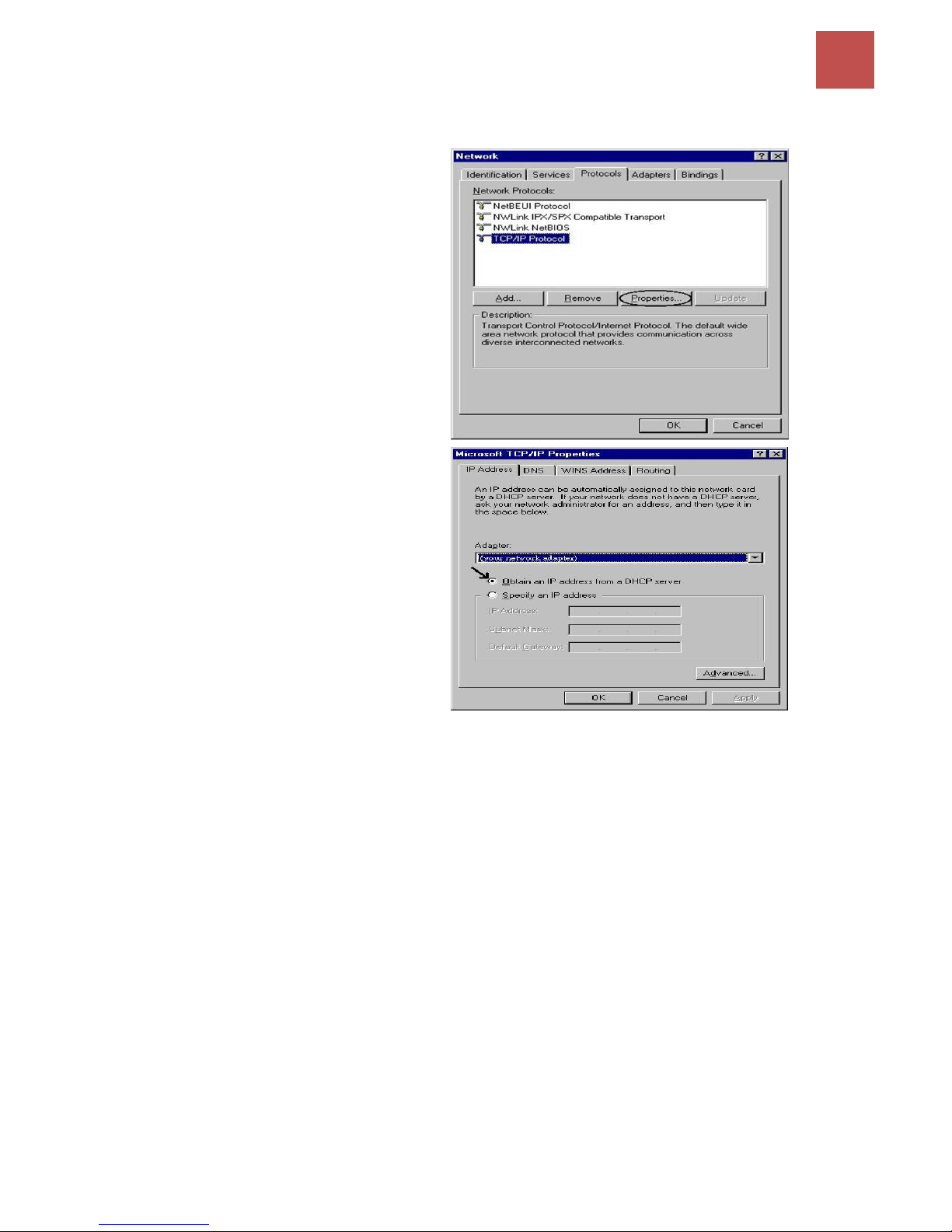

Configuring PC in Windows 98/ME ................................................................... 19
Configuring PC in Windows NT4.0 ..................................................................... 20
NETWORK CONFIGURATION – IPV6 ........................................................... 21

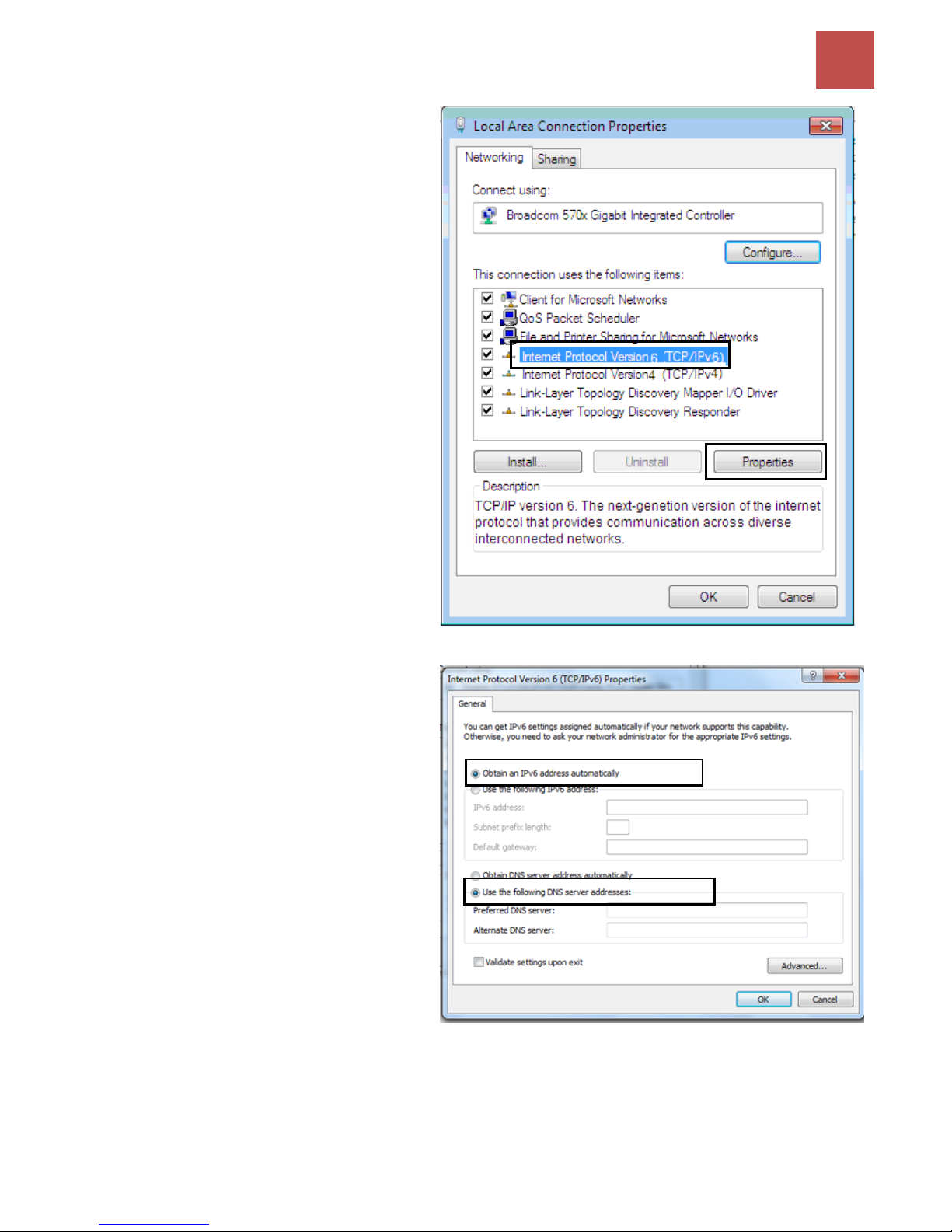

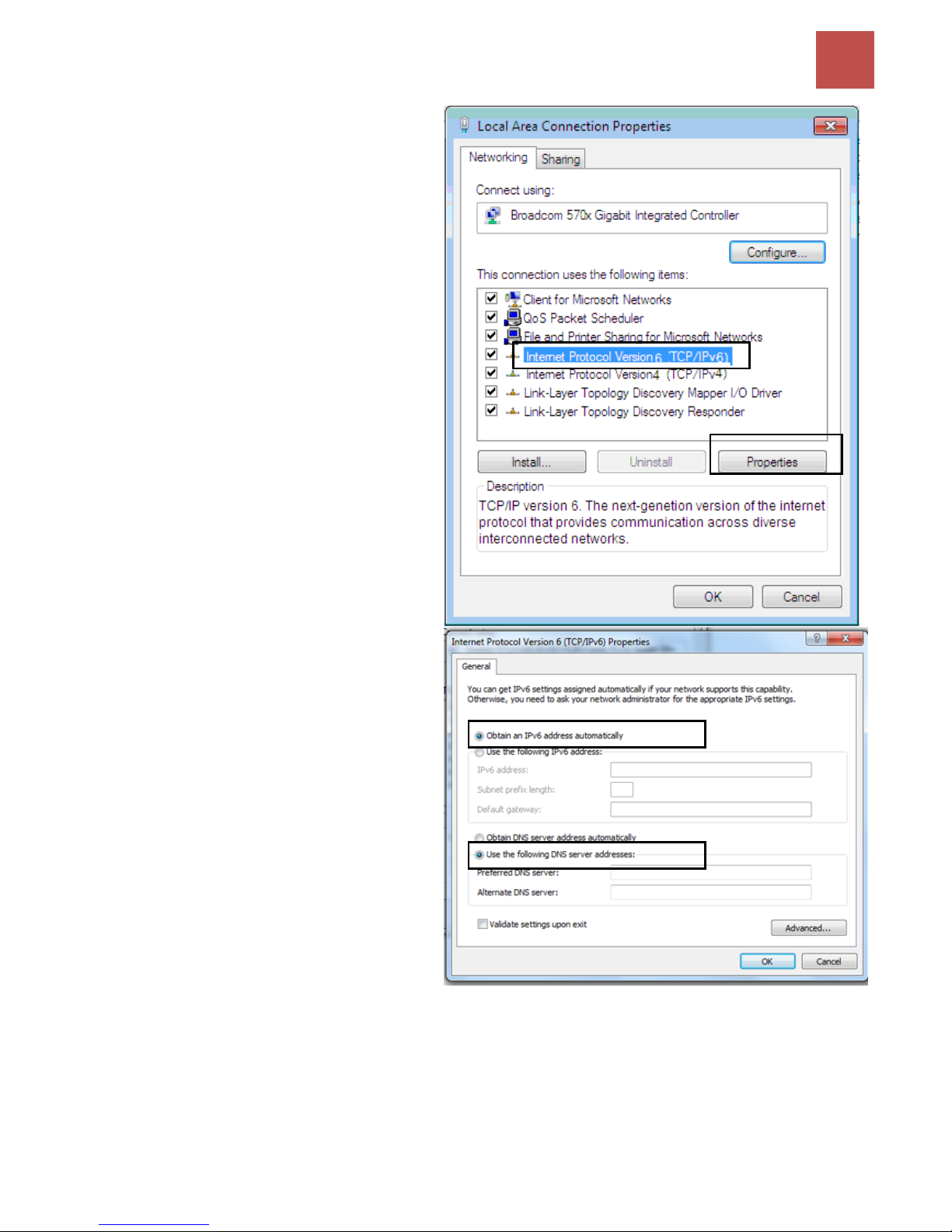

Configuring PC in Windows 7 (IPv6) .................................................................. 21
Configuring PC in Windows Vista (IPv6) ............................................................ 23

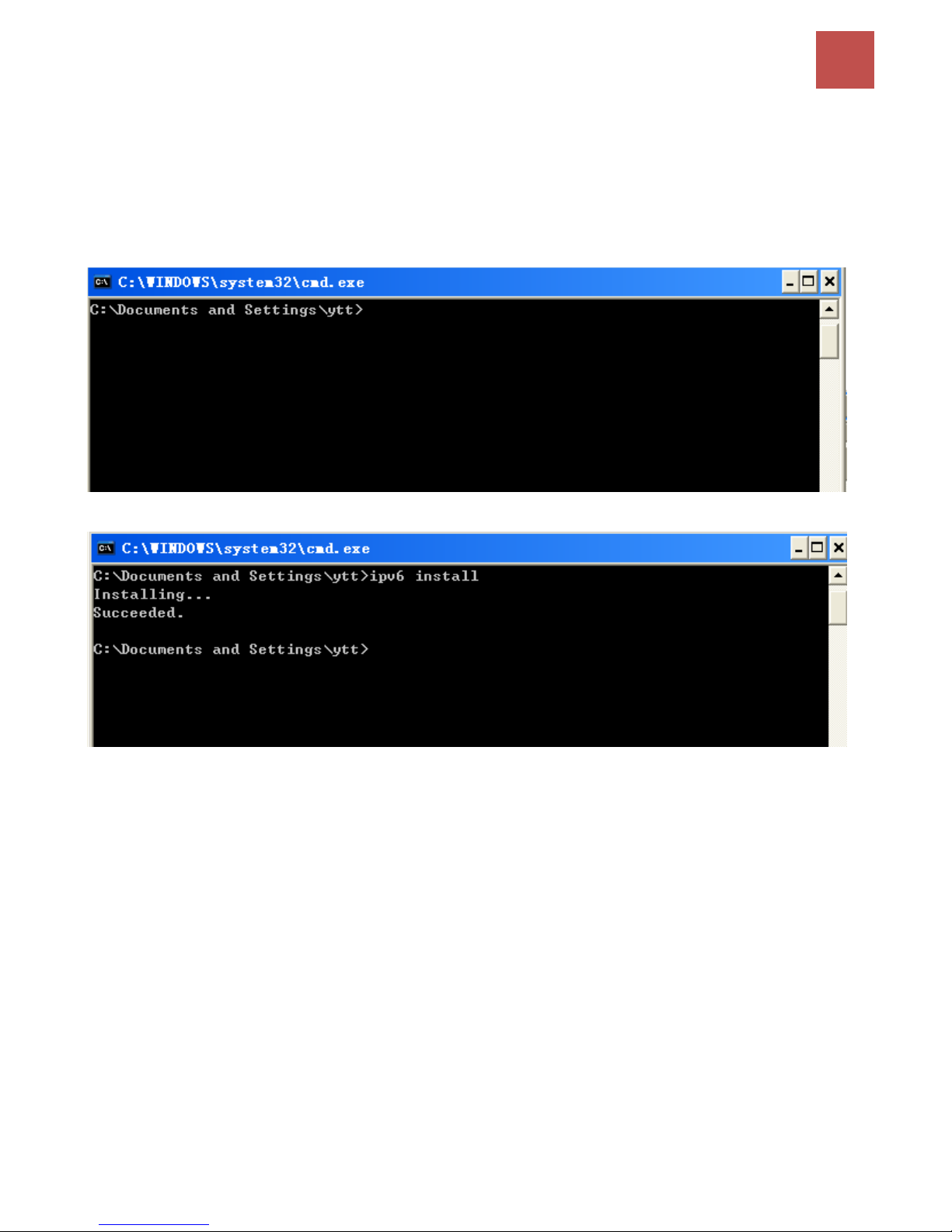

Configuring PC in Windows XP (IPv6) ................................................................ 25
DEFAULT SETTINGS ................................................................................. 26
INFORMATION FROM YOUR ISP ................................................................ 27
Page 3
CHAPTER 4: DEVICE CONFIGURATION...... 28

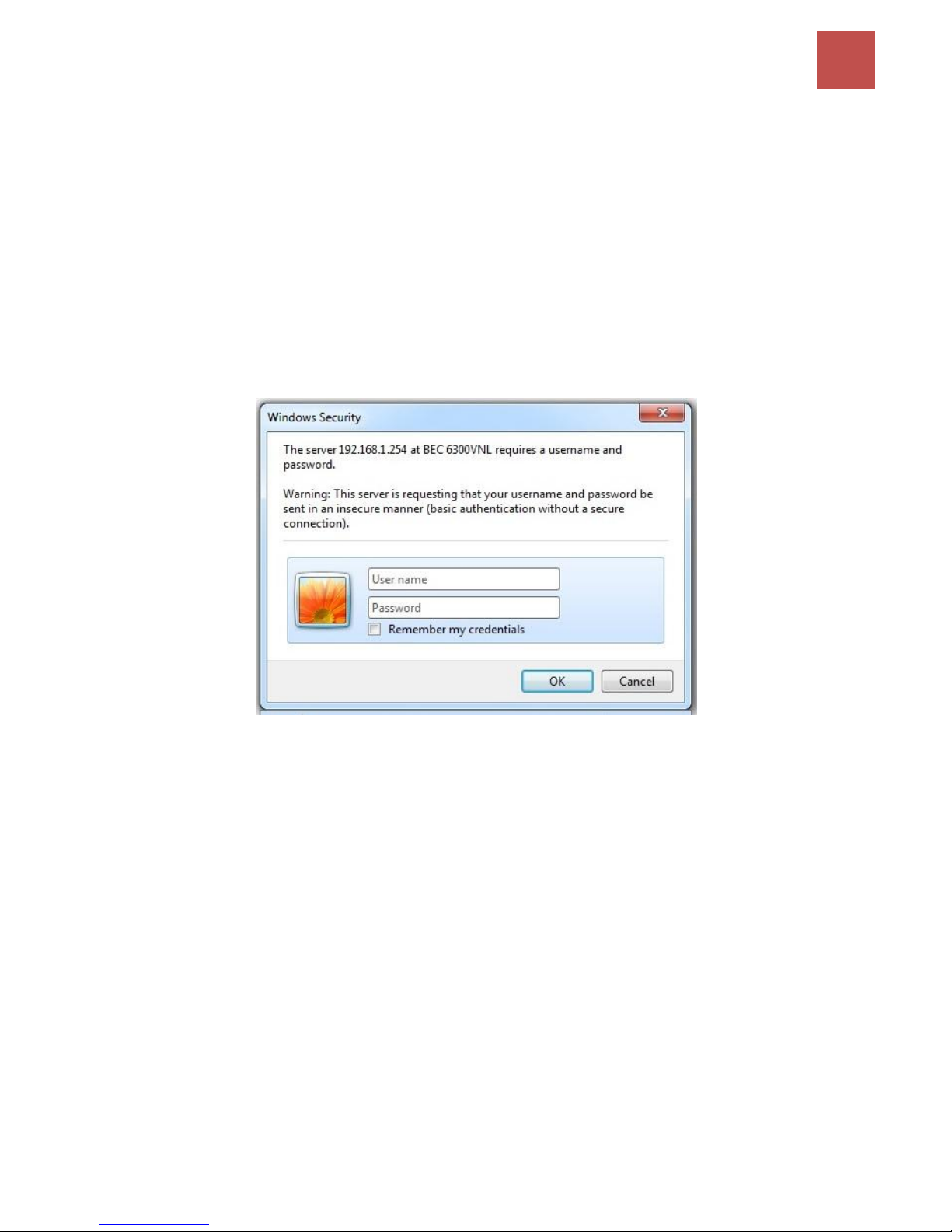

LOGIN TO YOUR DEVICE ........................................................................... 28
STATUS ................................................................................................ 30

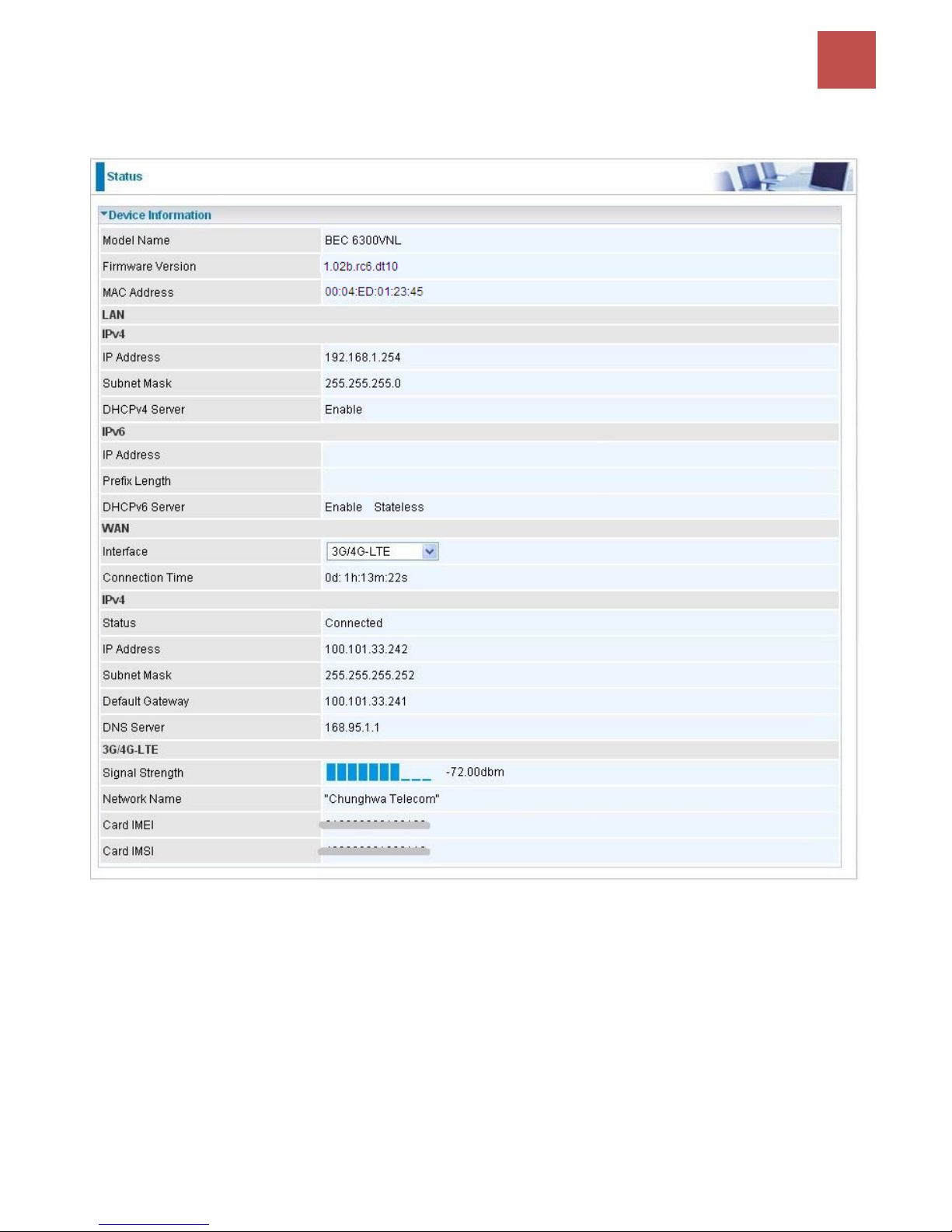

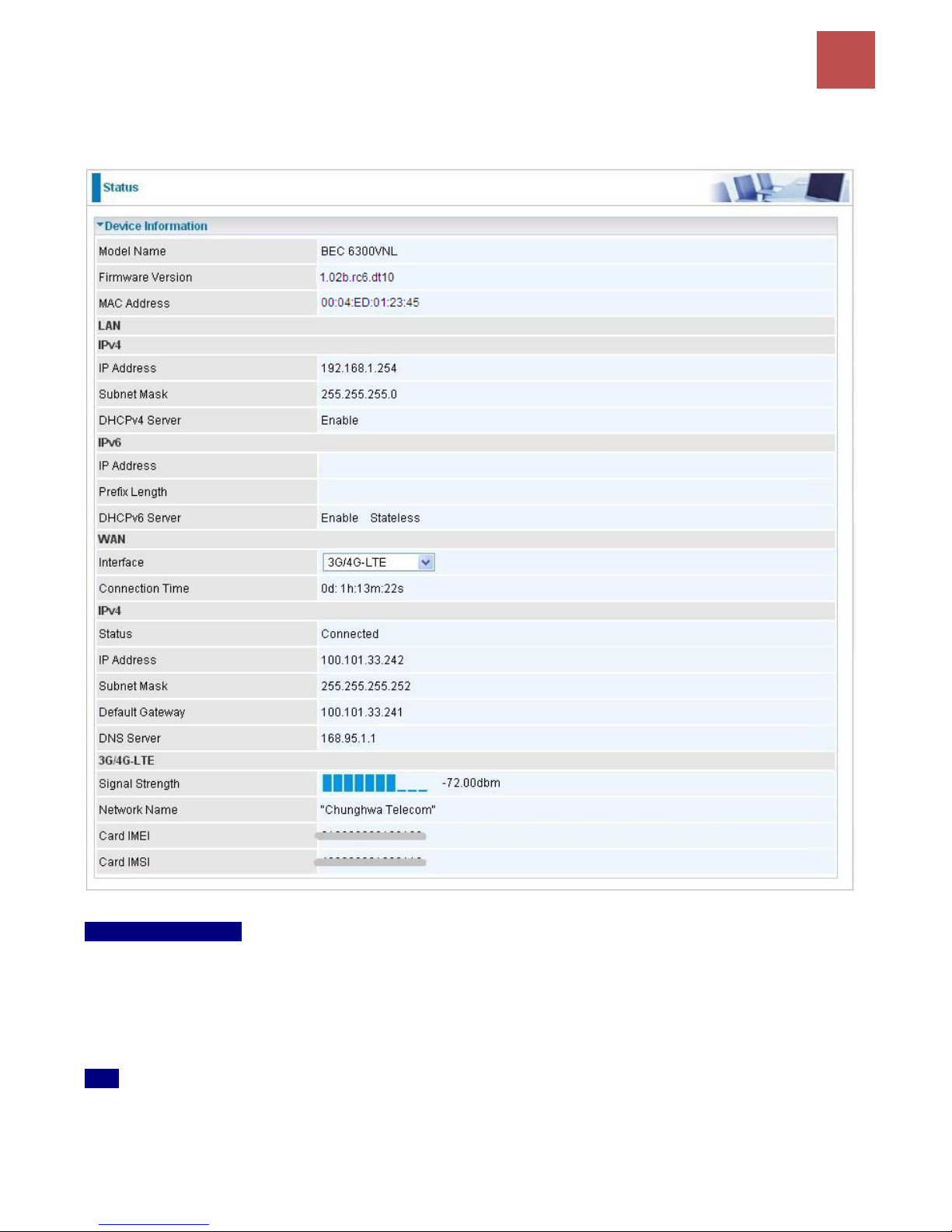

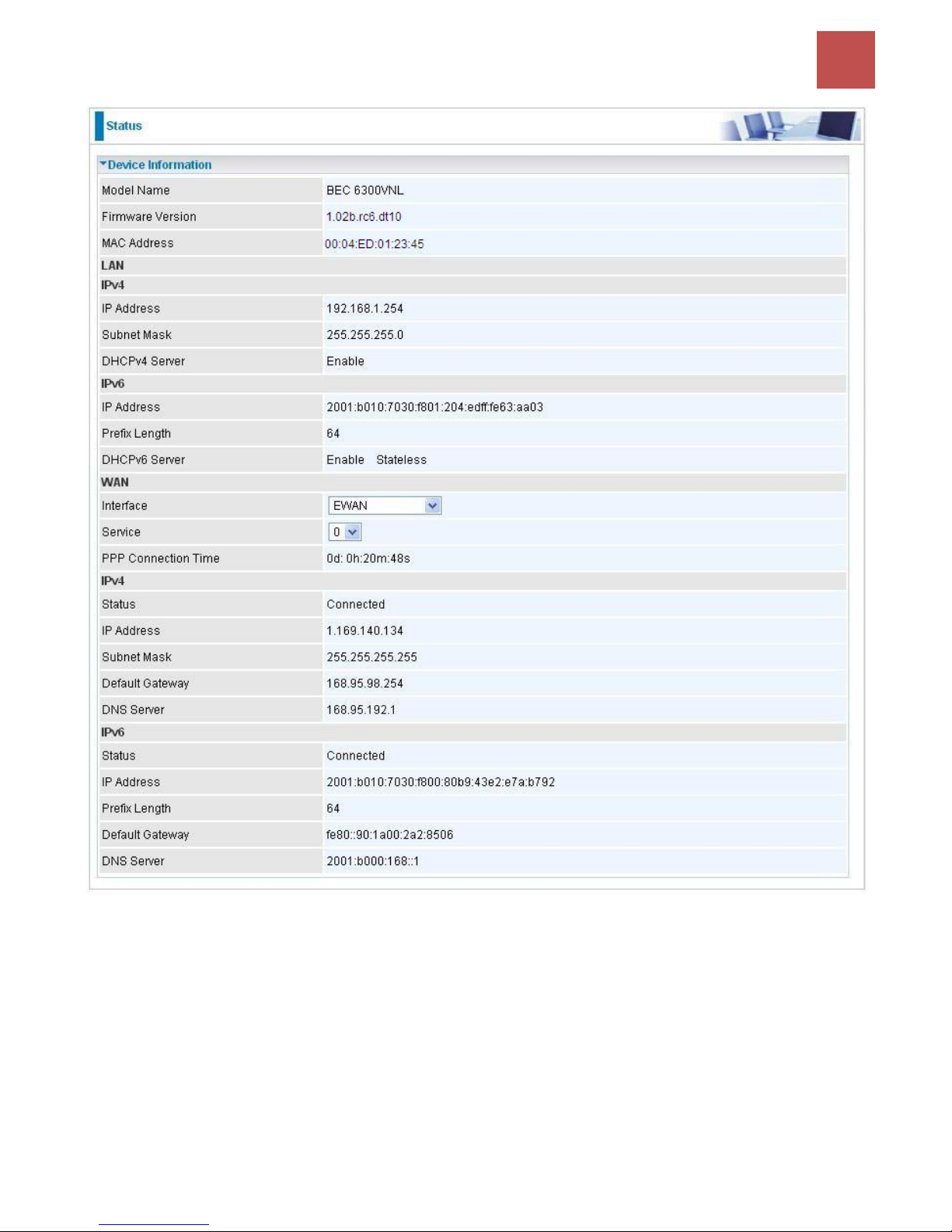

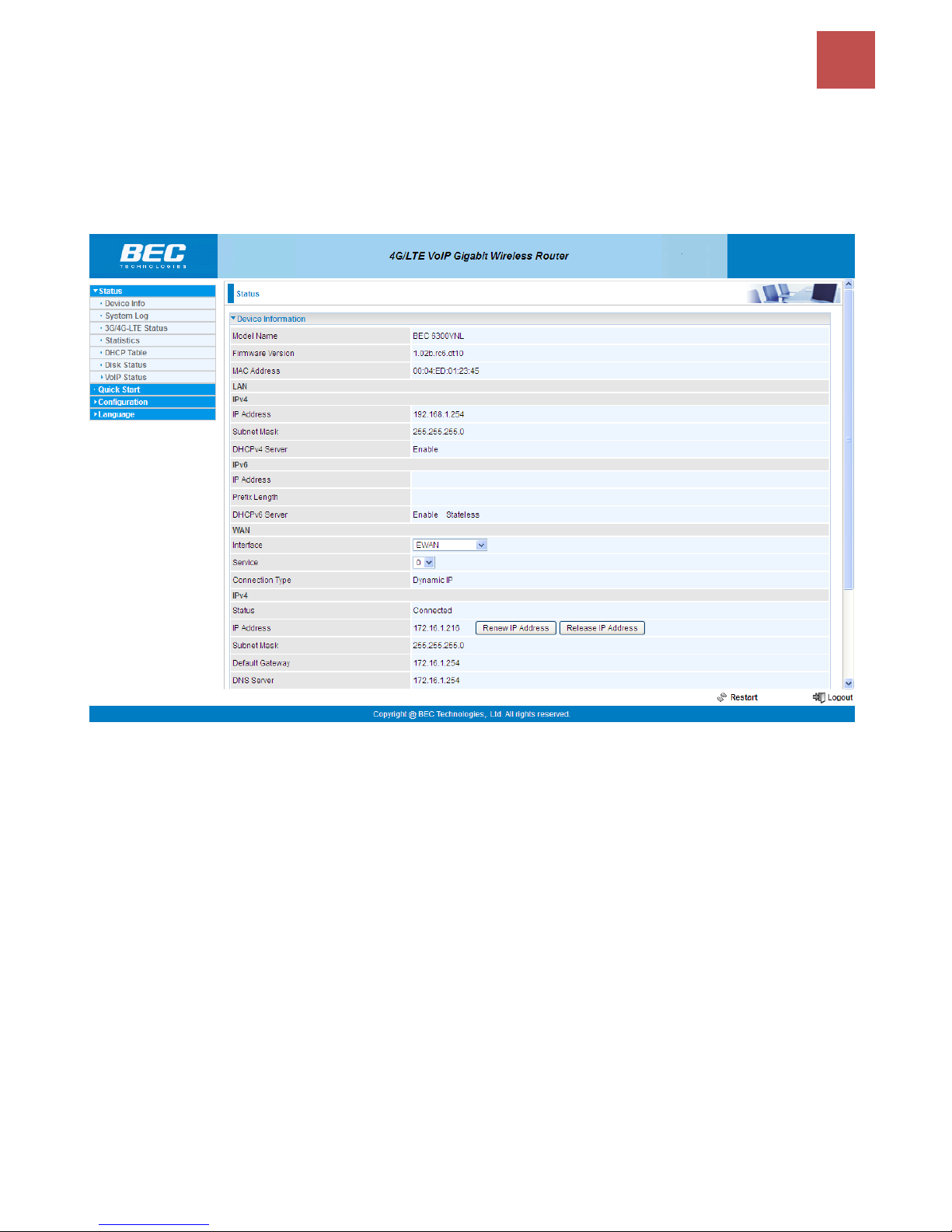

Device Info ......................................................................................................... 31

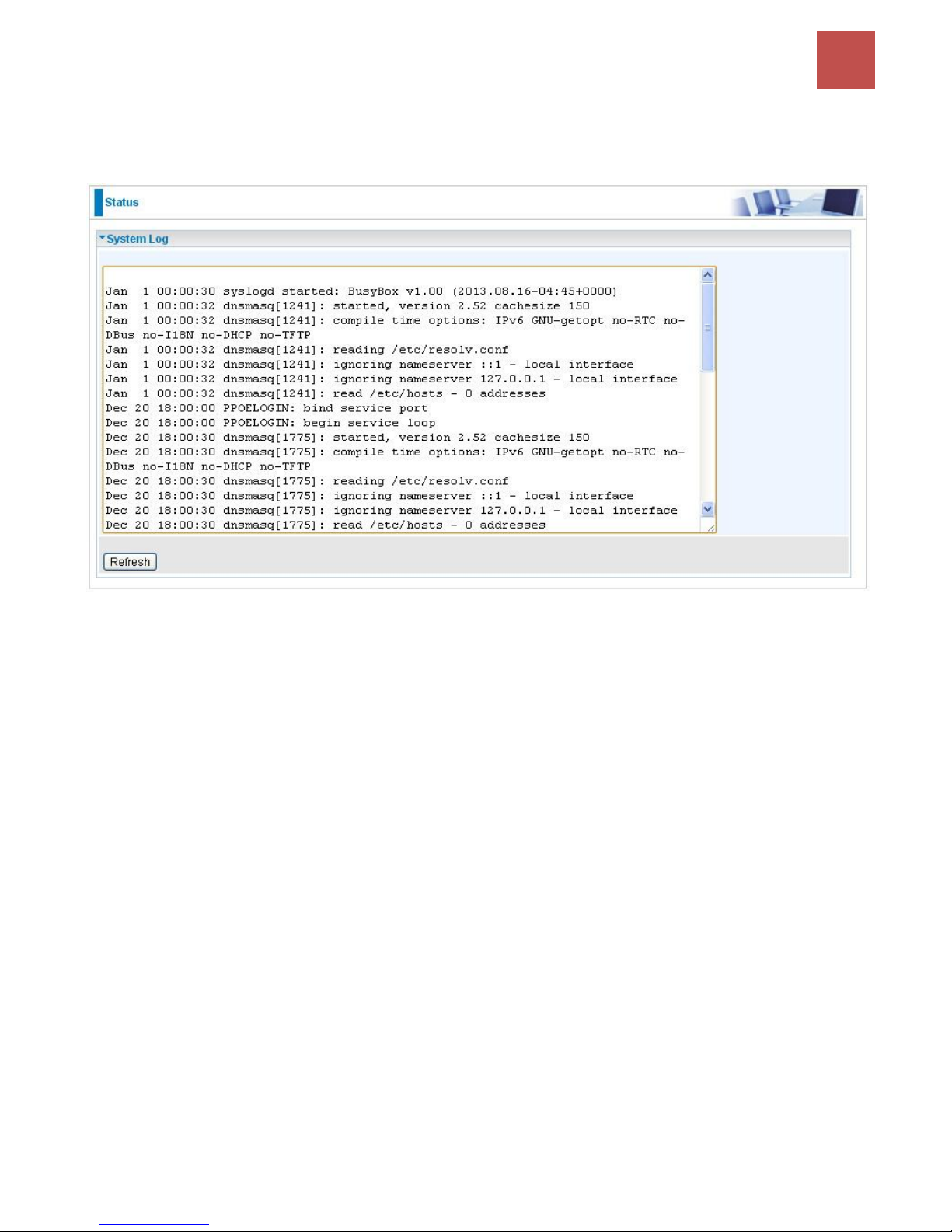

System Log ......................................................................................................... 33

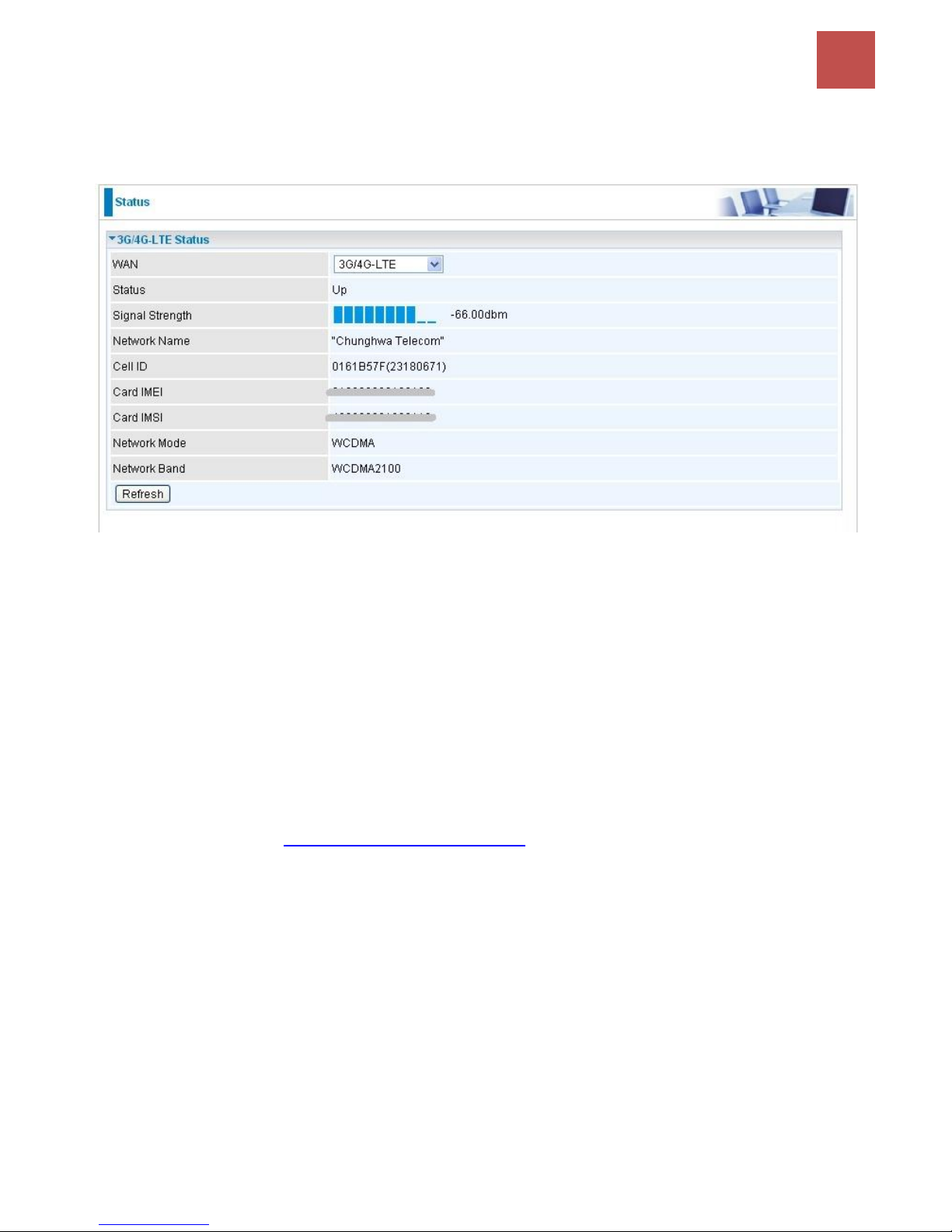

3G/4G-LTE Status ............................................................................................... 34

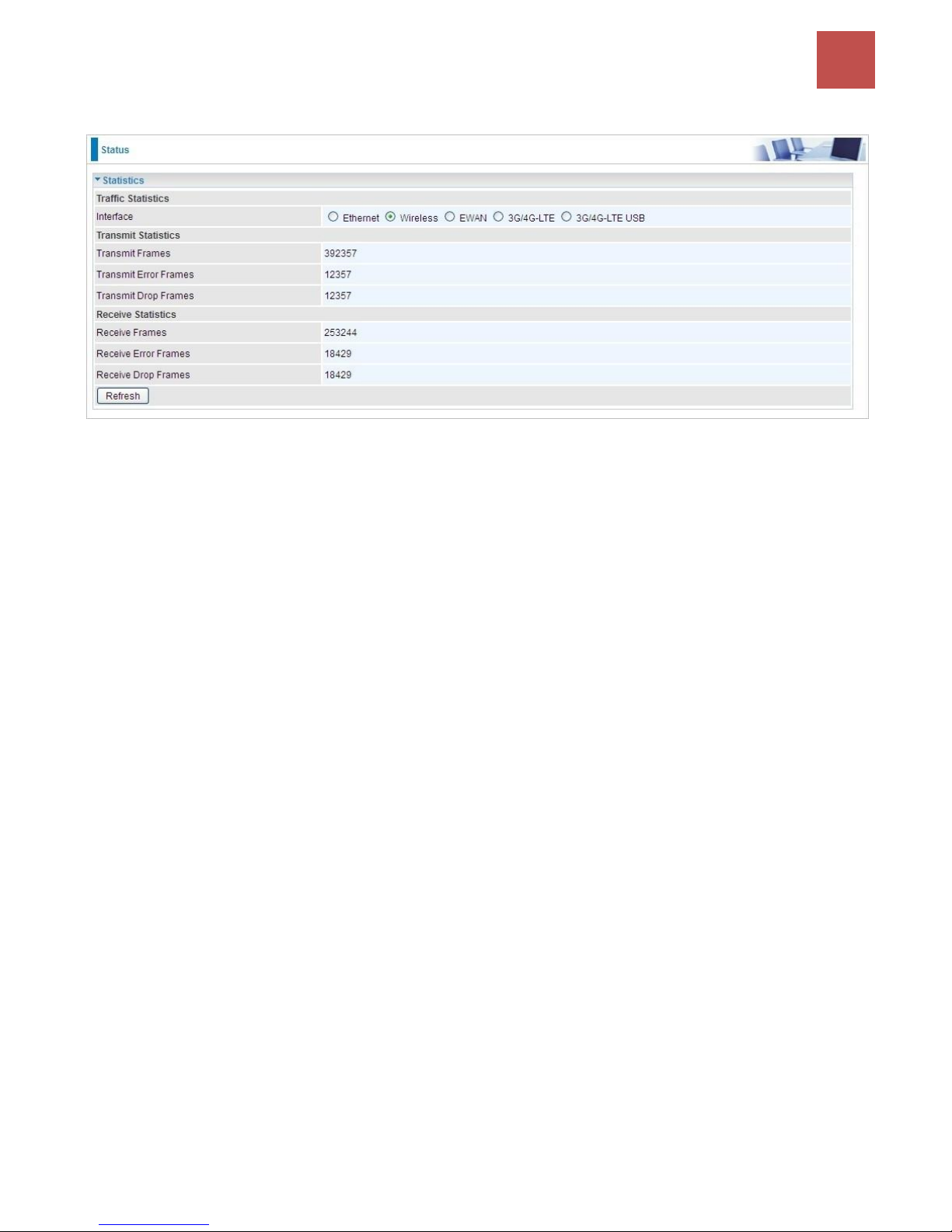

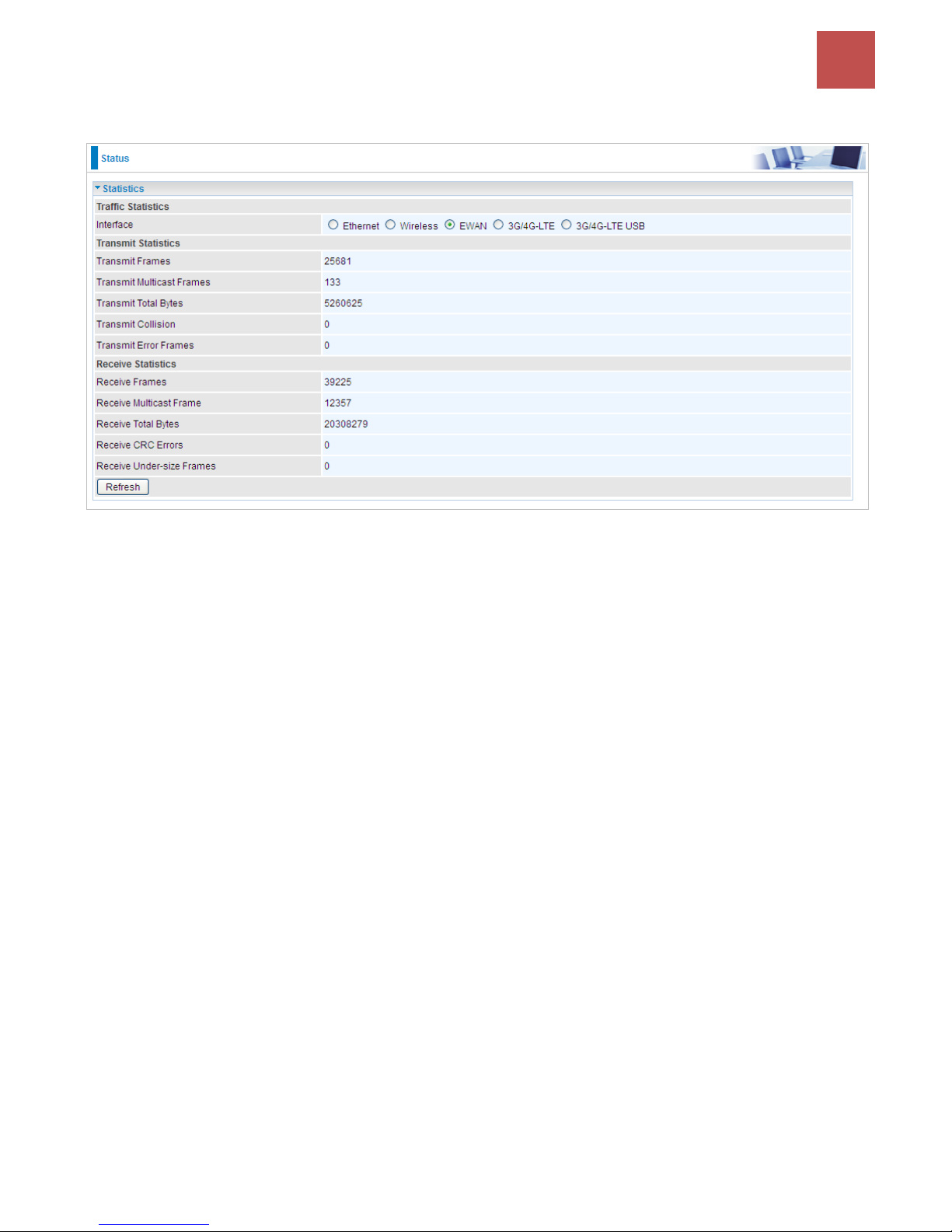

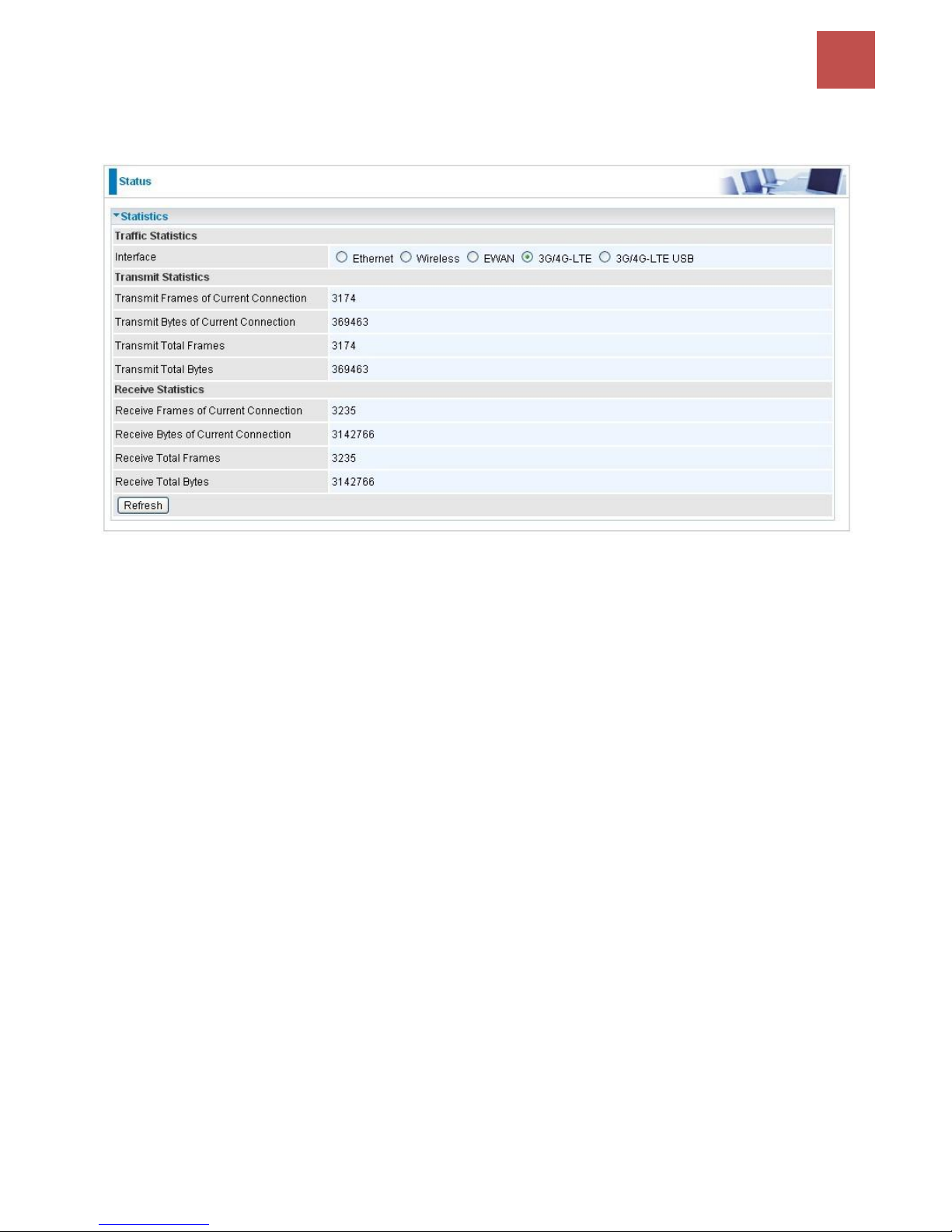

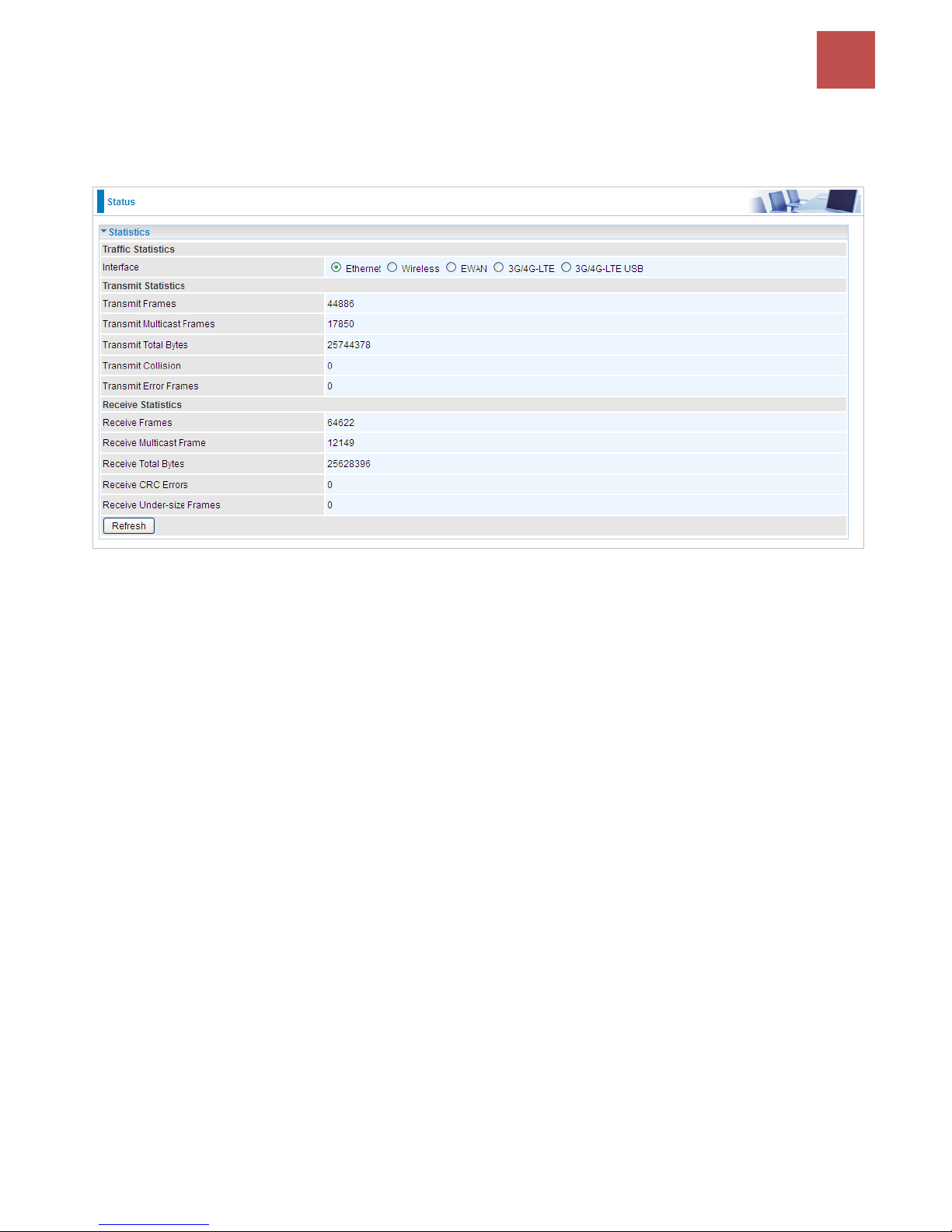

Statistics ............................................................................................................. 35

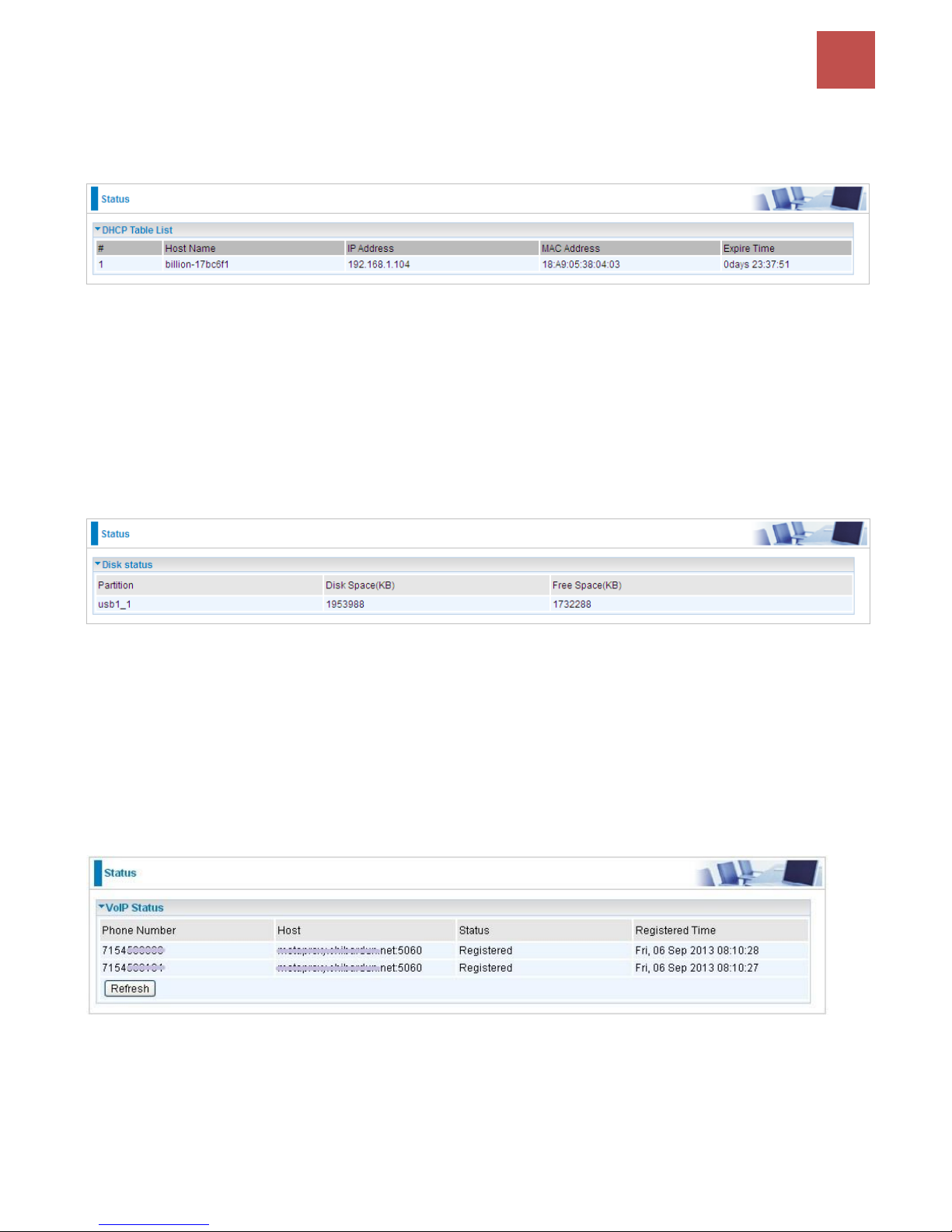

DHCP Table ......................................................................................................... 40
Disk Status .......................................................................................................... 40
VoIP Status ......................................................................................................... 40

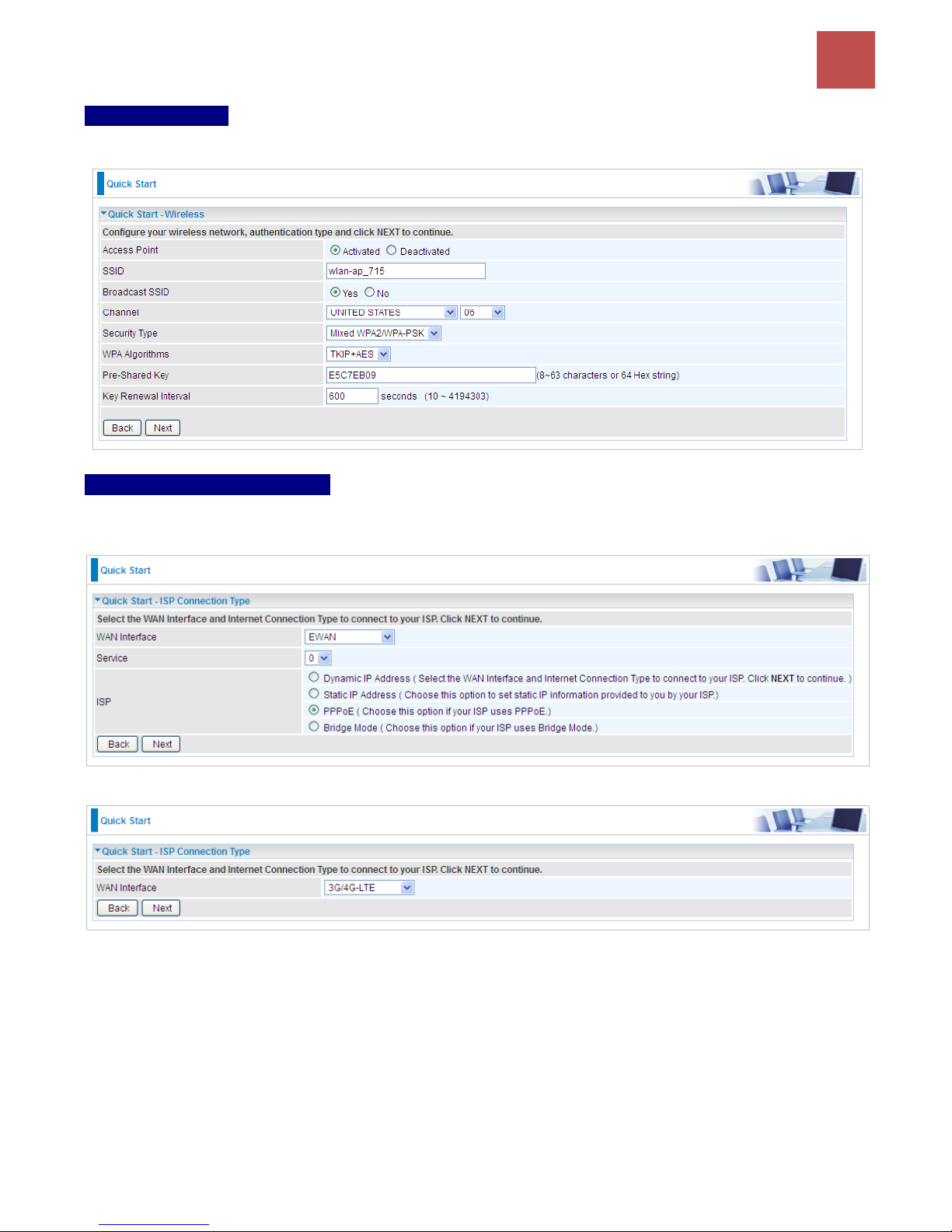

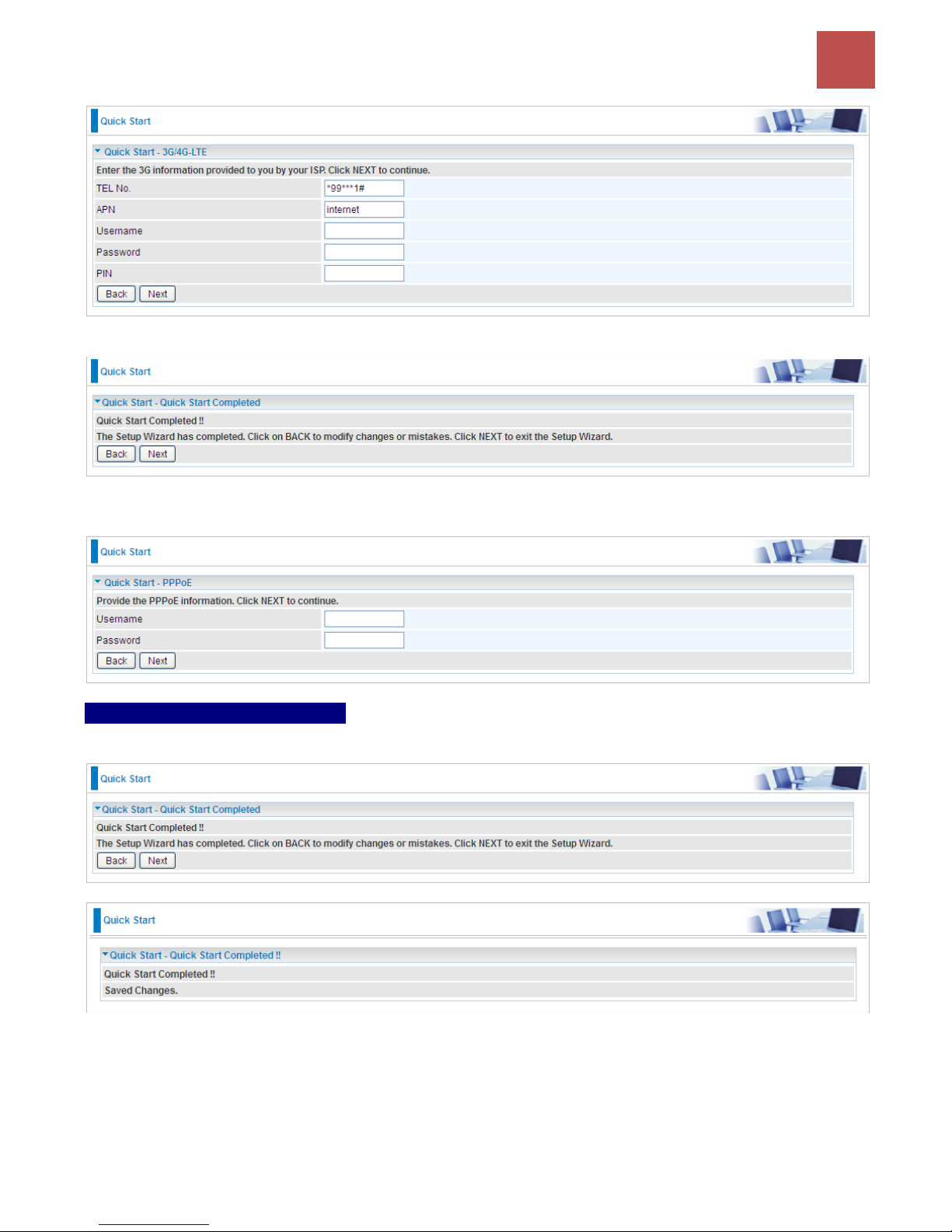

QUICK START ........................................................................................ 41
CONFIGURATION .................................................................................... 45
Interface Setup ................................................................................................... 45

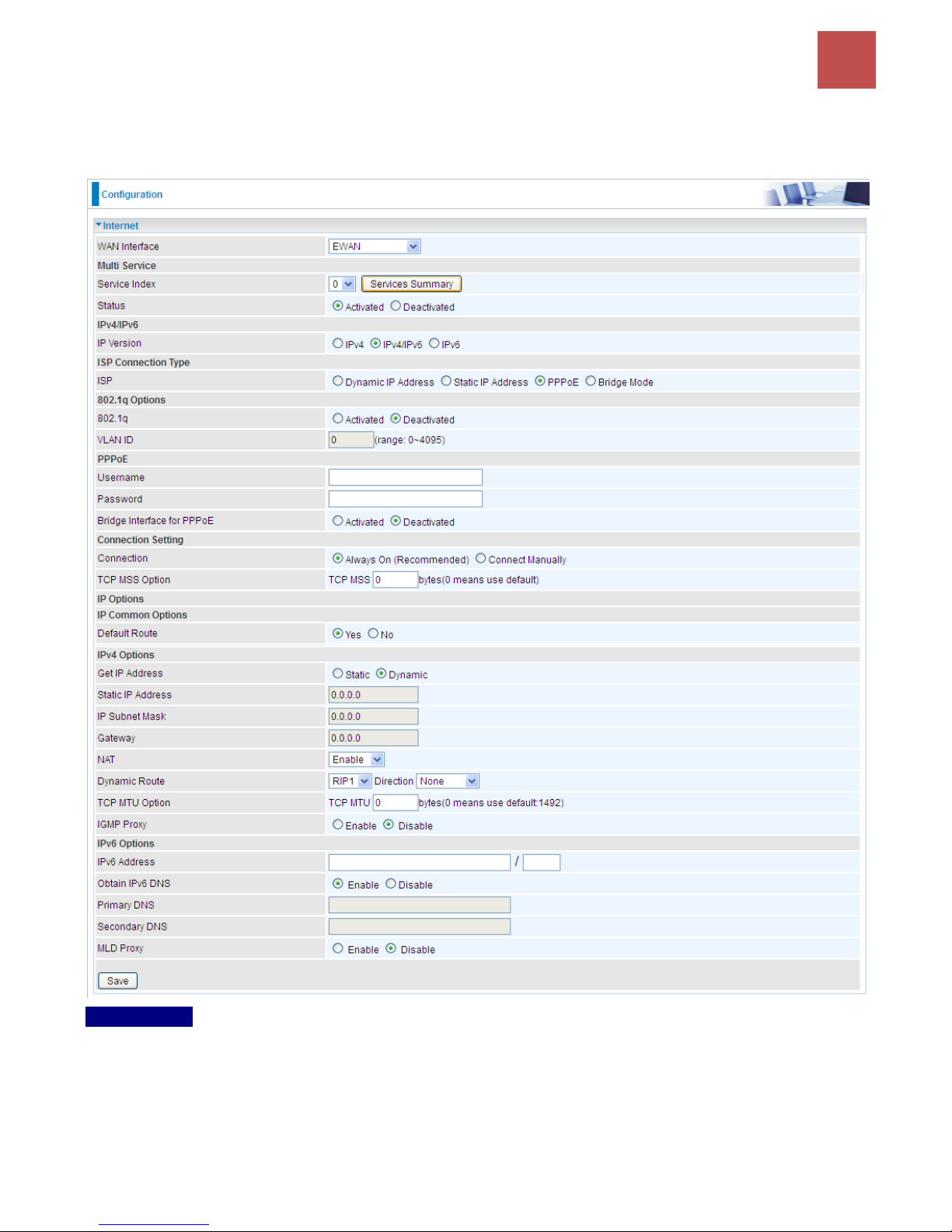

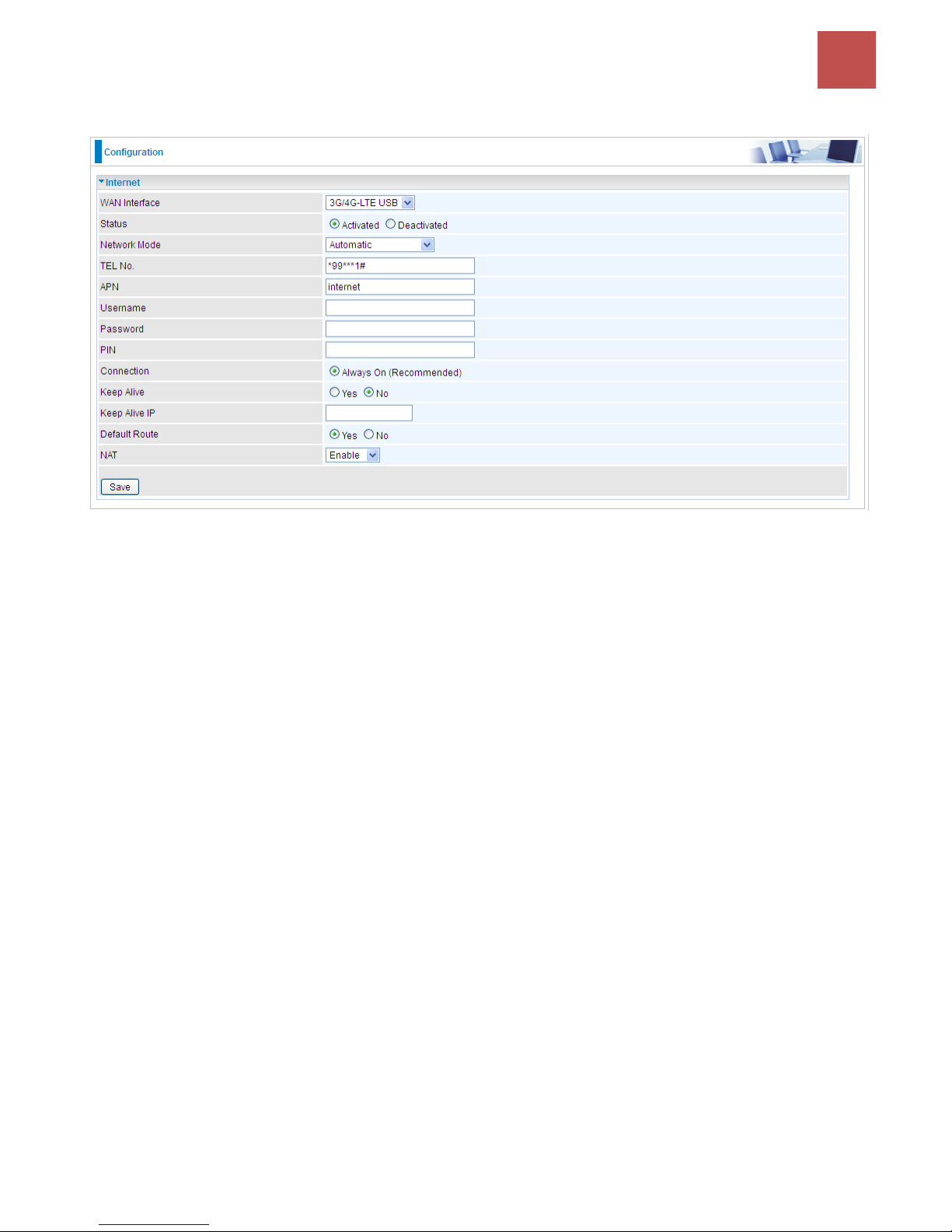

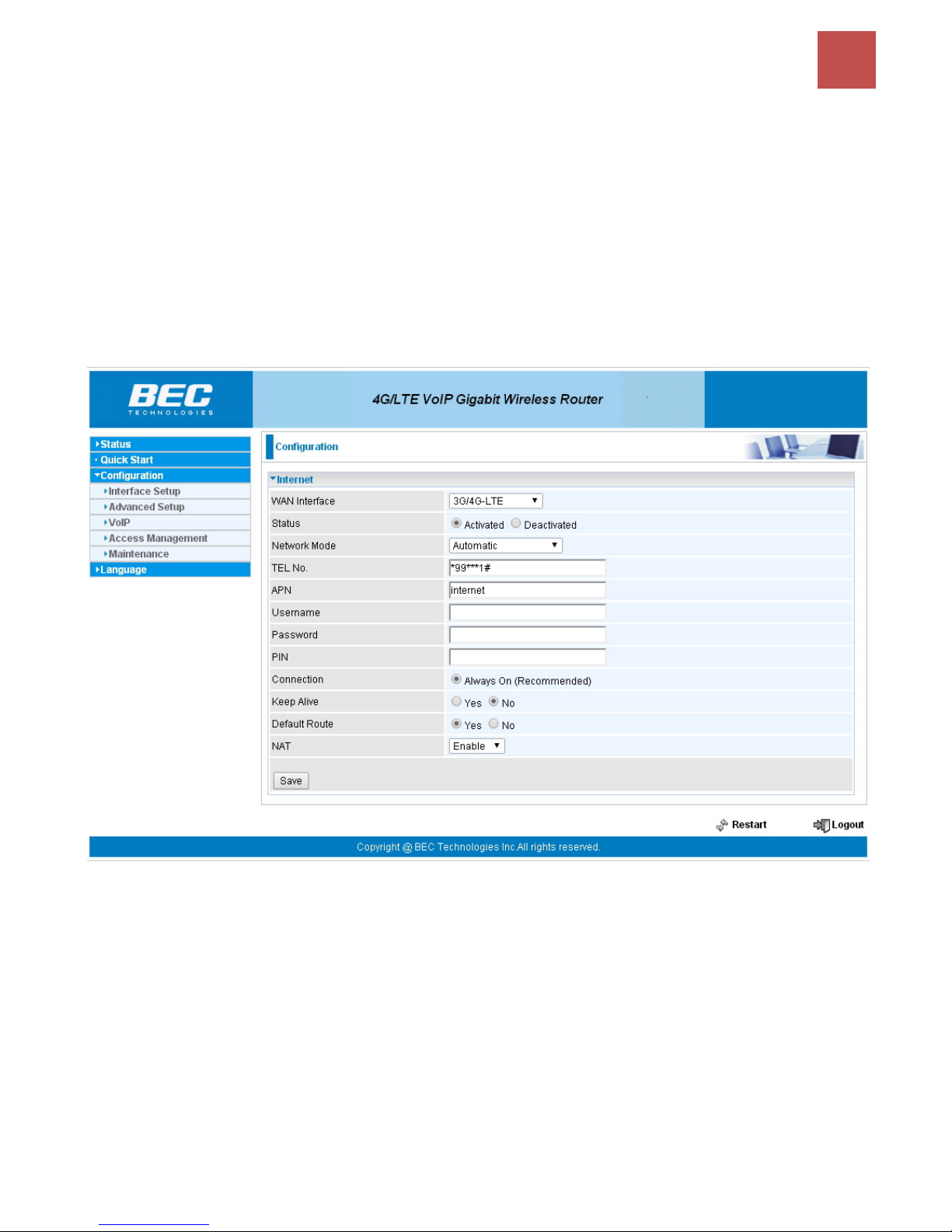

Internet ........................................................................................................................ 46

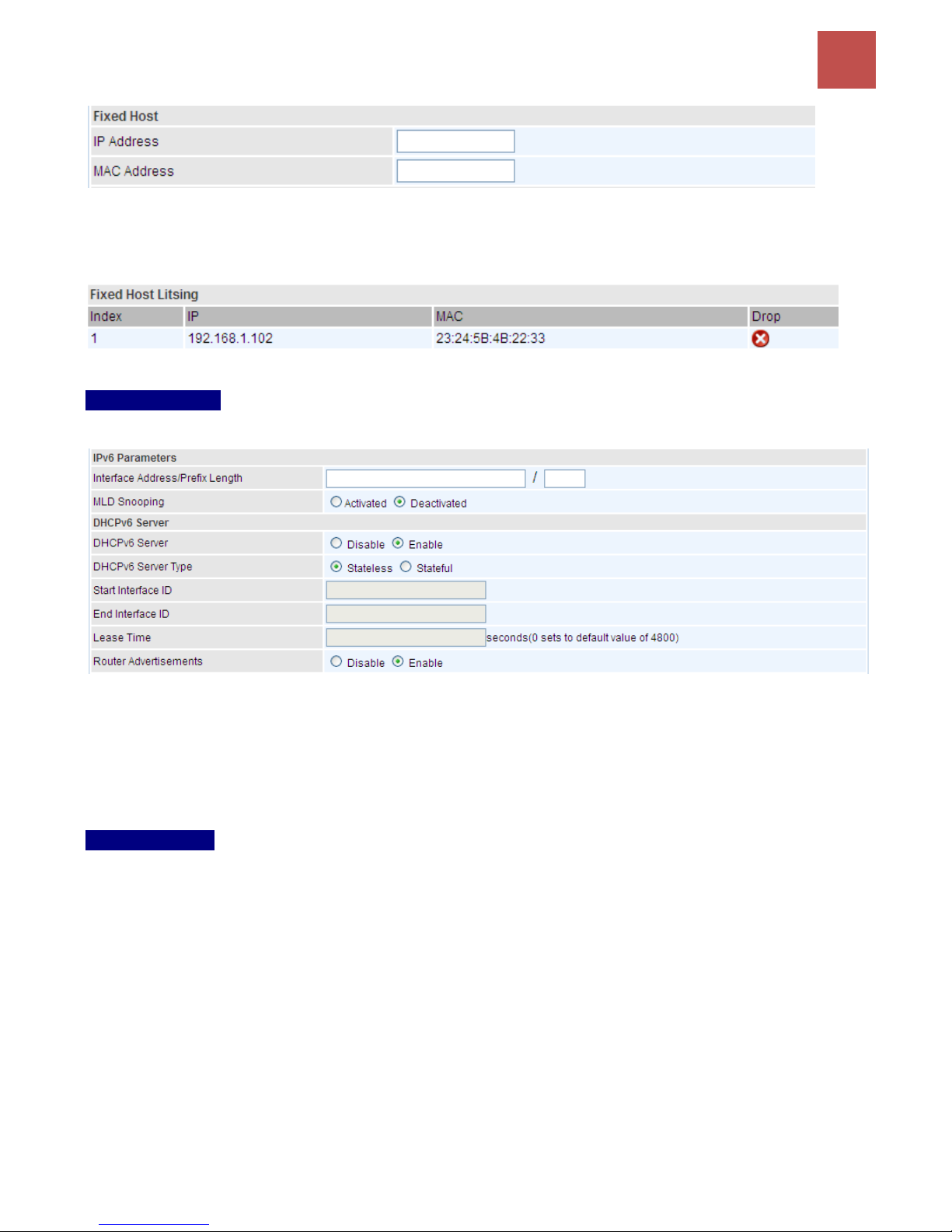

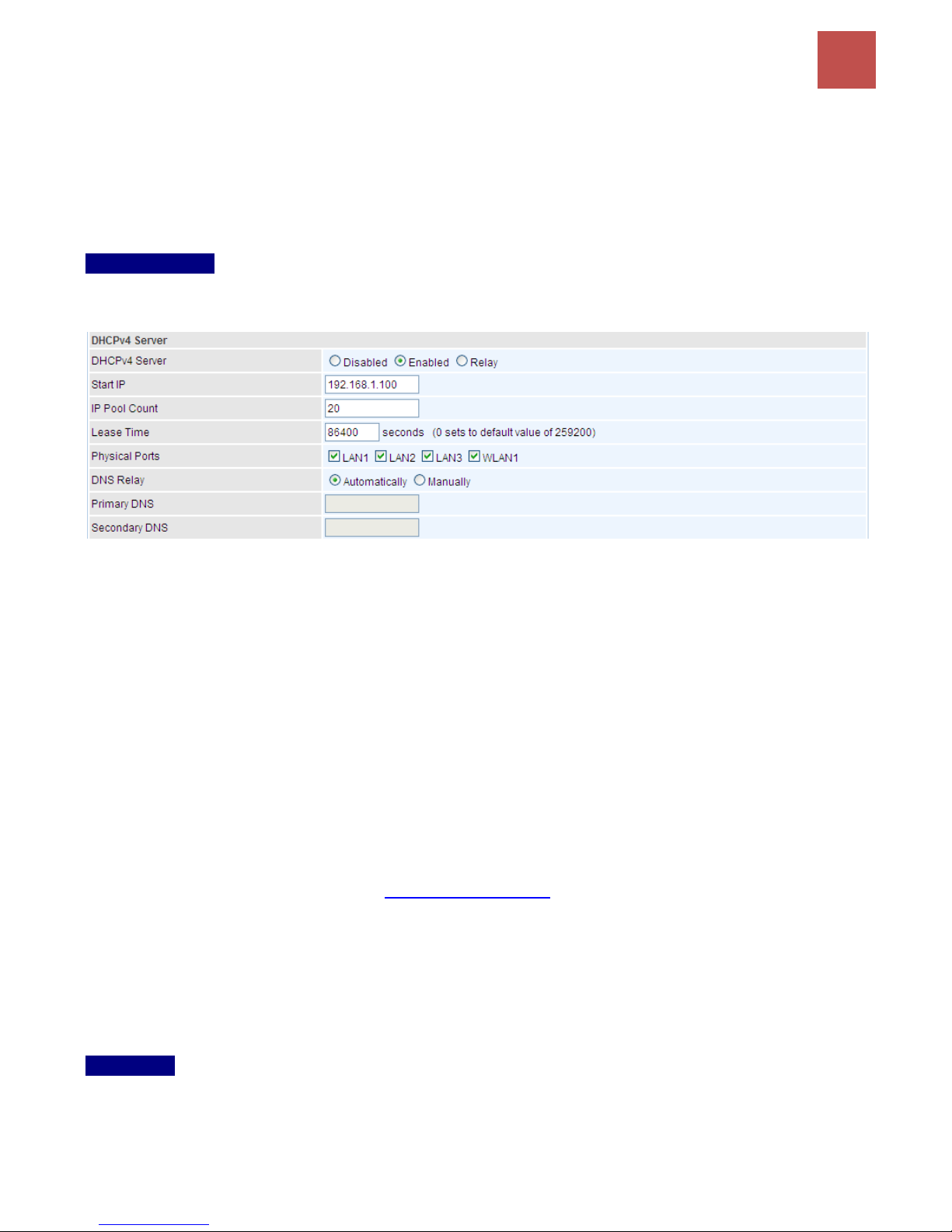

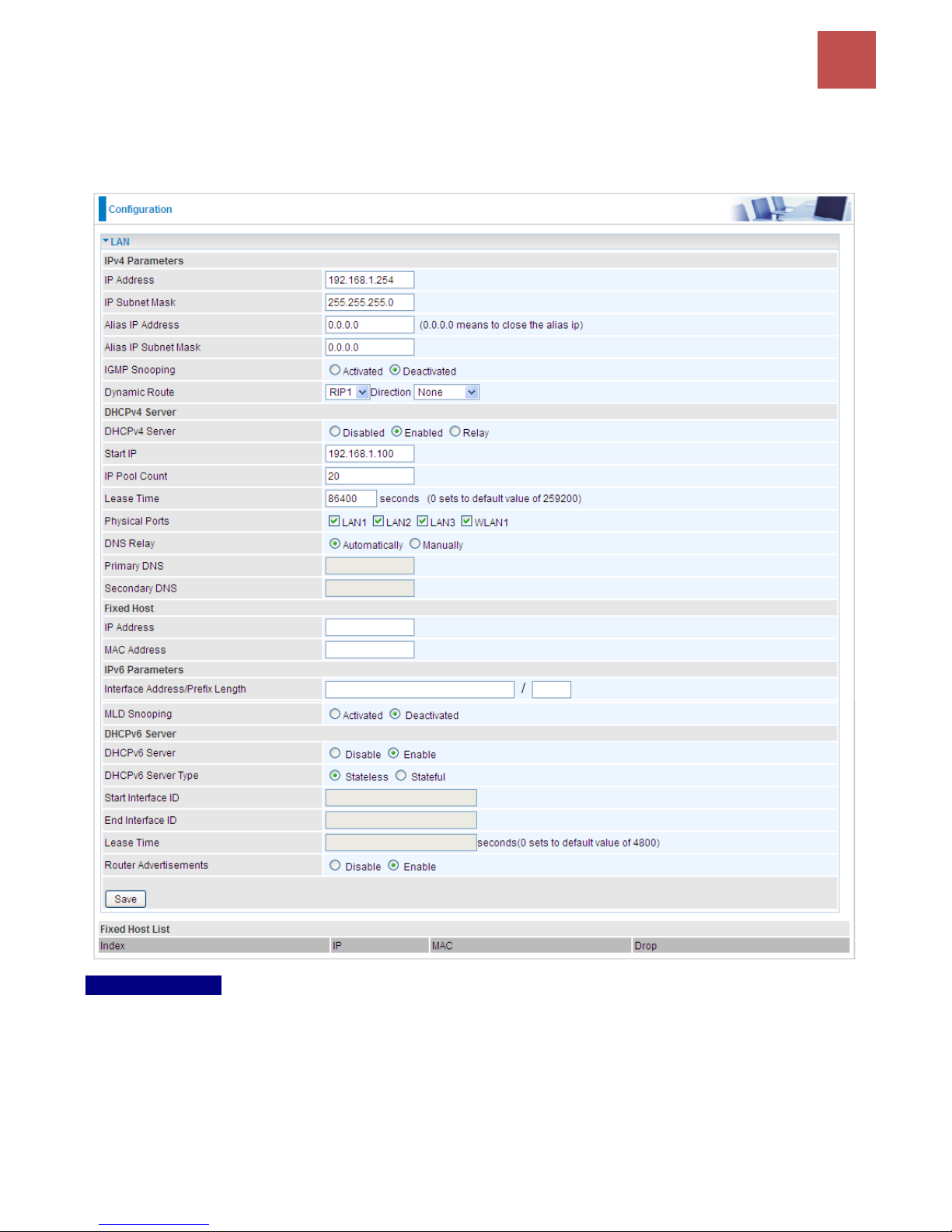

LAN............................................................................................................................... 52

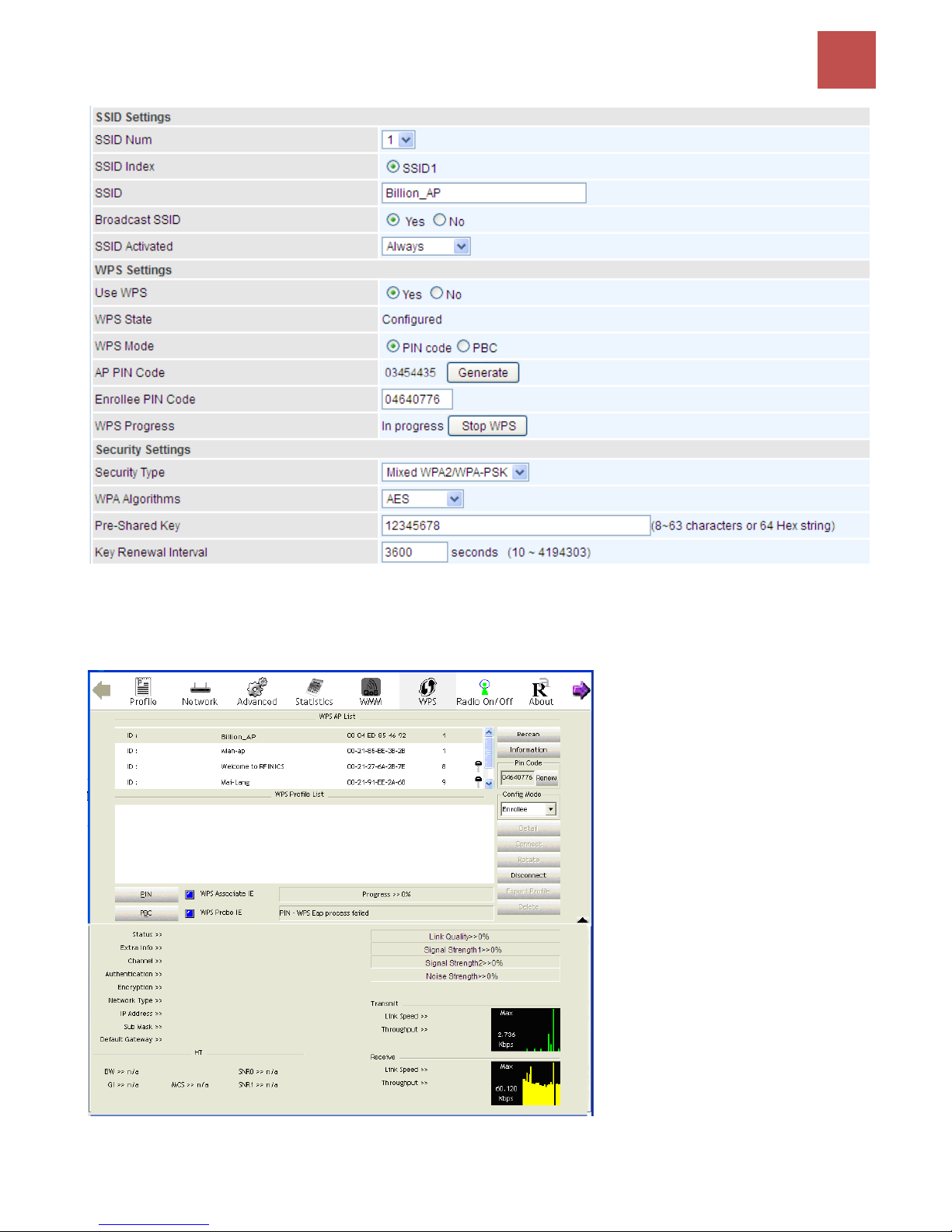

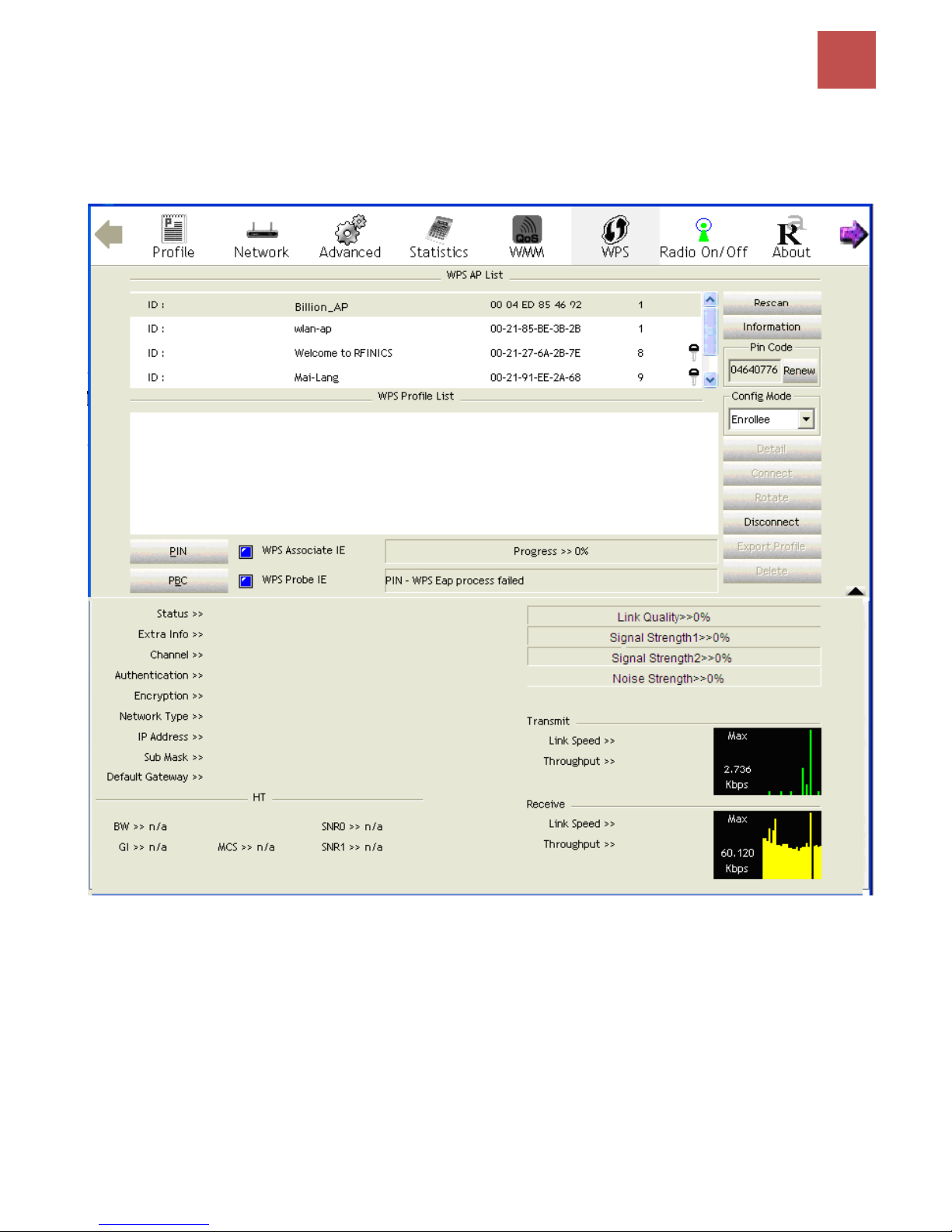

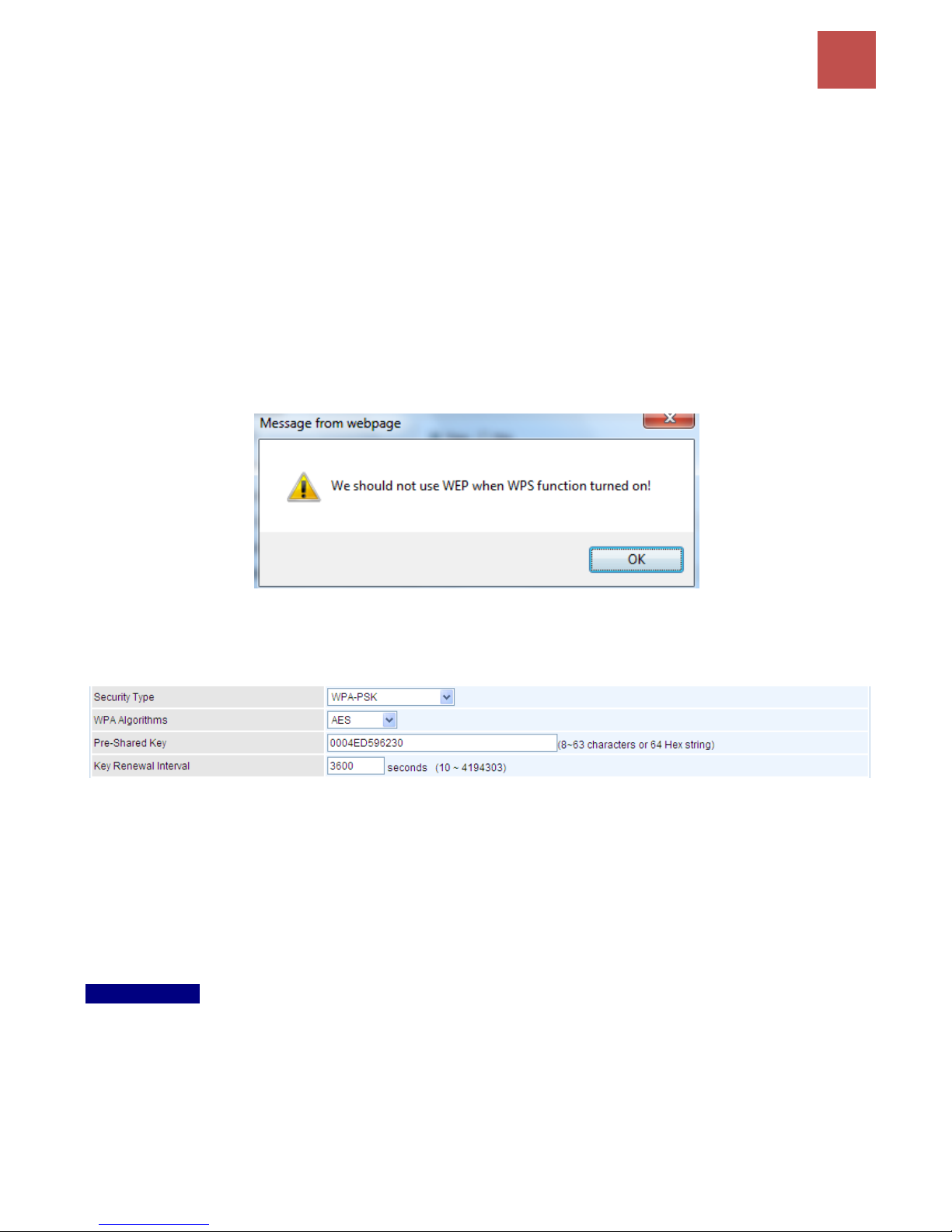

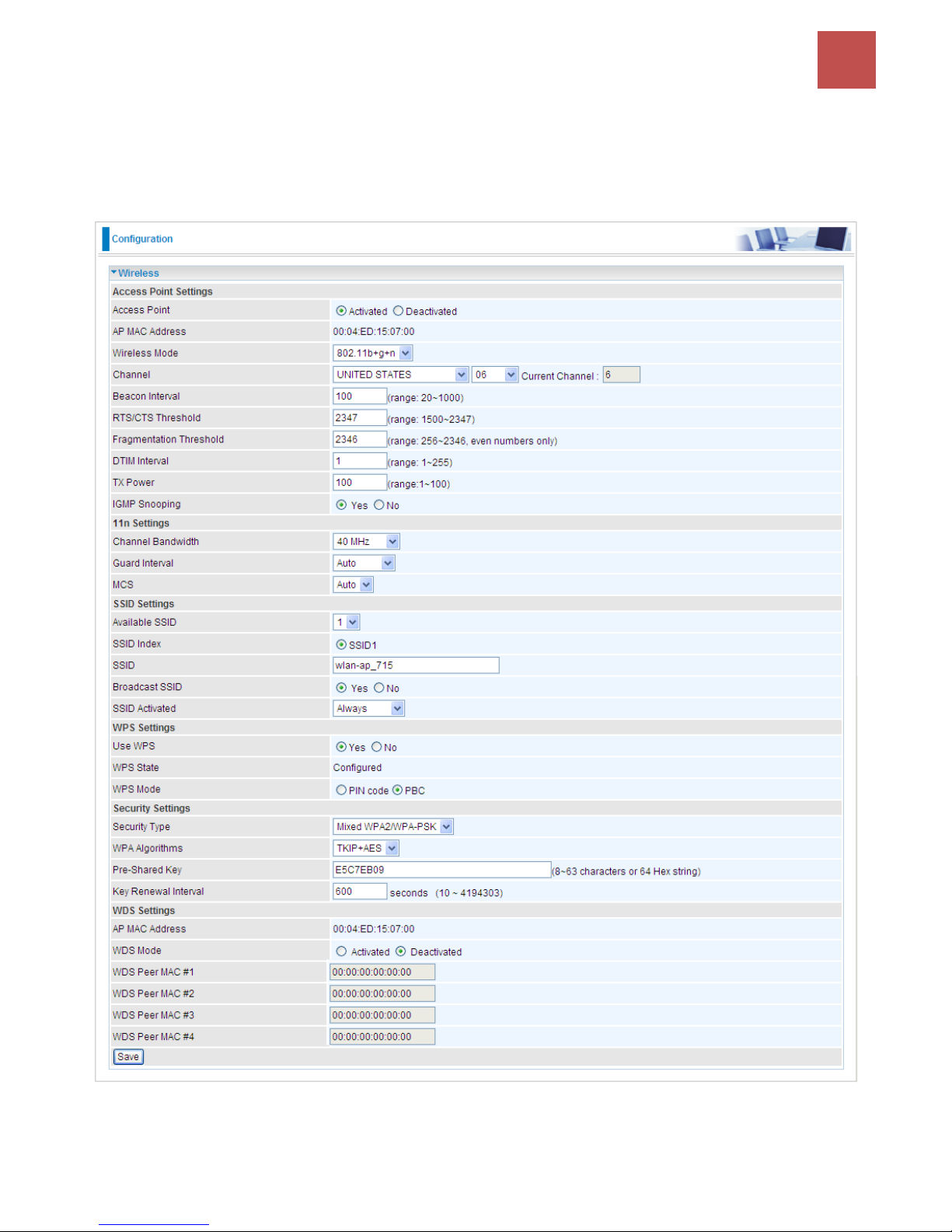

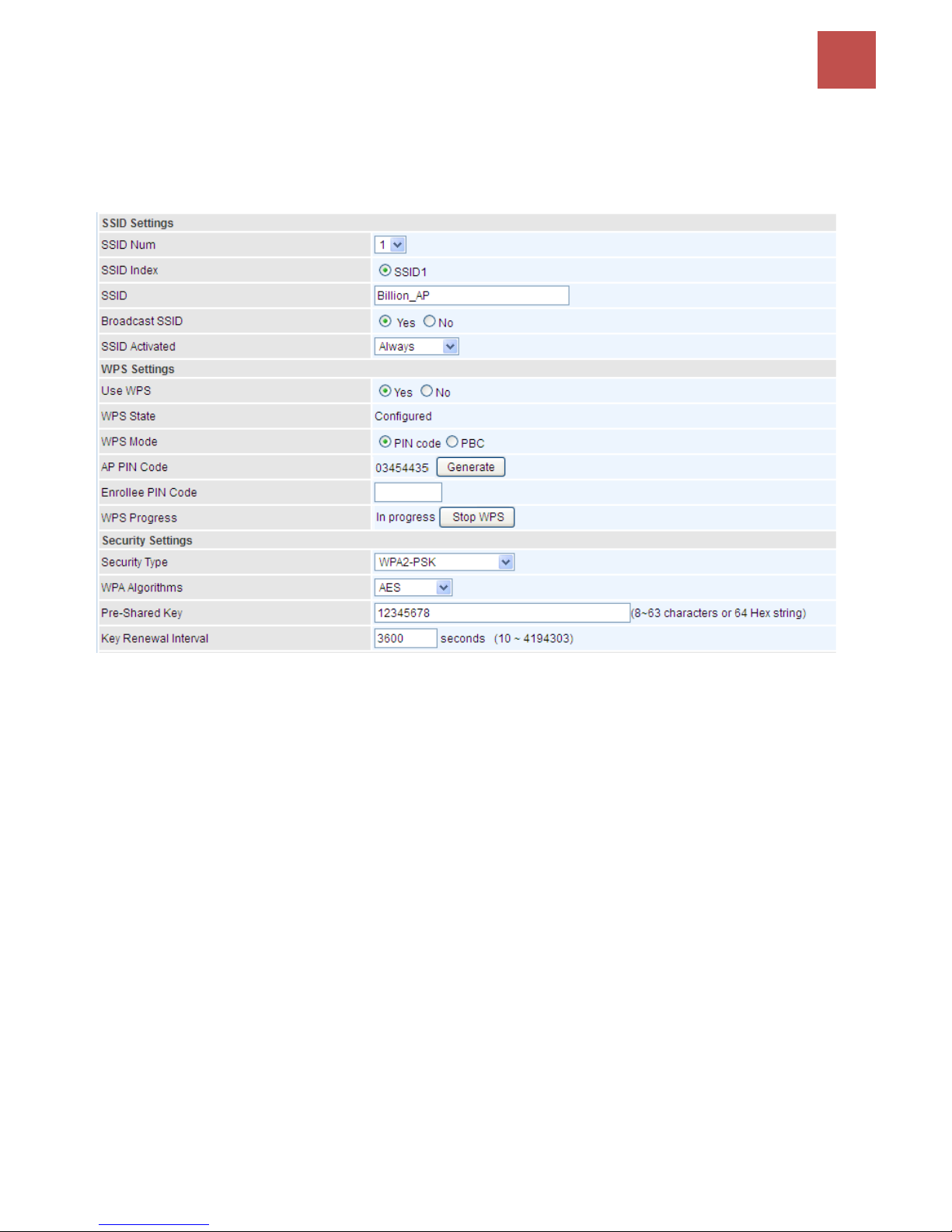

Wireless ........................................................................................................................ 56

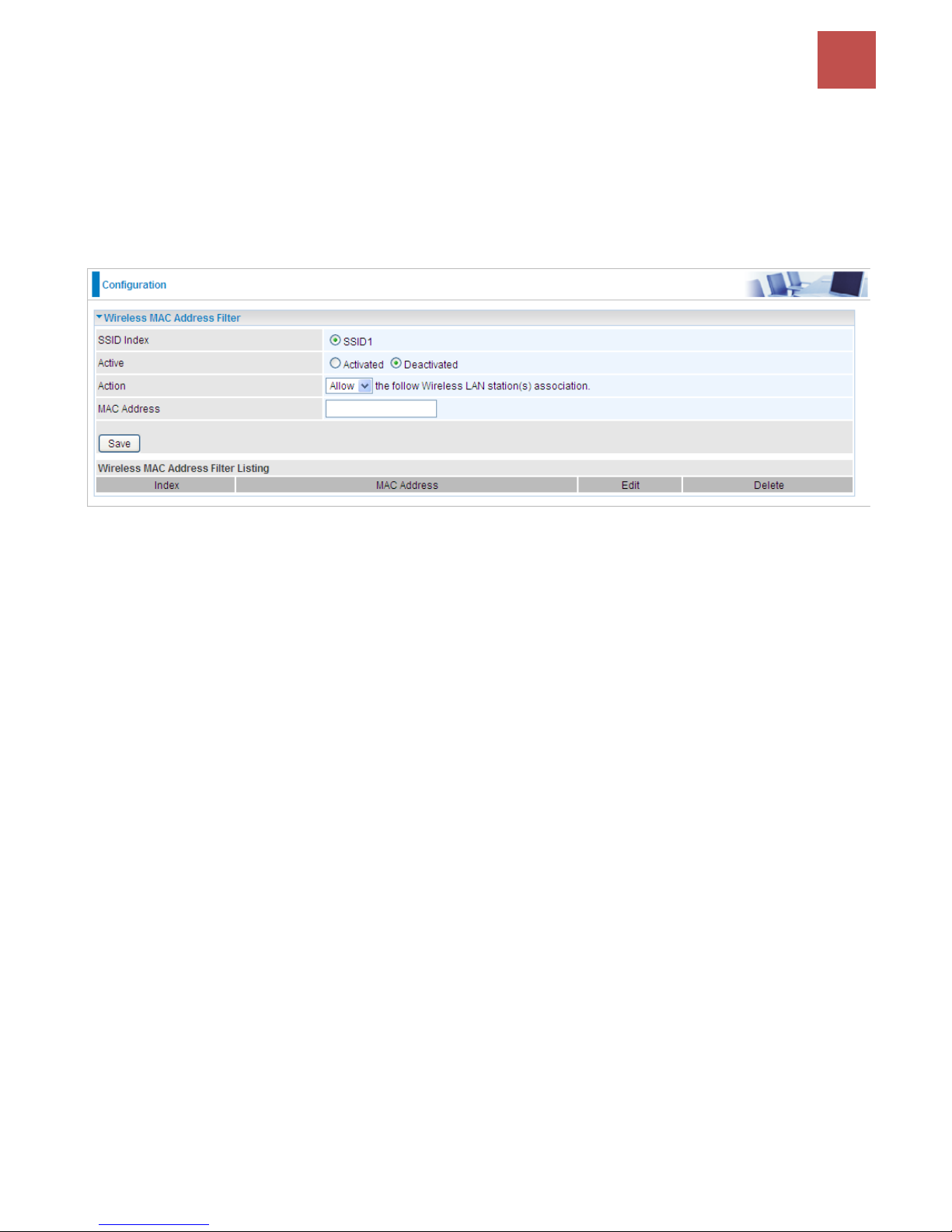

Wireless MAC Filter ...................................................................................................... 67
Advanced Setup ................................................................................................. 68

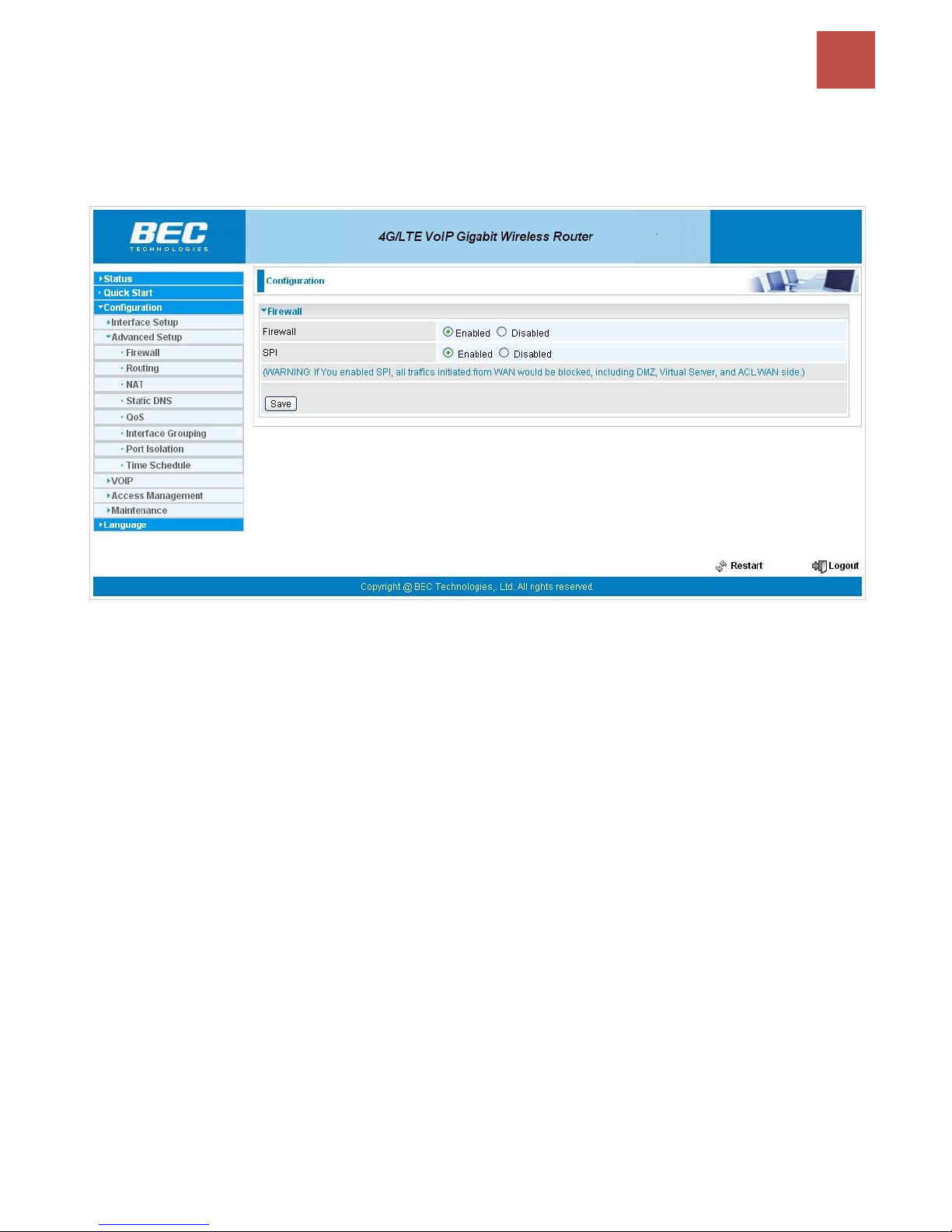

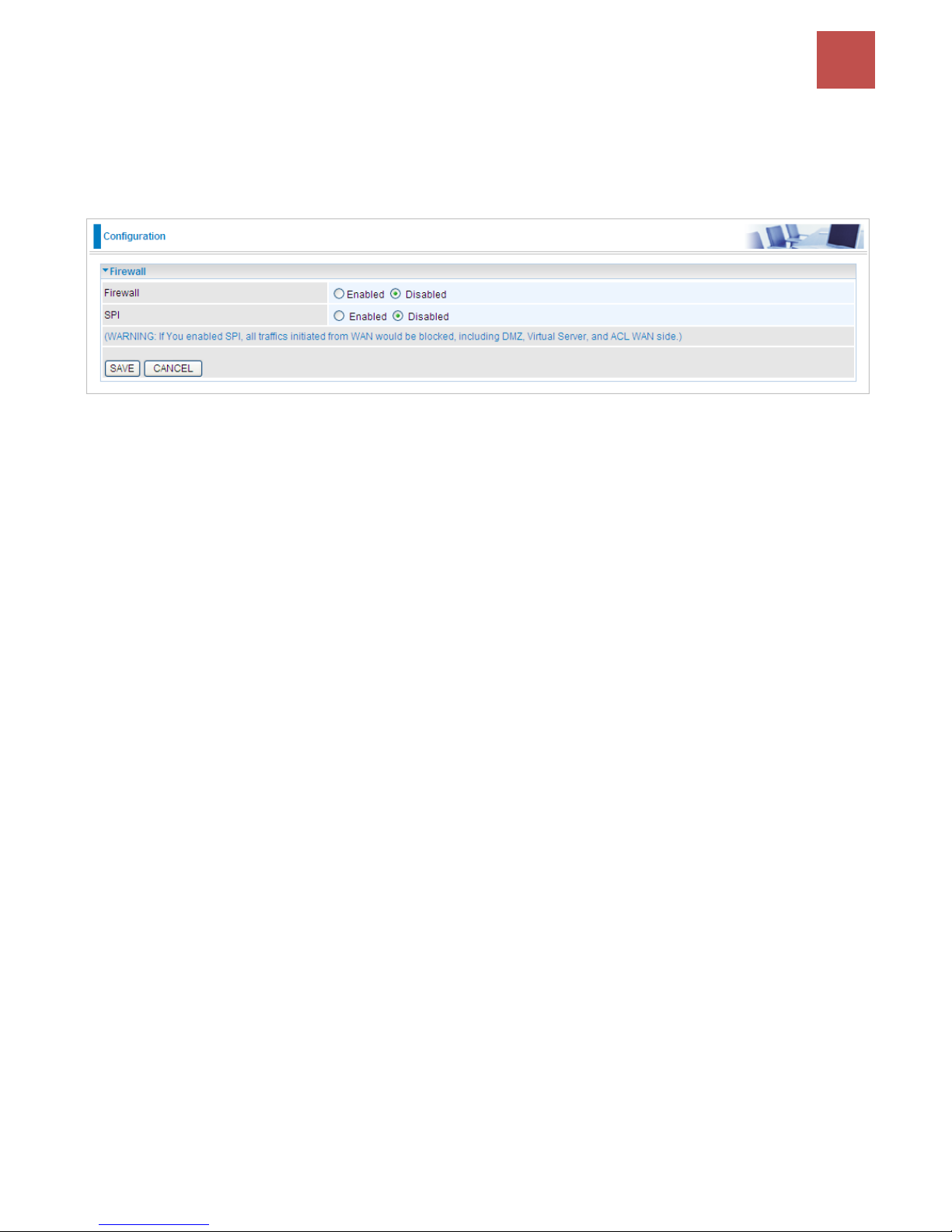

Firewall......................................................................................................................... 69
Routing ......................................................................................................................... 70

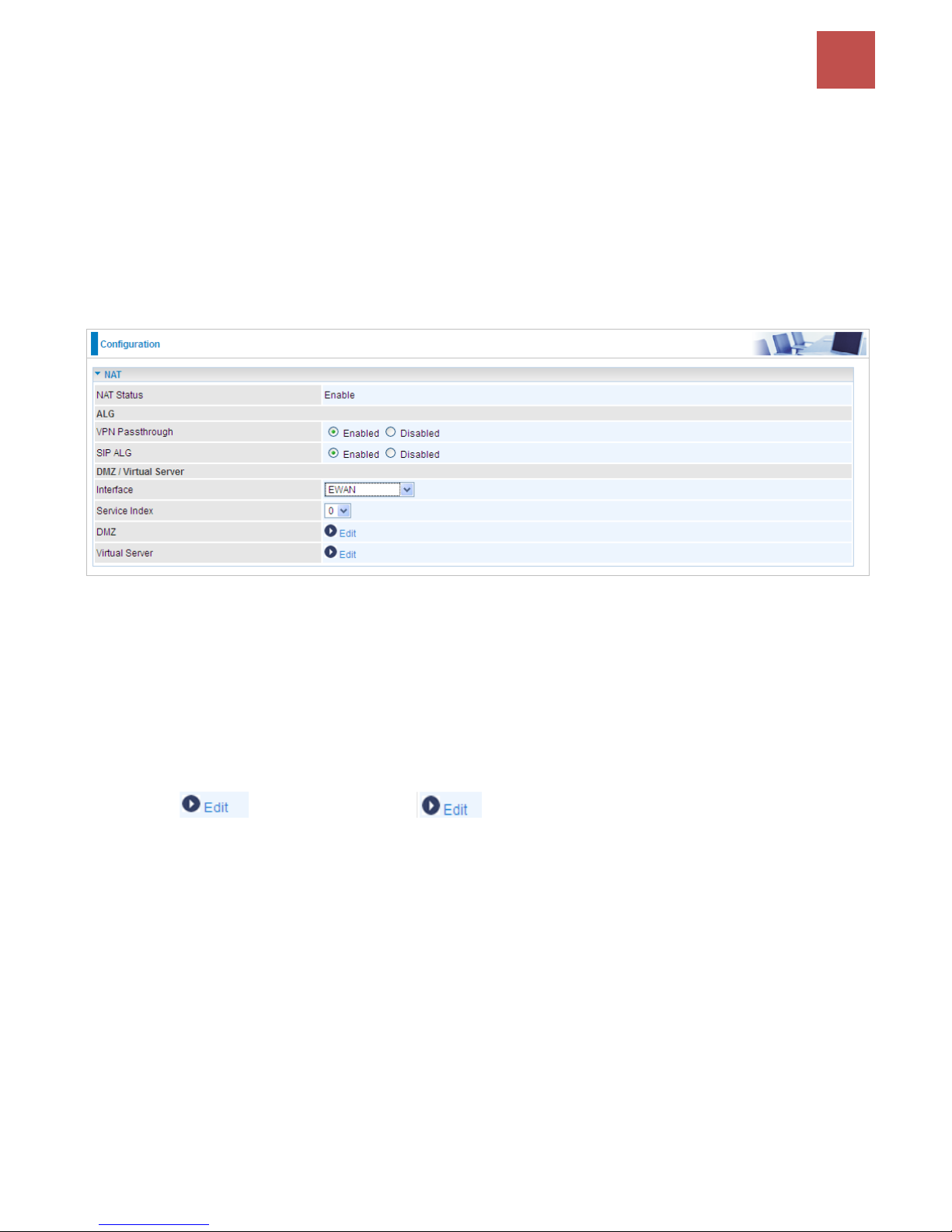

NAT ............................................................................................................................... 71

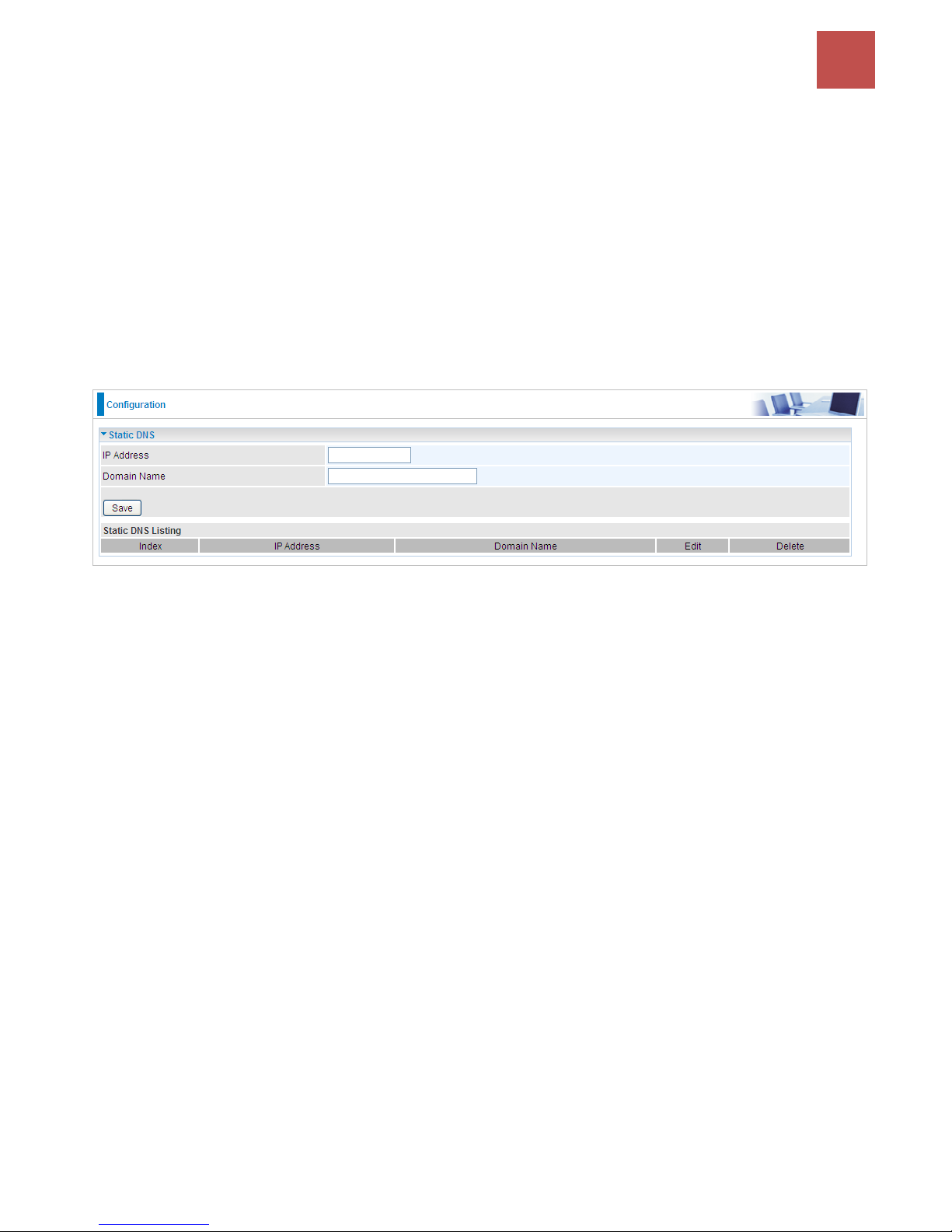

Static DNS..................................................................................................................... 76

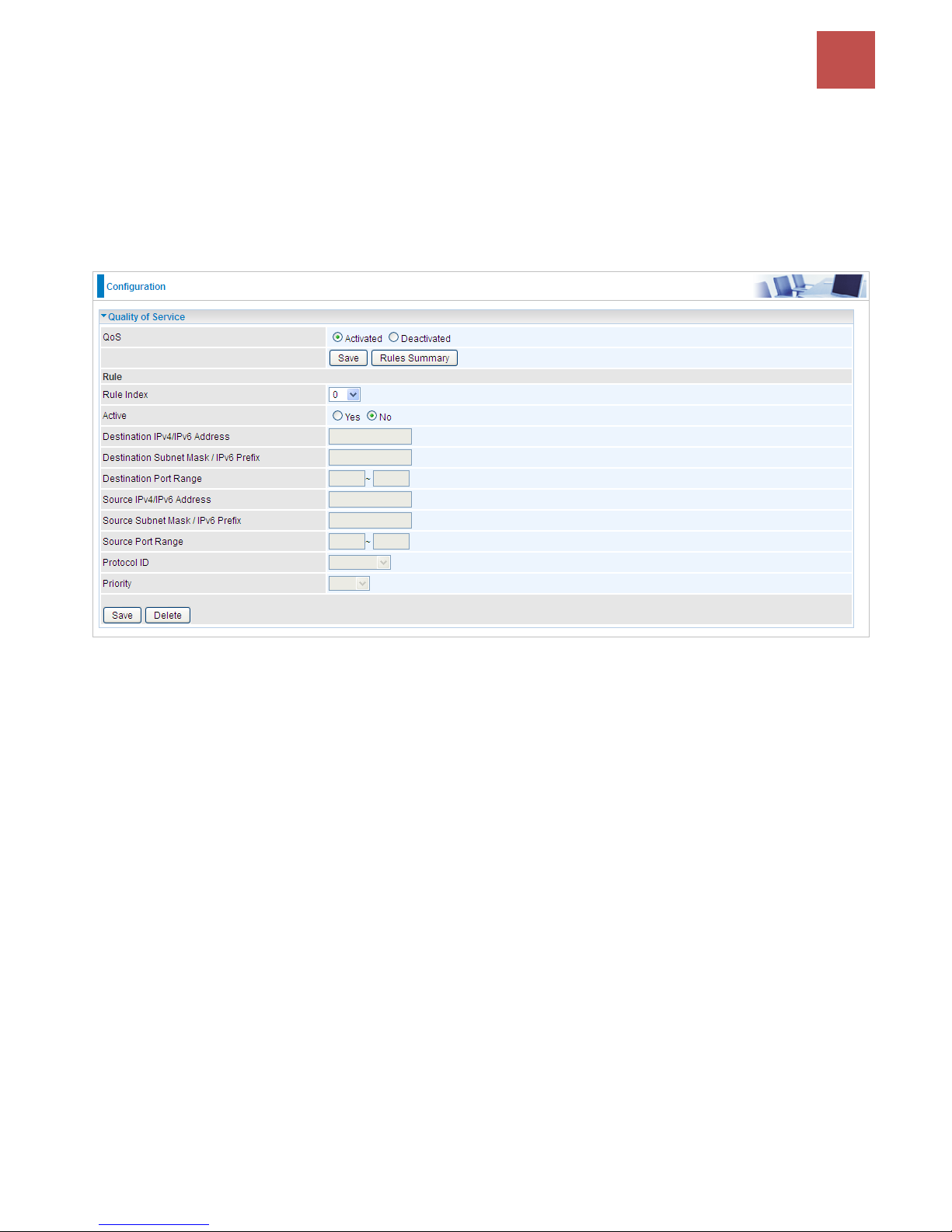

QoS ............................................................................................................................... 77

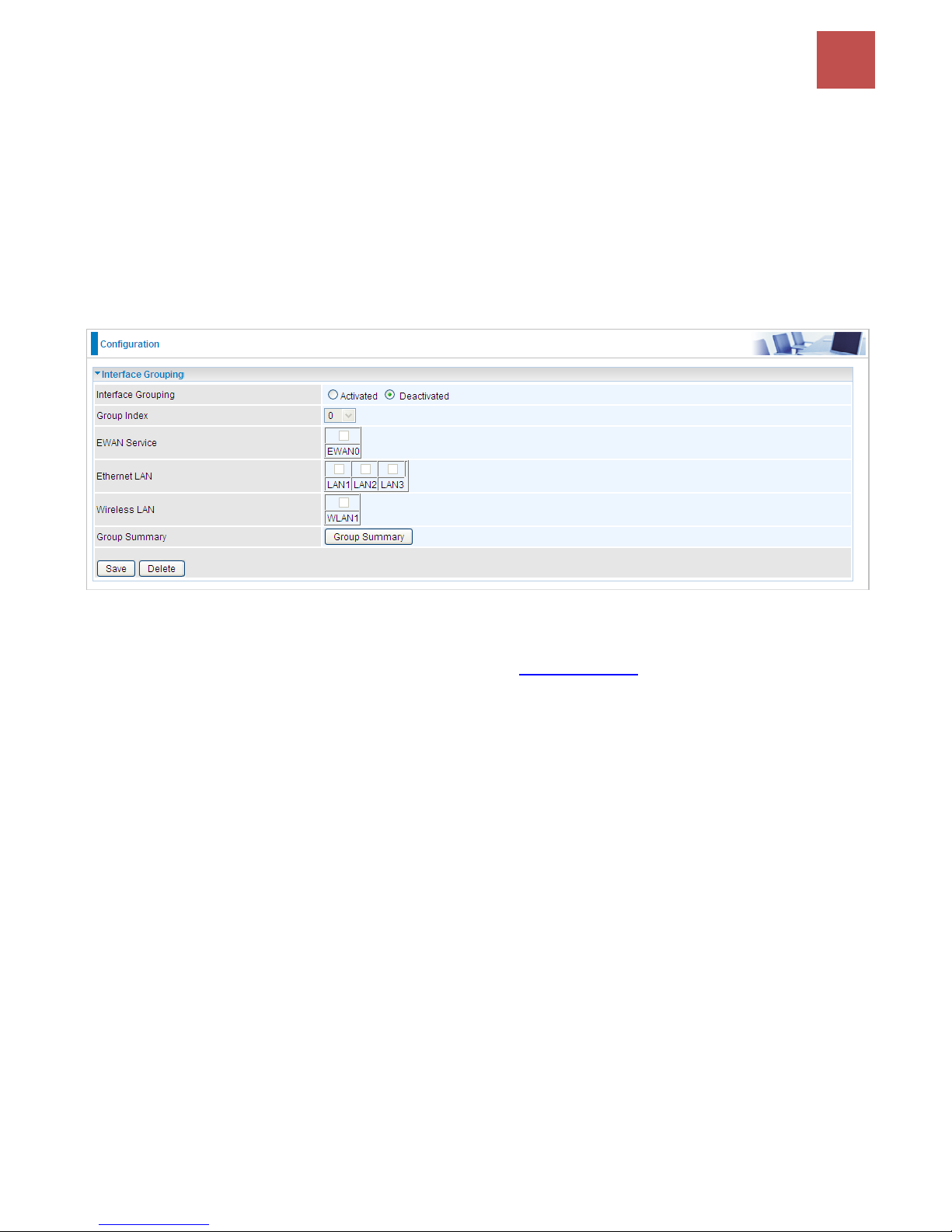

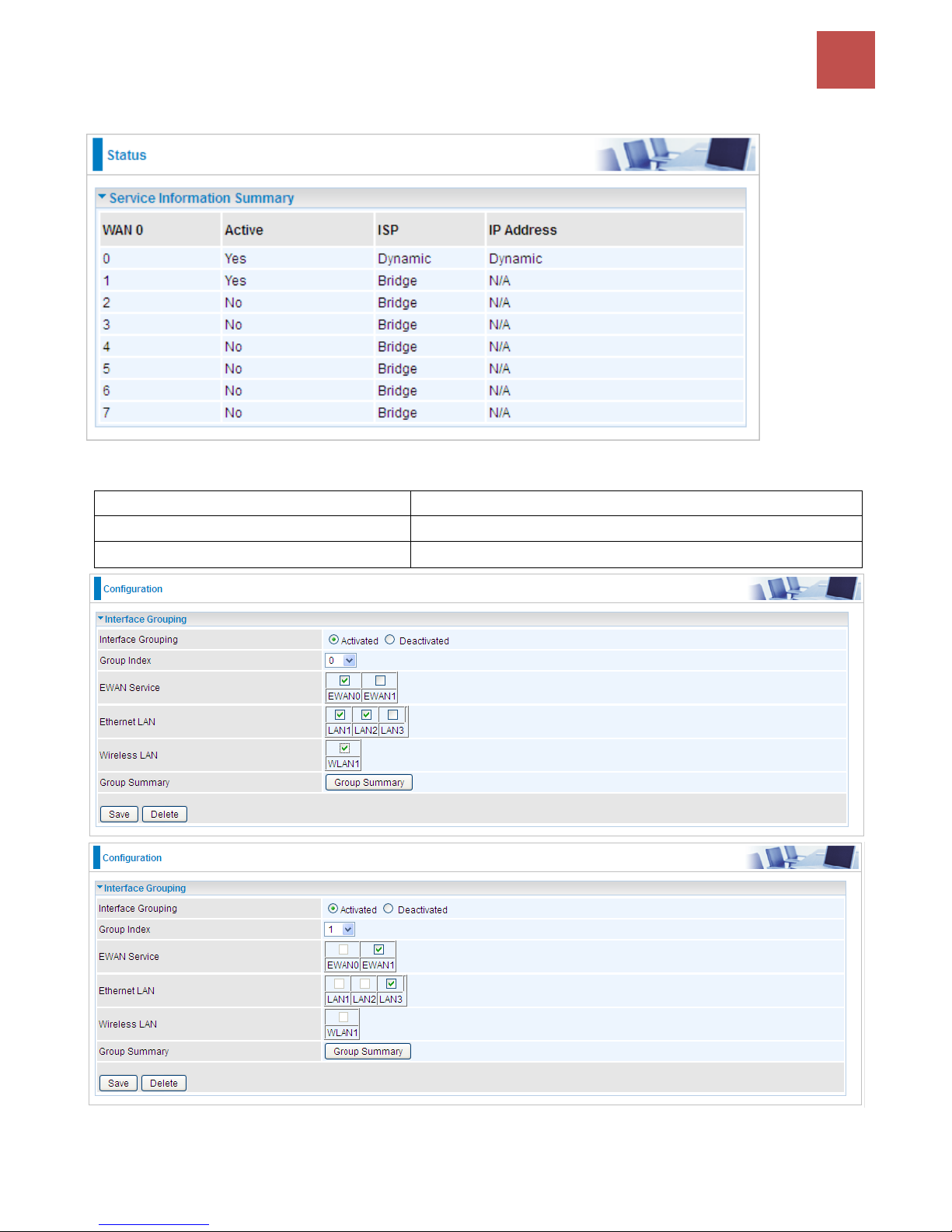

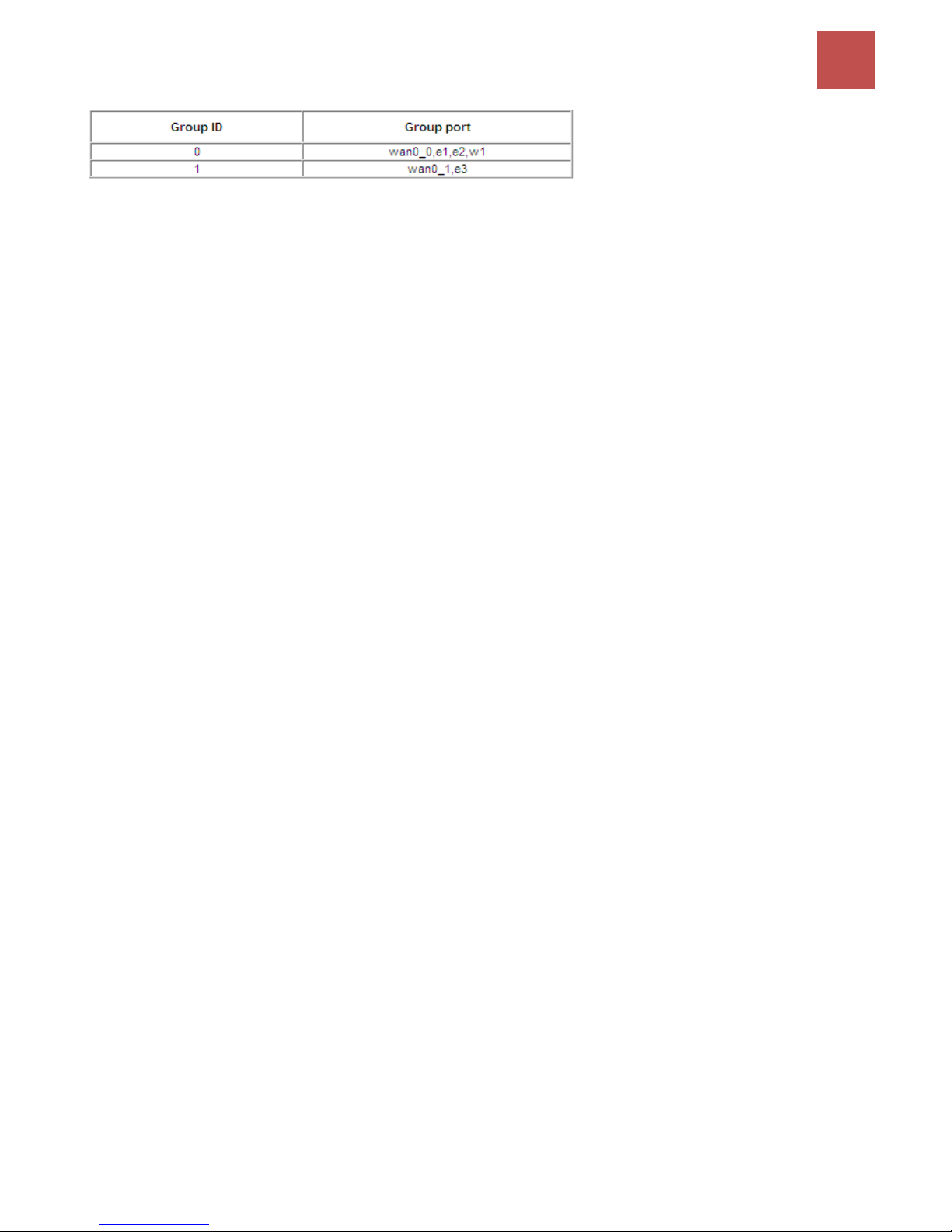

Interface Grouping ....................................................................................................... 78

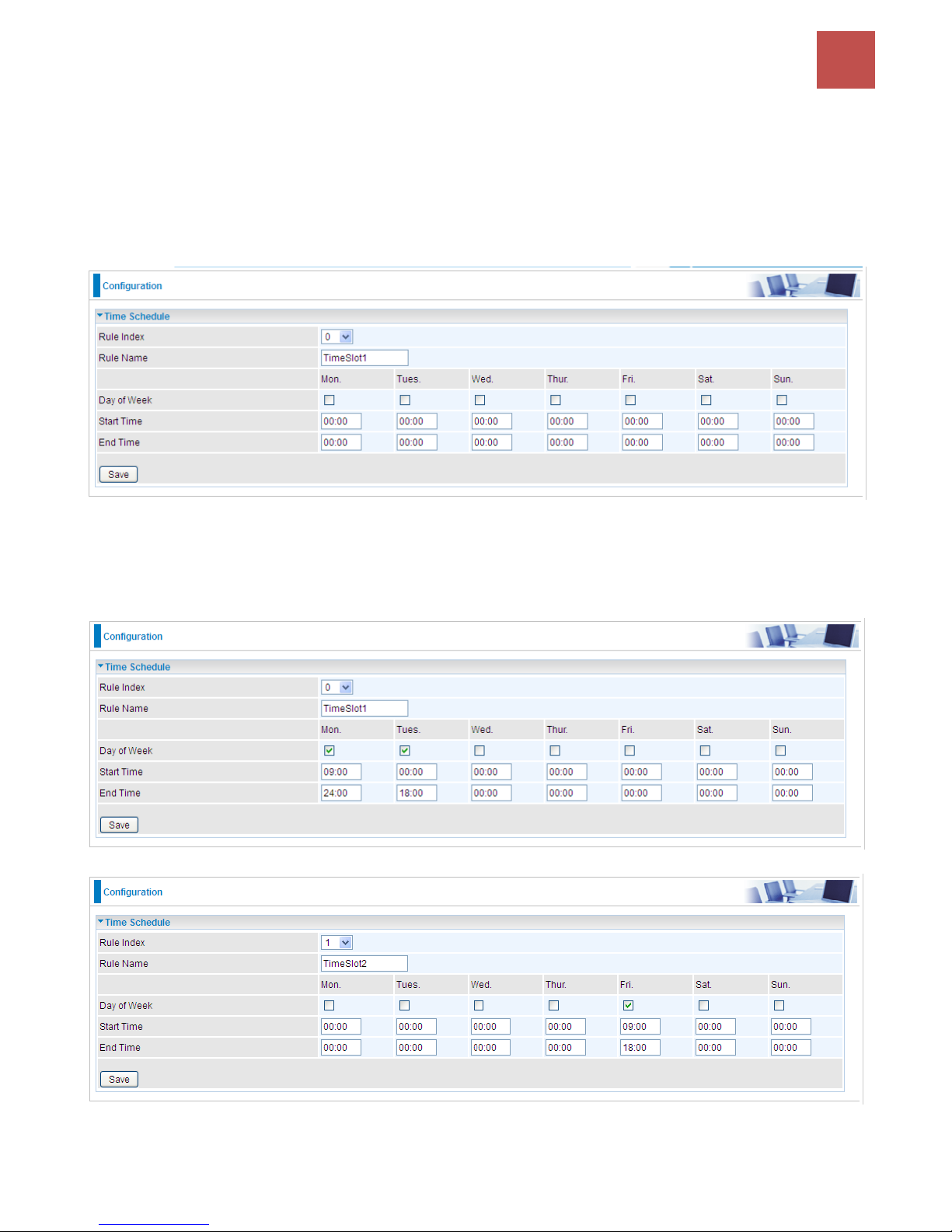

Time Schedule .............................................................................................................. 81
VoIP .................................................................................................................... 82

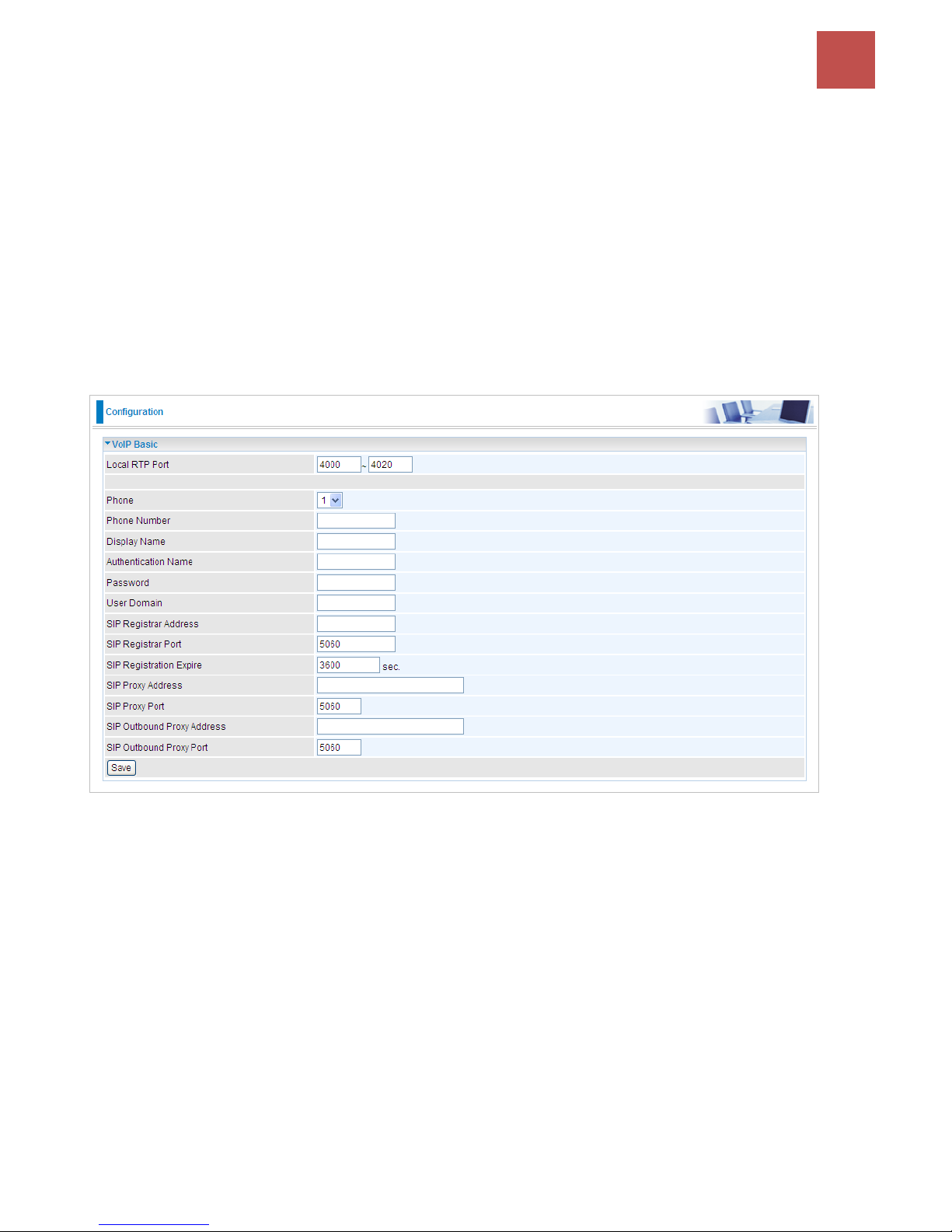

Basic ............................................................................................................................. 82

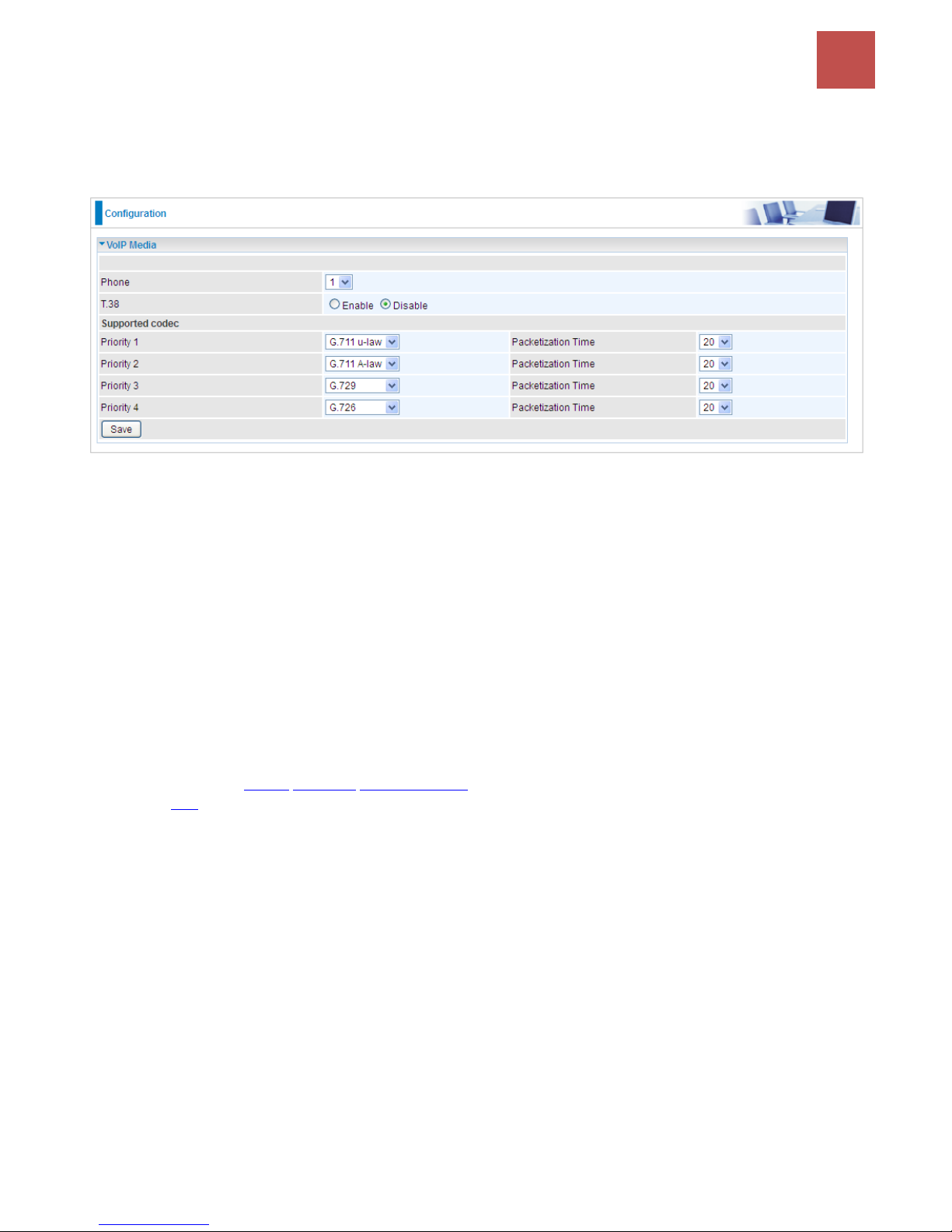

Media ........................................................................................................................... 84

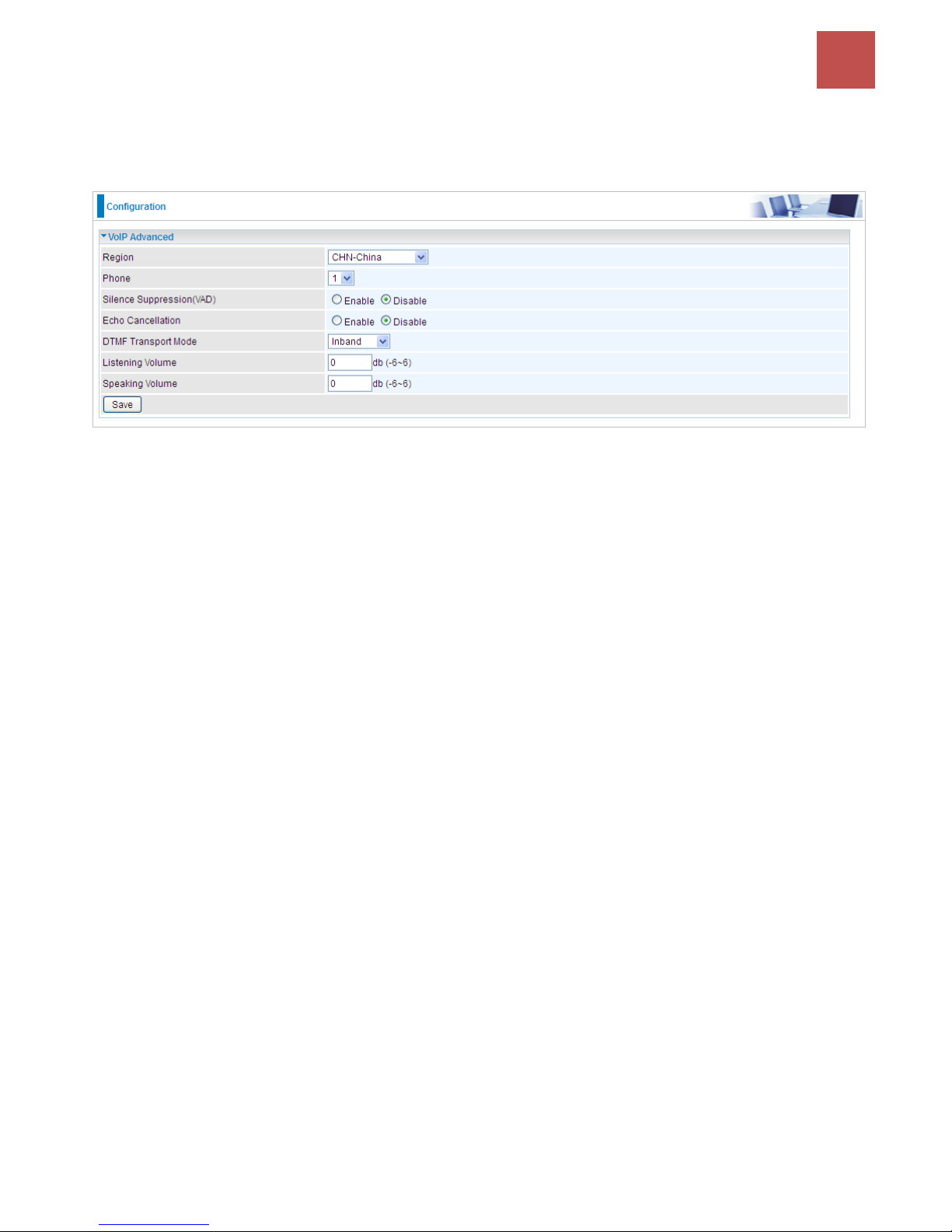

Advanced...................................................................................................................... 85

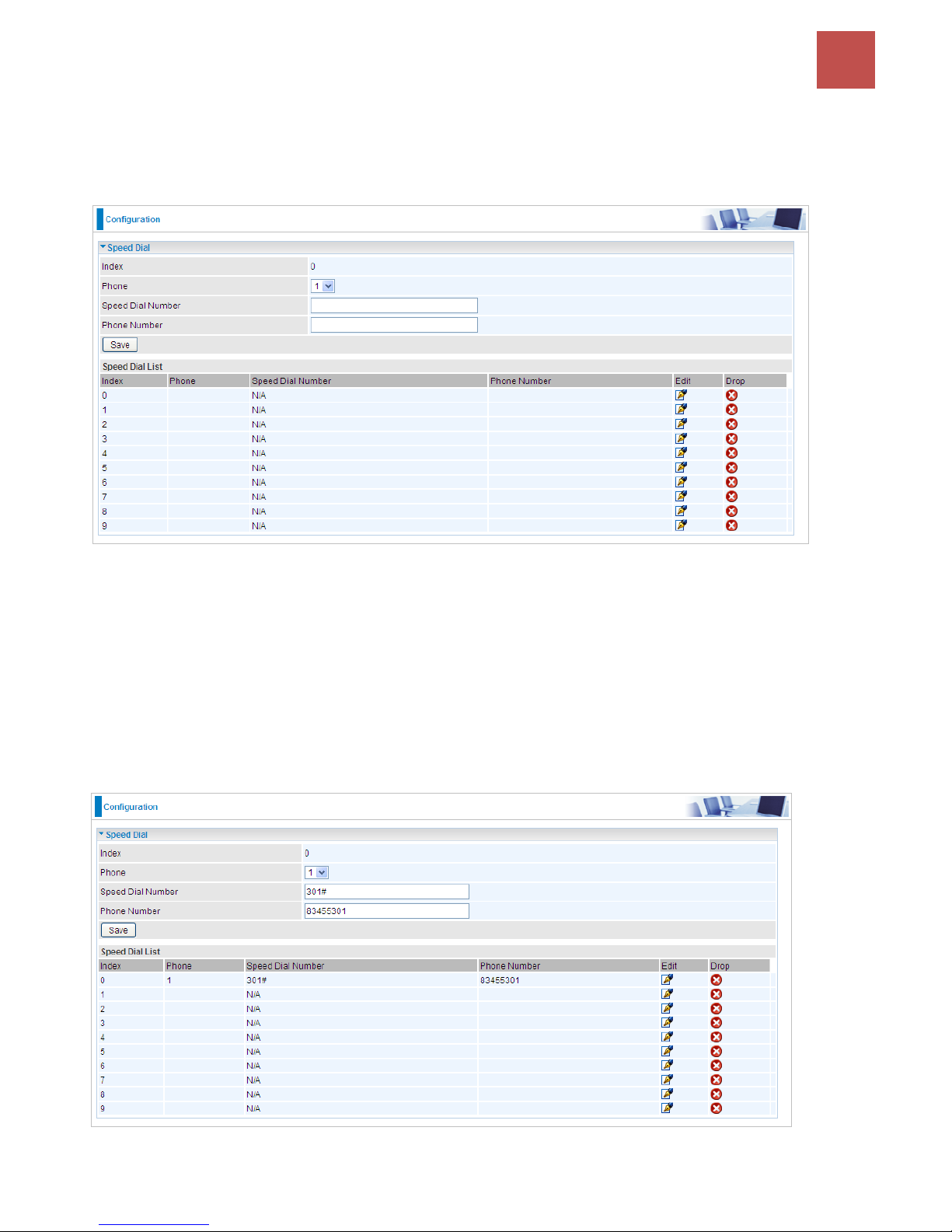

Speed Dial .................................................................................................................... 86

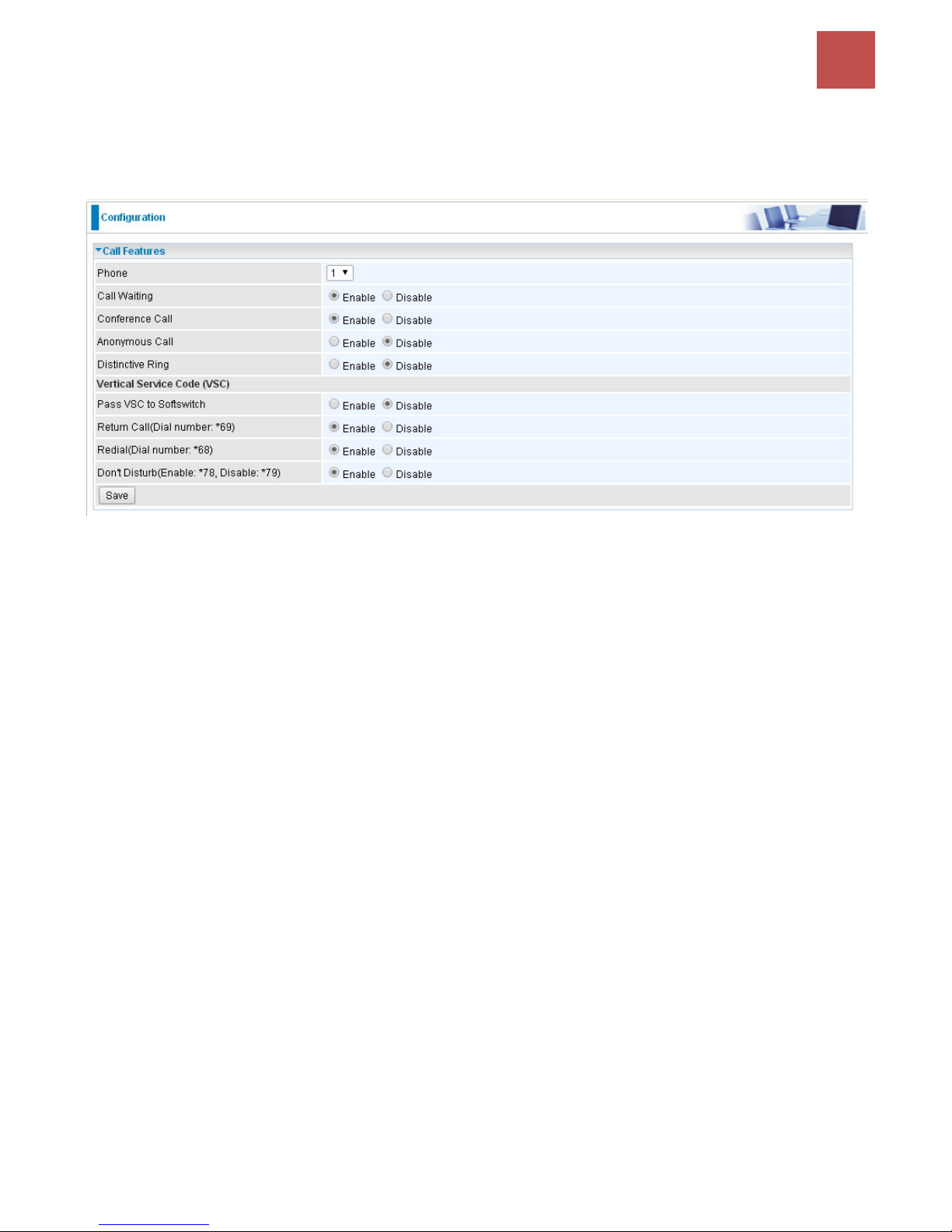

Call Features ................................................................................................................. 87
Access Management .......................................................................................... 90

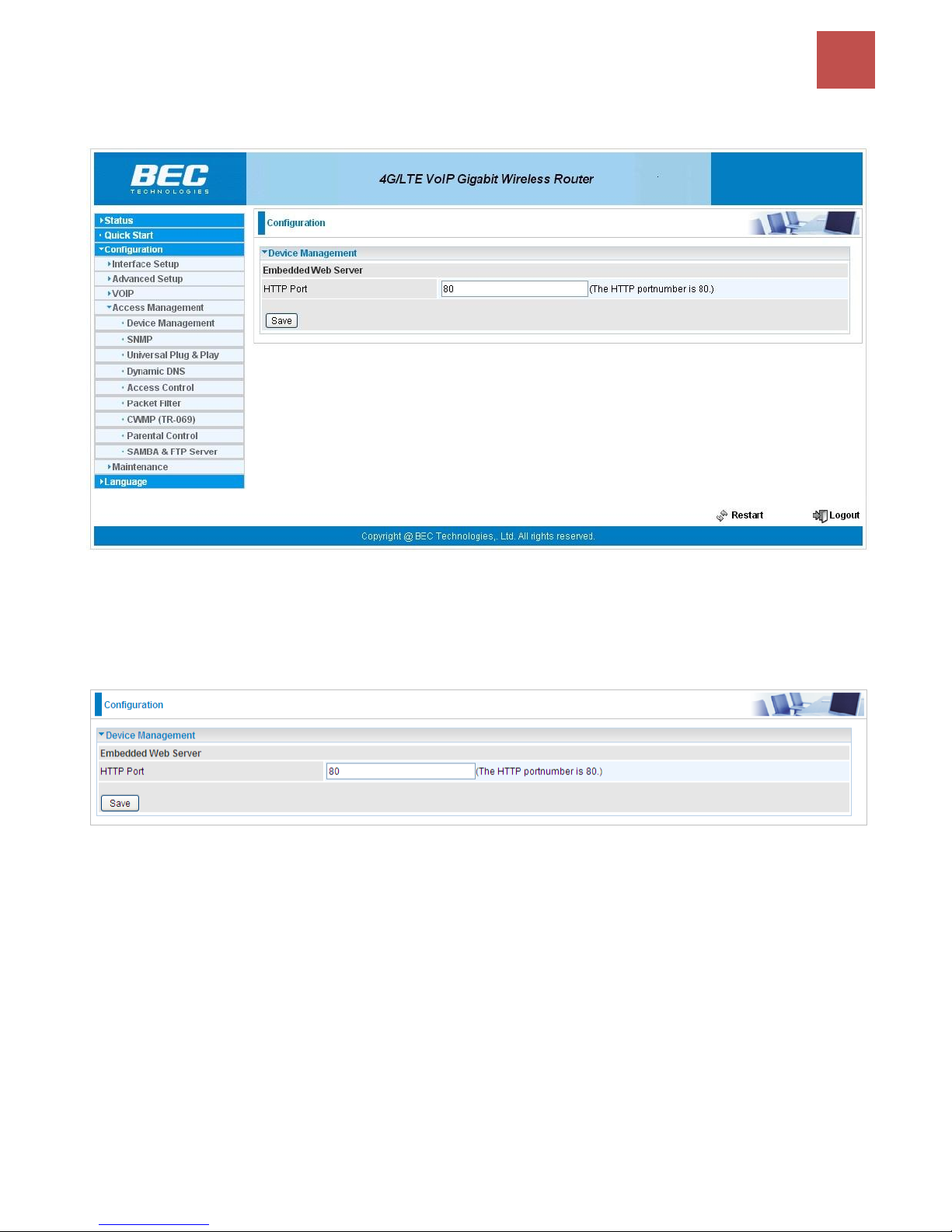

Device Management .................................................................................................... 90

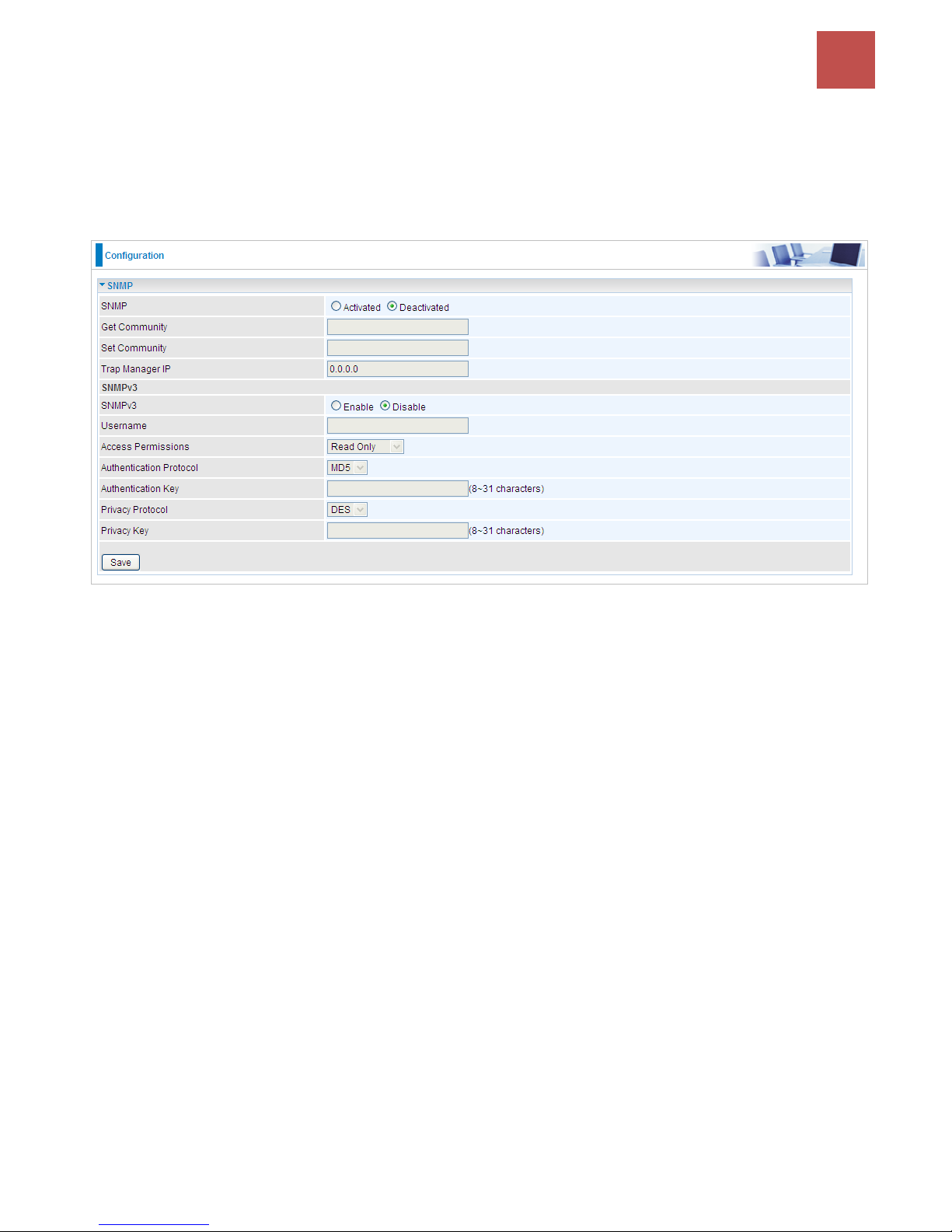

SNMP ........................................................................................................................... 91

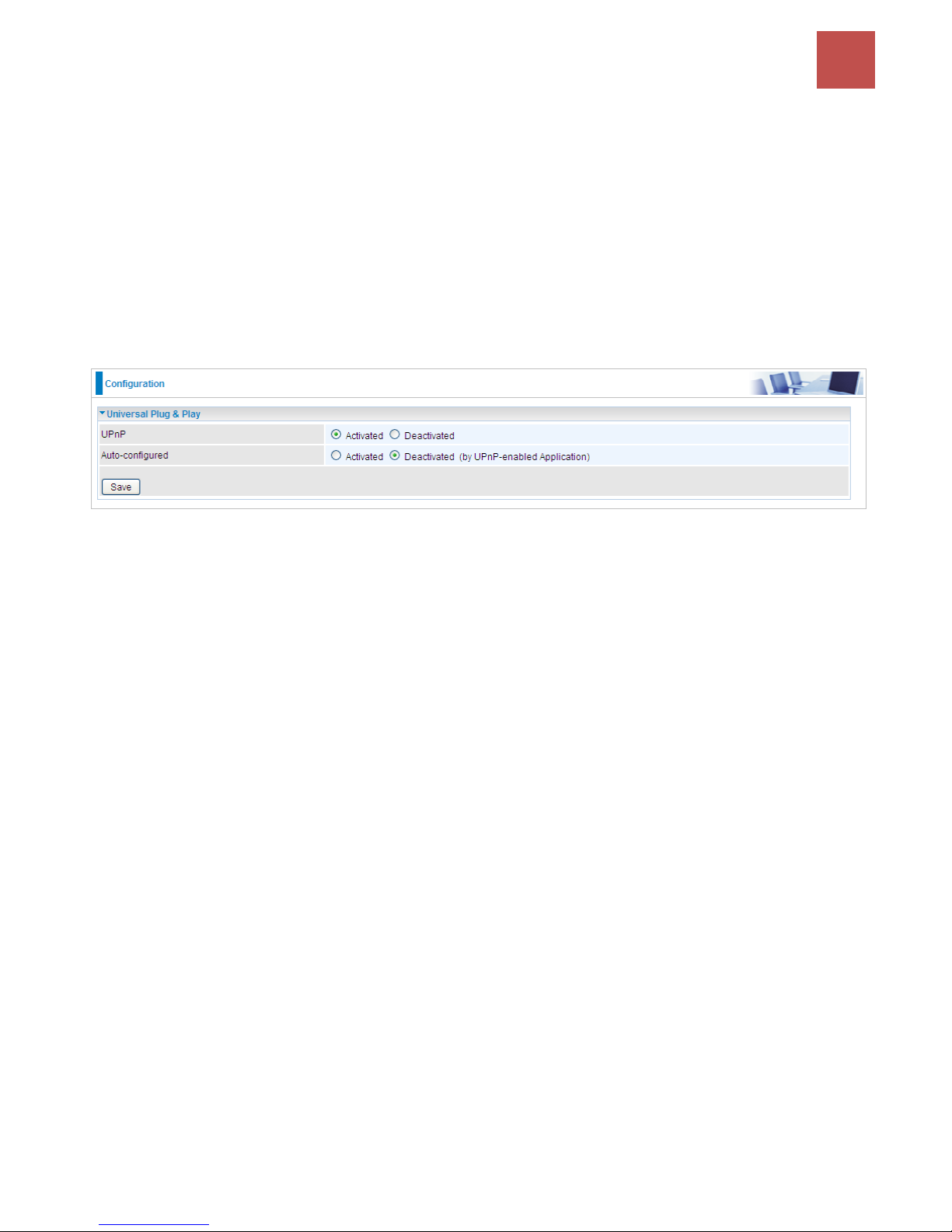

Universal Plug & Play ................................................................................................... 92

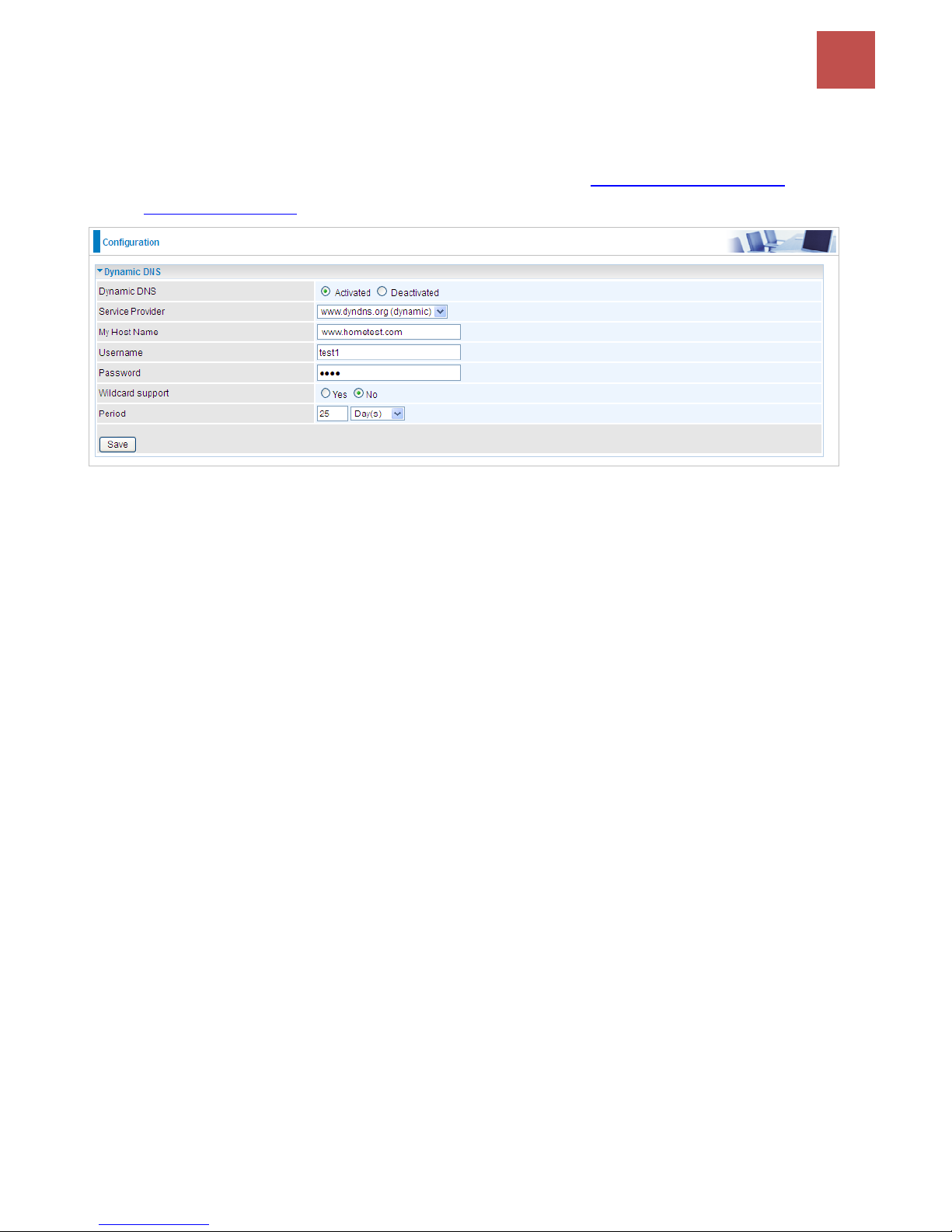

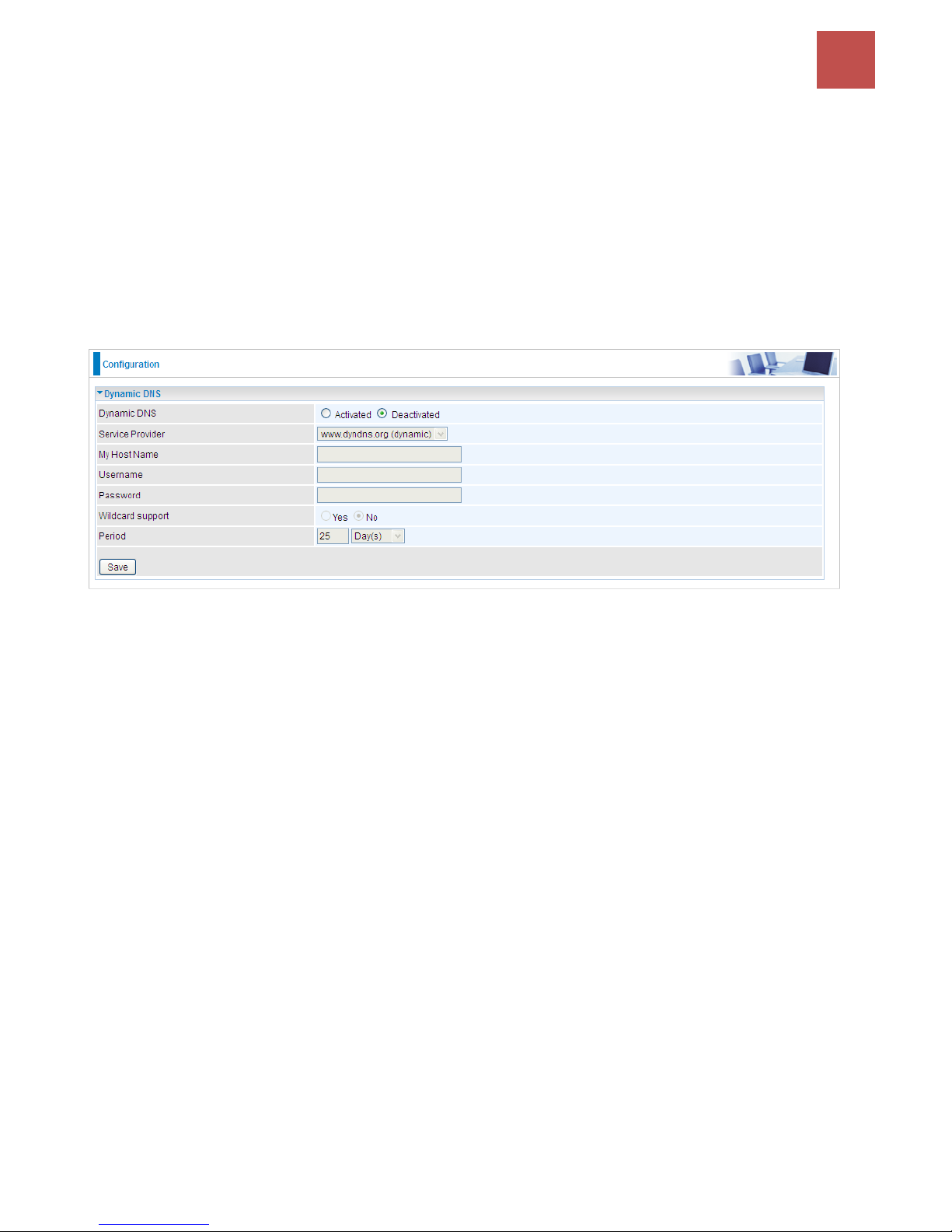

Dynamic DNS ................................................................................................................ 93

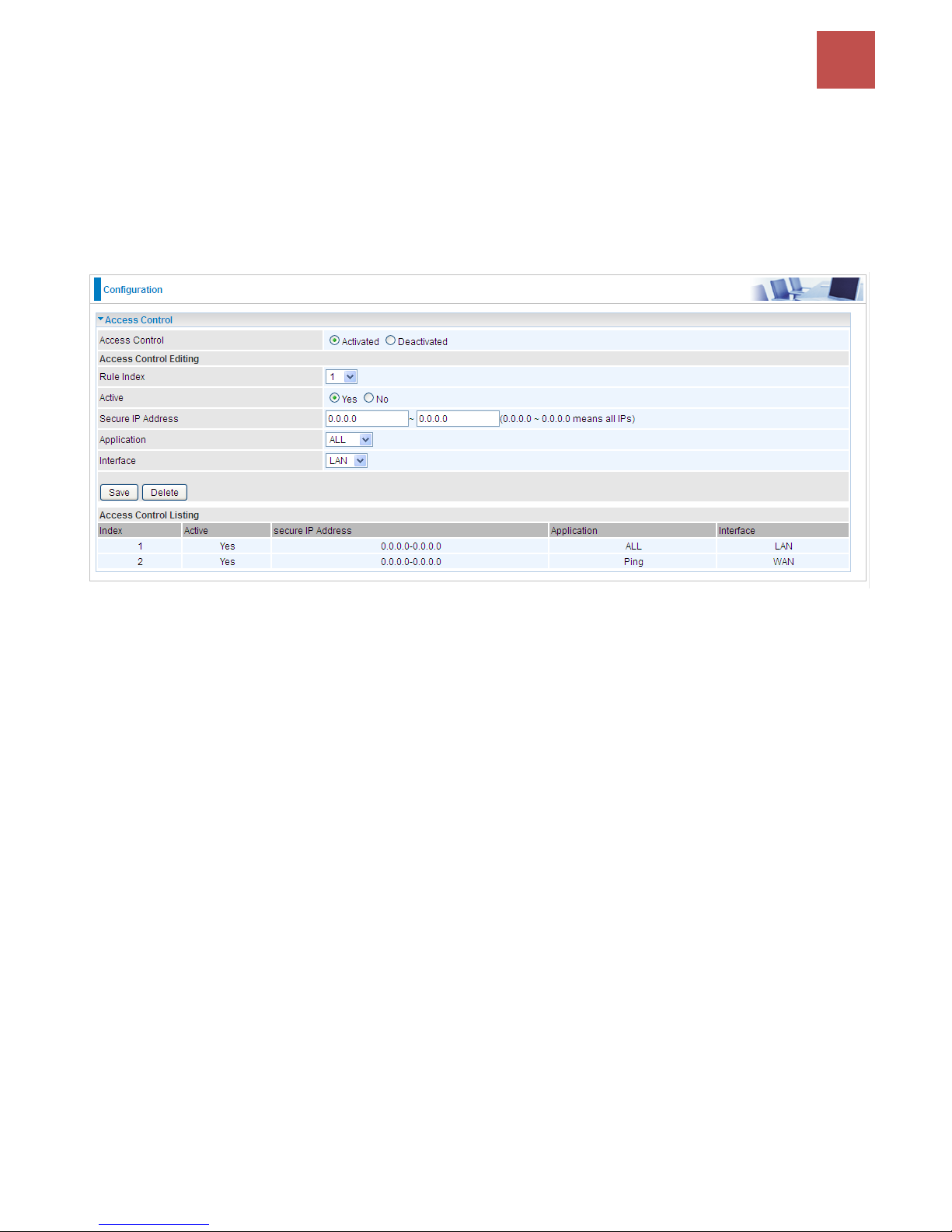

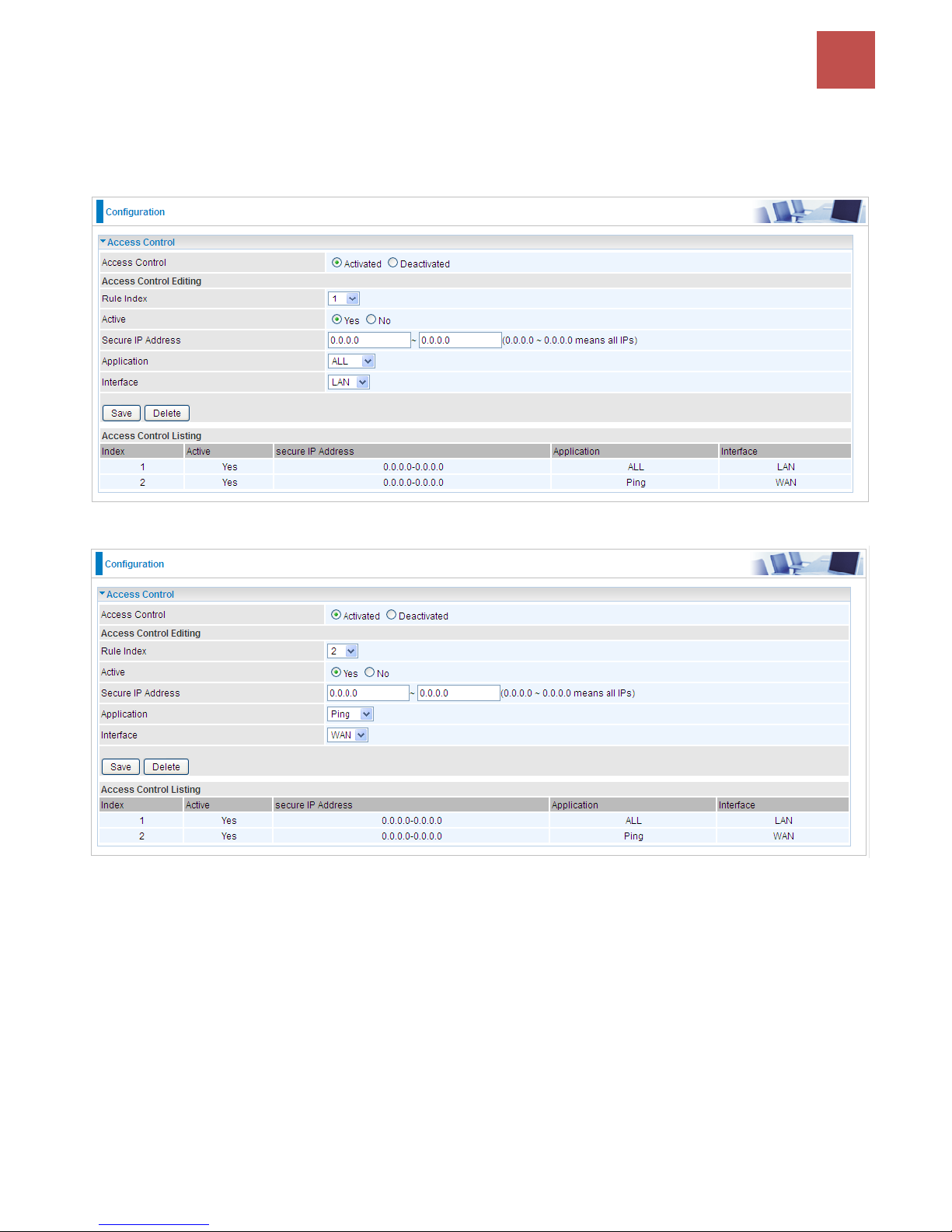

Access Control .............................................................................................................. 95
Packet Filter .................................................................................................................. 97
CWMP (TR-069) .......................................................................................................... 100
Page 4
Parental Control ......................................................................................................... 102
SAMBA & FTP Server .................................................................................................. 103
Maintenance .................................................................................................... 106
User Management ..................................................................................................... 106
Time Zone ................................................................................................................... 110
Firmware & Configuration .......................................................................................... 111
System Restart ............................................................................................................ 113
Diagnostics Tool.......................................................................................................... 114
CHAPTER 5: TROUBLESHOOTING............. 116
Problems with the Router ............................................................................... 116
Problem with LAN Interface ............................................................................ 116
Recovery Procedures ....................................................................................... 117
APPENDIX: PRODUCT SUPPORT & CONTACT
...................................................................... 118
Page 5
Introduction
1
BEC 6300VNL User Manual
CHAPTER 1: INTRODUCTION
Introduction to your Router
Congratulations on your purchase of the BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router).
This router is a compact and advanced broadband router that offers flexible and multiple Internet
connection options, EWAN and embedded 4G/LTE interfaces, for home, SOHO, and office users to
enjoy high-speed, high-level security Internet connection via cellular wireless and/or Ethernet WAN.
With an integrated 802.11n wireless access point and 4-port Gigabit Ethernet LAN, this router enables
faster wireless speed of up to 300Mbps and LAN connection 10 times faster than regular 10/100Mbps
Ethernet LAN. BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) provides a unique
Management Center enabling users to monitor 4G/LTE signal strength, bandwidth, download speed,
and many more. Users can choose the most economical rate of VoIP calls provided by different
providers. The device integrates two FXS ports which allows for simultaneous VoIP calls.
Cost Saving
Making VoIP calls is extremely simple; just connect the router with your existing analog telephones.
BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) complies with the most popularly
adopted VoIP standard and SIP protocol to ensure interoperability with SIP devices and major VoIP
Gateways. This router also supports a wider range of telephony features, such as Call Waiting,
Conference, Speed Dial, Return Call, Redial, etc.
4G/LTE Mobility
With 4G/LTE-based Internet connection (4G/LTE embedded module, requires an additional SIM card),
you can access to the Internet through 4G/LTE whether you are seated at your desk or taking a
cross-country trip.
Wireless Mobility and Security
With an integrated 802.11n Wireless Access Point, this router delivers up to 3 times the wireless
coverage of a 802.11b/g network device, so that wireless access is available everywhere in the house
or office. If your network requires wider coverage, the built-in Wireless Distribution System (WDS)
allows you to expand your wireless network without additional wires or cables. BEC 6300VNL
(4G/LTE VoIP Wireless Broadband Router) also supports the Wi-Fi Protected Setup (WPS)
standard and allows users to establish a secure wireless network just by pressing a button. Multiple
SSIDs allow users to access different networks through a single access point. Network managers can
assign different policies and functions for each SSID, increasing the flexibility and efficiency of the
network infrastructure.
4G/LTE Management Center
BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) Mobile Management Center visually
displays its current 4G/LTE signal status also calculates the total amount of hours or data traffic used
per month, allowing you to manage your 4G/LTE monthly subscriptions.
Page 6
Introduction
2
BEC 6300VNL User Manual
IPv6 Supported
Internet Protocol version 6 (IPv6) is a version of the Internet Protocol that is designed to succeed IPv4.
IPv6 has a vastly larger address space than IPv4. The router is already supporting IPv6, you can use
it in IPv6 environment no need to change device. The dual-stack protocol implementation in an
operating system is a fundamental IPv4-to-IPv6 transition technology. It implements IPv4 and IPv6
protocol stacks either independently or in a hybrid form. The hybrid form is commonly implemented in
modern operating systems supporting IPv6.

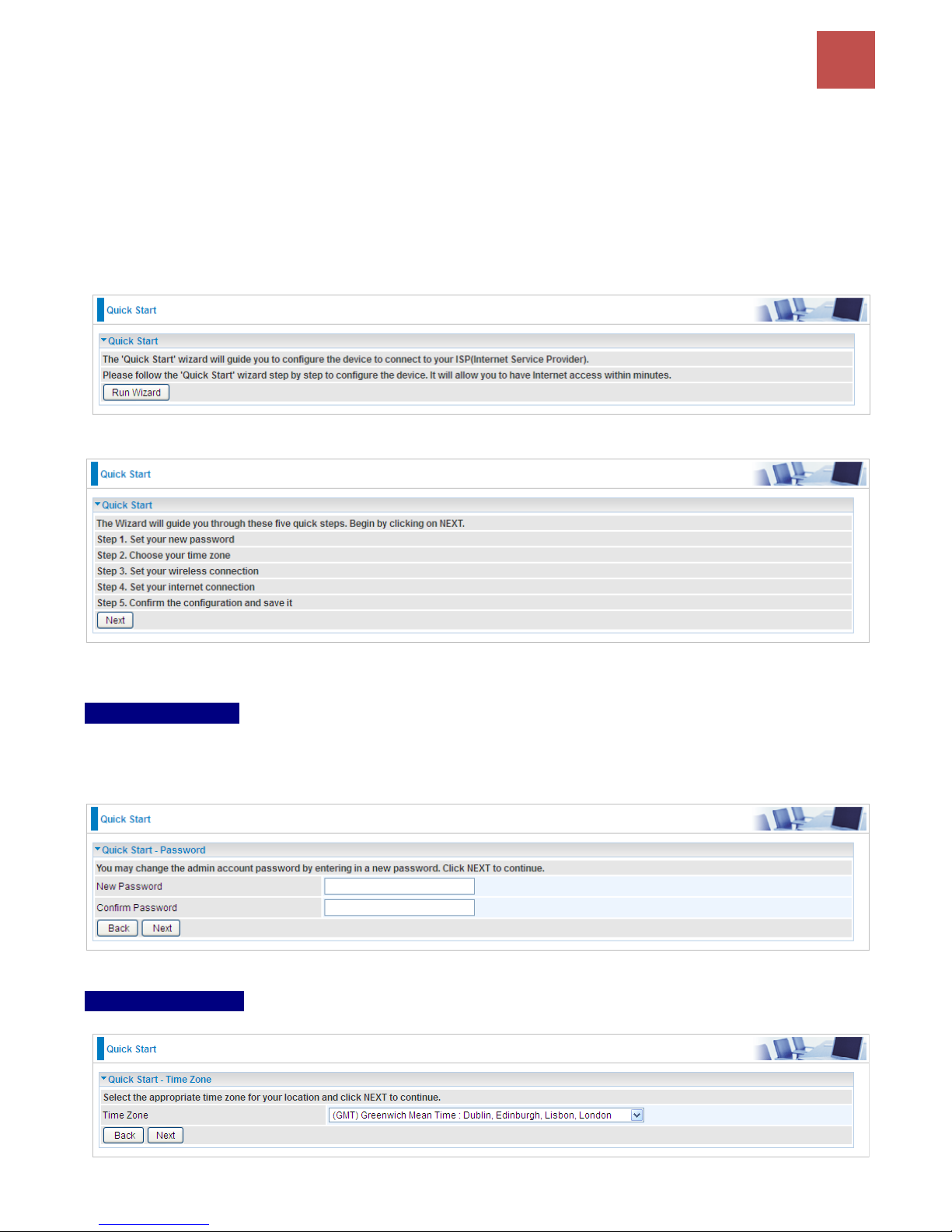

Quick Start Wizard
Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you
connected to the Internet immediately.
Firmware Upgradeable
Device can be upgraded to the latest firmware through the WEB based GUI.
Page 7
Introduction
3
BEC 6300VNL User Manual
Features & Specifications
• 4G/LTE for high speed mobile broadband connectivity
• Gigabit Ethernet WAN (GbE WAN) for Cable/Fiber/xDSL high WAN throughput
•
Gigabit Ethernet LAN
• IPv6 ready (IPv4/IPv6 dual stack)
• Multiple wireless SSIDs with wireless guest access and client isolation
• IEEE
802.11 b/g/n compliant Wireless Access Point with Wi-Fi Protected Setup (WPS)
•
Wi-Fi Protected Access (WPA-PSK/ WPA2-PSK) and Wired Equivalent Privacy (WEP)
•
SOHO Firewall Security with DoS Preventing and Packet Filtering
•
Quality of Service Control for traffic prioritization management
•
Universal Plug and Play (UPnP) Compliance
• Voice over IP compliant with SIP standard
• Two FXS ports for connecting to regular analog telephones
• Call Waiting, Conference Call
• Speed Dial, Return Call, Redial
• Don’t Disturb
• Ease of Use with Quick Installation Wizard
• One
USB port for NAS (FTP/ SAMBA server)
• Ideal for SOHO, office, and home users
Network Protocols and Features
•
IPv4, IPv6 or IPv4 / IPv6 Dual Stack
•
NAT, static (v4/v6) routing and RIP-1 / 2
•
DHCPv4 / v6
•
Universal Plug and Play (UPnP) Compliant
•
Dynamic Domain Name System (DDNS)
•

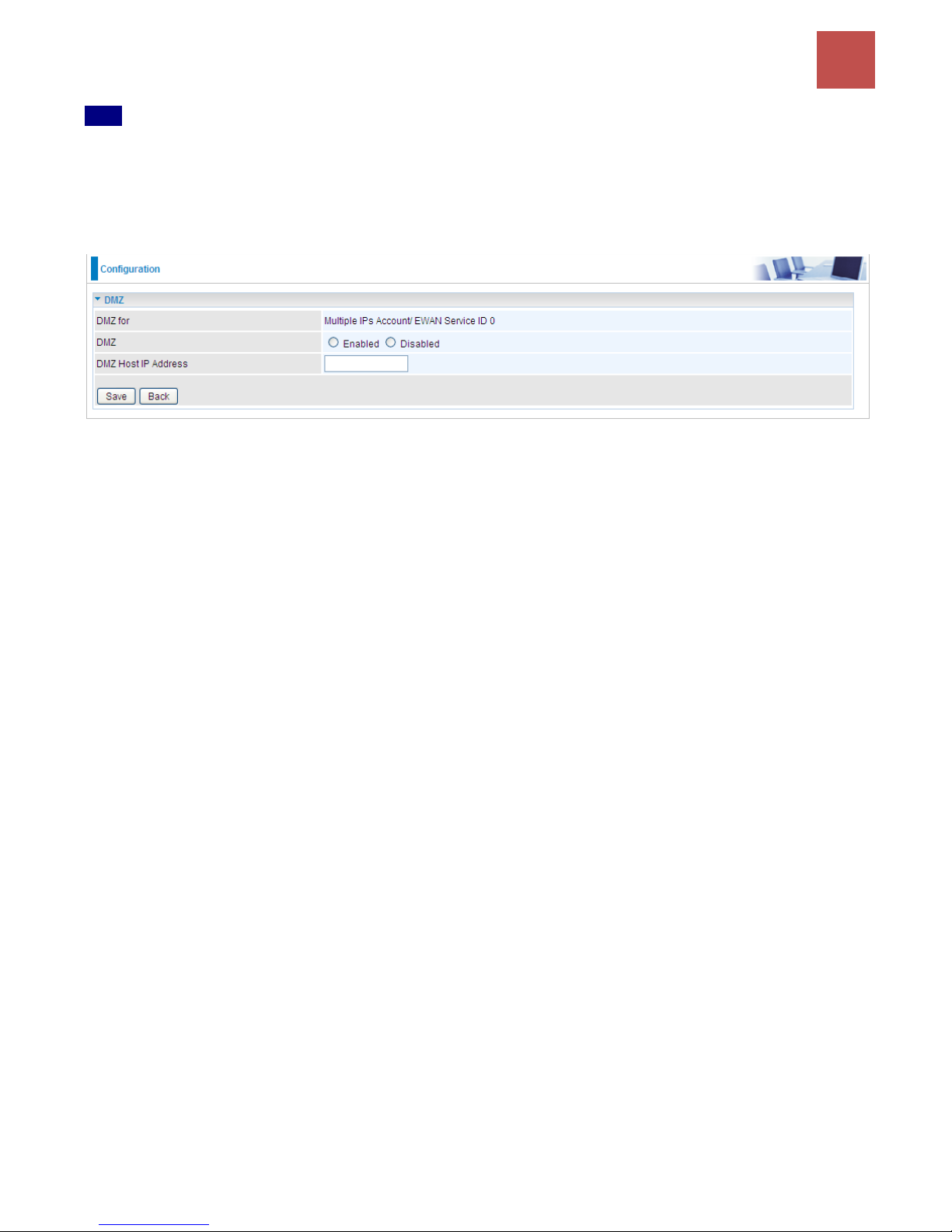

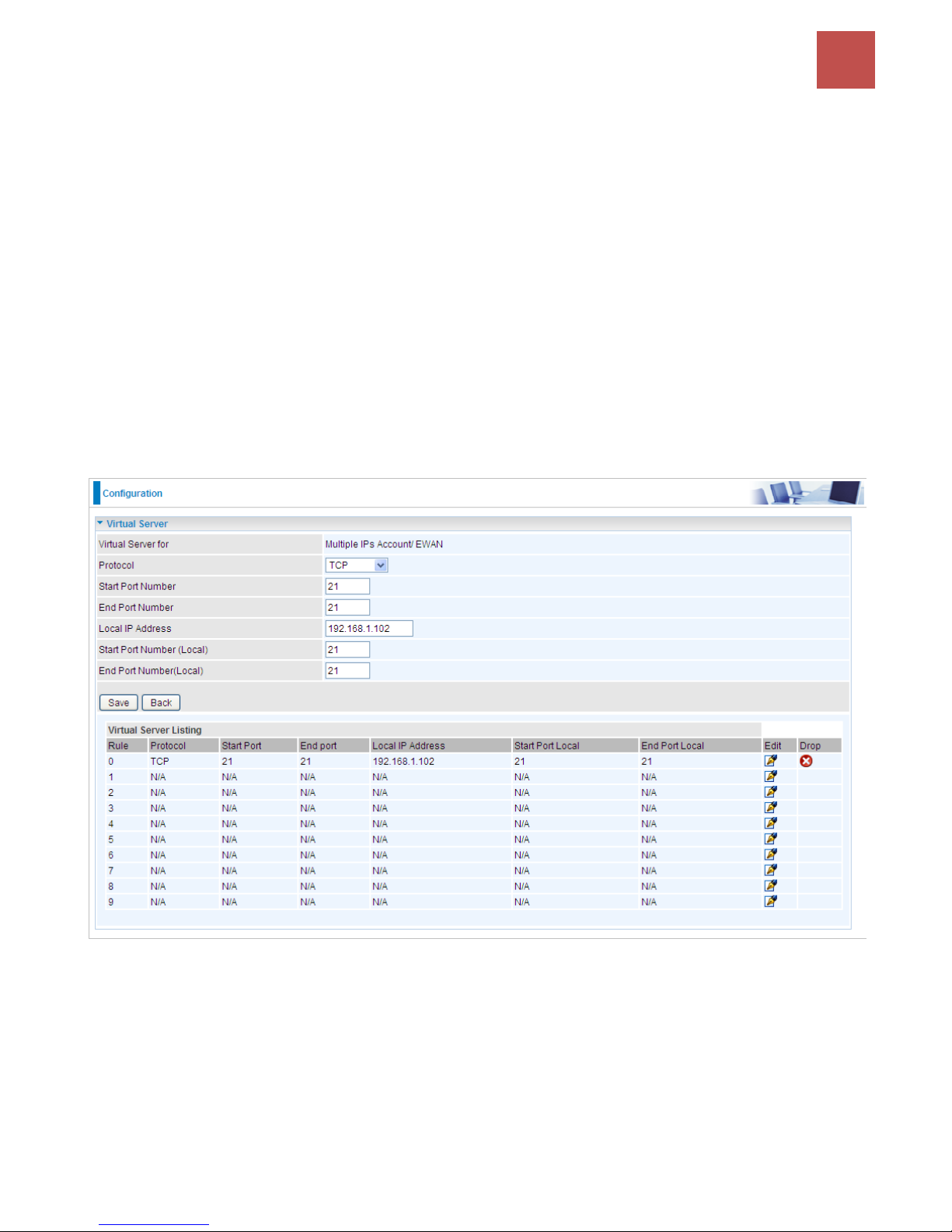

Virtual Server and DMZ
•
SNTP, DNS proxy
•
IGMP snooping and IGMP proxy
•
MLD snooping and MLD proxy
Firewall
•
Built-in NAT Firewall
•
Stateful Packet Inspection (SPI)
Page 8
Introduction
4
BEC 6300VNL User Manual
• DoS attack prevention including Land Attack, Ping of Death, etc
• Access control
• IP&MAC filter, URL Content Filter
• Password protection for system management
• VPN pass-through
Quality of Service Control
•
Traffic prioritization management based-on Protocol, Port Number and IP Address (IPv4/ IPv6)
Wireless LAN
•
Compliant with IEEE 802.11 b/ g/ n standards
•
2.4 GHz - 2.484GHz radio band for wireless
•
Up to 300 Mbps wireless operation rate
•
64 / 128 bits WEP supported for encryption
•
WPS (Wi-Fi Protected Setup) for easy setup
•
Wireless Security with WPA-PSK / WPA2-PSK support
•

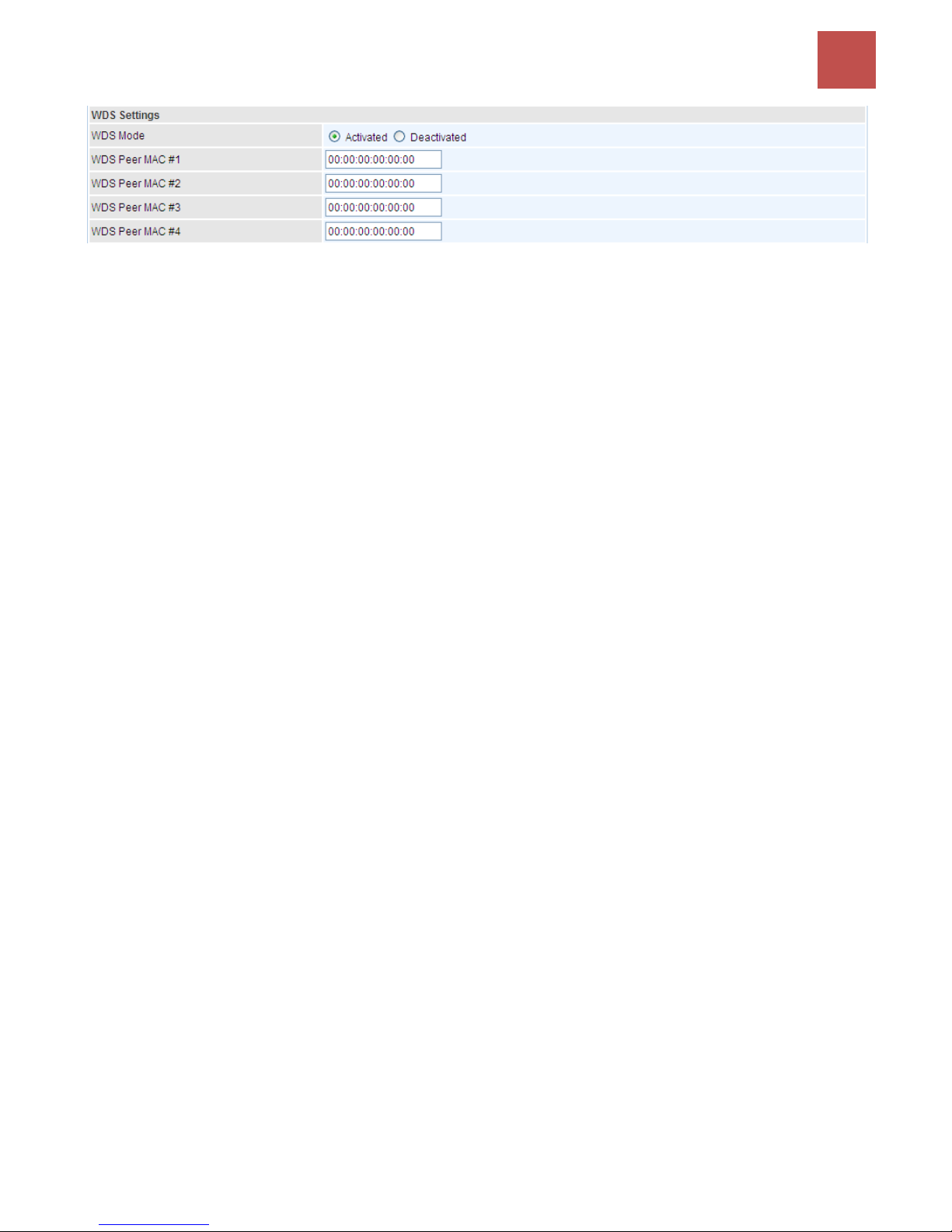

WDS repeater function support
USB Application Server
•
Storage/NAS: SAMBA Server, FTP Server
• 3G/4G LTE Mobile Internet Connection
VoIP
•
Compliant with SIP standard (RFC3261)
•
Codec: G.729, G.726, G.711 A-Law, G.711 u-Law
•
DTMF Method: Inband, RFC 2833, SIP Info
•
Caller ID Generation: DTMF, FSK
•
Silence Suppression (VAD), Echo Cancellation
•
Call Waiting, Conference Call
•
Speed Dial, Return Call, Redial
•
Don't Disturb
•
FAX Relay: T.38
•
Call Detailed Records (CDR)
Page 9
Introduction
5
BEC 6300VNL User Manual
Management
• Quick Installation wizard
•
Web-based GUI for remote and local management (IPv4/IPv6)
•
Firmware upgrades and configuration data upload and download via web-based GUI
•
Supports DHCP server / client / relay
• Supports
SNMP v1, v2, v3, MIB-I and MIB-II
•
TR-069 supports remote management
Hardware Specifications
Physical interface
•
4G LTE antenna: 2 external antennas
•
SIM card slot: Mini SIM card (2FF) slot for mobile broadband connectivity
•
VoIP phone port: 2 RJ-11 FXS phone ports to connect with 2 regular analog phones.
•
USB: USB 2.0 port for storage service
•
Ethernet: 4-port 10 / 100 / 1000Mbps auto-crossover (MDI / MDI-X) Switch
•
EWAN: RJ -45 Gigabit Ethernet port for connecting to Cable/Fiber/xDSL modem for Broadband
connectivity.
•
Factory default reset button
• Wireless on/off and
WPS push button
• DC
Power jack
• UPS
Power with 4-pin connectors
•
Power switch to switch between DC power and UPS power.
Physical Specifications
• Dimensions (W*H*D): 9.04" x 6.10" x 1.27"(229.5mm x 155mm x 32.24mm)
Page 10
Introduction
6
BEC 6300VNL User Manual
Application Diagram
BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) is an all-in-one router, supporting 2
connection options (4/LTE and EWAN) to connect to the Internet.
4G/LTE router mode
With an embedded 4G/LTE module, the router can be used to connect to high speed mobile fixed
wireless connection.
Broadband Router Mode
This router also has a Gigabits Ethernet WAN port (EWAN) to connect with your Fiber / Cable/ xDSL
modem.
Page 11
Basic Installation
7
BEC 6300VNL User Manual
CHAPTER 2: PRODUCT OVERVIEW
Important Note for Using This Router
Place the router on a stable surface.
Only use the power adapter that comes with the package. Using
a different voltage rating power adaptor may damage the router.
Attention
Do not use the router in high humidity or high temperature.
Do not use the same power source for the BEC 6300VNL on
other equipment.
Do not open or repair the case yourself. If the device becomes
too hot, turn off the power immediately and have it repaired at
a qualified service center.
Avoid using this product and all accessories outdoors.
Warning
Page 12
Basic Installation
8
BEC 6300VNL User Manual
Device Description
Front Panel LEDs
LED
STATUS
DESCRIPTION
Power
Green
System is up and ready
Red
Boot failure
Battery
Green
UPS is functional properly
Orange
UPS battery failure. Need a new battery replacement
Orange blinking
UPS AC power failure and battery functional properly
Off
Device powered by the DC power adaptor
EWAN
Lit up
BEC 6300VNL is successfully connected with a broadband connection device.
Green
Transmission speed is at Gigabit speed (1000Mbps)
Orange
Transmission speed is at 10/100Mbps
Blinking
Data being transmitted/received
Ethernet Port
LAN 1 ~ 3
Green
Transmission speed is at Gigabit speed (1000Mbps)
Orange
Transmission speed is at 10/100Mbps
Blinking
Data being transmitted/received
USB
Green
Connecting to a USB dongle or a hard drive.
Wireless/WPS
Green
Wireless connection established
Green blinking
Data being transmitted / received
Orange
WPS configuration is in progress
Phone
Green
Successfully registered and ready to be used.
Orange
Phone is off-hook, in-use
LTE
(Received Signal
Strength Indicator)
Green
RSSI greater than -69 dBm. Excellent signal condition
Green
Flashing quickly
RSSI from -81 to -69 dBm. Good signal condition
Orange
Flashing quickly
RSSI from -99 to -81 dBm. Fair signal condition.
Orange
Flashing slowly
RSSI less than -99 dBm. Poor signal condition.
Orange
No signal and the 4G_LTE module is in service
Off
No LTE module or LTE module fails
Internet
Green
IP connected and traffic is passing thru the device.
Red
IP request failed.
Off
BEC 6300VNL is either in bridged mode or WAN connection not ready.
Page 13
Basic Installation
9
BEC 6300VNL User Manual
Rear Panel Connectors
* Note: 1. For WPS configuration, please refer to the WPS section in the User Manual.
PORT
MEANING
1
LTE Antenna
Screw the supplied LTE antennas onto the antenna connectors on both sides.
2
SIM Card Slot
Insert the mini SIM card (2FF) with the gold contact facing down.
Push the mini SIM card (2FF) inwards to eject it
3
Phone (1X-2X)
Connect your analog phone to this port with a RJ-11 cable.
4
USB
The USB can either setup for 3G/4G LTE internet access or storage/file sharing.
(1) For File Sharing: Connect an external USB dongle / hard drive for storage,
network sharing, etc
(2) For 3G/4G LTE Internet Connection: Connect with an external USB 3G/4G LTE
modem or dongle with an activate data plan (internet access).
5
Gigabit
LAN Ethernet
(1~3)
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when
connecting to a PC or an office/home network of 10Mbps /100Mbps /1000Mbps
6
Gigabit EWAN
Connect to Fiber/ Cable/ xDSL Modem with a RJ-45 cable
7
UPS Jack
The 4-pin connectors are used to power the device with an external UPS battery
backup.
8
Reset
After the device is powered on, press it 6 seconds or above: to restore to factory
default settings (this is used when you cannot login to the router, e.g. forgot your
password)
9
WPS &
Wireless On/Off
By controlling the pressing time, users can achieve two different effects:
(1) WPS*1: Press &hold the button for less than 6 seconds to trigger WPS function.
(2) Wireless ON/OFF button: Press & hold the button for more than 6 seconds to
On/Off the wireless.
10
Power Jack (DC)
Connect the supplied Power Adapter to this jack.
11
Power Source
Power ON/OFF switch
(1) with Power Switch ON: power up by the supplied DC power adaptor
(2) with Power Switch OFF: power up by the UPS battery unit
1
2
8
9
1
11
10
3 5 7 4 6
Page 14
Basic Installation
10
BEC 6300VNL User Manual
Power Source
BEC 6300VNL offers two kinds of power input, namely, DC power Adapter and DC UPS (or BBU).
BEC 6300VNL can take the advantage of UPS (Uninterruptible Power Supply) to keep working even if
the power outage hit your router when the router in working in DC UPS mode.
(A picture of the rear focusing on the power source)
UPS Port Assignment:
+12VDC: VCC (DC + 12V) Power supply
RTN: GND (Ground)
ALM 1: Active high – replace battery
ALM 2: Active high – on battery
(A shot from the front panel, with second icon being identified as the Battery LED)
How to switch between the two (2) power sources, DC power adaptor and external UPS battery
Pressed "Power Source" button, the button is visually being pressed down. The power source is from
the DC power adapter supplied in the package.
"Power Source" button in the un-pressed state, the power source is from the UPS. The router can
continue to operate for a period of time after AC power failure, due to uninterrupted power system
Page 15
Basic Installation
11
BEC 6300VNL User Manual
features of UPS.
UPS LED:
A Battery LED indicates if a DC UPS is in-use or not. When the router is operating via the DC power
adapter this LED will be off.
Battery LED Definition:
Green LED: UPS AC power is working; UPS battery is also working well
Orange LED Only UPS AC power is working. Battery failure- need a new battery replacement
Orange LED: UPS AC power failure; UPS battery is working
Cabling
One of the most common causes of problems is bad cabling. Make sure that all connected devices are
turned on. On the front panel of the product is a bank of LEDs. Verify that the LAN Link and LEDs are
lit. If they are not, verify that you are using the proper cables.
Make sure that all other devices (e.g. telephones, fax machines, analogue modems) connected to the
same telephone line as your BEC router have a line filter connected between them and the wall socket
(unless you are using a Central Splitter or Central Filter installed by a qualified and licensed
electrician), and that all line filters are correctly installed in a right way. If the line filter is not correctly
installed and connected, it may cause problems to your connection or may result in frequent
disconnections.
Page 16
Basic Installation
12
BEC 6300VNL User Manual
CHAPTER 3: BASIC INSTALLATION
The router can be configured with your web browser. A web browser is included as a standard
application in the following operating systems: Windows 98 / NT /2000 / XP / ME / 7 / Vista, Linux, Mac
OS, etc. The product provides an easy and user-friendly interface for configuration.
PCs must have an Ethernet interface installed properly and be connected to the router either directly
or through an external repeater hub, and have TCP/IP installed or configured to obtain an IP address
through a DHCP server or a fixed IP address that must be in the same subnet as the router. The
default IP address of the router is 192.168.1.254 and the subnet mask is 255.255.255.0 (i.e. any
attached PC must be in the same subnet, and have an IP address in the range of 192.168.1.1 to
192.168.1.253). The best and easiest way is to configure the PC to get an IP address automatically
from the router using DHCP. If you encounter any problems accessing the router’s web interf ace it
may also be advisable to uninstall any kind of software firewall on your PCs, as they can cause
problems accessing the 192.168.1.254 IP address of the router. Users should make their own
decisions on how to best protect their network.
Please follow the steps below for your PC’s network environment installation. First of all, please check
your PC’s network components. The TCP/IP protocol stack and Ethernet network adapter must be
installed. If not, please refer to your Windows-related or other operating system manuals.
Any TCP/IP capable workstation can be used to communicate with or
through the BEC 6300VNL. To configure other types of workstations,
please consult the manufacturer’s documentation.
Page 17
Basic Installation
13
BEC 6300VNL User Manual
Network Configuration – IPv4
Configuring PC in Windows 7 (IPv4)
1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.
3. When the Network and Sharing
Center window pops up, select and
click on Change adapter settings on
the left window panel.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
Page 18
Basic Installation
14
BEC 6300VNL User Manual

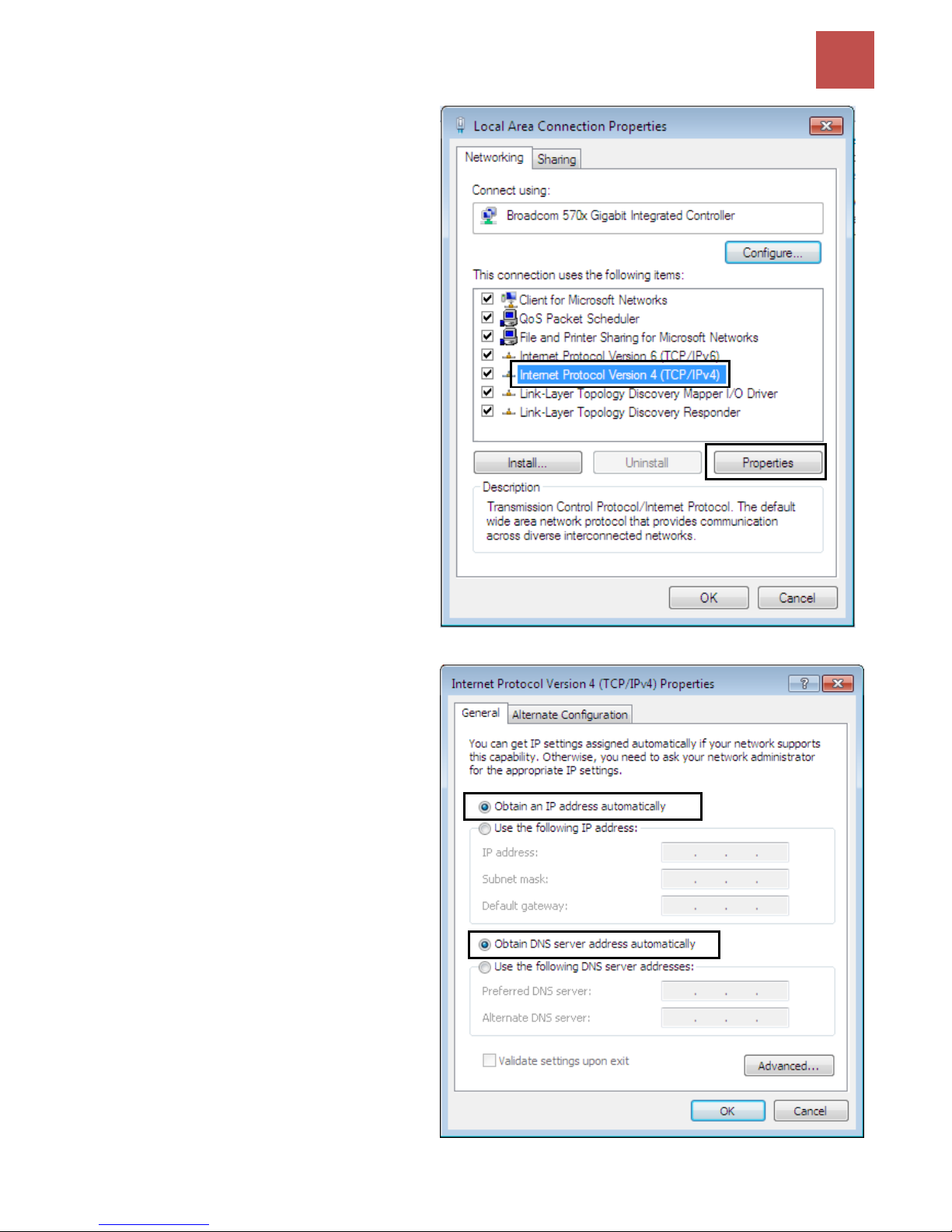

5. Select Internet Protocol Version 4
(TCP/IPv4) then click Properties.
6. In the TCP/IPv4 properties window,
select the Obtain an IP address
automatically and Obtain DNS
Server address automatically radio
buttons. Then click OK to exit the
setting.
7. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
Page 19
Basic Installation
15
BEC 6300VNL User Manual
Configuring PC in Windows Vista (IPv4)
1. Go to Start. Click on Network.
2. Then click on Network and Sharing
Center at the top bar.
3. When the Network and Sharing
Center window pops up, select and
click on Manage network
connections on the left window
pane.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
Page 20
Basic Installation
16
BEC 6300VNL User Manual
5. Select Internet Protocol Version 4
(TCP/IPv4) then click Properties.
6. In the TCP/IPv4 properties window,
select the Obtain an IP address
automatically and Obtain DNS Server
address automatically radio buttons.
Then click OK to exit the setting.
7. Click OK again in the Local Area
Connection Properties window to apply
the new configuration.
Page 21
Basic Installation
17
BEC 6300VNL User Manual
Configuring PC in Windows XP (IPv4)
1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.
3. In the Local Area Connection Status
window, click Properties.
4. Select Internet Protocol (TCP/IP) and
click Properties.
5. Select the Obtain an IP address
automatically and the Obtain DNS
server address automatically radio
buttons.
6. Click OK to finish the configuration.
Page 22
Basic Installation
18
BEC 6300VNL User Manual

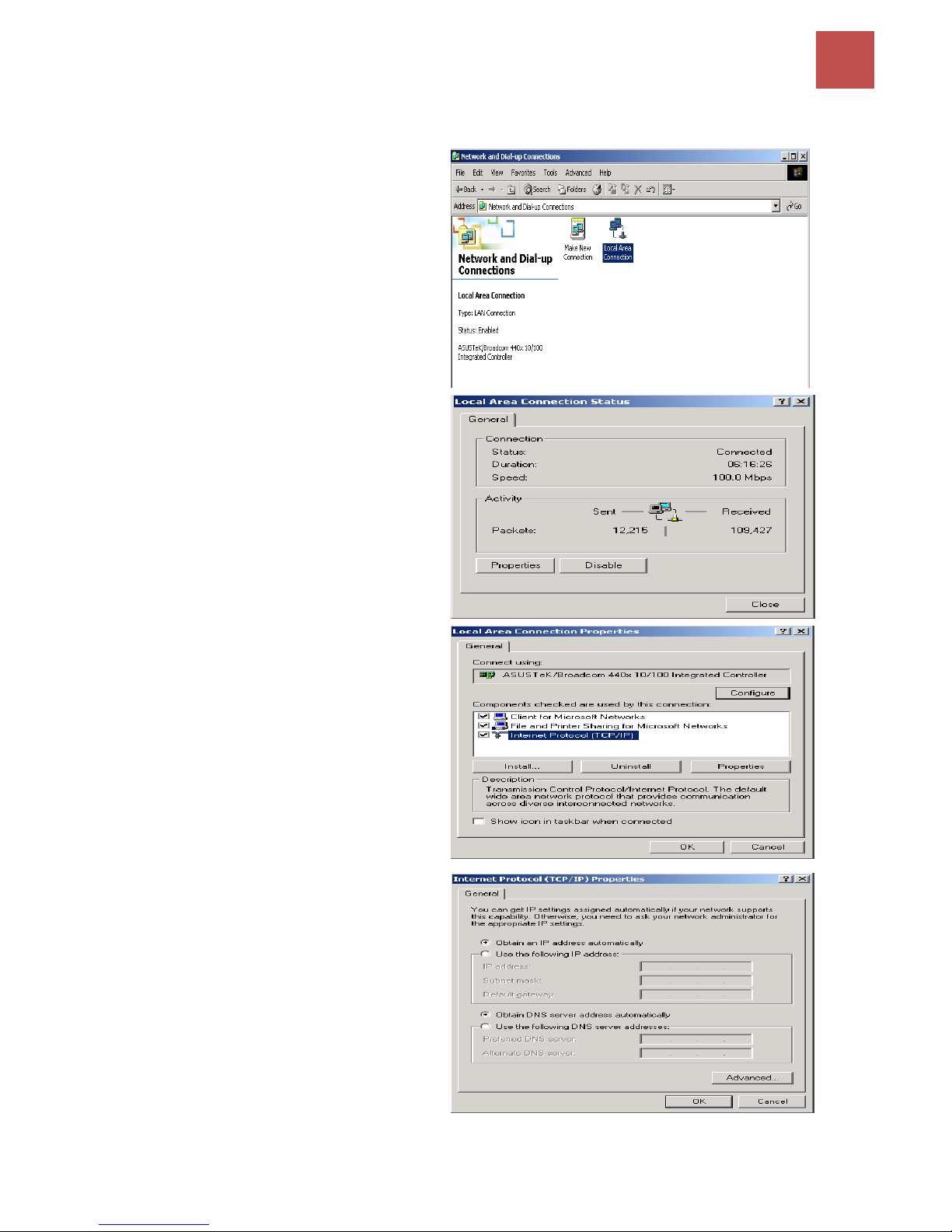

Configuring PC in Windows 2000 (IPv4)
1. Go to Start / Settings / Control Panel. In
the Control Panel, double-click on Network
and Dial-up Connections.
2. Double-click Local Area Connection.
3. In the Local Area Connection Status
window click Properties.
4. Select Internet Protocol (TCP/IP) and
click Properties.
5. Select the Obtain an IP address
automatically and the Obtain DNS server
address automatically radio buttons.
6. Click OK to finish the configuration.
Page 23
Basic Installation
19
BEC 6300VNL User Manual
Configuring PC in Windows 98/ME
1. Go to Start / Settings / Control Panel. In
the Control Panel, double-click on Network
and choose the Configuration tab.
2. Select TCP/IP ->NE2000 Compatible, or
the name of your Network Interface Card
(NIC) in your PC.
3. Select the Obtain an IP address
automatically radio button.
4. Then select the DNS Configuration tab.
5. Select the Disable DNS radio button and
click OK to finish the configuration.
Page 24
Basic Installation
20
BEC 6300VNL User Manual
Configuring PC in Windows NT4.0
1. Go to Start / Settings / Control Panel. In
the Control Panel, double-click on Network
and choose the Protocols tab.
2. Select TCP/IP Protocol and click
Properties.
3. Select the Obtain an IP address from a
DHCP server radio button and click OK.
Page 25
Basic Installation
21
BEC 6300VNL User Manual
Network Configuration – IPv6
Configuring PC in Windows 7 (IPv6)
1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.
3. When the Network and Sharing
Center window pops up, select and
click on Change adapter settings on
the left window panel.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
Page 26
Basic Installation
22
BEC 6300VNL User Manual
5. Select Internet Protocol Version 6
(TCP/IPv6) then click Properties.
6. In the TCP/IPv6 properties window,
select the Obtain an IPv6 address
automatically and Obtain DNS
Server address automatically radio
buttons. Then click OK to exit the
setting.
7. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
Page 27
Basic Installation
23
BEC 6300VNL User Manual
Configuring PC in Windows Vista (IPv6)
1. Go to Start. Click on Network.
2. Then click on Network and Sharing
Center at the top bar.
3. When the Network and Sharing
Center window pops up, select and
click on Manage network
connections on the left window
pane.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
Page 28
Basic Installation
24
BEC 6300VNL User Manual
5. Select Internet Protocol Version 6
(TCP/IPv6) then click Properties.
6. In the TCP/IPv6 properties window,
select the Obtain an IP address
automatically and Obtain DNS Server
address automatically radio buttons.
Then click OK to exit the setting.
7. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
Page 29
Basic Installation
25
BEC 6300VNL User Manual
Configuring PC in Windows XP (IPv6)
IPv6 is supported by Windows XP, but you need to install it first.
Please follow the steps to install IPv6:
1. On the Desktop, Click Start > Run, type cmd, then press Enter key in the keyboard, the following
screen appears.
2. Key in command ipv6 install
Installation of IPv6 is now completed. Please test it to see if it works or not. .
Page 30
Basic Installation
26
BEC 6300VNL User Manual
Default Settings
Before configuring the router, you need to know the following default settings.
Web Interface: (Username and Password)
Username: admin
Password: admin
The default username and password are “admin” and “admin” respectively.
Device LAN IP Settings
IP Address: 192.168.1.254
Subnet Mask: 255.255.255.0
DHCP Server:
DHCP server is enabled.
Start IP Address: 192.168.1.100
IP pool counts: 100
Attention
If you ever forget the username/password to login to the router, you may
press the RESET button up to 6 seconds then release it to restore the factory
default settings.
Caution: After pressing the RESET button for more than 6 seconds then
release it, to be sure you power cycle the device again.
Page 31
Basic Installation
27
BEC 6300VNL User Manual
Information from Your ISP
Before configuring this device, you have to check with your ISP (Internet Service Provider) what kind
of service is provided such as EWAN ((Dynamic IP address, Static IP address, PPPoE, Bridge Mode).
Gather the information as illustrated in the following table and keep it for reference.
PPPoE
Username, Password, Service Name, and Domain Name
System (DNS) IP address (it can be automatically assigned by
your ISP when you connect or be set manually).
Dynamic IP Address
DHCP Client (it can be automatically assigned by your ISP when
you connect or be set manually).
Static IP Address
IP address, Subnet mask, Gateway address, and Domain Name
System (DNS) IP address (it is fixed IP address).
Bridge Mode
Pure Bridge
Page 32
Device Configuration
28
BEC 6300VNL User Manual
CHAPTER 4: DEVICE CONFIGURATION
Login to your Device
Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and
click “Go”, a user name and password window prompt appears.
The default username and password is “admin” and “admin” respectively for the Administrator.
NOTE: This username / password may vary by different Internet Service Providers.
Congratulations! You have successfully logged on to your BEC 6300VNL.
Page 33
Device Configuration
29
BEC 6300VNL User Manual
Once you have logged on to your 6300VNL via your web browser, you can begin to set it up according
to your requirements. On the configuration homepage, the left navigation pane links you directly to the
setup pages, which includes:
Section
Status
Quick Start
(Wizard Setup)
Configuration
Language
Sub-Items
Device
Info
Interface Setup
- Internet
- LAN
- Wireless
- Wireless MAC Filter
System
Log
Advanced Setup
- Firewall
- Routing
- NAT
- Static DNS
- QoS
- Interface Grouping
- Time Schedule
3G/4G-LTE
Status
VoIP
- Basic
- Media
- Advanced
- Speed Dial
- Call Features
Statistics
Access Management
- Device Management
- SNMP
- Universal Plug & Play (UPnP)
- Dynamic DNS
- Access Control
- Packet Filter
- CWMP (TR-069)
- Parental Control
- SAMBA & FTP Server
DHCP
Table
Maintenance
- User Management
- Time Zone
- Firmware & Configuration
- System Restart
- Diagnostic Tool
Disk
Status
VoIP
Status
Please see the relevant sections of this manual for detailed instructions on how to configure your BEC
6300VNL gateway.
Page 34
Device Configuration /
Status
30
BEC 6300VNL User Manual
Status
In this section, you can check the router working status, including Device Info, System Log,
3G/4G-LTE Status, Statistics, DHCP Table, Disk Status, and VoIP Status.
Page 35
Device Configuration /
Status
31
BEC 6300VNL User Manual
Device Info
It contains basic information of the device.
Device Information
Model Name: Name of the router for identification purpose.
Firmware Version: Software version currently loaded in the router
MAC Address: A unique number that identifies the router
LAN
IPv4:
IP Address: LAN port IPv4 address.
Subnet Mask: LAN port IP subnet mask.
Page 36
Device Configuration /
Status
32
BEC 6300VNL User Manual
DHCPv4 Server: LAN port DHCP role - Enabled, Relay or Disabled.
IPv6:
IP Address: LAN port IPv6 address.
Prefix Length: The prefix length
DHCPv6 Server: The DHCP status.
WAN
Interface: WAN connection options, "EWAN" or "3G/4G-LTE".
Service: The WAN interface service index.
PPP Connection Time: the uptime of the PPP connection.
IPv4:
Status: The connection status, either being connected or not in connected.
IP Address: WAN port IP address.
Subnet Mask: WAN port IP subnet mask.
Default Gateway: The IP address of the default gateway.
DNS Server: DNS information.
IPv6:
Status: The IPv6 connection status.
IP Address: WAN port IPv6 address.
Prefix Length: The prefix length of IPv6 address.
Default Gateway: The IP address of the default gateway.
DNS Server: DNS information.
Page 37
Device Configuration /
Status
33
BEC 6300VNL User Manual
System Log
In system log, you can check the operations status and any glitches to the router.
Refresh: Press this button to refresh the statistics.
Page 38
Device Configuration /
Status
34
BEC 6300VNL User Manual
3G/4G-LTE Status
This page contains 3G/4G-LTE connection information.
Status: The current status of the 3G/4G-LTE connection.
Signal Strength: The signal strength bar and dBm value indicates the current 3G/4G-LTE signal
strength. The front panel 3G/4G-LTE Signal Strength LED indicates the signal strength as well.
Signal Information: Shows important LTE signal parameters such as RSRP (Reference Signal
Receiving Power), RSRQ (Reference Signal Receiving Quality), SINR (Signal to Interference plus
Noise Ratio).
RSRP (Reference Signal Receiving Power): is the average power of all resource elements
which carry cell-specified reference signals over the entire bandwidth.
RSRQ (Reference Signal Receiving Quality): measures the signal strength and is calculated
based on both RSRP and RSSI.
RSSI (Received Signal Strength Indicator): parameter which provides information about total
received wide-band power (measure in all symbols) including all interference and thermal noise.
Please refer to the Hardware/Front LED Indicators for details.
SINR (Signal to Interference plus Noise Ratio): is also a measure of signal quality as well. It is
widely used by the operators as it provides a clear relationship between RF conditions and
throughput. NOTE: Some LTE modules do not provide this information.
Network Name: The name of the LTE network the router is connecting to.
Cell ID: The ID of base station that the device is connected to.
Card IMEI: The unique identification number that is used to identify the 3G/4G-LTE module.
Card IMSI: The international mobile subscriber identity used to uniquely identify the 3G/4G-LTE
module.
Network Mode: Show the using network mode.
Network Band: Show the using network band.
Refresh: Press this button to refresh the statistics.
Page 39
Device Configuration /
Status
35
BEC 6300VNL User Manual
Statistics
Ethernet
Interface: List all available network interfaces in the router. You are currently checking on the physical
status of the Ethernet port.
Transmit Frames: This field displays the number of frames transmitted until the latest second.
Transmit Multicast Frames: This field displays the number of multicast frames transmitted until the
latest second.
Transmit Total Bytes: This field displays the number of bytes transmitted until the latest second.
Transmit Collision: This is the number of collisions on this port.
Transmit Error Frames: This field displays the number of error packets on this port.
Receive Frames: This field displays the number of frames received until the latest second.
Receive Multicast Frames: This field displays the number of multicast frames received until the latest
second.
Receive Total Bytes: This field displays the number of bytes received until the latest second.
Receive CRC Errors: This field displays the number of error packets on this port.
Receive Under-size Frames: This field displays the number of under-size frames received until the
latest second.
Refresh: Press this button to refresh the statistics.
Page 40
Device Configuration /
Status
36
BEC 6300VNL User Manual
Wireless
Interface: List all available network interfaces in the router. You are currently checking on the physical
status of the Wireless.
Transmit Frames: This field displays the number of frames transmitted until the latest second.
Transmit Error Frames: This field displays the number of error frames transmitted until the latest
second.
Transmit Drop Frames: This field displays the number of drop frames transmitted until the latest
second.
Receive Frames: This field displays the number of frames received until the latest second.
Receive Error Frames: This field displays the number of error frames received until the latest second.
Receive Drop Frames: This field displays the number of drop frames received until the latest second.
Refresh: Press this button to refresh the statistics.
Page 41
Device Configuration /
Status
37
BEC 6300VNL User Manual
EWAN
Interface: List all available network interfaces in the router. You are currently checking on the physical
status of the EWAN port.
Transmit Frames: This field displays the total number of frames transmitted until the latest second.
Transmit Multicast Frames: This field displays the total number of multicast frames transmitted till
the latest second.
Transmit Total Bytes: This field displays the total number of bytes transmitted until the latest second.
Transmit Collision: This is the number of collisions on this port.
Transmit Error Frames: This field displays the number of error packets on this port.
Receive Frames: This field displays the number of frames received until the latest second.
Receive Multicast Frames: This field displays the number of multicast frames received until the latest
second.
Receive Total Bytes: This field displays the number of bytes received until the latest second.
Receive CRC Errors: This field displays the number of error packets on this port.
Receive Under-size Frames: This field displays the number of under-size frames received until the
latest second.
Refresh: Press this button to refresh the statistics.
Page 42
Device Configuration /
Status
38
BEC 6300VNL User Manual
3G/4G-LTE
Take 3G/4G-LTE as an example to describe the following connection transmission information.
Interface: List all available network interfaces in the router. You are currently checking on the physical
status of 3G/4G-LTE interface.
Transmit Frames of Current Connection: This field displays the total number of 3G/4G-LTE frames
transmitted until the latest second for the current connection.
Transmit Bytes of Current Connection: This field shows the total bytes transmitted till the latest
second for the current connection for the current connection.
Transmit Total Frames: The field displays the total number of frames transmitted till the latest second
since system is up.
Transmit Total Bytes: This field displays the total number of bytes transmitted until the latest second
since system is up.
Receive Frames of Current Connection: This field displays the number of frames received until the
latest second for the current connection.
Receive Bytes of Current Connection: This field shows the total bytes received till the latest second
for the current connection.
Receive Total Frames: This field displays the total number of frames received until the latest second
since system is up.
Receive Total Bytes: This field displays the total frames received till the latest second since system is
up.
Page 43
Device Configuration /
Status
39
BEC 6300VNL User Manual
3G/4G_LTE via USB port
Take 3G/4G-LTE USB as an example to describe the following connection transmission information.
Interface: List all available network interfaces in the router. You are currently checking on the physical
status of 3G/4G-LTE interface.
Transmit Frames of Current Connection: This field displays the total number of 3G/4G-LTE frames
transmitted until the latest second for the current connection.
Transmit Bytes of Current Connection: This field shows the total bytes transmitted till the latest
second for the current connection for the current connection.
Transmit Total Frames: The field displays the total number of frames transmitted till the latest second
since system is up.
Transmit Total Bytes: This field displays the total number of bytes transmitted until the latest second
since system is up.
Receive Frames of Current Connection: This field displays the number of frames received until the
latest second for the current connection.
Receive Bytes of Current Connection: This field shows the total bytes received till the latest second
for the current connection.
Receive Total Frames: This field displays the total number of frames received until the latest second
since system is up.
Receive Total Bytes: This field displays the total frames received till the latest second since system is
up.
Page 44
Device Configuration /
Status
40
BEC 6300VNL User Manual
DHCP Table
DHCP table displays the devices connected to the router with clear information.
#: The index identifying the connected devices.
Host Name: Show the hostname of the PC.
IP Address: The IP allocated to the device.
MAC Address: The MAC of the connected device.
Expire Time: The total remaining interval since the IP assignment to the PC.
Disk Status
Partition: Display the USB storage partition.
Disk Space (KB): Display the total storage space of the NAS in Kbytes unit.
Free Space (KB): Display the available space in Kbytes unit.
VoIP Status
VoIP status gives you a directive picture on the registered VoIP accounts.
Phone Number: The number you use to register in the Basic page of VoIP.
Host: Show the IP address and port number of SIP Registrar.
Status: The status of the registered SIP account.
Registered Time: The duration the account has been successfully registered to the SIP registrar.
Page 45
Device Configuration /
Quick Start
41
BEC 6300VNL User Manual
Quick Start
This is a useful and easy utility to help you to setup the router quickly and to connect to your ISP
(Internet Service Provider) with only a few steps. It will guide you step by step to setup time zone and
WAN settings of your device. The Quick Start Wizard is a helpful guide for the first-time users to the
device.
For detailed instructions on configuring WAN settings, see refer to the Interface Setup section.
Click NEXT to move on to Step 1.
Step 1 – Password
Set new password of the “admin” account to access for router management. The default is “admin”.
Once changed, please use this new password next time when accessing to the router. Click NEXT to
continue.
Step 2 – Time Zone
Choose your time zone. Click NEXT to continue.
Page 46
Device Configuration /
Quick Start
42
BEC 6300VNL User Manual
Step 3 – Wireless
Set up your wireless connection if you want to connect to the Internet wirelessly on your PCs. Click
NEXT to continue.
Step 4 – ISP Connection Type
Set up your Internet connection.
4.1 Select an appropriate WAN connection protocol then click NEXT to continue.
4.2 If selected 3G/4G-LTE or 3G/4G-LTE USB (for example).
Input all relevant 3G/4G-LTE parameters from your ISP.
Page 47
Device Configuration /
Quick Start
43
BEC 6300VNL User Manual
Click Next to save changes.
4.2 If selected EWAN / PPPoE, please enter PPPoE account information provided by your ISP. Click
NEXT to continue.
Step 5 – Quick Start Completed
The Setup Wizard has completed. Click on BACK to modify changes or mistakes. Click NEXT to save
the current settings.
Switch to Status > Device Info to view the status.
Page 48
Device Configuration /
Quick Start
44
BEC 6300VNL User Manual
Page 49
Device Configuration /
Interface Setup
45
BEC 6300VNL User Manual
Configuration
Click to access and configure the available features in the following: Interface Setup, Advanced
Setup, VoIP, Access Management, and Maintenance.
These functions are described in the following sections.
Interface Setup
Here are the features under Interface Setup: Internet, LAN, Wireless and Wireless MAC Filter.
Page 50
Device Configuration /
Interface Setup
46
BEC 6300VNL User Manual

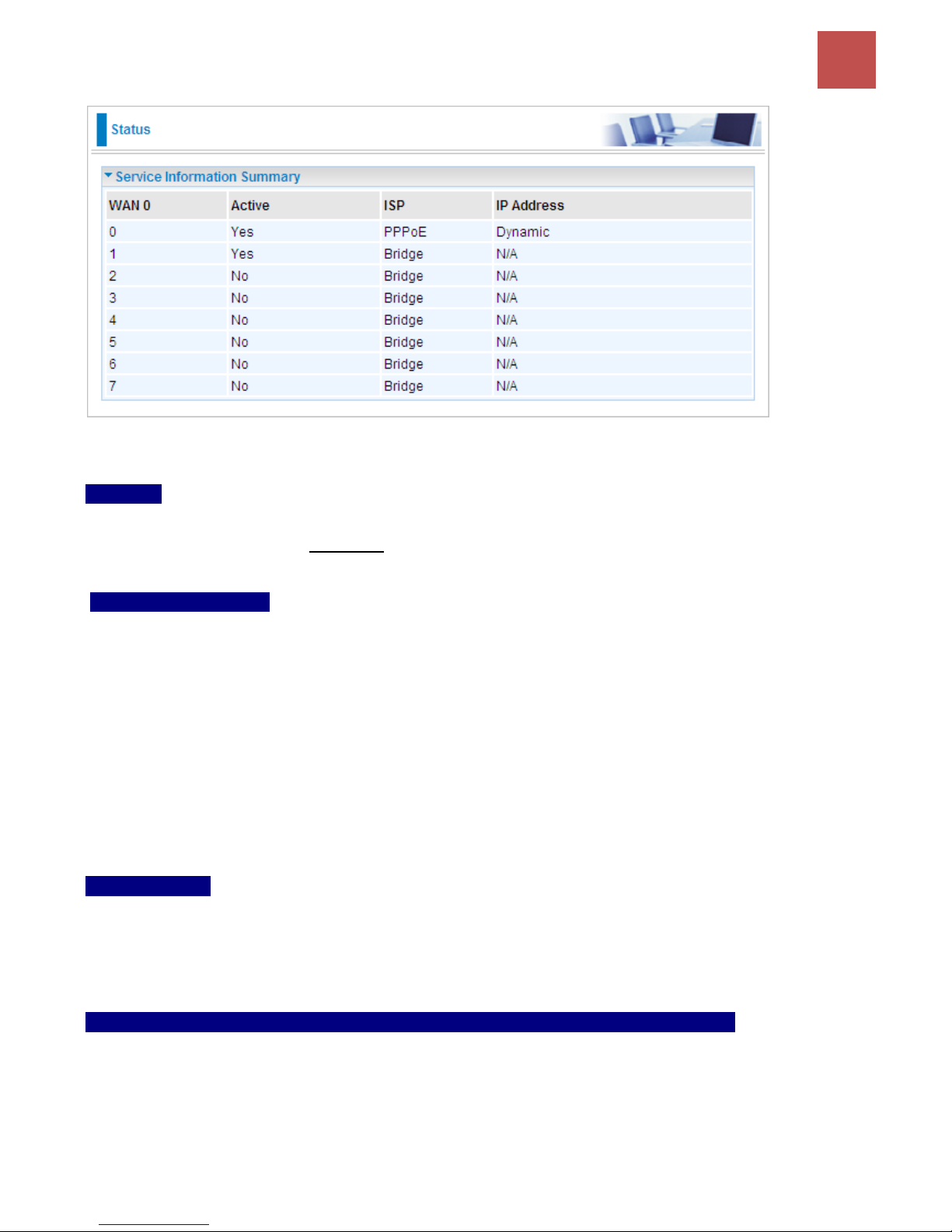

Internet
EWAN
Multi Service
Service Index: The index marks the EWAN interface of different ISP type, ranging from 0-7.
Service Summary: The overall service information.
Page 51
Device Configuration /
Interface Setup
47
BEC 6300VNL User Manual
Status: Select whether to enable the service.
IPv4/IPv6
IP Version: Choose IPv4, IPv4/IPv6, IPv6 based on your environment. If you don’t know which one to
choose from, please choose IPv4/IPv6 instead.
ISP Connection Type:
ISP: Select the encapsulation type your ISP uses.
Dynamic IP: Select this option if your ISP provides you an IP address automatically.
Static IP: Select this option to set static IP information. You will need to enter in the Connection
type, IP address, subnet mask, and gateway address, provided to you by your ISP. Each IP
address entered in the fields must be in the appropriate IP form. IP address from by four IP
octets separated by a dot (xx.xx.xx.xx). The Router will not accept the IP address if it is not in
this format.
PPPoE: Select this option if your ISP requires you to use a PPPoE connection.
Bridge: Select this mode if you want to use this device as an OSI Layer 2 device like a switch.
802.1q Options
802.1q: When activated, please enter a VLAN ID.
VLAN ID: It is a parameter to specify the VLAN which the frame belongs. Enter the VLAN ID
identification, tagged: 0-4095.
PPPoE (If selected PPPoE as WAN Connection Type; otherwise, skip this part)
Username: Enter the user name provided by your ISP.
Password: Enter the password provided by your ISP.
Bridge Interface for PPPoE: When “Activated”, the device will gain WAN IP from your ISP with the
PPPoE account. But if your PC is connected to the router working as a DHCP client, in this mode, the
device acts as a NAT router; while if you dial up with the account within your PC, the device will then
Page 52
Device Configuration /
Interface Setup
48
BEC 6300VNL User Manual
work as a bridge forwarding the PPPoE information to the PPPoE server and send the response to
your PC, thus your PC gets a WAN IP working in the internet.
Connection Setting
Connection:
Always On: Click on Always On to establish a PPPoE session during start up and to
automatically re-establish the PPPoE session when disconnected by the ISP.
Connect Manually: Select Connect Manually when you don't want the connection up all the
time.
TCP MSS Option: Enter the maximum size of the data that TCP can send in a segment. Maximum
Segment Size (MSS).
IP Options
Default Route: Select Yes to use this interface as default route interface.
TCP MTU Option: Enter the maximum packet that can be transmitted. Default MTU is set to 1492.
IPv4 Options
Get IP Address: Choose Static or Dynamic
Static IP Address: If Static is selected in the above field, please enter the specific IP address you get
from ISP and the following IP subnet mask and gateway address.
IP Subnet Mask: The default is 0.0.0.0. User can change it to other such as 255.255.255.0.Type the
subnet mask assigned to you by your ISP (if given).
Gateway: Enter the specific gateway IP address you get from ISP.
NAT: Select Enable if you use this router to hold a group of PCs to get access to the internet.
Dynamic Route:
RIP Version: (Routing Information protocol) Select this option to specify the RIP version,
including RIP-1, RIP-2.
RIP Direction: Select this option to specify the RIP direction.
- None is for disabling the RIP function.
- Both means the router will periodically send routing information and accept routing
information then incorporate into routing table.
- IN only means the router will only accept but will not send RIP packet.
- OUT only means the router will only send but will not accept RIP packet.
IGMP Proxy: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish
membership in a Multicast group. Choose whether enable IGMP proxy.
IPv6 options (only when choose IPv4/IPv6 or just IPv6 in IP version field above):
IPv6 Address: Type the WAN IPv6 address from your ISP.
Obtain IPv6 DNS: Choose if you want to obtain DNS automatically.
Page 53
Device Configuration /
Interface Setup
49
BEC 6300VNL User Manual
Primary/Secondary: if you choose Disable in the Obtain IPv6 DNS field, please type the exactly
primary and secondary DNS.
MLD Proxy: MLD (Multicast Listener Discovery Protocol) is to IPv6 just as IGMP to IPv4. It is a
Multicast Management protocol for IPv6 multicast packets.
When router’s Internet configuration is finished successfully, you can go to status to get the connection
information.
Page 54
Device Configuration /
Interface Setup
50
BEC 6300VNL User Manual
3G/4G-LTE or 3G/4G-LTE via USB
Status: Choose Activated to enable the 3G/4G-LTE connection.
Network Mode: There are 8 options of service standards: “Automatic”, “UMTS 3G only”, “GSM 2G
Only”, “UMTS 3G Preferred”, “GSM 2G Preferred”, “GSM and UMTS Only”, “LTE Only”, “GSM, UMTS,
LTE”. If you are not sure which mode to use, you may select Automatic to auto detect the best mode
for you.
TEL No.: The dial string to make a GPRS / 3G/4G-LTE user internetworking call. It may provide by
your mobile service provider.
Dual APN: BEC 6300VNL can support up to two (2) APNs. Select Single or Dual.
APN: An APN is similar to a URL on the WWW, it is what the unit makes a GPRS / UMTS call. The
service provider is able to attach anything to an APN to create a data connection, requirements for
APNs varies between different service providers. Most service providers have an internet portal which
they use to connect to a DHCP Server, thus giving you access to the internet i.e. some 3G operators
use the APN ‘internet’ for their portal. The default value is “internet”.
Username/Password: Enter the username and password provided by your service provider. The
username and password are case sensitive.
PIN: PIN stands for Personal Identification Number. A PIN code is a numeric value used in certain
systems as a password to gain access, and authenticate. In mobile phones a PIN code locks the SIM
card until you enter the correct code. If you enter the PIN code incorrectly into the phone 3 times in a
row, then the SIM card will be blocked and you will require a PUK code from your network/service
provider.
Connection: Default set to Always on to keep an always-on 3G/4G-LTE connection.
Keep Alive: Select Yes to keep the 3G/4G-LTE connection always on.
Keep Alive IP: Enter the IP address that the router can ping the IP to find whether the connection is on
or not, if not, router will recover the connection.
Default Route: Select Yes to use this interface as default route interface.
NAT: Select this option to Disabled/Enable the NAT (Network Address Translation) function. Enable
NAT to grant multiples devices in LAN to access to the Internet through a single WAN IP.
Page 55
Device Configuration /
Interface Setup
51
BEC 6300VNL User Manual
When router’s Internet configuration is finished successfully, you can go to the Status to check
connection information.
Page 56
Device Configuration /
Interface Setup
52
BEC 6300VNL User Manual
LAN
A Local Area Network (LAN) is a shared communication system to which many computers are
attached and is limited to the immediate area, usually the same building or floor of a building.
IPv4 Parameters
IP Address: Enter the IP address of Router in dotted decimal notation, for example, 192.168.1.254
(factory default).
IP Subnet Mask: The default is 255.255.255.0. User can change it to other such as 255.255.255.128.
Alias IP Address: This is for local networks virtual IP interface. Specify an IP address on this virtual
interface.
Alias IP Subnet Mask: Specify a subnet mask on this virtual interface.
Page 57
Device Configuration /
Interface Setup
53
BEC 6300VNL User Manual
IGMP Snooping: Select Activated to enable IGMP Snooping function, Without IGMP snooping,
multicast traffic is treated in the same manner as broadcast traffic - that is, it is forwarded to all ports.
With IGMP snooping, multicast traffic of a group is only forwarded to ports that have members of that
group.
Dynamic Route: Select the RIP version from RIP1 or RIP2.
DHCPv4 Server
DHCP (Dynamic Host Configuration Protocol) allows individual clients to obtain TCP/IP configuration
at start-up from a server.
DHCPv4 Server: If set to Enabled, your BEC 6300VNL can assign IP addresses, default gateway and
DNS servers to the DHCP client.
If set to Disabled, the DHCP server will be disabled.
If set to Relay, the BEC 6300VNL acts as a surrogate DHCP server and relays DHCP requests
and responses between the remote server and the clients. Enter the IP address of the actual,
remote DHCP server in the Remote DHCP Server field in this case.
When DHCP is used, the following items need to be set.
Start IP: This field specifies the first of the contiguous addresses in the IP address pool.
IP Pool Count: This field specifies the count of the IP address pool.
Lease Time: The current lease time of client.
Physical Ports: Select to determine if the DHCPv4 server is applicable to the specific port or ports. By
default, all ports can obtain local IP from DHCPv4 server.
DNS Relay Select Automatically obtained or Manually set (if selected. Please set the exactly
information). If you set Static IP in the ISP Connection Type field, then select Manually here and set
the specific DNS information.
Primary DNS Server: Enter the IP addresses of the DNS servers. The DNS servers are passed to the
DHCP clients along with the IP address and the subnet mask.
Secondary DNS Server: Enter the IP addresses of the DNS servers. The DNS servers are passed to
the DHCP clients along with the IP address and the subnet mask.
Fixed Host
In this field, users can map the specific IP (must in the DHCP IP pool) for some specific MAC, and this
information can be listed in the following table.
Page 58
Device Configuration /
Interface Setup
54
BEC 6300VNL User Manual
IP Address: Enter the specific IP. For example: 192.168.1.110.
MAC Address: Enter the responding MAC. For example: 00:0A:F7:45:6D:ED
When added, you can see the ones listed as showed below:
IPv6 parameters
The IPv6 address composes of two parts, thus, the prefix and the interface ID.
Interface Address / Prefix Length: Enter a static LAN IPv6 address. If you are not sure what to do
with this field, please leave it empty as if contains false information it could result in LAN devices not
being able to access other IPv6 device. Router will take the same WAN’s prefix to LAN side if the field
is empty.
MLD Snooping: Similar to IGMP Snooping, but applicable for IPv6.
DHCPv6 Server
There are two methods to dynamically configure IPv6 address on hosts, Stateless and Stateful.
Stateless auto-configuration requires no manual configuration of hosts, minimal (if any)
configuration of routers, and no additional servers. The stateless mechanism allows a host to generate
its own addresses using a combination of locally available information (MAC address) and information
(prefix) advertised by routers. Routers advertise prefixes that identify the subnet(s) associated with a
link, while hosts generate an "interface identifier" that uniquely identifies an interface on a subnet. An
address is formed by combining the two. W hen using stateless configuration, you needn’t configure
anything on the client.
Stateful configuration, for example using DHCPv6 (which resembles its counterpart DHCP in IPv4.)
In the stateful auto configuration model, hosts obtain interface addresses and/or configuration
information and parameters from a DHCPv6 server. The Server maintains a database that keeps track
of which addresses have been assigned to which hosts.
DHCPv6 Server: Check whether to enable DHCPv6 server.
Page 59
Device Configuration /
Interface Setup
55
BEC 6300VNL User Manual
DHCPv6 Server Type: Select Stateless or Stateful. When DHCPv6 is enabled, this parameter is
available.
Stateless: If selected, the PCs in LAN are configured through RA mode, thus, the PCs in LAN
are configured through RA mode, to obtain the prefix message and generate an address using a
combination of locally available information (MAC address) and information (prefix) advertised
by routers, but they can obtain such information like DNS from DHCPv6 Server.
Stateful: If selected, the PCs in LAN will be configured like in IPv4 mode, thus obtain addresses
and DNS information from DHCPv6 server.
Start interface ID: enter the start interface ID. The IPv6 address composed of two parts, thus, the
prefix and the interface ID. Interface is like the Host ID compared to IPv4.
End interface ID: enter the end interface ID.
Leased Time (hour): the leased time, similar to leased time in DHCPv4, is a time limit assigned to
clients, when expires, the assigned ID will be recycled and reassigned.
Router Advertisement: Check to Enable or Disable the Issue Router Advertisement feature. This
feature is to send Router Advertisement messages periodically which would multicast the IPv6 Prefix
information (similar to v4 network number 192.168.1.0) to all LAN devices if the field is enabled. We
suggest enabling this field.
Page 60
Device Configuration /
Interface Setup
56
BEC 6300VNL User Manual
Wireless
This section introduces the wireless LAN and some basic configurations. Wireless LANs can be as
complex as a number of computers with wireless LAN cards communicating through access points
which bridge network traffic to the wired LAN.
Page 61
Device Configuration /
Interface Setup
57
BEC 6300VNL User Manual
Access Point Settings
Access Point: Default setting is set to Activated. If you want to close the wireless interface, select
Deactivated.
AP MAC Address: The MAC address of wireless AP.
Wireless Mode: The default setting is 802.11b+g+n (Mixed mode). If you do not know or have both
11g and 11b devices in your network, then keep the default in mixed mode. From the drop-down
manual, you can select 802.11g if you have only 11g card. If you have only 11b card, then select
802.11b and if you only have 802.11n then select 802.11n.
Channel: The range of radio frequencies used by IEEE 802.11b/g/n wireless devices is called a
channel. There are Regulation Domains and Channel ID in this field. The Channel ID will be different
based on Regulation Domains. Select a channel from the drop-down list box.
Beacon interval: The Beacon Interval value indicates the frequency interval of the beacon. Enter a
value between 20 and 1000. A beacon is a packet broadcast by the Router to synchronize the wireless
network.
RTS/CTS Threshold: The RTS (Request To Send) threshold (number of bytes) for enabling RTS/CTS
handshake. Data with its frame size larger than this value will perform the RTS/CTS handshake. Enter
a value between 1500 and 2347.
Fragmentation Threshold: The threshold (number of bytes) for the fragmentation boundary for
directed messages. It is the maximum data fragment size that can be sent. Enter a value between 256
and 2346, even number only.
DTIM Interval: This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication
Message (DTIM).
TX Power: The transmission power of the antennas, ranging from 1-100, the higher the more powerful
of the transmission performance.
IGMP Snooping: Enable or disable the IGMP Snooping function for wireless. Without IGMP snooping,
multicast traffic is treated in the same manner as broadcast traffic - that is, it is forwarded to all ports.
With IGMP snooping, multicast traffic of a group is only forwarded to ports that have members of that
group.”
11n Settings
Channel Bandwidth: Select either 20 MHz or 20/40 MHz for the channel bandwidth. The wider the
Channel bandwidth the better the performance will be.
Guard Interval: Select either 400nsec or 800nsec for the guard interval. The guard interval is here to
ensure that data transmission do not interfere with each other. It also prevents propagation delays,
echoing and reflections. The shorter the Guard Interval, the better the performance will be. We
recommend users to select Auto.
MCS: There are options 0~15 and AUTO to select for the Modulation and Coding Scheme. We
recommend users selecting AUTO.
SSID Settings
Available SSID: User can determine how many virtual SSIDs to be used. Default is 1, maximum is 4.
SSID Index: Select the number of SSIDs you want to use; up to 4 SSIDs are available in the list.
SSID: The SSID is the unique name of a wireless access point (AP) to be distinguished from another.
Page 62
Device Configuration /
Interface Setup
58
BEC 6300VNL User Manual
For security propose, change the default wlan-ap to a unique ID name to the AP which is already
built-in to the router’s wireless interface. Make sure your wireless clients have exactly the SSID as the
device, in order to get connected to your network.
Broadcast SSID: Select Yes to make the SSID visible so a station can obtain the SSID through
passive scanning. Select No to hide the SSID in so a station cannot obtain the SSID through passive
scanning.
SSID Activated: Select the time period during which the SSID is active. Default is always which
means the SSID will be active all the time without time control. See Time Schedule to set the timeslot
to flexibly control when the SSID functions.
WPS Settings
WPS (Wi-Fi Protected Setup) feature is a standard protocol created by Wi-Fi Alliance. This feature
greatly simplifies the steps needed to create a Wi-Fi network for a residential or an office setting. WPS
supports 2 types of configuration methods which are commonly known among consumers: PIN
Method (Personal Information Number) & PBC Method (Push Button Configuration).
Use WPS: Enable this feature by choosing the ”YES” radio button.
WPS State: Display whether the WPS is configured or unconfigured.
WPS Mode: Select the mode which to start WPS, choose between PIN Code and PBC (Push Button).
Selecting Pin Code mode will require you to know the enrollee PIN code.
To future understand the two modes of configuration; please refer to the example of the Wi-Fi
Protected Setup.
Security Settings
Security Type: You can disable or enable wireless security for protecting wireless network. The
default type of wireless security is OPEN and to allow all wireless stations to communicate with the
access points without any data encryption.
To prevent unauthorized wireless stations from accessing data transmitted over the network, the router
offers secure data encryption, known as WEP and WPA.
There are five alternatives to select from: WEP 64-bit, WEP 128-bit, WPA-PSK, WPA2-PSK, and
Mixed WPA/WPA2-PSK. If you require high security for transmissions, please select WPA-PSK,
WPA2-PSK or WPA/WPA2-PSK.

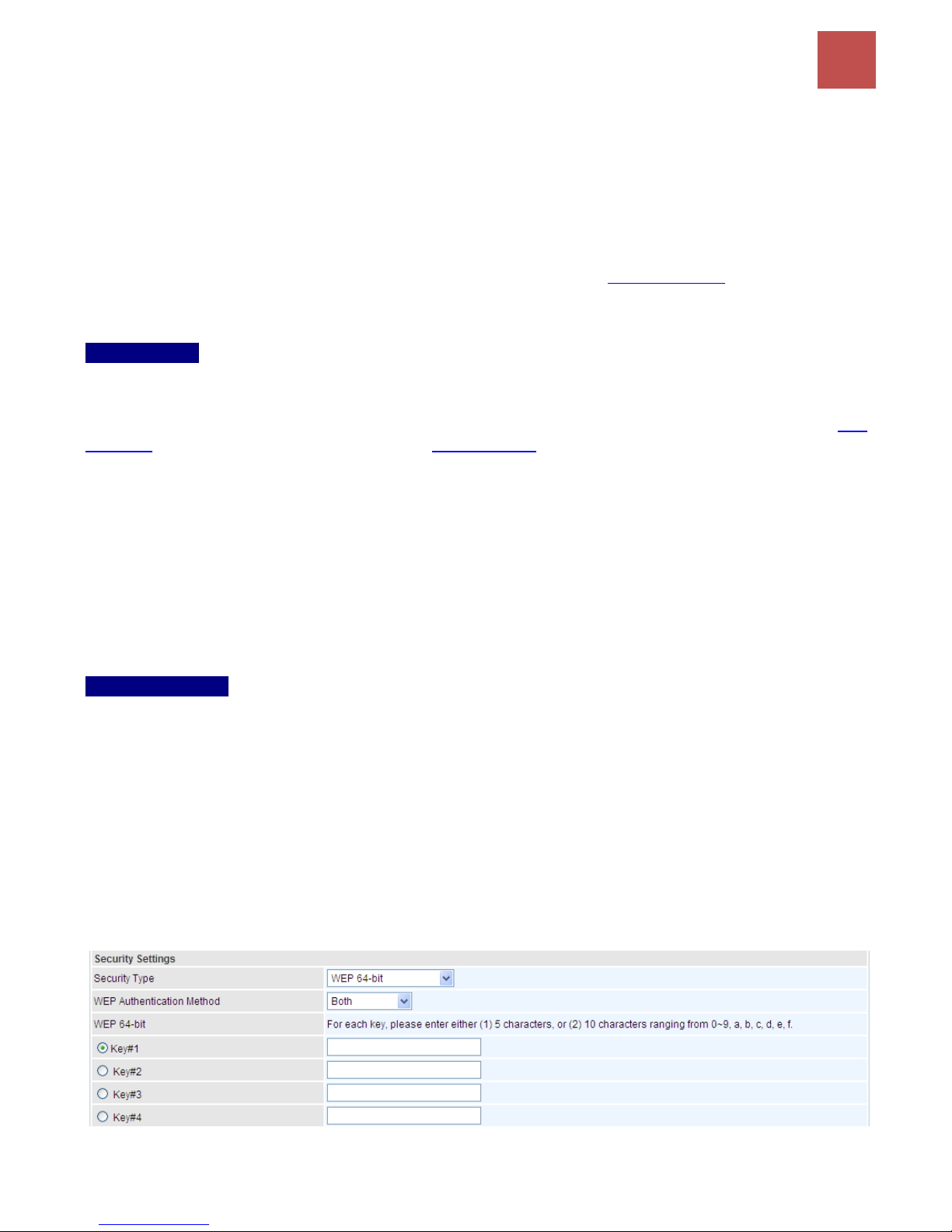

WEP
WEP Authentication Method: WEP authentication method, there are two methods of authentication
Page 63
Device Configuration /
Interface Setup
59
BEC 6300VNL User Manual
used, Open System authentication (OPENWEB) and Share Key authentication (SHAREDWEB). We
suggest you select OPENWEB.
Key 1 to Key 4: Enter the key to encrypt wireless data. To allow encrypted data transmission, the
WEP Encryption Key values on all wireless stations must be the same as the router. There are four
keys for your selection. The input format is in HEX style, 5 and 13 HEX codes are required for
64-bitWEP and 128-bitWEP respectively.
If you chose WEP 64-bit, then enter any 5 ASCII characters or 10 hexadecimal characters ("0-9",
"A-F").
If you chose WEP 128-bit, then enter 13 ASCII characters or 26 hexadecimal characters ("0-9", "A-F").
You must configure all four keys, but only one key can be activated at any one time. The default key is
key 1.
Note: When you enable WPS function, this WEP function will be invalid. And if you select one of WEP-64Bits/
WEP-128Bits, the following prompt box will appear to notice you.
WPA-PSK & WPA2-PSK
WPA Algorithms: TKIP (Temporal Key Integrity Protocol) or AES (Advanced Encryption System)
utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide
protection against hackers.
Pre-Shared key: The key for network authentication. The input format should be 8-63 ASKII
characters or 64 hexadecimal characters
Key Renewal Interval: The time interval for changing the security key automatically between wireless
client and AP.
WDS Settings
WDS (Wireless distributed system) is a wireless access point mode that enables wireless link and
communication with other access point. It is easy to be installed, just define the peer’s MAC of the
connected AP.
WDS Mode: select Activated to enable WDS feature and Deactivated to disable this feature.
MAC Address: Enter the AP MAC addresses (in XX:XX:XX:XX:XX:XX format) of the peer connected
AP.
Page 64
Device Configuration /
Interface Setup
60
BEC 6300VNL User Manual
Page 65
Device Configuration /
Interface Setup
61
BEC 6300VNL User Manual
Wi-Fi Protected Setup (WPS) Example I:
PIN Method (Personal Information Number): Configure AP as Registrar
1. Jot down the client’s Pin (e.g. 04640776) from the WPS utility (e.g. Ralink Utility)
2. Enter the Enrollee (Client) PIN code and then press Start WPS.
Page 66
Device Configuration /
Interface Setup
62
BEC 6300VNL User Manual
3. Launch the wireless client’s WPS utility (e.g. Ralink Utility). Set the Config Mode as Enrollee, press
the WPS button on the top bar, select the AP (e.g. Billion_AP) from the WPS AP List column. Then
press the PIN button located on the middle left of the page to run the scan.
Page 67
Device Configuration /
Interface Setup
63
BEC 6300VNL User Manual

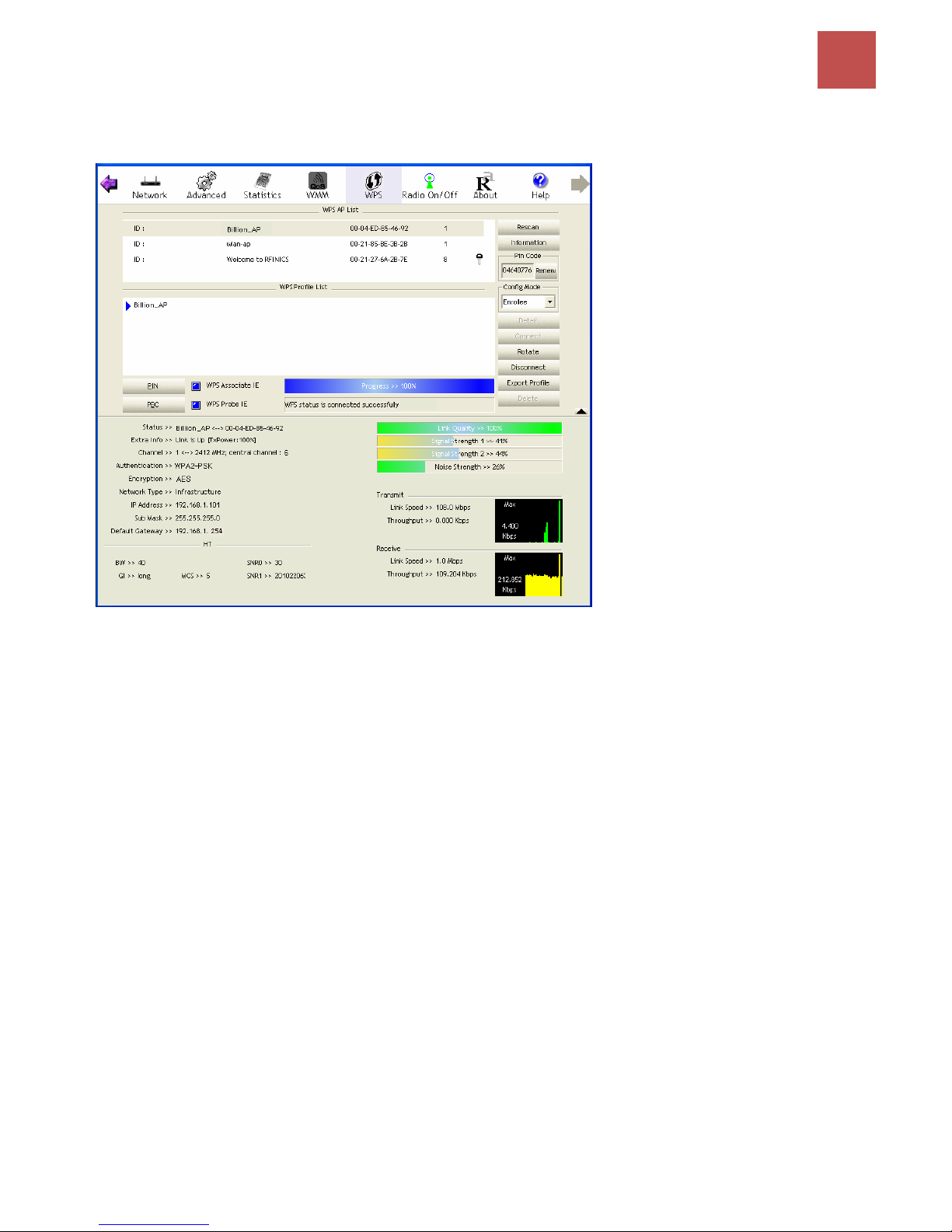

4. The client’s SSID and security setting will now be configured to match the SSID and security setting
of the registrar (router).
Page 68
Device Configuration /
Interface Setup
64
BEC 6300VNL User Manual
Wi-Fi Protected Setup (WPS) Example II:
PIN Method (Personal Information Number): Configure AP as Enrollee
1. Jot down the AP PIN Code (e.g. 03454435) from the BEC 6300VNL. Press Start WPS.
2. Launch the wireless client’s WPS utility (e.g. Ralink Utility). Set the Config Mode as Registrar. Enter
the PIN number in the PIN Code (e.g. 03454435)column then choose the correct AP (e.g. Billion_AP)
from the WPS AP List before pressing the PIN button to run the scan.
Page 69
Device Configuration /
Interface Setup
65
BEC 6300VNL User Manual

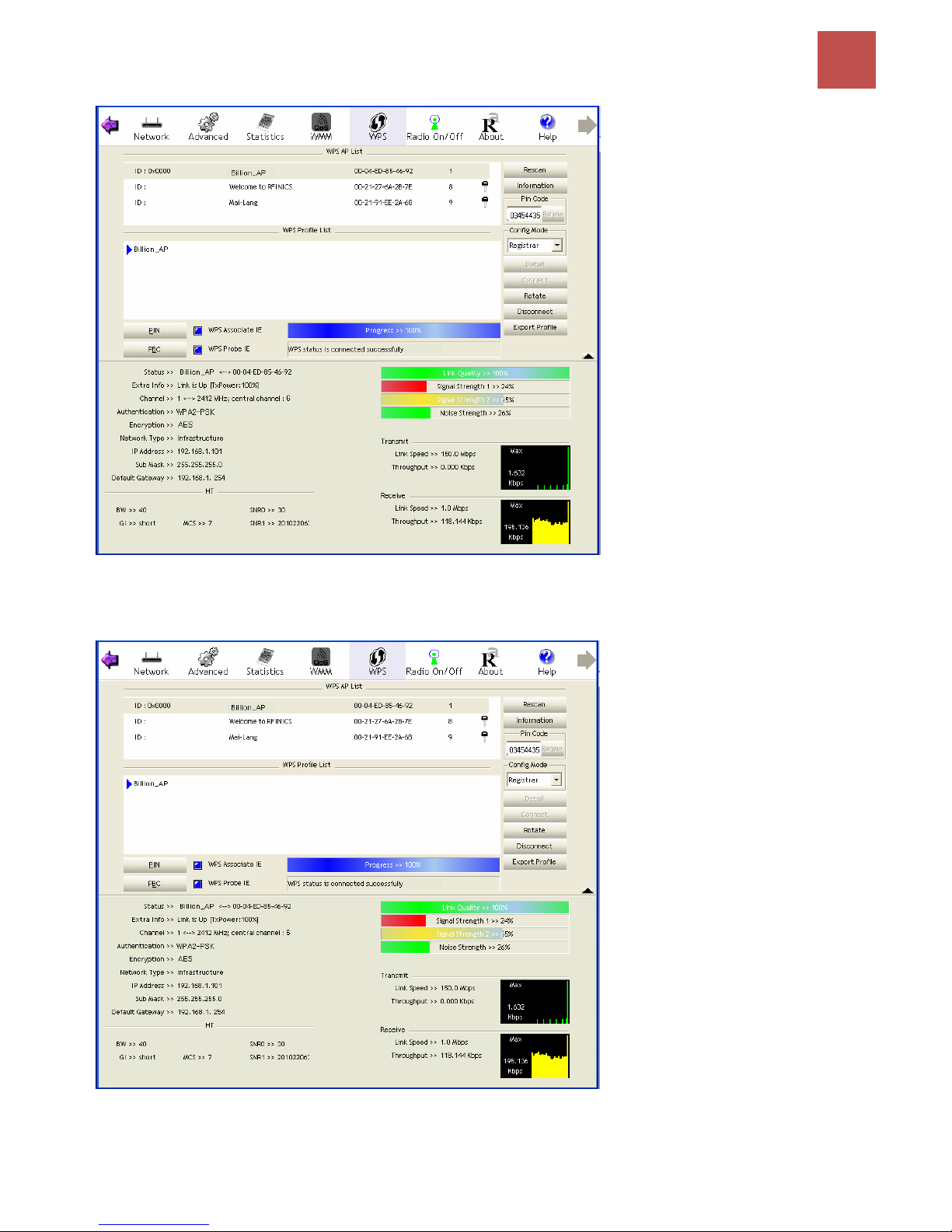

3. The router’s (AP’s) SSID and security setting will now be configured to match the SSID and security
setting of the registrar (client).
4. Now to make sure that the setup is correctly done, cross check to see if the SSID and the security
setting of the registrar setting match with the parameters found on both Wireless Configuration and
Wireless Security Configuration page.
Page 70
Device Configuration /
Interface Setup
66
BEC 6300VNL User Manual

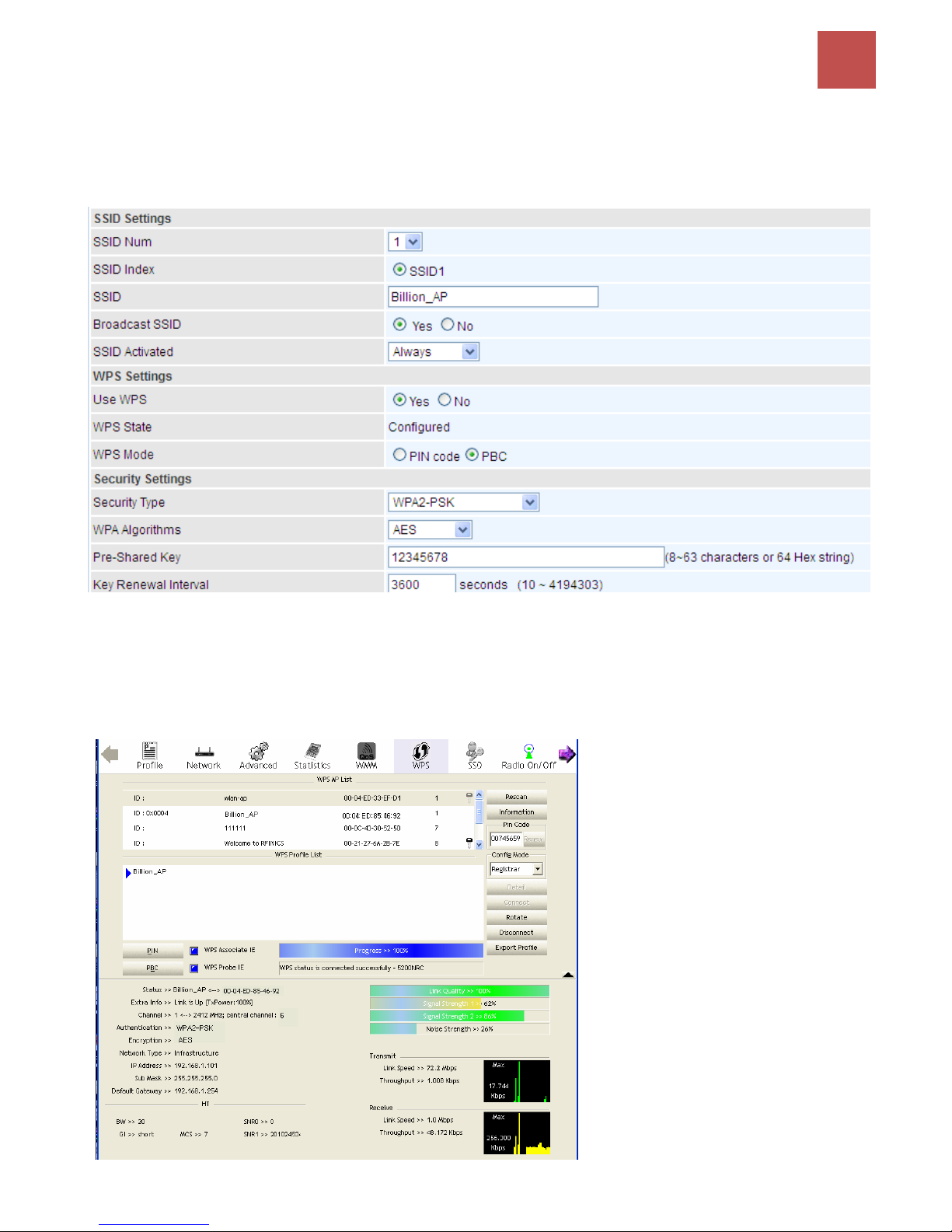

Wi-Fi Protected Setup (WPS) Example III:
PBC (Push Button Configuration) Method:
1.Click the PBC radio button in the GUI then press Start WPS.
2. Launch the wireless client’s WPS Utility (e.g. Ralink Utility). Set the Config Mode as Enrollee. Then
press the WPS button and choose the correct AP (e.g. Billion_AP) from the WPS AP List section
before pressing the PBC button to run the scan.
3. When the PBC button is pushed, a wireless communication will be established between your router
and the PC. The client’s SSID and security setting will now be configured to match the SSID and
security setting of the router.
Page 71
Device Configuration /
Interface Setup
67
BEC 6300VNL User Manual
Wireless MAC Filter
The MAC filter screen allows you to configure the router to give exclusive access to up to 8 devices
(Allow Association) or exclude up to 8 devices from accessing the router (Deny Association). Every
Ethernet device has a unique MAC (Media Access Control) address. The MAC address is assigned at
the factory and consists of six pairs of hexadecimal characters, for example, 00:AA:BB:00:00:02.
You need to know the MAC address of the devices you wish to filter.
SSID Index: Select the targeted SSID you want the MAC filter rules to apply to.
Active: Select Activated to enable MAC address filtering.
Action: Define the filter action for the list of MAC addresses in the MAC address filter table.
Select Deny to block access to the AP, MAC addresses not listed will be allowed to access the router.
Select Allow to permit access to the router, MAC addresses not listed will be denied access to the
router.
MAC Address: Enter the MAC addresses (in XX:XX:XX:XX:XX:XX format) of the wireless station that
are allowed or denied access to the specified in these address fields.
Page 72
Device Configuration /
Advanced Setup
68
BEC 6300VNL User Manual
Advanced Setup
Advanced Step provides advanced features including Firewall, Routing, NAT, Static DNS, QoS,
Internet Grouping, and Time Schedule for advanced users.
Page 73
Device Configuration /
Advanced Setup
69
BEC 6300VNL User Manual
Firewall
Your router includes a firewall for helping to prevent attacks from hackers. In addition to this, when
using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs
on your LAN use private IP addresses that cannot be directly accessed from the Internet.
Firewall: To automatically detect and block Denial of Service (DoS) attacks, such as Ping of Death,
SYN Flood, Port Scan and Land Attack.
Enabled: It activates your firewall function.
Disabled: It disables the firewall function.
SPI: If you enabled SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual Server,
and ACL WAN side.
Enabled: It activates your SPI function.
Disabled: It disables the SPI function.
Page 74
Device Configuration /
Advanced Setup
70
BEC 6300VNL User Manual
Routing
This is static route feature. You are equipped with the capability to control the routing of all the traffic
across your network. With each routing rule created, user can specifically assign the destination where
the traffic will be routed to.
#: Item number
Destination IP Address: IP address of the destination network
Subnet Mask: The subnet mask of destination network.
Gateway IP Address: IP address of the gateway or existing interface that this route uses.
Metric: It represents the cost of transmission for routing purposes. The number need not be precise,
but it must be between 1 and 15.
Interface: Media/channel selected to append the route.
Edit: Edit the route; this icon is not shown for system default route.
Drop: Drop the route; this icon is not shown for system default route.
Add Route
Destination IP Address: This is the destination subnet IP address.
Destination Subnet Mask: The subnet mask of destination network.
Gateway IP Address/Interface: This is the gateway IP address or existing interface to which packets
are to be forwarded.
Metric: It represents the cost of transmission for routing purposes. The number need not be precise,
but it must be between 1 and 15.
Page 75
Device Configuration /
Advanced Setup
71
BEC 6300VNL User Manual
NAT
The NAT (Network Address Translation) feature transforms a private IP into a public IP, allowing
multiple users to access the internet through a single IP account, sharing the single IP address. NAT
break the originally envisioned model of IP end-to-end connectivity across the internet so NAT can
cause problems where IPSec/ PPTP encryption is applied or some application layer protocols such as
SIP phones are located behind a NAT. And NAT makes it difficult for systems behind a NAT to accept
incoming communications.
In this session, there are “VPN Passthrough”, “SIP ALG”, “DMZ” and “Virtual Server” provided to solve
these nasty problems.
NAT Status: Enabled. It depends on ISP Connection Type in Internet settings.
VPN Passthrough: VPN pass-through is a feature of routers which allows VPN client on a private
network to establish outbound VPNs unhindered.
SIP ALG: Enable the SIP ALG when SIP phone needs ALG to pass through the NAT. Disable the SIP
ALG when SIP phone includes NAT-Traversal algorithm.
Interface: Select to set DMZ/Virtual Server for “EWAN”, “3G/4G-LTE” or “3G/4G-LTE USB”.
Service Index: Associated to EWAN interface marking each EWAN service (0-7), to select which
EWAN service the DMZ and Virtual server are applied to.
Click DMZ or Virtual Server to move on to set the DMZ or Virtual Server
parameters, which are represented in the following scenario.
Page 76
Device Configuration /
Advanced Setup
72
BEC 6300VNL User Manual
DMZ
NOTE: This feature disables automatically if WAN connection is in BRIDGE mode.
The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP
address as the DMZ Host, all incoming packets will be checked by the Firewall and NAT algorithms
then passed to the DMZ host, when a packet received does not use a port number used by any other
Virtual Server entries.
DMZ for: Indicate the related WAN interface which allows outside network to connect in and
communicate. Note: Here you can see the Multiple IPs Account/EWAN Service ID 0. It is the interface
set in the previous NAT page.
DMZ:
Enabled: It activates your DMZ function.
Disabled: It disables the DMZ function.
DMZ Host IP Address: Give a static IP address to the DMZ Host when Enabled radio button is
checked. Be aware that this IP will be exposed to the WAN/Internet.
Select the Save button to apply your changes.
Page 77
Device Configuration /
Advanced Setup
73
BEC 6300VNL User Manual

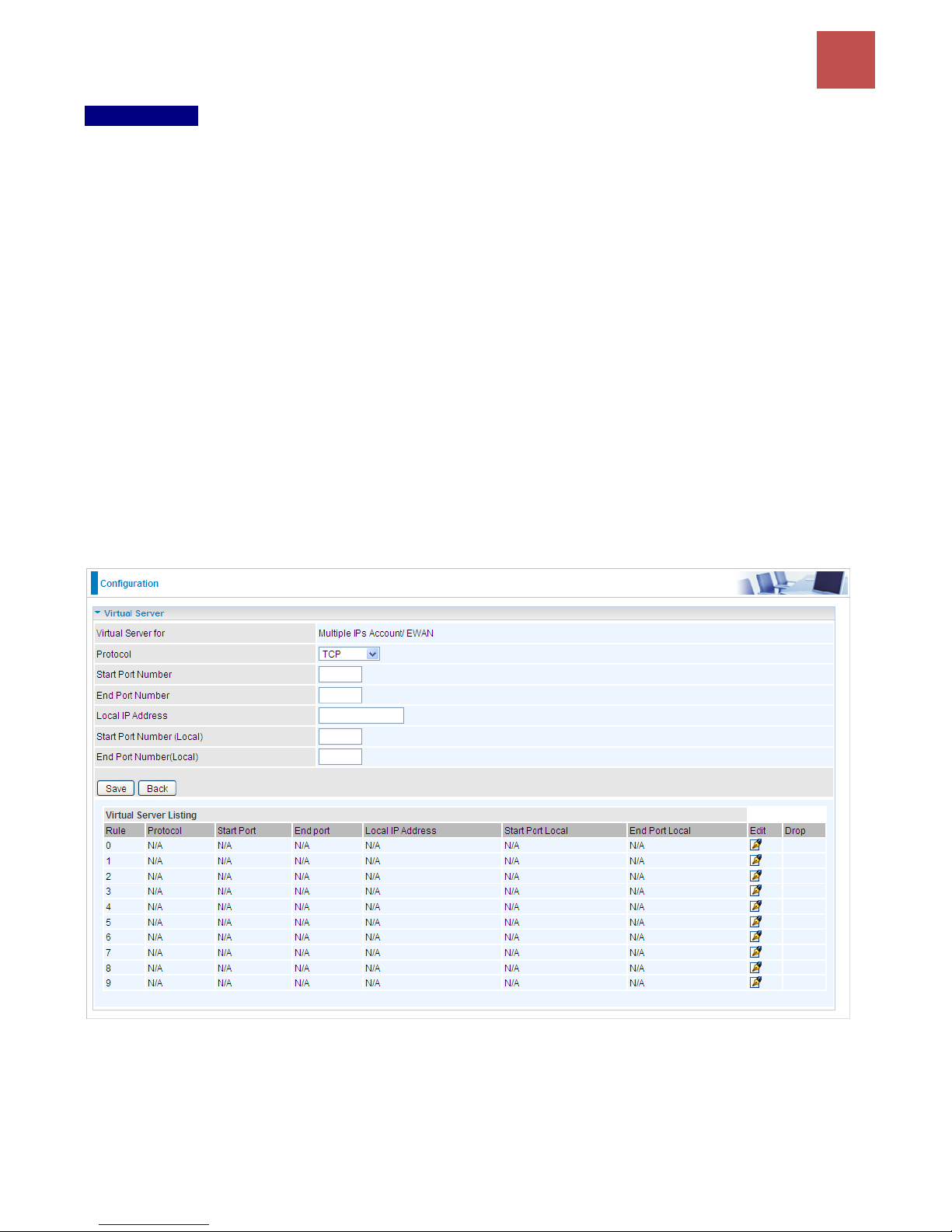

Virtual Server
NOTE: This feature disables automatically if WAN connection is in BRIDGE mode.
In TCP/IP networks, a port is a 16-bit number used to identify which application program (usually a
server) incoming connections should be delivered to. Some ports have numbers that are pre-assigned
to them by the IANA (the Internet Assigned Numbers Authority), and these are referred to as
“well-known ports”. Servers follow the well-known port assignments so clients can locate them.
If you wish to run a server on your network that can be accessed from the WAN (i.e. from other
machines on the Internet that are outside your local network), or any application that can accept
incoming connections (e.g. Peer-to-peer/P2P software such as instant messaging applications and
P2P file-sharing applications) and are using NAT (Network Address Translation), then you will usually
need to configure your router to forward these incoming connection attempts using specific ports to the
PC on your network running the application. You will also need to use port forwarding if you want to
host an online game server.
The reason for this is that when using NAT, your publicly accessible IP address will be used by and
point to your router, which then needs to deliver all traffic to the private IP addresses used by your PCs.
Please see the WAN configuration section of this manual for more information on NAT.
The device can be configured as a virtual server so that remote users accessing services such as Web
or FTP services via the public (WAN) IP address can be automatically redirected to local servers in the
LAN network. Depending on the requested service (TCP/UDP port number), the device redirects the
external service request to the appropriate server within the LAN network.
Virtual Server for: Indicate the related WAN interface which allows outside network to connect in and
communicate.
Protocol: Choose the application protocol.
Start / End Port Number: Enter a port or port range you want to forward.
(Example: Start / End: 1000 or Start: 1000, End: 2000).
Page 78
Device Configuration /
Advanced Setup
74
BEC 6300VNL User Manual
The starting port must be greater than zero (0). The end port must be greater than or equal to the start
port.
Local IP Address: Enter your server IP address in this field.
Start / End Port Number (Local): Enter the start / end port number of the local application (service).
Examples of well-known and registered port numbers are shown below. For further information, please
see IANA’s website at http://www.iana.org/assignments/port-numbers
Well-known and Registered Ports
Port Number
Protocol
Description
21
TCP
FTP Control
22
TCP & UDP
SSH Remote Login Protocol
23
TCP
Telnet
25
TCP
SMTP (Simple Mail Transfer Protocol)
53
TCP & UDP
DNS (Domain Name Server)
69
UDP
TFTP (Trivial File Transfer Protocol)
80
TCP
World Wide Web HTTP
110
TCP
POP3 (Post Office Protocol Version 3)
443
TCP & UDP
HTTPS
1503
TCP
T.120
1720
TCP
H.323
7070
UDP
RealAudio
Using port forwarding does have security implications, as outside users will be
able to connect to PCs on your network. For this reason you are advised to use
specific Virtual Server entries just for the ports your application requires,
instead of using DMZ. As doing so will result in all connections from the WAN
attempt to access to your public IP of the DMZ PC specified.
If you have disabled the NAT option in the WAN-ISP section, the Virtual Server
function will hence be invalid.
If the DHCP server option is enabled, you have to be very careful in assigning
the IP addresses of the virtual servers in order to avoid conflicts. The easiest
way of configuring Virtual Servers is to manually assign static IP address to
each virtual server PC, with an address that does not fall into the range of IP
addresses that are to be issued by the DHCP server. You can configure the
virtual server IP address manually, but it must still be in the same subnet as the
router.
Attention
Page 79
Device Configuration /
Advanced Setup
75
BEC 6300VNL User Manual
Example : How to setup Port Forwarding for port 21 (FTP server)
If you have a FTP server in your LAN network and want others to access it through WAN.
Step 1: Assign a static IP to your local computer that is hosting the FTP server.
Step 2: Login to the Gateway and go to Configuration / Advanced Setup / NAT / Virtual Server.
FTP server uses TCP protocol with port 21.
Enter ”21” to Start and End Port Number. BEC 6300VNL will accept port 21 requests from WAN side.
Enter the static IP assigned to the local PC that is hosting the FTP server. Ex: 192.168.1.102
Enter ”21” to Local Start and End Port number. BEC 6300VNL will forward port 21 request from WAN
to the specific LAN PC (ex:192.168.1.102) in the network.
Step 3: Click Save to save settings.
Page 80
Device Configuration /
Advanced Setup
76
BEC 6300VNL User Manual
Static DNS
The Domain Name System (DNS) is a hierarchical naming system built on a distributed database for
computers, services, or any resource connected to the Internet or a private network associates various
information with domain names assigned to each of the participating entities. Most importantly, it
translates domain names meaningful to humans into the numerical identifiers associated with
networking equipment for the purpose of locating and addressing these devices worldwide.
An often-used analogy to explain the Domain Name System is that it serves as the phone book for the
Internet by translating human-friendly computer hostnames into IP addresses. For example, the
domain name www.example.com can be translated into the addresses 192.0.32.10 (IPv4).
Static DNS is a concept relative to Dynamic DNS, in static DNS system, the IP mapped is static without
change.
IP Address: The IP address you are going to give a specific domain name.
Domain Name: The friendly domain name for the IP address.
Press Save button to apply your settings.
Page 81
Device Configuration /
Advanced Setup
77
BEC 6300VNL User Manual
QoS
QoS helps you control the upload traffic of each application from LAN (Ethernet and/or Wireless) to
WAN (Internet).
It facilitates you the features to control the quality of throughput for each application. This is useful
when there on certain types of data you want giver higher priority to, such as voice data packets given
higher priority than web data packets.
Click SETTING to add QoS rules (up to 16 QoS rules).
Rule Index: Index marking for each rule up to maximum of 16.
Active: Select whether to activate the rule.
Destination IPv4/IPv6: Set the IPv4/IPv6 address that you want to filter on destination side.
Destination Subnet Mask / IPv6 Prefix: Specify the Destination Subnet Mask for IPv4 or prefix for
IPv6.
Destination Port Range: Set the port range value that you want to filter on destination side.
Source IPv4/IPv6 Address: Set the IP address value that you want to filter on source side in IPv4 or
IPv6.
Source Subnet Mask / IPv6 Prefix: Specify the Source Subnet Mask for IPv4 or prefix for IPv6.
Source Port Range: Set the port range value that you want to filter on source side.
Protocol ID: Set the protocol ID type of packets that you want to filter (TCP, UDP, ICMP, and IGMP).
Priority: Select to prioritize the traffic which the rule categorizes, High or Low.
Page 82
Device Configuration /
Advanced Setup
78
BEC 6300VNL User Manual
Interface Grouping
Interface grouping is a function to group interfaces, known as VLAN. A Virtual LAN, commonly known
as a VLAN, is a group of hosts with the common set of requirements that communicate as if they were
attached to the same broadcast domain, regardless of the physical location. A VLAN has the same
attributes as a physical LAN, but it allows for end stations to be grouped together even if they are not
located on the same network switch. Similarly, they may also have been split into two different groups,
even if they are on the same switch.
Each group will perform as an independent network. To support this feature, you must create mapping
groups with appropriate LAN and WAN interfaces using the Save button.
Interface Grouping: Select Yes to enable Interface Grouping feature.
Group Index: The index number indicating the current group ranging from 0 to 15.
EWAN Service: The available EWAN interface. Move to Interface Setup to add other EWAN interface.
Ethernet LAN: The available Ethernet ports.
Wireless LAN: The available wireless port(s).
Group Summary: Press PortBinding Summary to check the current group information.
Page 83
Device Configuration /
Advanced Setup
79
BEC 6300VNL User Manual
Example: Create two EWAN services, Service0 (PPPoE) and Service1 (Bridge).
You are going to group the ports and services into two working group, as shown below.
Group Index
Group Port
0
EWAN0,LAN1, LAN2, WLAN1
1
EWAN1, LAN3
Click Group Summary to show the configuration results.
Page 84
Device Configuration /
Advanced Setup
80
BEC 6300VNL User Manual
Page 85
Device Configuration /
Advanced Setup
81
BEC 6300VNL User Manual
Time Schedule
The Time Schedule supports up to 16 timeslots which helps you to manage your Internet connection.
In each time profile, you may schedule specific day(s) i.e. Monday through Sunday to restrict or
allowing the usage of the Internet by users or applications.
This Time Schedule correlates closely with router’s time, since router does not have a real time clock
on board; it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP
server from the Internet.
Time Index: The rule index (0-15) for identifying each timeslot.
Name: User-defined identification for each time period.
Day of Week: Mon. to Sun. Specify the time interval for each timeslot from “Day of Week”. For
example, user can add a timeslot named “TimeSlot1” which features a period from 9:00 of Monday to
18:00 of Tuesday.
Another TimeSlot2 spanning from 09:00 to 18:00 of Friday
Page 86
Device Configuration /
VoIP
82
BEC 6300VNL User Manual
VoIP
VoIP, or Voice over Internet Protocol, enables telephone calls through existing internet connections
instead of going through the traditional PSTN (Public Switched Telephone Network). It is not only
cost-effective, especially for a long-distance call, but also top quality voice calls over the internet.
This section covers Basic, Media, Advanced, Speed Dial, and Call Features of VoIP.
Basic
Register to a SIP service provider is an essential step before making the VoIP call. You can find out
this information from your SIP service provider.
Locale RTP Port: Set the local RTP port range used to receive voice packet. This setting applies to
both the phone ports, Phone_1 and Phone_2, and these phone ports share the same local RTP port.
Phone: Select “1”, the following parameters will be applicable to Phone1. In BEC 6300VNL, Phone_1
and Phone_2 are allowed to be of different characteristics, including different SIP registrar. You need
to configure individually for phone1 and phone 2 and can have up to 2 different VoIP accounts.
Phone Number: Set your phone number or outgoing call number, which is usually obtained when
registering in your ITSP. It is used for destination to identify which this call is made from.
Display Name: A user-friendly display name for the phone number to be easily identified.
Authentication Name: Set the account used to register, usually the Phone Number.
Password: Set the registering account password.
User Domain: Set the SIP Registrar Domain name you are going to register to, usually just the SIP
registrar address.
SIP Registrar Address: Enter the SIP registrar address where offers the service of registering the
VoIP account. It is definitely a VoIP server.
SIP Registrar Port: Type the port; it will listen to register requests from VoIP devices.
Page 87
Device Configuration /
VoIP
83
BEC 6300VNL User Manual
SIP Registration Expire: Set the time interval. The device can update (usually re-login the account)
the VoIP account information with the SIP server very the time interval.
SIP Proxy Address: Enter the SIP proxy address provided by your ITSP. When destination and
source phones are not sharing the same SIP registrar domain, the SIP proxy is needed to deliver call
information and make the communication through.
SIP Proxy Port: Set the SIP proxy port.
SIP Outbound Proxy Address: Set the SIP outbound proxy address. It is usually used to realize the
communication between two phones when at least one of them is located behind a NAT router.
SIP Outbound Proxy Port: Set the SIP Outbound proxy port.
Page 88
Device Configuration /
VoIP
84
BEC 6300VNL User Manual
Media
Media offers for kinds of codec, G.711 u-law, G.711 A-law, G.729, G.726, from greatest to lowest in
priority.
Phone: Select to set the following configurations for Phone_1 or Phone_2. When phone1 is selected,
the following set media codec will be applied to phone_1.
T.38: T.38 relay is a way to permit faxes to be transported across IP networks between existing fax
terminals. Click Enable to allow transmission of fax over IP network between two fax machines. If T.38
is disabled, the analog fax signal is transmitted as the normal audio data. If T.38 relay is enabled, the
fax signal is converted to T.38 signal.
G.711u-Law: It is a basic non-compressed encoder and decoder technique. μ-LAW uses pulse
code modulation (PCM) encoder and decoder to convert 14-bit linear sample.
G.711A-LAW: It is a basic non-compressed encoder and decoder technique. A-LAW uses
pulse code modulation (PCM) encoder and decoder to convert 13-bit linear sample into 8-bit
value.
G.729: It is used to encoder and decoder voice information into a single packet which reduces
the bandwidth consumption.
G.726: It is an ITU-T ADPCM speech codec standard covering the transmission of voice at rates
of 32kbit/s.
Page 89
Device Configuration /
VoIP
85
BEC 6300VNL User Manual
Advanced
Advance section equipment the users with the ability to do some advanced settings to each phone port.
Go on to see.
Region: Select the exact region from the drop-down menu to adjust the phone custom in the exact
region, like ring tone, busy tone, dial tone, etc, as different regions may have different phone using
traditions. The setting is to be applied to both phone 1 and phone 2.
Phone: Select the phone 1 or Phone 2 to have the following configurations applied to the phone.
Silence Suppression (VAD): Enable to minimize the use of bandwidth by automatically decreasing
transmission of background noise when the device detects on voice input by the user on the phone.
Echo Cancellation: Enable to cancel echo for the other side in communication so as to make a clear
listening environment. In order to avoid the other side in communication hearing the echo, please
enable echo cancellation.
DTMF Transport Mode: Select the DTMF mode.
Listening Volume: Adjust the volume of listener, -6 to 6, from lowest to highest.
Speaking Volume: Adjust the volume of microphone; -6 to 6, from lowest to highest.
Page 90
Device Configuration /
VoIP
86
BEC 6300VNL User Manual
Speed Dial
Speed Dial comes at hand to store frequently used telephone number(s) that you can press set ‘speed
dial number’ instead of the exact dialing-out number on the phone keyboard to make a quick dialing.
Index: The index to mark the speed dial number mapping, 0-9.
Phone: Select Phone 1 or Phone 2 to have your set speed dial number applied to the phone. If
Phone_1 is selected, your set speed dial number is about to be applied to Phone_1.
Speed Dial Number: Set an easily remembered and simple number to replace the Phone number, it
can be a sequence in varying length from 0, 1, 2, 3, 4, 5, 6, 7, 8, and 9 *. #, but note * or # must be
included in the sequence.
Phone Number: The complete destination number
Example: Save phone number 83455301 to the speed dial list.
When you want call 83455301 through phone 1, you can simply dial 301# to make your desired call.
Page 91
Device Configuration /
VoIP
87
BEC 6300VNL User Manual
Call Features
Call Features provides users with some advanced phone characteristics, including Call waiting,
Conference Call, etc.
Phone: Select the phone 1 or Phone 2 to have the following characteristics applied to the phone.
Call Waiting: Enable to activate Call Waiting feature. When you are busy on a call with, for example, A,
and another call comes in, B, while the Call Waiting feature is enabled, you can hear a hint sound
indicating there is another call in for you to decide to answer B by pressing the “flash” button on the
phone to keep the original call with A.
Conference Call: Enable to allow 3-way conference call. Please note, only 3 parties are allowed
(device, A, and B).
Anonymous Call: This feature enables you to restrict your phone number from displaying to the
called party. When enabled, your phone number will be withheld and not be revealing to the called
party.
Distinctive Ring: This call feature is only available from a VoIP Service Provider which enables each
telephone number to have a distinctive ring sound.
Note: Before enabling this feature, please consult with your VoIP Service Provide to be sure it can be supported.
There is a ringtone list available in the BEC 6300VNL, after enabling this feature, your BEC 6300VNL
will adapt a specific ring pattern on the list requested by your VoIP Service Provider for a specific
telephone number.
When it is being disabled, all income calls will adapt the default ringtone for all telephone lines.
Pass VSC to Softswitch:
Enable to pass VSC(Vertical Service Code) to the SIP server of ITSP which allows the SIP
server to handle all its unique calling features such as Return Call, Call Redial, Don’t Disturb,
etc. Under this circumstance, users need to pay for such service, please ensure you check with
your SIP provider for more information.
Disable to let the BEC 6300VNL to handle all available call features.
Return Call (Dial number: *69): Dial *69 to redial the latest incoming call number.
Redial (Dial number: *68): Dial *68 to redial the latest outgoing call number.
Don’t Disturb (Enable: *78, Disable: *79): Press *78 to enable Don’t Disturb feature so as to make it
Page 92
Device Configuration /
VoIP
88
BEC 6300VNL User Manual
not ring when a call comes in; while press *79 to disable Don’t Disturb feature, if a call comes with a
ringing indication.
Page 93
Device Configuration /
VoIP
89
BEC 6300VNL User Manual

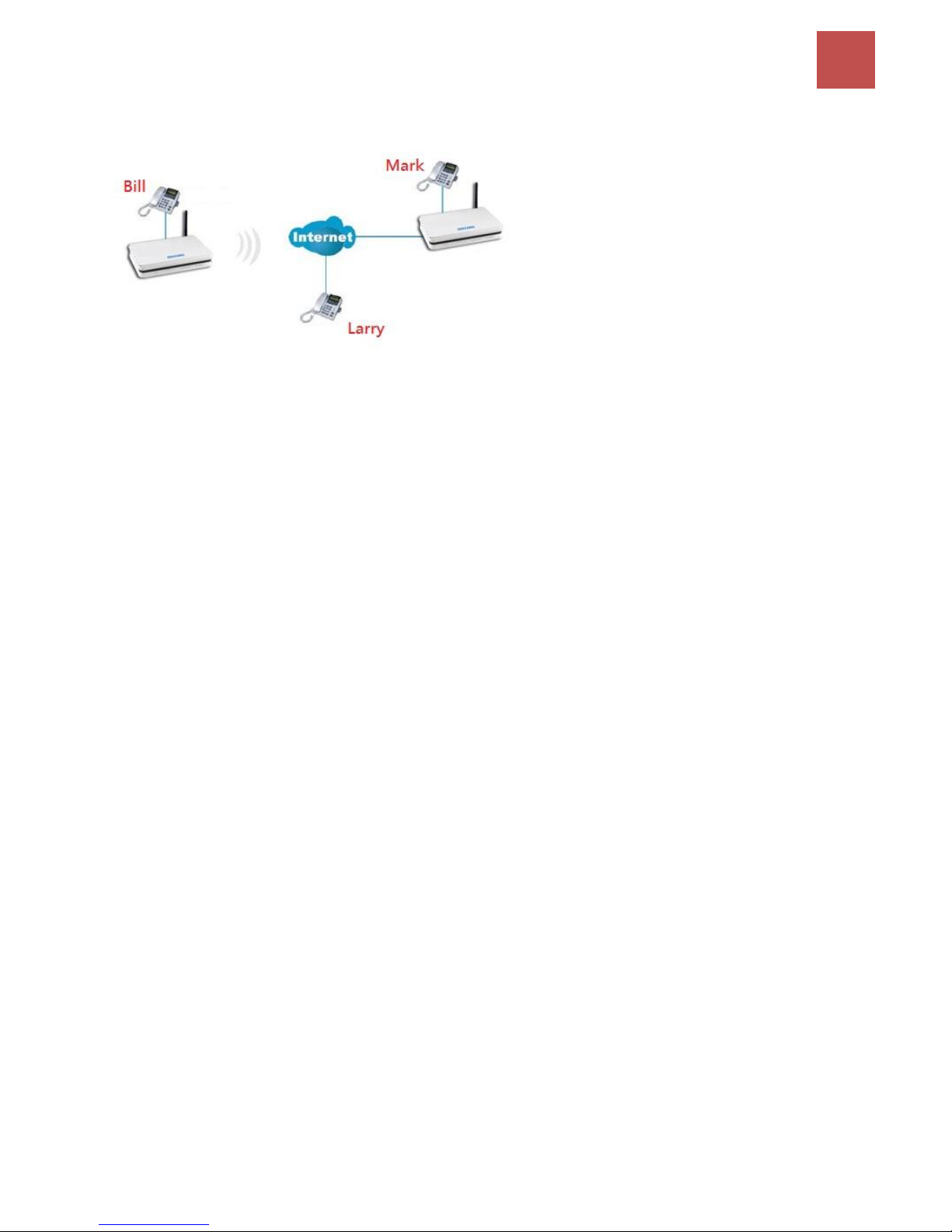

Example: How to establish 3-way conference call
Case 1: Bill and Larry are talking. Bill wants to invite Mark to join a conference call.
Step – 1: Billy and Larry are discussing on the phone. Bill tells Larry that he wants to set up a conference call
with Mark.
Step – 2: Bill presses flash (hold original call), and Bill hears the dial tone.
Step – 3: Bill calls Mark. Bill and Mark are on a new call.
Step – 4: Bill tells Mark that Mark is invited to join a conference call.
Step – 5: Bill presses flash (hold new call) and return to original call.
Step – 4: Bill tells Larry that Mark is on the phone.
Step – 6: Bill presses flash again to merge all 3 calls.
Step – 7: Bill, Larry and Mark hold a 3-way conference call from now on.
Case 2: When Bill and Larry are talking on the phone, Bill received a phone call from Mark. Bill decided
to ask Mark to join the conference call.
Step – 1: Bill and Larry on a call, then Mark dials Bill and Bill hears a waiting tone.
Step – 2: Bill presses flash and picks up the call waiting call.
Step – 3: Bill tells Mark that he and Larry are talking on the phone; they can have a conference call.
Step – 4: Bill presses flash to hold the call with Mark and return to original call with Larry.
Step – 5: Bill tells Larry that it is Mark and he wants to set up a conference with Mark.
Step – 6: Bill presses flash again to merge all 3 calls.
Step – 7: Bill, Larry and Mark hold a 3-way conference call from now on.
Page 94
Device Configuration /
Access Management
90
BEC 6300VNL User Manual
Access Management
Device Management
Device management offers users a way to change the embedded web server accessing port, default
80. User can change the http port to 8080 or something else here.
Page 95
Device Configuration /
Access Management
91
BEC 6300VNL User Manual
SNMP
Simple Network Management Protocol (SNMP) is a protocol used for exchanging management
information between network devices. SNMP is a member of the TCP/IP protocol suite. BEC 6300VNL
serves as a SNMP agent which allows a manager station to manage and monitor the router through
the network.
SNMP: Select to enable SNMP feature.
Get Community: Type the Get Community, which is the password for the incoming Get-and-GetNext
requests from the management station.
Set Community: Type the Set Community, which is the password for incoming Set requests from the
management station.
Trap Manager IP: Enter the IP of the server receiving the trap message (when some exception occurs)
sent by this SNMP agent.
SNMPv3: Enable to activate the SNMPv3.
User Name: Enter the name allowed to access the SNMP agent.
Access Permissions: Set the access permissions for the user; RO--read only and RW--read and
writer.
Authentication Protocol: Select the authentication protocol, MD5 and SHA. SNMP agent can
communicate with the manager station through authentication and encryption to secure the message
exchange. Set the authentication and encryption information here and below.
Authentication Key: Set the authentication key, 8-31 characters.
Privacy Protocol: Select the privacy mode, DES and AES.
Privacy Key: Set the privacy key, 8-31 characters.
Page 96
Device Configuration /
Access Management
92
BEC 6300VNL User Manual
Universal Plug & Play
UPnP offers peer-to-peer network connectivity for PCs and other network devices, along with control
and data transfer between devices. UPnP offers many advantages for users running NAT routers
through UPnP NAT Traversal, and on supported systems makes tasks such as port forwarding much
easier by letting the application control the required settings, removing the need for the user to control
advanced configuration of their device.
Both the user’s Operating System and the relevant application must support UPnP in addition to the
router. Windows XP and Windows ME natively support UPnP (when the component is installed), and
Windows 98 users may install the Internet Connection Sharing client from Windows XP in order to
support UPnP. Windows 2000 does not support UPnP.
UPnP: Select this checkbox to activate UPnP. Be aware that anyone could use a UPnP application to
open the web configuration’s login screen without entering the BEC 6300VNL' IP address
Auto-configured: Select this check box to allow UPnP-enabled applications to automatically
configure the BEC 6300VNL so that they can communicate through the BEC 6300VNL, for example by
using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to
communicate with another UPnP enabled device; this eliminates the need to manually configure port
forwarding for the UPnP enabled application.
Page 97
Device Configuration /
Access Management
93
BEC 6300VNL User Manual
Dynamic DNS
The Dynamic DNS function allows you to alias a dynamic IP address to a static hostname, allowing
users whose ISP does not assign them a static IP address to use a domain name. This is especially
useful for hosting servers via your internet connection, so that anyone wishing to connect to you may
use your domain name, rather than having to use your dynamic IP address, which changes from time
to time. This dynamic IP address is the WAN IP address of the router, which is assigned to you by your
ISP.
Here users can register different WAN interfaces with different DNS(es). But note that first users have
to go to the Dynamic DNS registration service provider to register an account.
Dynamic DNS: Select this check box to activate Dynamic DNS.
Service Provider: Select from drop-down menu for the appropriate service provider, for example:
www.dyndns.org.
My Host Name: Type the domain name assigned to your BEC 6300VNL by your Dynamic DNS
provider.
Username: Type your user name.
Password: Type the password.
Wildcard support: Select this check box to enable DYNDNS Wildcard.
Period: Set the time period between updates, for the Router to exchange information with the DDNS
server. In addition to updating periodically as per your settings, the router will perform an update when
your dynamic IP address changes.
Page 98
Device Configuration /
Access Management
94
BEC 6300VNL User Manual
Example: How to register a DDNS account
Note first users have to go to the Dynamic DNS registration service provider to register an account.
User test1 register a Dynamic Domain Names in DDNS provider http://www.dyndns.org/ .
DDNS: www.hometest.com using username/password test/test
Page 99
Device Configuration /
Access Management
95
BEC 6300VNL User Manual
Access Control
Access Control Listing allows you to determine which services/protocols can access BEC 6300VNL
interface from which computers. It is a management tool aimed to allow IPs (set in secure IP address)
to access specified embedded applications (Web, etc, user can set) through some specified interface
(LAN, WAN or both). User can have an elaborate understanding in the examples below.
The maximum number of entries is 16.
Access Control: Select whether to make Access Control function available.
Rule Index: This is item number
Active: Select to activate the rule.
Secure IP Address: The default 0.0.0.0 allows any client to use this service to manage the BEC
6300VNL. Type an IP address range to restrict access to the client(s) without a matching IP address.
Application: Choose a service that you want to all access to all the secure IP clients. The drop-down
menu lists all the common used applications.
Interface: Select the access interface. Choices are LAN, WAN and Both.
Page 100
Device Configuration /
Access Management
96
BEC 6300VNL User Manual
By default, the “Access Control” has two default rules.
Default Rule 1: (Index 1), a rule to allow only clients from LAN to have access to all embedded
applications (Web, FTP, etc). Under this situation, clients from WAN cannot access the router even
from Ping.
Default Rule 2: (Index 2), an ACL rule to open Ping to WAN side.
Loading...
