Features

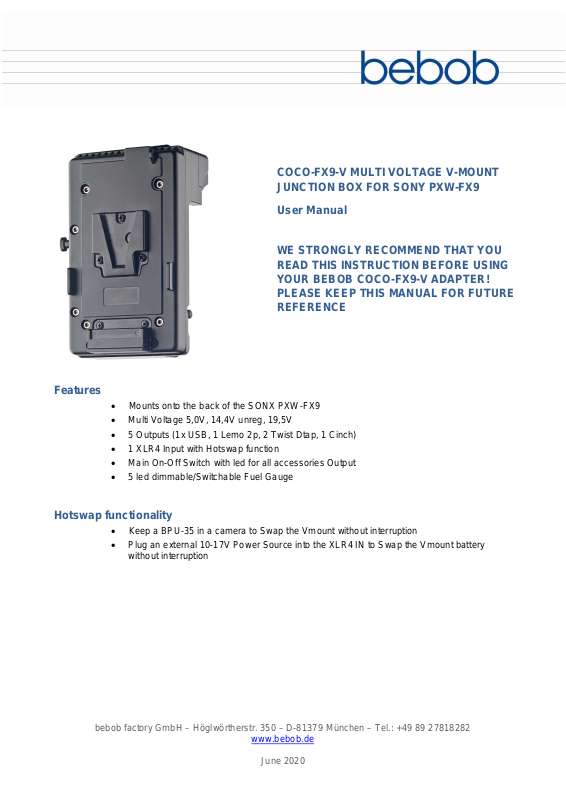

COCO-FX9-V MULTI VOLTAGE V-MOUNT JUNCTION BOX FOR SONY PXW-FX9
User Manual
WE STRONGLY RECOMMEND THAT YOU READ THIS INSTRUCTION BEFORE USING YOUR BEBOB COCO-FX9-V ADAPTER! PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE
• Mounts onto the back of the SONX PXW-FX9
• Multi Voltage 5,0V, 14,4V unreg, 19,5V
• 5 Outputs (1x USB, 1 Lemo 2p, 2 Twist Dtap, 1 Cinch)
• 1 XLR4 Input with Hotswap function
• Main On-Off Switch with led for all accessories Output
• 5 led dimmable/Switchable Fuel Gauge
Hotswap functionality
• Keep a BPU-35 in a camera to Swap the Vmount with out inter ruption
• Plug an external 10-17V Power Source into the XLR4 IN to Swap the Vmount battery
without interruption
bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: +49 89 27818282
www.bebob.de
June 2020
Page 2
Fuel Gauge
bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: +49 89 27818282
www.bebob.de
June 2020
Page 3
Model
COCO-FX9-V
Material
Aluminium
Battery Mount
V-Mount
Voltages
5,0V/14,4V unreg/19,5V
Max. Draw
Depends on battery
Twist D-Tap
2 (14,4V unreg, / max. 5.0A) Self-reset Fuse
USB Port
1 (5,0V / max. 1,0A) Self-reset Fuse
Lemo 2p
1 (14,4V unreg. / max. 2,0A) Self reset Fuse
XLR4 IN
1 (10 to 17V) Hotswap
Dimensions (WXHXD)
45x 141 x 42mm
Weight
0,43 Kg
Safety instructions
• Only for professional use! Keep the COCO-FX9-V out of reach of children and personnel
that has not been instructed in the use!
• Use only with recommended batteries.
• Keep the COCO-FX9-V dry and do not immerse in water.
Do not attempt to open or repair the COCO-FX9-V. Contact your dealer for help if it becomes
•
defective.
• Handle with care! Do not throw! Do not drop!
• Remove the battery from the COCO-FX9-V when not in use for a longer period of time
Warranty
• The COCO-FX9-V is covered by a 2 years unconditional warranty on all parts.
• For warranty issues or if you have any additional questions, please contact the appropriate
bebob distributor listed at www.bebob.de
.
