Features
COCO-FX9-A MULTI VOLTAGE GOLD MOUNT JUNCTION BOX FOR SONY PXW-FX9
User Manual
WE STRONGLY RECOMMEND THAT YOU READ THIS INSTRUCTION BEFORE USING YOUR BEBOB COCO-FX9-A ADAPTER! PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE
• Mounts onto the back of the SONX PXW-FX9
• Multi Voltage 5,0V, 14, 4V unr eg, 19, 5V
• 5 Outputs (1x USB, 1 Lemo 2p, 2 Twist Dtap, 1 Cinch)
• 1 XLR4 Input with Hotswap f unction
• Main On-Off Switch with led for all acc essories Output
• 5 led dimmable/Switchable Fuel Gauge
Hotswap functionality
• Keep a BPU-35 in a camera to Swap the Vmount without interruption
• Plug an external 10-17V Power Source into the XLR4 IN to Swap the Vmount battery
without int errupt ion
bebob factory GmbH – Höglwörtherstr . 350 – D-81379 München – Tel.: +49 89 27818282
www.bebob.de
June 2020

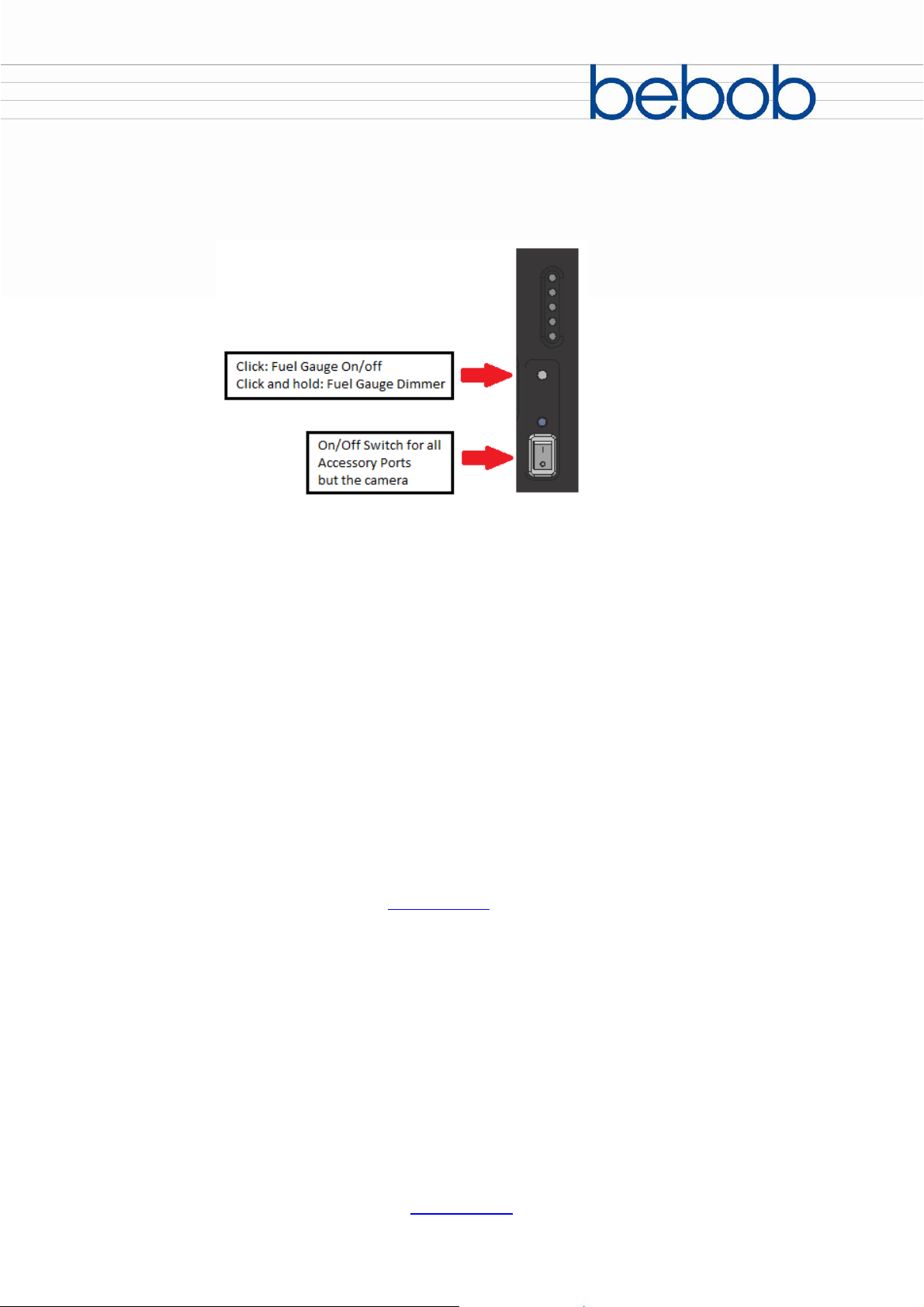

Fuel Gauge
Safety instructions
• Only for professional use! K eep the COCO-FX9-A out of reach of children and personnel
that has not been instruc ted in the use!
• Use only with recommended bat teries.
• Keep the COCO-FX9-A dry and do not immerse in water.
•
Do not attempt to open or repair the COCO-FX9-A. Contact your dealer for help if it becomes
defective.
• Handle with care! Do not throw! Do not drop!
• Remove the batter y fr om the COCO-FX9-A when not in use for a longer peri od of time
Warranty
• The COCO-FX9-A is cover ed by a 2 years uncondit ional warranty on all parts.
• For warranty issues or if y ou hav e any addi tional questions, please contac t the appropri ate
bebob distribut or listed at www.bebob.de
.
bebob factory GmbH – Höglwörtherstr . 350 – D-81379 München – Tel.: +49 89 27818282
www.bebob.de
June 2020
Model
COCO-FX9-A
Material
Aluminium
Battery Mount
Gold Mount
Voltages
5,0V/14,4V unr eg/19,5V
Max. Draw
Depends on battery
Twist D-Tap
2 (14,4V unreg, / max. 5.0A) Self-reset Fuse
USB Port
1 (5,0V / max. 1,0A) Self-reset Fuse
Lemo 2p
1 (14,4V unreg. / max. 2, 0A) Self reset Fuse
XLR4 IN
1 (10 to 17V) Hotswap
Dimensions (W XHXD)
45x 141 x 42mm
Weight
0,43 Kg
Specifications
