bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: +49 89 27818282
www.bebob.de
November 2016

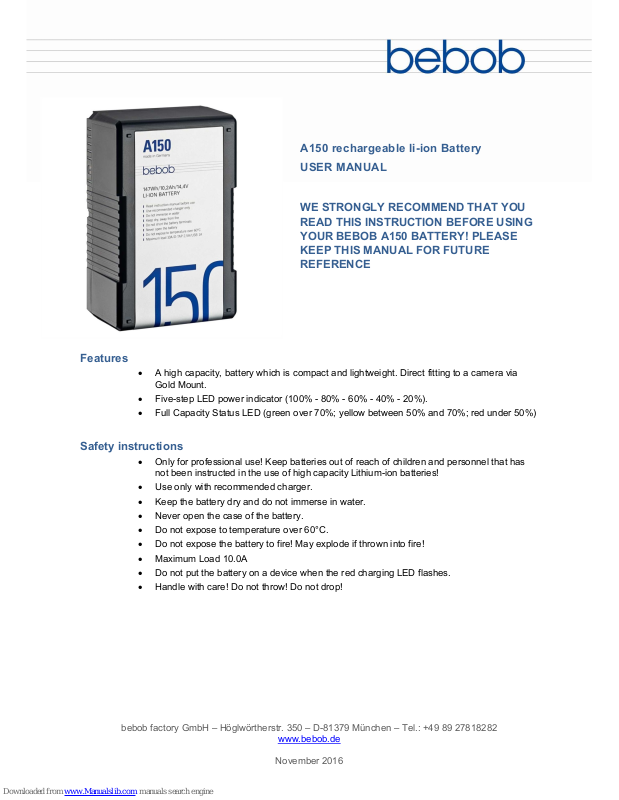

A150 rechargeable li-ion Battery
USER MANUAL
WE STRONGLY RECOMMEND THAT YOU
READ THIS INSTRUCTION BEFORE USING
YOUR BEBOB A150 BATTERY! PLEASE
KEEP THIS MANUAL FOR FUTURE
REFERENCE
Features
A high capacity, battery which is compact and lightweight. Direct fitting to a camera via
Gold Mount.
Five-step LED power indicator (100% - 80% - 60% - 40% - 20%).
Full Capacity Status LED (green over 70%; yellow between 50% and 70%; red under 50%)
Safety instructions
Only for professional use! Keep batteries out of reach of children and personnel that has
not been instructed in the use of high capacity Lithium-ion batteries!
Use only with recommended charger.
Keep the battery dry and do not immerse in water.
Never open the case of the battery.
Do not expose to temperature over 60°C.
Do not expose the battery to fire! May explode if thrown into fire!
Maximum Load 10.0A
Do not put the battery on a device when the red charging LED flashes.
Handle with care! Do not throw! Do not drop!
bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: +49 89 27818282
www.bebob.de
November 2016
Charging
The bebob A150 battery can be charged with an external bebob charger (or equivalent)
with Lithium-ion (Li-ion) charging ability.
Approximate charge time may vary depending on charger and temperature.
bebob A150 can be charged in ambient temperature for optimum performance at 10°C -
30°C.
bebob A150 batteries can be recharged in any charge condition.
Discharging
Maximum load is 10.0A. When using the battery with video or lighting equipment, power
consumption of the equipment must be 10.0A or below. For the protection of the battery, a
load of 10.0A or over may activate the internal protection circuit and stop supply of power.
In this case the Fuse will self-rest after a couple of minutes
The battery can be used in ambient temperature of - 20°C - + 55°C.
Storage
Storage temperature range is - 20°C ~ + 35°C (<85% humidity).
To store the battery for a long period (longer than 4 Weeks), the battery should be charged
between 50% and 75%. The battery should be recharged every 4 Weeks.
After storage some self-discharge will occur. Before re-use it is advisable to recharge the
battery fully.
Warranty
The A150 is covered by a 2 years unconditional warranty on all parts, except the cells.
The cells are covered by a 1 year warranty, 70% of the original capacity.
For warranty issues or if you have any additional questions, please contact the appropriate
bebob distributor listed at www.bebob.de.
bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: +49 89 27818282
www.bebob.de
November 2016
Specifications
Model
A150
Mount
Gold Mount
Capacity
6,0Ah; 147Wh
Voltage
14,4V DC
Maximum Output Voltage
16.8 V DC
End Voltage
12.0 V
Cells
Lithium-Ion Trimix made in Japan
Max. Discharge Current
10.0A
Twist D-Tap
14.4V unreg. Max. 35W
USB Port
5V, 1.0A
Fuel Gauge
5-Step LED
Weight
1.82 Kg
Dimensions (WXHXD)
94x144x58mm
Chargers
bebob, antonbauer
Charging time (bebob VS2/VS4)
3 Hours
Operating Temp. Range
Charge: + 10°C ~ + 30°C recommended
Discharge:- 20°C ~ + 55°C
Storage:- 20°C ~ + 35°C (<85% RH )
bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: +49 89 27818282
www.bebob.de
November 2016
Transport as of April 1st 2016
This Summary reflects our current Knowledge.
1. Transport by Commercial Airline / Carry-on Luggage
Subject to prior authorization of the carrier, you can transport in your carry-on
luggage a A150 attached to the camera or equipment it powers.
You can transport in your carry-on luggage a maximum of 2 spare A150:
- Put tape over the contacts.
- Put each single battery in a plastic bag before packing it in your carry-on luggage
A150 do not need to be discharged to 30% SoC for transport as personal
luggage, this is only a requirement of cargo shipments.
Carry a copy of the bebob UN Transport Documentation.
We recommend that you confirm with your carrier of choice, to determine any further
restriction or local policies, before travelling. You will find the actual regulation of
your carrier of choice in the bebob transport information system www.fly-
lithium.com,
2. Transport by Commercial Airline / Checked-in Luggage
Subject to prior authorization of the carrier You can transport in your checked-in
luggage a A150 attached to the camera or equipment it powers and a maximum of 3
A150 spare packed in the same piece of luggage
A150 do not need to be discharged to 30% SoC for transport as personal
luggage, this is only a requirement of cargo shipments.
Carry a copy of the bebob UN Transport Documentation.
We recommend that you confirm with your carrier of choice, to determine any further
local restriction or policies, before travelling. You will find the actual regulation of
your carrier of choice in the bebob transport information system www.fly-
lithium.com,
3. Transport as air-, road- and sea-freight
Li-Ion batteries and so bebob A150, when shipped by air, road or sea are classified as
dangerous goods class 9 and subject to special UN certified packaging.
Air transport authority training and authorisation (PK 1/PK 2) are required for packing
A150, for an air cargo shipment.
Li-Ion batteries for air cargo must have a state-of-charge of no more than 30% for
shipping, means only one out of the five fuel gauge led lights up.
We recommend that you confirm with your carrier of choice, to determine any local rules
and policies, before shipping.
You will find actual regulations of the carrier of your choice in the bebob transport
information system www.fly-lithium.com,
bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: +49 89 27818282
www.bebob.de
November 2016
