Beat    receiver Instruction Manual

BLUETOOTH

SUPPORT USB/ SD INTERFACE

CAR CD/ MP3 / WMA PLAYER / RECEIVER

INSTRUCTION MANUAL

AUX

INPUT

5

6

DISPBAND

1

2

3 4

PAU INT RPT RDM

MODE

PTY

TA

AF

AS

REL

MUTE

TRANSFER

PS INFO

CLEAR

MENU

IX-BASS

FOLD FOLD

BEAT375 CD/MP3/WMA/CD-R/CD-RW Player 4x40w

COPY

4

10 R - 02 0896

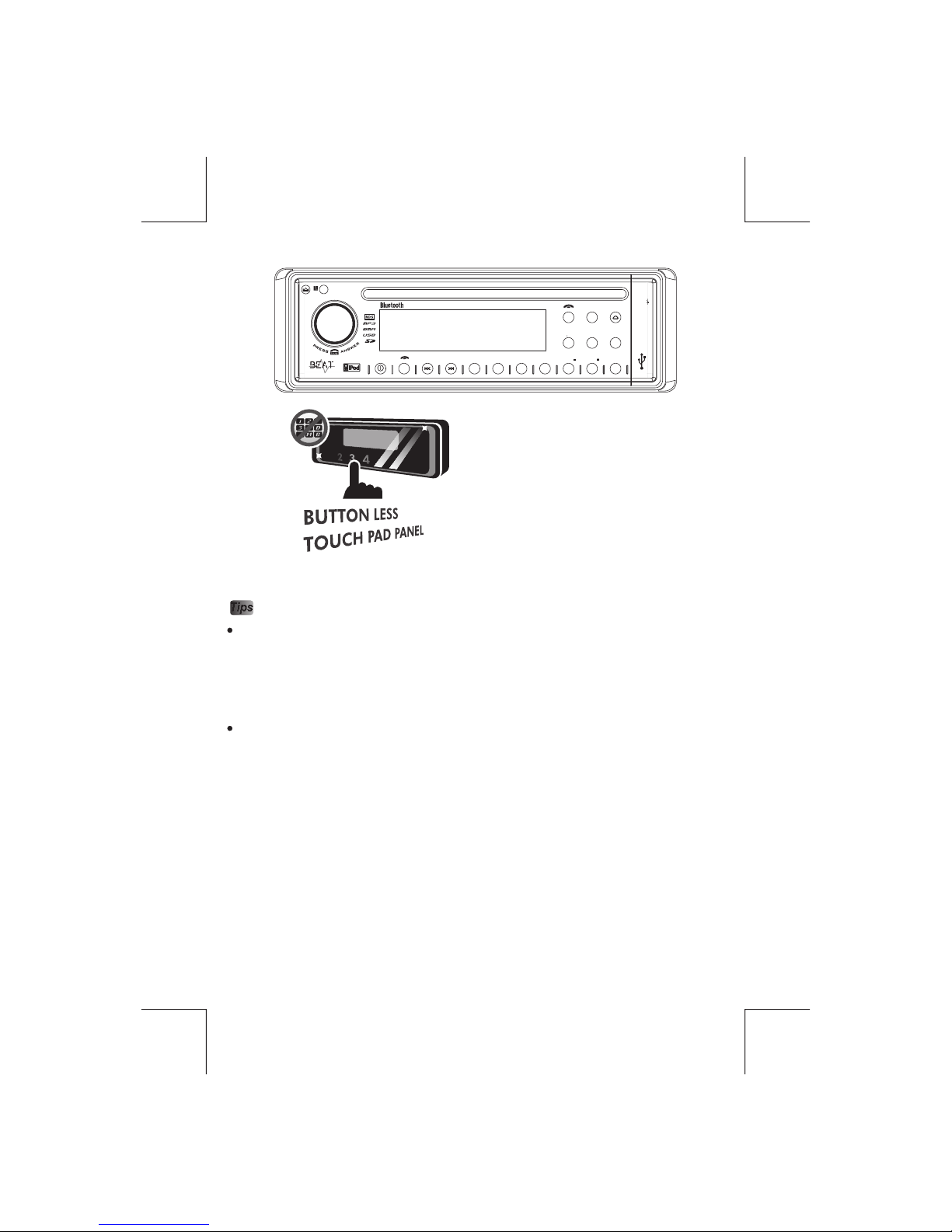

This unit is equipped with the most advanced “TOUCH SENSE PANEL” which is easy and
convenient to use.

And here is some tips on how to use this touch sense panel:

Tips

The pressing or activating of each button actually all you need is a very light touch, even not
really necessary to “PRESS” it. Just touch lightly can be good enough to activate the button.

Except for the power button, you have to touch and hold it for about 2-3 second to power on or
off the unit. Or for some of the buttons which has secondary function which need to touch and
hold it for 2-3 second in order to activate the secondary function.

Area to be “TOUCHED” in order to activate the button.
For each button in order to activate it correctly, best “AREA” to touch is the lighted or illuminated
area. For ex, the power button, only just touch the illuminated power symbol. Or for the mute
button, just touch the ILLUMINATE “MUTE” AREA.

AUX

INPUT

5

6

DISPBAND

1

2

3 4

PAU INT RPT RDM

MODE

PTY

TA

AF

AS

REL

MUTE

TRANSFER

PS INFO

CLEAR

MENU

IX-BASS

FOLD FOLD

BEAT375 CD/MP3/WMA/CD-R/CD-RW Player 4x40w

COPY

CDE VERSION

E - 1

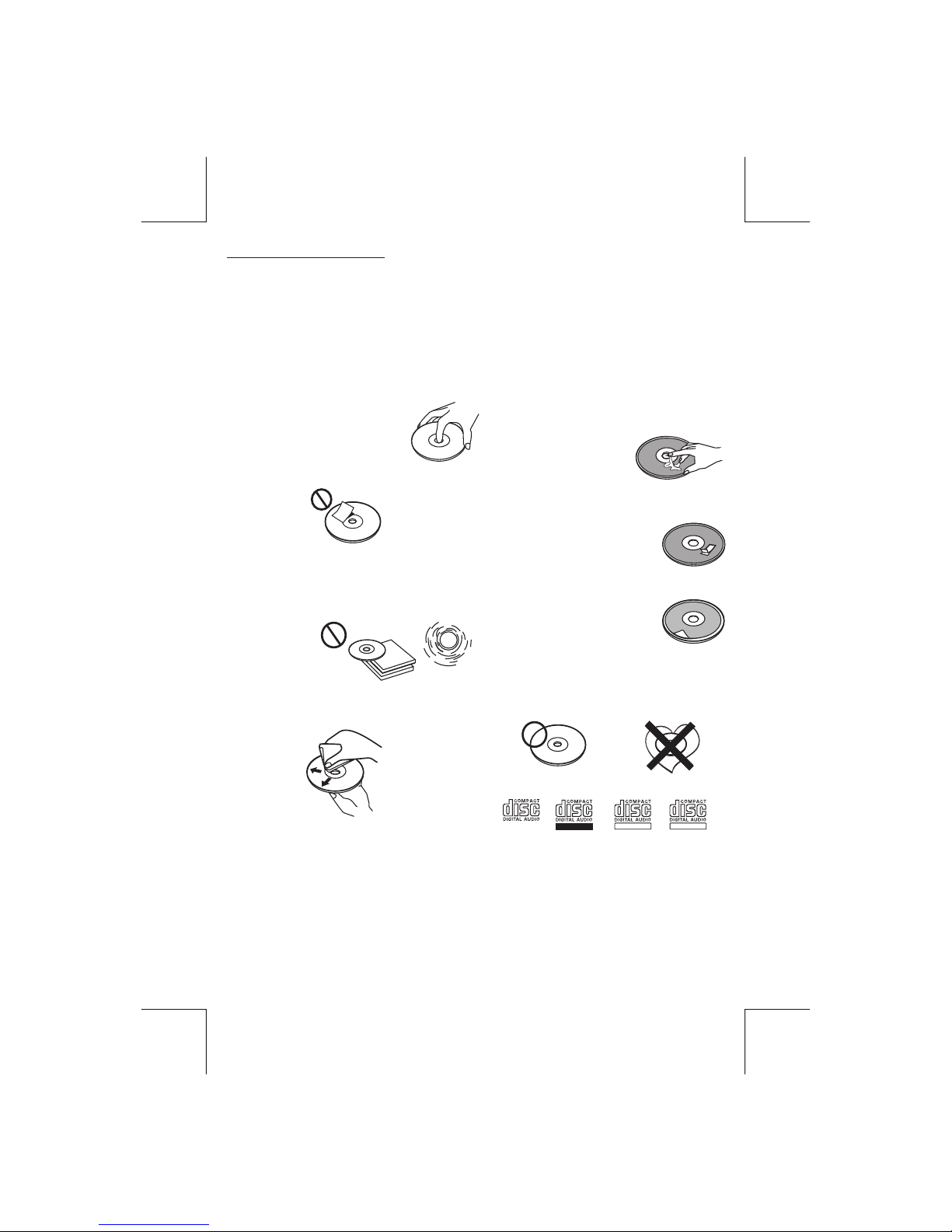

1. NOTE OF DISCS

MOISTURE CONDENSATION

NOTES ON CDs

P. 2

P. 3

P. 4

P. 1

P. 5

P. 6

P. 7

1.

2.

3.

4.

5.

NOTES ON DISCS

There are paste residue.
Ink is sticky (P.5).

Stickers that are beginning
to peel away, leaving a
sticky residue (P.6).

Labels are attached (P.7).

On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit.
Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for
about an hour until the moisture has evaporated.

A dirty or defective disc may cause sound
dropouts while playing. To enjoy optimum
sound, handle the disc as follows.
Handle the disc by its edge. To keep the
disc clean, do not touch the surface (P.1).

If you use the discs explained below, the
sticky residue can cause the CD to stop
spinning and may cause malfunction or ruin
your discs.

Do not use second-hand or rental CDs that
have a sticky residue on the surface (for
example, from peeled-off stickers or from
ink, or glue leaking from under the stickers).

Do not stick paper or tape on the disc (P.2).

Before playing, clean the discs with an
optional cleaning cloth. Wipe each disc from
the centre out (P.4).

Do not use solvents such as benzine,
thinner,commercially available cleaners, or
antistatic spray intended for analog discs.

Do not expose the discs to direct sunlight or
heat sources such as hot air-ducts, or leave
them in a car parked in direct sunlight where
there can be a considerable rise in
temperature inside the car (P.3).

Do not use rental CDs with old labels that
are beginning to peel off.

Do not use your CDs with labels or stickers
attached.

**************

*******

*******

*******

*******

*******

*******

*******

*******

****

*******

*******

*******

*******

Do Not Use Special Shape CDs

Be sure to use round shape CDs only for
this unit and do not use any special shape
CDs. Use of special shape CDs may cause
the unit to malfunction.(P.8).

Be sure to use CDs with disc mark

Only for this unit.

RECORDABLE

REWRITABLE

P. 8

CD-Rs and CD-RWs which have not
undergone finalization processing cannot
be played. (For more information on
finalization processing, refer to the manual
for your CD-R/CD-RW writing software or
CD-R/CD-RW recorder.) Additionally,
depending on the recording status, it may
prove impossible to play certain CDs
record on CD-R or CD-RW.

TEXT

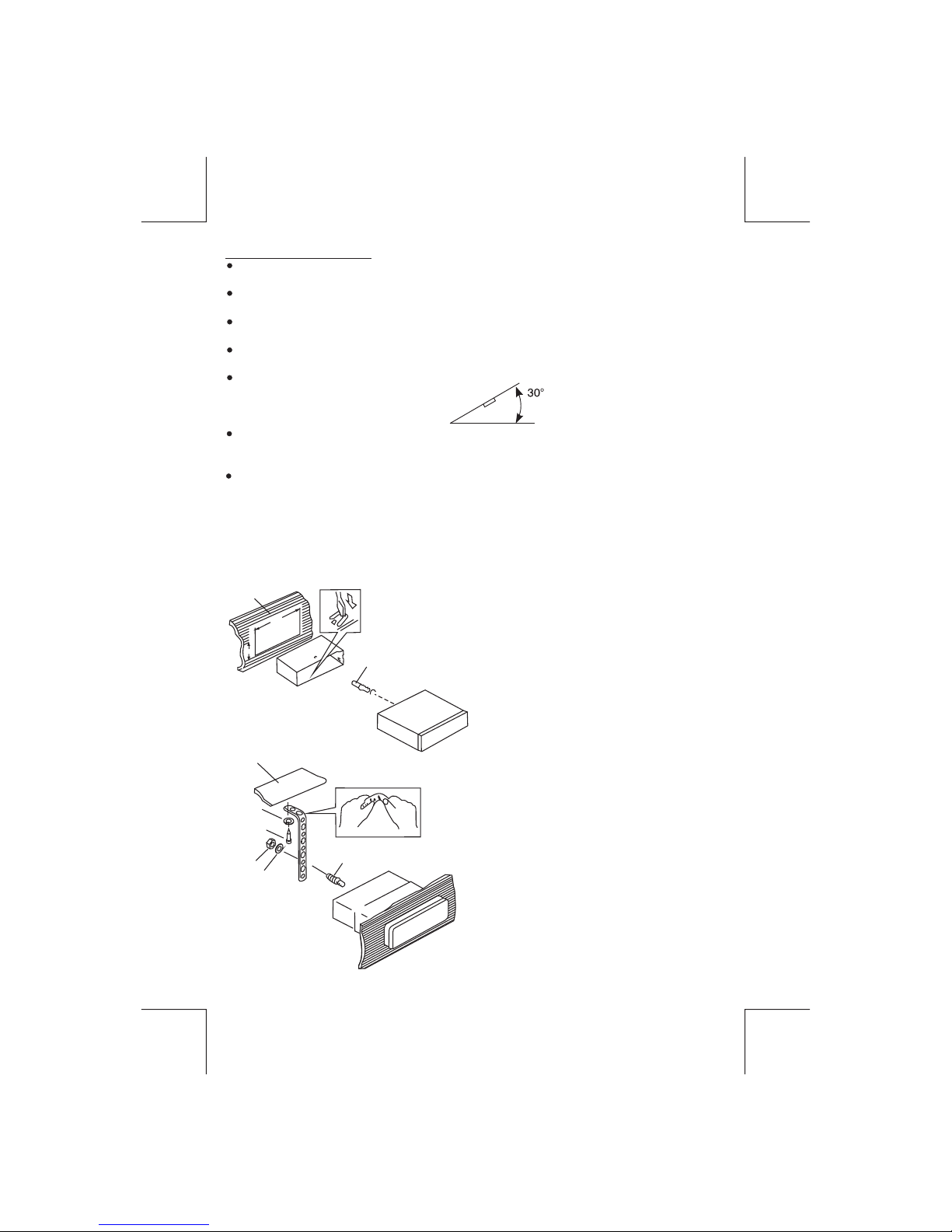

2. INSTALLATION

Before finally installing the unit, connect the wiring temporarily and make sure it is all
connected up properly and the unit and system work properly.
Use only the parts included with the unit to ensure proper installation. The use of
unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or other
modifications of the vehicle.
Install the unit where it does not get in the driver's way and cannot injure the passenger if
there is a sudden stop, like an emergency stop.
If installation angle exceeds 30° from horizontal, the unit might not give its optimum
performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct
sunlight, or from hot air, from heater, or where it would be subject to dust dirt or excessive
vibration.
Be sure to remove the front panel before installing the unit.

DIN FRONT/REAR-MOUNT

This unit can be property installed either from “Front” (conventional DIN Front-mount) or “Rear”(DIN
Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details,
refer to the following illustrated installation methods A and B.

DIN FRONT-MOUNT (Method A)

Installation the unit

1. Dashboard

2. Holder
After inserting the half sleeve into the
dashboard, select the appropriate tab
according to the thickness of the
dashboard material and bend them
inwards to secure the holder in place.

3. Screw

1

7

4

2

3

5

6

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (4x12mm)

5. Screw

6. Support Strap
Be sure to use the support strap to secure

the back of the unit in place. The strap can
be bent by hand to the desired angle.

7. Plain washer

182

53

1

2

3

E - 2

DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit.
Fastening the unit to the factory radio mounting bracket.

1. Select a position where the screw
holes of the bracket and the screw
holes of the main unit become
aligned (are fitted) and tighten the
screws at 2 places on each side.

2. Screw

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this part)

Note: the mounting box, outer trim ring,
and half-sleeve are not used for method
B installation.

5

2

4

3

2

5

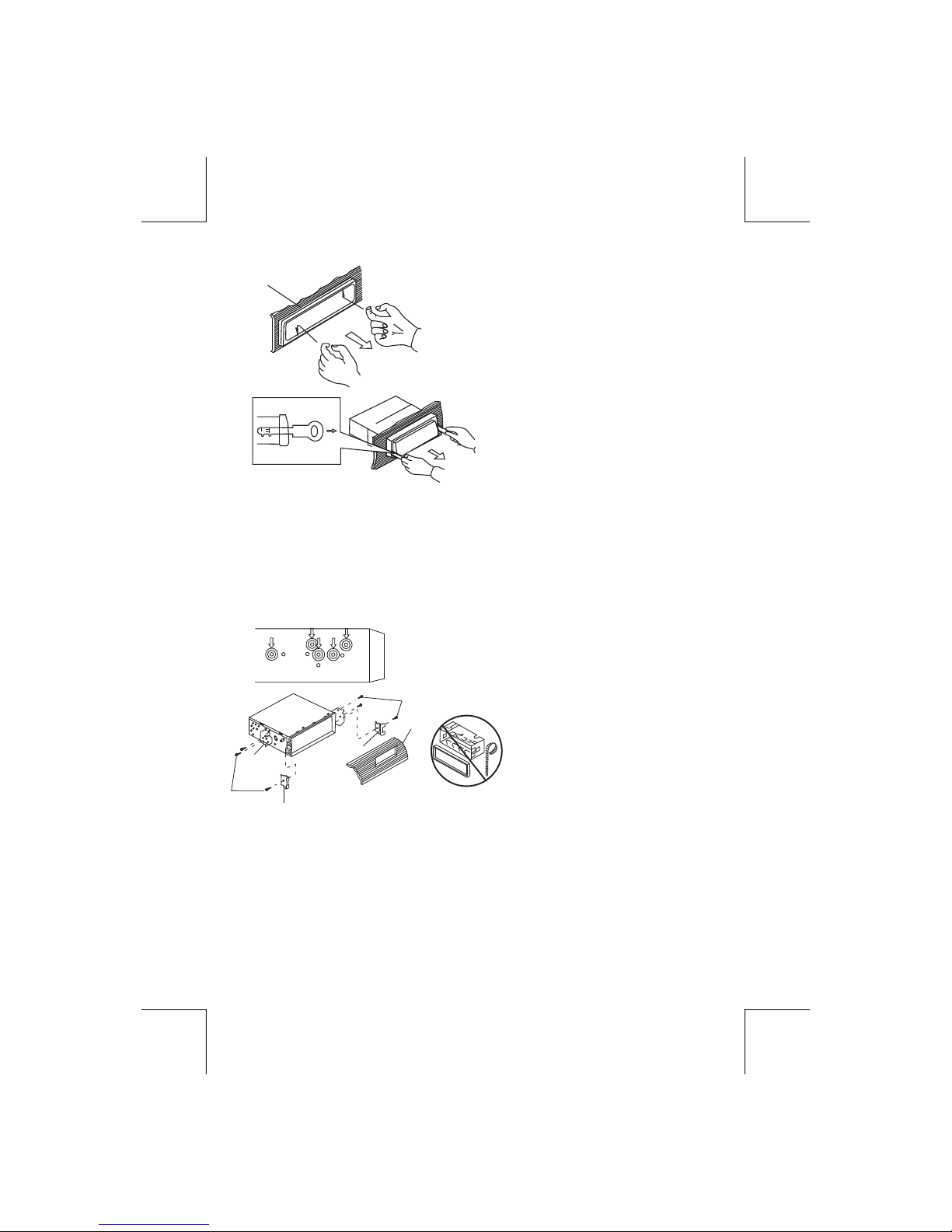

a. Frame
b. Insert fingers into the groove in the

front of frame and pull out to remove
the frame. (When re-attaching the
frame, point the side with a groove
down wards and attach it.)

c. Insert the levers supplied with the

unit into the grooves at both sides of
the unit as shown in figure until they
click. Pulling the levers makes it
possible to remove the unit from the
dashboard.

Trim Plate Installation:

Push the trim plate against the chassis until it is fitted.
You must do this before you install the front panel, otherwise it can't be attached.

Removing the unit

a

b

c

E - 3

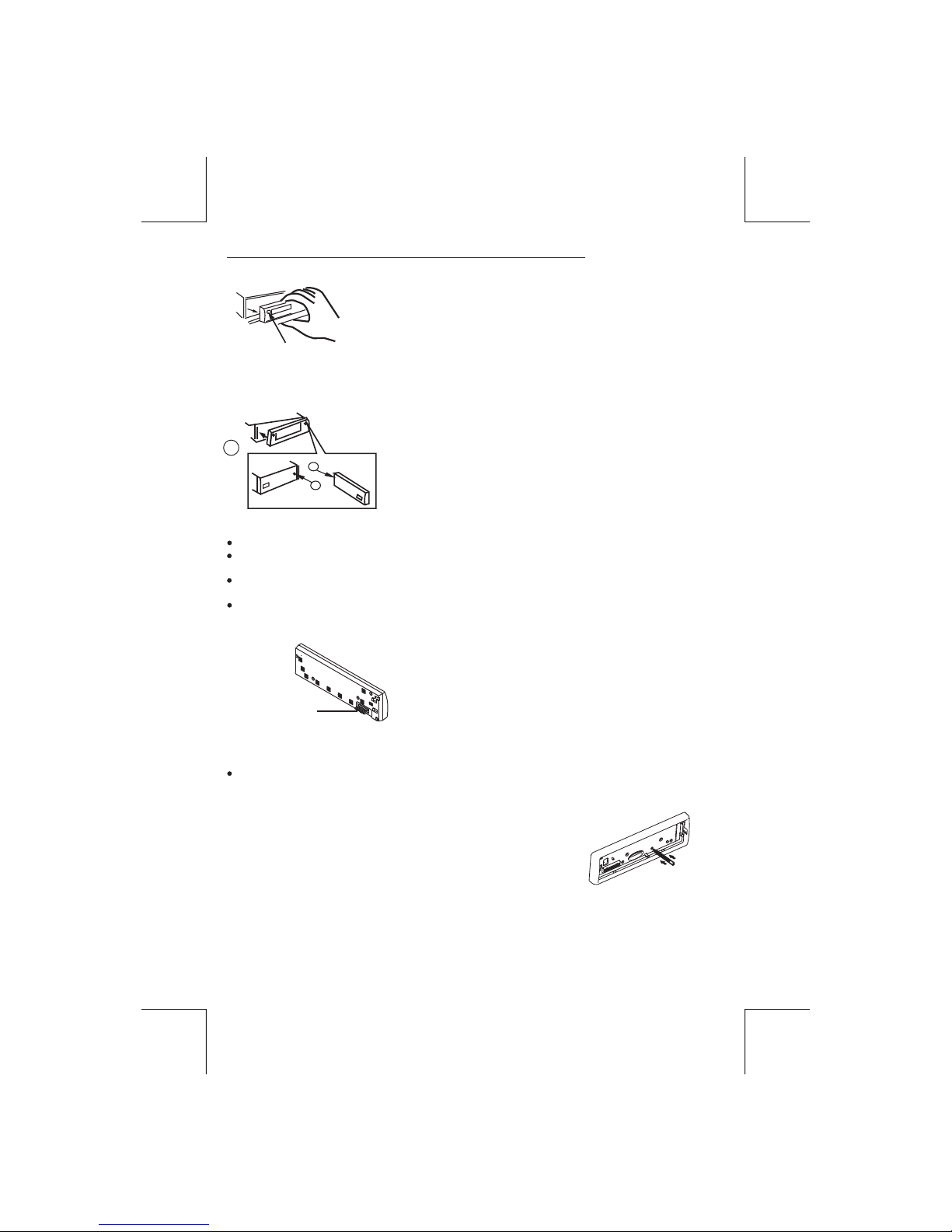

3. DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

1. Turn the power off

2. Press the D.C.P. release button

3. Remove the D.C.P.

PANEL RELEASE
BUTTON

B

A

2

Attaching the DCP

CAUTION

1. Attach the panel at the right side first, with
point B on the main unit touching point A on the
D.C.P. (As shown on the diagram).

2. Then press the left side of D.C.P. onto the main
unit until a “click” sound is heard.

DO NOT insert the D.C.P from the left side. Doing so may damage it.
The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not
to drop it or subject it to strong shocks.
When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall. To
prevent damage to the D.C.P, always store it in a protective case after detaching it.
The rear connector that connects the main unit and the D.C.P is an extremely important part. Be careful not to
damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the D.C.P is dirty, wipe off the dirt with soft,
dry cloth only. And use a cotton swab soaked
in isopropyl alcohol to clean the socket on the
back of the D.C.P.

RESETTING THE UNIT:

After releasing the front panel, use a pencil or any non-metalic object to press & hold the
reset button for five seconds to reset the unit.

E - 4

Socket

R

E

E

S

T

FUSE

L-CH

(See Figure 2)

R-CH

L-CH

R-CH

ISO

CONNECTOR

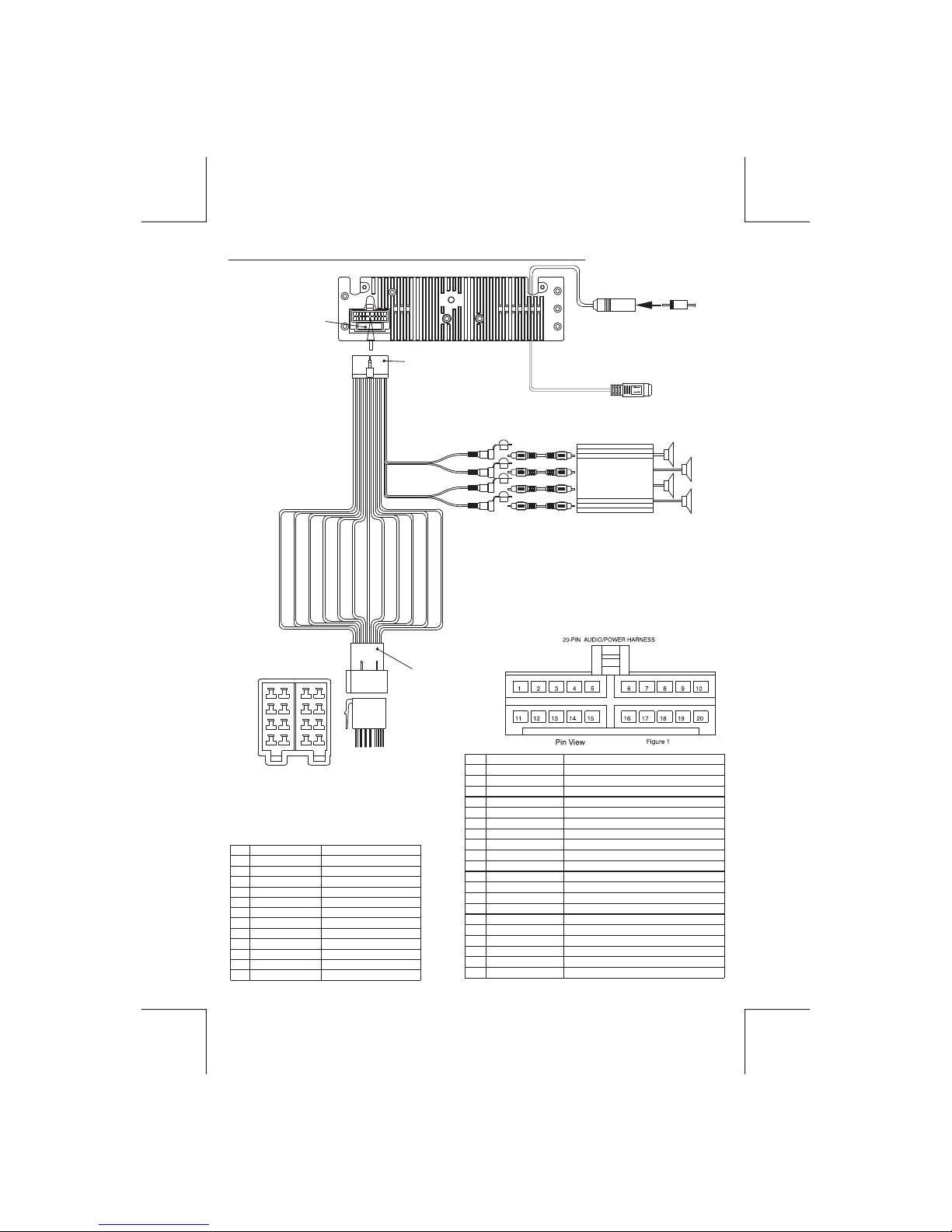

4. WIRING DIAGRAM (20 PIN + ISO PLUG)

20-PIN

AUDIO/POWER

HARNESS

(See Figure 1)

PIN(B8) GREEN/BLACK

PIN(B1) VIOLET

PIN(B4) GREY/BLACK

PIN(B2) VIOLET/BLACK

PIN(B3) GREY

PIN(A4) YELLOW

PIN(A7) RED

PIN(A5) BLUE

PIN(A8) BLACK

PIN(B7) GREEN

PIN(B6) WHITE/BLACK

PIN(B5) WHITE

ISO CONNECTOR 4PIN+8PIN

FEMALE WITH MALE TERMINAL

1 2

3 4

7

5 6

87

5

3

1

8

6

4

2

Figure 2

CONNECTOR B

CONNECTOR A

FUNCTION/LABEL

LEFT REAR SPEAKER (+)

LEFT REAR SPEAKER (-)

RIGHT REAR SPEAKER (+)

RIGHT REAR SPEAKER (-)

RIGHT FRONT SPEAKER (+)

LEFT FRONT SPEAKER (+)

LEFT FRONT SPEAKER (-)

RIGHT REAR PRE-AMP LINE OUT

REAR PRE-AMP LINE OUT COMMON

RIGHT FRONT SPEAKER (-)

LEFT REAR PRE-AMP LINE OUT

FRONT PRE-AMP LINE OUT COMMON

RIGHT FRONT PRE-AMP LINE OUT

LEFT FRONT PRE-AMP LINE OUT

18

RED

17

WHITE

16

BLACK

15

YELLOW

20

WHITE

19

BLACK

14

BLUE

CHASSIS GROUND

BATTERY(+)

POWER ANTENNA

1

GREY/BLACK

7

GREEN/BLACK

4

VIOLET/BLACK

12

WHITE/BLACK

8

RED

6

GREEN

2

GREY

3

VIOLET

11

WHITE

10

RED

9

BLACK

5

13

IGNITION(ACC)

WIRE COLOR

PIN

RIGHT REAR SPEAKER (-)

B2

VIOLET/BLACK

GREEN/BLACK

GREY/BLACK

WHITE/BLACK

GREEN

GREY

WHITE

B3

B4

B5

B6

B7

B8

LEFT REAR SPEAKER (-)

RIGHT FRONT SPEAKER (-)

LEFT FRONT SPEAKER (-)

LEFT REAR SPEAKER (+)

LEFT FRONT SPEAKER (+)

RIGHT FRONT SPEAKER (+)

ISO CONNECTOR WIRING CHART

WIRE COLOR

RED

YELLOW

BLACK

VIOLET

PIN

A4

A5

A7

A8

B1

FUNCTION/LABEL

POWER ANTENNA

RIGHT REAR SPEAKER (+)

IGNITION(ACC)

BATTERY(+)

GROUND

BLUE

E - 5

ANTENNA

JACK

ANTENNA

EXTENDER

CABLE

AMP

RCA-TO-RCA CABLES

(not supplied)

GREY

REAR LINE OUT

BLACK

FRONT LINE OUT

WHITE

RED

WHITE

RED

iPod

iPod ready cable

WHITE

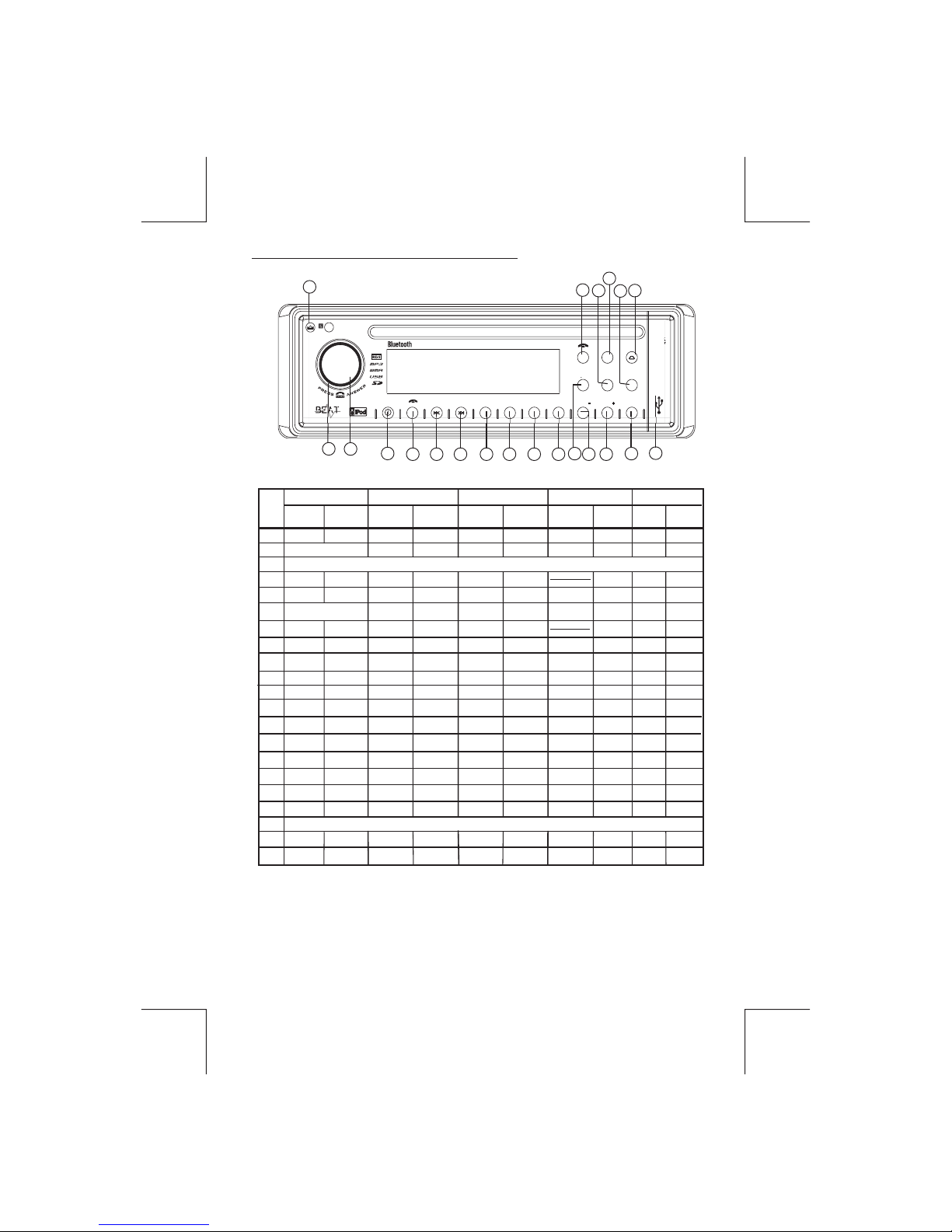

5. CONTROL PANEL FUNCTION

KEY

SYS TEM TUN ER CD/M P3/W MA

1

2

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

3

Sho rt

Pre ss

Lon g
Pre ss

OPERATIONS:

Sho rt
Pre ss

Lon g

Pre ss

Sho rt
Pre ss

Lon g

Pre ss

Sho rt
Pre ss

Lon g

Pre ss

Pow er

Eje ct

Pan el rele ase but ton

Aud io
Men u

Ent er

Mod e

Enco der Volume

Band

Fil e/Fol der

Sear ch

AF

TA

PTY

ix- Bass

PS AS

ID3

M1

M2

M3

M4

M5

M6

Mem ory 1

Mem ory 2

Mem ory 3

Mem ory 4

Mem ory 5

Mem ory 6

Pau se

/Pl ay

Int ro

Fol der

Int ro

Rep eat

Fol der
Rep eat

Ran dom

Folder

Random

Fol der

Dow n

Fol der

Up

Dis play

Men u

Seek Up

Trac k/Fil e
Up

Fas t

For ward

Tune Up

Seek

Down

Tune

Dow n

Trac k/Fil e

Dow n

Fas t

Bac kward

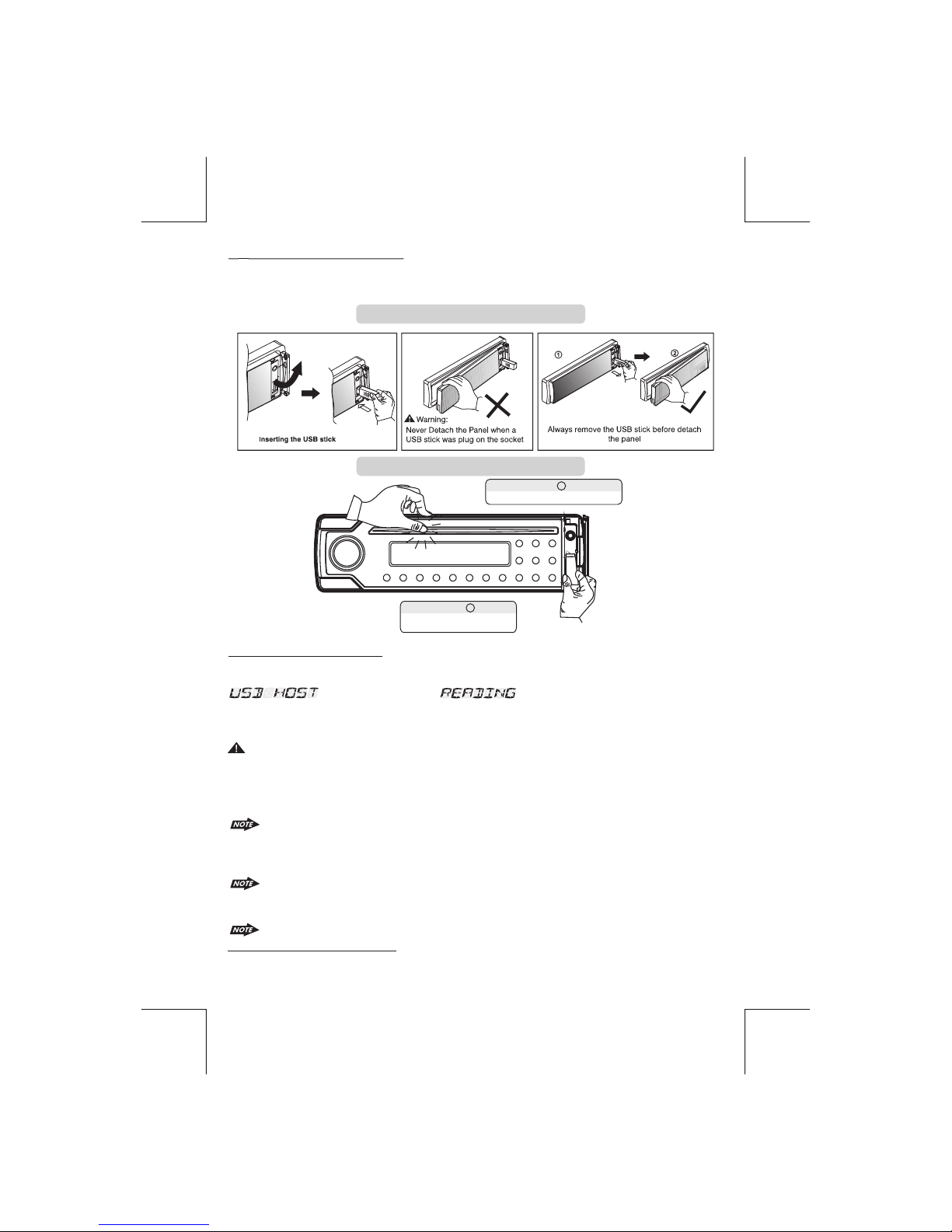

USB Cover / Socket

Fil e

Eras e

Blu e Toot h

Phon e

Answ er

Cal l

Tran sfer

Rej ect Cal l

End Cal l

Mut e

iPod
information

iPod

Search

Pause

/Play

Repeat

Album
Repeat

Shuffle

Album
Shuffle

iPod

Short

Press

Long
Press

File Up

Fast

Forward

Fast

Backward

File Down

E - 6

2

1

4

6

18

7

3

5

8

9

10

11

12

13

14

15 16

17

19

21 20

AUX

INPUT

5

6

DISPBAND

1

2

3 4

PAU INT RPT RDM

MODE

PTY

TA

AF

AS

REL

MUTE

TRANSFER

PS INFO

CLEAR

MENU

IX-BASS

FOLD FOLD

BEAT375 CD/MP3/WMA/CD-R/CD-RW Player 4x40w

COPY

Copy

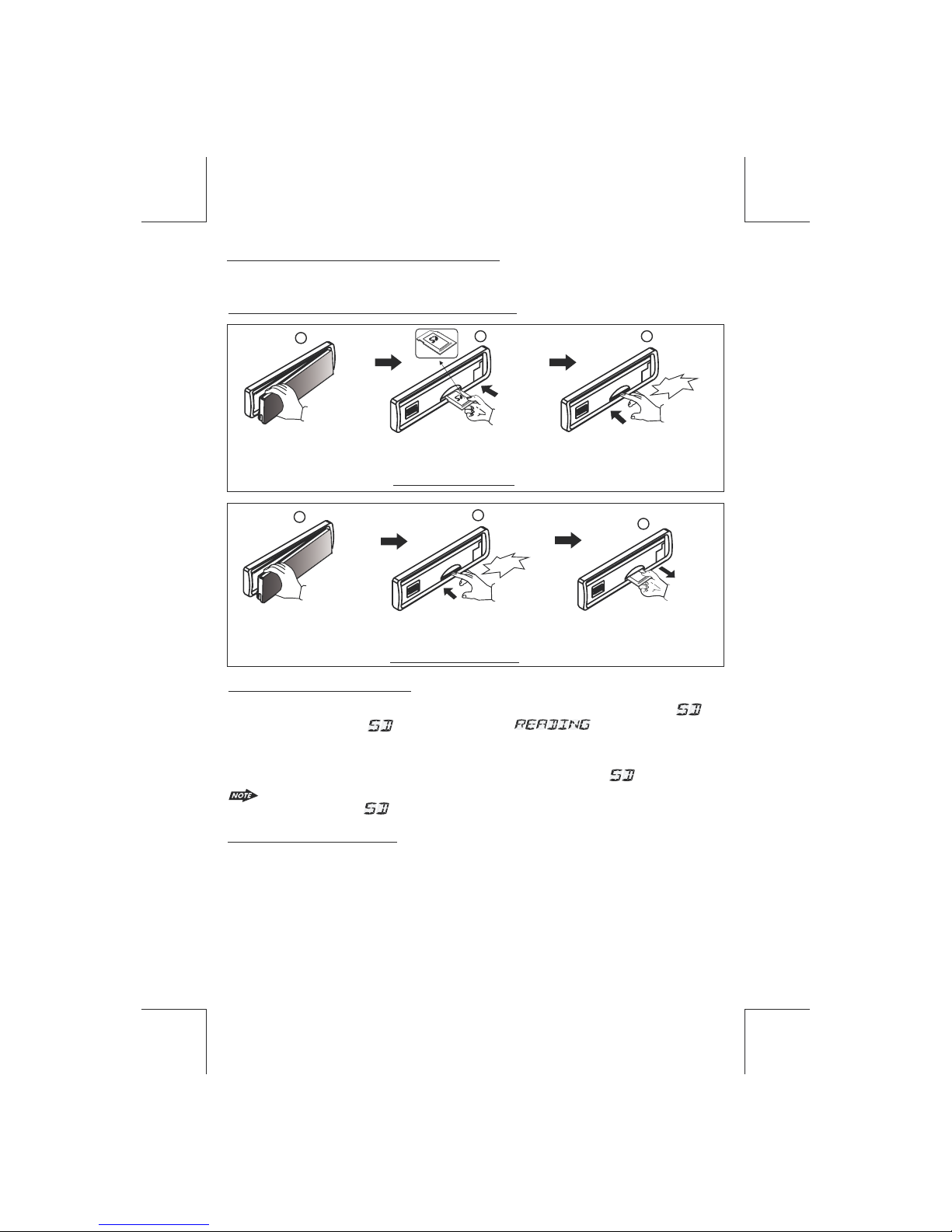

Press this button to remove the control panel.

6. BASIC OPERATIONS

3) PANEL RELEASE BUTTON (REL)

1) POWER ON/OFF BUTTON ( )

Press POWER button or any other button on the front of the radio to turn the unit on. Long
Press POWER button again to turn the unit off.

E - 7

5) MODE BUTTON (MODE)

10) iX-BASS BUTTON (iX-Bass )
Long press the iX-Bass button to turn on the IX-Bass function, and the “X-BAS” icon will

appear on the LCD display. Press the iX-Bass button again to turn off the IX-Bass function.

Press MODE button to select a different mode of operation as indicated on the display
panel. Available modes include Tuner, CDP, USB Host, SD, iPod, AUX .

6) ENCODER VOLUME BUTTON

To increase the volume, rotate the volume control clockwise.(press the volume up button)
To decrease the volume, rotate the volume control counter clockwise.(press volume down
button) When volume is adjusted, the volume level will be shown on the display panel as a
number ranging from 0 (lowest) to 46 (highest).

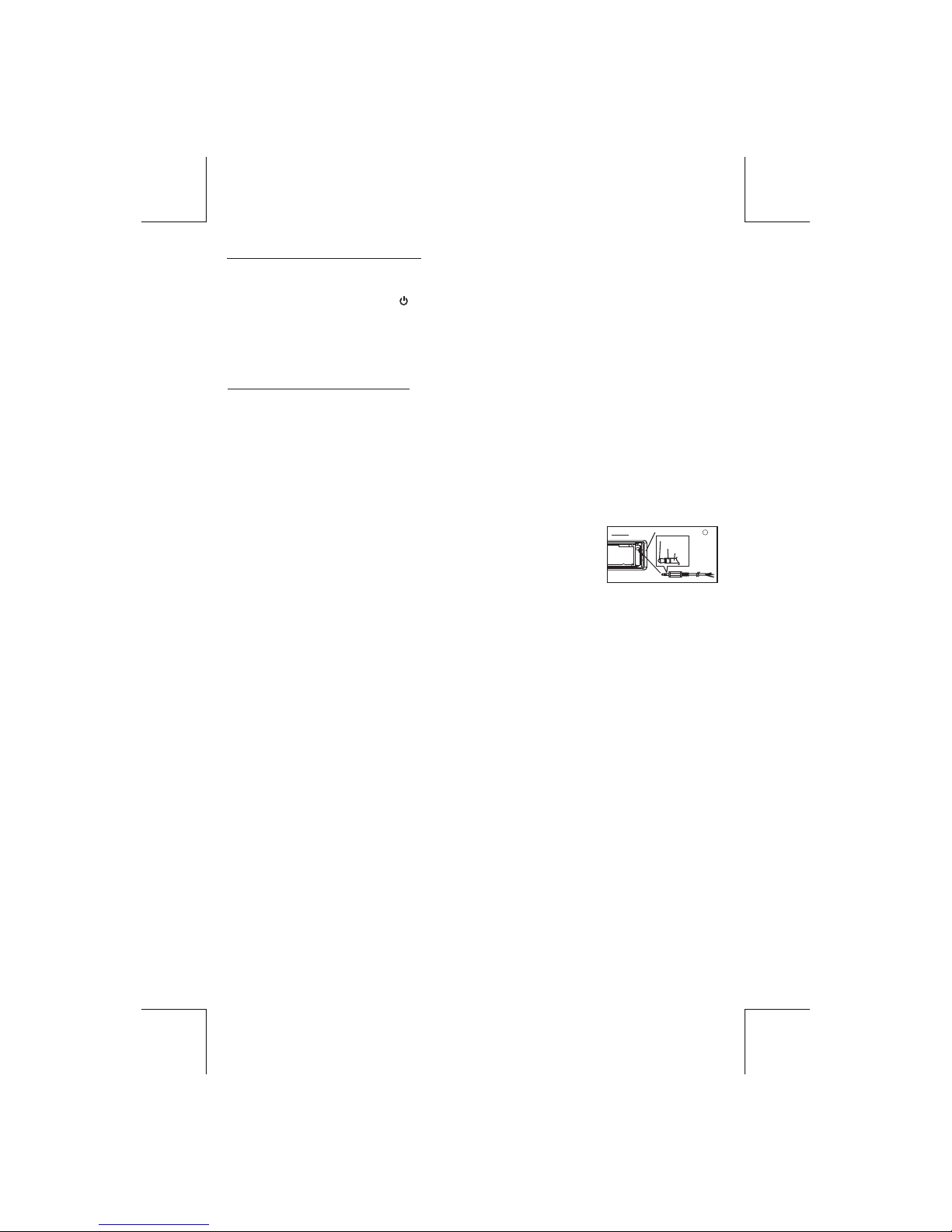

AUX INPUT

Connect the external signal to the RCA line in jack located at the rear of the unit , then press
Mode button to select Aux mode. Press Mode Button again to cancel Aux Mode and return
to previous mode.

1) MUTE BUTTON (MUTE)

Press the mute button momentarily to mute the audio volume, and "Mute" will flash in the
display. Press the mute button again to restore volume to the

previous setting.

AUX IN

FRONT CABINET

RIGHT TRACK

GROUND

AUX IN

LEFT TRACK

2

Time Set ( CLK )

The time on the clock will be set to 12:00 as the default. Program the current time by
rotating the volume control clockwise to adjust the minutes and counterclockwise to adjust
the hours.

18) MENU FUNCTION LIST (MENU)

Press DISPLAY/ MENU for more than 3 seconds to access the menu. Will appear
in the display momentarily. Navigate the menu by pressing DISPLAY/ MENU momentarily to
move forward to the next option. The menu can also be navigated by using the Tuning Up
or Tuning Down Button to move to the next or previous option. Once the desired option
appears in the display, adjust that option by rotating the volume control(press the volume
up / down button ) within 5 seconds. The following options are adjusted through this menu
feature.

7.MENU OPERATION

Incoming call ringing volume ( VOL)

The unit can preset the Ringing volume level for any incoming call. The default RINGING
VOLUME LEVEL VALUE is “25”. Rotate the encoder knob to adjust from Min 00 to Max 42.

BT

Pairing ( PAIR HF )

This feature is used to pairing the unit's Blue tooth system to your mobile phone or other
Blue tooth device. Under the MENU “Pairing” mode then press Audio button to start
activating the Pairing.

Pls refer to BLUE TOOTH HAND FREE Operation regarding the details operation of
“PAIRING”.

Tips

E - 8

AREA (TUNER FREQUENCY SPACING)

This option allows the selection of the frequency spacing appropriate for your area. "AREA
U.S.A." is the default setting. Rotate the volume control to select the U.S.A. Latin America,
Europe or Oirt options.

Re-connection/Dis-connection (RE-CON / DIS-CON )

This feature is allows to Re-connect or Dis-connect to the paired mobile phone or Blue tooth
device by manually. Under the Menu- “RE-CON”mode, Rotate the encoder to navigate thru
“RE-CON” (re-connection) and “DIS-CON”(Dis-connection). After selected the mode for
connection then press Audio button to start activating the connection mode.

Local / Distance Select

This feature is used to designate the strength of the signals at which the radio will stop
during automatic tuning. "Distance" is the default, allowing the radio to stop at a broader
range of signals. To set the unit to select only strong local stations during automatic tuning,
rotate the volume control until "Local" appears in the display.

“PAIR HF ” is special u se for pairi ng with mobi le phone wit h Bluetoot h function ,
if the pa iring devi ce is a Blueto oth A udio de vic e, rota te th e encod er to “ PAIR
AD” the n press Audi o button to st art a ctiva tin g the pai rin g with au dio d evice .

E - 9

To program a specific volume level for the radio to turn on at, rotate the volume control to
select "VOLUME LEVEL”. Within 5 seconds.

The beep tone feature allows the selection of an audible beep tone to be heard each time a
button is pressed on the face of the radio. "BEEP TONE On" is the default display. Rotate
the volume control to select the "BEEP TONE Off" option.

Beep Tone ( BEEP )

Regional On/Off ( REG )

REGIONAL “OFF” will be displayed by default. The user now has 5 seconds to adjust by
using volume up/down button from “off” to “On” . If “on” is selected when the AF search or
PI seek, it will implement to station which have all the PI codes which are the same as
current station.. If “off” is selected, when AF search or PI seek the regional code in the
format PI code will be ignored. A regional station is possible to be received.

The Regional function On/Off Setting is valid when the “AF” function is “on”

Programmable Turn-on Volume ( P-VOL )

This option allows selection of the volume level the radio will automatically assume when
first turned on. "VOL PGM 12 " is the default setting, which will turn the radio on at the
volume level selected when the unit was last turned off.

E - 10

8. AUDIO OPERATION

Press “AUDIO button to access the Audio Menu. User can navigate thru the Audio Menu items by

pressing the / “AUDIO” button repeatedly, or by pressing the Tuning Up or Tuning Down Button.
Once the desired menu item appears on the display, adjust that option by using the Volume Up or
Down button within 5 seconds. The following menu items can be adjusted as described above.
The unit will automatically exit the Audio Menu after five seconds of inactivity.

”

Audio Menu

VOLUME (Volume Level)

User has 5 seconds to use the Volume button to adjust the desire volume level, the volume
level will be shown on the LCD display ranging from 00 (lowest) to 46 (highest).

BASS (Bass Level)

User has 5 seconds to use the Volume Up or Down button to adjust the desired Bass level
range from -6 to +6.

TREBLE (Treble Level)

User has 5 seconds to use the Volume Up or Down button to adjust the desired Treble level
range from -6 to +6.

BALANCE

User has 5 seconds to use the Volume Up or Down button to adjust the Balance between
the right and left speakers from R12 (full right) to L12 (full left). “C00” represents an equal
balance between the right and left speakers.

FADER

User has 5 seconds to use Volume Up or Down button to adjust the Fader between the
front and rear speakers from R12 (full rear) to F12 (full front). “C00” represents an equal
balance between the front and rear speakers.

Manual Tuning
Press the Up Tuning or Down Tuning button for more than 3 seconds to move the radio
frequency number up or down one step.

Auto Seek Tuning
Press the Up Tuning or Down Tuning button for less than 3 seconds to move to next station
automatically.

9. TUNER OPERATION

Recall a Station

Select a band (if needed). Press a preset button to select the corresponding stored station.

20-21) TUNING UP/DOWN BUTTON ( )

12-17) PRESET STATIONS BUTTONS

Six numbered preset buttons store and recall stations for each band.

Store a Station

Select a band (if needed), then select a station. Hold a preset button for 3 seconds. The
preset number will appear in the display.

Automatically Store

Automatically select 6 strong stations and store them in the current band. Select a band (if
needed). Press AS/PS button for more than three seconds. The new stations replace
stations already stored in that band.

Preset Scan

Scan stations stored in the current band. Select a band (if needed). Press AS/PS button for
less than 3 seconds. The unit will pause for ten seconds at each preset station. Press
AS/PS button again to stop scanning when the desired station is reached.

STEREO

The unit will automatically pick up a stereo signal, when available. When in stereo mode,
the ST icon appears in the display. When no stereo signal is available, the unit will
automatically revert to mono operation, and no icon will be displayed.

11) AUTOMATICALLY STORE / PRESET SCAN (AS/PS)

7) BAND BUTTON (BAND/SEARCH)

E - 11

Press BAND to change between FM bands and AM(MW)bands.

RDS functions

- AF Alternative Frequencies

- CT Clock Time

- EON Enchanced other Network

- PI Program identifications

- PS Program service name

- PTY Program Type

- REG Regional Change

- TA Traffic Announcement

- TP Traffic program

By pressing AF button < 3 seconds to select AF ON/OFF. “AF ON” or “AF OFF” will show &
remain on the LCD segment for 5 seconds.. Under AF “On” mode, if the tuned in station
signal is getting weak, the unit will automatically switches to a different frequency on the
same network with stronger signal.
Note: Factory Default setting is “AF ON”

10. RDS OPERATION

8. AF Function

9. TA Function

By pressing TA button < 3 seconds, turn switch on TA standby mode. “TA ON” will show &
remain on the LCD segment for 5 seconds & the TA icon will light up on the LCD. In the
stand by mode, when a traffic announcement broadcast starts, the traffic announcement
broadcast will be received as top priority regardless of the function mode. When a traffic
announcement starts, “TRAFFIC INFO” will show on the LCD, press the TA button can
cancelled the broadcast reception while a traffic announcement broadcast is being received.
The unit will go back to the previous mode and TA goes into stand by mode again. When
the TP icon is not light up for 60 seconds. A beep Alarm tone is heard and the LCD will show
“Lost TP, TA”. TA seek will automatic activate and searches to another TA station.

10. PTY Function

Pressing PTY button < 3 seconds to goes into PTY select mode. “PTY” icon will light up on
the LCD. The LED around encoder volume will starts blinking. The user now has 5 seconds
to select the desired PTY item by using volume up/down button. Once selected the PTY
item, user have 5 seconds to press “SELECT” or “TUNE UP or TUNE DOWN” buttons < 3
seconds to seek for the selected PTY item. The LCD will display “PTY SEEK”. If no station
with the selected PTY broadcast can be received, the LCD will display “No Match PTY” and
blinks for 5 seconds then returns to the previous mode.

The unit is equipped with the following RDS function:

E - 12

User can store his favor PTY into the preset memory M1 to M6. After selected a PTY item,
long press any one of the preset memory button can store the selected PTY. To recall the
stored PTY item by switching on PTY mode then press preset memory < 3 seconds, the unit
will automatically search the stored PTY station in the preset memory

Note: Factory default stored for PTY preset memory.
M1/News, M2/Information, M3/Pop Music, M4/Sports, M5/Classics, M6/Finance.

Music Group

Speech Group

POP , ROCK

NEWS, AFFAIRS, INFO

CULTURE, SCIENCE, VARIED

JAZZ, COUNTRY

EASY, LIGHT

SPORT, EDUCATE, DRAMA

NATION, OLDIES

SOCIAL, RELIGION, PHONE IN

FOLK

TRAVEL, LEISURE, DOCUMENT

WEATHER,FINANCE, CHILDREN

CLASSICS, OTHER

E - 13

INSERT AND EJECT CD

Insert a CD label-side up with the unit turned on, and the disc will begin to play. Press the Eject
button to stop CD play and eject the CD. The unit does not have to be turned on to eject
the CD.

CD-DA OPERATION

12) PAUSE BUTTON

Press the pause button to suspend disc play. Press the pause button again to resume disc
Play.

Press the Up Tuning or Down Tuning button ( ) for less than one second to advance
to the next track on the CD, The selected track number will appear on the display. Press
and hold the Up Tuning or Down Tuning button ( ) for more than one second to fast
forward or fast reverse through the disc. CD play starts when the button is released.

20-21) TRACK SELECT

14) REPEAT BUTTON (RPT)

Press REPEAT BUTTON (RPT) during disc play to continuously repeat the track. Press
REPEAT BUTTON (RPT) again to stop Repeating.

15) RANDOM BUTTON (RDM)

Press RANDOM BUTTON (RDM) during disc play to play all tracks on a CD in random,
shuffled order. Press RANDOM BUTTON (RDM) again to stop random play.

13) INTRO SCAN BUTTON (INT)

During disc play, press INTRO SCAN BUTTON (INT) to play the first 10 seconds to each
track on the disc. When the desired track is reached, press INTRO SCAN BUTTON (INT)
again to end the scan and play the selected track.

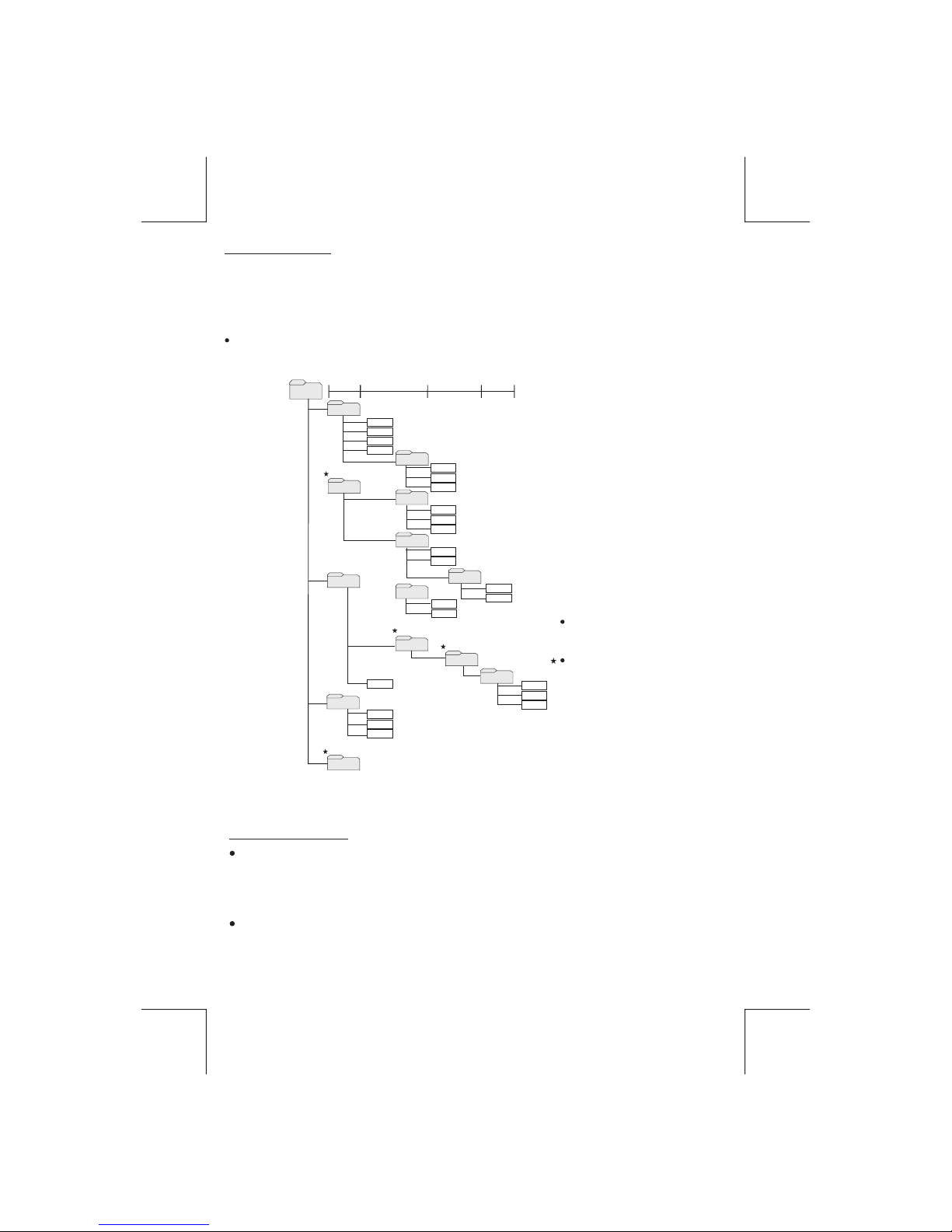

MP3/WMA OPERATION

MP3 and WMA (Windows Media Audio) music files are audio compression format. This unit can
play MP3/WMA directly from files contained on a CD-R/RW, USB Memory Stick, SD Memory
Card.

Notes on MP3/WMA Play

This unit can play MP3 (MPEG1, 2, 2.5 Audio Layer 3). However, the MP3 recording media and
accepted formats are limited. When writing MP3/WMA, pay attention to the following restrictions.

Acceptable Medium Formats

The following formats are available for the media used in this unit. The maximum number of
characters used for file name including the delimiter (".") and three-character extension are
indicated in parentheses.

ISO 9660 Level 1 (11 characters)
ISO 9660 Level 2 (31 characters)
Joliet (31 characters)
Romeo (31 characters)

11. CD /MP3/WMA OPERATION

Up to 200 characters can be displayed in the long file name format. For a list of available
characters, see the instruction manual of the writing software and the section “Entering File and
Folder Names” below. The media reproducible on this unit has the following limitations:

Maximum number of nested folders: 8
Maximum number of files per disc: 999
Maximum number of files per media device: 2000
Maximum number of folders per disc: 255

MP3/WMA written in the formats other than the above may not be successfully played and their
file names or folder names may not be properly displayed.

MP3/WMA Encoder and CD Writer Settings

Use the following settings when compressing audio data in MP3 data with the MP3 encoder.

Transfer bit rate : 32- 320 kbps
Sampling frequency : 32,44.1,48 kHz(WMA) 16,22.05,24,32,44.1, 48kHz (MP3)

When using a CD writer to record MP3/WMA up to the maximum disc capacity, disable
additional writing. For recording on an empty disc up to the maximum capacity at once, check
disc at once.

Entering ID3 Tag

This unit supports ID3 tag versions 1.0 and 1.1.

Entering File and Folder Names

Names using the code list characters are the only file names and folder names that can be
entered and displayed. Using any other character will cause the file and folder names to be
displayed incorrectly. The unit recognizes and plays only files with the MP3/WMA extension.

A file name entered with characters not on the code list may not play correctly.

E - 14

Writing Files into a Media

When a media containing MP3/WMA data is loaded, the unit checks all data. If the media
contains many folders or non-MP3/WMA files, MP3/WMA play will be delayed, it may take time
for the unit to move to the next file, and searches may not be performed smoothly. Loading
such a media may produce loud noise and cause damage to the speakers. Do not attempt to

play a media containing a non-MP3/WMA file with the MP3/WMA extension or a media
containing non MP3/WMA files.

Bit Rates

The unit supports bit rates from 32 - 320 kbps.

Files Playing Order

When selected for play, Folder Search, File Search or Folder Select, files and folders are
accessed in the order in which they were written by the PC writer. Because of this, the order in
which they are expected to be played may not match the order in which they are actually
played. For example, a media with the following folder/file hierarchy is subject to Folder Search,
File Search or Folder Select as shown below.

ROOT

01

04

05

06

07

08

02

03

X

X

X

X

09

1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL

001.MP3

002.MP3

003.MP3

004.MP3

“NOT DISPLAY”

“NOT DISPLAY”

“NOT DISPLAY”

“NOT DISPLAY”

009.MP3

010.MP3

011.MP3

012.WMA

013.WMA

014.WMA

015.MP3

016.MP3

017.MP3

018.MP3

019.MP3

020.MP3

005.MP3

006.MP3

007.MP3

008.MP3

021.WMA

022.WMA

023.WMA

An outline of a Media with MP3/WMA is shown below. Subfolders are shown as folders in the
folder currently selected.

The equipment assigns folder
numbers. The user can not assign
folder numbers.

It is not possible to check folders that
do not include MP3/WMA files.
(These folders will be skipped without
displaying the folder number and
name)

E - 15

FILE/FOLDER PLAY

There are three different play methods as following:

Press M2 button more than 3 seconds during playing MP3/WMA disc for “intro play” all
files of the current folder. Intro play should restart from the first song of the current folder,
after all files in the current files have been intro-played.
To disable current folder “intro play”, long press M2 button more than 3 seconds

Press M2 button less than 3 seconds is “intro play” all files on the disc. Intro play should
re-start at the very first file of the disc after all files in the disc has been intro played.
To disable all files “intro play”, press M2 button less than 3 seconds

File/Folder Intro play:

Press M3 button more than 3 seconds during playing MP3/WMA disc for “repeat play” all
files of the current folder. And keep on repeat playing the current folder until “repeat play” is
disabled.
To disable current folder “repeat play”, long press M3 button more than 3 seconds

File/Folder Repeat play :

Press M4 button more than 3 seconds during playing MP3/WMA disc to “random play” all
files of the current folder.
To disable current folder “random play”, long press M4 button more than 3 seconds

File/Folder Random play:

E - 16

Press M5 button less than 3 seconds to One Folder Down
Press M6 button less than 3 seconds to One Folder Up

Folder Up / Down Play

MP3/WMA File or Folder Search

Direct File Number Searching

Folder / Files Navigate Searching

Press BAND button. The LCD will display "Number", and the illumination around the select
knob will blink. Rotate the knob to select the desired track number, then press in on the knob
to confirm and play the selected file.

Press BAND button twice. The LCD will display "Navigate", and the illumination around the
select knob will blink. Rotate the knob to navigate through all folders and sub-folders on the
disc. The folder names will be displayed on the LCD. Press the select knob for more than three
seconds to play the first file in the folder. Press the select knob for less than three seconds to
access the sub-folders or files. Rotate the select knob to navigate, then press the select knob
to confirm and begin file play. During navigation search, press AS/PS or rotate the select knob
counter-clockwise to move back to the last upper level of a folder.

ID3 INFORMATION DISPLAY

If any MP3/WMA file recording with ID3 Tag information. The ID3 information such like Album
title, Track title, Artist Title will be displayed and automatic scrolling through the LCD while the
file is playing. User also allows pressing the AS/PS button repeatedly to view the ID3 tag
information manually.

Press M3 button less than 3 seconds to “repeat play” the current file. And keep on repeat
Playing the current file until the “repeat play” is disabled.
To disable current file “repeat play”, press M3 button less than 3 seconds

Press M4 button less than 3 seconds is “random play” all files on the disc.
To disable all file “ random play”, press M4 button less than 3 seconds.

1 . USB OPERATION2

The unit can support USB Host Function. It can playback MP3 and WMA Audio format which are
stored into USB Memory Stick or USB interface Music Player. Please read below before you start
the operation of USB HOST Function.

Mode change to USB HOST

Before remove the USB stick from the Front panel USB plug. Always remember to switch off the
unit's power or switch to other mode then remove out the USB Stick. Never try removing the USB
Stick while playing music file on the USB stick. It may damage the USB Stick and sometimes will
caused the unit system lock up.

The unit can support playback Music Player which have USB Interface. However due to the
fast changing decoder technology and different kind of hardware interface. This unit may
or may not be compatible to all the Music Player and USB Stick especially those USB Stick /
Player which require to install a program driver.

Under any other mode while inserting a USB Stick into the front panel USB plug, the unit will
Automatically switches from present playing mode to USB HOST mode. The unit will display ‘

for a while then starts the files contained on the USB Stick.

Once the unit read the USB Stick successfully, the first audio music file on the USB stick
Playback will Automatically start. Press Mode button repeatedly to change to other modes or

switch back to USB HOST.

WARNING:

About Music Flash Player with USB Interface, Usually, the unit takes longer time to read this
kind of player than normal USB Stick. Especially, if the Flash Player with built-in power
battery sometimes takes 20-30 seconds to start up the playback

The unit is not compatible to playing any Portable Hard disk.

Music File Playback Operation

All the USB playback operation function is same as the operation on CD/MP3/WMA. Please refer
to 'CD/MP3/WMA Operation' for more details.

E - 17

Removing USB Drive

Carefully remove USB drive

Step

2

Secure panel with left hand

Step

1

Inserting and Removing USB Drive

13. MEMORY CARD OPERATION

The unit can support playback MP3 and WMA Audio format which are stored into

Card . Plsread below before you start theoperation of Memory Card

SD Memory

Inserting and Removing a SD card on the main unit

Mode change to MEMORY CARD

Music File Playback Operation

All the SD Memory Card playback operation function is same as the operation on
CD/MP3/WMA. Plsreferto 'CD/MP3/WMA Operation' for moredetails.

After a SD card was inserted into the main unit card slot. Press Mode button to select

Mode .The unit will display for a while then starts
The files contained

on the Memory Card. Once the unit read the MEMORY

CARD successfully,

the first audio music file on the Memory Card will automatically start playback. Press Mode
Button repeatedly is allowing changing to other modes or switch back to

Mode.

If no any Memory Card is inserted into the main unit card slot. Press mode button will
automatically skip mode.

E - 1 8

Click

Inserting the SD card

Removing the SD card

Click

Face

Up

Insert the Memory Card

with Label up side

1

2

Detach the

Front Panel

3

Push in till heard a “click”

1

Detach the

Front Panel

2

Push in till heard a “click” Remove the Memory Card

3

E -　19

14. MUSIC FILES COPYING / TRANSFERRING

Thanks for the most useful and convenient files transferring function of this unit, user can easily
transfer music files between USB Stick, SD Memory card and on the CD Disc. Please read
below for the details operation of this function:

TRANSFERABLE MEDIA

Files are transferable within the following media:

Removable USB Stick
SD Memory Card
File on the CD disc

MUSIC FORMAT SUPPORTED BY FILE TRANSFER ARE

TRANSFER MP3 OR WMA MUSIC FILES ON CD DISC

This operation only can be performed during disc playing a MP3 or WMA music file.

1.Playback a music file to be transferred and then long press the COPY button to activate the

Transfer mode.

3. Once selected the storage media, Press AUDIO button as confirmation to transfer the

Playing file. If no further button is press within a 10 second time out, the unit will automatically

resume to the previous mode

4.If the unit detected the selected media memory capacity is used up,

Will be displayed on the LCD for a while then automatically resume to the previous mode.

5.After pressing AUDIO button to start the transfer, the playing music file will stop and the

transferring will start at the same time. (The following step is an example of if selected
USB)

6.When the transfer is processing, the LCD will displayed .

7.When the file transfer is completed, the LCD will display for a while and

automatically playback the present music file which have been transferred. The transferred
music file is automatically saved as a file into Folder “MY_MP3” or “ MY_WMA” by the
advance “File Management.” system of this unit.

For more details information of File Management system of this unit. Pls see “FILE

Tips

MANAGER’’.
Under transferring mode, All the MP3/WMA operation is not functional, like file up / down,
Repeat, Random, and Intro etc.

The audio will remain recording by the unit system even MUTE function is activated
The Transferring will automatically stop if the storage device memory is less than 2MB

MP3 and WMA

2.The LCD will display as default, Rotate the encoder volume knob to navigate
thru > for selection of the storage media.

To Cancel Transferring.

1.Long press button COPY again to cancel the recording. The LCD will display
The music file that has been transferred incompletely will be deleted.

The unit will stop the file transfer automatically under the following operation,
the music file that has been transferred incompletely will be deleted.

2)Mode change

3)Inserting a CD Disc

4)Inserting a USB Stick

1)Switch the power to off mode

1) Never remove the USB Stick while recording or file transferring to USB Stick. It may damage
the USB Stick and sometimes will caused the unit system lock up.

2) It is not recommended to insert USB stick while recording is under progress to other

storage device. Always remember to stop the recording or after the recording is completed,
then insert the USB stick.

3) Do not switching mode of the unit during the File Transferring .

4) Do not turn off the Power of the unit during the File Transferring.

5) Do not switch the ignition key off during the File Transferring

TRANSFER MP3 OR WMA MUSIC FILES BETWEEN MEDIA DEVICES

Select a device by mode button and playback the music file need to be transfer:

1.Long press the COPY button to activate the transfer mode.

3.Once selected the storage media, Press the AUDIO button as confirmation to transfer the

Playing file. If no further button is press within a 10 second time out, the unit will automatically
resume to the previous mode.

4.If the unit detect the selected media memory capacity is used up,

will be displayed on the LCD for a while then automatically resume to the previous mode.

5.After pressing AUDIO button to start the transfer, the playing music file will stop and the

transferring will start at the same time. (The following step is an example of if selected USB)

6.Under transfer is processing, the LCD will display .

7.When the file transfer is completed, the LCD will display for a while and

automatically playback the present music file which have been transferred. The transferred
Music file is automatically saved as a file into the Folder “MY_MP3 “ or “MY_WMA” by the
advance “File Management.” system of this unit.

For more details information of File Management system of this unit , Please see “FILE

Tips

MANAGER’’.

Under transferring mode, All the MP3/WMA operation is not functional, like file up / down,

Repeat, Random, and Intro etc.

The audio will remain recording by the unit system even MUTE function is activated
The Transferring will automatically stop if the storage device memory is less than 2MB

WARNING:

2.The LCD will display as default, Rotate the encoder volume knob to navigate
thru > for selection of the storage media.

E -　20

15. MUSIC FILES ERASING

You can erase files from the USB Stick or Memory Card Please read below for the details
operation of this function:

ERASABLE MEDIA

USB Stick and Memory Card.

Music files which are on the CD Disc is NOT ERASABLE

By this unit.

ERASING MUSIC FILES ON THE MEDIA

There are THREE different methods for erasing files;

1.Erase while the Music File is playing.

Long press BAND button to activate the ERASE mode
The LCD will display .
Short Press the AUDIO to enter into the ERASE mode.

Once enter into the erase mode. You can rotate the encoder volume knob to select “ ”
as to confirm the erase or rotate the volume knob to select “ ” as for cancel the erase
mode. If no further button is press within 5 seconds time out. The unit automatically resume

to the previous mode.

Once the “ ” is display on the LCD, press the AUDIO button again to final confirm

erase the present playback music file.

If want to CANCEL the erase of the present music file, Rotate the encoder volume knob

to “ ”. Once the “ ” is displayed on the LCD, press the AUDIO button again to cancel

the erase mode.

After pressing AUDIO button to start the ERASE, the present playing music file will stop

and the erasing will start at the same time.

will display on the LCD after the music file erase is successful, and the

unit will automatically start playback the next music file.

2.Erase under Files Number Search Mode

User can select the Music file Number want to erase by file Number Search mode

After selected the file number want to erase, Long press the BAND button to activate the

ERASE mode.

The LCD will display .
Short Press the AUDIO to enter into the ERASE mode
Once enter into the erase mode. User can rotate the encoder to select “ ” to confirm

the erase or rotate the volume knob to select “ ” to cancel the ERASE mode. If no further

button is press

mode.

within a 5 second time out. The unit automatically resume to the previous

Once the “ ” is displayed on the LCD, press the AUDIO button to final confirm to erase

the selected music file.

If want to CANCEL the erase of the present music file, Rotate the encoder to “ ”.

the AUDIO button again to cancel the erase

Once the “ ” is display on the LCD, press

Mode.

After pressing AUDIO button to start the ERASE, the present playing music file will
Stop and the erasing will start at the same time

will display on the LCD after the music file erase is successful, and the

Unit automatically start playback of the next music file.

E -　21

3.Erase under Files NAVIGATE search mode

You can select a Music file want to erase by files Navigate Search mode

After selected the music file want to erase by files navigate search, Long press BAND

button to activate the ERASE mode.

The LCD will display .
Short Press the AUDIO button to enter into the ERASE mode
Once Enter into the ERASE mode, user can rotate the encoder to select “ “ as to confirm

the erase or rotate the volume knob to select “ ” to cancel the ERASE mode. If no further

button is press within a 5 second time out. The unit will automatically resume to the previous
mode.

Once the “ ” is displayed on the LCD, press the AUDIO button again to final confirm
Erase the selected music file.

If want to CANCEL the erase of the present music file, Rotate the encoder to “ “

Once the “ ” is display on the LCD, press the AUDIO button again to cancel the

erase mode.
After pressing AUDIO button to start the ERASE, the present playing music file will stop

and the erasing will start at the same time.

will display on the LCD after the music file erase is successful

and the unit will automatically start playback of the next music file.

1) Do not switching mode of the unit during the Erasing

2) Do not turn off the Power of the unit during the Erasing

3) Do not switch the Ignition key off during the Erasing

4) Do not detach the front panel during the Erasing

WARNING:

E -　22

E - 23

16. FILES MANAGER

The advance “File Management.” System of this unit can help to well you organize all the music

files just like a PC . Pls read below for details:

FOLDERS MANAGEMENT

This unit will automatically self-create the below default folders onto any USB /SD media
device, once these devices are inserted into the unit.

FILES MANAGEMENT

This unit will automatically self-create the file name following with the Folder Name, for example:

Music file which recorded from CD disc, the file name ‘ will be automaticallyCD0001.MP3'

MY_AUX : Folder for saving all the music files source from AUX Line In

MY_FM : Folder for saving all the music files source from FM Program

MY_CD : Folder for saving all the music files source from CD Disc

MY_iPod: Folder for saving all the music files source from iPod Player

MY_WMA: Folder for saving all the WMA music files transfer from other device

MY_MP3: Folder for saving all the MP3 music files transfer from other device

created & saved in the respective folder.

17. iPod OPERATION

E - 24

This unit is equipped with iPod Ready function when purchased with the optional accessory
cable BT-IPD which allow you to have direct control of your iPod on the front panel control
button and display iPod song information on the LCD display. Please read below for more
details on operation.

iPod Compatibility Chart

This unit is support following iPod software version

iPod 1G Not Supported
iPod 2G Not Supported
iPod 3G Firmware Version 2.2
iPod Mini All versions
iPod 4G All versions
iPod Photo All versions
iPod Nano Nano All versions(Can not support 3G Nano)
iPod 5G(Video) All versions

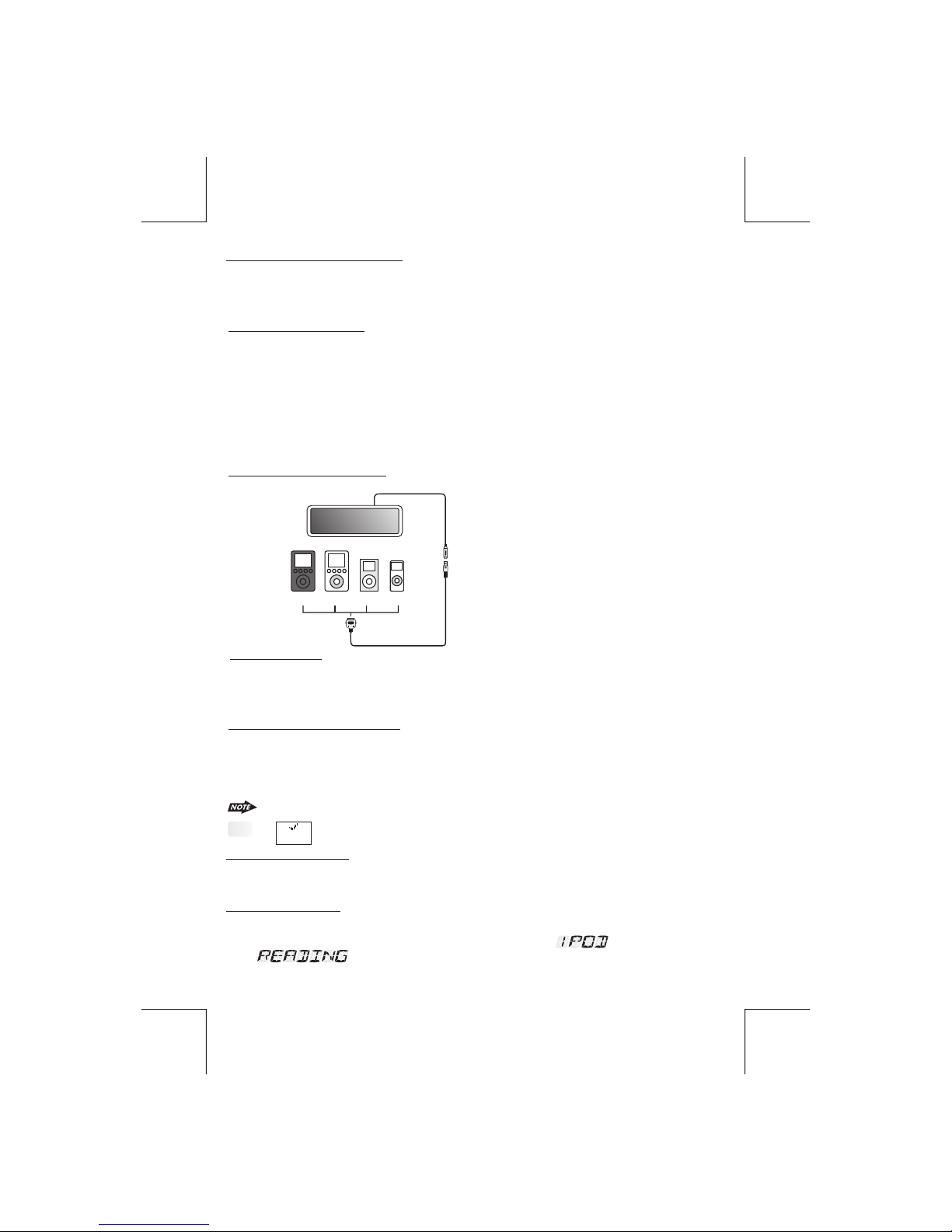

Connect the iPod to this unit

About Video File

This unit is NOT ABLE to select any VIDEO FILE OR VIDEO ALBUM which contained in the iPod
Video. This unit will only automatically select Music Album or File regardless the connected Video
iPod last playing is a Video File or Album.

Turning iPod Power On and Off

The iPod power turns on automatically as soon as it is connected to the 30 Pin Connector and as
long as the vehicle's ignition is turned ON. The iPod power can be turned OFF by removing the
iPod from the 30 Pin Connector or if the vehicle's ignition is turned OFF. Under this condition the
iPod will go into pause mode and goes into sleep mode about 2 minutes later

While the iPod is connected, the power cannot be turned on or off from the iPod itself.

“ ” to disconnect will be shown in the iPod's display while it is connected to the unit .

Tips

iPod Battery Charging

While connected to the unit, the iPod will automatically start re-charging as long as the vehicle's
ignition key is turn to ACC or ON.

Switch to iPod Mode

When the Head unit is power on and iPod is connected to the 30 pin connector, press the
mode button to change to iPod mode and the unit will display for a while then
starts the music files contained in the iPod and the playback will automatically
start. Press Mode button repeatedly to change to other modes or switch back to iPod mode.

OK to disconnect

iPod


iPod iPod

mini

iPod

nano

HEAD UNIT

8 Din iPod Ready Cable

iPod Cable

E - 25

iPod information Display on the Head Unit LCD

This unit can display the Song, Artist, Album name and Elapsed time on the LCD display, these
information can be displayed by pressing the AS/PS button repeatedly while a iPod Song file is
playing

Searching a Desire Song

Under iPod playback mode, press BAND to enter into the iPod Searching Mode. Pressing BAND
button repeatedly to accesses the different searching methods as below :

1) Playlist

2) Artist

3) Album

4) Song

5) Genre

Once selected the desire searching method, within 10 second press the AUDIO button as
confirm & access into the searching mode, then turn the rotate encode volume knob to
navigate thru the Album or Artist or Song contained in the iPod. Press the AUDIO button to
confirm & play the selected song. During the searching mode, press AS/PS as quick move
back to the last upper level of Album, Playlist, Genre, etc.

Song Select

Press the Track UP (>>) or Track DOWN (<<) button for less than one second to skip to the next
or previous song. Press and Hold Track UP (>>) or Track DOWN (<<) button for more than 3
seconds to fast forward or fast reverse of the current song.

Song Repeat / Repeat All play :

Long press the M3 button for more than 3 seconds during iPod playback mode for “REPEAT ALL”.
All songs of the current album will be kept on repeat playing until the “Repeat All” function is
disabled. To disable current Album “REPEAT ALL” function, long press M3 button more than 3
seconds

Press the M3 button for less than 3 seconds to “REPEAT PLAY” the current song. And keep on
repeat playing the current song until the “REPEAT PLAY” function is disabled. To disable current
song “REPEAT PLAY”, press the M3 button less than 3 seconds

Shuffle play: / Shuffle Album

Long press the M4 button for more than 3 seconds during iPod playback mode to activate the
“SHUFFLE ALBUM” function.

To disable “SHUFFLE ALBUM” function, long press M4 button for more than 3

seconds.

Press the M4 button for less than 3 seconds during iPod playback mode to activate “SHUFFLE
PLAY”. This function allows the playback of all the songs in the iPod in random sequence. To
disable “SHUFFLE PLAY”, short press M4 button again for less than 3 seconds.

This function allows RANDOM playback of all the albums contained

on the iPod.

E - 26

18.BLUETOOTH HAND FREE OPERATION

1. When user use our Blue tooth HEAD UNIT, please make sure the mobile phone you use must / does
support Bluetooth functions (Headset or Handsfree profiles or both)

2. Before you start to use our Bluetooth HEAD UNIT, please make sure complete pairing with your mobile phone
first. Please refer to the user manual, section “PAIRING” for detail “PAIRING” instruction. To ensure the best
reception for Pairing or Re-connection, please make sure the Phone Battery is fully charged when making the
Pairing or Re-connection.

3. Please always try pairing the Mobile Phone with Head unit after a few minutes of the Mobile Phone was
Switched On to ensure the best pairing result.

4. “BT60” is this unit device model number which is displayed on the mobile phone.

5. To achieve the best performance, please always keep the Mobile Phone within 3 meters of the Head unit.

6. Please always keep a clear path between the Mobile Phone & the Head unit.

7. Never put any metal object or any obstacle between the path of the Mobile Phone & the Head unit.

8. Some brand of Mobile Phone like Sony Ericsson may have "Power Saving Mode" selection when Blue Tooth
mode is switched on. PLEASE DO NOT Switches ON Power saving Mode when operating with this Head Unit, as
some abnormal communication behavior will happen occasionally if Power Saving Mode is switched on.

9. Before user make Outgoing call or Incoming call, make sure the mobile phone's “Blue Tooth function” was
switched “ON”.

10. To ensure the best conversation quality / performance, please always keep talking within 1 meter of the
Head Unit.

11. If user want to Dis-connect the Head unit with the Mobile Phone, please switch "OFF" Blue Tooth
connectivity on the Mobile Phone,or go to the system menu, "dis-connect" to disconnect the bluetooth
connectivity manually. ( please refer to the user manual, section "dis-connection of the bluetooth system for
details instruction. )

12. Some Mobile Phones can support “IN BAND RING TONE”, such as Nokia. In such case, the Incoming
Ringing Tone will be same as the original Ring-tone of the Mobile Phone. But some Mobile Phones like Sony
Ericsson do not support this feature. The Ring-tone will be using the standard Ring-tone of the Head unit.

User Guide For Bluetooth Operation

13. When in telephone mode, during talking, it is highly recommended to set the volume to below “30”
in order to achieve the best sound quality. As if the volume is too high, it may create unwanted echo
inside the car, and this unwanted echo may feedback into the microphone.

14. If the Bluetooth related operation is not performing normally, like cannot make pairing, cannot making an
outgoing call, User can try to make a SOFT-RESET of the Bluetooth module by removing / detaching the
panel from the main unit and waiting for about 1 min. Then re-attach the panel to the unit & retry the
Bluetooth operation again. Or user can RESET the whole unit by pressing the RESET button behind the
panel.

By pressing the RESET button all the stored memory will resume to factory default

FAQ (Frequency Asking Questions)

Q: Under phone conversation, if the voice output from the car's speakers is not loud enough.
A: Try increase the volume level of the head unit to a suitable sound level

Q: Under phone conversation, the “Listener” cannot hearing my voice loud enough
A: First, try asking the 'Listener” increase the volume level on his/her mobile phone, if still not loud enough, try to

increase your mobile phone's volume.

Q: Under Phone conversation, the “Listener' can hear echo feedback.
A: Your unit's speaker volume level is too loud which cause the voice feedback into the built-in microphone,

this can be corrected by decreasing the volume level.

Q: Under Phone conversation, the “Listener' complain the background is too noisy
A: May be you are in a noisy environment. Try close the car's window to shield the environment / background

noise under phone conversation.

Q: If the Mobile Phone already paired with the headunit, but after several calls, the incoming calls cannot access

thru the headunit.

A: May be the paired Mobile Phone lost the Bluetooth connection with the headunit. in this case, please go to the

"MENU" & select "re-connect" to reconnect the headunit with the paired Mobile Phone. For details, please refer
to the MENU operation "re-connection”.

E - 27

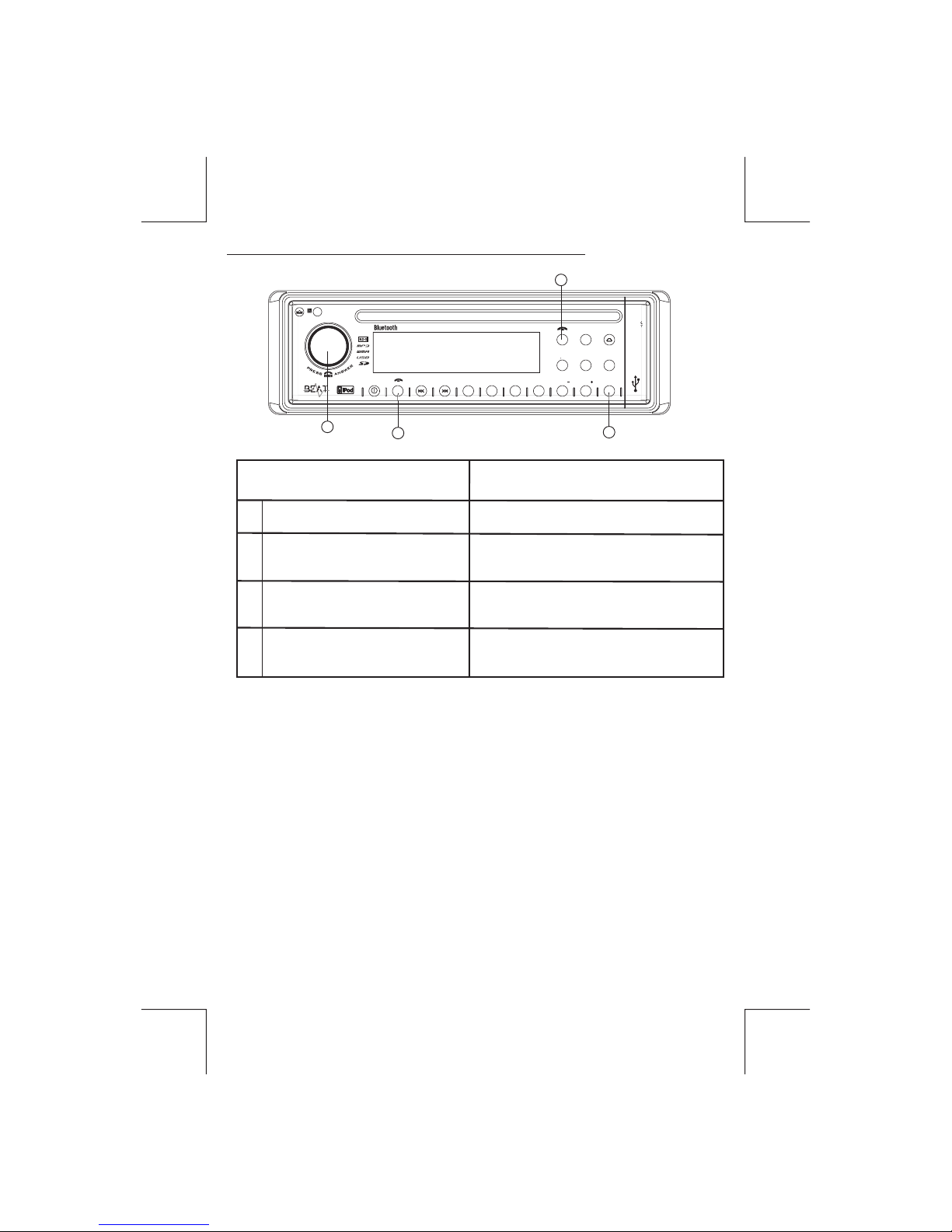

Bluetooth Hand Free Panel Function Key M atrix

1

2

3

4

Panel Function Button

Bluetooth Hand Free Function

PHONE/AUDIO ( Short Press )

Confirm to answer an incoming call

CLEAR/BAND ( Short Press )

1. Reject Incoming call

2. End a call

MODE ( Long Press )

Transfer Phone Conversation back to
Mobile Phone

MENU ( Short Press )

Pairing / Re-Connection etc
Note: See Menu operation for more details.

1

2

3

4

AUX

INPUT

5

6

DISPBAND

1

2

3 4

PAU INT RPT RDM

MODE

PTY

TA

AF

AS

REL

MUTE

TRANSFER

PS INFO

CLEAR

MENU

IX-BASS

FOLD FOLD

BEAT375 CD/MP3/WMA/CD-R/CD-RW Player 4x40w

COPY

If the pairing failed, “ ” will be flashing on the Display for 3 seconds. And
the unit will switch back to the previous mode automatically.

E - 28

PAIRING

Access into MENU - PAIRING mode to activates the operation of Pairing .

Pairing The Bluetooth System Between User’s Mobile Phone & The Unit

Once the is appearing on the LCD Display, press the AUDIO button to
activate the Pairing mode.

Keep the Mobile Phone within 2 meter from the unit when making the pairing.

To terminate the pairing, you can press the “CLEAR / BAND” button at any time.

Select the Bluetooth set up on the Mobile Phone.

Please refer to the instruction manual of your Mobile Phone on how to enter into the blue
tooth set up and blue tooth on / off, and blue tooth pairing.

Please see MENU Operation for more details of how to access into MENU mode .

Re-Connection Of The Bluetooth System

If The Mobile Phone is out of range.( 2 meters away from the Head unit) Under the
condition of lost connection when the user come back to the unit. At the same time, there is
an incoming call or user is under conversation on the Mobile Phone 2 meters away from
the Head Unit and come back to Head unit.
If user wants Audio Transfer back from Mobile Phone to Head unit. It needs to re-connect
manually.

Once the is display on the LCD , press the AUDIO button to activate the
manual Re-Connect mode.

During the Pairing, only Power, Clear ,Volume +/- & Mute are functional, other function
keys are disabled & non-operational during the pairing mode.

“BT60” should appear in the pairing list on the Mobile Phone. User need to select “BT60”
and then input the password “1234”.
If the pairing is successful, the display will show Mobile Phone Name or Model Number.

The unit is with built -in Auto-Reconnection function. In some conditions, user need to
reconnect manually. For example like the following.

The unit can be re-connected by the following methods.

1.Keep the Mobile Phone within 2 Meter from the unit when making the connection.

2.The manual re-connect is only function with the Mobile Phone has already been
paired with the unit before.

The LCD Display will displayed “ ” during the connecting period.
If the re-connection is successful, the LCD Display will display “ ”. And the unit will
switch back to the previous mode automatically.
If the re-connection failed, the LCD Display will display “ ” . And the unit will
switch back to the previous mode automatically.

Access into MENU - RE-CON mode to activate the manual RE-Connection.

Pls see MENU Operation for more details of how to access into MENU mode.

The unit will be Auto Re-Connection by following operation .

Phone.

Every time turn the ignition key from off to on, the unit will Auto re-connect with the Mobile

E - 29

Dis-Connection of the Bluetooth System

The unit have a option function for user to disconnect the Bluetooth system with the unit.
The unit can be Dis-connected by the following methods.

Access into MENU - DIS-CONN mode to activate the manual Dis-Connection.

Please see MENU Operation for more details of how to access into MENU mode.

Once the “ ” is display on the LCD, press the AUDIO button to activate the
manual Dis-Connect mode.

The LCD Display will displayed “ ” during the Dis-connecting period.

If the Dis-Connection is successful, the LCD Display will display “ ”. And the unit will
switch back to the previous mode automatically.

INCOMING CALL

ANSWERING AN INCOMING CALL

When there is an incoming call, the display will display the Phone Number. If the incoming
call has no caller number, the LCD will displa user can short press the
“PHONE” ( Audio ) button answer / accept the call.

Always press the “PHONE” (AUIDIO) button answer / accept the call after the LCD
display the “ Incoming caller telephone number ”.

The audio output of the present mode will be muted and the ringing tones will be heard,
if an incoming call is not being answered.

User can use the volume up/down to adjust the volume level.
To end the conversation, press the “CLEAR / BAND” button. The unit will switch back to the
previous mode automatically and release the mute of the previous mode at the same time.

User can press “CLEAR / BAND” button to reject the incoming call.

An Incoming call under stand by mode (Ignition on & Power Off) The system will
automatically switch on the head unit.

While there is an Incoming call or under talking mode, the Panel Open/Eject key is dis­activated.

Rejecting An Incoming Call

The audio output of the present mode will be muted and the ringing tones will be heard
if an incoming call is not being answered. After pressing the “CLEAR / BAND” button,
the mute of the present mode will be released.

During the talking mode, the LCD Display will display the duration “ ”of
the conversation.
User can use the volume up/down to adjust the volume level.

To end the conversation, press the “CLEAR / BAND” button. The unit will switch back to the

previous mode automatically. The mute of the previous mode will be released at the same

time.

E - 30

CALL TRANSFER

TO AUDIO TRANSFER FROM HEAD UNIT BACK TO THE MOBILE PHONE

During the talking mode, user can long press the “TRANSFER / MODE” button to transfer
the audio from the unit back to the Mobile Phone for privacy reason. The LCD Display will
display “ ” on the LCD for 3 seconds.

After the “TRANSFEER / MODE” button is pressed, the present mode will be muted at
the same time, user can press the Mute button to release the Mute.

When making an outgoing call, it's not possible to CALL TRANSFER if the call is not
being answered yet.. It's only possible to Transfer the call to Mobile Phone after the call
is being answered.

During the talking mode, if the Ignition is being turned off, the unit will keep the
conversation even if the Ignition is Switched off. After finished the conversation, User can
press “CLEAR / BAND” button to switch off the unit.

Depending on different type of Mobile Phone, the time need for activating the CALL
TRANSFER mode is different. Like Nokia Mobile Phone usually takes 3-5 seconds after
pressed the "TRANSFER / MODE” button for audio transfer back or forth through Unit to
Mobile Phone.

OUTGOING CALL

Making An Outgoing Call

User can use his / her Mobile Phone to dial and make an outgoing call. Once the user has
completed the dialling, the display should show “ ”.

The audio output of the present mode will ONLY be muted after pressing the “PHONE”
button as a confirmation to dial the outgoing call.

While there is an outgoing call or under talking mode, the Panel Open/Eject key is dis­activated.

Pls see “MENU”- “PHONE VOL” for details operation.

HIGHLIGHT FEATURE

Incoming call ringing volume.
Preset the Ringing volume level for any incoming call.

E - 31

(1) Con nect this un it with the au dio dev ice .

(2) Pre ss MODE butt on repeate dly unt il “BT AUDIO” app ears on the di splay.

Bluetooth Audio Streaming A2DP (Advanced Audio Distribution Profile)

Connecting A Bluetooth Audio Device With This Unit

Befor e using audi o device to pl ay musi c on this unit , the audio de vice must be p aired
with th is unit firs t.

User ca n listen to mu sic files on a n audio d evice on thi s unit if the au dio device
suppo rts A2DP (Ad vanced Aud io Dist ribution P rofile) of B luetooth Tec hnology. Pleas e
read th e below inst ruction be fore op erating th e Bluetoot h Audio stre aming f unc tion on
this un it.

a. Fo r the det ails opera tion of Pairing w ith this uni t, Please re fer to th e PAIR ING
opera tion for mor e details.
b. How to u se the Bluet ooth audio d evice t o pai r with th is unit, ple ase refer
to the in structio n manual of th e Bluet oot h devic e.

Tips

If the au dio device h as both HFP (H ands Free Pr ofile) and A 2DP (Advan ce
Audio D istribut ion Profil e), thi s unit will au tomatica lly pairin g these t wo
profi les at the sam e time. For ex, if a mo bile ph one h as both H FP & A2DP
profi le and this mo bile phone i s alrea dy HFP paire d with this un it, in this ca se
A2DP au dio device p airing is no t neces sary. And this pai red mobile p hone will
be adde d automati cally to the l ist of PAIRED D EVICE – AUDIO of th is unit .
Pleas e refer to MEN U of BT for deta ils of PAIRED D EVICE oper ation.

Listening To Music From An Audio Device In This Unit

For t he deta ils operat ion of conne cting with t his uni t, Please re fer to the
CONNE CTING oper ation for mo re deta ils.

(3) Onc e in the “BT AUDIO” m ode, user ca n use the a udio devic e to start pla yback
the son g via Blueto oth wirele ss with t his unit.

IMPOR TANT: To li sten Bl uetoo th audio str eamin g from th e audio d evice , user
MUST ch ange th e mode to “ BT AU DIO” fi rst. An y other m ode of this unit is not
able to a ctiva te the Bl uetoo th audio str eamin g ( A2DP ) fu nctio n.

If the audio device is the connectivity or no audio device is connecting with this
unit, after mode changed to BT AUD IO mode, the display will show
, and if after a 20 seconds time ou t still cannot find any audio
device for conne cting, the unit will display for 3 seconds then
turn to the Tunner Mode.

When mo de change to B T AUD IO mode, som e of the au dio device m ay auto
playb ack the musi c without op erate t he mu sic pla yback oper ation and so me
of the de vice like mo bile phone m ay need t o first chan ge into the 'M edia
Playe r' mode on the m obile phon e other wis e the son g cannot be di rect
playb ack via Blue tooth wire less. I f the auto pla yback not su pport on the a udio
devic e then pleas e refer to the i nstru cti on manu al of the audi o device on ho w
to oper ate music pl ayback via B lueto oth wirele ss technol ogy.

The PLAY c ommand may d iffers dep ending on th e Audio d evice. If th e
Audio d evice is not a ble auto sta rt play ing song aft er changed m ode into “BT
AUDIO” mod e, user may ne ed to operat e the PLAY mode o n the aud io device
to star t the song pla yback.

E - 32

Operating an audio device with this unit AVRC P ( Au di o Video
Remote Control Profile )

This un it can perfo rm the follo wing op erations w ith the conn ecting Aud io devi ce
which s upports AVRCP ( Audio V ide o Remot e Control Pr ofile) & onl y if the Audio
devic e does suppo rt AV RCP.

(1) Sta rt playing - E very time wh en user c han ge mode i nto “BT AUDIO” mo de, this
unit wi ll automat ically sen d a “PLAY” comm and via AVRC P to the audio d evice
to comm and the auto s tart playi ng song i n the a udio de vice.

(2) Track up / do wn - by pressi ng the Track up / d own b utton s on this unit .
(3) Pause / Play – by p ressi ng the Pau se / Play b utton on thi s unit.
(4) Volume up / dow n – by rotatin g the encode r knob on t his u nit.
(5) Aud io Mute – by pre ssing the Mu te butt on on t his uni t.
(6) Sto p playback – b y mode chang ing mod e into any oth er mode of thi s unit.

The AVRCP op eration ma y differ dep endin g on the audio d evice, all t he other
opera tion other t han those li sted ab ove should b e performe d on the audio
devic e.

Hands-free Phoning While Bluetooth Audio Streaming

If the co nnecting p layback au dio dev ice is a mobil e phone, all t he hands fre e
funct ion is still a vailable u nder th e Bluetoot h audio stre aming, lik e the ans wering
incom ing call, ma king an outg oing ca ll, etc.

Disconnecting An Audio Device With This Unit

User ca n close the Bl uetooth Au dio con nec tion by d isconnec ting with th e audio
devic e.

The det ails opera tion of disc onnec ting with th is unit, ple ase refer to t he DIS­CONNE CTION oper ation for mo re deta ils.

1

2

3

4

7

5

6

8

9

10

11

12

13

14

15

16

17

18

19

20

21

E - 33

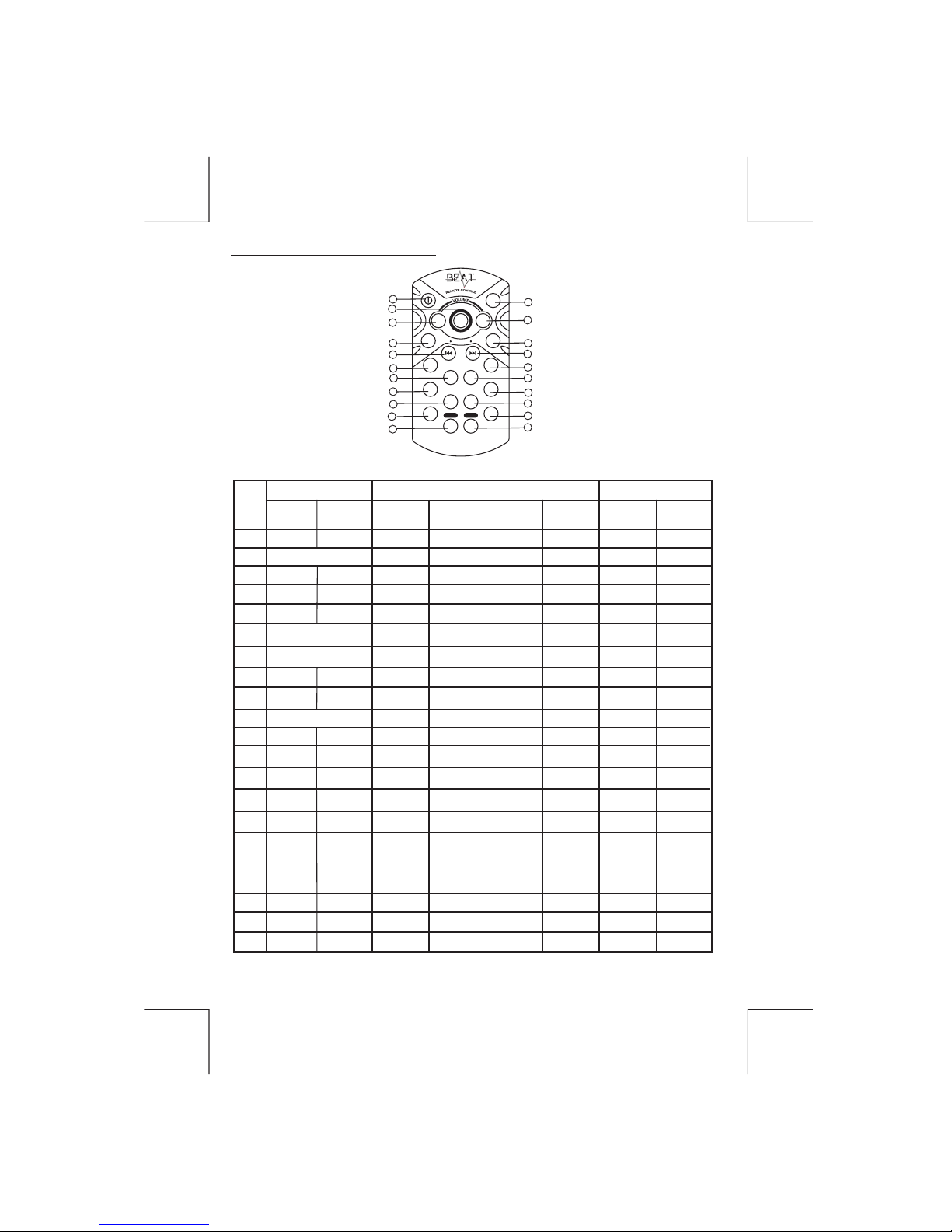

19. REMOTE FUNCTION

iPod

KEY

SYSTEM TUNER CD/MP3/WMA

1

2

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

3

Short
Press

Long

Press

OPERATIONS:

Short
Press

Long
Press

Short
Press

Long

Press

Short
Press

Long
Press

Mute

Panel Open & Close

Power

Eject

Panel release button

Enter

Mode

Volume Up

Band

File/Folder

Search

AF

TA

PTY

ix-Bass

PS

AS

ID3

iPod

Search

M1

M2

M3

M4

M5

M6

Memory 1

Memory 2

Memory 3

Memory 4

Memory 5

Memory 6

Pause

/Play

Pause

/Play

Intro

Folder

Intro

Repeat

Folder

Repeat

Repeat

Album

Repeat

Random

Folder

Random

Shuffle

Album

Shuffle

Folder

Down

Folder

Up

Display

Menu

Seek Up

Track/File
Up

Fast

Forward

Tune Up

Seek

Down

Tune

Down

Track/File

Down

Fast

Backward

USB Socket

iPod
information

Mute

Volume Down

Enter

Audio Menu

Enter

File Up

File

Down

Fast

Forward

Fast

Backward

EJECT

MODE

TRACK

MENU

DISP

1

2

3 4

5

6

BAND

PTY

PAU

RPT RDM

+

-

INT

F - DN

F - UP

AUDIO

AF

ID3

MUTE

ENTER

AS/PS

X-BASS

TA

SEARCH

COPY

Copy

GENERAL

AM/MW

PowerSupply
Polarity
Speaker impedance
Power Output

Frequency Range
Intermediate Frequency

UsableSensitivity
StereoSeparation
S/NRatio

DC 11 -14V
Negative Ground
4 ohms
4 x 40W

87.5-108 Mhz

10.7 MHz
Better than 15dB at S/N 30 dB
25 dB at 1KHz
50 dB

20.SPECIFICATIONS

CD PLAYER

REMARK :
Specifications subject to change without notice.

RADIO SECTION
FM

System
Usable disc
Sampling frequency
No of quantization bits
Frequency
Number of channels
S/N Ratio

Compact disc audio system
Compact disc

44.1KHz
1bit
5-20,000Hz
2 stereo
70dB

Frequency Range
Intermediate Frequency

UsableSensitivity
S/NRatio

522-1620 KHz
450KHz

Better than 45dB
40 dB

E - 34

MEDIA SECTION
USB Host

Memory Card

Support Type of Memory Card SD

Host 1.1 compatibles 2.0

BLUETOOTH

Power Consumption
Output Power
Frequency Band
Range
Standard

200mA
0 dBm (Class II)

2.4GHz ~ 2.4835GHz ISM Band
3 meters (free space)
Bluetooth 1.2 specification

Max.

ERROR 1

Write Error

Read Error

Memory Full

No File

Disc Error

The Media Device not able to
copy by the unit.

The Media Device not able to
play file by the unit

The media device memory is
full not allow to copy

No file Format supports for
Playback on the disc or
Media Device

Maybe disc dirty / disc scratched
/disc upside down.

Press the reset button to correct the problem.
If the error code does not disappear, consult
your nearest service dealer.

Replace the disc or Media Device..

Replace the disc.

Replace the Media Device or

Replace the Media device or erase
some un-usage files.

Symptom

Cause

Solution

No power

The car ignition is not on.

If the power supply is properly connected
to the car accessory terminal, switch the
ignition key to “ACC”

Disc cannot be
loaded or ejected

The fuse is blown.

Replace the fuse.

Presence of CD disc inside
the player.

Remove the disc in the player, then
put a new one.

Inserting the disc in reverse
direction.

Insert the compact disc with the
label facing upward.

Compact disc is extremely
dirty or defective disc.

Clean the disc or try to play a new one.

Temperature inside the car is
too high.

Cool off or until the ambient temperature
returns to normal.

Condensation.

Leave the player to off for an hour or so,
then try again.

Volume is in minimum.

Adjust volume to a desired level.

Wiring is not properly
connected.

Check wiring connection.

The operation keys
do not work

No sound

The built-in microcomputer is
not operating properly due to
noise.

Press the RESET button.
Front panel is not properly fixed into
its place

Sound skips.

The installation angle is
more than 30 degrees.

Adjust the installation angle to less
than 30 degrees.

The disc is extremely dirty or a
defective disc.

Clean the compact disc or try to play a
new one.

The antenna cable is not
connected.

Insert the antenna cable firmly.

The signals are too weak.

Select a station manually.

The radio does not
work.
The radio station
automatic selection
does not work.

21．TROUBLE SHOOTING

Before going through the check list, check wiring connection. If any of the problems persist
after check list has been made, consult your nearest service dealer.

E - 35

Mechanism Error

Replace the Media Device or
