Ref. Nr. 153.721
LED DJ BANK 120 LEDS
MANUAL
Page 2
- 2 -
Thank you for purchasing our company products. Please read these instructions carefully to enjoy
optimum performance and a longer service life before you start to use.
CONTENTS
CONTENTS ............................................................................................................................................. 2
Unpacking Inspections ............................................................................................................................ 2
Unpacking instructions ........................................................................................................................ 2
Checking the contents of the carton: ................................................................................................... 2
Safety Instructions ................................................................................................................................... 2
Product Overview .................................................................................................................................... 3
Functions Introductions ........................................................................................................................... 4
Main Functions .................................................................................................................................... 4
Operation Instructions ......................................................................................................................... 4
Sound .............................................................................................................................................. 4
Speed .............................................................................................................................................. 4
Maintenance ............................................................................................................................................ 4
Specification ............................................................................................................................................ 4
CE & R&TTE Declaration of Conformity .................................................................................................. 5
UNPACKING INSPECTIONS
Unpacking instructions
Please unpack the carton and check the goods carefully when you receive it , if discover
packing damage, shortage or quality problem, please notify the shipper and reject the goods.
Before using this product, please read the instructions carefully and keep it in a safe place for
future reference.
Checking the contents of the carton:
The product, Power cord, Instruction Manual
SAFETY INSTRUCTIONS
Safety and regulatory power socket with high quality output should be used .
Always connect the product to a grounded circuit to avoid the risk of electrocution.
Never put tiny metal objects such as a screwdriver, iron wire and coins, etc. into the internal or
stretch into the machine in case of short circuit .
Please make sure to connect the proper voltage and do not higher or lower than that stated on
the decal or rear panel of the product .
Page 3
- 3 -
Avoid hitting, crashing or squeezing with other objects in transportation. Never carry the
product from the power cord or any moving part . Always use the hanging / mounting bracket
or the handles.
The product is used in door only .
Never pull or tug on the cord and change it for another one , stop using it when it is damaged
or becomes hot .
Stop using the product once there is sparks when connecting with the power plug .
Can not operate product with wet hands and never place it near the water or other liquid.
Make sure there are no flammable materials close to the fixture while operating . Always install
it in a location with adequate ventilation.
Never replace the lighting source with different specification and rating when the original one
is damaged.
Make sure to power off before replacing the light source or the fuse. Never do it while it is on.
The ambient temperature is no more than 40°C(104°F) .
Never clean the fixture by water, thinner or other dissolved agent .
Stop using the product in case of a serious operating problem and send it to our maintenance
agent immediately. Never repair by non-professional workers .
Avoid direct eye exposure to the light source while the product is on.

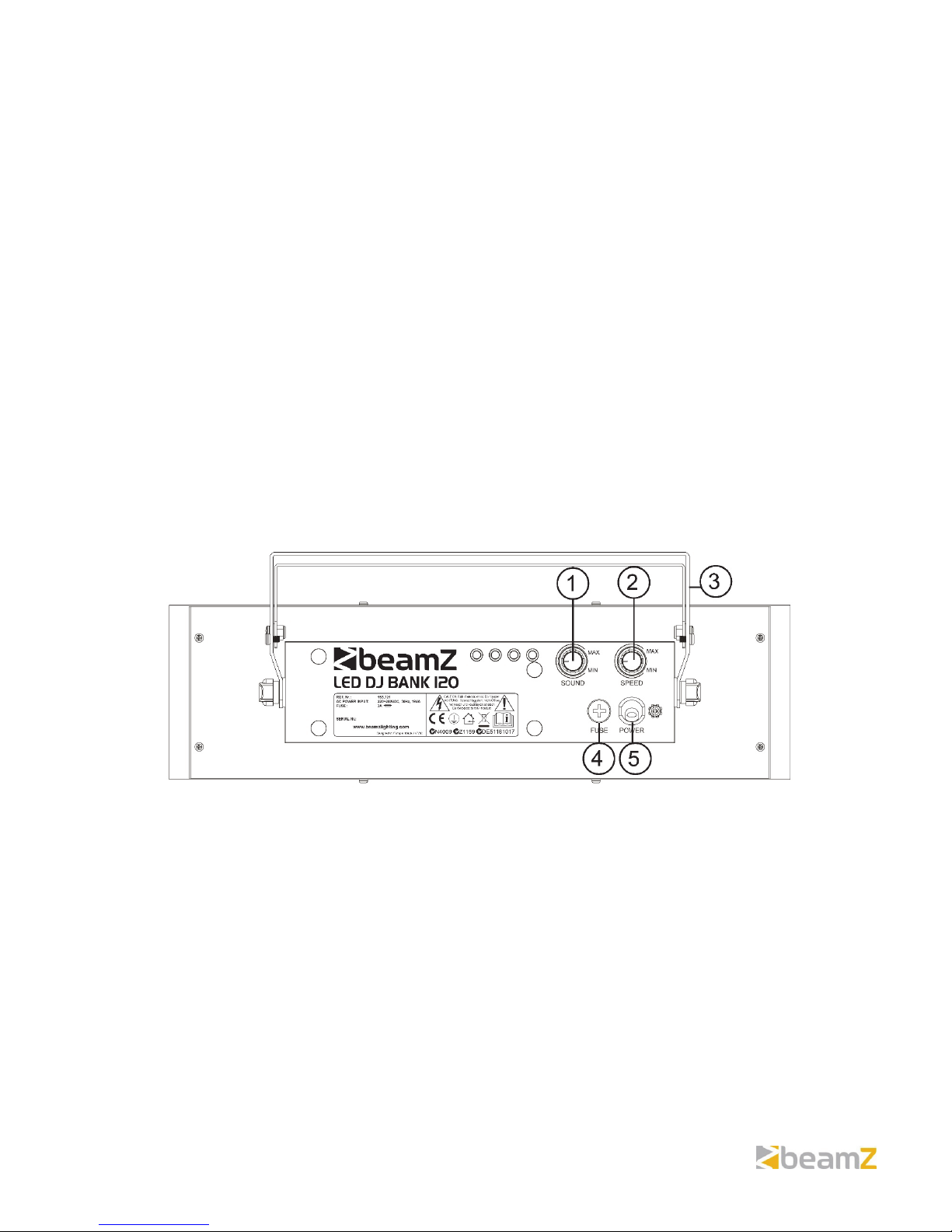

PRODUCT OVERVIEW
1. Sound sensitivity adjustment
2. Speed adjustment
3. Hanging bracket
4. Fuse
5. Power input
6. LEDs
Page 4
- 4 -
FUNCTIONS INTRODUCTIONS
Main Functions
Sound active and auto mode
Operation Instructions
Sound
Knob is for sound sensitivity adjustment.
Speed
Knob is for automatic display speed adjustment
MAINTENANCE
The unit should be cleaned periodically to ensure the optimum performance, the smudginess can
decrease the life of light and the output of light is affected by the dust which can make the machine
overheating. In general, make the maintenance at least two times a month. Be sure to power off the
unit before cleaning .
Do not clean until the unit recovers normal temperature since high temperature for using, use the lens
tissue or soft cotton cloth with alcohol to wipe gently.
Cleaning frequency depends on the environment in which the fixture operates, damp, smoky or dirty
surrounding can cause greater accumulation of dirt on the optics. Never rub or press strongly on the
panel.
SPECIFICATION
Voltage ...................................... 220-240V AC 50/60Hz
Input current ........................................................ 0.11A
Power ..................................................................... 26W
Fuse .............................................................. 1.6A 230V
Light source .................................................. 120x 5mm
........................................................................ 30x Red
..................................................................... 30x Green
....................................................................... 30x Blue
.................................................................... 30x Yellow
Weight ................................................................... 1.6kg
Size ........................................ L400 x W150 x H100mm
Page 5
- 5 -
CE & R&TTE DECLARATION OF CONFORMITY
Importer: TRONIOS BV
Bedrijvenpark Twente 415
7602 KM - ALMELO
Tel : 0031546589299
Fax : 0031546589298
The Netherlands
Product number: 153.721
Product Description: Beamz,
LED DJ Bank 120 LEDs
Regulatory Requirement: EN 60598-1/-2-17:2009
EN 62031:2008
EN 61347-2-13:2007
EN 62479:2010
EN 55015:2006/A2:2009
EN61547:2009
The product meets the requirements stated in the above mentioned Standards. This certificate does not
cover the aspects that may be relevant such as performance and fitness for purpose.
Almelo,
10-03-2012
